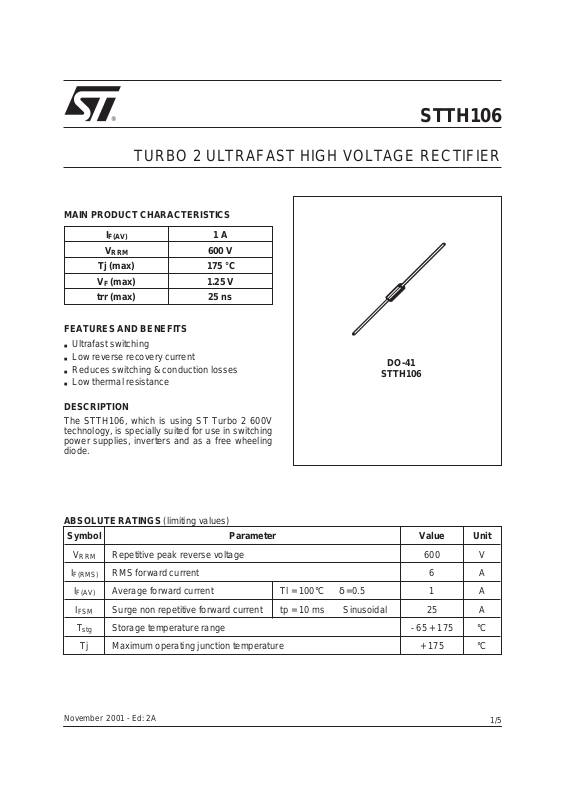

Page 1
®
TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
MAIN PRODUCT CHARACTERISTICS
STTH106
I
F(AV)
V
RRM
1A
600 V
Tj (max) 175 °C
(max) 1.25 V
V
F
trr (max) 25 ns
FEATURES AND BENEFITS
Ultrafast switching
■
■ Low reverse recovery current
■ Reduces switching & conductionlosses
Low thermal resistance
■
DESCRIPTION
The STTH106, which is using ST Turbo 2 600V
technology, is specially suited for use in switching
power supplies, inverters and as a free wheeling
diode.
DO-41
STTH106
ABSOLUTE RATINGS (limiting values)
Symbol Parameter Value Unit
V
RRM
I
F(RMS)
I
F(AV)
I
FSM
T
stg
Repetitive peak reverse voltage 600 V
RMS forward current 6 A
Average forward current Tl = 100°C δ =0.5 1 A
Surge non repetitive forwardcurrent tp = 10 ms Sinusoidal 25 A
Storage temperature range - 65 + 175 °C
Tj Maximum operatingjunction temperature + 175 °C
November 2001 - Ed: 2A
1/5
Page 2
STTH106
THERMAL PARAMETERS
Symbol Parameter Maximum Unit
R
R
th (j-l)
th (j-a)
Junction to lead 45 °C/W
Junction to ambient 110
STATIC ELECTRICAL CHARACTERISTICS
Symbol Parameter Tests conditions Min. Typ. Max. Unit
I
R
V
Reverse leakage
current
Forward voltage drop IF= 1 A Tj = 25°C 1.7 V
F
VR= 600V Tj = 25°C 1 µA
Tj = 150°C 10 75
Tj = 150°C 1.0 1.25
To evaluate the maximumconduction losses use the following equation :
P=1.03xI
F(AV)
+ 0.27 I
F2(RMS)
DYNAMIC ELECTRICAL CHARACTERISTICS
Symbol Tests conditions Min. Typ. Max. Unit
trr I
tfr I
V
FP
= 0.5 A Irr = 0.25 A IR= 1A Tj = 25°C 25 ns
F
I
=1A dIF/dt=-50A/µs
F
30 45
VR= 30V
=1A dIF/dt = 100 A/µs
F
VFR=1.1xVFmax
Tj = 25°C 100 ns
10 V
2/5
Page 3
STTH106
Fig.1: Conductionlossesversusaveragecurrent.
P(W)
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0.0 0.2 0.4 0.6 0.8 1.0 1.2
δ = 0.05
δ = 0.1
IF(av)(A)
δ = 0.2
δ = 0.5
δ
=tp/T
δ = 1
T
tp
Fig. 3: Relative variation of thermal impedance
junction ambient versus pulse duration (epoxy
FR4, Leads = 10mm)
Zth(j-a)/Rth(j-a)
1.0
0.9
0.8
0.7
0.6
δ = 0.5
0.5
0.4
0.3
δ = 0.2
0.2
δ = 0.1
0.1
0.0
1.E-01 1.E+00 1.E+01 1.E+02 1.E+03
Single pulse
tp(s)
δ
=tp/T
T
tp
Fig. 2: Forward voltage drop versus forward
current.
IFM(A)
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
012345
(Maximum values)
(Maximum values)
Tj=150°C
Tj=150°C
(Typical values)
(Typical values)
Tj=150°C
Tj=150°C
VFM(V)
Tj=25°C
(Maximum values)
Fig. 4: Peak reverse recovery current versus
/dt (90% confidence).
dI
F
IRM(A)
9
VR=400V
Tj=125°C
8
7
6
5
4
IF=0.25 x IF(av)
3
2
1
0
0 50 100 150 200 250 300 350 400 450 500
IF=0.5 x IF(av)IF=0.5 x IF(av)
IF=IF(av)
dIF/dt(A/µs)
IF=2 x IF(av)IF=2 x IF(av)
Fig. 5: Reverse recovery time versus dIF/dt
(90% confidence).
trr(ns)
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
0 50 100 150 200 250 300 350 400 450 500
IF=2 x IF(av)
IF=IF(av)
IF=0.5 x IF(av)IF=0.5 x IF(av)
dIF/dt(A/µs)
VR=400V
Tj=125°C
Fig. 6: Reverse recovery charges versus dIF/dt
(90% confidence).
Qrr(nC)
250
VR=400V
225
Tj=125°C
200
175
150
125
100
75
50
25
0
0 50 100 150 200 250 300 350 400 450 500
IF=2 x IF(av)
IF=IF(av)
IF=0.5 x IF(av)
dIF/dt(A/µs)
3/5
Page 4
STTH106
Fig. 7: Softness factor versus dIF/dt (typical
values).
S factor
6
IF=IF(av)
VR=400V
Tj=125°C
5
4
3
2
1
dIF/dt(A/µs)
0
0 50 100 150 200 250 300 350 400 450 500
Fig. 9: Transient peak forward voltage versus
/dt (90% confidence).
dI
F
VFp(V)
25
IF=IF(av)
Tj=125°C
20
15
10
5
dIF/dt(A/µs)
0
0 20 40 60 80 100 120 140 160 180 200
Fig. 8: Relative variation of dynamic
parameters versus junction temperature.
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
25 50 75 100 125
S factor
IRM
Qrr
Tj(°C)
IF=IF(av)
VR=400V
Reference: Tj=125°C
Fig. 10: Forward recovery time versus dIF/dt
(90% confidence).
trr(ns)
200
180
160
140
120
100
80
60
40
20
0
0 20 40 60 80 100 120 140 160 180 200
dIF/dt(A/µs)
IF=IF(av)
VFR=1.1 x VF max.
Tj=125°C
Fig. 11: Junction capacitance versus reverse
voltage applied (typical values).
C(pF)
100
10
VR(V)
1
1 10 100 1000
4/5
F=1MHz
Vosc=30mV
Tj=25°C
Page 5
PACKAGE MECHANICAL DATA
DO41
STTH106
DIMENSIONS
CA
C
/
BO
REF.
Millimeters Inches
Min. Max. Min. Max.
A 4.07 5.20 0.160 0.205
B 2.04 2.71 0.080 0.107
O
/
O
/
D
D
C 28 1.102
D 0.712 0.863 0.028 0.034
Ordering code Marking Package Weight Base qty Delivery mode
STTH106 STTH106 DO-41 0.34 g 2000 Ammopack
STTH106RL STTH106 DO-41 0.34 g 5000 Tape & reel
Epoxy meets UL 94,V0
■
