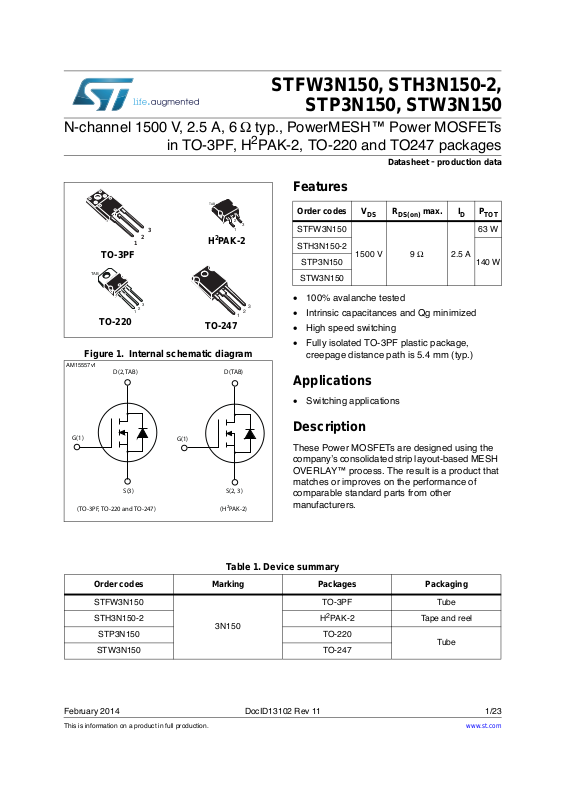

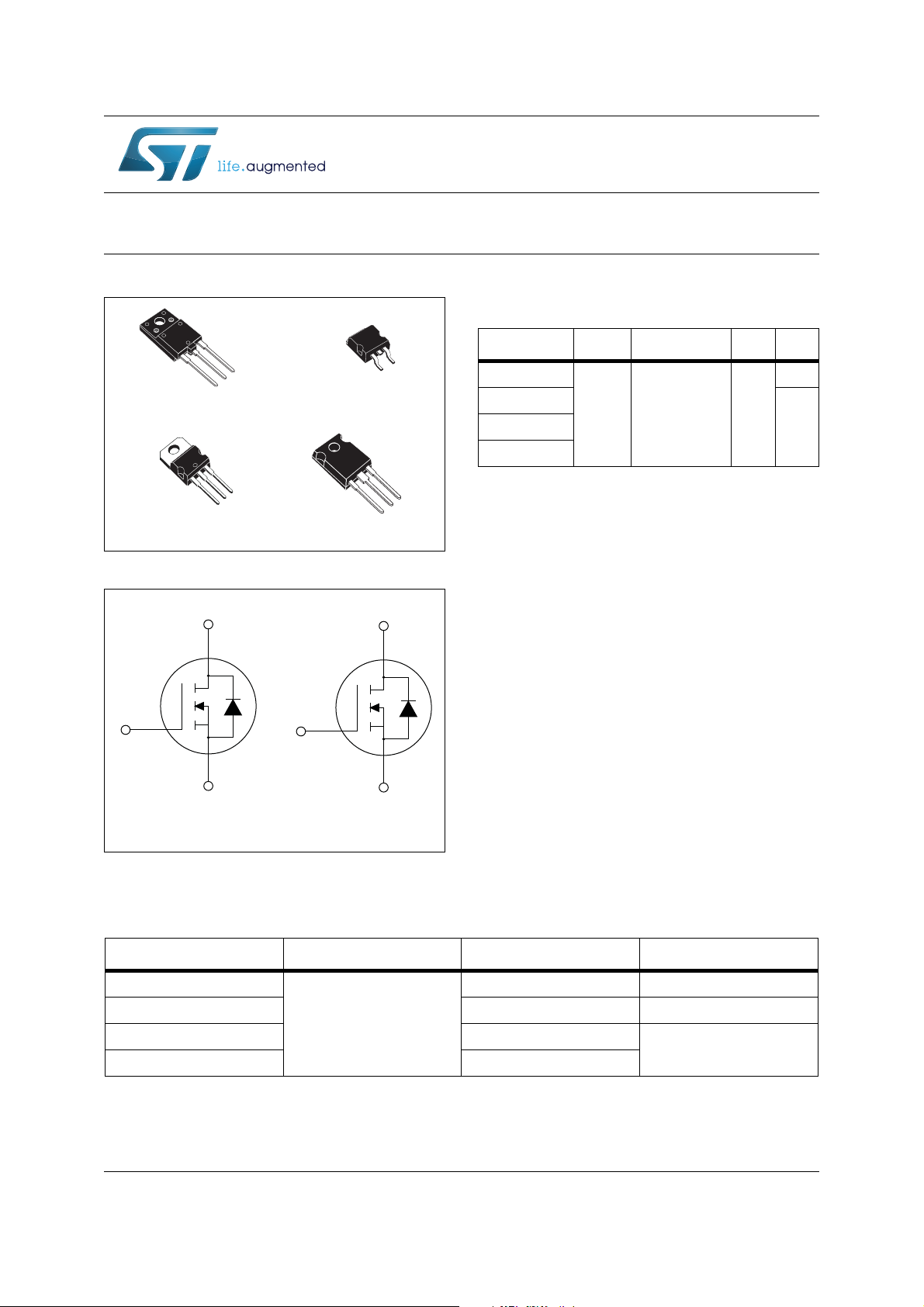

N-channel 1500 V, 2.5 A, 6 Ω typ., PowerMESH™ Power MOSFETs

in TO-3PF, H

2

PAK-2, TO-220 and TO247 packages

Datasheet - production data

Features

Figure 1. Internal schematic diagram

Order codes V

STFW3N150

DS

R

DS(on)

max. IDP

TOT

63 W

STH3N150-2

1500 V 9 Ω 2.5 A

140 WSTP3N150

STW3N150

• 100% avalanche tested

• Intrinsic capacitances and Qg minimized

• High speed switching

• Fully isolated TO-3PF plastic package,

creepage distance path is 5.4 mm (typ.)

Applications

• Switching applications

Description

These Power MOSFETs are designed using the
company’s consolidated strip layout-based MESH
OVERLAY™ process. The result is a product that
matches or improves on the performance of
comparable standard parts from other
manufacturers.

Order codes Marking Packages Packaging

STFW3N150

STH3N150-2 H2PAK-2 Tape and reel

STP3N150 TO-220

STW3N150 TO-247

February 2014 DocID13102 Rev 11 1/23

This is information on a product in full production.

Table 1. Device summary

TO-3PF Tube

3N150

Tube

www.st.com

Contents STFW3N150, STH3N150-2, STP3N150, STW3N150

Contents

1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Test circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5 Packaging mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2/23 DocID13102 Rev 11

STFW3N150, STH3N150-2, STP3N150, STW3N150 Electrical ratings

1 Electrical ratings

Table 2. Absolute maximum ratin gs

Value

2

H

Symbol Parameter

TO-3PF

PAK-2,

TO-220,

TO-247

Unit

Drain-source voltage 1500 V

DS

Gate-source voltage ± 30 V

GS

I

Drain current (continuous) at TC = 25 °C 2.5

D

I

Drain current (continuous) at TC = 100 °C 1.6

D

(1)

Drain current (pulsed) 10

Total dissipation at TC = 25 °C 63 140 W

TOT

(1)

(1)

(1)

2.5 A

1.6 A

10 A

I

DM

P

V

V

Insulation withstand voltage (RMS) from

V

all three leads to external heat sink

ISO

(t=1 s; T

=25 °C)

C

3500 V

Derating factor 0.5 1.12 W/°C

T

1. Pulse width limited by safe operating area

Storage temperature -50 to 150 °C

stg

T

Max. operating junction temperature 150 °C

j

Table 3. Thermal data

Symbol Parameter TO-3PF H2PAK-2 TO-220 TO-247 Unit

R

thj-case

R

thj-amb

R

thj-pcb

1. When mounted on 1 inch2 FR-4 board, 2 oz Cu

Thermal resistance junction-case max 2 0.89 °C/W

Thermal resistance junction-ambient
max

Thermal resistance junction-pcb max 35

50 62.5 50 °C/W

(1)

°C/W

T able 4. Avalanche characteristics

Symbol Parameter Max value Unit

Avalanche current, repetitive or

I

E

not-repetitive

AR

(pulse width limited by T

Single pulse avalanche energy

AS

(starting T
V

DD

= 25 °C, ID = IAR,

j

= 50 V)

2.5 A

max)

j

450 mJ

DocID13102 Rev 11 3/23

23

Electrical characteristics STFW3N150, STH3N150-2, STP3N150, STW3N150

2 Electrical characteristics

(T

= 25 °C unless otherwise specified)

case

Table 5. On /off states

Symbol Parameter Test conditions Min. Typ. Max. Unit

V

(BR)DSS

I

DSS

I

GSS

V

GS(th)

R

DS(on

Drain-source
breakdown voltage

Zero gate voltage
drain current (VGS = 0)

Gate-body leakage
current (V

DS

= 0)

ID = 1 mA, VGS = 0 1500 V

V

= 1500 V 10 μA

DS

V

= 1500 V, TC=125 °C 500 μA

DS

= ± 30 V ± 100 nA

V

GS

Gate threshold voltage VDS = VGS, ID = 250 μA 345V

Static drain-source on­resistance

= 10 V, ID = 1.3 A 6 9 Ω

V

GS

Table 6. Dynamic

Symbol Parameter Test conditions Min. Typ. Max. Unit

Forward

(1)

g

fs

C

C

C

transconductance

Input capacitance

iss

Output capacitance - 102 - pF

oss

Reverse transfer

rss

capacitance

V

= 30 V, ID = 1.3 A - 2.6 - S

DS

-

939

--pF

V

= 25 V, f = 1 MHz, VGS = 0

DS

--pF

-13.2-pF

-pF

oss eq.

(2)

capacitance

=0 to 1200 V, VGS = 0 - 100 - pF

V

DS

C

Equivalent output

f = 1 MHz, gate DC

R

Q

Q

Q

1. Pulsed: pulse duration = 300 μs, duty cycle 1.5%

2. C

oss eq.

increases from 0 to 80% V

Gate input resistance

g

Total gate charge

g

Gate-source charge - 4.6 - nC

gs

Gate-drain charge - 17 - nC

gd

is defined as a constant equivalent capacitance giving the same charging time as C

DSS

Bias = 0,
test signal level = 20 mV,
I

= 0

D

V

= 1200 V, ID = 2.5 A,

DD

VGS = 10 V

(Figure 19)

4/23 DocID13102 Rev 11

-4-Ω

-29.3-nC

when VDS

oss

STFW3N150, STH3N150-2, STP3N150, STW3N150 Electrical characteristics

Table 7. Switching times

Symbol Parameter Test conditions Min. Typ. Max. Unit

t

d(on)

t

d(off)

Turn-on delay time

= 750 V, ID = 1.25 A,

V

t

Rise time - 47 - ns

r

Turn-off-delay time - 45 - ns

t

Fall time - 61 - ns

f

DD

R

= 4.7 Ω, V

G

(Figure 18)

GS

= 10 V

-24 -ns

Table 8. Source drain diode

Symbol Parameter Test conditions Min. Typ. Max. Unit

I

I

SDM

V

SD

Q

I

RRM

Q

I

RRM

1. Pulse width limited by safe operating area

2. Pulsed: pulse duration = 300 μs, duty cycle 1.5%

Source-drain current - 2.5 A

SD

(1)

Source-drain current (pulsed) - 10 A

(2)

Forward on voltage I

t

Reverse recovery time

rr

Reverse recovery charge - 2.4 μC

rr

Reverse recovery current - 11.7 A

t

Reverse recovery time

rr

Reverse recovery charge - 3.3 μC

rr

Reverse recovery current - 12.3 A

= 2.5 A, VGS = 0 - 1.6 V

SD

I

= 2.5 A, di/dt = 100 A/μs

SD

V

= 60 V

DD

-410 ns

(Figure 20)

I

= 2.5 A, di/dt = 100 A/μs

SD

V

= 60 V, Tj = 150 °C

DD

-540 ns

(Figure 20)

DocID13102 Rev 11 5/23

23

Electrical characteristics STFW3N150, STH3N150-2, STP3N150, STW3N150

I

D

10

1

0.1

0.01

0.1

1

100

V

DS

(V)

10

(A)

Operation in this area is

Limited by max R

DS(on)

10µs

100µs

1ms

10ms

Tj=150°C
Tc=25°C

Sinlge
pulse

1000

AM03934v1

10

-5

10

-4

10

-3

10

-2

10

-1

t

p

(s)

10

-2

10

-1

K

0.2

0.05

0.02

0.01

0.1

Single pulse

δ=0.5

TO3PF

2.1 Electrical characteristics (curves)

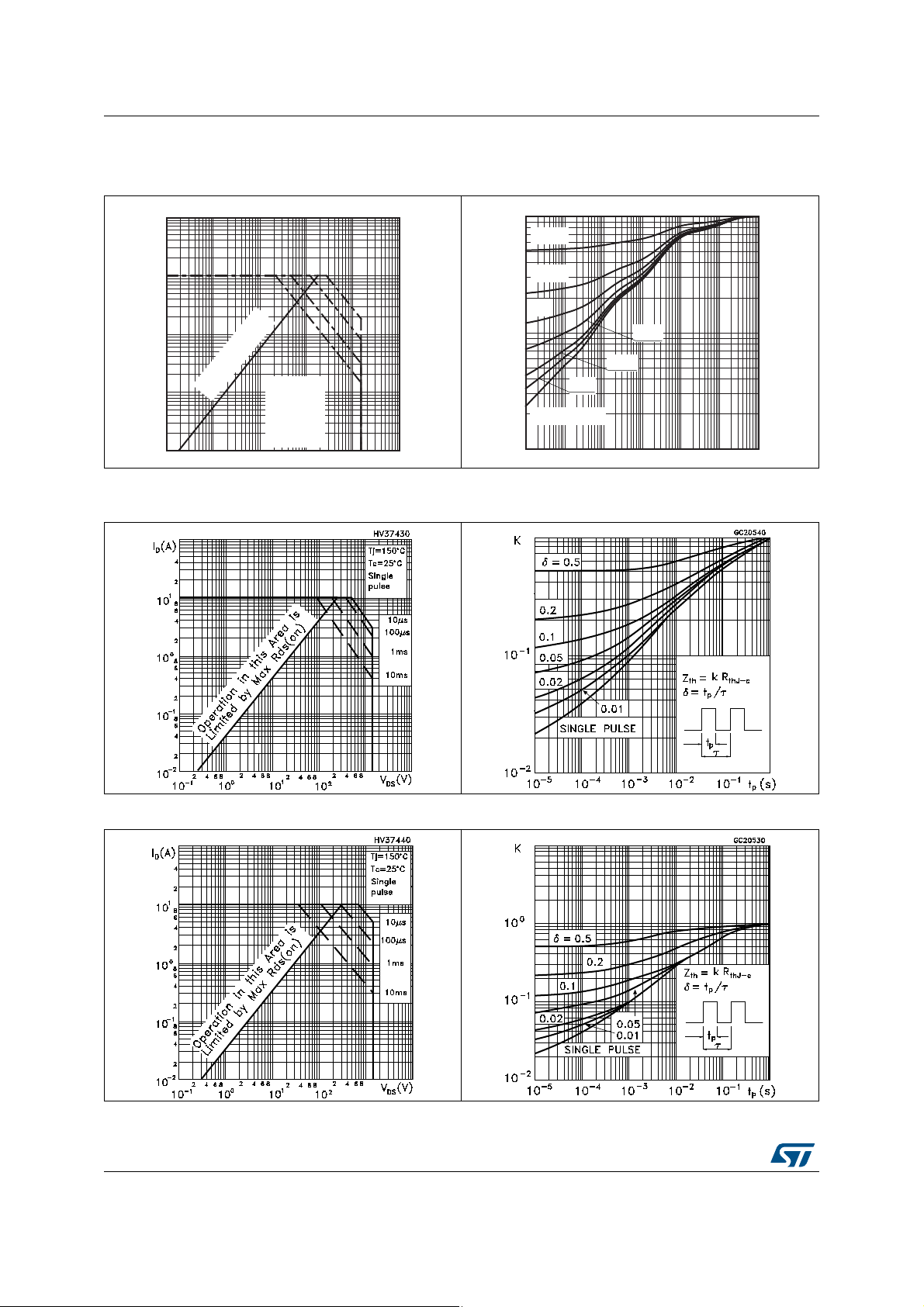

Figure 2. Safe operating area for TO-3PF Figure 3. Thermal impedance for TO-3PF

Figure 4. Safe operating area for H2PAK-2 and

Figure 6. Safe operating area for TO-247 Figure 7. Thermal impedance for TO-247

TO-220

Figure 5. Thermal impedance for H2PAK-2 and

TO-220

6/23 DocID13102 Rev 11

STFW3N150, STH3N150-2, STP3N150, STW3N150 Electrical characteristics

Figure 10. Normalized BV

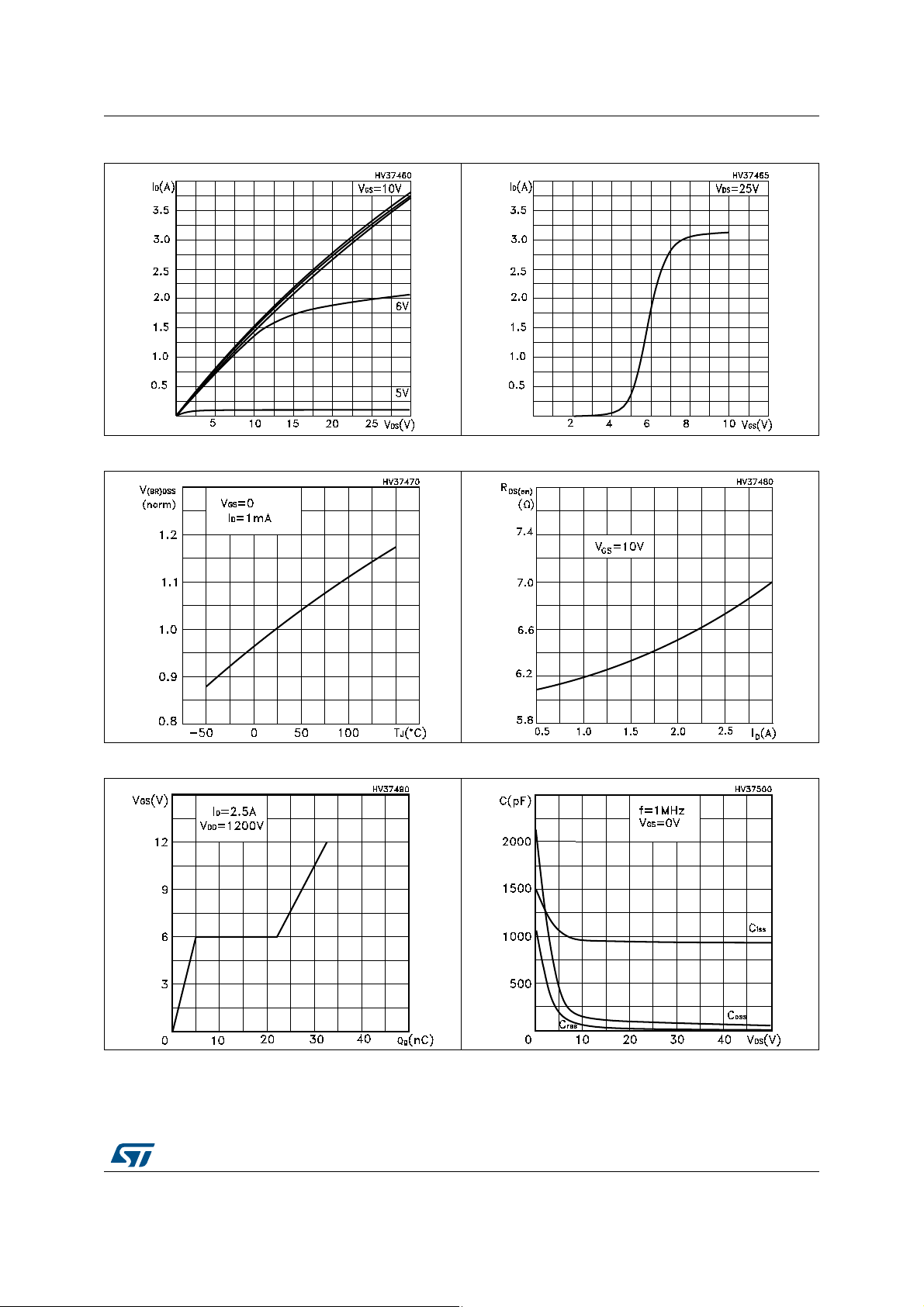

Figure 8. Output characteristics Figure 9. Transfer characteristics

vs. temperature Figure 11. Static drain-source on-resistance

DSS

Figure 12. Gate charge vs. gate-source voltage Figure 13. Capacitance variations

DocID13102 Rev 11 7/23

23

Electrical characteristics STFW3N150, STH3N150-2, STP3N150, STW3N150

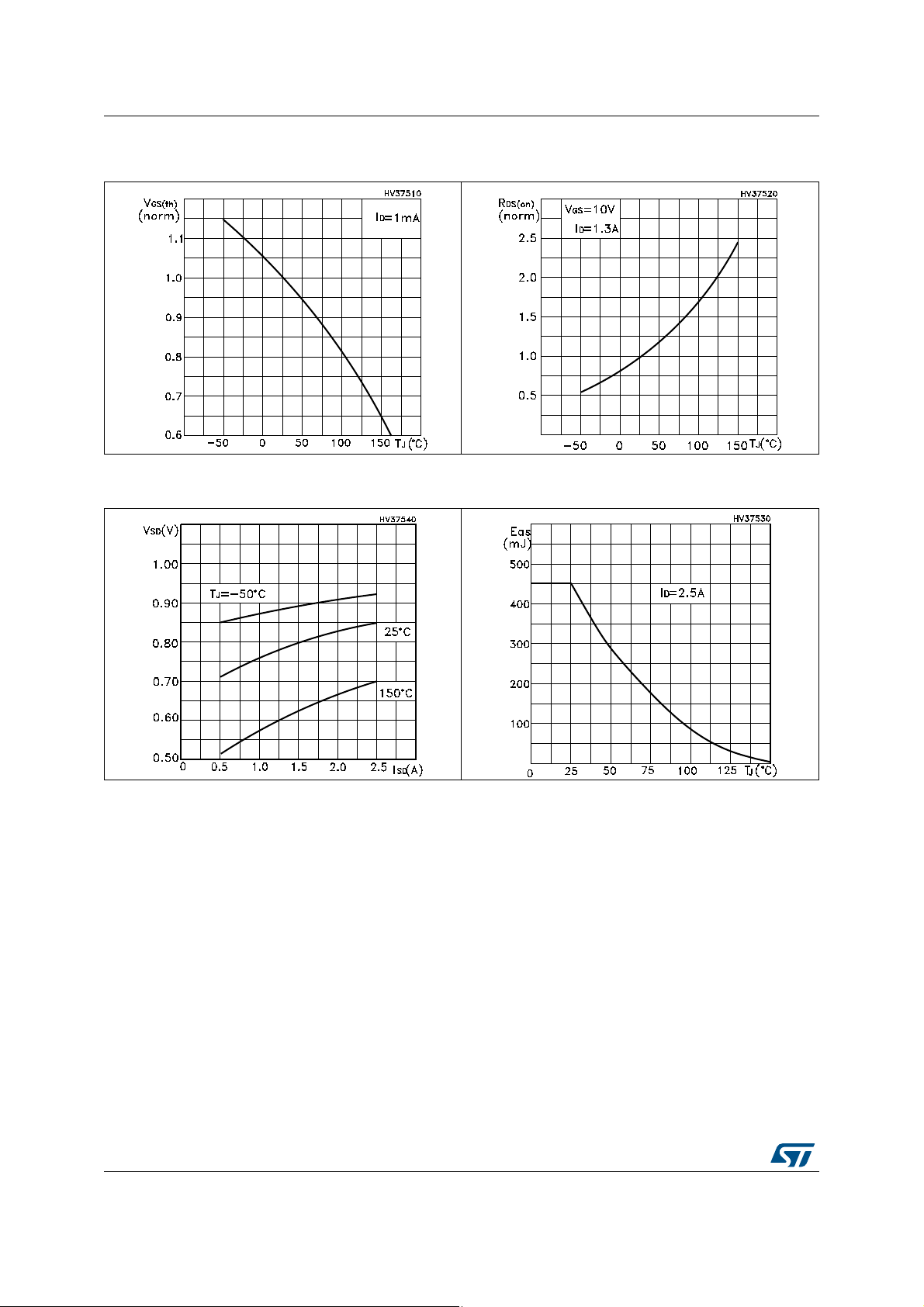

Figure 14. Normalized gate threshold voltage

vs. temperature

Figure 16. Source-drain diode forward

characteristics

Figure 15. Normalized on resistance vs.

temperature

Figure 17. Maximum avalanche energy vs Tj

8/23 DocID13102 Rev 11

STFW3N150, STH3N150-2, STP3N150, STW3N150 Test circuits

AM01468v1

VGS

PW

VD

RG

RL

D.U.T.

2200

μF

3.3
μF

V

DD

AM01469v1

VDD

47kΩ

1kΩ

47kΩ

2.7kΩ

1kΩ

12V

V

i=20V=VGMAX

2200
μF

PW

IG=CONST

100Ω

100nF

D.U.T.

V

G

AM01470v1

A

D

D.U.T.

S

B

G

25

Ω

A

A

B

B

R

G

G

FAST
DIODE

D

S

L=100μH

μF

3.3

1000

μF

V

DD

AM01472v1

V(BR)DSS

VDD

VDD

VD

IDM

ID

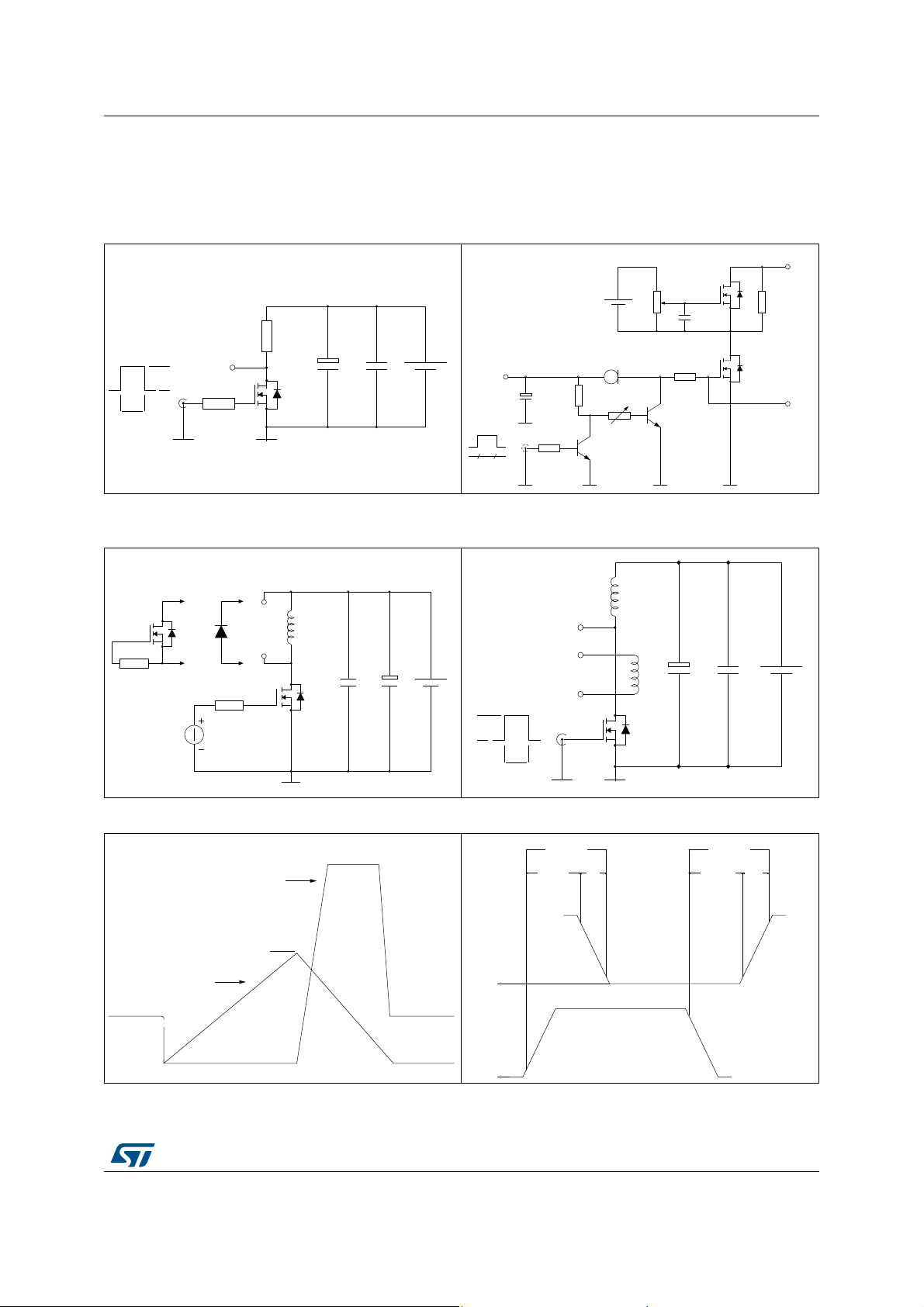

3 Test circuits

Figure 18. Switching times test circuit for

resistive load

Figure 20. Test circuit for inductive load

switching and diode recovery times

Figure 19. Gate charge test circuit

Figure 21. Unclamped inductive load test circuit

L

VD

2200

μF

3.3

μF

VDD

Figure 22. Unclamped inductive waveform Figure 23. Switching time waveform

ID

Vi

D.U.T.

Pw

AM01471v1

tdon

ton

tr

90%

tdoff

toff

tf

90%

10%

0

10%

VDS

90%

V

GS

10%

0

AM01473v1

DocID13102 Rev 11 9/23

23

Package mechanical data STFW3N150, STH3N150-2, STP3N150, STW3N150

4 Package mechanical data

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK

specifications, grade definitions and product status are available at: www.st.com.

ECOPACK

®

packages, depending on their level of environmental compliance. ECOPACK®

®

is an ST trademark.

10/23 DocID13102 Rev 11

STFW3N150, STH3N150-2, STP3N150, STW3N150 Package mechanical data

7627132_D

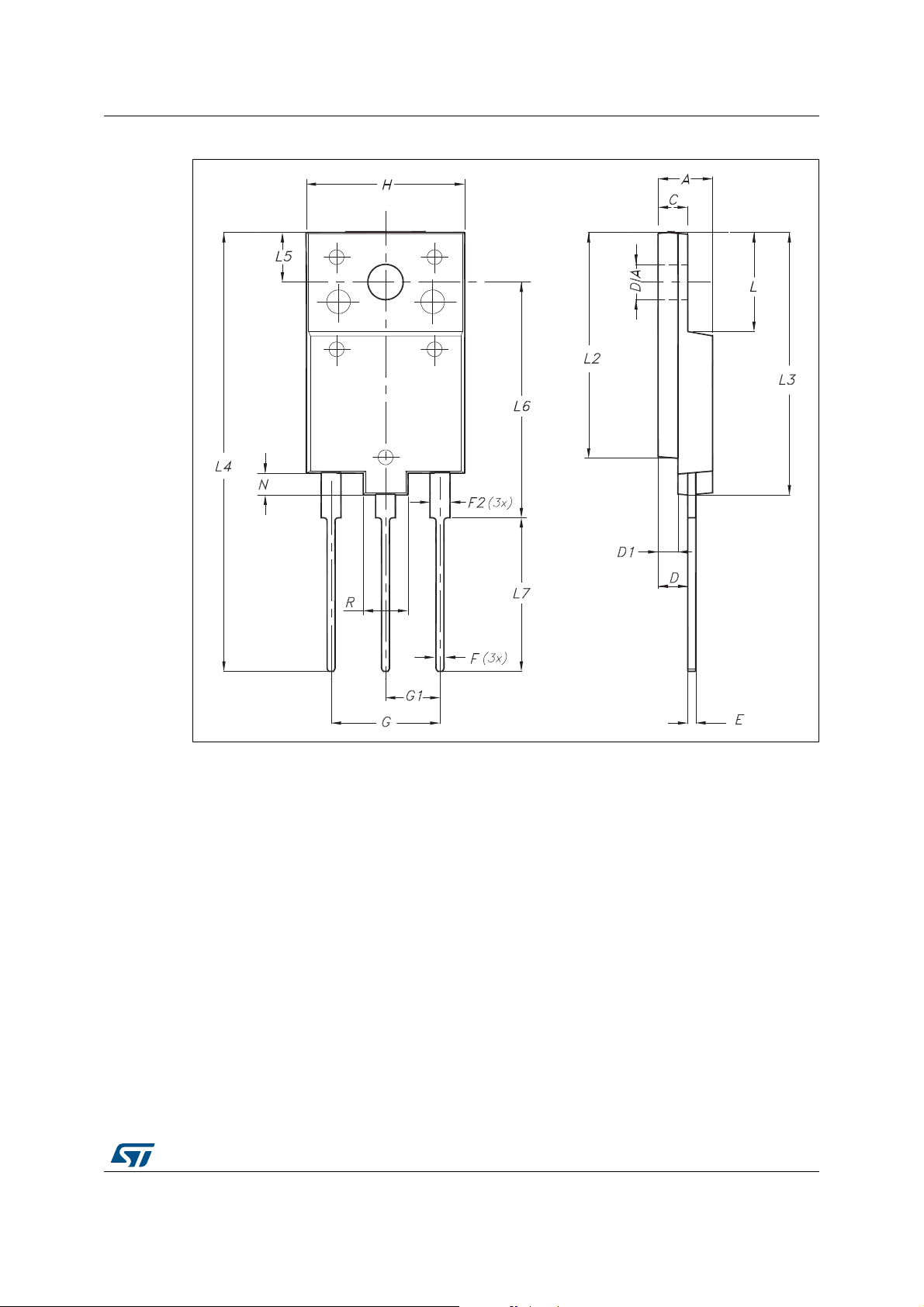

Figure 24. TO-3PF drawing

DocID13102 Rev 11 11/23

23

Package mechanical data STFW3N150, STH3N150-2, STP3N150, STW3N150

T a ble 9. TO-3PF mechanical data

mm

Dim.

Min. Typ. Max.

A5.30 5.70

C2.80 3.20

D3.10 3.50

D1 1.80 2.20

E0.80 1.10

F0.65 0.95

F2 1.80 2.20

G10.30 11.50

G1 5.45

H 15.30 15.70

L 9.80 10 10.20

L2 22.80 23.20

L3 26.30 26.70

L4 43.20 44.40

L5 4.30 4.70

L6 24.30 24.70

L7 14.60 15

N1.80 2.20

R3.80 4.20

Dia 3.40 3.80

12/23 DocID13102 Rev 11

STFW3N150, STH3N150-2, STP3N150, STW3N150 Package mechanical data

8159712_C

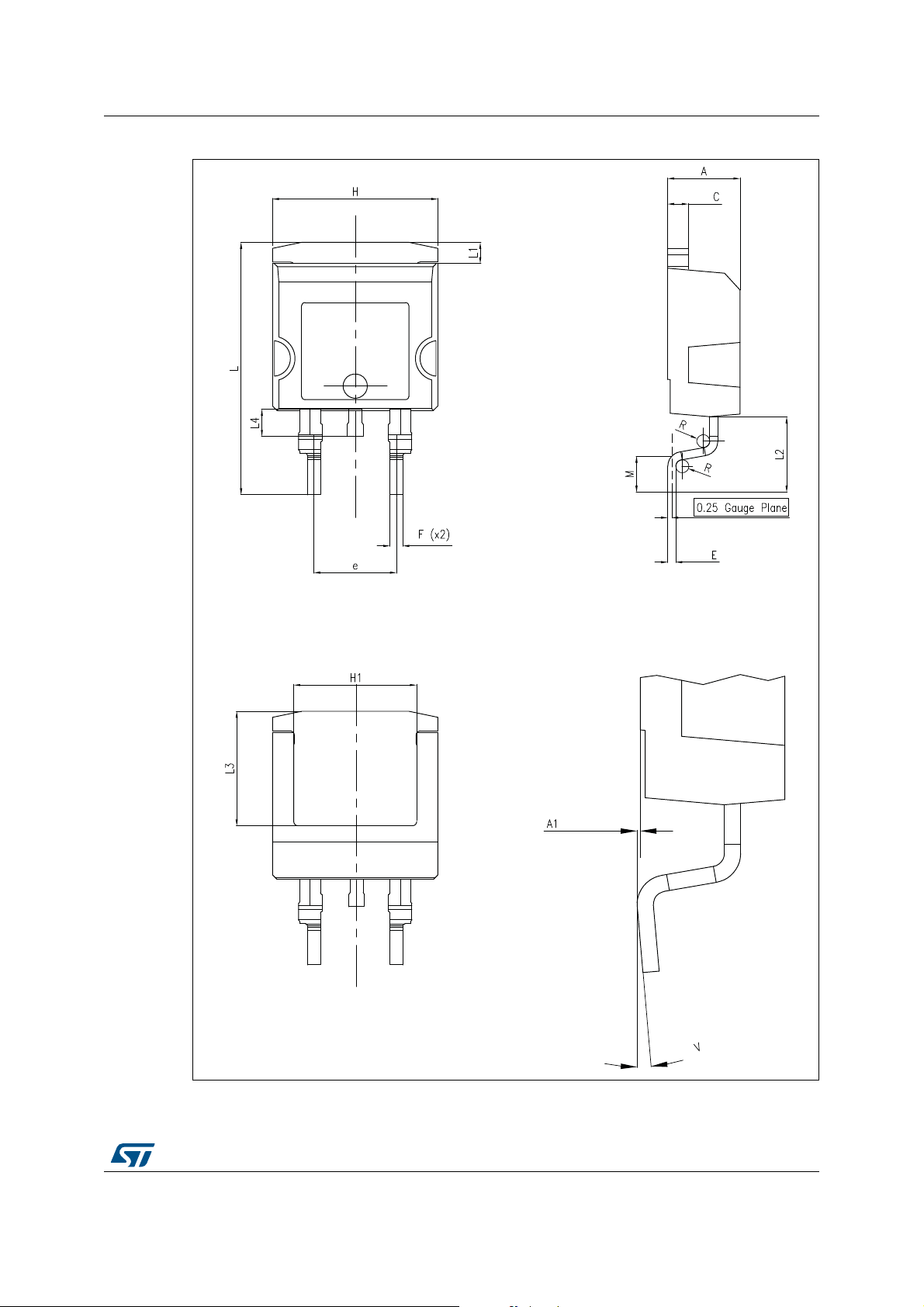

Figure 25. H²PAK-2 drawing

DocID13102 Rev 11 13/23

23

Package mechanical data STFW3N150, STH3N150-2, STP3N150, STW3N150

Table 10. H²PAK-2 mechanical data

mm

Dim.

Min. Typ. Max.

A4.30

A1 0.03 0.20

C1.17 1.37

e4.98 5.18

E0.50 0.90

F0.78 0.85

H 10.00 10.40

H1 7.40 7.80

-

L 15.30 15.80

L1 1.27 1.40

L2 4.93 5.23

L3 6.85 7.25

L4 1.5 1.7

M2.6 2.9

R0.20 0.60

V0° 8°

4.80

14/23 DocID13102 Rev 11

STFW3N150, STH3N150-2, STP3N150, STW3N150 Package mechanical data

8159712_C

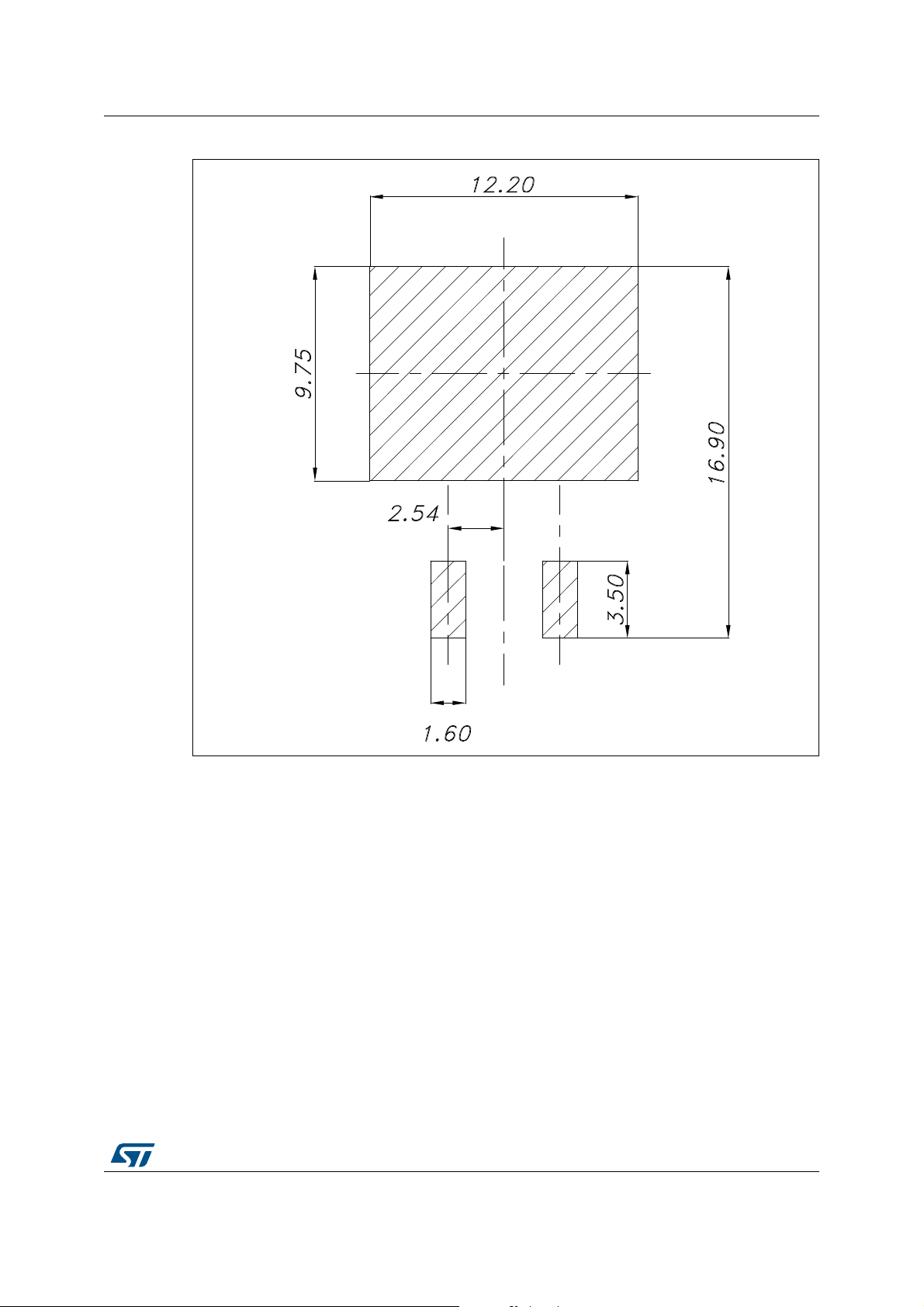

Figure 26. H²PAK-2 recommended footprint (dimensions are in mm)

DocID13102 Rev 11 15/23

23

Package mechanical data STFW3N150, STH3N150-2, STP3N150, STW3N150

BW\SH$B5HYB7

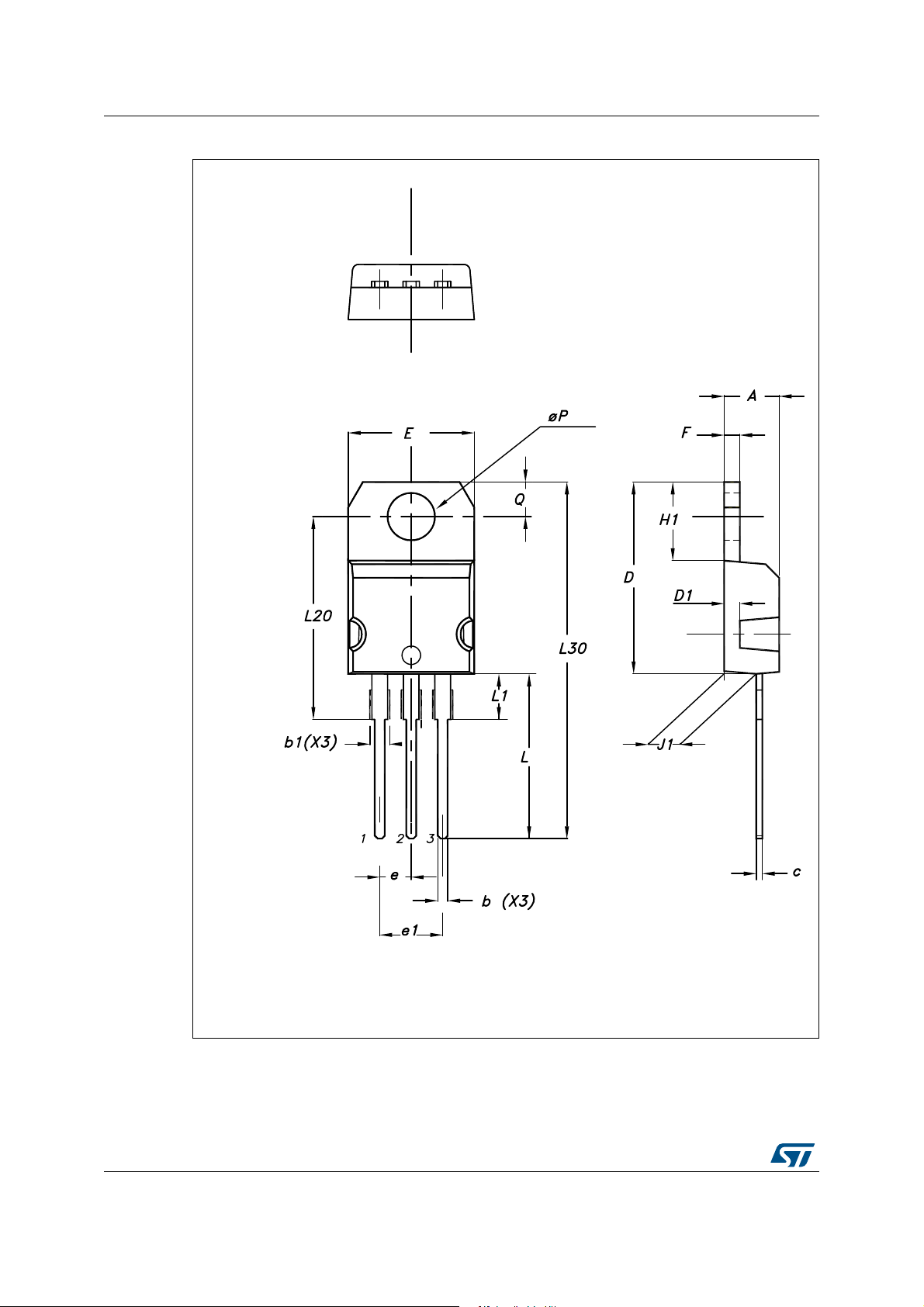

Figure 27. TO-220 type A drawing

16/23 DocID13102 Rev 11

STFW3N150, STH3N150-2, STP3N150, STW3N150 Package mechanical data

Table 11. TO-220 type A mechanical data

mm

Dim.

Min. Typ. Max.

A4.40 4.60

b0.61 0.88

b1 1.14 1.70

c0.48 0.70

D 15.25 15.75

D1 1.27

E 10 10.40

e2.40 2.70

e1 4.95 5.15

F1.23 1.32

H1 6.20 6.60

J1 2.40 2.72

L13 14

L1 3.50 3.93

L20 16.40

L30 28.90

∅

P3.75 3.85

Q2.65 2.95

DocID13102 Rev 11 17/23

23

Package mechanical data STFW3N150, STH3N150-2, STP3N150, STW3N150

Figure 28. TO-247 drawing

18/23 DocID13102 Rev 11

0075325_G

STFW3N150, STH3N150-2, STP3N150, STW3N150 Package mechanical data

Table 12. TO-247 mechanical data

mm.

Dim.

Min. Typ. Max.

A 4.85 5.15

A1 2.20 2.60

b1.0 1.40

b1 2.0 2.40

b2 3.0 3.40

c 0.40 0.80

D 19.85 20.15

E 15.45 15.75

e 5.30 5.45 5.60

L 14.20 14.80

L1 3.70 4.30

L2 18.50

∅P 3.55 3.65

∅R 4.50 5.50

S 5.30 5.50 5.70

DocID13102 Rev 11 19/23

23

Packaging mechanical data STFW3N150, STH3N150-2, STP3N150, STW3N150

P1

A0

D1

P0

F

W

E

D

B0

K0

T

User direction of feed

P2

10 pitches cumulative
tolerance on tape +/- 0.2 mm

User direction of feed

R

Bending radius

Top cover
tape

AM08852v2

5 Packaging mechanical data

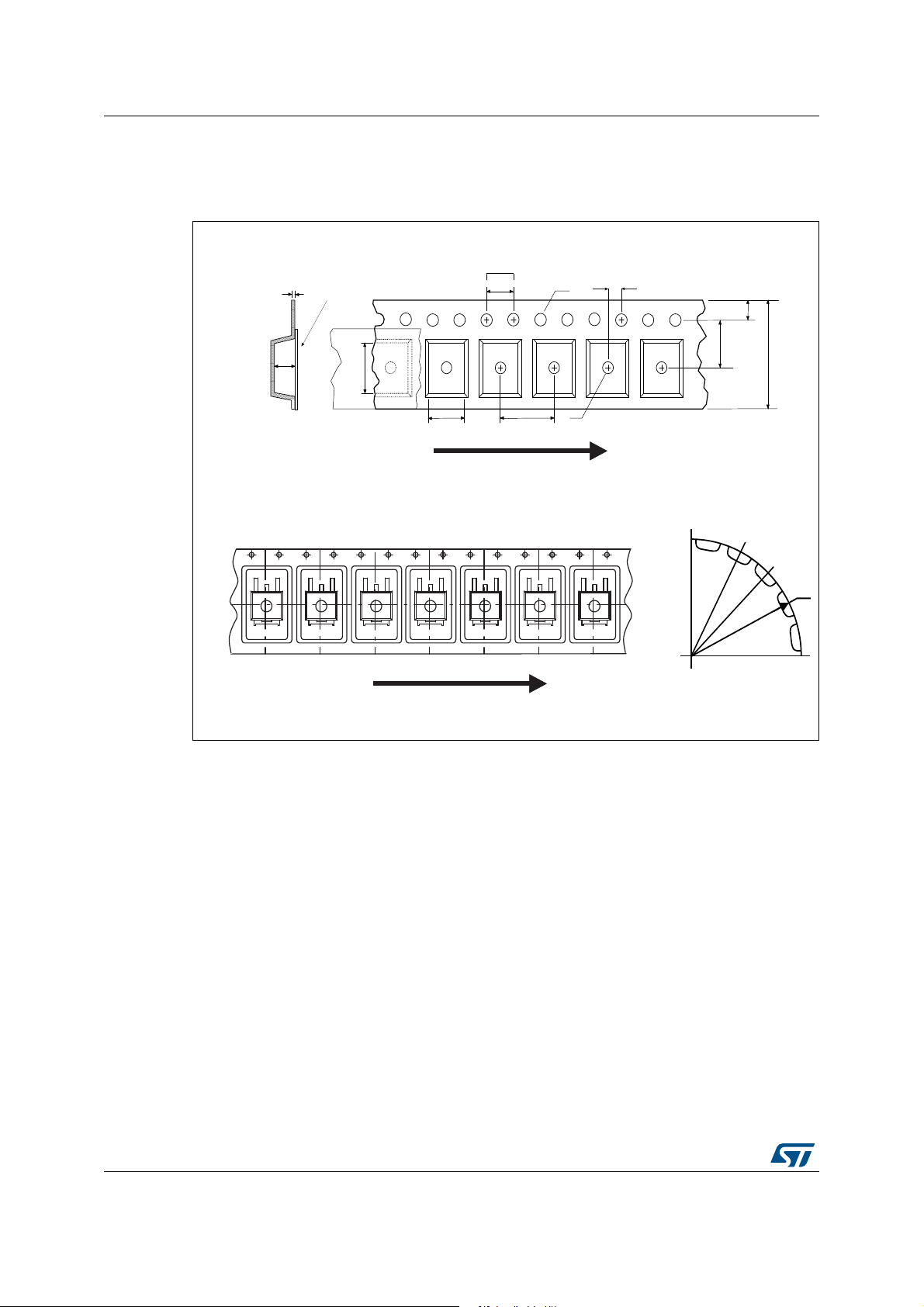

Figure 29. Tape

20/23 DocID13102 Rev 11

STFW3N150, STH3N150-2, STP3N150, STW3N150 Packaging mechanical data

A

D

B

Full radius

G measured at hub

C

N

REEL DIMENSIONS

40mm min.

Access hole

At sl ot location

T

Tape slot
in core for
tape start 25 mm min.
width

AM08851v2

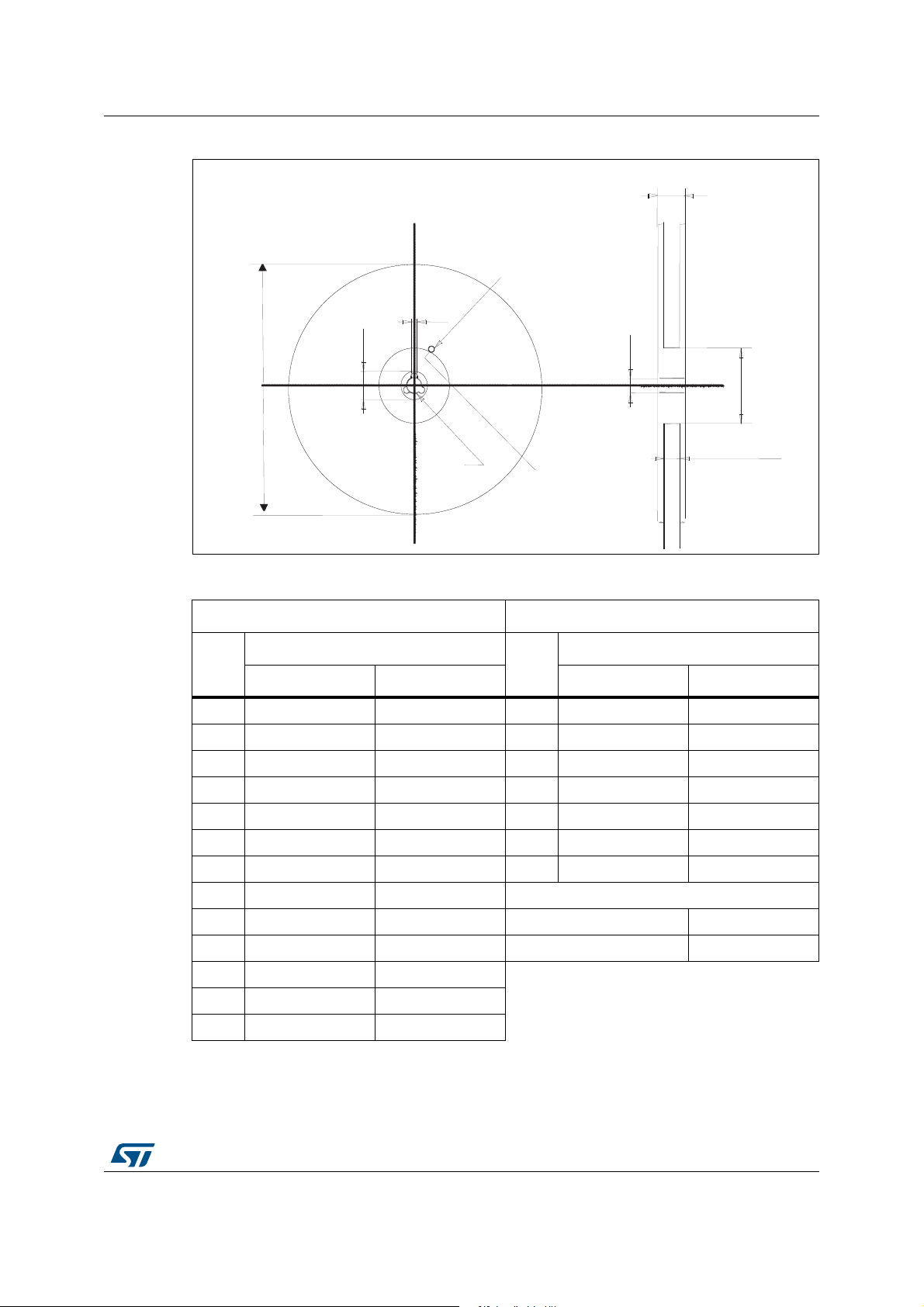

Figure 30. Reel

Table 13. H²PAK-2 tape and reel mechanical data

Tape Reel

mm

Dim.

Dim.

Min. Max. Min. Max.

A0 10.5 10.7 A 330

B0 15.7 15.9 B 1.5

D 1.5 1.6 C 12.8 13.2

D1 1.59 1.61 D 20.2

E 1.65 1.85 G 24.4 26.4

F 11.4 11.6 N 100

K0 4.8 5.0 T 30.4

P0 3.9 4.1

P1 11.9 12.1 Base qty 1000

P2 1.9 2.1 Bulk qty 1000

R50

T 0.25 0.35

W 23.7 24.3

mm

DocID13102 Rev 11 21/23

23

Revision history STFW3N150, STH3N150-2, STP3N150, STW3N150

6 Revision history

Table 14. Document revision history

Date Revision Changes

12-Jan-2007 1 First release

17-Apr-2007 2 Added new value on Table 6.

14-May-2007 3 The document has been reformatted

29-Aug-2007 4 R

value changed, updated Figure 15

DS(on)

09-Apr-2008 5 Added new package: TO-3PF

13-Feb-2009 6 Added P

01-Dec-2009 7

– Document status promoted from preliminary data to datasheet
– Removed TO-220FH package and mechanical data

10-Dec-2009 8 Corrected V

value for TO-3PF (Table 2: Absolute maximum ratings)

TOT

value in Table 2: Absolute maximum ratings

ISO

29-Jun-2010 9 Corrected unit in Table 3.

– Minor text changes

08-Feb-2013 10

– Modified: Table 3
– Changed: Figure 1

– Added: H

2

PAK-2 package

– Modified: Figure 1
– Updated: Figure 18, 19, 20 and 21

18-Feb-2014 11

– Updated: Figure 27 and Table 11
– Updated: Section 4: Package mechanical data

– Minor text changes

22/23 DocID13102 Rev 11

STFW3N150, STH3N150-2, STP3N150, STW3N150

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

ST PRODUCTS ARE NOT DESIGNED OR AUTHORIZED FOR USE IN: (A) SAFETY CRITICAL APPLICATIONS SUCH AS LIFE
SUPPORTING, ACTIVE IMPLANTED DEVICES OR SYSTEMS WITH PRODUCT FUNCTIONAL SAFETY REQUIREMENTS; (B)
AERONAUTIC APPLICATIONS; (C) AUTOMOTIVE APPLICATIONS OR ENVIRONMENTS, AND/OR (D) AEROSPACE APPLICATIONS
OR ENVIRONMENTS. WHERE ST PRODUCTS ARE NOT DESIGNED FOR SUCH USE, THE PURCHASER SHALL USE PRODUCTS AT
PURCHASER’S SOLE RISK, EVEN IF ST HAS BEEN INFORMED IN WRITING OF SUCH USAGE, UNLESS A PRODUCT IS
EXPRESSLY DESIGNATED BY ST AS BEING INTENDED FOR “AUTOMOTIVE, AUTOMOTIVE SAFETY OR MEDICAL” INDUSTRY
DOMAINS ACCORDING TO ST PRODUCT DESIGN SPECIFICATIONS. PRODUCTS FORMALLY ESCC, QML OR JAN QUALIFIED ARE
DEEMED SUITABLE FOR USE IN AEROSPACE BY THE CORRESPONDING GOVERNMENTAL AGENCY.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2014 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

DocID13102 Rev 11 23/23

23
