Page 1
D
ATA SHEET
OKI GaAs PRODUCTS
KGL4215
10-Gbps Decision Circuit
0.2µm Gate Length GaAs MESFET Technology
February 2000
Page 2
■ ■
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Oki Semiconductor
Page 3
KGL4215
10-Gbps GaAs Decision Circuit
INTRODUCTION
Oki Semiconductor’s KGL4215 is a 10-Gbps Decision Circuit with Limiting Amplifier and Flip Flop that
is designed for ultra high-speed digital communications systems. The KGL415 uses 0.2-µm gate length
GaAs MESFET and Oki’s unique MCFF ( Memory Cell type Flip Flop ) technology to achieve operating
speeds of 10-Gbps or more. The KGL4215 is available as a 24-pin ceramic packaged device. Due to the
KGL4215’s high sensitivity, capacitive coupling is recommended for the IC’s interface.
FEATURES
• High-speed operation: 10-Gbps data rate (min)
• Low-power dissipation: 600 mW (typ.) using 2-V power-supply
• 0.2-µm gate length GaAs MESFET process
• MCFF ( Memory Cell type Flip Flop ) technology
• 24-pin ceramic package
APPLICATION
• High-speed optical communication systems: 10 Gbps
• High-speed test equipment
1Oki Semiconductor
Page 4
■
KGL4215 ■ –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
BLOCK DIAGRAM
V
DD
DA
DR1
DR2
CK
CR
50 Ω
50 Ω
DA Data Input Terminal
CK Clock Input Terminal
DR1, CR Reference Voltage Terminals. Usually D1R and DR are connected to ground through a capacitor (0.1 µF).
DR2 Reference Voltage Bias Terminal
Q, QN Complimentary Data Output Terminals
VDD Power Supply of Internal Circuit
D
MCFF
D
C
C
Q
Q
V
DD
Q
V
DD
QN
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings
Parameter
Supply Voltage V
Data Input Voltage V
Temperature at Package Base under Bias Ts -45 100 °C
Storage Temperature Tst -45 125 °C
Exceeding these maximum ratings could cause immediate damage or lead to permanent deterioration of the device.
Electrical Characteristics
V
= 2 V ± 0.1 V, Ts = 0°C to 70°C
DD
Parameter
Maximum Operating Data Bit Rate DAR 10 Gbps
Power Dissipation PW 0.6 0.75 W
Clock Input Voltage Swing CIS 0.4 0.9 Vpp
Data Input Voltage Swing DIS 0.1 0.9 Vpp
Output Voltage Swing DOS 0.8 1.0 1.2 Vpp
Output ( Q, QN ) Rise Time and Fall Time TRF 30 40 ps
Phase Margin @ 10 Gbps (2
2 Oki Semiconductor
23
-1 PRBS) TPM 250 degree
Symbol Min. Max. Units
DD
, V
DI
CI
-0.3 2.3 V
-0.3 1.5 V
Symbol Min. Typ. Max. Units
Page 5
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– ■ KGL4215

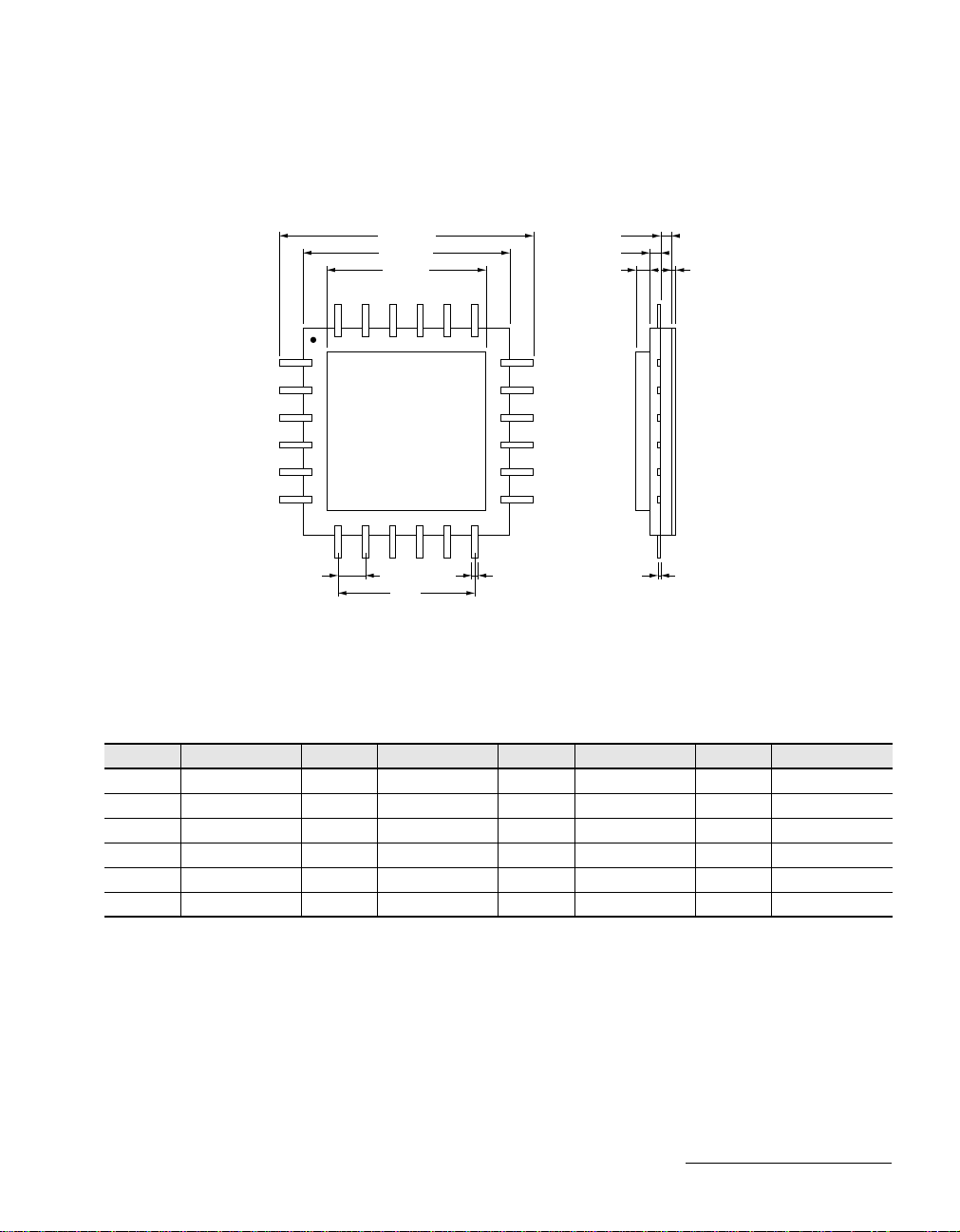

PACKAGE DIMENSIONS
(Units: mm)
■
13.8 ± 0.3
11.8 ±0.3
9.61 SQ
7.4 SQ
24 19
1
Top View
6
712
1.27 0.125
Dimension in mm.
0.30
6.35
18
13
0.50
0.50
.064 ±0.2 0.20
Pin Configuration
Pin No.
1 GND 7 GND 13 GND 19 CR
2 Q 8 GND 14 DA 20 VDD
3 GND 9 GND 15 GND 21 VDD
4 GND 10 GND 16 GND 22 GND
5 QN 11 DR2 17 CK 23 VDD
6 GND 12 DR1 18 GND 24 GND
Description Pin No. Description Pin No. Description Pin No. Description
