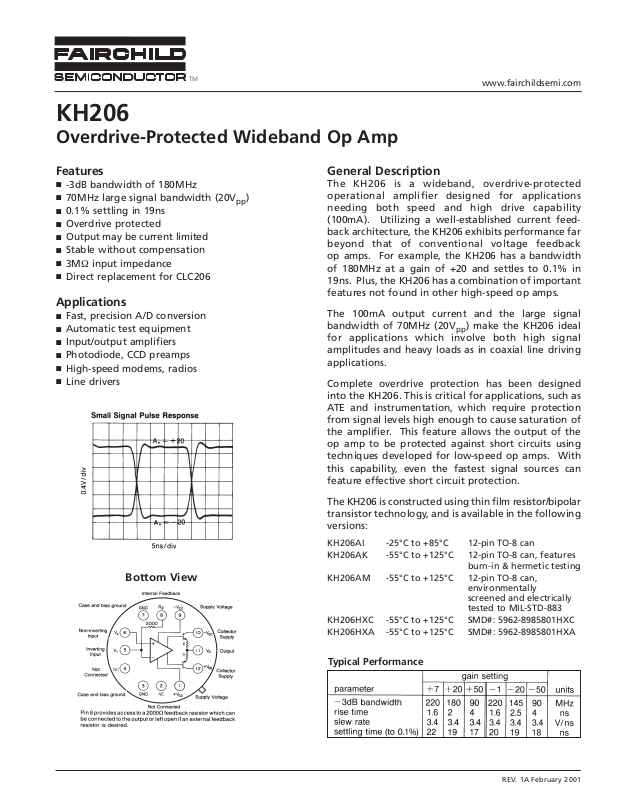

Page 1
Features
■
-3dB bandwidth of 180MHz
■
70MHz large signal bandwidth (20Vpp)
■
0.1% settling in 19ns
■
Overdrive protected
■
Output may be current limited
■
Stable without compensation
■
3MΩ input impedance
■
Direct replacement for CLC206
Applications
■
Fast, precision A/D conversion
■
Automatic test equipment
■
Input/output amplifiers
■
Photodiode, CCD preamps
■
High-speed modems, radios
■
Line drivers
General Description
The KH206 is a wideband, overdrive-protected
operational amplifier designed for applications
needing both speed and high drive capability
(100mA). Utilizing a well-established current feedback architecture, the KH206 exhibits performance far
beyond that of conventional voltage feedback
op amps. For example, the KH206 has a bandwidth
of 180MHz at a gain of +20 and settles to 0.1% in
19ns. Plus, the KH206 has a combination of important
features not found in other high-speed op amps.
The 100mA output current and the large signal
bandwidth of 70MHz (20Vpp) make the KH206 ideal
for applications which involve both high signal
amplitudes and heavy loads as in coaxial line driving
applications.
Complete overdrive protection has been designed
into the KH206. This is critical for applications, such as
ATE and instrumentation, which require protection
from signal levels high enough to cause saturation of
the amplifier. This feature allows the output of the
op amp to be protected against short circuits using
techniques developed for low-speed op amps. With
this capability, even the fastest signal sources can
feature effective short circuit protection.
The KH206 is constructed using thin film resistor/bipolar
transistor technology, and is available in the following
versions:
KH206AI -25°C to +85°C 12-pin TO-8 can
KH206AK -55°C to +125°C 12-pin TO-8 can, features
burn-in & hermetic testing
KH206AM -55°C to +125°C 12-pin TO-8 can,
environmentally
screened and electrically
tested to MIL-STD-883
KH206HXC -55°C to +125°C SMD#: 5962-8985801HXC
KH206HXA -55°C to +125°C SMD#: 5962-8985801HXA
KH206
Overdrive-Protected Wideband Op Amp
www.fairchildsemi.com
REV. 1A February 2001
Typical Performance
Bottom View
Page 2
DATA SHEET KH206
2 REV. 1A February 2001
KH206 Electrical Characteristics
(Av= +20,Vcc= ±15V, RL= 200Ω, Rf= 2kΩ; unless specified)
Absolute Maximum Ratings Recommended Operating Conditions
Min/max ratings are based on product characterization and simulation. Individual parameters are tested as noted. Outgoing quality levels are
determined from tested parameters.
Page 3
KH206 DATA SHEET
REV. 1A February 2001 3

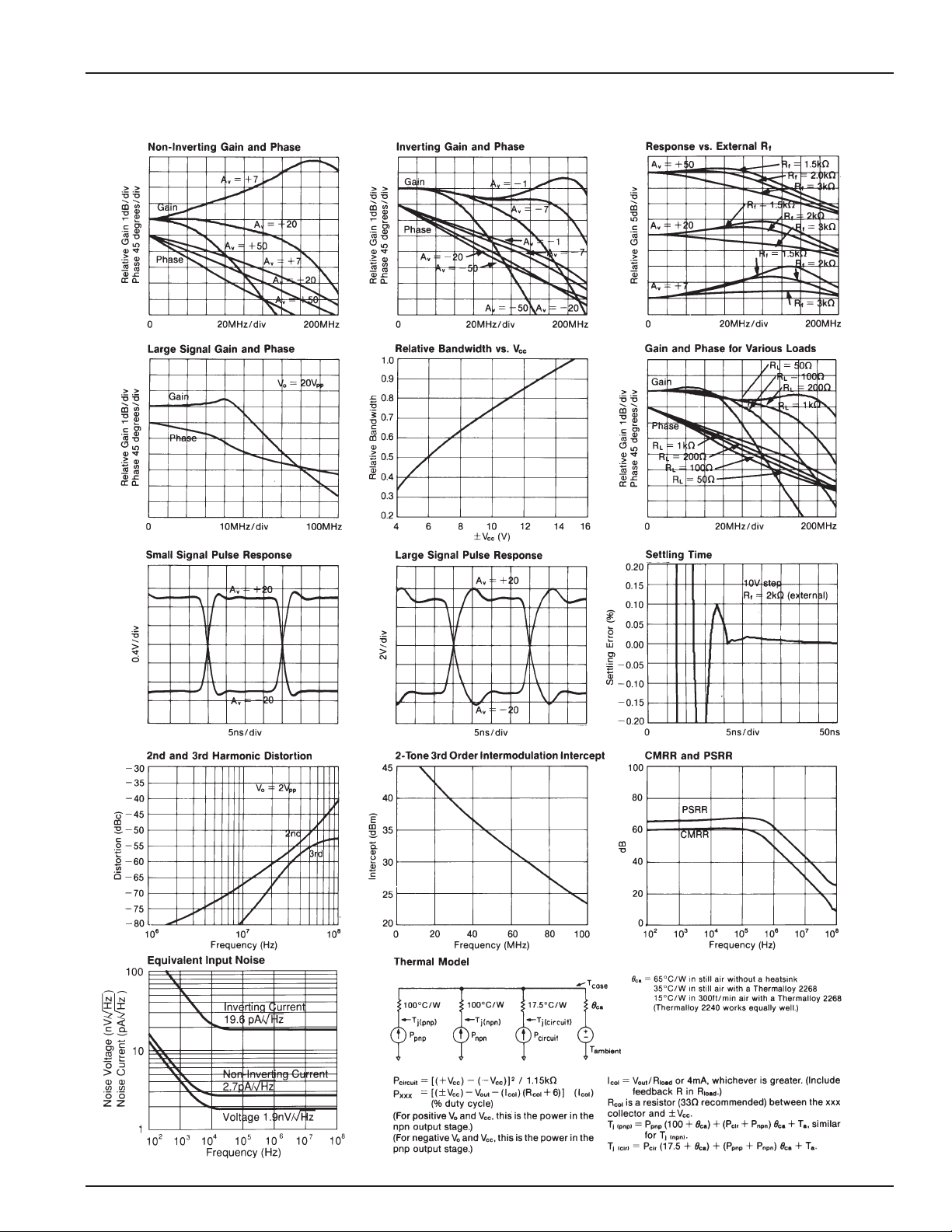

KH206 Typical Performance Characteristics
(TA= +25°C, Av= +20, VCC= ±15V, RL= 200Ω; unless specified)

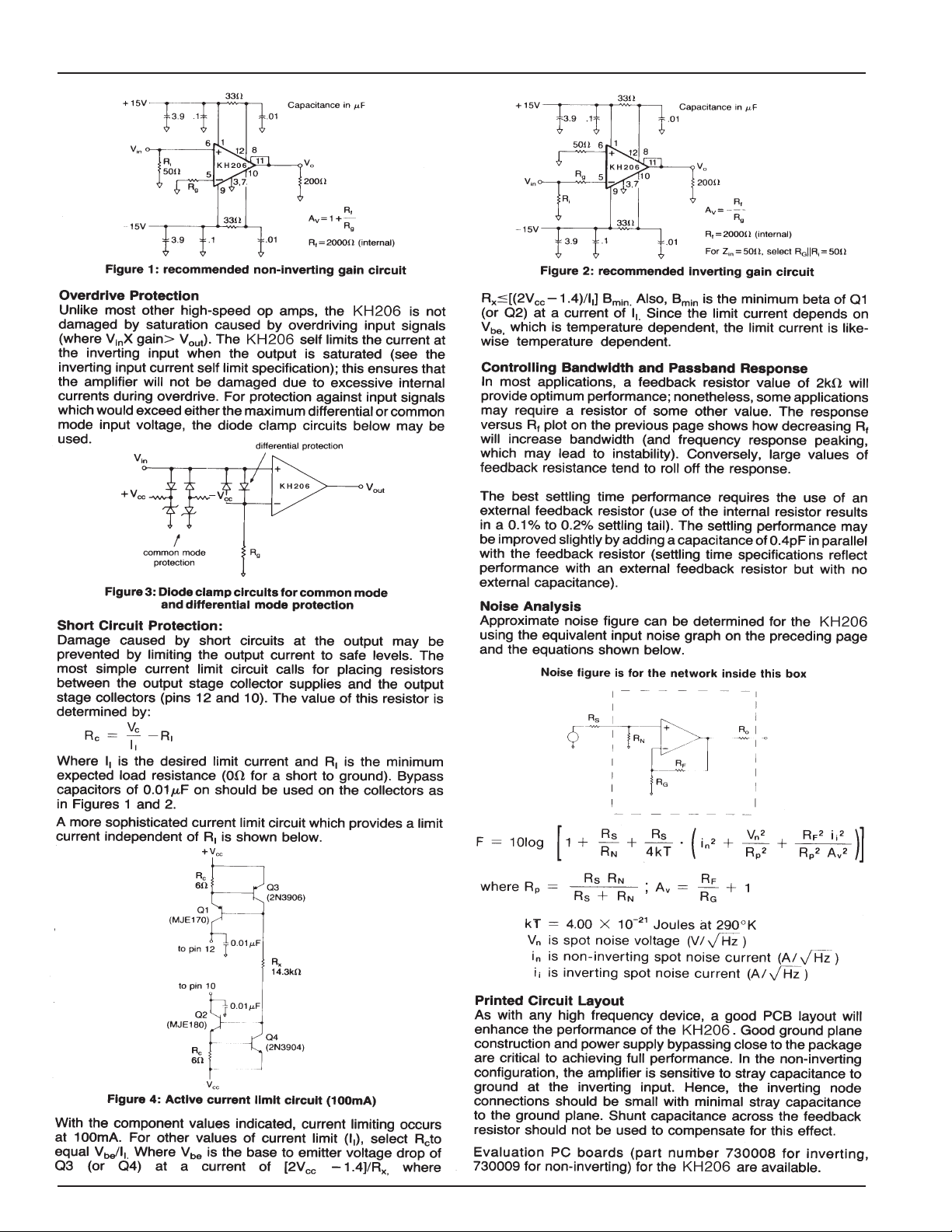

Page 4
DATA SHEET KH206
4 REV. 1A February 2001
Page 5
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICES TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT
OF FAIRCHILD SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into the body, or (b) support or sustain life, and (c) whose failure to
perform when properly used in accordance with instructions for use provided in the
labeling, can be reasonably expected to result in a significant injury of the user.
2. A critical component in any component of a life support device or system whose
failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.

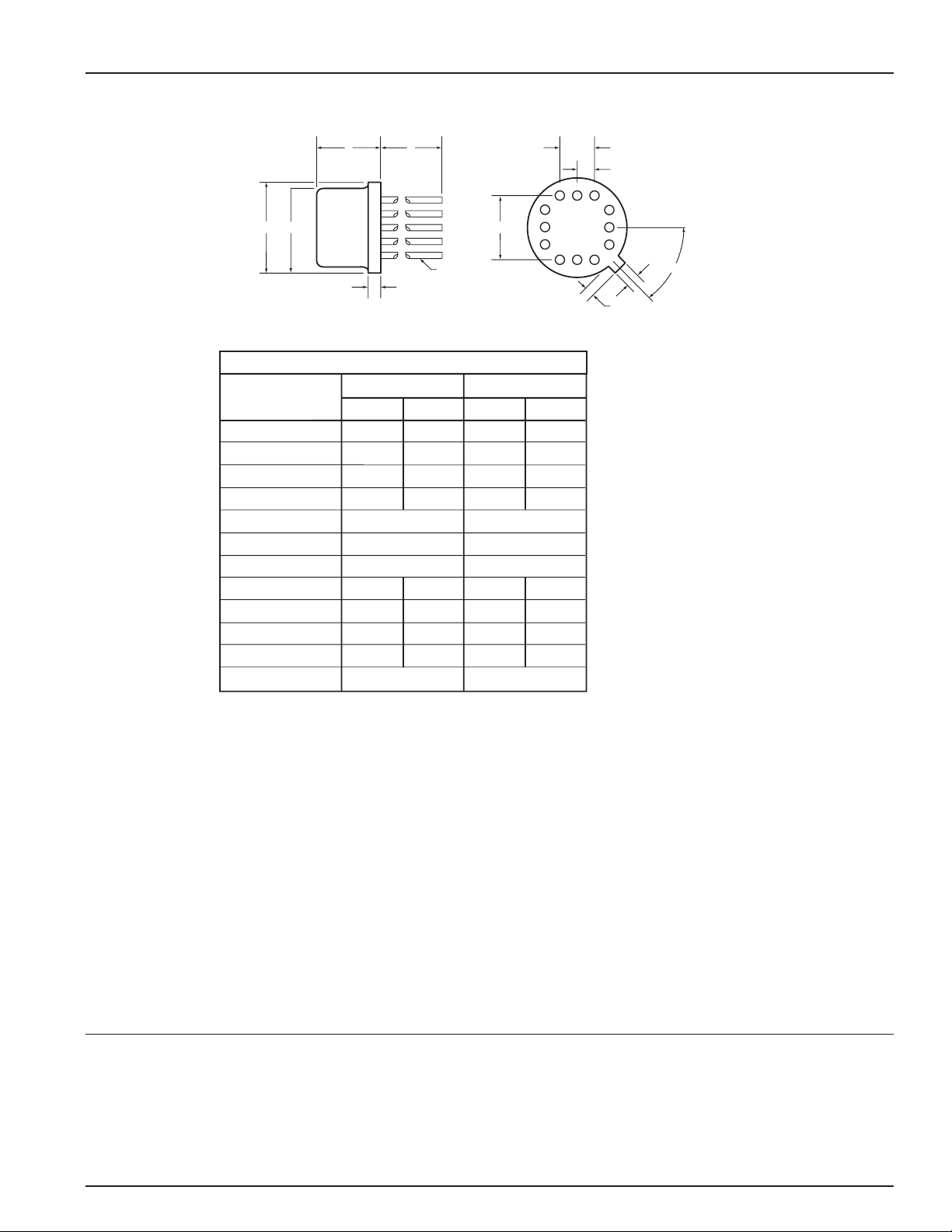

KH206 Package Dimensions
DATA SHEET KH206
www.fairchildsemi.com © 2001 Fairchild Semiconductor Corporation
L
e
φb
φDD
1
A
F
TO-8
SYMBOL
A 0.142 0.181 3.61 4.60
φb 0.016 0.019 0.41 0.48
φD 0.595 0.605 15.11 15.37
φD
1
e 0.400 BSC 10.16 BSC
e
1
e
2
F 0.016 0.030 0.41 0.76
k 0.026 0.036 0.66 0.91
k
1
L 0.310 0.340 7.87 8.64
α 45° BSC 45° BSC
INCHES MILIMETERS
Minimun Maximum Minimum Maximum
0.543 0.555 13.79 14.10
0.200 BSC 5.08 BSC
0.100 BSC 2.54 BSC
0.026 0.036 0.66 0.91
e
1
e
2
9
87
6
10
5
11
4
12
k
23
1
NOTES:
k
1
α
Seal: cap weld
Lead finish: gold per MIL-M-38510
Package composition:
Package: metal
Lid: Type A per MIL-M-38510
