High Speed ADC USB FIFO Evaluation Kit

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

FEATURES

Buffer memory board for capturing digital data Used with high speed ADC evaluation boards 32 kB FIFO Depth at 133 MSPS (upgradeable to 256 kB) Simplifies evaluation of high speed ADCs Measures performance with ADC Analyzer™

Real-time FFT and time domain analysis Analyze SNR, SINAD, SFDR, and harmonics Import raw text data for analysis Virtual ADC eval board support using ADIsimADC™

Simple USB port interface

Compatible with Windows® 98 (2

Ed), Windows 2000,

Windows Me, or Windows XP

EQUIPMENT NEEDED

3.3 V power supply Analog signal source and anti-aliasing filter Low jitter clock source High speed ADC evaluation board and ADC data sheet

PC running Windows 98 (2

Ed), Windows 2000,

Windows Me, or Windows XP USB 2.0 port recommended (USB 1.1 compatible) Available ADIsimADC product model files

PRODUCT DESCRIPTION

The high speed ADC FIFO evaluation kit includes the latest version of ADC Analyzer and a memory board to capture blocks of digital data from Analog Devices’ high speed analogto-digital converter (ADC) evaluation boards. This FIFO board can be connected to a PC through a USB port and used with ADC Analyzer to evaluate the performance of high speed ADCs quickly. Users can view an FFT for a specific analog input and encode rate and analyze SNR, SINAD, SFDR, and harmonic

information.

The evaluation kit is easy to set up. Additional equipment needed includes an Analog Devices’ high speed ADC evaluation board, a power supply, a signal source, and a clock source. Once the kit is connected and powered, the evaluation is enabled instantly on the PC.

Two versions of the FIFO are available. The HSC-ADC-EVALADC is used with dual ADCs and converters with demultiplexed digital outputs. The HSC-ADC-EVALA-SC evaluation board is used with single-channel ADCs. See Table 1, to choose the FIFO appropriate for your high speed ADC evaluation board.

FILTERED

ANALOG

INPUT

PRODUCT HIGHLIGHTS

1. Easy to set up—Connect the power supplies and signal

2. ADIsimADC – The software supports virtual ADC

3. USB Port Connection to PC—PC interface is a USB 2.0

4. 32 kB FIFO(s)—This FIFO(s) stores data from the ADC(s)

5. Up to 133 MSPS encode rate on each channel—Single-

FUNCTIONAL BLOCK DIAGRAM

ADC ANALYZER

USB CABLE

SINGLE OR DUAL HIGH SPEED ADC

EVALUATION BOARD

POWER SUPPLY

LOGIC

ADC

CLOCK

CIRCUIT

CLOCK INPUT

Figure 1. Functional Block Diagram (Simplified)

HSC-ADC-EVALA-SC

HSC-ADC-EVALA-DC

FIFO2

32K

TIMING

FIFO1

CIRCUIT

32K

80-PIN CONNECTOR

sources to the two evaluation boards. Then connect to the PC and evaluate the performance instantly.

evaluation using ADI proprietary behavioral modeling technology. This allows rapid comparison between multiple ADCs, with or without hardware evaluation boards.

connection (1.1 compatible) to PC. A USB cable is provided in the kit.

for processing. A pin compatible FIFO family is used for easy upgrading.

channel ADCs with encode rates up to 133 MSPS can be used with the FIFO board. Dual and demultiplexed output ADCs also can be used with the FIFO board (with clock rates up to 133 MSPS on each output channel).

3.3V

04750-0-001

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Anal og Devices. Trademarks and registered trademarks are the property of their respective owners.

www.analog.com

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

TABLE OF CONTENTS

FIFO Evaluation Board Quick Start............................................... 4

Requirements ................................................................................ 4

Quick Start Steps ...................................................................... 4

Virtual Evaluation Board Quick Start With ADIsimADC.......... 5

Requirements ................................................................................ 5

Quick Start Steps ...................................................................... 5

FIFO 4 Data Capture Board............................................................ 6

FIFO 4 Supported ADC Evaluation Boards.............................. 6

Te r m in o l o g y ...................................................................................... 8

Single Tone FFT............................................................................ 8

Two-Tone FFT .............................................................................. 9

Theory of Operation ...................................................................... 10

Clocking Description................................................................. 10

Clocking with Interleaved Data................................................ 10

Installing ADC Analyzer................................................................11

Average FFT................................................................................ 17

Continuous Average FFT .......................................................... 17

Two Tone ..................................................................................... 18

Continuous Two Tone ............................................................... 18

Average Two Tone...................................................................... 18

Stop............................................................................................... 18

Zooming and Exporting Data .................................................. 18

Importing Data ........................................................................... 19

.csv and ASCII files ................................................................ 19

Printing ........................................................................................ 20

Saving Files.................................................................................. 21

Additional Functions (Virtual ADC only) .............................. 21

Amplitude Sweep (Virtual ADC only) .................................... 21

Analog Frequency Sweep (Virtual ADC only)....................... 22

Troubleshooting.............................................................................. 23

Installation................................................................................... 11

Configuration File ...................................................................... 11

Configuring an Evaluation Board ............................................ 11

Additional Configuration Options .......................................... 14

Windowing ..............................................................................14

Power Supply........................................................................... 14

Y- Ax i s .......................................................................................14

Installing ADC Analyzer With ADIsimADC.............................. 15

Installation................................................................................... 15

Configuration File ...................................................................... 15

Configuring a Model.................................................................. 15

ADC Analyzer Functions .............................................................. 17

Time Domain .............................................................................. 17

Continuous Time Domain........................................................ 17

FFT ...............................................................................................17

Flat Line Signal Displayed......................................................... 23

Displayed Signal Unlike Analog Input .................................... 23

FFT Noise Floor Higher Than Expected................................. 24

Large Spur In FFT (Image Problem) ....................................... 24

MSBs Missing From Time Domain ......................................... 25

Upgrading FIFO Memor y ......................................................... 25

Jumpers ............................................................................................ 26

Default Settings........................................................................... 26

FIFO Schematices and PCB Layout ............................................. 28

FIFO Connector ......................................................................... 28

PCB Schematic............................................................................ 29

Assembly—Primary Side........................................................... 35

Assembly—Secondary Side....................................................... 36

Layer 1— Primary Side.............................................................. 37

Layer 2—Ground Plane............................................................. 38

Continuous FFT .........................................................................17

Rev. 0 | Page 2 of 44

Layer 3—Power Plane................................................................ 39

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

Layer 4—Secondary Side............................................................40

Windowing Functions................................................................43

ESD Caution ................................................................................40

Bill of Materials................................................................................41

Appendix: Sampling and FFT Fundamentals..............................43

Coherent Sampling .....................................................................43

REVISION HISTORY

5/04—Revision 0: Initial Version

FFT Calculations.........................................................................43

Ordering Guide ...........................................................................44

Rev. 0 | Page 3 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

FIFO EVALUATION BOARD QUICK START

Install ADC Analyzer from the CD provided in the FIFO evaluation kit. See the Installing ADC Analyzer section for more details. For the latest updates to the software, check the Analog Devices website at

REQUIREMENTS

Requirements include

• FIFO evaluation board, ADC Analyzer, and USB cable

• High speed ADC evaluation board and ADC data sheet

• 3.3 V power supply for FIFO evaluation board

• Power supply for ADC evaluation board

• Analog signal source and appropriate filtering

• Low jitter clock source applicable for specific ADC

evaluation, typically < 1 ps rms

• PC running Windows 98 (2nd Ed), Windows 2000,

Windows Me, or Windows XP

• PC with a USB 2.0 port recommended (USB 1.1

compatible)

Quick Start Steps

1. Connect the FIFO evaluation board to the ADC evaluation

board. If an adapter is required, insert the adapter between the ADC evaluation board and the FIFO board. If using the HSC-ADC-EVALA-SC model, connect the evaluation board to the bottom half of the 80-pin connector (closest to the installed IDT FIFO chip).

2. Connect the provided USB cable to the FIFO evaluation

board and to an available USB port on the computer.

3. Refer to Table 4 for any jumper changes. Most evaluation

boards can be used with the default settings.

4. After verification, connect the appropriate power supplies

to the FIFO and ADC evaluation boards. The FIFO evaluation board requires a single 3.3 V power supply with 1 A current capability. Refer to the instructions included in the ADC data sheet for more information about the ADC evaluation board setup.

www.analog.com/hsc-FIFO.

5. Once the cable is connected to both the computer and

FIFO and power is supplied, the USB drivers start to install. To complete the total installation of the FIFO drivers, you need to complete the new hardware sequence two times. The first Found New Hardware Wizard opens with the text message This wizard helps you install software for…Pre- FIFO 4. Click the recommended install, and go to the next screen. A Hardware Installation warning window should then be displayed. Click Continue Anyway. The next window that opens should finish the Pre-FIFO 4 installation. Click Finish to complete. Your computer should go through a second Found New Hardware Wizard, and the text message, This wizard helps you install software for…Analog Devices FIFO 4, should be displayed Continue as you did in the previous installation and click Continue Anyway, then click Finish on the next two windows. This should complete the installation.

6. (Optional) Verify in the device manager that “Analog

Devices, FIFO4” is listed under the USB hardware.

7. Apply power to the evaluation board and check the voltage

levels at the board level.

8. Connect the appropriate analog input (which should be

filtered with a band-pass filter) and low jitter clock signal. Make sure the evaluation boards are powered before connecting the analog input and clock.

9. Start ADC Analyzer (see the Installation section for

installing the software).

10. Choose a configuration file for the ADC evaluation board

used or create one (see the Configuring an Evaluation Board section for more information).

11. Click Time Domain (left-most button under the pull-

down menus). A reconstruction of the analog input is displayed. If the expected signal does not appear, or if there is only a flat red line, refer to the Troubleshooting section for more information.

Rev. 0 | Page 4 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

VIRTUAL EVALUATION BOARD QUICK START WITH ADIsimADC

REQUIREMENTS

Requirements include

• Completed installation of ADC Analyzer version 4.5.0 or

later.

• ADIsimADC product model files for the desired converter.

Models are not installed with the software, but may be downloaded from the website at no charge. Go to

www.analog.com/ADIsimADC or look under Design

To o l s for the product of interest.

• No hardware is required. However, if you wish to compare

results of a real evaluation board and the model, you may switch easily between the two, as outlined below.

Quick Start Steps

1. To obtain ADC model files, go to

www.analog.com/ADIsimADC or look under Design

To o l s for the product of interest. Download the files of interest to a local drive. The default location is c:\program files\adc_analyzer\models.

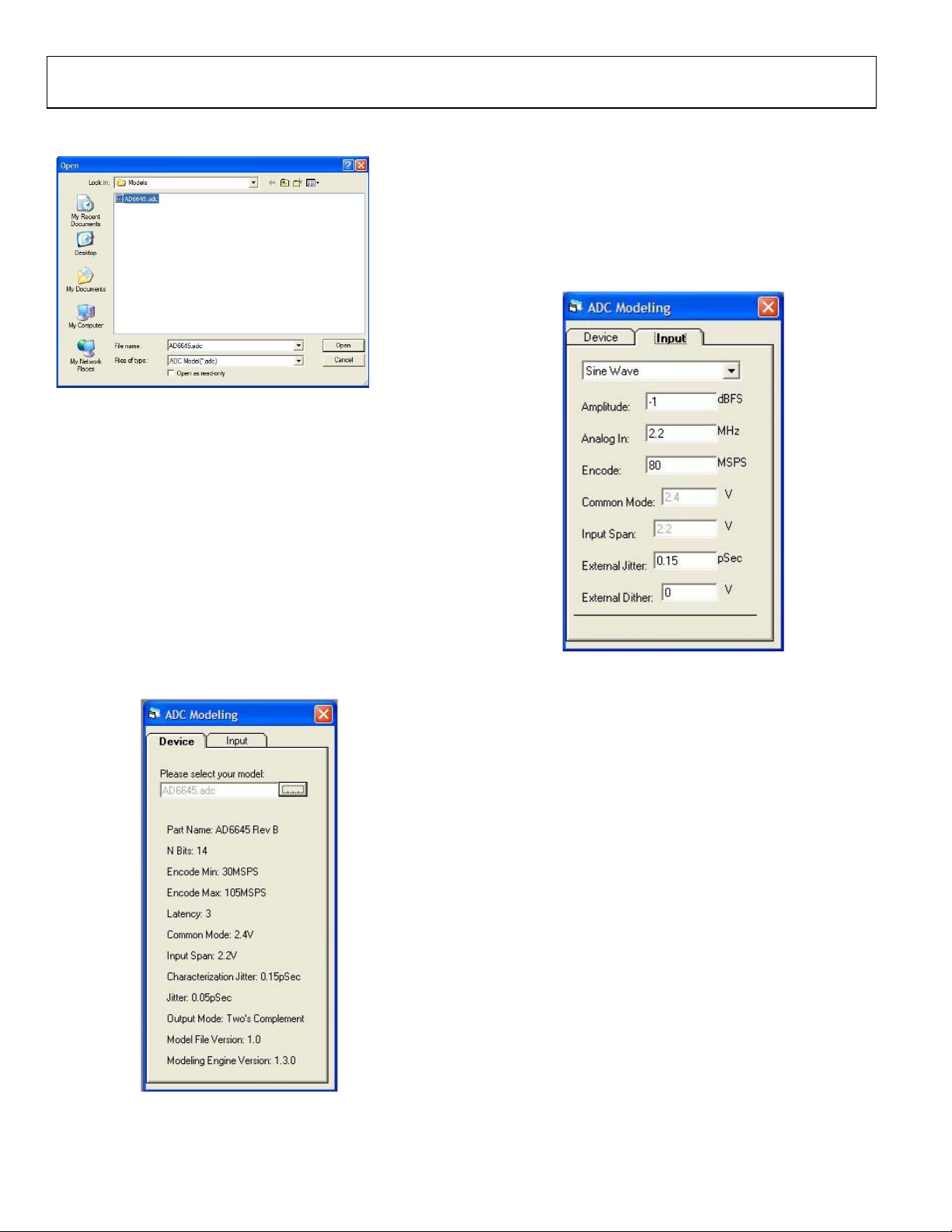

5. On the ADC Modeling form, select the Device tab and

click the file browser and displays all of the models found in the default directory: c:\program files\adc_analyzer\models. If no model files are found, follow the on-screen directions or see Step 1 to install available models. If you have saved the models somewhere other than the default location, use the browser to navigate to that location and select the file of interest.

6. From the menu choose Config > FFT. In the FFT

Configuration form, ensure that the Encode Frequency is set for a valid rate for the simulated device under test. If set too low or too high, the model will not run.

7. Once a model has been selected, information about the

model displays on the Device tab. After ensuring that you have selected the right model, select the Input tab. This lets you configure the input to the model. From the drop down menu, select either Sine Wave or Two Tone for the input signal.

… button, adjacent to the dialog box. This opens a

2. Start ADC Analyzer (see the Installation section for

installing the software).

3. From the menu choose Config > Buffer and select Model

from the drop down menu as the buffer memory. In effect, the model functions in place of the ADC and data capture hardware.

4. After selecting the Model, a small button, Model, is

displayed next to the Stop button. Click Model to select and configure which converter will be modeled. This places a small form in the workspace where you can select and configure how the model will behave.

8. Click Time Domain (left-most button under the pull-

down menus). A reconstruction of the analog input is displayed. The model may now be used just as a standard evaluation board would be.

9. The model supports additional features not found when

testing a standard evaluation board. When using the modeling capabilities, it is possible to sweep either the analog amplitude or the analog frequency. See the Installing ADC Analyzer With ADISIMADC section for additional features.

Rev. 0 | Page 5 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

FIFO 4 DATA CAPTURE BOARD

JUMPERS UNUSED PINS TO GROUND

ADC EVALUATION BOARD CONNECTION: 40 PIN INTERFACE FOR DATA AND CLOCK INPUT FOR TOP CHANNEL

IDT72V283 32K

16-BIT FIFO

OPTIONAL SMA CLOCK INPUTS

JUMPERS TIE TOP AND BOTTOM CLOCK INPUTS TOGETHER = IN FOR SINGLE CHANNEL OPTION, OUT FOR DUAL CHANNEL OPTION

JUMPERS UNUSED PINS TO GROUND

OPTIONAL FINE TUNING ADJUST

ADC EVALUATION BOARD CONNECTION: 40 PIN INTERFACE FOR DATA AND CLOCK INPUT FOR BOTTOM CHANNEL

IDT72V283 32K

16- BIT FIFO

CYPRESS F SPEED USB 2.0 MICROCONTROLLER

2 HIGH

Figure 2. FIFO Components Description

MICROCONTROLLER CRYSTAL CLOCK = 24MHz. OFF DURING DATA CAPTURE

EEPROM TO LOAD

USB FIRMWARE

+3.3V POWER CONNECTION

INVERT WRITE

CLOCK OPTIONS

ADDITIONAL

TIMING DELAYS

FOR WRITE CLOCK

WRITE CLOCK

SELECT TO

GENERATE WEN

SIGNAL

INVERT WRITE

CLOCK OPTIONS

SET WEN TIMING

FOR INTERLEAVE

MODES

USB CONNECTION

TO COMPUTER

04750-0-002

FIFO 4 SUPPORTED ADC EVALUATION BOARDS

The evaluation boards in Table 1 can be used with the high speed ADC FIFO Evaluation Kit1. Some evaluation boards require an adapter between the ADC evaluation board connector and the FIFO connector. If an adapter is needed, send an email to

highspeed.converters@analog.com with the part number of the adapter and a mailing address.

Table 1 HSC-ADC-EVALA-DC: and HSC-ADC-EVALA-SC Compatible Evaluation Boards

Evaluation Board Model Description of ADC FIFO Board Version Comments

AD6640ST/PCB 12-Bit, 65 MSPS ADC SC Requires AD664xFFA AD6644ST/PCB 14-Bit, 65 MSPS ADC SC Rev. C Requires AD664xFFA AD6645/PCB 14-Bit, 80 MSPS ADC SC Rev. C Requires AD664xFFA AD9051/PCB 10-Bit, 60 MSPS ADC SC Requires AD9051FFA AD9057/PCB 8-Bit, 80 MSPS ADC SC Requires AD9283FFA AD9059/PCB Dual 8-Bit, 60 MSPS ADC DC Requires AD9059FFA AD9071/PCB 10-Bit, 100 MSPS ADC SC Requires AD9071FFA AD9200SSOP-EVAL 10-Bit, 20 MSPS ADC SC Requires AD922xFFA AD9200TQFP-EVAL 10-Bit, 20 MSPS ADC SC Requires AD922xFFA AD9201-EVAL Dual 10-Bit, 20 MSPS ADC

SC Requires AD922xFFA AD9203-EB 10-Bit, 40 MSPS ADC SC Requires AD922xFFA AD9214-65PCB 10-Bit, 65 MSPS ADC SC AD9214-105PCB 10-Bit, 105 MSPS ADC SC AD9215BCP-65EB 10-Bit, 65 MSPS ADC SC AD9215BCP-80EB 10-Bit, 80 MSPS ADC SC AD9215BCP-105EB 10-Bit, 105 MSPS ADC SC AD9215BRU-65EB 10-Bit, 65 MSPS ADC SC AD9215BRU-80EB 10-Bit, 80 MSPS ADC SC AD9215BRU-105EB 10-Bit, 105 MSPS ADC SC

Rev. 0 | Page 6 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

Evaluation Board Model Description of ADC FIFO Board Version Comments

AD9218-65PCB Dual 10-Bit, 65 MSPS ADC DC AD9218-105PCB Dual 10-Bit, 105 MSPS ADC DC AD9220-EB 12-Bit, 10 MSPS ADC SC Requires AD922xFFA AD9221-EB 12-Bit, 1.25 MSPS ADC SC Requires AD922xFFA AD9223-EB 12-Bit, 3 MSPS ADC SC Requires AD922xFFA AD9224-EB 12-Bit, 40 MSPS ADC SC Requires AD922xFFA AD9225-EB 12-Bit, 25 MSPS ADC SC Requires AD922xFFA AD9226-EB 12-Bit, 65 MSPS ADC SC Requires AD922xFFA AD9226QFP-EB 12-Bit, 65 MSPS ADC SC Requires AD922xFFA AD9235BRU-20EB 12-Bit, 20 MSPS ADC SC AD9235BRU-40EB 12-Bit, 40 MSPS ADC SC AD9235BRU-65EB 12-Bit, 65 MSPS ADC SC AD9235BCP-20EB 12-Bit, 20 MSPS ADC SC AD9235BCP-40EB 12-Bit, 40 MSPS ADC SC AD9235BCP-65EB 12-Bit, 65 MSPS ADC SC AD9235-20PCB 12-Bit, 20 MSPS ADC SC AD9235-40PCB 12-Bit, 40 MSPS ADC SC AD9235-65PCB 12-Bit, 65 MSPS ADC SC AD9236BCP-80EB 12-Bit, 80 MSPS ADC SC AD9236BRU-80EB 12-Bit, 80 MSPS ADC SC AD9236BCP-80EB 12-Bit, 80 MSPS ADC SC AD9238-20PCB Dual 12-Bit, 20 MSPS ADC DC AD9238-40PCB Dual 12-Bit, 40 MSPS ADC DC AD9238-65PCB Dual 12-Bit, 65 MSPS ADC DC AD9240-EB 14-Bit, 40 MSPS ADC SC Requires AD922xFFA AD9241-EB 14-Bit, 1.25 MSPS ADC SC Requires AD922xFFA AD9243-EB 14-Bit, 3 MSPS ADC SC Requires AD922xFFA AD9244-40PCB 14-Bit, 40 MSPS ADC SC AD9244-65PCB 14-Bit, 65 MSPS ADC SC AD9245BCP-80EB 14-Bit, 80 MSPS ADC SC AD9260-EB 16-Bit, 2.5 MSPS ADC SC Requires AD922xFFA AD9280-EB 8-Bit, 32 MSPS ADC SC Requires AD922xFFA AD9281-EB Dual 8-Bit, 28 MSPS ADC4 SC Requires AD922xFFA AD9283/PCB 8-Bit, 100 MSPS ADC SC Requires AD9283FFA AD9289BBC-65EB Quad 8-Bit, 65 MSPS ADC AD9410/PCB 10-Bit, 210 MSPS ADC DC AD9430-CMOS/PCB 12-Bit, 210 MSPS ADC DC AD9432/PCB 12-Bit, 105 MSPS ADC SC Rev. 0 Requires AD9432FFA AD9433/PCB 12-Bit, 125 MSPS ADC SC AD9480BSU-250EB 8-Bit, 250 MSPS ADC DC AD10200/PCB Dual 12-Bit, 105 MSPS ADC DC Requires LG-0204A AD10201/PCB Dual 12-Bit, 105 MSPS ADC DC Requires LG-0204A AD10226/PCB Dual 12-Bit, 125 MSPS ADC DC Requires LG-0204A AD10235/PCB Dual 12-Bit, 215 MSPS ADC DC Requires LG-0204A AD10265/PCB Dual 12-Bit, 65 MSPS ADC DC Requires LG-0204A AD10401/PCB Dual 14-Bit, 105 MSPS ADC DC Requires LG-0204A AD10465/PCB Dual 14-Bit, 65 MSPS ADC DC Requires LG-0204A

Send an email to highspeed.converters@analog.com for information on evaluating the AD9288 with the High Speed ADC FIFO Evaluation Kit.

Connector pin numbers and/or labeling on some evaluation boards (AD9214, AD9410, AD9430, AD9433, AD9235, and AD9244) may not match the FIFO connector

numbering; however, the physical connections are correct.

The AD6640 evaluation board has a 40-pin output connector that should be left (MSB) justified when connected to the 50-pin AD664x FIFO adapter.

The AD9281 and AD9201 have a single output bus

The High Speed ADC FIFO Evaluation Kit can be used to evaluate two channels of the AD9289 at a time.

Rev. 0 | Page 7 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

TERMINOLOGY

SINGLE TONE FFT

Signal-to-Noise Ratio (SNR)

The ratio of the rms signal amplitude to the rms value of the sum of all other spectral components, excluding the first five harmonics and dc. It is reported in dBc.

Harmonic Distortion, Image

The ratio of the rms signal amplitude to the rms value of the nonharmonic component generated from the clocking phase difference of two ADCs, reported in dBc. Note: This measurement result is valid only when analyzing demultiplexed ADCs.

Signal-to-Noise Ratio Full Scale (SNRFS)

The ratio of the rms signal amplitude related to full scale (0 dB) to the rms value of the sum of all other spectral components, excluding the first five harmonics and dc. It is reported in dBFS.

User Defined Signal-to-Noise Ratio (UDSNR)

The ratio of the rms signal amplitude to the rms value of the sum of all other spectral components within a specified band set by the user, excluding harmonics and dc. It is reported in dB.

Noise Figure (NF)

The noise figure is the ratio of the noise power at the output of a device to the noise power at the input to the device, where the input noise temperature is equal to the reference temperature (273 K). The noise figure is expressed in dB.

Signal-to-Noise-and-Distortion (SINAD)

The ratio of the rms signal amplitude to the rms value of the sum of all other spectral components, including harmonics but excluding dc. It is reported in dB.

Harmonic Distortion, Second (2nd)–Sixth (6th)

The ratio of the rms signal amplitude to the rms value of the fundamental related harmonic component, reported in dBc.

Worst Other Spur (WoSpur)

The ratio of the rms signal amplitude to the rms value of the worst spurious component (excluding all harmonically related components) reported in dBc.

Total Harmonic Distortion (THD)

The rms value of the sum of all spectral harmonics specified by the user. It is reported in dBc.

Spurious-Free Dynamic Range (SFDR)

The ratio of the rms signal amplitude to the rms value of the peak spurious spectral component. The peak spurious component may or may not be a harmonic. It is reported in dBc.

Noise Floor

The rms value of the sum of all other spectral components, excluding the fundamental, its harmonics, and dc referenced to full-scale and reported in dBFS.

For Noise Figure for an ADC, the equation is

log10FigureNoise

×=

k= Boltzman’s Constant = 1.38 x 10 T = Temperature in Kelvin = 273 K B = Bandwidth = 1 Hz Encode Frequency = ADC Clock Rate V

= RMS Fullscale Input Voltage

rms

= Input Impedance

SNRFS= FullScale ADC SNR

⎛ ⎜

⎜ ⎝

-23

/ZV

rms

0.001

⎞ ⎟

⎟ ⎠

⎛

log10SNRFS

×−−

⎜

⎝

Rev. 0 | Page 8 of 44

FrequencyEncode

⎞ ⎟

⎠

⎛

×−

log10

⎜ ⎝

××

0.001

BTk

⎞ ⎟

⎠

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

TWO-TONE FFT

Two-Tone, Second Order Intermodulation Distortion Products (F1 + F2)

The resulting rms second order distortion value reported by the mixing of two analog input signals. The peak spurious component is considered an IMD product. It is reported in dBc.

Two-Tone, Second Order Intermodulation Distortion Products (F2–F1)

The resulting rms second order distortion value reported by the mixing of two analog input signals. The peak spurious component is considered an IMD product. It is reported in dBc.

Two-Tone, Third Order Intermodulation Distortion Products (2F1

The resulting rms third order distortion value reported by the mixing of two analog input signals. The peak spurious component is considered an IMD product. It is reported in dBc.

+ F2)

Two-Tone, Third Order Intermodulation Distortion Products (2F2

+ F1)

Two-Tone, Worst Other Spur (WoSpur)

The resulting rms distortion value, reported by the mixing of two analog input signals that is not related to the second or third order distortion products. The peak spurious component is not considered an IMD product. It is reported in dBc.

Two-Tone, Second Order Input Intercept Point (IIP2)

The measure of full-scale input signal power of the converter minus half the IMD second order products. It is reported in dBm.

Two-Tone, Third Order Input Intercept Point (IIP3)

The measure of full-scale input signal power of the converter minus half the IMD third order products. It is reported in dBm

Two-Tone, SFDR

The ratio of the rms value of either input tone to the rms value of the peak spurious component. The peak spurious component is not an IMD product. It is reported in dBc.

The resulting rms third order distortion value reported by the mixing of two analog input signals. The peak spurious component is considered an IMD product. It is reported in dBc.

Rev. 0 | Page 9 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

THEORY OF OPERATION

The FIFO evaluation board can be divided into several circuits, each of which plays an important part in acquiring digital data from the ADC and allows the PC to upload and process that data. The evaluation kit is based around the IDT72V283 FIFO chip from IDT. The system can acquire digital data at speeds up to 133 MSPS and data record lengths up to 32 kB using the HSC-ADC-EVALA-SC FIFO evaluation kit. The HSC-ADCEVALA-DC, which has two FIFO chips, is available to evaluate dual ADCs or demultiplexed data from ADCs sampling faster than 133 MSPS. A USB 2.0 microcontroller communicating with ADC Analyzer allows for easy interfacing to newer computers using the USB 2.0 (USB 1.1 compatible) interface.

The process of filling the FIFO chip(s) and reading the data back requires several steps. First, ADC Analyzer initiates the FIFO chip(s) fill process. The FIFO chip(s) are reset using a master reset signal (MRS). The USB Microcontroller then is suspended, which turns off the USB oscillator, ensuring that it does not add noise to the ADC input. After the FIFO chip(s) completely fill, the full flags from the FIFO chip(s) send a signal to the USB microcontroller to wake up the microcontroller from suspend. ADC Analyzer waits for approximately 30 ms and begins the readback process.

During the readback process, the acquisition of data from FIFO 1 (U201) or FIFO 2 (U101) is controlled via the signals OEA and OEB. Because the data outputs of both FIFO chips drive the same 16-bit data bus, the USB microcontroller controls the OEA and OEB signals to read data from the correct FIFO chip. From an application standpoint, ADC Analyzer sends commands to the USB microcontroller to initiate a read from the correct FIFO chip, or both FIFO chips in dual or interleaved mode.

CLOCKING DESCRIPTION

Each channel of the buffer memory requires a clock signal to capture data. These clock signals are normally provided by the ADC evaluation board and are passed along with the data through Connector J104/204 (Pin 37 for both Channel 1 and Channel 2). If only a single clock is passed for both channels, they can be connected together by Jumper J303.

Jumpers J304 and J305 at the output of the LVDS receiver allow the output clock to be inverted by the LVDS receiver. By default, the clock outputs are inverted by the LVDS receiver.

The single-ended clock signal from each data channel is buffered and converted to a differential CMOS signal by two gates of a low voltage differential signal (LVDS) receiver, U301. This allows the clock source for each channel to be CMOS, TTL, or ECL. The clock signals are ac-coupled by 0.1 µF capacitors. Potentiometers R312 and R315 allow for fine tuning the threshold of the LVDS gates. In applications where fine-tuning

the threshold is critical, these potentiometers may be replaced with a higher resistance value to increase the adjustment range. Resistors R303, R304, R307, R308, R311, R313, R314, and R316 set the static input to each of the differential gates to a dc voltage of approximately 1.5 V.

At assembly, solder Jumpers J310–J313 are set to bypass the potentiometer. For fine adjustment using the pot, the solder jumpers must be removed.

U302, an XOR gate array, is included in the design to let users add gate delays to the FIFO memory chips clock paths. They are not required under normal conditions and are bypassed at assembly by Jumpers J314 and J315. Jumpers J306 and J307 allow the clock signals to be inverted through an XOR gate. In the default setting, the clocks are not inverted by the XOR gate.

The clock paths described above determine the WRT_CLK1 and WRT_CLK2 signals at each FIFO memory chip (U101 and U201, Pin 80). The timing options above should let you choose a clock signal that meets the setup and hold time requirements to capture valid data.

A clock generator can be applied directly to S1 and/or S3. This clock generator should be the same unit that provides the clock for the ADC. These clock paths are ac-coupled, so that a sine wave generator can be used. DC bias can be adjusted by R301/R302 and R305/R306. Note that J301 and J302 (SMA connectors) and R301, R302, R305, and R306 are not installed at the factory and must be installed by the user.

The DS90LV048A differential line receiver is used to square the clock signal levels applied externally to the FIFO evaluation board. The output of this clock receiver can either directly drive the write clock of the IDT72V283 FIFO(s), or first pass through the XOR gate timing circuitry described above.

CLOCKING WITH INTERLEAVED DATA

ADCs with very high data rates may exceed the capability of a single buffer memory channel (~133 MSPS). These converters often demultiplex the data into two channels to reduce the rate required to capture the data. In these applications, ADC Analyzer must interleave the data from both channels to process it as a single channel. The user can configure the software to process the first sample from Channel 1, the second from Channel 2, and so on, or vice versa, (see the Troubleshooting section for more information). The synchronization circuit included in the buffer memory forces a small delay between the write enable signals (WENA and WENB) to the FIFO memory chips (Pin 1, U101 and U201), ensuring that the data is captured in one FIFO before the other. Jumpers J401 and J402 determine which FIFO receives WENA and which FIFO receives WENB

Rev. 0 | Page 10 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

INSTALLING ADC ANALYZER

ADC Analyzer is designed to evaluate the performance of an Analog Devices analog-to-digital converter quickly and easily.

INSTALLATION

A copy of ADC Analyzer is included on the CD that comes with the FIFO Evaluation Kit. Check the Analog Devices website for updates to the software at

1. Copy the AnalyzerSetup.exe file to the hard drive.

2. Run the setup file and follow the instructions given in the

installation wizard. Note that administrator privileges are required to install the software on Windows

2000/Windows Me/Windows XP machines.

www.analog.com/hsc-FIFO.

Step 1

3. Once the software is installed, run the executable file (the

default location is in c:\program files\ ADC_Analyzer\ADC_Analyzer.exe).

CONFIGURATION FILE

A configuration file can be created for each high speed ADC evaluation board used with ADC Analyzer. A configuration file provides the software with important information about the data sent from the ADC evaluation board to the FIFO evaluation board, such as the number of bits, speed of the clock, and format of the data bits (binary or twos complement). Configuration files for some of the evaluation boards are included with the ADC Analyzer files. Each time ADC Analyzer is launched, a window opens where a configuration file can be specified. Click Ye s to specify a configuration file and choose the file corresponding to the ADC being used.

The default configuration files can be modified or a new configuration file can be created using the instructions in the Configuring An Evaluation Board section.

CONFIGURING AN EVALUATION BOARD

Follow Steps 1 through 5 to configure the software with the ADC evaluation board:

04750-0-003

2. Choose Config > FFT from the pull-down menus or right-

click any of the analysis buttons to open the FFT Configuration screen. Use this menu to configure the Fast Fourier Transform plot. If needed, modify the options under Channel A to select the appropriate channel.

Step 2

1. From the pull-down menus in the upper left hand corner,

choose Config > DUT. The screen, DUT Configuration opens. Enter the name of the ADC being evaluated in the Device dialog box and the number of bits (resolution of the ADC) in the Number of Bits dialog box. (Note: This information is used for display purposes only.) To specify a directory different than the default to store the configuration file, enter a new location in the Default Data Directory dialog box, and click OK.

Rev. 0 | Page 11 of 44

04750-0-004

Note that Channel A in the software corresponds to Channel 1 on the FIFO schematics and the bottom FIFO on the evaluation

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

board. Channel B corresponds to Channel 2 on the FIFO schematics and the top FIFO on the evaluation board (closest to the Analog Devices logo). See the Jumpers section for more information.

Configuring FFT— Defining Available Options

in the Max # of Harmonics’ box. Typically, this can be left at the default value of 3.

DC Leakage: The number of bins (at dc) that are not used in calculating SNR and SINAD. Typically, this can be left at the default value of 6.

Samples: Choose the number of samples taken to calculate an FFT. The default is 16 kB samples. Users can choose more or fewer samples, depending on the application. The maximum number of samples that can be selected in the software is 64 kB. However, the FIFO evaluation boards are configured with 32 kB FIFOs. For single ADCs evaluated with the HSC-ADC-EVALASC model, the maximum number of samples selected should match the FIFO memory on the evaluation board. For dual ADCs evaluated with the HSC-ADC-EVALA-DC model, the maximum number of samples should match the FIFO memory of each channel (a different number of samples can be selected for each channel). ADCs with demultiplexed outputs (such as the AD9430) can be used with a sample value of twice the FIFO memory. See the Upgrading FIFO Memory section.

Ave rage s: Specify the number of averages taken for the average FFT functions. See the ADC Analyzer Functions section for more information.

Encode Frequency (MHz): Enter the speed of the sampling clock to the ADC. If evaluating a dual ADC, two different clock rates can be entered. Note: If the value is wrong, the analog fundamental frequency displayed will be wrong.

FullScale Input Power (dBm): This feature lets the user enter the amount of power (in dBm) needed on the input to determine the output fullscale. It applies only in noise figure and IIP2/IIP3 calculations.

Maximum Number of Harmonics: The number of harmonics displayed by ADC Analyzer. The default value is 6 and the maximum number of harmonics that can be displayed is 12.

Two s C ompl e ment: Check this box if the data from the ADC evaluation board is in twos complement format. Refer to the ADC data sheet to determine if the ADC outputs are configured for twos complement or offset binary. If the Twos Comp l ement option is not checked, ADC Analyzer will expect the data outputs from the ADC to be in offset binary format.

User Defined SNR Left (MHz): This is the amount of frequency specified to the left of the fundamental by the user to analyze SNR. The resulting value is called UDSNR and will show up after an FFT plot is captured.

User Defined SNR Right (MHz): This is the amount of frequency specified to the right of the fundamental by the user to analyze SNR. The resulting value is called UDSNR and will show up after an FFT plot is captured.

After configuring the options for the Fast Fourier Transform plot in this window, click OK.

3. Choose Config > Buffer. HSC-ADC-EVAL(A), opening the

Buffer Memory screen.

Step 3

Enable Fundamental Override: ADC Analyzer automatically

defaults the highest spur as the fundamental frequency of interest. However, in some applications, the user may have a very small analog input signal that could be equal to or below another spurious harmonic. This option lets the user specify the small analog input signal needed for evaluation. If Enable

Fundamental Override is checked, the Fundamental Frequency (MHz) box is enabled for the user to specify.

Fundamental Leakage: The number of bins that are neglected

on either side of the fundamental signal when calculating the SNR and SINAD results. For example, if an encode rate is defined at 80 MSPS with 16384 samples, then 80M/21/(16384/21) = 4883 Hz/Bin is specified. The type of windowing selected determines the default value of the fundamental leakage. See the Windowing section for more information. The default values are 25, 10, and 1 for Hanning, Blackman Harris, and no windowing, respectively.

Harmonic Leakage: The number of bins that are neglected on either side of each harmonic of the fundamental signal defined

Rev. 0 | Page 12 of 44

04750-0-005

Click OK, and the Buffer Configuration window opens. ADC Analyzer automatically seeks a USB connection. If a USB connection is not found, it will assume that you want to use an older version FIFO board which has a parallel connection. If so, choose the appropriate parallel connection made to the computer and click OK.

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

Step 3a

04750-0-006

4. Choose Config > Bits > Data Bits to open the Bit Mask

screen. Configure the number and location of the data bits used to calculate the FFTs.

Make sure that the number of bits matches the resolution of the converter. All of the supported evaluation boards are MSB justified, so check the number of bits for the converter starting with Bit 15 (MSB). Exceptions to this are the AD9280, AD9281, AD9200, and AD9201. For these four ADCs, check the number of bits starting with Bit 13.

If a single ADC is being evaluated, check only Channel A and the appropriate bits under Channel A. If a dual ADC is being evaluated, check Channel A and Channel B on the Channel Select screen. (Config > Channel Select).

Step 4

04750-0-007

If evaluating a demultiplexed ADC, go to Config > Channel Select, opening the Channel Select pop-up menu, and check the Interleaved Data box. This automatically selects both Channel A and Channel B. When using a dual ADC, select only the appropriate channel that corresponds to the ADC that is being evaluated. Channel A is the default selected channel at startup.

Step 4a

04750-0-008

Note that Channel A in the software corresponds to Channel 1 on the FIFO schematics and the bottom FIFO (U201) on the

Rev. 0 | Page 13 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

evaluation board. Channel B corresponds to Channel 2 on the FIFO schematics and the top FIFO (U101) on the evaluation board (closest to the Analog Devices logo). See the Jumpers section for more information. Click OK. (For more information about the channel selection process, see the Troubleshooting section.)

5. As a last step, choose File > Configuration File > Save

Configuration from the pull-down menu to save the configuration for future use. Choose a file name and a location to save the file.

ADDITIONAL CONFIGURATION OPTIONS

Other options under the configuration pull-down menu include Windowing, Power Supply, and Y-Axis.

Windowing

Choose either the Hanning or Blackman Harris (default) windowing functions or turn windowing off. See the Windowing Functions section for a description of Hanning and Blackman Harris windowing. Click OK.

For the calculator to work properly, the correct sampling frequency must be entered under Config > FFT. Select either the desired approximate Analog Input Frequency or the # of Sine Wave Cyc l es . Enter the value in the dialog box (not labeled) and click Calculate to view the Coherent Frequency. The Coherent Frequency and Number of Integer Cycles will display in the gray boxes. Click OK to exit the Coherent Sampling Calculator.

Power Supply

This option opens under Config > Power Supply, and users can enter the value of the ADC analog and digital voltage supplies (see Figure 5). Note this for user documentation only. No external control is provided. ADC Analyzer displays this information when data is captured. See the ADC Analyzer Functions section for more information.

04750-0-009

Figure 3. Select Windowing Function

If you choose None, the Coherent Sampling Calculator window opens (see Figure 4).

04750-0-011

Figure 5. Power Supply Configuration

Y-Axis

Use the Y Axis screen to configure the display of the FFT Y-Axis. Go to Config > YAxis to change the default value of – 130, which is a typical setting for the noise floor of a 14-bit ADC with 16,384 samples in the FFT calculation.

04750-0-012

Figure 6. Y Axis Configuration

04750-0-010

Figure 4. Coherent Sampling Calculator

Rev. 0 | Page 14 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

INSTALLING ADC ANALYZER WITH ADIsimADC

ADC Analyzer is useful also as an evaluation tool for simulated ADCs using ADIsimADC.

INSTALLATION

The simulation tools are installed as part of the regular installation of ADC Analyzer (for instructions, see the Installing ADC Analyzer section). Before using these features, the desired model files must be installed. Locate the available models on the Analog Devices website

www.analog.com/ADIsimADC or by

locating the desired converter product and going to the Design Too l s a r ea f or t hat p ro d u ct .

1. Download the desired model file to the models directory.

The default is c:\program files\adc_analyzer\models.

2. Although the software is provided with the evaluation

board, no hardware is required to use the modeling software. Updates to the software are posted periodically to

www.analog.com as well as new and updated models.

Check the website frequently to ensure that you have the latest for both files.

3. Once the software and models are installed, run the

executable file (the default location is in c:\program files\adc_analyzer\adc_analyzer.exe.

CONFIGURATION FILE

As with using an ADC evaluation board, a corresponding configuration file must be loaded before simulations can occur. This file provides the software with important information about the format in which the data is generated, and other information, such as the number of bits, speed of the clock, and format of the data bits (binary or twos complement). Configuration files for some of the evaluation boards are included with the ADC Analyzer files. Each time ADC Analyzer is launched, a window opens in which a configuration file can be specified. Click Ye s to specify a configuration file and choose the file corresponding to the ADC evaluation board being used. For more details, see the Configuring an Evaluation Board section.

CONFIGURING A MODEL

To configure the software for use with ADIsimADC virtual evaluation board, follow Steps 1 through 8.

1. Choose Config > FFT from the pull-down menus or right-

click on any of the analysis buttons to bring up the FFT Configuration menu. In this window, set the encode rate to the desired rate that the converter can support. If an encode rate is specified outside the operating range of the converter, the model will not function as expected and erroneous results will be obtained. Make any other adjustments necessary. If you have questions, see the Configuring an Evaluation Board. Click OK when finished.

2. From the menu, select Config > Buffer. From the drop

down list, select Model. Then click OK. In effect, the model functions in place of the ADC and data capture hardware.

Step 2

04750-0-013

After selecting the Model, a small button, Model, is

displayed next to the Stop button. Click Model to open the model selection form.

Step 3

04750-0-014

4. The ADC Modeling form lets you select the device to

model and configure the analog input to the model.

Step 4

04750-0-015

From the ADC Modeling form, select the Device tab and click the

… button, adjacent to the dialog box.

This opens a file browser and displays all of the models found in the default directory.

If you have not

loaded models on your machine, see Step 1 under Installation.

Rev. 0 | Page 15 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

5. From the file browser, select the model of interest.

04750-0-016

When the model is selected, information about that device is filled in on the ADC Modeling form. Note that the amount of jitter, assumed at the time of characterization, automatically inserts in the External Jitter box on the Input tab. The model also returns a default Output Mode which is defined either as Offset Binary or Twos Complement. This setting automatically sets through the Config > FFT menu. If using a real part along with a model, note the correct Output Mode setting. If the windowing function under the Config > Windowing menu is set to None, a Coherent Sampling window opens. If you are in modeling mode and use this function, the calculated frequency inserts in the Analog In box on the Input tab

Step 5a:

6. Select the Input tab.

From this tab, you may select the input

stimulus of either a single or dual sine wave, the input signal level relative to the converter range, the input frequency, the signal offset, the signal range, external clock jitter and external analog dither. also may specify the second tone.

If two tone is selected, you

For the most accurate

results, both signals should be in the same Nyquist zone.

Step 6

04750-0-053

7. The Model is now fully configured and evaluations may

Any of the documented features of ADC Analyzer

begin. may be used for testing the virtual evaluation board as if a real evaluation board were connected.

In addition, the

virtual evaluation board supports sweeping of the analog input level and frequency.

8. To switch back to evaluate a real product, it is only required

to specify the buffer memory by selecting Config > Buffer and select HSC_ADC_EVAL from the drop down list.

04750-0-052

Rev. 0 | Page 16 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

ADC ANALYZER FUNCTIONS

A number of functions can be performed on the data collected by the FIFO evaluation board. These functions are represented by the row of buttons under the pull-down menus. The same functions also can be accessed under the Analyze pull-down menu. A description of each button is listed below.

TIME DOMAIN

This function displays a reconstruction of the captured data in the time domain. Several values are listed to the left of the signal, including

AVC C : Analog voltage level, set under Config > Power Supply (for display purposes only)

DVCC: Digital voltage level, set under Config > Power Supply (for display purposes only)

Encode: ADC clock rate (MSPS), set under Config > FFT

Analog: Calculated analog input frequency (MHz)

Min: Minimum output code produced by the analog input

Max: Maximum output code produced by the analog input

Range: The range of the codes produced by the analog input

Ave rage : Average value of the codes; may be interpreted as the

common mode

F/S: Full-scale code range, equal to 2 bits

Samples: Number of samples taken, determined by FFT Configuration (Config > FFT)

, where n is the number of

CONTINUOUS TIME DOMAIN

This function displays a continuous reconstruction of the captured data and is also useful for trouble– shooting. Click the STOP button to end the continuous display.

FFT

This function displays a reconstruction of the captured data in the frequency domain to analyze single-tone analog inputs. the left of the signal, including

AVC C : Analog voltage level, set under Config > Power Supply (for display purposes only)

DVCC: Digital voltage level, set under Config > Power Supply (for display purposes only)

Several values are listed to

Encode: ADC clock rate (MSPS), set under Config > FFT.

Analog: Calculated analog input frequency (MHz). In IF

sampling applications, the analog input is calculated back to the first Nyquist zone. properly in the Config > FFT menu.

SNR: Signal-to-noise ratio (dB)

SNRFS: Signal-to-noise ratio full scale (dBFS)

UDSNR: User defined signal-to-noise ratio (dB)

NF: Noise figure (dB)

SINAD: Signal-to-noise and distortion (dB)

Fund: Level of the fundamental (highest) tone (dBFS)

Image: Level of image (nonharmonic) spur (dBc). Note that

Image is

Second: Level of the second harmonic (dBc) of the fundamental

Third: Level of the third harmonic (dBc) of the fundamental

Fourth: Level of the fourth harmonic (dBc) of the fundamental

Fifth: Level of the fifth harmonic (dBc) of the fundamental

Sixth: Level of the sixth harmonic (dBc) of the fundamental

Wo Sp u r : Level of the worst nonharmonic spur

THD: Total harmonic distortion (dBc)

SFDR: Spurious-free dynamic range (dBc)

Noise Floor: Level of the noise floor (dBFS)

Samples: Number of samples taken, determined by FFT

configuration, set under Config > FFT

valid only when using demultiplexed ADCs

Note that the encode rate must be set

CONTINUOUS FFT

This function displays a continuous FFT.

AVERAGE FFT

This function displays an average of a user-specified number of FFTs. Configure the number of FFTs under Config > FFT. The default value is 5.

CONTINUOUS AVERAGE FFT

This function displays a continuous average of a user-specified number of FFTs. Configure the number of FFTs under Config > FFT. The default value is 5.

Rev. 0 | Page 17 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

TWO TONE

This function displays a reconstruction of the captured data in the frequency domain to analyze dual-tone analog inputs. the left of the signal, including

AVC C : Analog voltage level, set under Config > Power Supply (for display purposes only)

DVCC: Digital voltage level, set under Config > Power Supply (for display purposes only)

Encode: ADC clock rate (MSPS), set under Config > FFT

Analog 1: First analog input frequency (MHz)

Analog 2: Second analog input frequency (MHz)

Fundamental 1: First fundamental tone (dBFS)

Fundamental 2: Second fundamental tone (dBFS)

F1 + F2: Sum of the fundamental tones (dBFS)

F2 – F1: Difference of the fundamental tones (dBFS)

Several values are listed to

STOP

Click this button to end any of the continuous display functions.

ZOOMING AND EXPORTING DATA

To zoom in on any portion of a displayed analog signal or FFT, select the portion of the signal by holding down the left mouse button and dragging across the area of interest. Bring up a hidden menu by clicking the right mouse button in the active window. The hidden menus are slightly different for the timedomain and FFT plots. These hidden menus have several options, including zooming and the capability to export timedomain data. (see Figure 7and Figure 8)

Select from the menus using the left mouse button

2F1 – F2: 2 × Fundamental 1 – Fundamental 2 (dBFS)

2F1 + F2: 2 × Fundamental 1 + Fundamental 2 (dBFS)

2F2 – F1: 2 × Fundamental 2 – Fundamental 1 (dBFS)

2F2 + F1: 2 × Fundamental 2 + Fundamental 1 (dBFS)

Wo IM D : Worst intermodulation distortion (dBc)

IIP2: Measure of the input intercept point in relation to the

second order intermodulation distortion powers (dBm)

IIP3: Measure of the input intercept point in relation to the third order intermodulation distortion powers (dBm)

SFDR: Spurious-free dynamic range (dBc)

Noise Floor: Level of the noise floor (dBFS)

Samples: Number of samples taken, determined by FFT

configuration, set under Config > FFT

CONTINUOUS TWO TONE

This function displays a continuous dual-tone FFT.

AVERAGE TWO TONE

This function displays an average of a user-specified number of dual-tone FFTs. Configure the number of FFTs under Config > FFT. The default value is 5.

04750-0-019

Figure 7. Time-Domain Plot Hidden Menu

Figure 8. FFT Plot Hidden

04750-0-020

H-Zoom: Scales the selected section horizontally

V-Z oom : Scales the selected section vertically

X-Y Zoom: Scales horizontally and vertically (two dimensions)

Exact Zoom: Enter specific coordinates to view

Restore: Restores the graph to its original view

Spawn: Produces an exact working copy of the active window

that can be analyzed separately

Export Data: Writes all of the data points as well as the calculated information to a file. The information is saved as a .csv file that can be viewed in Microsoft Excel

Comments: Lets the user enter comments about the graph. If the FFT is printed, the comments are included in the printout

Lock Data (Time-Domain Plot Only): Once a time-domain sample of the data is taken, the user can “lock” this data and then perform an FFT. The FFT will be calculated based on this data instead of a new sample of data

Rev. 0 | Page 18 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

EC1 Transition: Not applicable

Encode Frequency (MHz): Enter the sampling clock rate used.

FFT Data Write (FFT Plot Only): Writes the calculated FFT

to a file

data

Bin Boundaries (FFT Plot Only): Highlights the bins used to calculate the fundamental and harmonic energy. Configure the Fundamental Leakage and Harmonic Leakage under Config > FFT. See the Configuring an Evaluation Board section for more information

FFT Bins: Changes the X-axis of the graph from frequency to bins

IMPORTING DATA

Data can be imported to ADC Analyzer to perform an FFT calculation. Two types of data can be imported: raw time domain text data in decimal format (from a logic analyzer, for example) and data exported from ADC Analyzer.

Note that when importing data, double-check to make sure that the number of bits, sample size, and digital format (Twos Complement vs. Offset Binary) are selected appropriately under the Config menu.

To import data previously exported from ADC Analyzer:

1. Choose File > Import Data.

ASCII Text File to Import: Click the Browse… button to search for the file.

4. Click OK. The time-domain data is graphed in a new

window. Right click the graph to open the hidden menu. Select Lock Data from the menu. (See Figure 7.)

5. To perform an FFT on this data, click the FFT button.

Figure 9. Import Data Dialog Box

04750-0-021

2. Enter the file path in the dialog box shown in Figure 9, or

click the Browse… button to search for the file. Click OK.

3. The time-domain data is graphed in a new window. Right

click the graph to open the hidden menu. Choose Lock Data from the menu. See Figure 7 in the Zooming and Exporting Data section.

4. To perform an FFT on this data, click the FFT button.

To import raw time domain text data in decimal format:

1. Choose File > Import Data.

2. Click the ASCII File button shown in Figure 9.

3. The window in Figure 10 opens. This window is used to

give ADC Analyzer information about how to interpret the text data file.

If any of these input parameters are not

correct, both the time and FFT data will not be correct.

Data Bits: Select the resolution of the ADC.

Samples: Select the number of samples in the file.

Data Format: Select the format of the ADC output data.

Justification: Normally, the data exported from ADC Analyzer

is MSB_Justified. When importing data, be sure to select the proper justification.

04750-0-022

Figure 10. Import ASCII Text File Dialog Box

.csv and ASCII files

The Comma Separated Value or Comma Delimited file format (.csv) is displayed in Figure 11 using Microsoft Excel. The .csv file includes extra parameters, including the raw time domain data.

Rev. 0 | Page 19 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

04750-0-023

Figure 11. Import .csv file using MS Excel

Parameters, such as Device, Device Number, Analog Frequency, Encode Frequency, Average (value), (number of) Bits, Max (value), Min (value), Range (of values), (amount of) Samples, AVCC, DVCC, XMaxTime, XMinTime, YMaxTime, YMinTi me, Date, Time, Device Temperature, and Comments are included at the top of the file.

Only raw time domain data is used in an ASCII file format that is imported to ADC Analyzer.

No specifications, words,

extraneous characters, spaces, commas, or tabs can be placed in the ASCII file.

Example portion of an ASCII file: (note that the entire ASCII file consists of time domain samples such as this.)

If constructing a .csv file to import to ADC_Analyzer, the format of the sample .csv file must be followed.

It is

recommended that you use Microsoft Excel to paste the desired data and parameters over the example data and parameters. example, the user has 16384 samples (16 kB samples).

For

Paste the

amount of samples (16384) into the cell directly below the cell labeled “Samples.” samples under the cell labeled “RawTimeData.”

Then paste the desired 16384 raw data

Other

parameters can be changed just like “Samples” and “RawTimeData” if desired, but are not necessary for the import to work properly.

The above procedure works most easily with Microsoft Excel.

.csv file can be constructed with a text editor such as Notepad, but Notepad does not provide the column alignment that Microsoft Excel provides, as shown in Figure 12.

04750-0-054

Figure 13. ASCII File Sample

PRINTING

There are several printing options available in ADC Analyzer. To print the active window, choose File > Print To print more than one open window, choose File > Print > Print List. A dialogue box is displayed where the user can choose which windows to print. Choose multiple windows by clicking on each window while pressing the CTRL key or print all open windows with the Print All button. To print the entire screen, choose File > Print > Print Screen.

> Print Active.

Figure 12. Import ASCII Text File using Notepad

04750-0-024

Rev. 0 | Page 20 of 44

Figure 14. Printing Options

04750-0-051

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

SAVING FILES

There are three ways to save an image in ADC Analyzer. Choose File > Save As > Save Active to save the active window in bitmap or jpeg format. Choose File > Save As > Save List to save each open window as a separate bitmap file. To save the entire screen as a bitmap file, choose File > Save As > Save Screen.

ADDITIONAL FUNCTIONS (VIRTUAL ADC ONLY)

The following function is available only while using the virtual evaluation board feature. This feature is disabled when operating in any of the normal buffer memory configurations.

Start Amplitude (dB): This sets the starting level of the amplitude sweep. This is relative to the dc fullscale of the converter. This number should always be lower than the stop amplitude.

Stop Amplitude (dB): This sets the stopping level of the amplitude sweep. This is relative to the dc fullscale of the converter. This number should always be larger than the start amplitude.

Step Size (dB): This is the step size used for each amplitude step. This number should always be positive. There is no limit to the size of the step. However, the smaller the step, the longer the sweep will require to complete. Likewise, the larger the step, the lower the resolution of the sweep.

Figure 15. Sweep Mode Options

From the main menu, select Sweep. There are two choices: Analog Frequency Sweep and Analog Amplitude Sweep.

Selecting either one of these opens the appropriate configuration window.

AMPLITUDE SWEEP (VIRTUAL ADC ONLY)

When this option is chosen, the form shown in Figure 16 is displayed. sweep. ADC Modeling form under the Input tab, and must be set prior to selecting this option.

Use this form to select the options for an amplitude

The frequency for the amplitude sweep is set on the

04750-0-025

comparison of the SFDR of the unit.

SNR Reference Line: This draws a reference line used for comparison of the SNR of the unit.

FFT: The FFT selection determines if single or average FFTs are used during the sweep.

SFDR vs. Amplitude: Selecting this check box enables SFDR versus amplitude results.

SNR vs. Amplitude: Selecting this check box enables SNR versus amplitude results.

Reference Line: This draws a reference line used for

2nd Harmonic: Selecting this check box enables 2

harmonics

versus amplitude results.

3rd Harmonic: Selecting this check box enables 3

harmonics

versus amplitude results.

4th Harmonic: Selecting this check box enables 4

harmonics

versus amplitude results.

5th Harmonic: Selecting this check box enables 5

harmonics.

versus amplitude results.

6th Harmonic: Selecting this check box enables 6

harmonics

versus amplitude results.

Worst O th e r Spu r : Selecting this check box enables worst other spur versus amplitude results.

Results Fullscale: Selecting this check box refers all measurements to fullscale (dBFS). When this is not selected, the measurements are relative to the signal (dBc).

Datalog to Disk: Selecting this check box writes all data to a file

04750-0-055

Figure 16. Amplitude Sweep Mode Options

Rev. 0 | Page 21 of 44

in the default data directory. The data format is an ASCII readable CSV file.

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

Datalog to Screen: Selecting this check box causes graphs of each of the selected plots to be displayed on the screen after completion of the sweep.

Datalog Plots to File: Selection of this check box causes each bitmap plot to be written to the default data directory.

Datalog Plots to Printer: Selection of this check box causes each bitmap plot to be sent to the printer.

ANALOG FREQUENCY SWEEP (VIRTUAL ADC ONLY)

When this option is chosen, the form shown in Figure 17 is displayed. This form is used to select the options for a frequency sweep. The amplitude for the frequency sweep is set on the ADC Modeling form under the Input tab, and must be set prior to selecting this option.

sweep will require to complete. Likewise, the larger the step, the lower the resolution of the sweep.

Reference Line: This draws a reference line used for comparison of the SFDR of the unit.

SNR Reference Line: This draws a reference line used for comparison of the SNR of the unit.

FFT: The selection in this box determines if single or average FFTs are used during the sweep.

SFDR vs. Frequency: Selecting this check box enables SFDR

versus frequency results.

SNR vs. Frequency: Selecting this check box enables SNR

versus frequency results.

2nd Harmonic: Selecting this check box enables 2

harmonics

versus frequency results.

3rd Harmonic: Selecting this check box enables 3

harmonics

versus frequency results.

4th Harmonic: Selecting this check box enables 4

harmonics

versus frequency results.

5th Harmonic: Selecting this check box enables 5

harmonics.

versus frequency results.

6th Harmonic: Selecting this check box enables 6

harmonics

versus frequency results.

Figure 17. Frequency Sweep Mode Options

Start Frequency (MHz): This sets the starting frequency of the frequency sweep. This number should always be lower than the stop amplitude.

Stop Frequency (MHz): This sets the stopping frequency of the frequency sweep. This number should always be larger than the start amplitude.

Step Size (MHz): This is the step size used for each frequency step. This number should always be positive. There is no limit to the size of the step. However, the smaller the step, the longer the

04750-0-027

Worst O th e r Spu r : Selecting this check box enables worst other spur versus frequency results.

Results Fullscale: Selecting this check box refers all measurements to fullscale (dBFS). When this is not selected, the measurement is relative to the signal (dBc).

Datalog to Disk: Selecting this check box writes all data to a file in the default data directory. The data format is an ASCII readable CSV file.

Datalog to Screen: Selecting this check box causes graphs of each of the selected plots to be displayed on the screen after completion of the sweep.

Datalog Plots to File: Selection of this check box causes each bitmap plot to be written to the default data directory.

Datalog Plots to Printer: Selection of this check box causes each bitmap plot to be sent to the printer.

Rev. 0 | Page 22 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

TROUBLESHOOTING

FLAT LINE SIGNAL DISPLAYED

9. Use the ADC data sheet to ensure all jumper connections

are set appropriately on the ADC evaluation board. Ensure the ADC power-down option is not active.

10. Refer to Table 2, to ensure that all jumpers are set

appropriately.

DISPLAYED SIGNAL UNLIKE ANALOG INPUT

04750-0-029

Figure 19. Typical Time Domain Plot

04750-0-028

Figure 18. Bus Check for a 12-Bit ADC

Scenario: After clicking the time domain button, the signal displayed in the window is a flat line.

1. Check the power connections.

2. Verify that the USB cable does not exceed 5 feet in length

or the parallel printer cable is IEEE-1284 compatible.

3. Check the cable connection between the PC and the FIFO

board. If applicable, ensure the correct parallel port is selected (LPT1 or LPT2) under Config > Buffer.

4. If using a parallel port, make sure the Printer Port in the

computer BIOS is set to Standard Bidirectional.

5. Make sure Channel A, Channel B, or both channels are

selected under Config > FFT.

6. Check the signal connections and make sure that the clock

is present at the output of the ADC evaluation board.

7. Verify that data bits are switching at the connection point

between the FIFO and the ADC evaluation board.

8. Use the Analyze > Bus Check option to ensure all data bits

are switching. See Figure 19 for an example of the AD6645, 14-bit single channel ADC. Note: The left-most bit is the MSB.

Scenario: After clicking Time Domain, the signal displayed does not look like the analog input signal.

1. A fast sinusoidal signal may look like a solid red block in

the time-domain window (due to the number of sine waves shown). Right click the window to open a hidden menu where you can zoom in to a closer view of the signal.

2. Check the cable connection between the PC and the FIFO

board. If applicable, ensure the correct parallel port is selected (LPT1 or LPT2) under Config > Buffer.

3. Check the signal connections.

4. Use the Analyze > Bus Check option to ensure all of the

data bits are switching.

5. Ensure that the Twos Complement button is set correctly

under Config > FFT. If the Twos Complement box is checked and the ADC outputs are not in Twos Complement format, a time-domain plot may look like Figure 20.

6. Adjust the timing to ensure that the data is captured

correctly. Refer to the Clocking Description section in the Theory of Operation, and Table 2 for more information.

7. Try using a very low frequency analog input (for example,

0.1 MHz to 1 MHz) to debug timing issues. For an exact number of cycles, such as 10, try (10×fs)/M, where fs =

encode frequency and M = sample size (2

8. Check for problems with the common-mode level at the

analog input by looking at the time data with no analog input signal.

Rev. 0 | Page 23 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

04750-0-030

Figure 20. Incorrect Setting for Twos Complement

FFT NOISE FLOOR HIGHER THAN EXPECTED

LARGE SPUR IN FFT (IMAGE PROBLEM)

Figure 22. AD9430 Timing Issue

04750-0-032

04750-0-031

Figure 21. Example of How Timing Issues Affect the Noise Floor

Scenario: The noise floor of the FFT is higher than expected. Note that a higher than expected noise floor on the FFT can often be traced back to timing issues in the clock path.

1 Put a very slow sine wave signal into the ADC (such as 0.1

MHz to 1 MHz) and initiate a time-domain plot. If the plot looks similar to Figure 21, there are timing issues.

2 Switch Jumpers J304 and/or J305 to their alternate

positions to invert the clock.

3 The four XOR gates of U302 can be used to insert delay

into the high speed clock path or to invert the clock to optimize timing. Try moving jumpers J314 and J315 to their alternate position. This should allow enough flexibility for you to adjust timing under any conditions.

4 To gain even finer adjustments, use the installed trim pot,

R312 and R315. To undo the default bypass, the solder jumpers J310-J313 must be removed first.

04750-0-033

Figure 23. Channel Selection

Scenario: There is a large spur in the FFT (image of the fundamental) when evaluating the demultiplexed outputs (such as the AD9430).

1. Click Config > Channel Select, opening the window shown

in Figure 23Double-check and make sure the Interleaved Data box is selected. Click OK. Note that Channel A in the software corresponds to Channel 1 on the FIFO schematics and the bottom FIFO on the evaluation board. Channel B corresponds to Channel 2 on the FIFO schematics and the top FIFO on the evaluation board (closest to the Analog Devices logo). See the Jumpers section for more information.

2. The interleaved priority menu shows either Channel A or

Channel B checked.

Rev. 0 | Page 24 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

Scenario: The two MSBs are missing from the time domain plot.

1. If evaluating the AD9200, AD9201, AD9280, or AD9281,

make sure the appropriate bits are selected under Config > Bits > Data Bits. Bits 13 to 4 should be selected for the AD9200 and AD9201. Bits 13 to 6 should be selected for the AD9280 and AD9281. Default configuration files for these ADCs are installed with ADC Analyzer.

2. Make sure the bits are switching at the FIFO connector.

UPGRADING FIFO MEMORY

The FIFO evaluation board includes one or two 32 kB FIFOs, depending on the model. Pin compatible FIFO upgrades (64 kB to 256 kB) are available from Integrated Device Technology, Inc. (IDT). The IDT part numbers are:

• IDT72V283: 32 kB (included)

• IDT72V293: 64 kB

• IDT72V2103: 132 kB

• IDT72V2113: 256 kB

For more information, visit www.idt.com

Figure 24. Interleaved Priority

3. Perform another FFT. The spur should disappear.

MSBs MISSING FROM TIME DOMAIN

Figure 25. Incorrect Bit Mask Setting

04750-0-056

04750-0-034

Rev. 0 | Page 25 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

JUMPERS

Use the legends below to configure the jumpers. On the FIFO evaluation board, Channel 1 is associated with the bottom IDT FIFO chip, and Channel 2 is associated with the top IDT FIFO chip (closest to the Analog Devices logo).

Table 2. Jumper Legend

Position Description

In Jumper in place (2-pin header) Out Jumper removed (2-pin header) Position 1 or Position 3 Denotes the position of a 3-pin header. Position 1 is marked on the board.

Table 3 Solder Bridge Legend

Position Description

In Solder pads should be connected Out Solder pads should not be connected

DEFAULT SETTINGS

Table 4 lists the default settings for each model of the FIFO Evaluation Kit. The single channel (SC) model is configured to work with a single channel ADC using the bottom FIFO, U201. The dual channel (DC) model is configured to work with demultiplexed ADCs (such as the AD9430). Dual channel ADC settings are shown in a separate column, as are settings for the opposite (top) FIFO, U101 for a single channel ADC. To align the timing properly, some evaluation boards may require modifications to these settings. Refer to the Clocking Description section in the Theory of Operation section for more information.

Another useful way to configure the jumper settings easily for various configurations is to consult ADC Analyzer under the Help > About HSC_ADC_EVALA, and click Setup Default Jumper Wizard. Then click the configuration setting that applies to the application of interest. A picture of the FIFO board is displayed for that application with a visual of the correct jumper settings already in place.

Table 4. Jumper Configurations

Single Channel Settings,

Jumper No.

J101 Out Out Out Out Not Used J102 Out Out Out Out Not Used J103 In In In In Ground Unused Pins from Input Header J105 In In In In Ground Unused Pins from Input Header J106 Out Out Out Out Not Used J107 Out Out Out Out Not Used J201 Out Out Out Out Not Used J202 Out Out Out Out Not Used J203 In In In In Takes the FF Signal on FIFO1 out of the Circuit J205 In In In In Takes the EF Signal on FIFO1 out of the Circuit J206 Out Out Out Out Not Used J207 Out Out Out Out Not Used J303 In Out Out In OUT for Interleave and Dual/Ties Write Clocks Together J304 Position 3 Position 3 Position 3 Position 3 POS3: Invert Clock out of DS90 J305 Position 3 Position 3 Position 3 Position 3 POS3: Invert Clock out of DS90 J306 Out Out Out Out NO Invert from XOR (U302) J307 Out Out Out Out NO Invert from XOR (U302) J310-13 In In In In All Solder Jumpers are Shorted J314 Position 3 Position 3 Position 3 Position 3 No Timing Delay J315 Position 1 Position 1 Position 1 Position 1 No Timing Delay J401 Position 1 Position 1 Position 1 Position 1 WEN Select

Default (Bottom)

Demultiplexed Settings

Dual Channel Settings

Single Channel Settings (Top) Description

Rev. 0 | Page 26 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

Single Channel

Jumper No.

Settings, Default

(Bottom)

Demultiplexed Settings

Dual Channel Settings

J402 Position 3 Position 3 Position 3 Position 3 WEN Select J403 Position 1 Position 1 Position 1 Position 1 J303 OUT: POS 1 bottom channel, POS 3 Top channel

Can only be used with a dual channel FIFO board. This is essentially a single channel, but using the opposite channel (top FIFO) rather than the standard default

(bottom FIFO).

Single Channel Settings (Top)

Description

Rev. 0 | Page 27 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

FIFO SCHEMATICES AND PCB LAYOUT

FIFO CONNECTOR

FLOA

GND

FLOA

Figure 26. Single-Channel Connector Pin Diagram—

Top View (HSC-ADC-EVAL-SC)

GND

D15 (MSB)

D14

D13

D12

D11

D10

D0 (LSB)

FLOAT

04750-0-037

FLOA FLOA FLOA

GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND

GND FLOA FLOA FLOA FLOA

GND

GND FLOA

78 76 74 72 70 68 66 64 62 60 58 56 54 52 50 48 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 10

8 6 4 2

GND

D15 (MSB)

D14

D13

D12

D11

D10

D0 (LSB)

FLOAT

GND

D15 (MSB)

D14

D13

D12

D11

D10

D0 (LSB)

FLOAT

04750-0-038

GND

Figure 27. Dual-Channel Connector Pin Diagram—

Top View (HSC-ADC-EVAL-DC)

Rev. 0 | Page 28 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

PCB SCHEMATIC

FF_USB

10150515253

RESET

*WAKEUP

8 7

6 5

C501 1µF

Q15

124

TXD0

TXD1

RXD0

RXD1

PD7/FD15

CY7C68013_128AC

VCC;17,26,43,48,64,68,81,100,107 GND;20,27,49,58,65,80,93,116,125

SCLEABKPT

R509 10kΩ

R508 10kΩ

VCC

Q12

Q13

Q14

123

122

121

PD6/FD14

PD5/FD13

PD4/FD12

U502

RESERVED

CTL0*FLAGA

CTL1/*FLAGB

6970716667

R510 24.9Ω

R511 24.9Ω

WENS

MRS

R516

2kΩ

R517

2kΩ

Q11

105

R512 24.9Ω

REN1

PD3/FD11

CTL2/*FLAGC

R513 24.9Ω

Q10

104

RENEXT

103

PD2/FD10

CTL3

R514 24.9Ω

REN2

VCC

57565554474645

102

PB7/FD7

PB6/FD6

PD1/FD9

PD0/FD8

T2T1T0D0D1D2D3

CTL4

CTL5

31302959606162

R515 24.9Ω

E503

PB5/FD5

PB4/FD4

PB3/FD3

PB2/FD2

PB1/FD1

PB0/FD0

PA0/INT0 PA1/INT1

PA2/*SLOE

PA3/*WU2 PA4/FIFOADR0 PA5/FIFOADR1

PA6/*PKTEND

PA7/*FLAG/SLCS

PC0/GPIFADR0 PC1/GPIFADR1 PC2/GPIFADR2 PC3/GPIFADR3

PC4//GPIFADR4

PC5/GPIFADR5 PC6/GPIFADR6 PC7/GPIFADR7

PE0/T0OUT PE1/T1OUT

PE2/T2OUT PE3/RXD0OUT PE4/RXD1OUT

PE5/INT6

PE6/T2EX

PE7/GPIFADR8

D5D6D7

868788

INT4

NC1 NC2 NC3

106 28 82 83 84 85 89 90 91 92 72 73 74 75 76 77 78 79 108 109 110 111 112 113 114 115 14 15 16

R504 24.9Ω R505 24.9Ω R506 24.9Ω R507 24.9Ω R520 24.9Ω R525 24.9Ω R526 24.9Ω

Q16 Q17

CTRL_A CTRL_B CTRL_C CTRL_D INTERLEAVE_FIRSTWORD OE1 OE2

FF1

FF2

R502

100kΩ

VCC

R501

6 5 3

MRS

C504 22pF

C505 22pF

CR501

LED_SS

0Ω

C502

2.2µF

RCLK

E501

EF1 FF1

EF2

Y501

FF2

24MHz

1423

J501

R503

499Ω

USB_VBUS

E502

VCC

R523 2kΩ

U505

R524

VCC

U501

R519 10kΩ

R522 332Ω

R521 332Ω

1 2

VCC

GND

U504

PRE CLR

2 1

VCC

GND

FF_USB

Q QDCLK

FF1 FF2

R519 10kΩ

U505

VCC

U505

CR502

VAL

VCC

C503

0.1µF

11 12 18 19 94 95 96

97 117 118 119 120 126 127 128

CLKOUT INT5

AVCC

IFCLK

RDY0/*SLRD

RDY1/*SLWR

RDY2

RDY3

RDY4

RDY5 XTALOUT XTALIN DPLUS DMINUS A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15

DVCC

AGND

GNDCSWRRDPSENOESDA

133424140393837363534

INTERLEAVE_FIRSTWORD

0Ω

U503

VCC

SCL

SDA

VSS

VCC

C506

0.1µF

C507

0.1µF

C508

0.1µF

C509

0.1µF

C510

0.1µF

C511

0.1µF

C512

0.1µF

C513

0.1µF

C514

0.1µF

C515

0.1µF

C516

0.1µF

C517

0.1µF

04750-0-039

Figure 28. PCB Schematic

Rev. 0 | Page 29 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

PCB SCHEMATIC (Continued)

E201

VCC

WEN2

E202

C208

0.1µF

POPULATE WITH PIN SOCKET

D2_17

D2_16

Figure 29. PCB Schematic (Continued)

VCC

C201

C202

0.1µF

J201

J202

C203

0.1µF

BUTT UP WITH J103 TO MAKE 80 PIN HEADER

0.1µF

OPTION TO USE EXTRA BITS ON FIFO

D2_17

D2_16

R201

R202

10kΩ

C204

0.1µF

C205

C206

0.1µF

J207

J206

C207

0.1µF

J205

J203

CTRL_D

CTRL_C

0.1µF

J204

DUT_CLK2

3 1

10 11 12 13 14 15 16 17 18 19 20

U201

DRAFTMAN MAY REORDER BIT ASSIGNMENTS ON FIFO TO SIMPLIFY LAYOUT

WRT_CLK2

MRS

PRS

WCLK

WEN

SEN

DNC

VCC

DNC

GND

D17

VCC D16 D15 D14 D13 GND D12 D11 D10 D9 D8 VCC

FF2

MRS

FWFT/SI

D5D4D3D2D1

GND

FF/IR

PAF

FSEL0

BOTTOM FIFO

707668

FSEL1

IDT72V283

TQFP80

GND

VCC

EF2

REN2

RCLK

PAE

PFM

VCC

REN

RCLK

EF/OR

OE2

VCC

Q17

Q16 GND GND

Q15

Q14 VCC

Q13

Q12 GND

Q11 GND

Q10 VCC

GND

Q17

Q16 55 54 53

Q15 52

Q14 51 50

Q13 49

Q12 48 47

Q11 46 45

Q10 44 43

04750-0-040

Rev. 0 | Page 30 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

PCB SCHEMATIC (Continued)

DRAFTMAN MAY REORDER BIT ASSIGNMENTS ON FIFO TO SIMPLIFY LAYOUT

VCC

C101

C102

0.1µF

J101

J102

C103

0.1µF

OPTION TO USE EXTRA BITS ON FIFO

D1_17

D1_16

R101

R102

10kΩ

10 11 12 13 14 15 16 17 18 19 20

U101

WRT_CLK1

PRS

WCLK

WEN

SEN

DNC

VCC

DNC

GND

D17

VCC D16 D15 D14 D13 GND D12 D11 D10 D9 D8 VCC

E101

VCC

WEN1

E102

POPULATE WITH PIN SOCKET

C104

C105

C106

C107

0.1µF

J104

DUT_CLK1

D1_15

D1_14

D1_13

D1_12

D1_11

D1_10

D1_9

D1_8

D1_7

D1_6

D1_5

D1_4

D1_3

D1_2

BUTT UP WITH J203 TO MAKE 80 PIN HEADER

D1_1

D1_0

J107

J106

0.1µF

J105

J103

CTRL_B

CTRL_A

C108

0.1µF

D1_17

D1_16

MRS

FWFT/SI

D5D4D3D2D1

GND

FF1

FSEL0

IDT72V283

TQFP80

TOP FIFO

707668

GND

FSEL1

GND

PAF

FF/IR

Figure 30. PCB Schematic (Continued)

EF1

REN1

RCLK

PAE

PFM

EF/OR

VCC

REN

RCLK

VCC

Q17

Q16 GND GND

Q15

Q14 VCC

Q13

Q12 GND

Q11 GND

Q10 VCC

Q9 Q8 Q7

GND

OE1 58 57

Q17 56

Q16 55 54 53

Q15 52

Q14 51 50

Q13 49

Q12 48 47

Q11 46 45

Q10 44 43

Q9 42

Q8 41

VCC

04750-0-041

Rev. 0 | Page 31 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

PCB SCHEMATIC (Continued)

POPULATE WITH

PIN SOCKET

E301E302

J303

132

HEADER J4

VCC

R311 331Ω

R312

R313 331Ω

CON_2P_5MM

J310

JMP0508

J311

JMP0508

J309

C302

0.1µF

C303

0.1µF

TOP FIFO

DUT_CLK1

BOTTOM FIFO

DUT_CLK2

C310

0.1µF

PLACE JUMPERS BETWEEN PADS ON TOP SIDE

C307 10µF

EN6VCC

DS90LV048A

RIN1+

RIN1–

RIN2+

RIN2–

RIN3+

RIN3–

RIN4+

RIN4–

GND

12U301

VCC

R314 331Ω

J312

JMP0508

R315

J313

JMP0508

C308

0.1µF

R316 331Ω

VCC

C309 10µF

C311

0.1µF

Figure 31. PCB Schematic (Continued)

J301

J302

R301

DNP

EXT_CLK1

R302

DNP

R305

DNP

EXT_CLK2

R306

DNP

VCC VCC

C301

0.1µF

VCC VCC

C304

0.1µF

R303 331Ω

R304 331Ω

R307 331Ω

R308 331Ω

VCC

C305

0.1µF

U302

J306

J307

J308

74VCX86

R309

1kΩ

R310

1kΩ

74VCX86

RCLK WRT_CLK2WRT_CLK1

FF2

EF2 OE2 REN2 WENS

U302

ROUT1

ROUT2

ROUT3

ROUT4

13J304

J305

VCC

FF1

EF1

OE1

REN1

MRS

1 34 56 78 9 11 12 13 14 15 16 17 18 19220

HEADER 20

TOP FIFO BOTTOM FIFO

E306

E305

3 J314

WRT_CLK1

HEADER J3

J315

WRT_CLK2

HEADER J3

04750-0-042

U302

4 5

C306

0.1µF

E304E303

74VCX86

VCC

U302

74VCX86

Rev. 0 | Page 32 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

PCB SCHEMATIC (Continued)

VCC

WENS

RT_CLK1

RT_CLK2

J403

R401 20kΩ

C401

0.001µF

HEADER J3

R402

DNP

R403

DNP

U401

MC100EPT22

R404 162Ω

U401

MC100EPT22

3 4

R407 162Ω

R408

162Ω

R409 130Ω

R405 162Ω

R406 130Ω

1D0 2D0

4 CLK0 5 CLK0

6 CLK 7 CLK

8D1 9D1

U402

VCC

GND

CLKRQ

VCC;20

CLKRQ

3 VBB

R0 19

S0 18

Q0 17

Q0 16

Q1 15

Q1 14

S1 13

R1 12

R410 162Ω

R411 162Ω

R413 162Ω

R412 130Ω

R415 130Ω

R414 162Ω

1 2

U403

MC100EPT23

4 3

U403

MC100EPT23

WEN1 WEN2

J402J401

VCC

C402

C403

C404

0.1µF

C405

0.1µF

Figure 32. PCB Schematic (Continued)

04750-0-043

Rev. 0 | Page 33 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

PCB SCHEMATIC (Continued)

D1_8 D1_9

D1_10

D1_12 D1_13 D1_14 D1_15

D1_0 D1_1 D1_2 D1_3 DC3 D1_4 D1_5 D1_6 D1_7

1 2 3 4 5 6 7

1 2 3 4 5 6 7 89

R601

R602

R603

0Ω

R604

0Ω

DC8

DC9

DC10

DC11D1_11

DC12

DC13

DC14

DC15

DC0

DC1

DC2

13 12

DC4

DC5

DC6 DC7

DC16D1_16 DC17D1_17

DC0 DC3 DC2 DC6 DC8

DC7 DC11 DC10 DC13

DC4

DC5

DC9 DC17

EF1 FF1

WRT_CLK1

QL0

QL3

QL4

QL7

J601

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68

DC14 DC15

DC16 DC1

DC12

REN1 RCLK

MRS WEN1

QL1 QL2

QL5 QL6

RENEXT QL0 QL1 QL2 QL3 QL4 QL5 QL6 QL7

D0 D1 D2 D3 D4 D5 D6 D7 GND

74LCX574

VCC

C601

0.1µF

U601

VCCOUT_EN

CLOCK

Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7

VCC 19 18 17 16 15 14 13 12 11

RCLK

1 2 3 4 5 6 7

RZ605

120 2 3 4 5 6 7 8 9

04750-0-044

Figure 33. PCB Schematic (Continued)

Rev. 0 | Page 34 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

ASSEMBLY—PRIMARY SIDE

04750-0-045

Figure 34. Assembly—Primary Side

Rev. 0 | Page 35 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

ASSEMBLY—SECONDARY SIDE

04750-0-046

Figure 35. Assembly—Secondary Side

Rev. 0 | Page 36 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

LAYER 1— PRIMARY SIDE

04750-0-047

Figure 36. Layer 1—Primary Side

Rev. 0 | Page 37 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

LAYER 2—GROUND PLANE

04750-0-048

Figure 37. Layer 2—Ground Plane

Rev. 0 | Page 38 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

LAYER 3—POWER PLANE

04750-0-049

Figure 38. Layer 3—Power Plane

Rev. 0 | Page 39 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

LAYER 4—SECONDARY SIDE

Figure 39. Layer 4—Secondary Side

ESD CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality.

04750-0-050

Rev. 0 | Page 40 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

BILL OF MATERIALS

Table 5. HSC-ADC-EVAL-SC/HSC-ADC-EVAL-DC Bill of Materials

Quantity

Item

1 39 39

2 4 4

3 2 2 C307 ,C309 Capacitor, 16 V, 10% 6032 10 µF 4 1 1 C401 Capacitor, 50 V, 20% 0805 0.001 uF 5 1 1 C501 Capacitor, 16 V, 20% 3216 1 µF 6 1 1 C502 Capacitor, 20% 6032 2.2 µF 7 2 2 8 1 1 CR501 LED 0603 Green 9 1 1 CR502 Diode, 100 V SOD-123 1N4148W-7

10 14 14

11 1 1 J104/J204

12 1 1 J303

13 7 7

14 1 1 J309

15 4 4 J310–313

16 1 1 J501

17 2 2 J301–302

18 1 1 J308

19 1 1 J601

20 6 6

21 8 8

22 2 2 R309–310 Resistor, 1/8 W, 1% 1206 1 kΩ 23 1 1 R401 Resistor, 1/8 W, 1% 1206 20 kΩ

24 8 8

25 4 4 R406, R409, R412, R415 Resistor, 1/8 W, 1% 1206 40.2 Ω 26 2 2 R501, R524 Resistor, 1/10 W, 1% 0805 0 Ω 27 1 1 R502 Resistor, 1/8 W, 1% 1206 100 kΩ 28 1 1 R503 Resistor, 1/10 W, 1% 0805 499 Ω

SC DC

Reference Designation

C101–108, C201–208, C301–304, C306,

C402–405, C503, C506–517, C601

C305, C308, C310–311

C504–505

J101–103, J105–107, J201–203, J205–207, J306–307

J304–305, J314–315, J401–403

R101–102, R201–202, R518–519

R303–304, R307–308, R311,

R313–314, R316

R404–405, R407–408, R410–411, R413–414

Description Package Value Manufacture

Capacitor 0805 0.1 µF

Capacitor, 50 V, 20% 1206 0.1 µF

Capacitor 0805 22 pF

2-Pin Jumper Header

80-Pin Connector Header, Right Angle

4-Pin Connector, Straight

3-Pin Connector, Straight

2-Pin Terminal Strip, Straight

Solder Bridge (No Component)

4-Pin USB Connector, Right Angle

SMA Connector (Not Populated)

20-Pin Connector Header, Straight

(Not Populated) 68-Pin Connector,

Right Angle (Not Populated)

Resistor, 1/8 W, 1% 1206 10 kΩ

Resistor, 1/8 W, 1% 1206 331 Ω

Resistor, 1/8 W, 1% 1206 49.9 Ω

Female

Male TSW-1-10-08-GD

Male TWS-103-08-G-S

Male Z5.530.0225.0

0508

Female 787780-1

Male 142-0701-201

Male TSW-110-08-T-D

Male 787082-7

SSW-140-03-S-D-RA

Rev. 0 | Page 41 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

Quantity

Item

29 13 13

30 2 2 R508–509 Resistor, 1/10 W, 1% 0805 10 kΩ 31 2 2 R516–517 Resistor, 1/8 W, 1% 1206 2 kΩ 32 2 2 R521–522 Resistor, 1/10 W, 1% 0805 0 Ω 33 1 1 R523 Resistor, 1/10 W, 1% 0805 2k Ω 34 2 2 R603–604 Resistor, 1/16 W, 5% 0402 0 Ω 35 2 2 R312, R315 Potentiometer, 10% 1 kΩ

36 6 6

37 2 2 R601–602

38 1 1 RZ605

39 1 2 U101, U201 IC TQFP80 IDT72V283L7-5PF IDT 40 1 1 U301 IC SOIC16 DS90LV048ATM National Semi 41 1 1 U302 IC SOIC14 74VCX86M Fairchild 42 1 1 U401 IC SO8M1 MC100EPT22D OnSemi 43 1 1 U402 IC TSSOP20 MC100EP29DT OnSemi 44 1 1 U403 IC SO8M1 MC100EPT23D OnSemi 45 1 1 U501 IC SOT23L5 NC7SZ32M5 Fairchild 46 1 1 U502 IC TQFP128 CY7C68013-128AC Cypress 47 1 1 U503 IC PDIP8 24LC00P MicroChip 48 1 1 U504 IC SSOP8 SN74LVC2G74DCTR TI 49 1 1 U505 IC SOIC14 74LVQ04SC Fairchild 50 1 1 U601 IC 74LCX574WM Fairchild

51 1 1 Y501

SC DC

Reference Designation

R504–507, R510–515, R520,

R525–526

R301–302, R305–306, R402–403

Description Package Value Manufacture

Resistor, 1/8 W, 1% 1206 24.9 Ω

Resistor (Not Populated)

Resistor Array, 8 pcs, 1/4 W, 5%

Crystal Oscillator, 24 MHz

0402 0 kΩ

2-Pin Can ECS-240-20-4 ECS

Rev. 0 | Page 42 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

APPENDIX: SAMPLING AND FFT FUNDAMENTALS

×−=

⎛

Magnitude

⎜

FullScale

⎝

)

cos0.50.5Wn

)

ImReMagnitude +=

⎛ ⎜

⎝

⎞ ⎟

⎠

⎟

⎟ ⎠

⎞

n2π

COHERENT SAMPLING

In a coherent system, the analog and clock sources must be synchronized, and the analog and clock input frequencies must

be selected such that given 2

(N is an integer number) samples, there is an integer number of whole sine wave cycles. The number of cycles should ideally be a prime number. Selecting a prime number ensures that the same converter codes are not repeated over and over, therefore exercising as many converter codes as possible. Although a crystal oscillator can be used as an clock source in this technique, two synchronized signal synthesizers are generally preferred because special hardware may be required to ensure the crystal oscillator is synchronized with the analog source. The following equation can be used to mathematically calculate the correct analog and clock frequencies for a coherent system:

fin

where:

fin = Analog Input Frequency

fs = Sampling Clock (encode) Frequency

M = Sample Size (2

)

Mc = Number of Cycles of Sine Wave

If the requirements of the coherent system defined above are not met, the discrete time samples will appear discontinuous at the end of the captured samples and the results will be invalid.

WINDOWING FUNCTIONS

It is sometimes desirable to use a windowing function instead of coherent sampling to reduce the restrictions on the analog and encode sources. Two popular windowing functions are the Blackman Harris 4-Term and the Hanning window. With windowing, the time-domain samples are multiplied by the appropriate weighting function that weights the time-domain data such that the discontinuities at the end of the captured samples have less significance. The weighting function for a Blackman Harris 4-Term window is:

where:

a0 = 0.35875

a1 = 0.48829

a2 = 0.14128

a3 = 0.01168

×π

⎛

⎞

⎜

×−=

aaWn

cos10

⎜ ⎝

cos2

×+

⎟

⎠

×π

⎞

⎛

⎟

cos3

⎜

⎝

×−

⎟ ⎠

×π

⎛

⎞

⎜

⎟

⎜

⎠

⎝

M = Sample Size (2

n = Indexed Sample Number

The weighting function for a Hanning window is:

where:

M = Sample Size(2

n = Indexed Sample Number

FFT CALCULATIONS

Whether a system is coherent or a windowing function has been applied, the resulting data will be processed via a discrete fourier analysis that translates the discrete time-domain samples into the frequency domain. Because in practice processing the data quickly is desired, a Fast Fourier Transform (FFT) is used, which is simply an algorithm that reduces the required mathematical calculations. There are many FFT algorithms available but the most popular is the radix 2 algorithm. Regardless of the algorithm, for each time-domain sample a complex conjugate pair (r ± jx) will be generated from the FFT. For example, if the time-domain sample size is 16,384, the resulting FFT array will contain 16,384 complex samples. To generate a frequency domain plot from this data, the magnitude of each complex sample must be calculated. The magnitude can be computed using the following equation:

If the input data to the FFT is complex, the FFT will contain 16,384 magnitudes representing frequencies between plus and

minus fs/2. Although complex ADCs are not available, it is very

common to use two ADCs to synchronously sample the I and Q data streams from a quadrature demodulator. If the data input to the FFT is real, representing the data from a single ADC, the last 8192 samples represent a mirror image of the first 8192 samples. Because this is an exact mirror image, the last 8192 samples can be ignored.

With the data set processed, there are two ways to evaluate the ADC performance, graphically and computationally. To plot the data in a meaningful way, the magnitude data must be converted to decibels (dB). This can be done with the formula:

log10dB

×=

where Magnitude is the individual array elements computed above, and FullScale is the FullScale magnitude. It is important to note that the computation for dB assumes the square root

Rev. 0 | Page 43 of 44

HSC-ADC-EVALA-SC/HSC-ADC-EVALA-DC

was not actually taken in the equation above, leaving the magnitude expressed as the sum of two squares. Therefore 10 × log is used instead of 20 × log, eliminating the time required to compute the square root.

Based on Nyquist Theory, the encode rate must be at least twice the signal bandwidth to faithfully represent the signal when sampled. Therefore, if the encode rate is 80 MHz, an ADC can only represent 40 MHz of continuous bandwidth. Knowing the encode rate and the number of time-domain samples, the frequency representation per bin can be established. In this example, the encode rate is 80 MHz and there are 16,384 time-

domain samples; therefore, 4880 Hz/bin is represented. If the

encode rate is doubled or the number of time-domain samples is doubled, a 3 dB improvement in the noise floor is observed. This does not represent an improvement in ADC performance, but simply represents an increased resolution per bin.

From the computations above, it is now possible to define and calculate SNR, SINAD, harmonics, SFDR, ENOB, and noise figure. The signal-to-noise ratio can be expressed as the ratio of the rms signal amplitude to the rms value of the sum of all other spectral components, excluding the first six harmonics and dc, or by the equation:

SNR

⎛ ⎜

log20

×=

⎜ ⎝

l_EnergyFundamenta

⎞ ⎟

⎟

gyNoise_Ener

⎠

Noise_Energy represents the summation of all the noise energy in the spectrum, and Fundamental_Energy represents the summation of the fundamental energy. The fundamental energy resides in a single bin if a coherent system is used; however, in the case of a windowing function, it may be spread over 10 to 25 bins, depending on the windowing technique.

Harmonics can be defined as the ratio of the rms signal amplitude to the rms value of the harmonic component, reported in dBc. Harmonics represent the nonlinearities within the ADC and are integer multiples of the fundamental. If the

harmonic exceeds fs/2, it will be aliased back into the first

Nyquist zone. A concept closely related to harmonics is SFDR. For an ADC, SFDR is defined as the ratio between the rms amplitude of a single tone and the rms amplitude of the worst spur as the tone is swept through the entire ADC input range. It is very common for the worst spur to be harmonically related.

Whereas SNR excludes the first five harmonics, SINAD includes these harmonics as part of the Noise_Energy summation, otherwise known as THD or Total Harmonic Distortion. If the harmonic performance of the ADC is excellent, there is very little difference between the SNR value and the SINAD value.

ORDERING GUIDE

Model Description

HSC-ADC-EVALA-SC Single FIFO Version of USB Evaluation Kit HSC-ADC-EVALA-DC Dual FIFO Version of USB Evaluation Kit AD922XFFA AD664XFFA AD9432FFA AD9283FFA AD9071FFA AD9059FFA AD9051FFA LG-0204A

If an adapter is needed, send an email to highspeed.converters@analog.com with the part number of the adapter and a mailing address.

Required for Revision C of AD6644 and AD6645 evaluation boards. Revision D and greater are directly compatible with e HSC-ADC-EVALA-SC evaluation board

1, 2

Adapter for AD922x Family (Not included in Evaluation Kit) Adapter for AD664x Family (Not included in Evaluation Kit) Adapter for the AD9432 (Not included in Evaluation Kit) Adapter for the AD9283 and AD9057 (Not included in Evauation Kit) Adapter for the AD9071 (Not included in Evaluation Kit) Adapter for the AD9059 (Not included in Evaluation Kit) Adapter for the AD9051 (Not included in Evaluation Kit) Adapter for the AD10xxx and AD13xxx Families (Not included in Evaluation Kit)

C04750-0-5/04(0)

Rev. 0 | Page 44 of 44

Datasheet FIFOA Datasheet (Analog Devices)

Specifications and Main Features

Frequently Asked Questions

User Manual

FEATURES

EQUIPMENT NEEDED

PRODUCT DESCRIPTION

PRODUCT HIGHLIGHTS

FUNCTIONAL BLOCK DIAGRAM

FIFO EVALUATION BOARD QUICK START

REQUIREMENTS

Quick Start Steps

VIRTUAL EVALUATION BOARD QUICK START WITH ADIsimADC

REQUIREMENTS

Quick Start Steps

FIFO 4 DATA CAPTURE BOARD

FIFO 4 SUPPORTED ADC EVALUATION BOARDS

TERMINOLOGY

SINGLE TONE FFT

TWO-TONE FFT

THEORY OF OPERATION

CLOCKING DESCRIPTION

CLOCKING WITH INTERLEAVED DATA

INSTALLING ADC ANALYZER

INSTALLATION

CONFIGURATION FILE

CONFIGURING AN EVALUATION BOARD

Configuring FFT— Defining Available Options

ADDITIONAL CONFIGURATION OPTIONS

Windowing

Power Supply

Y-Axis

INSTALLING ADC ANALYZER WITH ADIsimADC

INSTALLATION

CONFIGURATION FILE

CONFIGURING A MODEL

ADC ANALYZER FUNCTIONS

TIME DOMAIN

CONTINUOUS TIME DOMAIN

CONTINUOUS FFT

AVERAGE FFT

CONTINUOUS AVERAGE FFT

TWO TONE

STOP

ZOOMING AND EXPORTING DATA

CONTINUOUS TWO TONE

AVERAGE TWO TONE

IMPORTING DATA

.csv and ASCII files

PRINTING

SAVING FILES

ADDITIONAL FUNCTIONS (VIRTUAL ADC ONLY)

AMPLITUDE SWEEP (VIRTUAL ADC ONLY)

ANALOG FREQUENCY SWEEP (VIRTUAL ADC ONLY)

TROUBLESHOOTING

FLAT LINE SIGNAL DISPLAYED

DISPLAYED SIGNAL UNLIKE ANALOG INPUT

FFT NOISE FLOOR HIGHER THAN EXPECTED

LARGE SPUR IN FFT (IMAGE PROBLEM)

UPGRADING FIFO MEMORY

MSBs MISSING FROM TIME DOMAIN

JUMPERS

DEFAULT SETTINGS

FIFO SCHEMATICES AND PCB LAYOUT

FIFO CONNECTOR

PCB SCHEMATIC

ASSEMBLY—PRIMARY SIDE

ASSEMBLY—SECONDARY SIDE

LAYER 1— PRIMARY SIDE

LAYER 2—GROUND PLANE

LAYER 3—POWER PLANE

LAYER 4—SECONDARY SIDE

ESD CAUTION

BILL OF MATERIALS

APPENDIX: SAMPLING AND FFT FUNDAMENTALS

COHERENT SAMPLING

WINDOWING FUNCTIONS

FFT CALCULATIONS

ORDERING GUIDE
