General Purpose Relays
Z
PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable
n
1 pole 8A, 1 form C (CO) or 1 form A (NO) or 1 form B (NC) contact
n
Low component height 12.3mm
n
5kV/8mm coil-contact
n
Reinforced insulation (protection class II)
n
Pinnings: 3.2mm and 5mm
n
Reflow-solderable version
n
Especially suitable for resistive and inductive loads on
form A (NO) and form B (NC) contacts
n
Plastic materials according to IEC 60335-1 (domestic appliances)
SCHRACK
Typical applications heating control, interface technology, domestic appliances, timers, temperature control
Approvals
VDE Cert. No. 40009639, UL E214025
Technical data of approved types on request
Contact Data
Contact arrangement 1 form C (CO) or 1 form A (NO) or 1 form B (NC) Rated voltage 250VAC Max. switching voltage 400VAC Rated current 8A Breaking capacity max. 2000VA Contact material AgNi0.15, AgSnO Frequency of operation, with/without load 6/1200min Operate/release time max. 9/5ms Bounce time max., form A/form B 6/10ms
Contact ratings
Type Contact Load Cycles
IEC61810
RY531 A (NO) 8A, 250VAC, 70°C 100x10 RY211 A (NO) 8A, 250VAC, 75°C 100x10 RY211 A (NO) 8A, 250VAC, 85°C 50x103 RY211 B (NC) 8A, 250VAC, 70°C 50x10
UL61810-1 (UL508)
RY211 A/B (NO/NC) 10A, 250VAC, general purpose, 70°C 30x103 RY211 A (NO) 1/2hp, 240VAC, 85°C 30x10 RY211 B (NC) B300, 70°C 6x10 RY211 A (NO) 8A, 250VAC, 85°C 100x10 RY211 A (NO) 8A, 24VDC, 85°C 30x10 RY211 A (NO) B300, 85°C 30x10 RY211 A (NO) C300, 105°C 30x10 RY211 A (NO) 1/3 hp, 250VAC, 85°C 30x10 RY211 A (NO) 1/4 hp, 120VAC, 70°C 30x10
EN60730-1
RY211 A/B (NO/NC) 6(4)A, 250VAC, 85°C 100x103 RY211 A (NO) 8(4)A, 250VAC, 75°C 50x10 RY211 A (NO) 8(4)A, 250VAC, 85°C 30x10 RY211 A (NO) 2(2)A, 250VAC, -40 / +105°C 100x103 RY211 C (CO) 2(2)A, 250VAC, -40 / +105°C 30x10 Mechanical endurance, DC coil 30x106 operations
2
-1
F0142-E
Coil Data
Coil voltage range 5 to 60VDC Operative range, IEC 61810 2
Coil versions, DC coil
Coil Rated Operate Release Coil Rated coil code voltage voltage voltage resistance power VDC VDC VDC Ω±10% mW 005 5 3.5 0.5 112 223 006 6 4.2 0.6 162 222 009 9 6.3 0.9 320 253 012 12 8.4 1.2 627 230 024 24 16.8 2.4 2350 245 048 48 33.6 4.8 9391 245 060 60 42.0 6.0 14000 257
All figures are given for coil without pre-energization, at ambient temperature +23°C Other coil voltages on request
3
3
3
3
3
3
3
3
3
3
3
Insulation Data
3
Initial dielectric strength
3
between open contacts 1000V between contact and coil 5000V
3
Clearance/creepage between contact and coil ≥8/8mm Material group of insulation parts IIIa Tracking index of relay base PTI250 reflow-solderable version PTI175
rms
rms
12-2021 Rev. 1221 www.te.com © 2015 Tyco Electronics Corporation, a TE Connectivity Ltd. company
Datasheets and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section.
Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
1
tion, application notes and all specifications are subject to change.
Page 2
General Purpose Relays PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable (Continued)
SCHRACK
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content refer to the Product Compliance Support Center at www.te.com/customersupport/rohssupportcenter Ambient temperature -40 to +70°C +85°C at 6A Category of environmental protection IEC 61810 RTII - flux proof RTIII - wash tight
1)
Vibration resistance (functional), form A (NO)/form B (NC) 20/5g Shock resistance (functional) form A (NO)/form B (NC) 20/5g Shock resistance (destructive) 100g Terminal type PCB-THT, PCB-THR Weight 8g Resistance to soldering heat THT IEC 60068-2-20 RTII : 270°C/10s RTIII : 260°C/5s Resistance to soldering heat THR IEC 60068-2-58 250°C, no infrared heating allowed Packaging/unit standard version tube/20 pcs., box/500 pcs. reflow version reel/280 pcs. box/1120 pcs. (4 reels)
1) not available as reflow-solderable version
Accessories
For details see datasheet Accessories Miniature PCB Relay RY

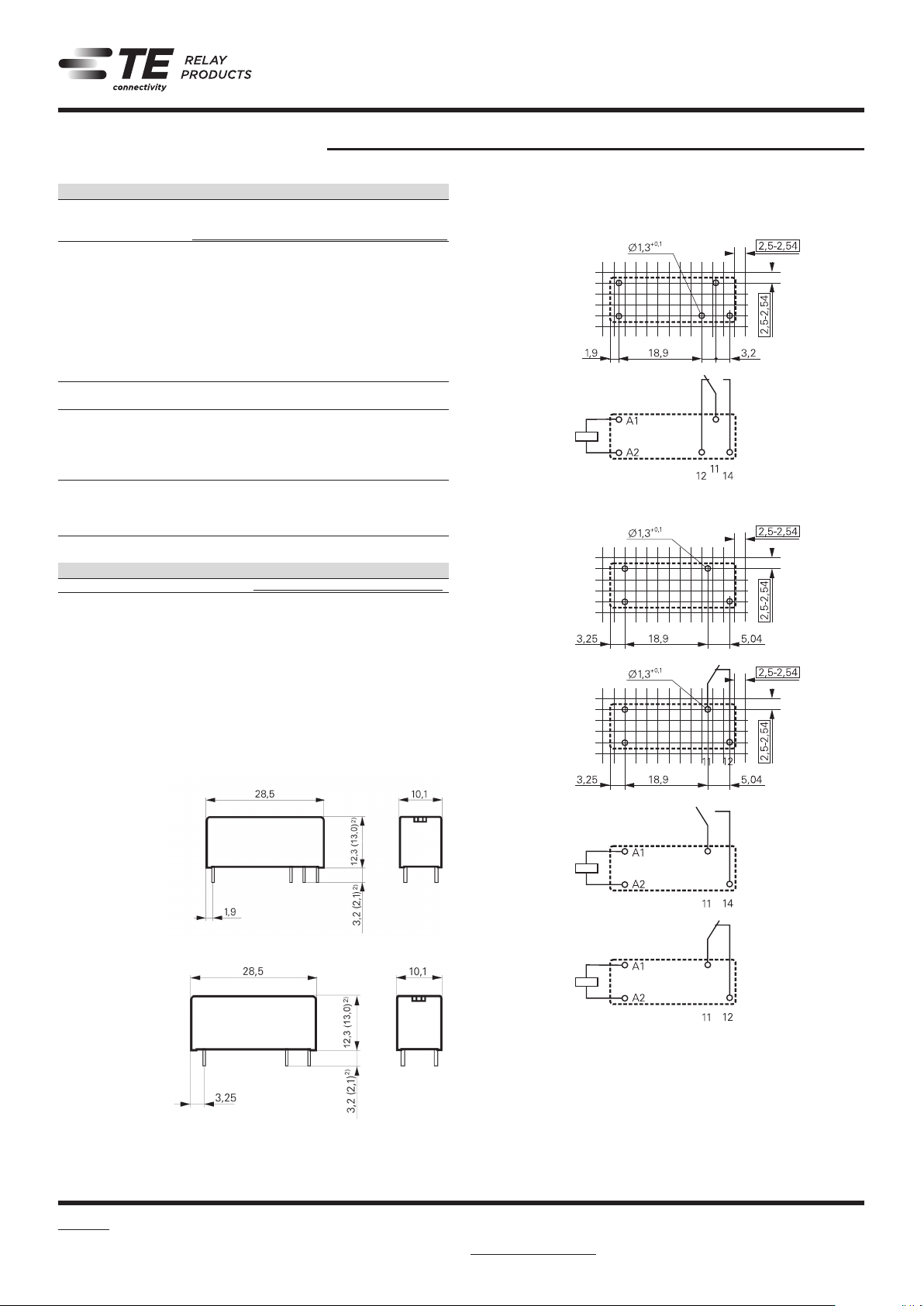

PCB layout / terminal assignment
Bottom view on solder pins
1 form C (CO) contact, 3.2 mm
S0254-AA
S0254-AB
1 form A (NO), 1 form B (NC) contact 5 mm
S0254-AC
Dimensions Pinning 3.2 mm
Pinning 5 mm
2) Values in brakets are valid for reflow-solderable version
2
12-2021, Rev. 1221 www.te.com © 2015 Tyco Electronics Corporation, a TE Connectivity Ltd. company
S0274_CA
S0274-CB
Datasheets and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section.
Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at http://relays.te.com/definitions
S0254-AE
S0254-AD
S0254-AF
Datasheets, product data, ‘Definitions’ sec­tion, application notes and all specifications are subject to change.
Page 3
General Purpose Relays PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable (Continued)
SCHRACK
Soldering profile for reflow-solderable version
Reel dimensions
Tape dimensions
Product code structure Typical product code RY 6 1 1 012
Type RY Miniature Power PCB RYII & RYII reflow solderable Version
2 pinning 3.2mm, flux proof 6 pinning 3.2mm, wash tight 5 pinning 5mm, flux proof A pinning 5mm, wash tight
Contact arrangement
1 1 form C (1 CO), pinning 3.2mm 3 1 form A (1 NO), pinning 5mm 5 1 form B (1 NC), pinning 5mm
Contact material
1 AgNi 0.15 2 AgNi 0.15 gold plated 3 AgSnO
Coil Coil code: please refer to coil versions table Version
Blank Standard version R reflow-solderable
2) not available as reflow-solderable version
12-2021 Rev. 1221 www.te.com © 2015 Tyco Electronics Corporation, a TE Connectivity Ltd. company
2
Datasheets and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section.
2)
2)
Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec­tion, application notes and all specifications are subject to change.
3
Page 4
General Purpose Relays PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable (Continued)
SCHRACK
Product code Version Contacts Contact material Coil Part Number
RY211005 Pinning 3.2 mm 1 form C, AgNi 0.15 RY211006 6VDC 4-1393224-3
RY211012 flux proof 1 CO contact 12VDC 4-1393224-6 RY211024 24VDC 4-1393224-9 RY211048 48VDC 5-1393224-1 RY212005 RY212006 gold plated 6VDC 5-1393224-3 RY212012 12VDC 5-1393224-5 RY212024 24VDC 5-1393224-8 RY212048 48VDC 5-1393224-9 RY213005
RY213006 6VDC 9-1393224-0
RY213012 12VDC 6-1393224-1 RY213024 24VDC 6-1393224-2 RY213048 48VDC 6-1393224-3 RY531005 RY531006 flux proof 1 NO contact 6VDC 7-1393224-7 RY531012 12VDC 7-1393224-9 RY531024 24VDC 8-1393224-2 RY531048 48VDC 8-1393224-3 RY532012 RY532024 RY533006 RY533012 12VDC 8-1393224-8 RY533024 24VDC 8-1393224-9 RY533048 48VDC 9-1393224-0 RY611005 RY611006 wash tight 1 CO contact 6VDC 1-1393225-8 RY611012 12VDC 1-1393225-9 RY611024 24VDC 2-1393225-1 RY611048 48VDC 2-1393225-2 RY612005 RY612006 gold plated 6VDC 2-1393225-4 RY612012 12VDC 2-1393225-6 RY612024 24VDC 2-1393225-9 RY612048 48VDC 3-1393225-0 RY613005 RY613012 12VDC 3-1393225-1 RY613024 24VDC 3-1393225-3 RY613048 48VDC 3-1393225-4 RY631024 RYA31005 RYA31006 wash tight 6VDC 1393224-8 RYA31012 12VDC 1393224-9 RYA31024 24VDC 1-1393224-2 RYA31048 48VDC 1-1393224-3 RYA32005 RYA32006 gold plated 6VDC 8-1393224-8 RYA32012 12VDC 1-1393224-6 RYA32024 24VDC 1-1393224-8 RYA33005 RYA33024 24VDC 2-1393224-1
Pinning 5 mm 1 form A, AgNi 0.15
Pinning 3.2 mm 1 form C, AgNi 0.15
1 form A, AgNi 0.15
Pinning 5 mm
1 NO contact 5VDC 1393224-7
AgNi 0.15
AgSnO
2
AgNi 0.15
gold plated
AgSnO
2
AgNi 0.15
AgSnO
2
AgNi 0.15
AgSnO
2
5VDC
5VDC 5-1393224-2
5VDC 6-1393224-0
5VDC 7-1393224-6
12VDC 8-1393224-4 24VDC 8-1393224-5
6VDC 8-1393224-6
5VDC 1-1393225-7
5VDC 2-1393225-3
5VDC 5-1419136-2
24VDC 4-1415400-1
5VDC 1-1393224-4
5VDC 1-1393224-9
4-1393224-2
Product code Version Contacts Contact material Coil Part number
RY211005R pinning 3.2mm 1 form C, AgNi 0.15 5VDC 1-1956170-2 RY211012R flux proof 1 CO contact 12VDC 1-1956170-6 RY211024R reflow solderable 24VDC 1956164-1 RY531005R pinning 5.0mm 1 form A, 5VDC 1-1956171-1 RY531012R flux proof 1 NO contact 12VDC 1-1956171-4 RY531024R reflow solderable 24VDC 1-1956171-7
