53255

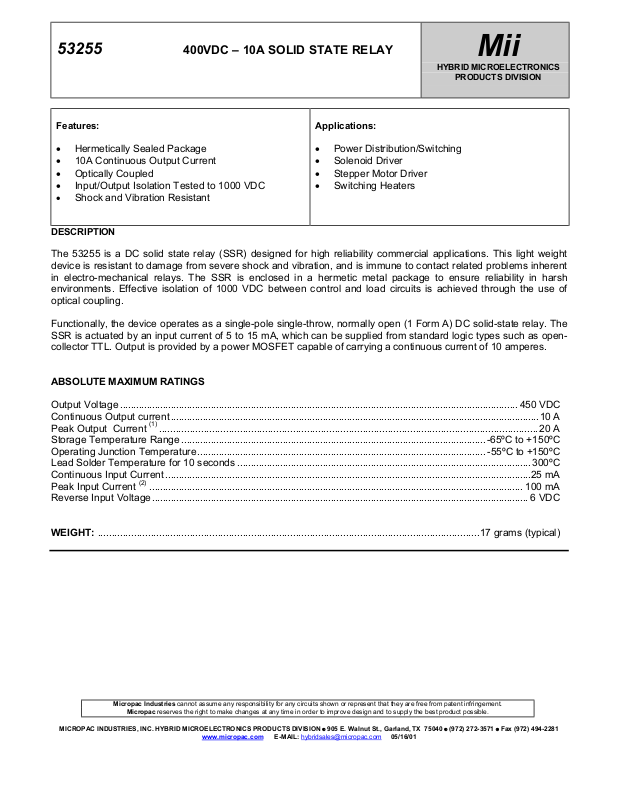

400VDC – 10A SOLID STATE RELAY
Mii
HYBRID MICROELECTRONICS
PRODUCTS DIVISION
Features:
Hermetically Sealed Package
•
10A Continuous Output Current
•
Optically Coupled
•
Input/Output Isolation Tested to 1000 VDC
•
•
Shock and Vibration Resistant
DESCRIPTION
Applications:
Power Distribution/Switching
•
Solenoid Driver
•
Stepper Motor Driver
•
Switching Heaters
•
The 53255 is a DC solid state relay (SSR) designed for high reliability commercial applications. This light weight
device is resistant to damage from severe shock and vibration, and is immune to contact related problems inherent
in electro-mechanical relays. The SSR is enclosed in a hermetic metal package to ensure reliability in harsh
environments. Effective isolation of 1000 VDC between control and load circuits is achieved through the use of
optical coupling.
Functionally, the device operates as a single-pole single-throw, normally open (1 Form A) DC solid-state relay. The
SSR is actuated by an input current of 5 to 15 mA, which can be supplied from standard logic types such as opencollector TTL. Output is provided by a power MOSFET capable of carrying a continuous current of 10 amperes.
ABSOLUTE MAXIMUM RATINGS
Output Voltage ..................................................................................................................................................... 450 VDC
Continuous Output current ..........................................................................................................................................10 A
Peak Output Current
(1)
........................................................................................................................................20 A
Storage Temperature Range .................................................................................................................. -65ºC to +150ºC
Operating Junction Temperature ............................................................................................................ -55ºC to +150ºC
Lead Solder Temperature for 10 seconds .............................................................................................................. 300ºC
Continuous Input Current .........................................................................................................................................25 mA
Peak Input Current
(2)
............................................................................................................................................ 100 mA
Reverse Input Voltage ............................................................................................................................................. 6 VDC
WEIGHT: .........................................................................................................................................17 grams (typical)
Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • (972) 272-3571 • Fax (972) 494-2281
www.micropac.com E-MAIL: [email protected]
05/16/01
Page 2
RECOMMENDED OPERATING CONDITIONS:
Parameter Symbol Min. Max. Units
53255
400VDC – 10A Solid State Relay
Output Voltage V
Continuous Output Current I
Input Current (on) I
Input Voltage (off) V
Operating Case Temperature T
ELECTRICAL SPECIFICATIONS
= -40°C to +85°C unless otherwise specified
T
C
Parameter Sym. Min. Typ.* Max. Unit
Output On-Resistance R
Output Leakage Current I
Input Forward Voltage V
Input Reverse Breakdown Voltage V
(ON)
O (OFF)
F
R
O (OFF)
O (ON)
F (ON)
F (OFF)
C
.14 .27
3.75 4.20 VDC I
640
400 VDC
10 A
515 mA
01 VDC
-40 85 °C
Test Conditions Notes
s
I
= 15 mA
F
250
Ω
µ
A
VDC
= 1 A
I
O
= 1 VDC
V
F
V
= 450 VDC
O
= 15 mA
F
I
= 10 µA
R
Input-Output Leakage I
Turn-On Time t
Turn-Off time t
Rise Time t
Fall Time t
Thermal Resistance (junction-case)
* All typical values are at TC = 25°C
Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OFF
θ
I-O
ON
RH ≤ 45%, t = 5 s
3.3 8.0 ms
0.35 3 ms
1
µ
A
V
= 1000 VDC
I-O
T
= 25°C
C
I
= 15 mA
F
I
= 1 A
O
4, 5
V load = 40 VDC
R
F
JC
2.5 6.0 ms
.19 2.0 ms
1.8
°C/W
Pulse width = 10 ms
Duty cycle ≤ 1%
6
MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • (972) 272-3571 • Fax (972) 494-2281
www.micropac.com E-MAIL: [email protected]
05/16/01
Page 3
Notes:
53255
400VDC - 10A Solid State Relay
1. Non-repetitive, pulse width ≤ 10ms, T
2. Non-repetitive, pulse width
3. Case Temperature T
C
100µs, T
≤
= 25°C.
= 25°C.
C
= 25°C.
C
4. Input pins shorted together and output pins shorted together.
5. Input-output potential applied momentarily, not an operating condition.
6. Rise time is measured from 10% to 90% of load current (90% to 10% of V
10% of load current (10% to 90% of V
).
O
). Fall time is measured from 90% to
O
CAUTION:
Care should be taken so as not to exceed the maximum power dissipation and maximum junction temperature
when repetitively switching loads.
INPUT OUTPUT
ON ON
OFF OFF
Figure 1. Truth Table
Figure 1. Terminal Connections
+V
-V
C
R
S
C
+DC SUPPLY
R
LOAD
OUTPUT GND
TOP VIEW

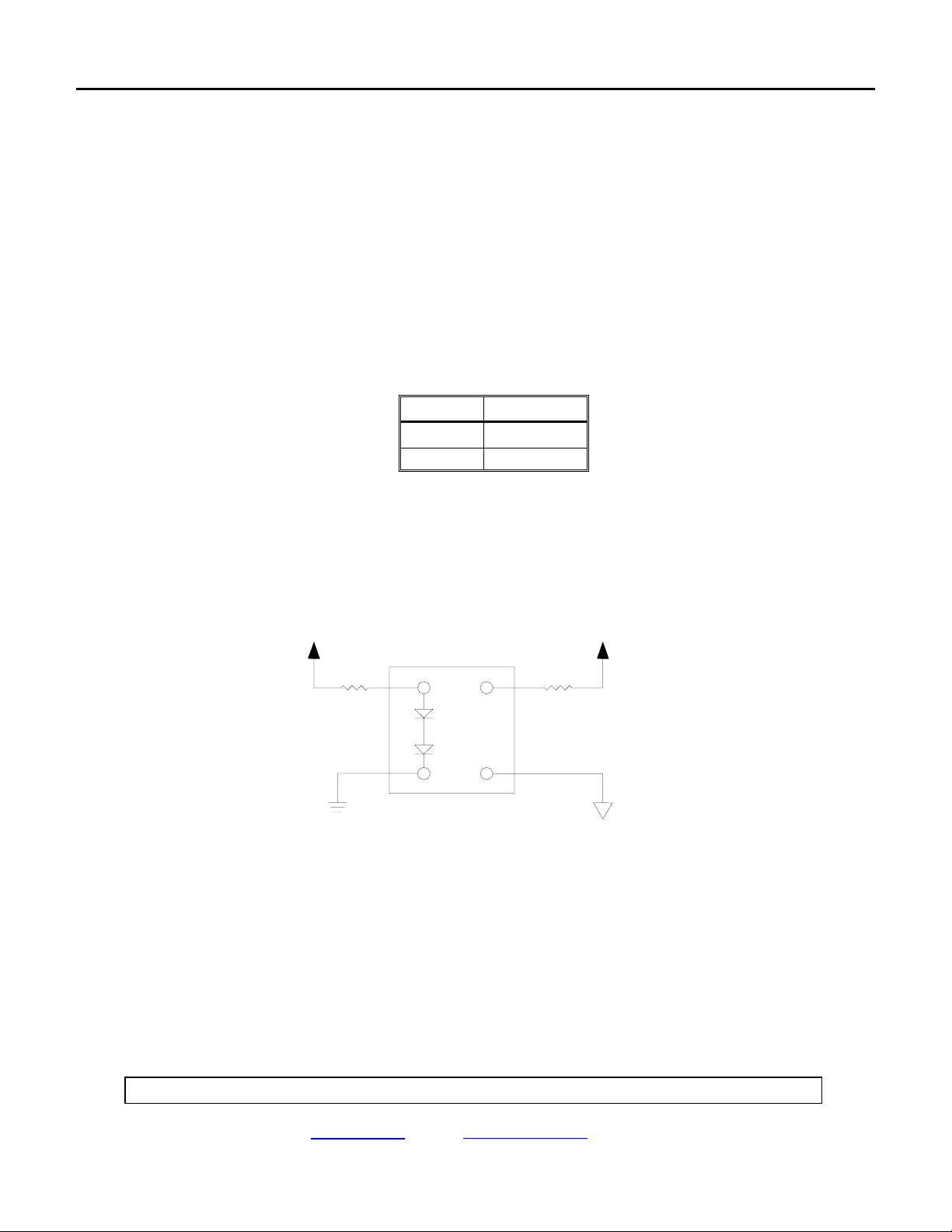

Figure 2. Terminal Connections
Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • (972) 272-3571 • Fax (972) 494-2281
www.micropac.com E-MAIL: [email protected]
05/16/01
Page 4
C
L
1.870 MAX
53255
400VDC - 10A Solid State Relay
0.500
C
L
0.170 R
2 PL
0.125, TYP 5 PLACES
TOLERANCES NON-ACCUM
0.212
45°
4 PL
0.760
1.520
1.000
0.312
0.156 DIA
THRU 2 PL
1.000
0.040 DIA, 6 PL
0.120
0.275 MAX
0.050
Dimensions: inches
Pin Function
1+IN
2-IN
3+OUT
4+OUT
5-OUT
6-OUT
Notes: 1. For +OUT and -OUT functions, both pins must be used to meet the rated current.
2. ESD symbol (∆) indicates pin 1.

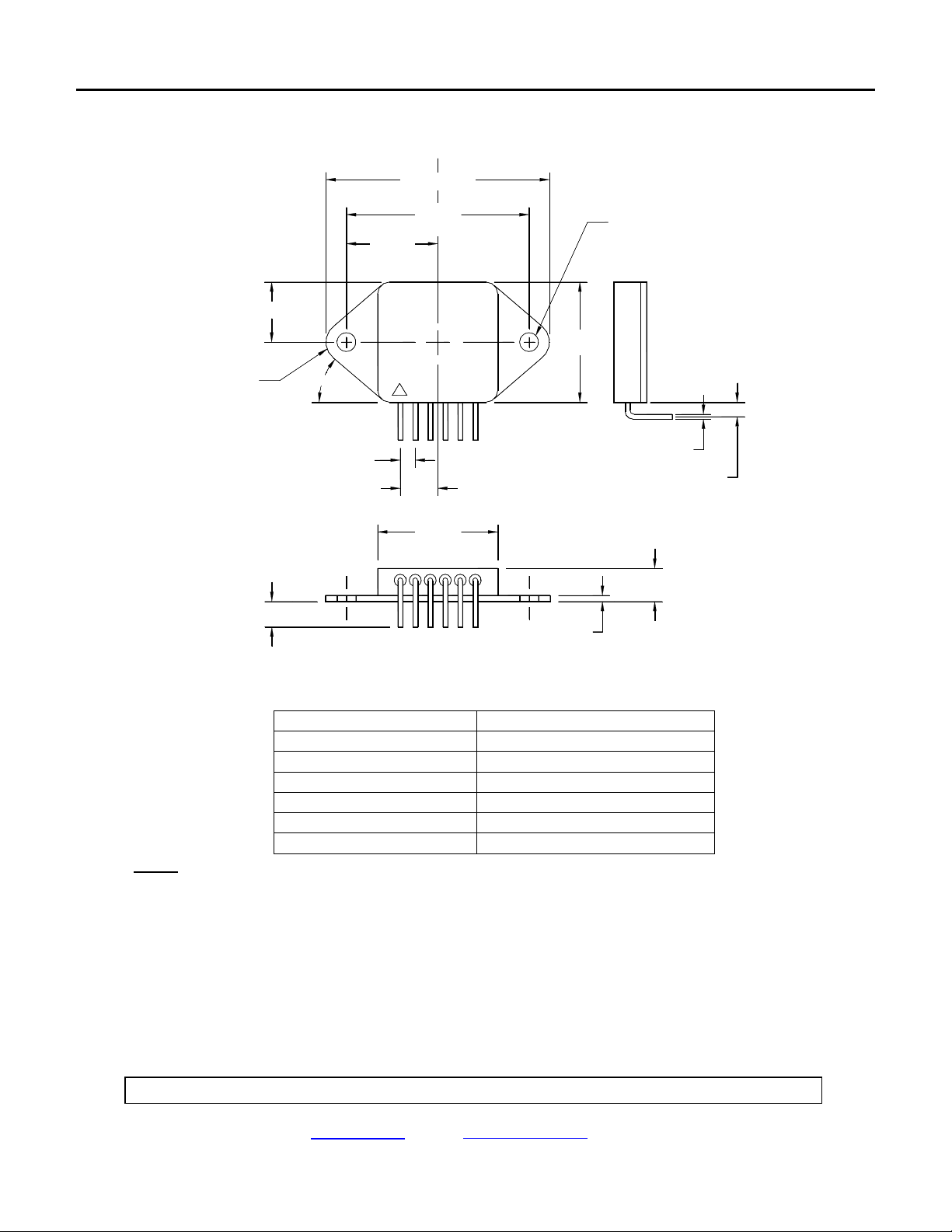

Figure 3. Case Outline
Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION • 905 E. Walnut St., Garland, TX 75040 • (972) 272-3571 • Fax (972) 494-2281
www.micropac.com E-MAIL: [email protected]
05/16/01
