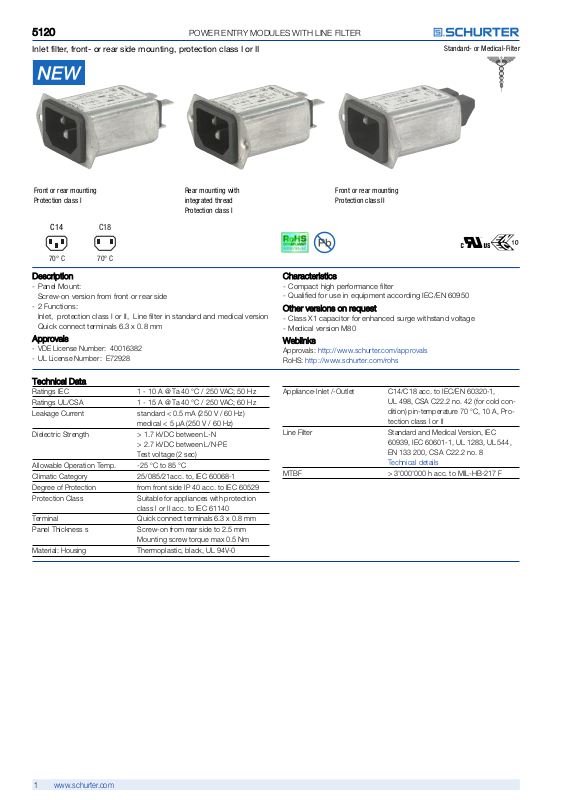

POWER ENTRY MODULES WITH LINE FILTER
Inlet filter, front- or rear side mounting, protection class I or II
Standard- or Medical-Filter
Front or rear mounting
Protection class I
C14
70° C
DDeessccrriippttiioon
- Panel Mount:
Screw-on version from front or rear side
- 2 Functions:
Inlet, protection class I or II, Line filter in standard and medical version
Quick connect terminals 6.3 x 0.8 mm
AApppprroovvaalls
- VDE License Number: 40016382
- UL License Number: E72928
n
s
TTeecchhnniiccaall DDaatta
Ratings IEC 1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
Ratings UL/CSA 1 - 15 A @ Ta 40 °C / 250 VAC; 60 Hz
Leakage Current standard < 0.5 mA (250 V / 60 Hz)
Dielectric Strength > 1.7 kVDC between L-N
Allowable Operation Temp. -25 °C to 85 °C
Climatic Category 25/085/21acc. to, IEC 60068-1
ee of Protection
Degr
Protection Class Suitable for appliances with protection
erminal
T
Panel Thickness s Screw-on from rear side to 2.5 mm
Material: Housing Thermoplastic, black, UL 94V-0
C18
70° C
a
medical < 5 µA (250 V / 60 Hz)
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
om front side IP 40 acc. to IEC 60529
fr
class I or II acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Mounting screw torque max 0.5 Nm
Rear mounting with
integrated thread
Protection class I
Front or rear mounting
Protection class II
CChhaarraacctteerriissttiiccs
- Compact high performance filter
- Qualified for use in equipment according IEC/EN 60950
OOtthheerr vveerrssiioonnss oonn rreeqquueesst
- Class X1 capacitor for enhanced surge withstand voltage
- Medical version M80
WWeebblliinnkks
Approvals: http://www.schurter.com/approvals
RoHS: http://www.schurter.com/rohs
Appliance-Inlet /-Outlet C14/C18 acc. to IEC/EN 60320-1,
Line Filter Standard and Medical Version, IEC
MTBF > 3'000'000 h acc. to MIL-HB-217 F
s
t
s
UL 498, CSA C22.2 no. 42 (for cold condition) pin-temperature 70 °C, 10 A, Protection class I or II
60939, IEC 60601-1, UL 1283, UL 544,
EN 133 200, CSA C22.2 no. 8
Technical details
1
www.schurter.com
Page 2
5511220
12 3 1239.5
40
48.6 54.5
24.6
4.4
8.5
3.6
28.8
+
0.50
0
40
21.3
max.R3
+0.50
0
±0.10
M3
12 3 1239.5
40
48.6 54.5
24.6
4.4
M3
30.5
+0.50
0
40
22.5
max.R3
+0.50
0
±0.10
3.6
0
POWER ENTRY MODULES WITH LINE FILTER
DDiimmeennssiioonns
s
Length 54.5 mm
Front or rear side mounting for screws with nuts or blind rivets (panel cutout for frontside mounting)
Dimensions for class I version also apply to class II
Rear side mounting with pre-formed, threaded holes for M3 screws (panel cutout for rear side mounting)
Dimensions for class II version also apply to class I
TTeecchhnniiccaall DDaattaa ooff FFiilltteerr--CCoommppoonneenntts
RRaatteedd CCuurrrreenntt
[[AA]]
FFiilltteerr--TTyyppee IInndduuccttaanncceess
s
CCaappaacciittaannccee
LL [[mmHH]]
CCXX [[nnFF]]
CCaappaacciittaannccee
CCYY [[nnFF]]
1 Standard Version 2 x 12 100 2.2 2 Standard Version 2 x 5.2 100 2.2 4 Standard Version 2 x 2 100 2.2 6 Standard Version 2 x 0.8 100 2.2 -
10 Standard Version 2 x 0.4 100 2.2 15 Standard Version 2 x 0.1 100 2.2 -
1 Bleed Resistor Version 2 x 12 100 2.2 1
2 Bleed Resistor Version 2 x 5.2 100 2.2 1
4 Bleed Resistor Version 2 x 2 100 2.2 1
6 Bleed Resistor Version 2 x 0.8 100 2.2 1
10 Bleed Resistor Version 2 x 0.4 100 2.2 1
15 Bleed Resistor Version 2 x 0.1 100 2.2 1
1 Medical Version (M5) 2 x 12 100 - 1
2 Medical Version (M5) 2 x 5.2 100 - 1
4 Medical Version (M5) 2 x 2 100 - 1
6 Medical Version (M5) 2 x 0.8 100 - 1
10 Medical Version (M5) 2 x 0.4 100 - 1
15 Medical Version (M5) 2 x 0.1 100 - 1
RR [[MMΩΩ]]
2
www.schurter.com
Page 3
5511220
0
POWER ENTRY MODULES WITH LINE FILTER
DDiiaaggrraamms
Standard version
1) Line
2) Load
AAtttteennuuaattiioonn lloosss
Standard version
s
Bleed resistor version
1) Line
2) Load
s
Medical version M5
1) Line
2) Load
Medical version M5, prot. class II
- - - - differential mode _____ common mode
1 A 2 A 4 A 6 A
10 A 15 A
Medical version (M5)
1 A 2 A 4 A 6 A
10 A 15 A
3
www.schurter.com
Page 4
5511220
0
VVaarriiaanntts
s
RRaatteedd CCuurr--
rreenntt [[AA]]
15 A version only accor
FFiilltteerr--TTyyppee SSccrreeww--oonn vveerrssiioonn ffrroomm ffrroonntt oorr
rreeaarr ffoorr ssccrreewwss wwiitthh nnuuttss,, oorr rrii--
1 Standard Version
2 Standard Version
4 Standard Version
6 Standard Version
10 Standard Version
15 Standard Version
1 Standard Version
2 Standard Version
4 Standard Version
6 Standard Version
10 Standard Version
15 Standard Version
1 Bleed Resistor Version I 5120.0200.0
2 Bleed Resistor Version I 5120.0201.0
4 Bleed Resistor Version I 5120.0203.0
6 Bleed Resistor Version I 5120.0204.0
10 Bleed Resistor Version I 5120.0206.0
15 Bleed Resistor Version I 5120.0207.0
1 Bleed Resistor Version
2 Bleed Resistor Version
4 Bleed Resistor Version
6 Bleed Resistor Version
10 Bleed Resistor Version
15 Bleed Resistor Version
1 Medical Version (M5)
2 Medical Version (M5)
4 Medical Version (M5)
6 Medical Version (M5)
10 Medical Version (M5)
15 Medical Version (M5)
1 Medical
2 Medical Version (M5)
4 Medical Version (M5)
6 Medical Version (M5)
10 Medical Version (M5)
15 Medical
1 Medical
2 Medical
6 Medical
10 Medical
2 Medical
4 Medical
6 Medical
4 Medical Version (M5)
Version (M5)
Version (M5)
Version (M5)
ersion (M5)
V
ersion (M5)
V
ersion (M5)
V
ersion (M5)
V
ersion (M5)
V
ersion (M5)
V
ding UL/CSA
POWER ENTRY MODULES WITH LINE FILTER
vveettss
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
SSccrreeww--oonn vveerrssiioonn ffrroomm rreeaarr wwiitthh
pprree--ffoorrmmeedd,, tthhrreeaaddeedd hhoolleess ffoorr
MM33 ssccrreewwss
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
PPrrootteeccttiioonn CCllaassss OOrrddeerr NNuummbbeerr
I 5120.1000.0
I 5120.1001.0
I 5120.1003.0
I 5120.1004.0
I 5120.1006.0
I 5120.1007.0
I 5120.0000.0
I 5120.0001.0
I 5120.0003.0
I 5120.0004.0
I 5120.0006.0
I 5120.0007.0
I 5120.1200.0
I 5120.1201.0
I 5120.1203.0
I 5120.1204.0
I 5120.1206.0
I 5120.1207.0
I 5120.1300.0
I 5120.1301.0
I 5120.1303.0
I 5120.1304.0
I 5120.1306.0
I 5120.1307.0
I 5120.0300.0
I 5120.0301.0
I 5120.0303.0
I 5120.0304.0
I 5120.0306.0
I 5120.0307.0
II 5120.1300.1
II 5120.1301.1
II 5120.1304.1
II 5120.1306.1
II 5120.0301.1
II 5120.0303.1
II 5120.0304.1
II 5120.1303.1
PPaacckkaaggiinngg uunniitt
4
www.schurter.com
10 Pcs
Page 5
5511220
0
POWER ENTRY MODULES WITH LINE FILTER
AAcccceessssoorry
y
DDeessccrriippttiioonn
Assorted Covers
Cord retaining kits
5
www.schurter.com
