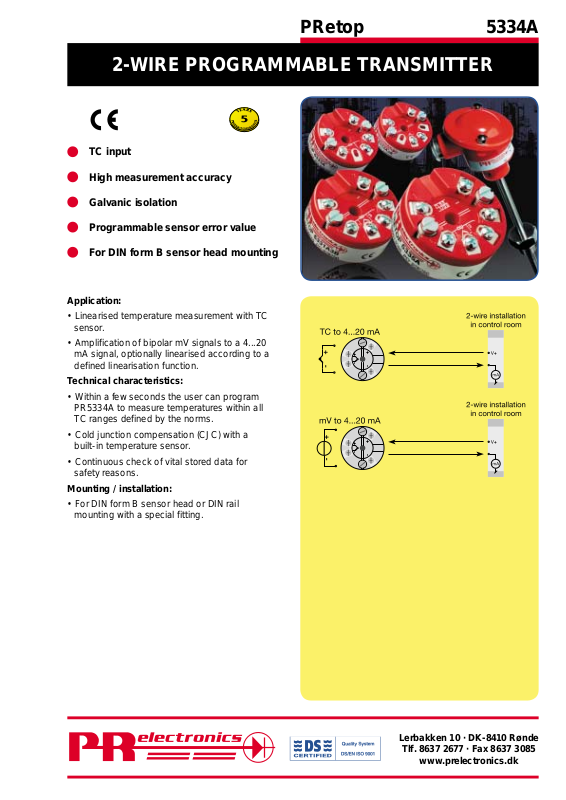

2-WIRE PROGRAMMABLE TRANSMITTER
TC input
High measurement accuracy
Galvanic isolation
Programmable sensor error value
For DIN form B sensor head mounting

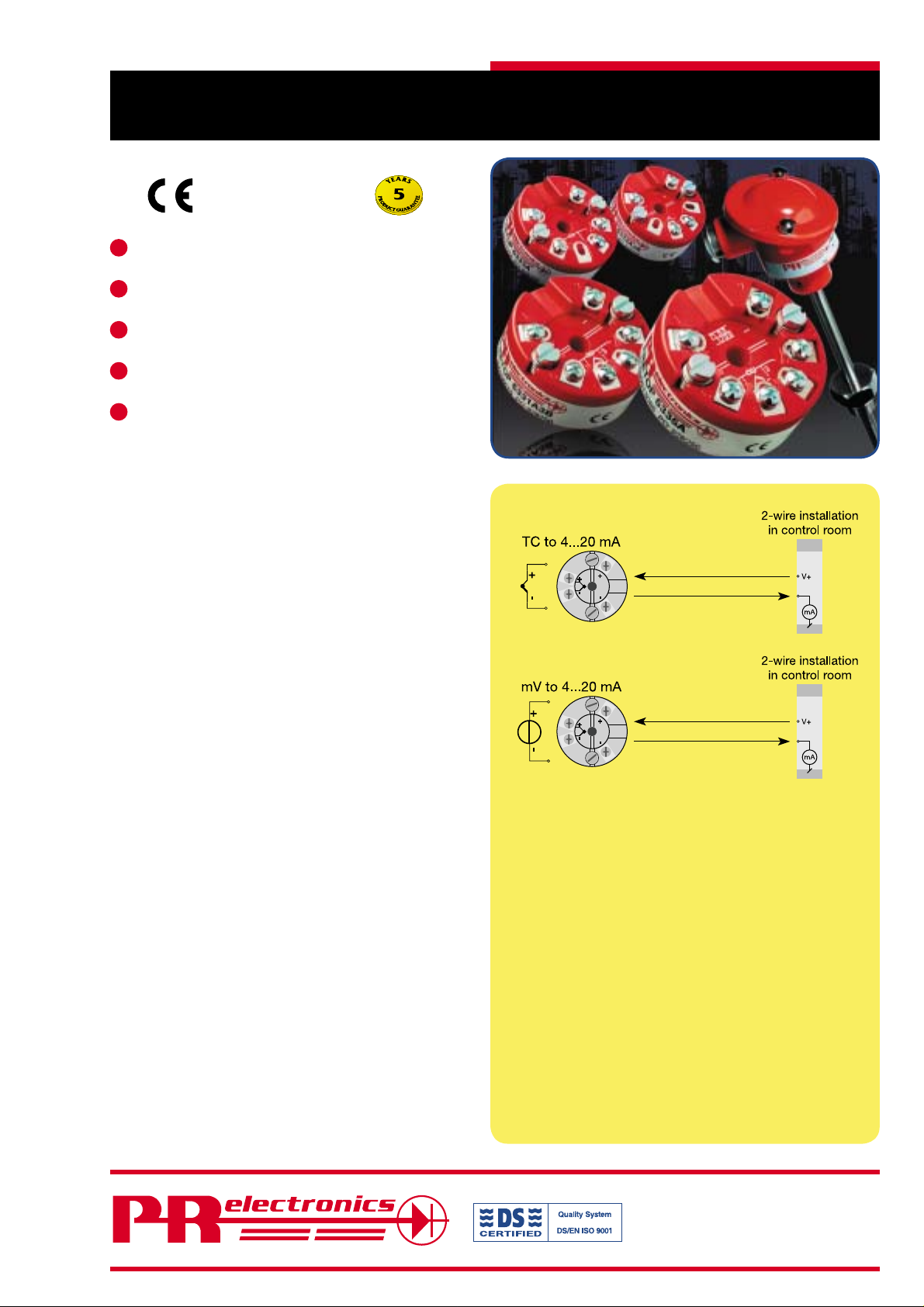

Application:
• Linearised temperature measurement with TC
sensor.
• Amplification of bipolar mV signals to a 4...20
mA signal, optionally linearised according to a
defined linearisation function.
Technical characteristics:
• Within a few seconds the user can program
PR5334A to measure temperatures within all
TC ranges defined by the norms.
• Cold junction compensation (CJC) with a
built-in temperature sensor.
• Continuous check of vital stored data for
safety reasons.
Mounting / installation:
• For DIN form B sensor head or DIN rail
mounting with a special fitting.
PRetop 5334A
Lerbakken 10 · DK-8410 Rønde
Tlf. 8637 2677 · Fax 8637 3085
www.prelectronics.dk

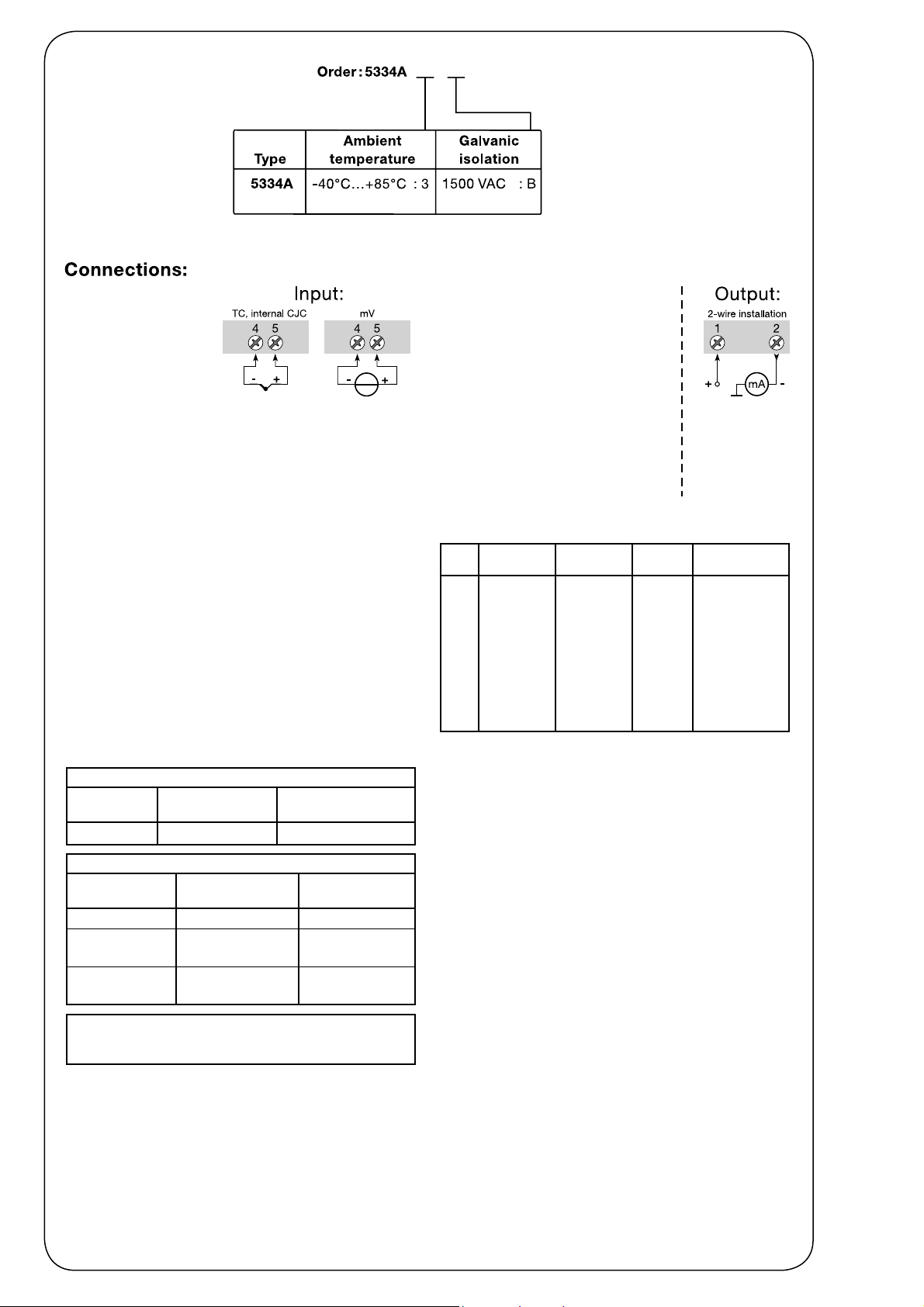

Page 2
Electrical specifications:
Specifications range:
-40°C to +85°C
Common specifications:
Supply voltage, DC ........................... 7.2...35 VDC
Internal consumption......................... 25 mW...0.8 W
Voltage drop...................................... 7.2 VDC
Isolation voltage, test / operation...... 1.5 kVAC / 50 VAC
Warm-up time.................................... 5 min.
Communications interface ................ Loop Link 5905A
Signal / noise ratio............................. Min. 60 dB
Response time (programmable)........ 1...60 s
EEprom error check........................... < 3.5 s
Signal dynamics, input...................... 18 bit
Signal dynamics, output.................... 16 bit
Calibration temperature..................... 20...28°C
Accuracy, the greater of general and basic values:
General values
Temperature
coefficient
≤ ±0.01% of span / °C
All
Absolute
accuracyInput type
≤ ±0.05% of span
Basic values
Temperature
coefficient
≤ ±1 µV/°C
≤ ±0.05°C/°C
≤ ±0.2°C/°C
Volt
TC type:
E, J, K, L, N, T, U
TC type:
B, R, S, W3, W5
Basic
accuracyInput type
≤ ±10 µV
≤ ±1°C
≤ ±2°C
EMC immunity influence ........................... < ±0.5% of span
Extended EMC immunity:
NAMUR NE 21,
A criterion, burst.............. < ±1% of span
Effect of supply voltage variation...... < 0.005% of span / VDC
Vibration............................................ IEC 68-2-6 Test FC
Lloyd’s specification no. 1................. 4 g / 2...100 Hz
Max. wire size.................................... 1 x 1.5 mm
2
Humidity............................................ < 95% RH (non-cond.)
Dimensions........................................ Ø 44 x 20.2 mm
Tightness (enclosure / terminal) ........ IP68 / IP00
Weight............................................... 50 g
Electrical specifications, input:
Max. offset......................................... 50% of selec. max. value
TC-input:
Type
B
E
J
K
L
N
R
S
T
U
W3
W5
Min.
temperature
+400°C
-100°C
-100°C
-180°C
-100°C
-180°C
-50°C
-50°C
-200°C
-200°C
0°C
0°C
Max.
temperature
+1820°C
+1000°C
+1200°C
+1372°C
+900°C
+1300°C
+1760°C
+1760°C
+400°C
+600°C
+2300°C
+2300°C
Min.
span Norm
200°C
50°C
50°C
50°C
50°C
100°C
200°C
200°C
50°C
75°C
200°C
200°C
IEC584
IEC584
IEC584
IEC584
DIN 43710
IEC584
IEC584
IEC584
IEC584
DIN 43710
ASTM E988-90
ASTM E988-90
Cold junction compensation ............. < ±1.0°C
Voltage input:
Measurement range .......................... -12...150 mV
Min. span........................................... 5 mV
Input resistance................................. 10 MΩ
Current output:
Signal range ...................................... 4...20 mA
Min. signal range............................... 16 mA
Updating time.................................... 440 ms
Load resistance................................. ≤ (Vsupply- 7.2) / 0,023 [Ω]
Sensor error detection:
Programmable................................... 3.5...23 mA
NAMUR NE43 Upscale ..................... 23 mA
NAMUR NE43 Downscale................. 3.5 mA
Observed authority requirements: Standard:
EMC 89/336/EEC, Emission.............. EN 50 081-1, EN 50 081-2
Immunity.............. EN 50 082-2, EN 50 082-1
Emission and immunity.............. EN 61 326
Of span = Of the presently selected range
