Danfoss AMV 10, AMV 13 Data sheet

Data sheet

Actuator for three point control

AMV 10, AMV 13 (special versions for YADOS)

Description

Actuators with safety function (AMV 13) and actuators without safety function (AMV 10) are mainly used with VS, VM, VB, or AVQM valves.

Ordering Actuator

Typ e Supply voltage Speed Code No.

AMV 10 230 VAC 14 s/mm 082H0070

Safety version is activated automatically in case of power failure or if the power supply is switched off by the safety thermostat. Actuators automatically adapt stroke to valve end positions which reduces commissioning time.

Actuators have some special features:

• The advanced design incorporates load related ‘switch-off’ to ensure that actuators and valves are not exposed to overload.

• Digital feedback end position indication signal for valve end position is available by terminal 4 or 5.

• Low weight and robust.

• EN 14597 certified safety function

Main data:

• Nominal voltage: 230 VAC, 50 Hz/60 Hz

• Force: 300 N

• Speed: 14 s/mm

• Max. medium temperature: 130 °C

• EN 14597 certified safety function

Actuator with safety function - EN 14597

Typ e Supply voltage Speed Code No.

AM V 13 23 0 VAC 14 s/mm 082H 0071

Technical data

Typ e AMV 10 AMV 13

Power supply

Power consumption

Frequency

Control input 3-point

Spring return function - x

Close of force

Speed

Stroke

Safety function runtime 7 mm stroke

Max. medium temperature

Ambient temperature 0 … 55

Ambient humidity RH

Storage and transport temp.

Protection Class II

Grade of enclosure IP 54

Weight

- marking in accordance with standard

VAC

s/mm

°C

Low Voltage Directive (LVD) 2014/35/EU: EN 60730-1, EN 60730-2-14 Electromagnetic Compatibility Directive (EMC) 2014/30/EU: EN 61000-6-2, EN 61000-6-3

2 7

0.6 0.8

230; +10 to –15%

50/60

300

- 8.5

130

5-95 % no condensing

–40 … 70

AI152186477240en-DE0202 | 1

Data sheet AMV 10, AMV 13 (special versions for YADOS)

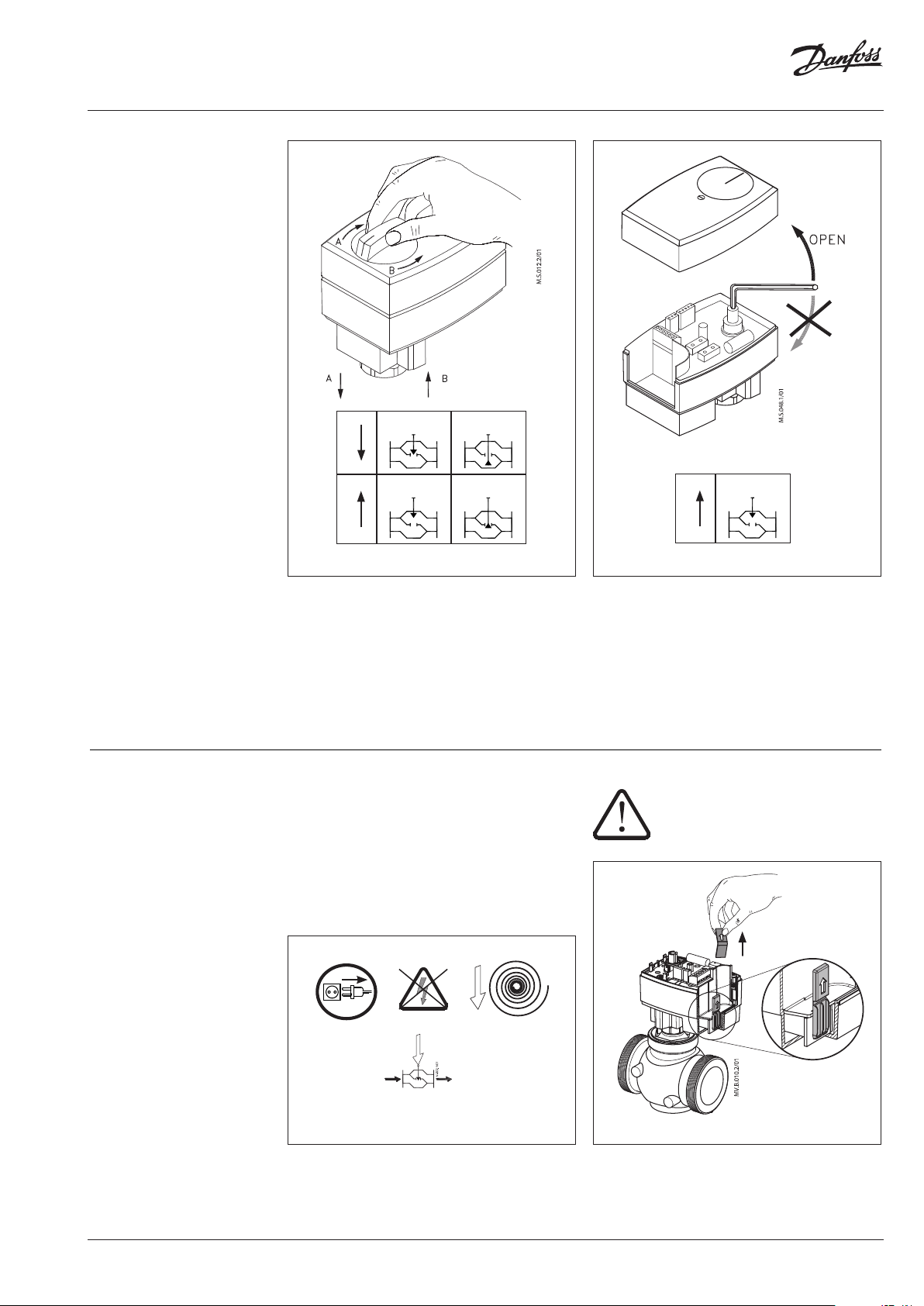

Installation

AMV 10

Mechanical

The actuator should be mounted with the valve stem in either horizontal position or pointing upwards.

The actuator is fixed to the valve body by means of a mounting nut which requires 32 mm screw key. The nut should be tightened with a torque of max. 25 Nm.

Electrical

Electrical connections can be accessed by removing the cover.

Disposal

Wiring

230 VAC version:

Do not touch anything on the PCB! Do not remove the cover before the power supply is fully switched off.

Two M16×1.5 cable entries are provided.

AM V 13

However, in order to maintain the enclosure IP rating an appropriate cable gland must be used.

The actuator must be dismantled and the elements sorted into various material groups before disposal.

AMV 10 AMV 13

N 0 V Neutral

L 230 VAC Power supply

4, 5

230 VAC

Input

Output
