Welcome

Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner’s manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty. You must provide the original purchase receipt to validate your warranty and receive service.

Model Number: _________________________________________________

Serial Number: _________________________________________________

Date of Purchase: _______________________________________________

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner’s manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

1-800-26- Danby

(1-800-263-2629)

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

To avoid risk of electric shock, do not operate this appliance in an area that is likely to accumulate standing water. If this condition develops, disconnect the power supply before stepping into the water.

Do not store or use combustible materials such as gasoline or other ﬂ ammable vapors or liquids in the vicinity of this or any other appliance.

Do not insert ﬁ ngers or other objects into grills or openings in the appliance.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualiﬁ ed electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect the appliance to extension cords, adapters or together with another appliance in the same wall outlet.

Do not cover or block the intake and exhaust openings.

Do not operate the appliance without the ﬁ lter installed.

Do not operate the appliance near heat sources.

This appliance is intended for indoor, residential applications only. Do not use this appliance outdoors. Do not use this appliance for commercial or industrial applications.

If the air conditioner is transported on its back or side, it must be allowed to stand upright for 6 hours before plugging in to avoid damage to internal components.

Keep the appliance away from walls, furniture and curtains with a clearance of at least 30 cm (12 inches) on all sides.

Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualiﬁ ed person in order to avoid hazard.

SAVE THESE INSTRUCTIONS!

INSTALLATION INSTRUCTIONS

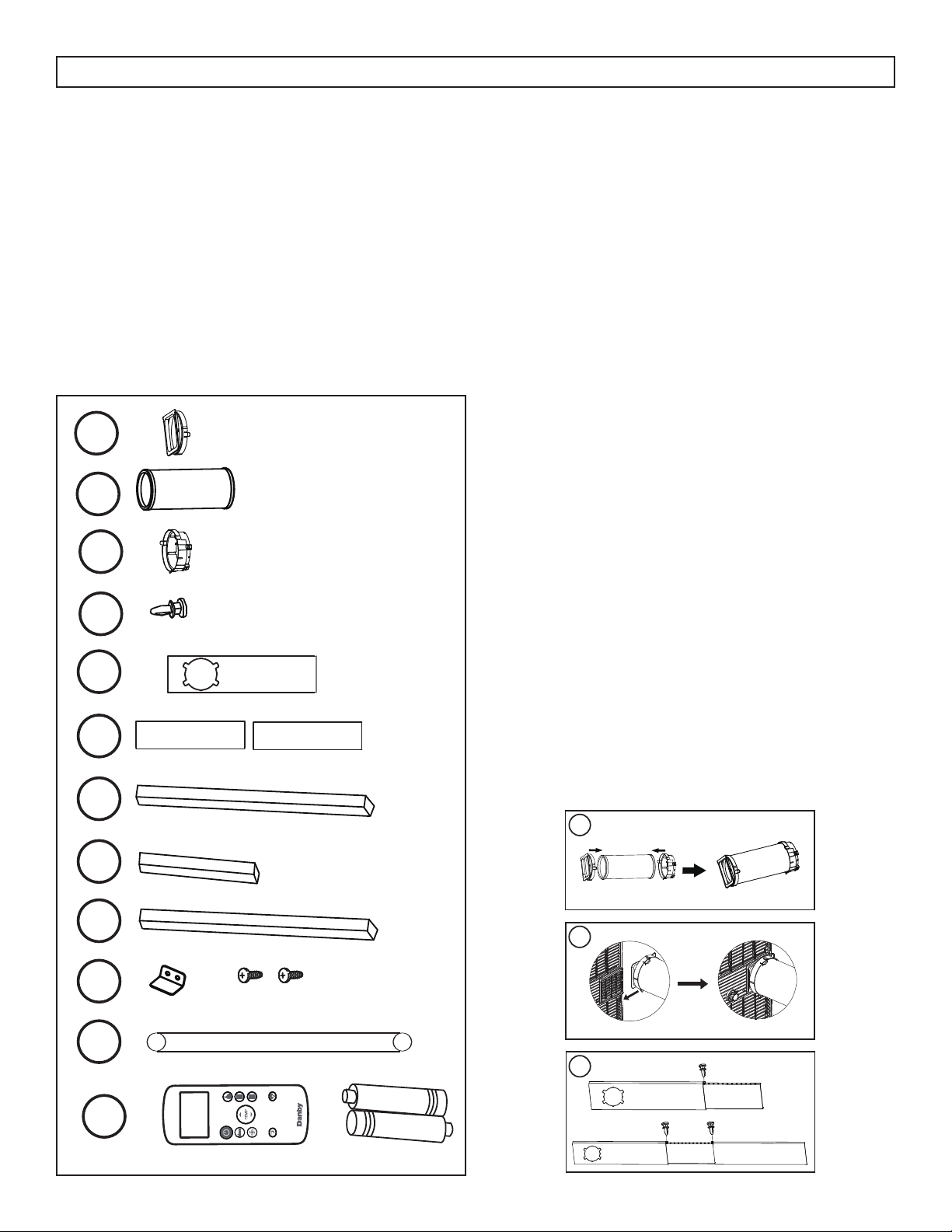

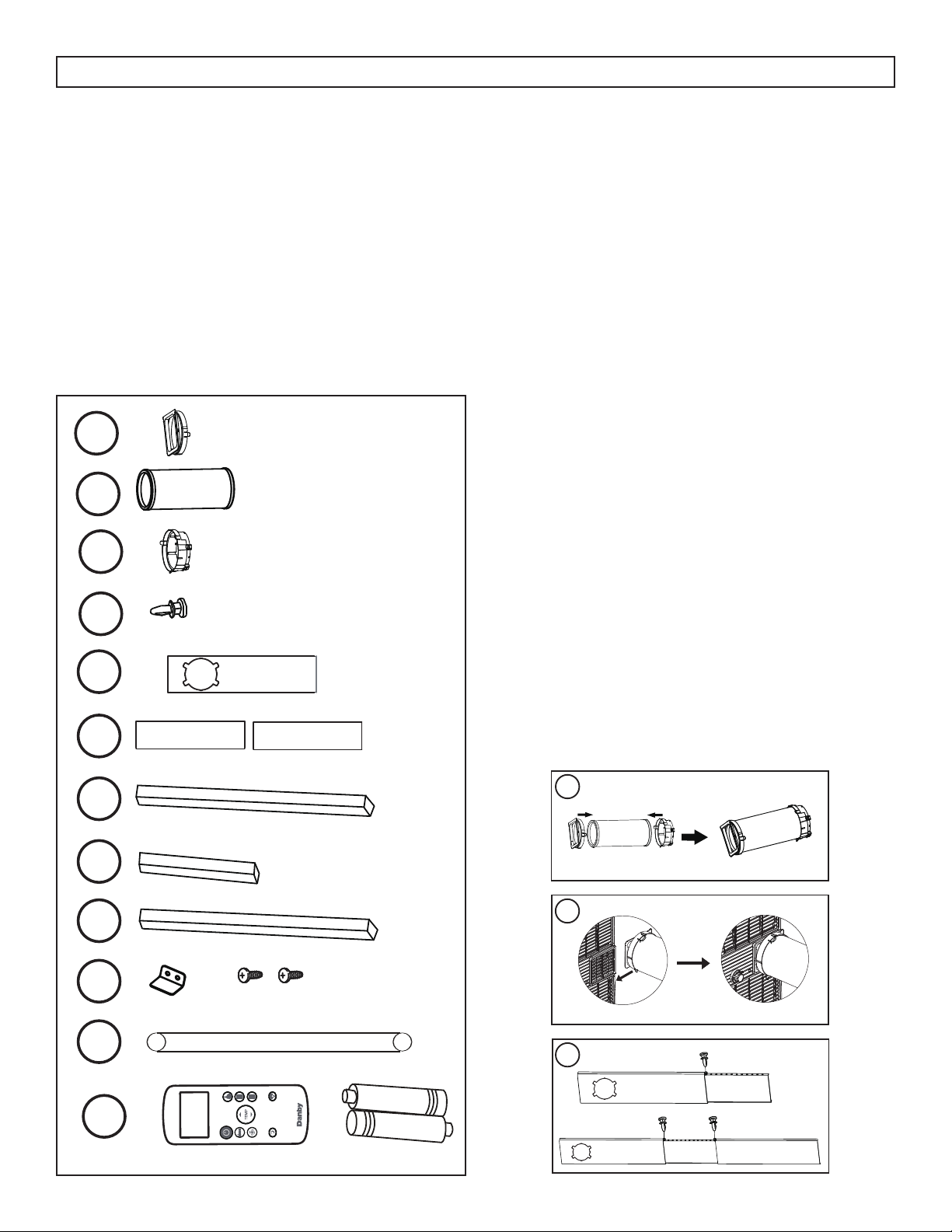

ACCESSORIES

1. Air outlet adapter

2. Exhaust hose

3. Window slider adapter

4. 2 Bolts

5. Window slider A

6. Window slider B and C

7. Foam seal A (adhesive)

8. Foam seal B (adhesive)

9. Foam seal C (non-adhesive)

10. Security bracket and 2 screws

11. Drain hose

12. Remote control and batteries

REQUIRED TOOLS

1. Medium sized Phillips screwdriver

2. Tape measure or ruler

3. Knife or scissors

4. Saw (in the event that the window sliders need to be cut to size)

ASSEMBLING THE WINDOW KIT

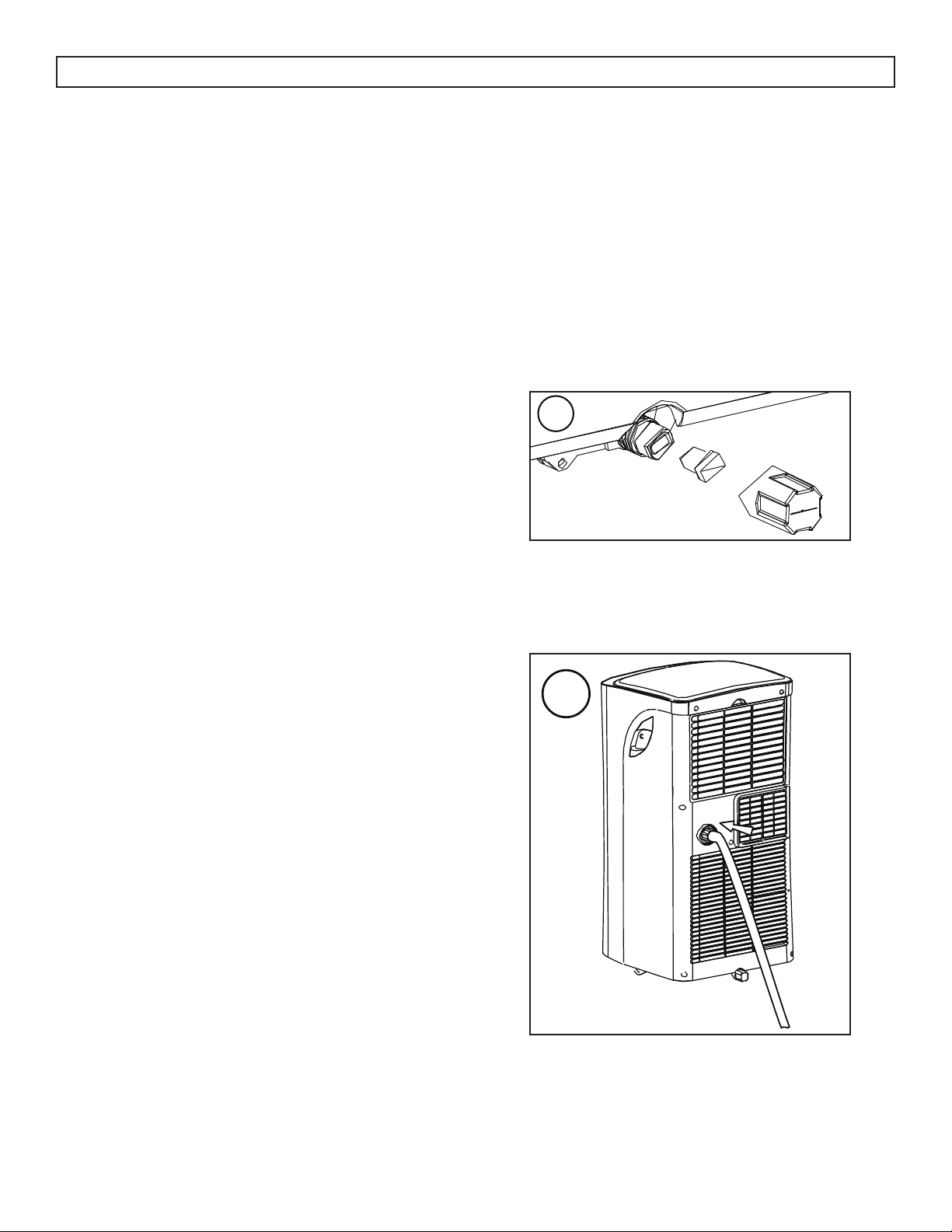

1. Attach the air outlet adapter and the window slider adapter onto either end of the exhaust hose.

2. Insert the air outlet adapter into the back of the appliance in the direction of the arrow.

3. Measure the window opening where the window kit will be installed. Assemble as many sliders as necessary to ﬁ t the window.

4. If the length of the window requires all three sliders, use two bolts to fasten the sliders at the correct length.

5 6

7 8

5. If the window opening is less that the minimum length of a single slider, use the slider that has the hole in it and cut it to the correct length. Make sure not to cut the end that has the hole as this is necessary to attach the exhaust hose adapter.

INSTALLATION INSTRUCTIONS

INSTALLING THE WINDOW KIT

There are two possible installation methods depending on the available window type.

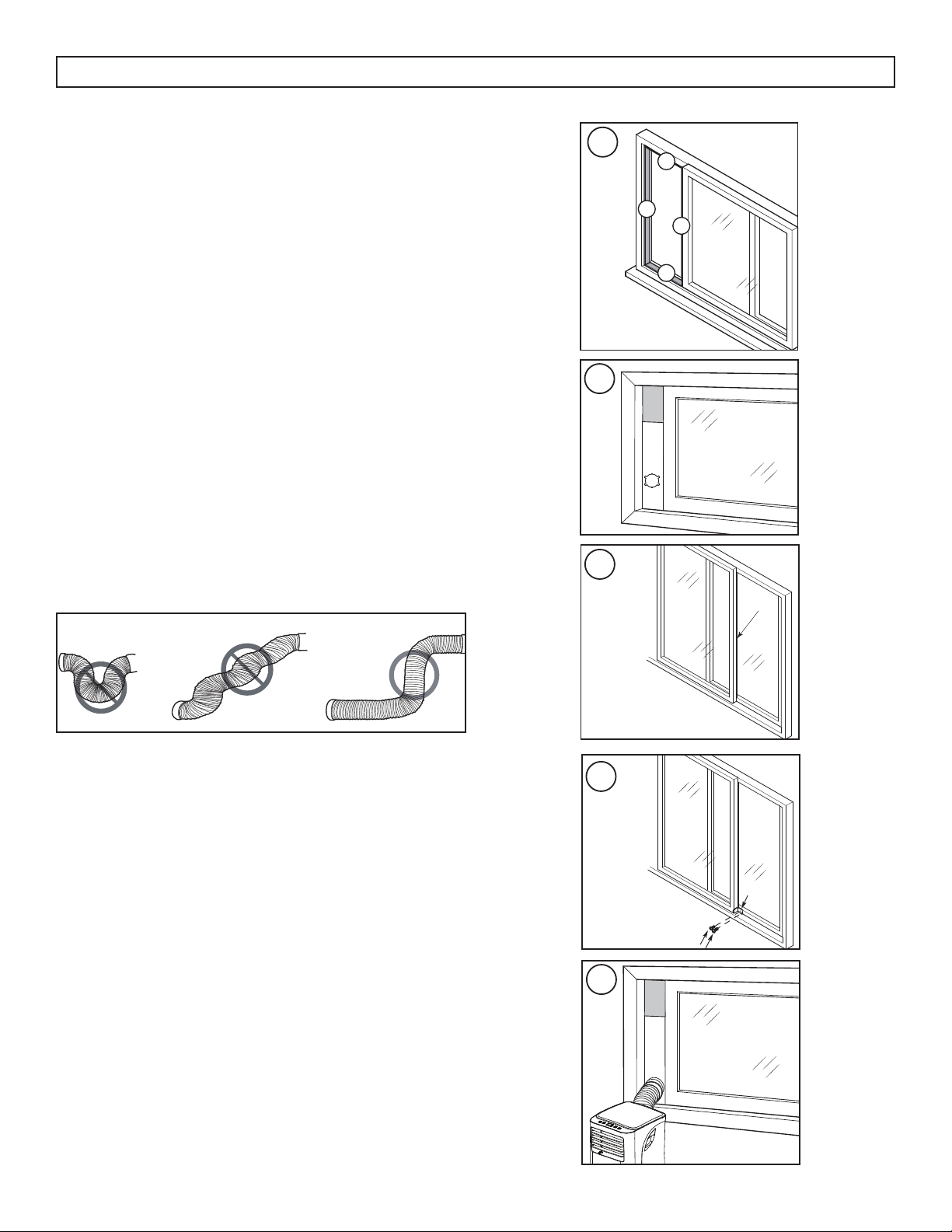

Hung Window Installation

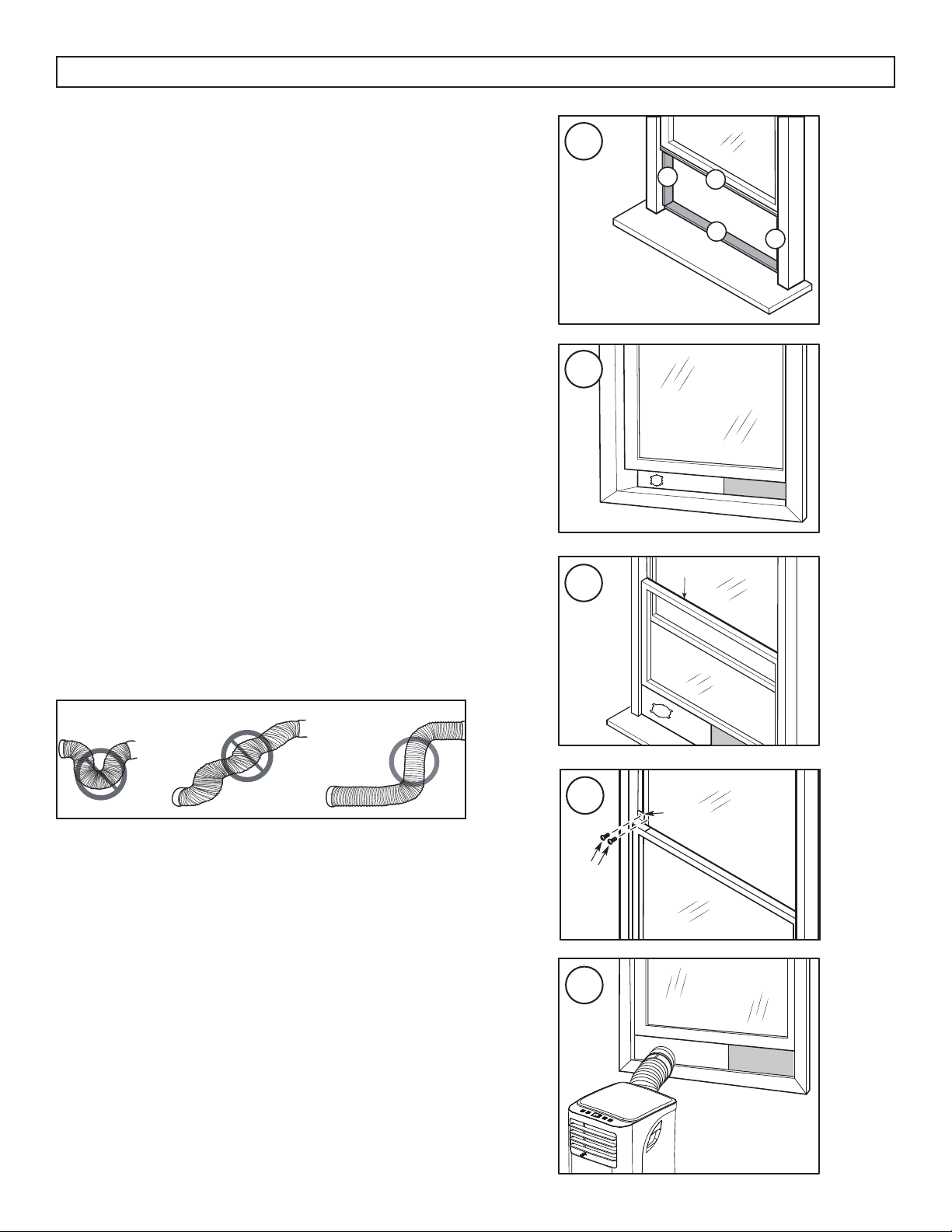

1. Cut the adhesive foam seals A and B to the correct length for the window. Attach them to the window sash and frame as shown.

2. Insert the assembled window slider kit into the window opening.

3. Cut the non-adhesive foal seal C to match the width of the window. Insert the foam seal between the glass and the window frame to prevent air and insects from getting into the room.

4. Install the security bracket in the window frame with the two provided screws.

5. Attach the window slider adapter to the hole in the window slider kit.

Note: Do not over extend or bend the hose as this will impede air ﬂ ow.

INSTALLATION INSTRUCTIONS

Sliding Window Installation

1. Cut the adhesive foam seals A and B to the correct length for the window. Attach them to the window sash and frame as shown.

2. Insert the assembled window slider kit into the window opening.

3. Cut the non-adhesive foal seal C to match the width of the window. Insert the foam seal between the glass and the window frame to prevent air and insects from getting into the room.

4. Install the security bracket in the window frame with the two provided screws.

5. Attach the window slider adapter to the hole in the window slider kit.

Note: Do not over extend or bend the hose as this

will impede air ﬂ ow.

OPERATING INSTRUCTIONS

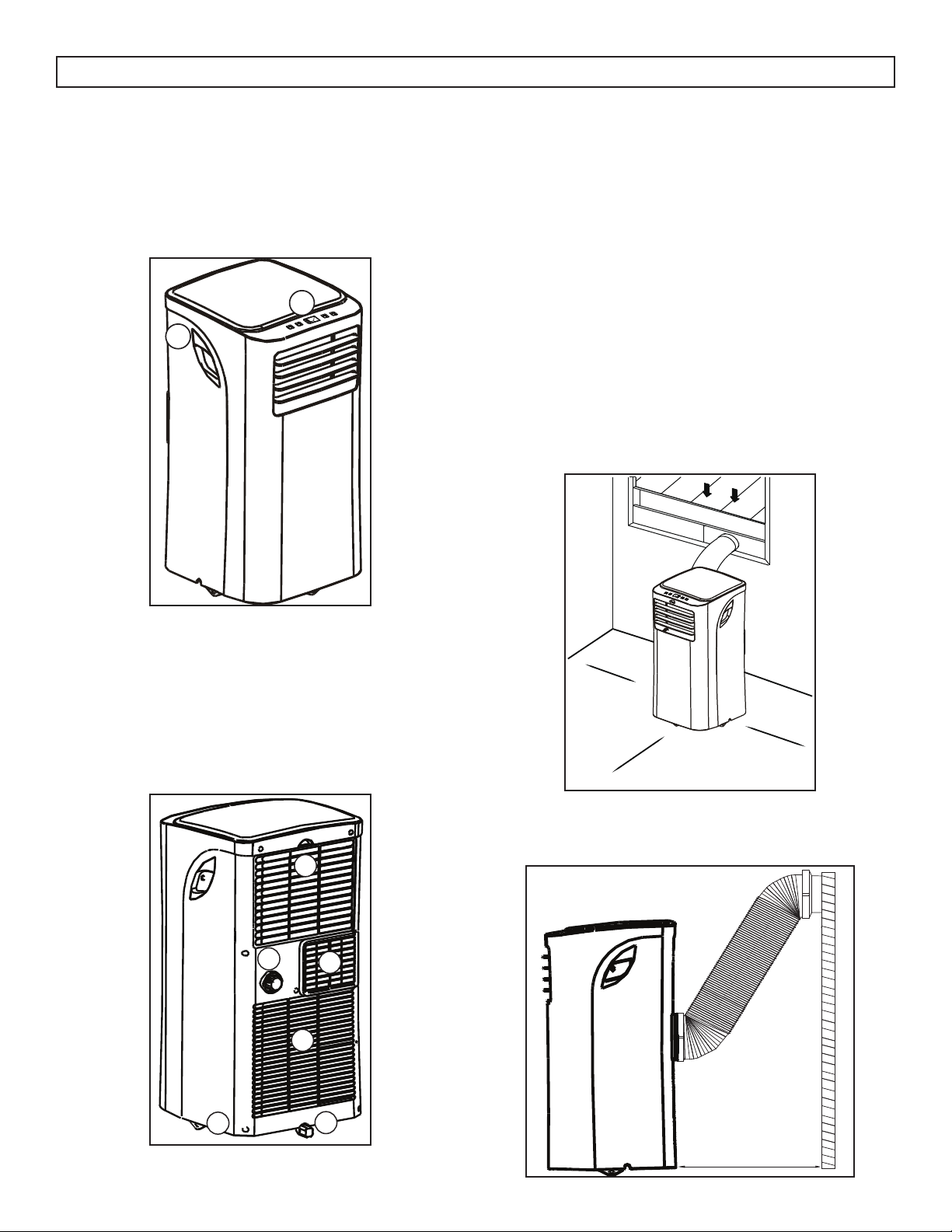

FEATURES Front

1. Handle (both sides)

2. Control panel

LOCATION

Place the air conditioner on a smooth, level ﬂ oor that is strong enough to support it and all included accessories.

Make sure the appliance is level to minimize noise and vibration.

The appliance must be installed near a grounded receptacle and the overﬂ ow drain outlet on the rear of the appliance must be accessible.

Do not cover air inlets or outlets or the remote control receiver on the control panel.

The appliance requires 30 cm (12 inches) of clearance on the front and sides.

Rear

1. Upper air ﬁ lter and air intake

2. Air outlet

3. Continuous drain outlet

4. Lower air intake

5. Drain outlet

6. Casters

The appliance requires at least 50 cm (20 inches) of clearance on the back.

OPERATING INSTRUCTIONS

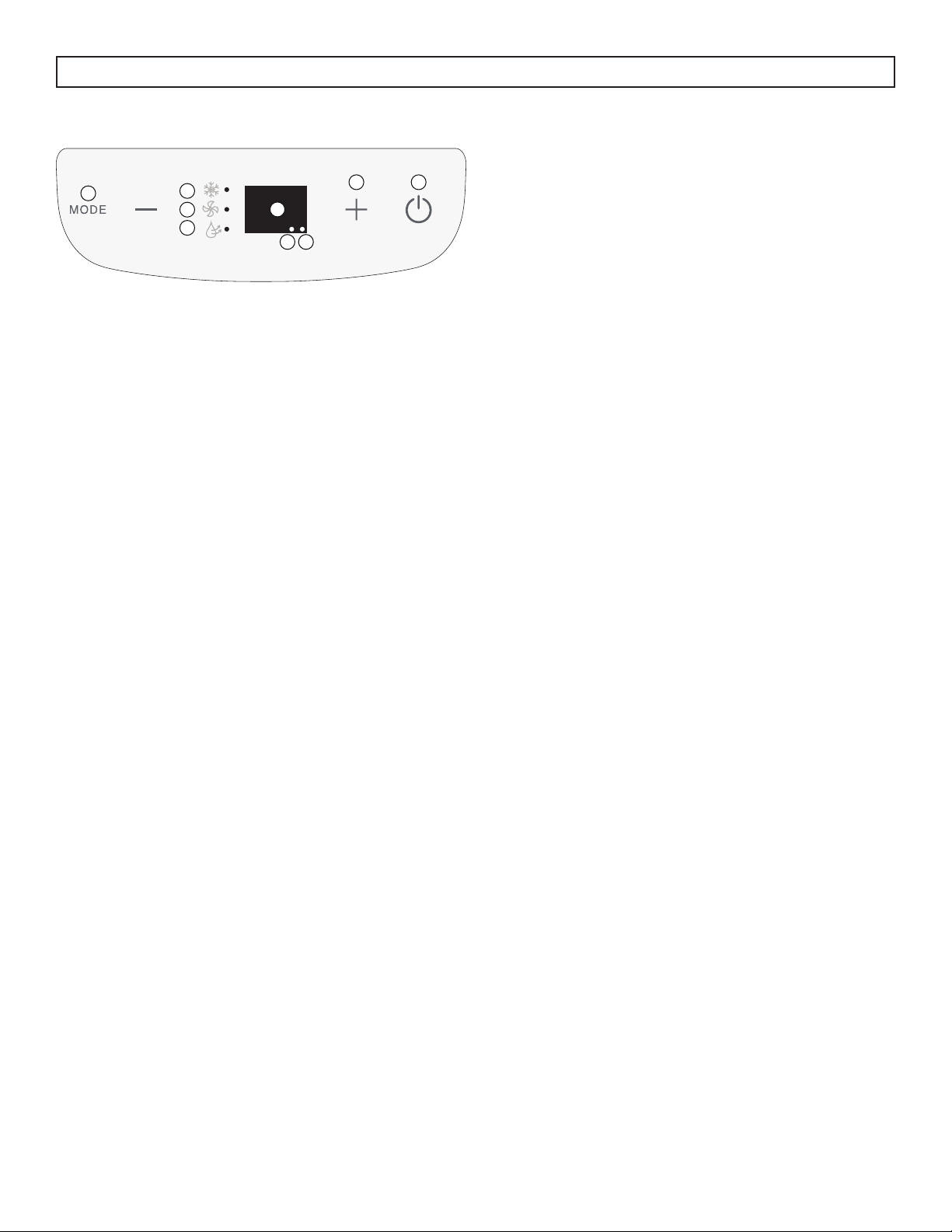

CONTROL PANEL

2 3 4

1. Mode Button: Press to select the desired mode.

Modes will cycle in sequence with each press of the button; Cool, Dry, Fan. A light will indicate current mode.

2. Cool mode indicator light: Illuminates when cooling mode is activated.

3. Fan mode indicator light: Illuminates when fan mode is activated.

4. Dry mode indicator light: Illuminates when dry mode is activated.

5. LED Display:

• Shows the set temperature in °C or °F or the auto-timer settings.

• While on Dry and Fan mode, shows the room temperature.

8 9

POWER

Operating Modes

• Cool Mode

Choose Cool Mode to set the cooling function. Use the Up and Down Arrows to choose the desired temperature. When Cool Mode is selected, the fan speed can be adjusted by pressing the fan button on the remote control.

The temperature can be set within a range of 17 30°C (62 - 86°F).

The exhaust hose should be installed during Cool Mode to ensure the best results.

• Dry Mode

Choose Dry Mode to remove excess moisture from the air during periods of high humidity. All water pulled from the air will condense inside the appliance and drain out the back.

The humidity level and fan speed will be automatically set and cannot be modiﬁ ed in Dry Mode.

• Fan Mode

6. Power indicator light: Illuminates to indicate that

the appliance has power.

7. Timer indicator light: Illuminates when the timer is activated.

8. Up and Down Buttons:

• Used to set the temperature.

• Press and hold both Up and Down buttons for 3 seconds to change the temperature display from °C to °F.

9. Power Button: Press to turn the appliance on or off.

Choose Fan Mode to run the internal fan without engaging the cooling function. Press the fan button on the remote control repeatedly to choose the fan speed, Low or High.

• Auto Mode

Auto Mode is a pre-set factory program that automatically deﬁ nes the mode (Cool or Fan) and fan speed based on the set temperature and the ambient temperature.

Note that auto mode can only be activated from the remote control.

OPERATING INSTRUCTIONS

Timer Function

Note that the timer function can only be activated by the remote control.

To set the Auto-off timer:

• Press the Timer Off button

• Press the Timer Off button repeatedly to select the desired amount of hours before the appliance turns off

To set the Auto-on timer:

• Press the Timer On button

• Press the Timer On button repeatedly to select the desired amount of hours before the appliance turns on

Notes:

• The timer on and off buttons will increase the time in 0.5 hour increments up to 10 hours and then in 1 hour increments up to 24 hours

• The display will revert back to showing the previous temperature setting if the appliance does not receive a signal within a 5 second period during programming

Sleep Function

The sleep function can be used to conserve energy during sleeping hours.

When selected, the set temperature will increase by 2 degrees over a 2 hours period. The appliance will hold the new set temperature for 7 hours before automatically returning to normal operation.

The sleep function can only be activated with the remote control and can be canceled at any time by pressing the sleep button.

Shortcut function

• Used to save a favourite setting.

• Set the appliance to the temperature and fan speed that you would like to set as a favourite.

• Press and hold the shortcut button for 2 seconds.

• Press the shortcut button at any point in future to return to the favourite setting.

• If no favourite is set, pressing the shortcut button will cause the appliance to run in auto mode at 29°C (79°F), with fan speed set to auto.

The shortcut function can only be activated with the remote control.

• Turning the appliance on or off at any time or adjusting the timer setting to 0.0 hours will cancel the Auto-timer settings

The Auto-on and Auto-off functions can be used at the same time by setting ﬁ rst one and then the other. Wait three seconds between programming the on and off functions to allow the appliance to accept the programming. The display will count down to the appliance either turning off or on, whichever function was set ﬁ rst.

Note: The timer will not cycle the appliance on and off indeﬁ nitely. The on and off timers will function one time and then the appliance will return to regular functioning.

OPERATING INSTRUCTIONS

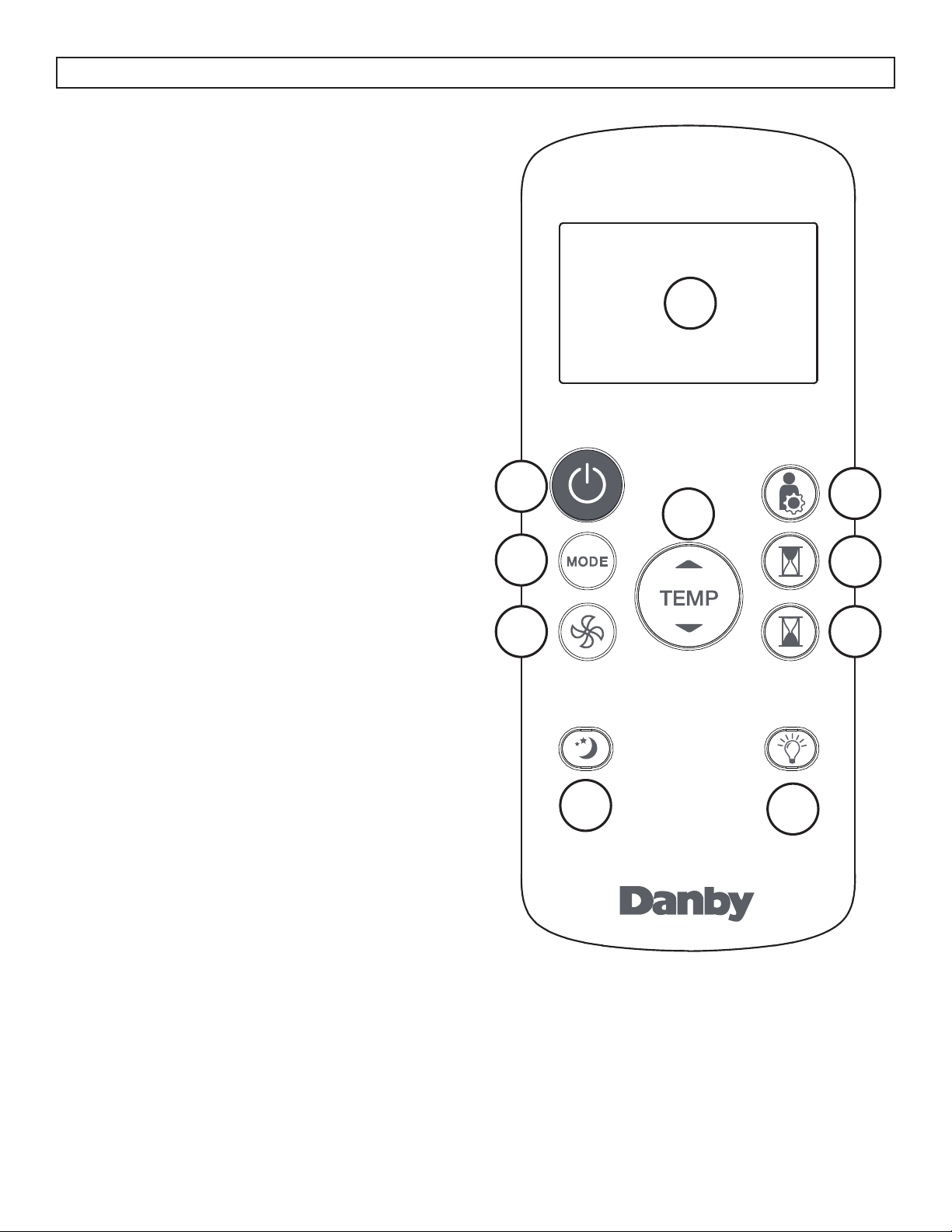

REMOTE CONTROL

1. Power Button: Press to turn the appliance on or

off.

2. Mode Button: Press to select the desired mode.

3. Fan Button: Press to select fan speed.

4. Sleep Button: Press to start the sleep function.

5. LED Button: Press to turn the LED display on or

off.

6. Timer Off Button: Press to set the Auto-off timer.

7. Timer On Button: Press to set the Auto-on timer.

8. Shortcut Button: Press to set and activate the

short cut function.

9. Up and Down Buttons:

• Used to set the temperature.

• Press and hold both Up and Down buttons for 3 seconds to change the temperature display from °C to °F.

10. LED Display:

• Shows the set temperature in °C or °F or the auto-timer settings.

• While on Dry and Fan mode, shows the room temperature.

1 2

7 6

Note: The remote control can be used at a

maximum distance of 8 meters (26 feet) from the appliance. Using the remote control more than 8 meters (26 feet) away from the appliance can result in poor reception of the signal.

OPERATING INSTRUCTIONS

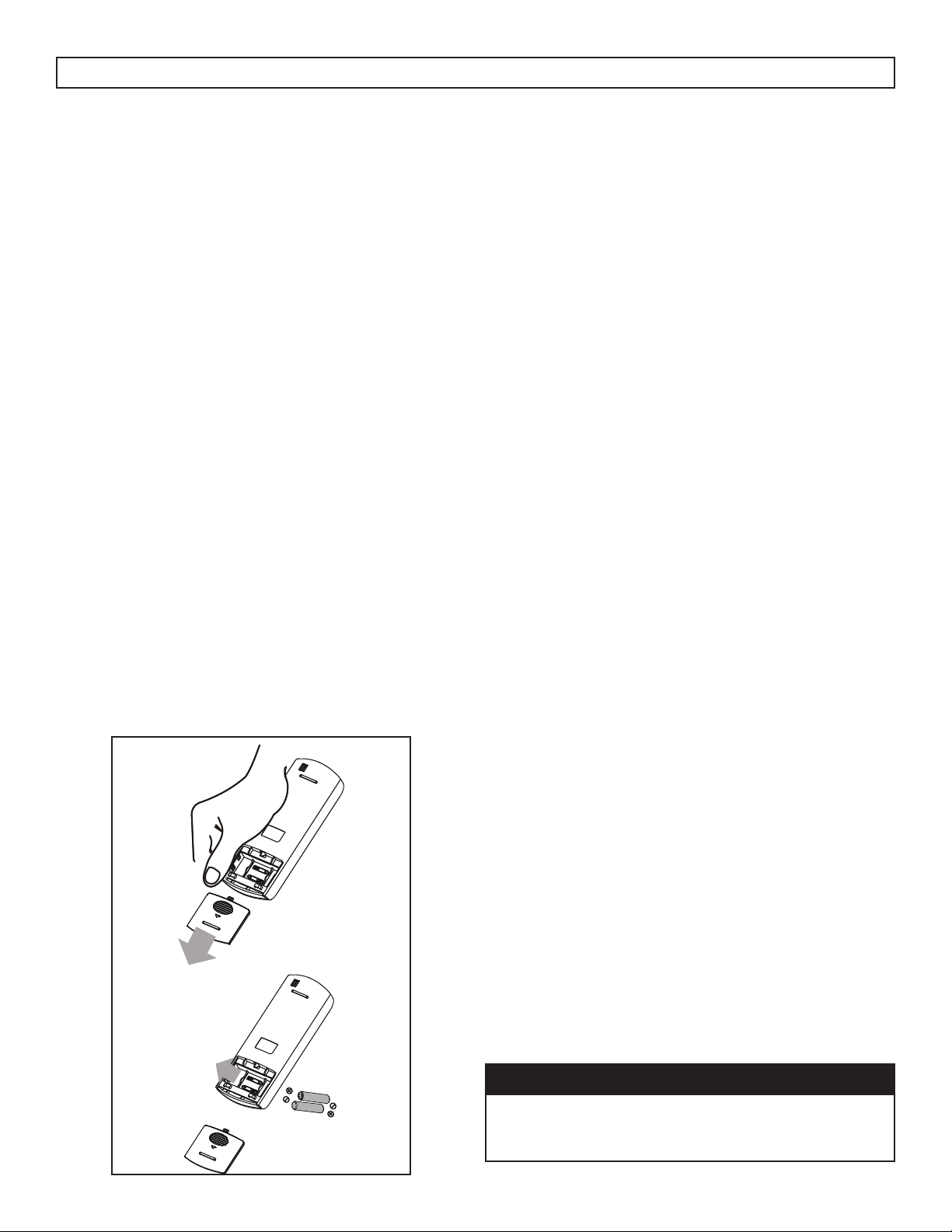

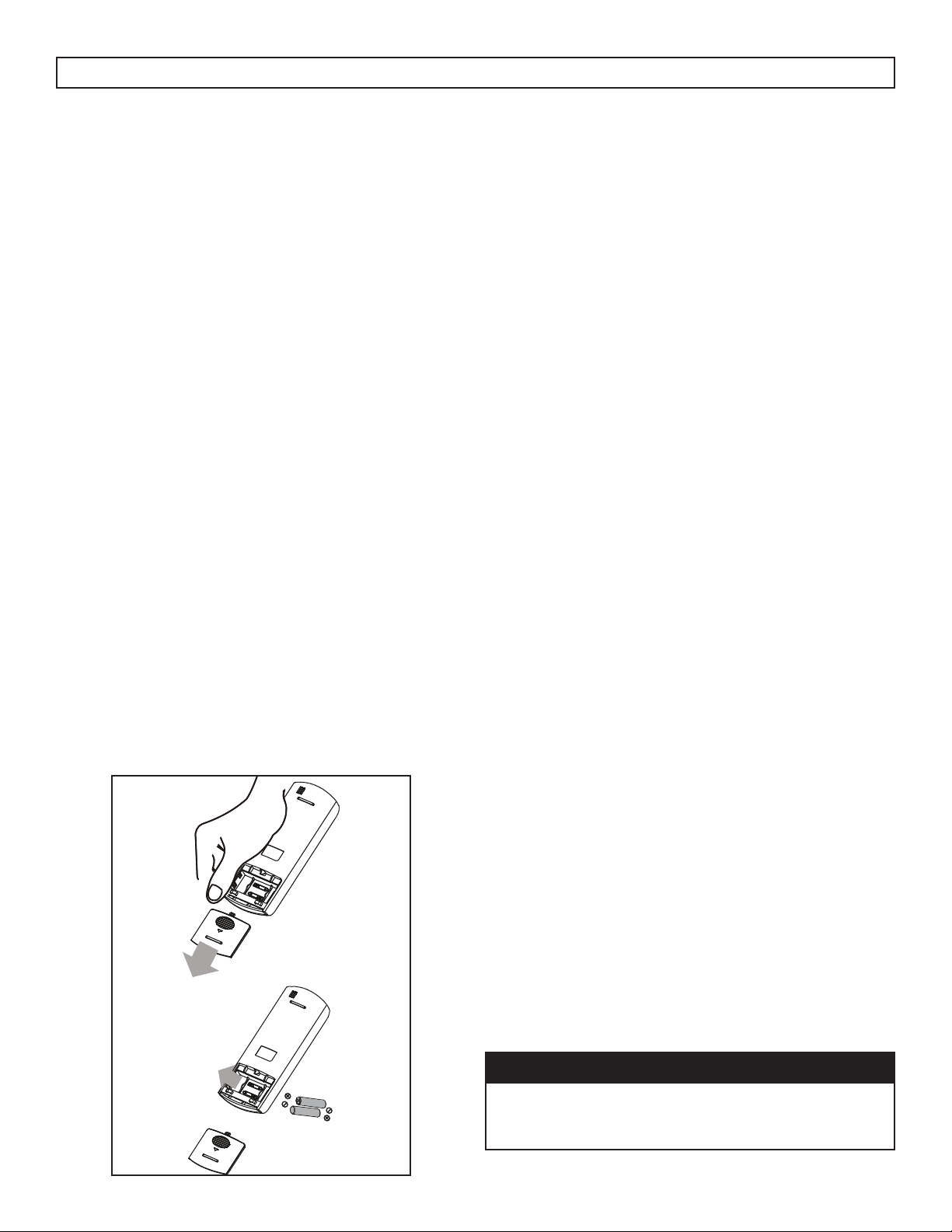

REPLACING THE REMOTE BATTERIES

This air conditioner comes with two AAA batteries. Place the batteries in the remote control before use.

1. Slide the back cover from the remote downward to expose the battery compartment.

2. Insert the batteries, ensure to match the (+) and (-) symbols on the ends of the batteries with the symbols inside the battery compartment.

3. Slide the battery cover back into place.

Notes:

• The air conditioner will not respond if curtains, doors or other materials block the signal from the remote control to the unit.

• Prevent any liquid from contact with the remote control. Do not expose the remote control to direct sunlight or heat.

• If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air conditioner may not function properly. Use curtains to prevent the sunlight from falling on the receiver.

• Do not mix old and new batteries or batteries of different types.

• Do not leave the batteries in the remote control if it is not going to be used for more than 2 months.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna

2. Increase the separation between the equipment and receiver

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

4. Consult the dealer or an experienced radio/TV technician for help

Changes or modiﬁ cations not approved by the party responsible for FCC compliance could void the user’s authority to operate the equipment. This appliance complies with Part 15 of the FCC Rules.

Operation is subject to the following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

This device complies with Canadian CAN ICES-3 (B) / NMB-3 (B)

IMPORTANT

Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper disposal of batteries.

OPERATING INSTRUCTIONS

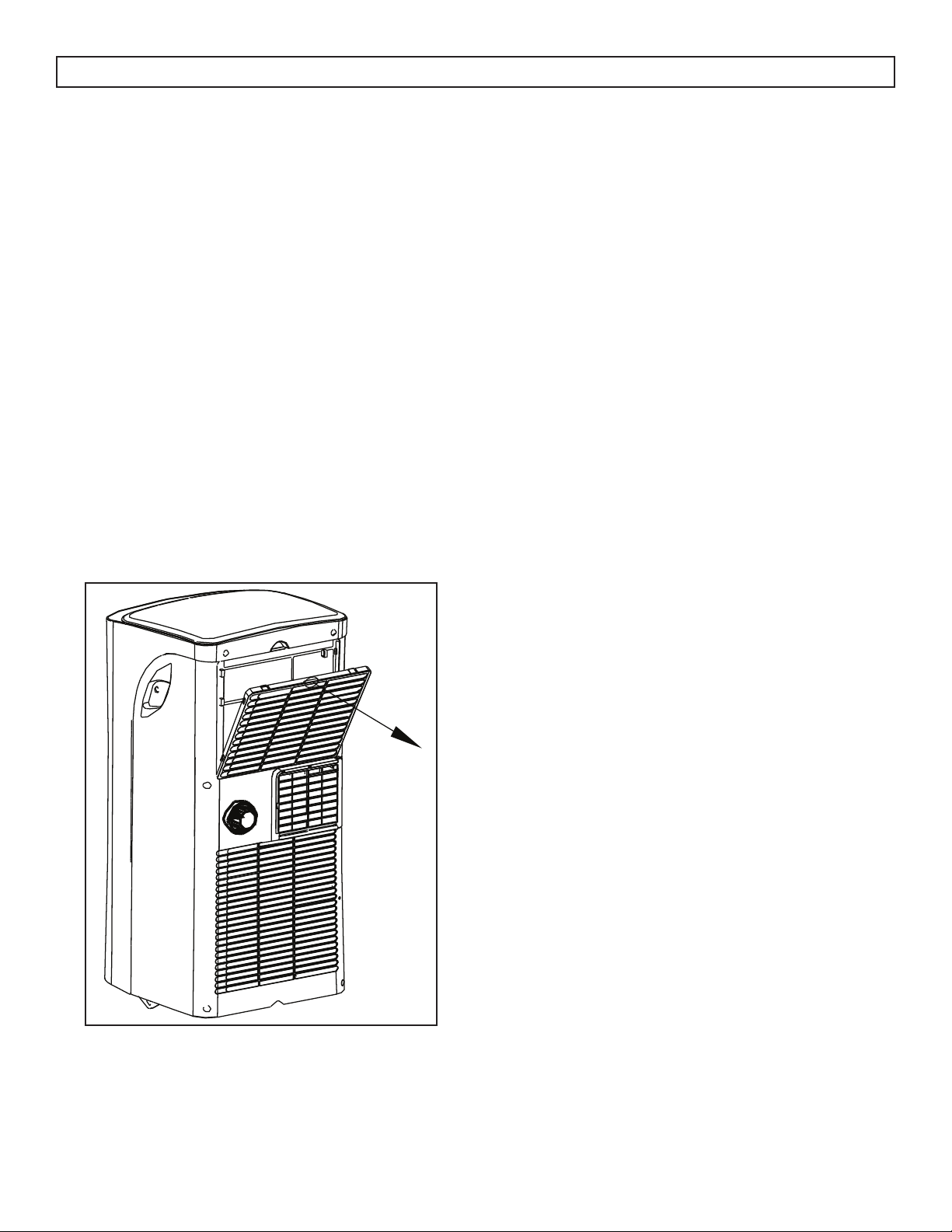

WATER DRAINAGE

When the internal drain pan becomes full the appliance will beep 8 times and the digital display will show error code P1. The air conditioning or dehumidifying action will stop but the fan may continue to operate.

There are two methods to drain water from the appliance.

1. Drain Plug

1. Turn the appliance off and unplug it from the power source.

2. Carefully move the appliance to a location where the water can be drained.

3. Remove the drain plug and allow the water to completely drain.

4. Replace the bottom drain plug, pressing ﬁ rmly to ensure a tight ﬁ t and no leaks.

5. The P1 error symbol will disappear and the appliance will resume regular function once power is restored.

2. Continuous Drain

During the dry mode, you may wish to set up the continuous drain option so that the appliance will automatically drain collected water.

Remove the exhaust hose during dry mode, it is not necessary. Ensure that the appliance is turned off and unplugged from the power source before setting up the drain hose.

Remove the upper drain plug and attach the drain hose that was provided with the appliance. Ensure that there are no kinks or bends in the drain hose as this can stop water from draining.

Place the open end of the drain hose over the receptacle that the appliance will drain into; this could be a basement ﬂ oor drain, a sink or similar.

Remember that there is no drain pump in this appliance, the continuous drain is activated by gravity only. Ensure that the drain hose goes straight down toward the ﬂ oor from the drain connection. If the hose is not positioned directly downwards, water will not drain correctly.

CARE & MAINTENANCE

CLEANING

• Unplug the appliance before cleaning or servicing.

• Clean the cabinet with a lukewarm damp cloth and neutral detergent. Dry the cabinet with a lint-free dry cloth.

• Do not use gasoline, paint thinner or other chemicals to clean the appliance.

• Do not wash the appliance directly under a tap or using a hose. It may cause electrical damage.

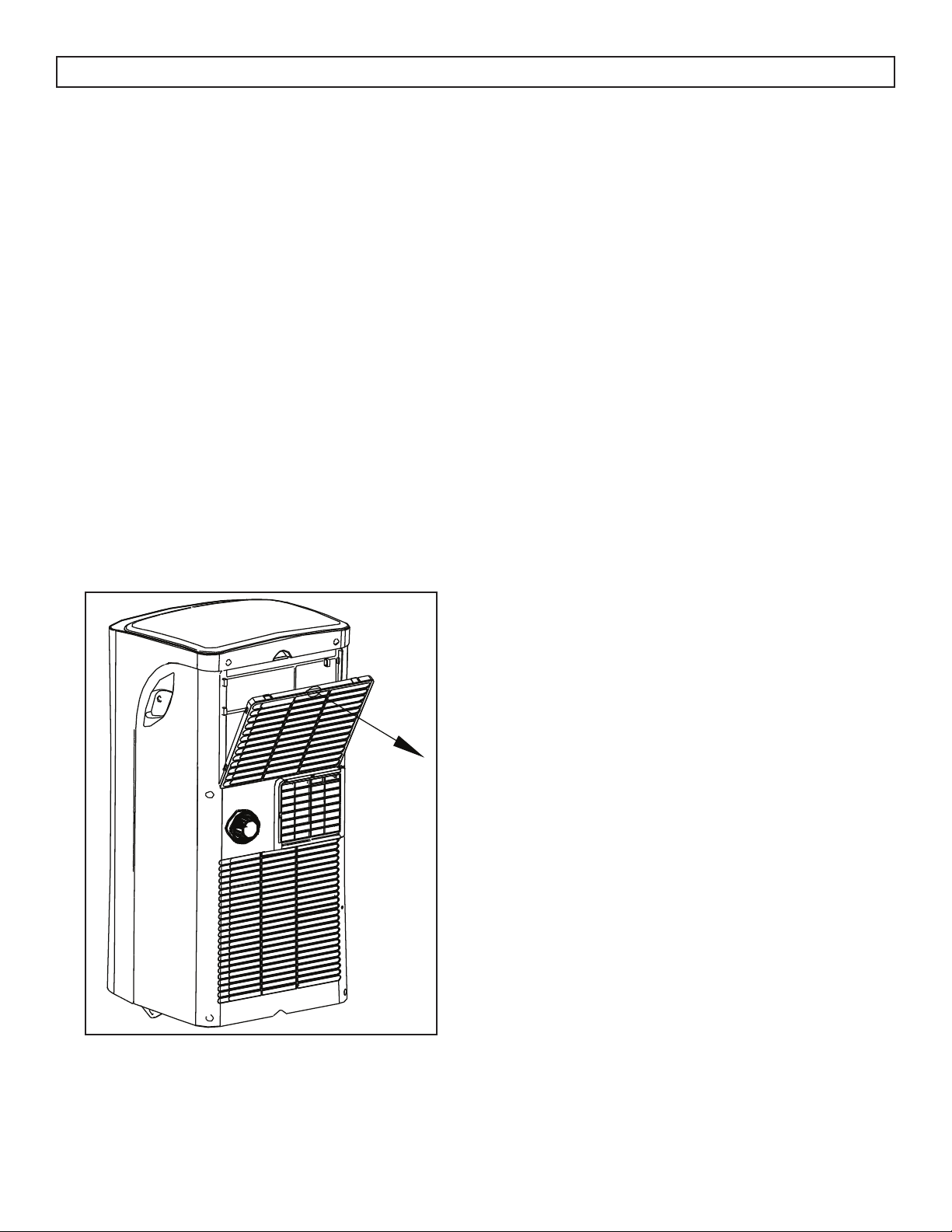

AIR FILTER

The air ﬁ lter should be cleaned every two weeks to ensure efﬁ cient performance.

In households with animals, the air ﬁ lters may need to be cleaned more often and the external grills may need to be wiped to prevent blocked air ﬂ ow.

LONG-TERM STORAGE

1. Drain all water from the appliance.

2. Run the appliance on Fan mode for half a day in a warm room to dry the inside of the appliance and prevent mold formation.

3. Turn off the appliance and unplug it, wrap the cord and bundle it with tape.

4. Remove the batteries from the remote control.

5. Clean the air ﬁ lters and reinstall them.

6. Store the appliance in a cool, dark place. Prolonged exposure to direct sunlight or extreme heat can shorten the lifespan of the appliance.

DISPOSAL

This appliance should not be treated as regular household waste. Check for local regulatory compliance regarding the approved and safe disposal of this appliance.

ERROR CODES

E1 - room temperature sensor error E2 - evaporator temperature sensor error E4 - display panel communication error P1 - water tray is full - attach drain hose and drain excess water

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE

Appliance will not operate • Plug is not fully inserted into the wall outlet

• Blown fuse or circuit breaker

Insufﬁ cient cooling • Air ﬁ lters are dirty

• Blocked air ﬂ ow

• Appliance size is too small for application

Noise • The ground is not level

• Air ﬁ lters are dirty

• Gurgling sounds are normal; this is the refrigerant moving inside the appliance

Odors • Formation of mold or mildew on internal wet surfaces

• Place an algaecide tablet in base pan; push the tablet through the grill on the back of the appliance

+ 30 hidden pages
