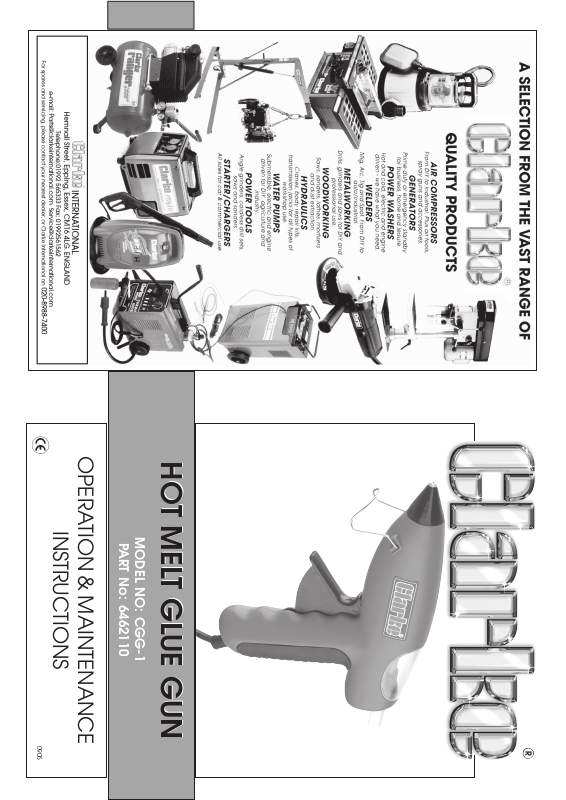

OPERATION & MAINTENANCE
HOT MELT GLUE GUN
HOT MELT GLUE GUN
INSTRUCTIONS
0905
MODEL NO: CGG-1
PART No: 6462110
-1-
DO NOT leave the glue gun switched on
dispensing glue, failure to comply with
this instruction could result in the glue
stick softening and lead to the gun
for more than 15 minutes without
IMPORTANT
becoming inoperative.
leave on stand and
allow to cool down, before
storing safely away.
-5-
between the end of the glue stick and
the sliding block, insert a new stick to
continue gluing.
• When finished,
unplug the gun,
Approx 10mm
released), a gap of approx 10mm
correctly aligned, clamp as necessary, leave
to set.
• Immediately the glue is applied, rest the
gun back on its stand. Carefully offer the
two parts together making sure they are
quickly as possible.
nozzle,
to one part to be glued
only, also apply the glue as
apply the glue
NOTE: when using the gun, observe the glue stick periodically through the transparent
cover on the top of the gun, when the
glue stick appears as in Fig.3 (trigger
• When ready to start gluing parts together, position the nozzle on
as possible, gently operate the trigger several times until resistance is felt, DO
one of the parts to be glued,
gently squeeze the
trigger, melted glue will
start to run from the
NOT apply excessive force.
• Insert glue stick into the rear of the
glue gun, see Fig. 2, push glue stick in as far
4-5mins.
• Plug the glue gun into a suitable
13 amp Socket, allow to heat up,
before attempting to use, approx
• Stand the glue gun in a safe position before
plugging in, see Fig. 1.
Operation
Before commencing, ensure all parts to be glued are clean, and free from oil and
grease etc. Test that parts fit together before applying
glue.
Fig. 2
Fig. 3
Glue Stick
Please note that the details and specifications contained herein, are correct at the time of going to print. However,
10 x General Purpose Glue Sticks
CLARKE International reserve the right to change specifications at any time without prior notice.
Sliding Block
Check List
1 x Operating Instructions
1 x Glue Gun
Elec. Supply ................................................... 230V 50Hz 1 ph
Power Rating ................................................. 65w
Fuse Rating .................................................... 3amp
Product Weight ............................................. 0.3kg
This Product Conforms To 98/37/EEC regulations
returned to us without prior permission.
This guarantee does not effect your statutory rights.
Specifications
Fig. 1
Thank you for purchasing this CLARKE hot melt glue gun, which is designed for DIY.
Before attempting to use the machine, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself and
that of others around you, and you can look forward to the gun giving you long
This product is guaranteed against faulty manufacture for a period of 12 months
from the date of purchase. Please keep your receipt which will be required as
proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
and satisfactory service.
Guarantee
-2-
medical assistance ASAP.
NOT try to remove it, Immerse in cold water immediately, if necessary, seek
of the body, hot melted glue is approx 350°f, if glue should get on the skin etc, DO
NOTE: take care not to allow the melted glue to come into contact with any part
all times - don’t overreach. For best footing, wear
rubber soled footwear. keep floor clear of oil, scrap wood, etc.
-3- -4-
11. ALWAYS keep your proper footing and balance at
10. ALWAYS concentrate on the job in hand, no matter
9. ALWAYS handle with extreme care do not carry the tool by its’ electric cable,
safest performance. Follow instructions.
or yank the cable to disconnect it from the power supply.
how trivial it may seem. Be aware that accidents
are caused by carelessness due to familiarity.
7. ALWAYS keep children away. All visitors should be kept a safe distance from
8. ALWAYS maintain tools in top condition. Keep tools clean for the best and
your own shadow.
the work area, especially whilst operating the tool.
6. ALWAYS ensure that adequate lighting is available. A
benches invite accidents.
minimum intensity of 300 lux should be provided. Ensure
that lighting is placed so that you will not be working in
3. ALWAYS disconnect the tool from the power supply before servicing and when
5. ALWAYS keep work area clean. Cluttered areas and
4. ALWAYS wear safety goggles, manufactured to the latest European Safety
changing accessories.
Standards. Everyday eyeglasses do not have impact
resistant lenses, they are not safety glasses.
2. ALWAYS check for damage. Before using tools, any damaged part, should be
checked to ensure that it will operate properly, and perform its intended
function safely. If in doubt, DO NOT use the tool. Consult your local dealer.
1. ALWAYS Learn the equipments applications, limitations and the specific
ignored, personal injury to the operator or damage to property, may result.
potential hazards peculiar to it. Read and become familiar with the entire
operating instructions.
As with all machinery, there are certain hazards involved with their operation
and use. Exercising respect and caution will considerably lessen the risk of
personal injury. However, if normal safety precautions are overlooked or
Safety Precautions
WARNING:
Voltage Extension length Cable section
230v Up to 20m 2.5mm
230v From 20 to 50m 4m m
2
2
Consult a qualified technician.
IMPORTANT: If in any doubt, do not attempt any electrical repair yourself.
If a cable extension is needed, it is essential to comply with the following data.
and this replacement must be approved to BS1362.
4. Replacement fuse covers can be obtained from your local dealer or most
5. The fuse in the plug must be replaced with one of the same rating (3 amps)
used (as indicated by marking or colour code).
electrical stockists.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse
electric cable. There is a danger of electric
shock if it is subsequently inserted into a socket
carrier, ensure that the correct replacement is
outlet.
IMPORTANT:
the electric cable (i.e. non- re-wireable) please note:
1. The plug must be thrown away if it is cut from the
• Connect BLUE coloured cord to plug terminal marked with a letter N or coloured
coloured RED
BLACK
If this appliance is fitted with a plug which is moulded on to
IMPORTANT:
Connect the mains lead to a standard 230V (50Hz) electrical supply through an
IMPORTANT:
As the colours of the flexible cord of this appliance may not correspond with the
coloured markings identifying terminals in your plug proceed as follows:
• Connect BROWN coloured cord to plug terminal marked with a letter L or
the following code:
approved 13 Amp BS1363 plug, or a suitably fused isolator switch.
Electrical Connections
WARNING: This appliance is DOUBLE INSULATED
The wires in the mains lead are coloured in accordance with
Brown - Live
Blue - Neutral
