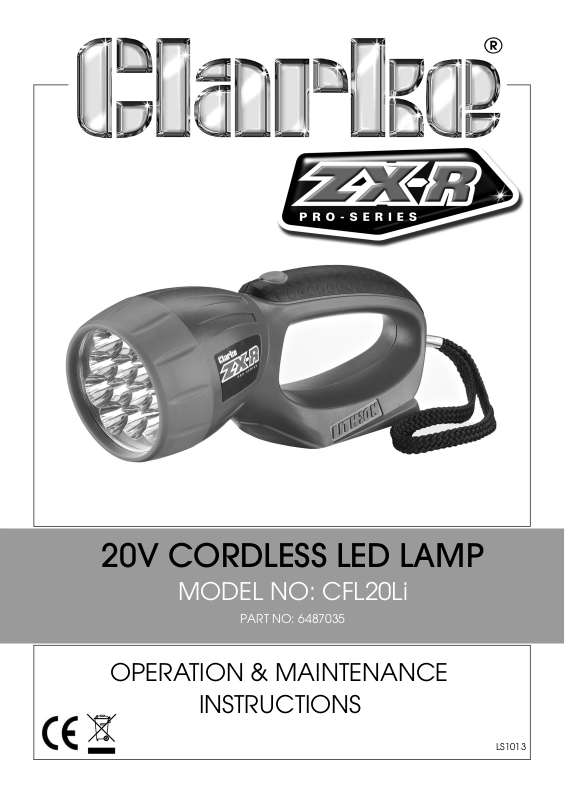

Page 1
20V CORDLESS LED LAMP
MODEL NO: CFL20Li
PART NO: 6487035
OPERATION & MAINTENANCE
INSTRUCTIONS
LS1013
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE 20V Cordless LED Lamp.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
SPECIFICATIONS
Voltage 20 VDC
Battery Type (Sold Separately) Li-Ion
Output Duration Half Power 9 hours
Full Power 6 hours
Weight (without battery pack) 0.27 kg
Dimensions (without battery pack) (L x W x H) 225 x 82 x 93 mm
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/
OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED
BELOW REFERS TO YOUR 20V CORDLESS LED LAMP.
WARNING: DO NOT STARE DIRECTLY INTO THE CORDLESS LED LAMP.
WARNING: DO NOT POINT THE CORDLESS LED LAMP INTO OTHER PEOPLES
EYES
BATTERY TOOL USE AND CARE
a. Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a risk of
fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of
any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal objects,
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
SERVICE
a. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
SAFETY RULES FOR WORKLIGHTS
WARNING: FIRE HAZARD. DO NOT OPERATE CORDLESS LED LAMP NEAR
FLAMMABLE LIQUIDS OR IN GASEOUS OR EXPLOSIVE ATMOSPHERES.
INTERNAL SPARKS MAY IGNITE FUMES CAUSING PERSONAL INJURY.
• Do not expose Cordless LED Lamp to wet or damp areas.
• Do not expose Cordless LED Lamp to rain or snow.
• Do not wash Cordless LED Lamp with water or allow water to get
inside.
• Do not submerge Cordless LED Lamp in water at any time.
• Do not operate without lens cover assembly attached.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as waste.
All tools, accessories and packaging should be sorted, taken to a
recycling centre and disposed of in a manner which is compatible
with the environment.
SAFETY SYMBOLS
Weee Symbol CE Mark
Read instruction manual before use
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
FITTING THE BATTERY PACK (NOT SUPPLIED)
This lamp requires a Clarke 20V Lithium-ion battery pack (6487040) and 1 Hour
Charger (6487050) to operate. Both are available separately from your local
Clarke dealer.
TO FIT THE BATTERY
1. Slide the battery pack onto the
base of the lamp.
TO REMOVE THE BATTERY
1. Press and hold the release buttons
on the side of the battery pack.
2. Slide the battery pack away from
the base of the handle.
OPERATING THE LAMP
1. Press the on/off button to switch
the lamp on at half power.
2. Press the on/off button again to
select full power.
3. Press the on/off button a third
time to switch the lamp off.
CHANGE THE ANGLE OF THE LAMP
1. The lamp head can be rotated
into the desired position by
twisting.
NOTE: Stop twisting when you
encounter resistance, do not
force the lamp head.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

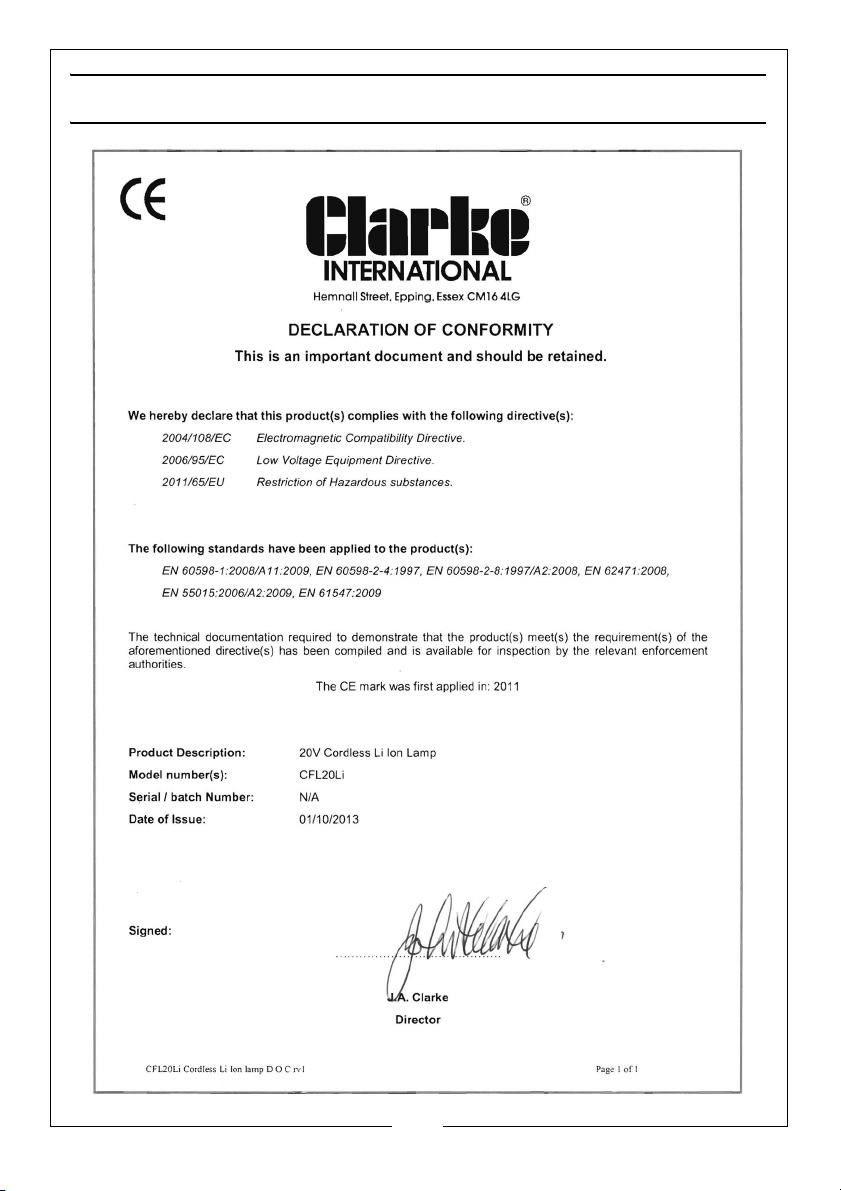

DECLARATION OF CONFORMITY
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
CLARKE ZX-R RANGE
The Clarke ZX-R 20V cordless power tools are designed as a high power and
quality solution for the tradesman that requires a number of different tool
types.
20v
Hammer Drill.
Model:
CDD20Li
Part Number:
6487010
20v
Circular Saw
Model:
CCS20Li
Part Number:
6487015
20v
Led Lamp
Model:
CFL20Li
Part Number:
6487035
20v
Jig Saw
Model:
CJS20Li
Part Number:
6487025
20v
Multifunction
Tool.
Model:
CMFT20Li
Part Number:
6487030
20v
Reciprocating
Saw
Model:
CRS20Li
Part Number:
6487020
20v
Impact Driver
Model:
CID20Li
Part Number:
6487000
20V Battery
Model
BL1500Li
Part Number
6487050
Also Available
20V Battery Charger
Part Number
6487050
7
