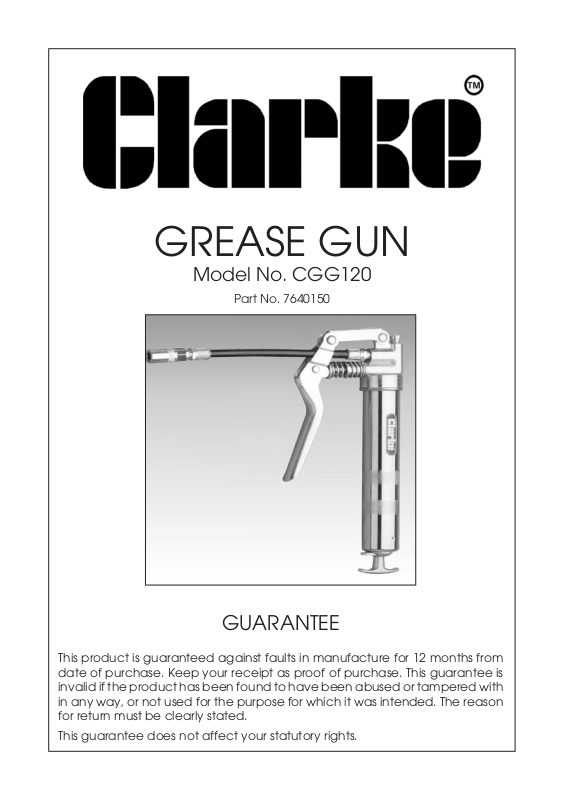

GREASE GUN
Model No. CGG120
Part No. 7640150
GUARANTEE
This product is guaranteed against faults in manufacture for 12 months from
date of purchase. Keep your receipt as proof of purchase. This guarantee is
invalid if the product has been found to have been abused or tampered with
in any way, or not used for the purpose for which it was intended. The reason
for return must be clearly stated.
This guarantee does not affect your statutory rights.
Page 2
The cylinder may be filled with bulk grease
or a 3oz (85cc) cartridge may be used.
To fill with bulk grease, proceed as follows:
1. Unscrew the cylinder from the body.
2. Remove the lid from the grease
container.
NOTE: Ideally, use the type of container
where a steel plate, with a hole in the
middle, rests in the surface of the grease.
Using this type of container:
3. Invert the cylinder and place the open
end over the hole in the steel plate in
the grease container.
4. Press down forcibly on the cylinder
whilst slowly pulling up on the plunger.
Continue until the cylinder is fully
charged.
5. Screw the cylinder back on to the
body.
Hemnall Street, Epping, Essex, CM16 4LG.

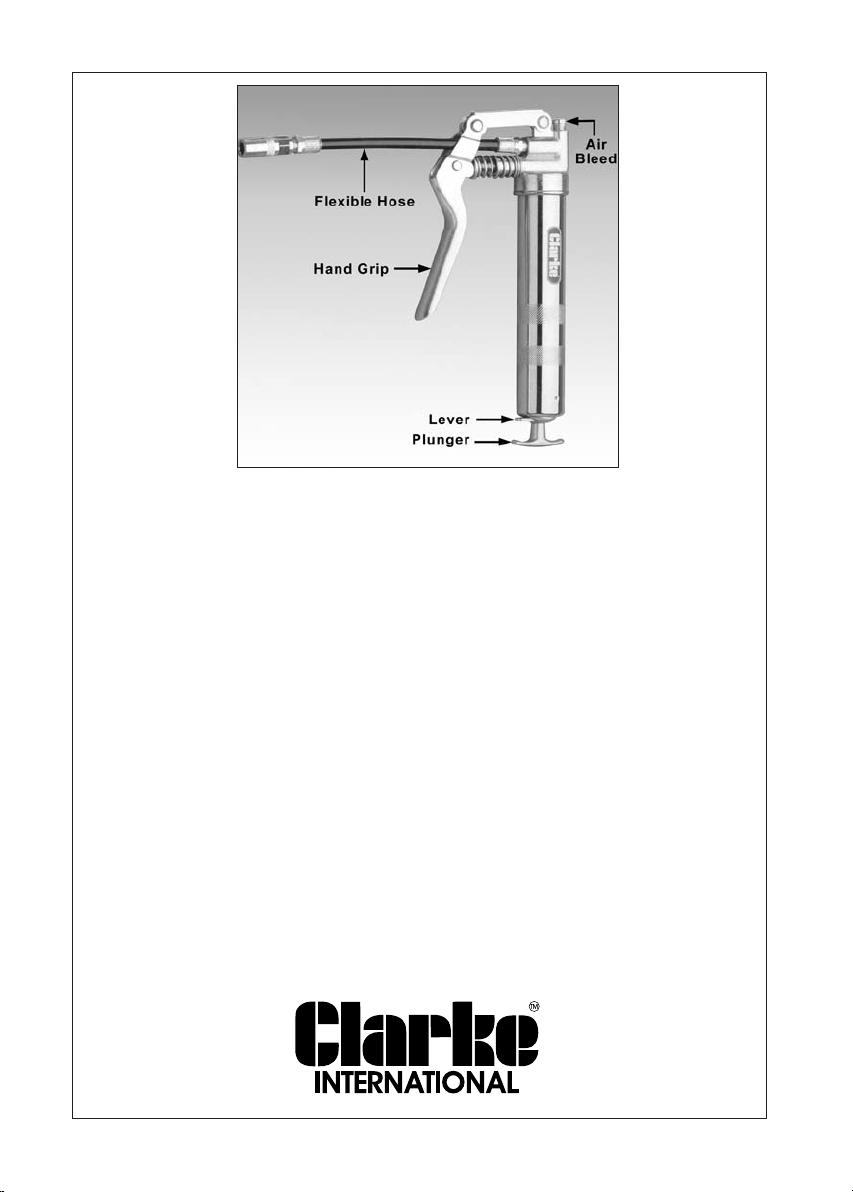

6. Depress the Lever (shown in the
diagram above), fully, then push the
plunger back into the cylinder as far
as it will go. Release the Lever.
7. Open the Air Bleed using an Allen Key
(not supplied), and operate the hand
grip until all air is expelled...i.e. grease
in a solid mass is expelled from the air
bleed. Close the air bleed.
The grease gun is now ready for use.
To use with a cartridge:
1. Unscrew the cylinder from the body.
2. Remove end caps from cartridge.
3. Pull plunger out fully, then insert the
cartridge into the cylinder - larger
open end first
3. Screw cylinder back on to body, and
proceed as from para. (6) above..
