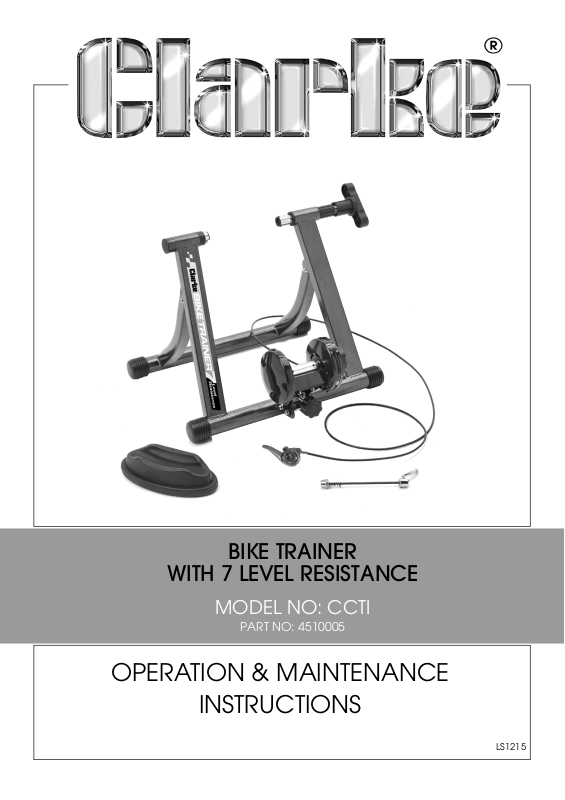

Clarke CCT 1, 4510005 User guide

BIKE TRAINER

WITH 7 LEVEL RESISTANCE

MODEL NO: CCTI

PART NO: 4510005

OPERATION & MAINTENANCE

INSTRUCTIONS

LS1215

INTRODUCTION

Thank you for purchasing this CLARKE bike trainer.

Before attempting to use the bike trainer, it is essential that you read this manual
thoroughly and carefully follow all instructions given. In doing so you can look forward to
the bike trainer giving you long and satisfactory service.

SAFETY WARNINGS

• Do not touch the spinning roller or wheels at any time whilst using the trainer.

• Maintain a normal riding position and keep both hands on the handlebars.

• Check the bike trainer regularly for damage.

• Do not allow small children to use the bike trainer.

• Ensure all wing nuts are securely tightened before using the bike trainer.

• Do not brake suddenly when using the bike trainer.

• Do not use the bike trainer if you are feeling unwell or under the influenc
ol or medication.

alcoh

e of

• You should satisfy yourself that there is no medical reason that you should not use

th

e bike trainer

SPECIFICATIONS

Maximum weight capacity 150 kg

Bi cy cl e W he el Si ze s: (m in . - ma x) 2 6” - 2 8”

Dimensions: (unfolded) 530 x 400 x 414 mm

Weight 7.1 kg

SPARE PARTS

The following spare parts are available from the Clarke Spares department.

Adjustment Handle HNKCCTI01 Roller Adjustment Knob HNKCCTI05

Wire Assembly HNKCCTI02 Rubber Feet HNKCCTI06

Front Wheel Stabilizer HNKCCTI03 Locking Collar HNKCCTI07

Skewer HNKCCTI04

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

INSTALLING YOUR BIKE

Specialised training tyres are not required to use this bike trainer, but they are

recommended if you intend to use the bike trainer for prolonged periods of time.

1. Fully extend trainer legs and set the
trainer on a flat level surface.

• The feet can be rotated to allow for

minor unevenness in the floor.

2. The trainer is designed for use with the
skewer supplied.

• You must replace your rear skewer

with the one supplied.

• This ensures ideal clamping and

stability on the trainer.

• Make sure the wheel is securely

clamped to the bike using the
supplied skewer.

3. Hold the bike by the saddle and hold
the rear wheel between the two
couplings

Slide the locki

4.
adjustment handle

5. Turn the adjustment handle to
centralise the wheel over the roller.

6. Slide the locking collar towards the
adjustment handle to lock the bike in
place.

7. Place the front wheel stabilizer under
the front wheel.

ng collar towards the

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

8. Tighten the roller adjustment knob until
the roller is touching the rear tyre.

• Tighten further if the tyre slips on the

roller.

9. Clamp the resistance setting lever to
the handle bars of your bike

10. Adjust the resistance as required.

REMOVING YOUR BIKE:

1. Loosen roller adjustment knob, until
the tyre is clear of the roller.

2. Remove the resistance lever from the
handlebars.

3. Slide the locking collar towards the
adjustment handle

4. Turn the adjustment handle to release
the bike.

• Make sure you’re holding onto your

bike before releasing it.

5. Remove your bike from the trainer.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12 months
from the date of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with
in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.

This guarantee does not effect your statutory rights.
