CZ303AU
Bluetooth® CD/USB/MP3/WMA RECEIVER
English
Warranty Information:
For detailed information regarding warranty conditions, please see the separate warranty card
enclosed with your product. There you will also find information regarding how to register your
product for Clarion’s “Free Extended Warranty” program.
• “Free Extended Warranty” subject to ter ms and conditions.
You can also view the warranty conditions at any stage by visiting the Clarion webiste and
clicking on the “warranty information” link.
http://www.clarion.com.au
Contents
Thank you for purchasing this Clarion product.
• Please fully read this owner’s manual before operating this equipment.
• Check the contents of the enclosed warranty card and store it in a safe place with this manual.
1. FEATURES .......................................................................................................................2
2. PRECAUTIONS ................................................................................................................ 2
Front Panel / Generalities .............................................................................................. 3
USB Port ........................................................................................................................3
Remove the DCP ...........................................................................................................3
Attach the DCP .............................................................................................................. 3
Storing the DCP in the DCP Case ................................................................................. 3
3. CONTROLS ...................................................................................................................... 4
Operational Panel .......................................................................................................... 4
Names of Buttons ........................................................................................................... 4
Notes of remote control using ........................................................................................4
Remote Control (RCX001) ............................................................................................. 5
4. CAUTIONS ON HANDLING ............................................................................................. 5
Handling Discs ...............................................................................................................5
5. OPERATIONS ................................................................................................................... 6

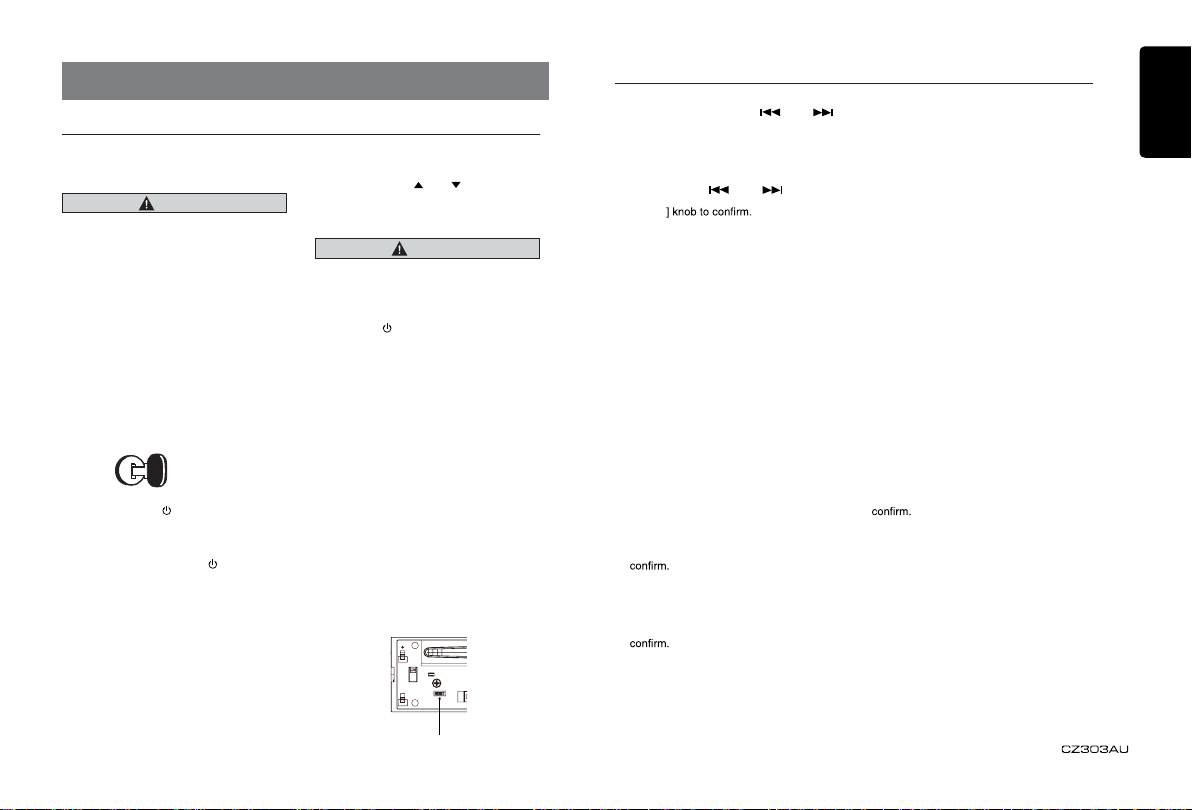

Basic Operations ............................................................................................................ 6
System Setup ................................................................................................................. 6
Audio Setup .................................................................................................................... 7
Radio Operations ...........................................................................................................7
CD/MP3/WMA Operations .............................................................................................
USB Operations .............................................................................................................
iPod & iPhone Operations ..............................................................................................
Pandora® Operations ..................................................................................................
Bluetooth Operations ................................................................................................... 11
AUX Operations ...........................................................................................................12
6. TROUBLE SHOOTING ................................................................................................... 13
7. ERROR DISPLAYS......................................................................................................... 14

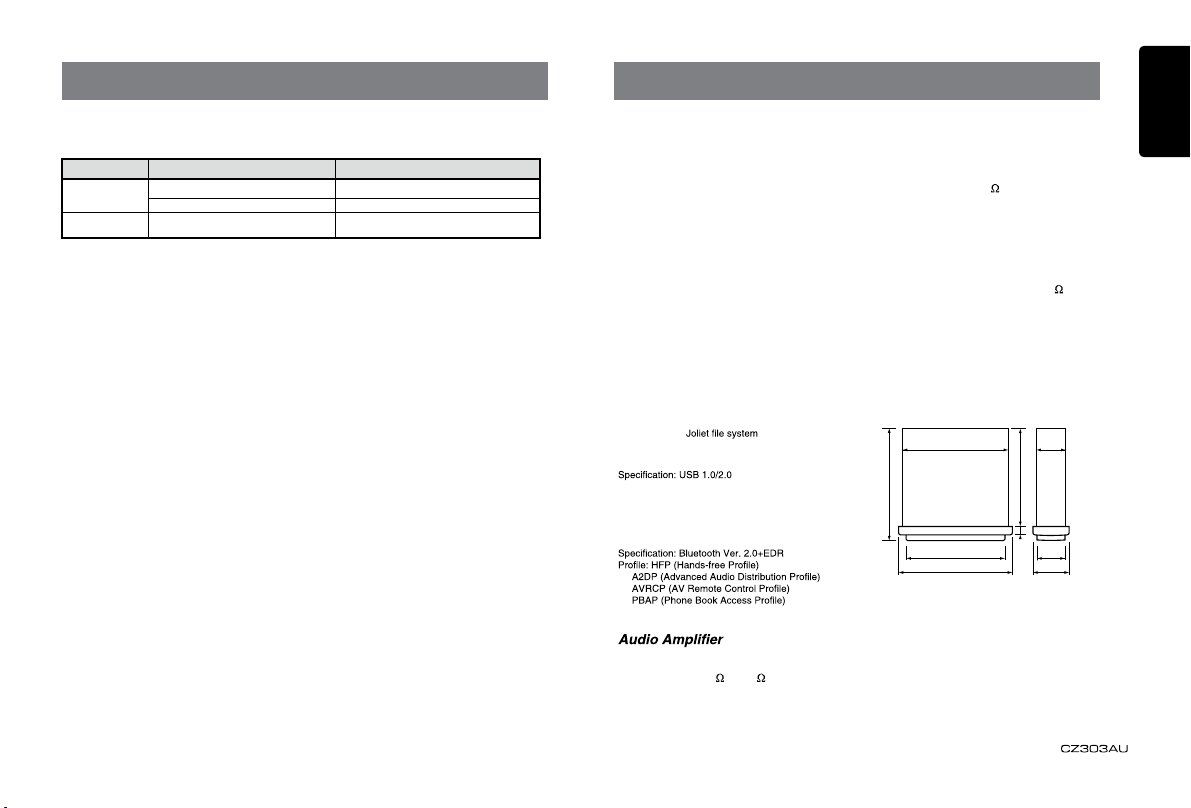

8. SPECIFICATIONS .......................................................................................................... 14

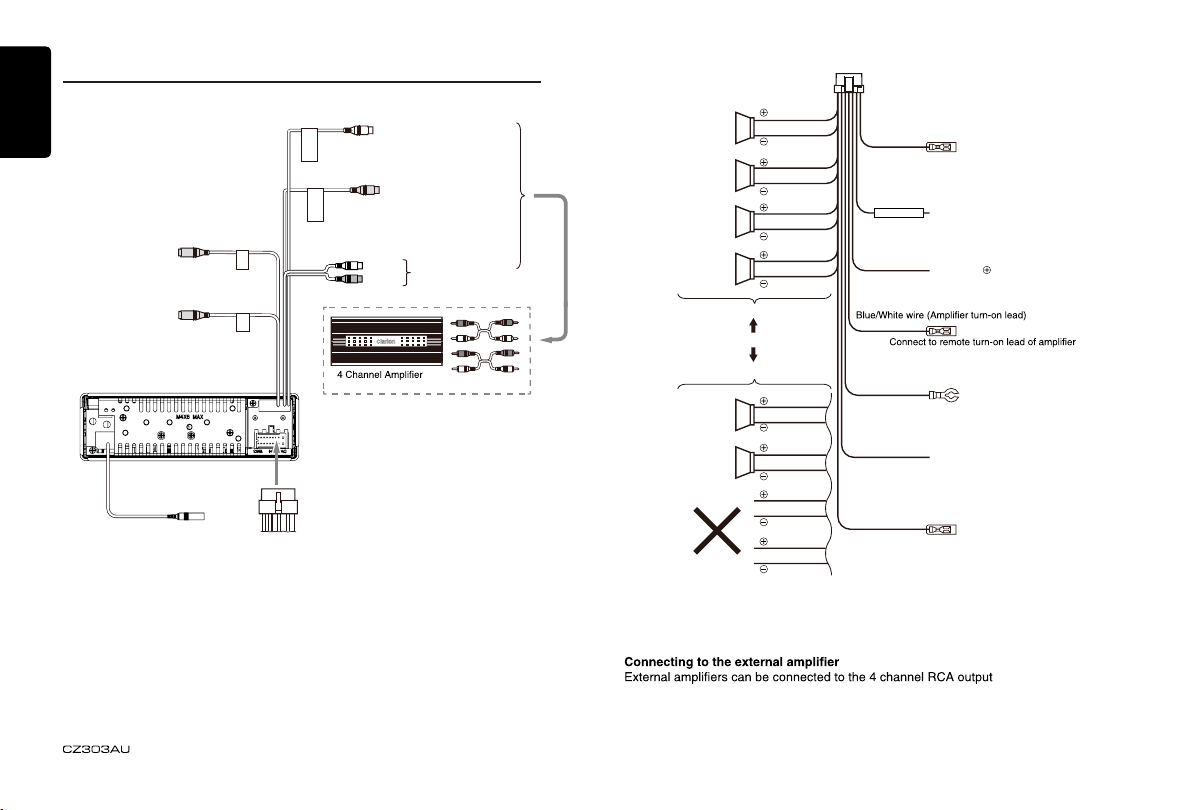

9. INSTALLATION / WIRE CONNECTION GUIDE ............................................................ 15
8
9
9
10
1
1. FEATURES
2. PRECAUTIONS
English
Compatible with iPod® / iPhone® with Pandora® internet radio App
Built-in Parrot Bluetooth® Handsfree (HFP) and Audio Streaming (A2DP & AVRCP)
Expanding Systems
Expanding audio features
®
®
/ iPhone
iPod
Bluetooth
cellular phone
®
USB Memory
Portable Player
(Connect via AUX IN Jack)
WARNING
For your safety, the driver should not operate the controls while driving.
Also, while driving, keep the volume to a level at which external sounds can be heard.
1. When the interior of the car is extremely
cold and the player is used soon after
switching on the heater, moisture may
form on the disc or the optical parts of the
player and proper playback may not be
possible. If moisture forms on the disc,
wipe it off with a soft cloth. If moisture
forms on the optical parts of the player,
do not use the player for about one hour.
The condensation will disappear naturally
allowing normal operation.
2. Driving on extremely bumpy or rough
roads can cause the disc to skip during
playback.
3. This unit uses precision parts and
components for its operation. In the
event that trouble arises, never open the
case, disassemble the unit, or lubricate
the rotating parts. Contact your Clarion
dealer or service center.
4. “ Made for iPo d,” and “Mad e for iPhone”
mean that an el ectron ic accesso ry has
been designed to connect specifically t o
iPod , or iPhone, res pect ive ly, and has
been certified by th e developer to meet
Apple performance standards.
Apple is not responsible for the operation
of this device or its compliance with safety
and regulato ry standards. Please note
that the use of this accessory with iPod or
iPhone may affect wireless performance.
iPhone and iPod are trademarks of Apple
Inc., registered in the U.S. and other
countries.
5. P andora, the Pandor a logo and othe r
Pandor a ma rk s ar e tradema r ks o r
registered trademarks of Pandora Media,
Inc. or its subsidiaries worldwide.
“If you have any issues with the Pandora
application on your mobile phone, please
direct them to pandora-support@pandora.
com.”
6. T he Bluetoot h word mark and logos
owned by the Bluetooth SIG, Inc. and any
use of s uch mar ks b y Clarion Co. ,Ltd. is
under license.
Other tradema rks and t rade names are
those of their respective owners.
a re
Note:
• .dlos yllareneg stcudorp laicremmoc eht era semarf eht fo edistuo detsil smeti ehT
2
English
CZ303AU
531-1629kHz 87.5-108MHz
This product includes technology owned by Microsoft Corporation and
cannot be used or distributed without a license from MSLGP.
051 722 877
QDID NO.: B017789
INFORMATION FOR USERS:
Changes or modifi cat ions to this product
unapproved by the manufacturer will void the
warranty.
Front Panel / Generalities
For a longer service life, be sure to read the
following cautions.
• Do not allow any liquids on the unit from
drinks, umbrellas, etc. Doing so may
damage the internal circuitry.
• Do not disassemble or modify the unit in
any way. Doing so may result in damage.
• Do not let cigarettes burn the display.
Doing so may damage or deform the
body.
• If a problem should occur, have the unit
inspected at your store of purchase.
• The remote control unit may not work if
the remote control sensor is exposed to
direct sunlight.
3
Cleaning the body
• Use a soft, dry cloth and gently wipe off
any dirt or dust.
• For tough dirt, apply some neutral
detergent diluted in water to a soft cloth,
wipe off the dirt gently, then wipe again
with a dry cloth.
• Do not use benzene, thinner, car cleaner,
etc., as these substances may damage
CHINA
PN:127071003543TX-1098K-C
the body or cause the paint to peel. Also,
leaving rubber or plastic products in
contact with the body for long periods of
time may cause stains.
The control panel can be detached to prevent
theft. When detaching the control panel, keep
it in the safety place and prevent scratches.
We r e c o mmend taking the DCP
(DETACHABLE CONTROL PANEL) with you
when leaving the car.
1. Press the [SRC /
off the power.
2. Deeply push in [OPEN ] button to unlock
the DCP.
3. Hold the side popped out, remove the
DCP.
] button (1 sec.) to turn
Attach the DCP
1. Hold the DCP and ensure that the panel
Remove the DCP
USB Port
• The USB memory stick may stick out
when inserted,so it may cause danger
during driving. When connect USB
memory stick to the main unit, please use
a USB extension cable(CCA-755).
• The USB m e m o ry sticks m us t b e
recognized as “USB mass storage class“
to work properly. Some models may not
operate correctly.
When the memorized data is lost o r
damaged by an y cha nce, Clarion shall
not be liable for any damage.
When using an USB memory stick, we
recommend that you backup your data
stor ed on it before us ing a personal
computer etc.
•
memory s ticks in t he f ollowing sit uation:
When disconnecting the USB memory
st ick or t urning the power off during
reading data.
When affected by stati c electricity or
electric noise.
Connect/disconnect the USB memory stick
when it is not accessed.
• Connecting wit h the computer is not
covered.
faces towards you. Set the right side of the
DCP into the DCP bracket.
2. Press the left side of the DCP until it locks.
Storing the DCP in the DCP Case
and put it into the supplied DCP case.
DCP
DCP case
Note:
If the DCP is dirty, wipe off the dirt with a soft,
dry cloth only.
• The DCP can eas ily be damaged by shocks.
After removing it, be carefully not to drop it or
subject it to strong shocks.
• Once the [OPEN] button is press ed and DCP
is unlocked, car vibrations can cause the DCP
to fall.
• The connector for the main unit and DCP
is extremely important. Be careful not to
damage it by pressing on it with fingernails,
screwdrivers, etc.
CAUTION
3. CONTROLS
Operational Panel
[BAND / ]
[ / ]
[MENU / ]
[VOLUME]
[PS/AS]
[DISP]
[MIC]
[ SRC / ]
[OPEN]
Names of Buttons
[ SRC / ] Button
• Power / Toggle the audio source
[BAND /
] Button
• RADIO mode – Select tuner band
• BT mode – Dial/Answer / Transfer call / Redial
(long press)
• PANDORA mode – skip song
] Button
[MENU /
• MP3/WMA mode – Search function.
• CD mode – No function.
• RADIO mode – No function.
• AUX mode – No function.
• USB mode – Search function
• iPod mode – iPod menu
• PANDORA mode – Station select
• BT mode – Terminate call
] Button
[
• Press to eject disc.
Disc Slot
[1~6]
, ] Buttons
[
• Previous / next track
• Search (long press)
• PANDORA mode – Station up/down
[Open] Button
• Unlock the front panel.
[PS / AS] Button
• Scan play / Preset scan
• Auto memory store (long press)
] Button
[
• Sound effect setting
[VOLUME] Knob
•
• PANDORA mode – Bookmark song / Artis t-
(long press)
[ ]
[ISR]
USB Connector
AUX Jack
Names of Buttons
[ISR] Button
• Recall ISR station stored i n memory and
store current stat ion i n ISR memory (lon g
press)
[1~6] Buttons
• [1] Button: Sca n play / Pres et station 1 /
• [2] Button: Repeat play / Preset station 2.
• [3] Button: Random play / Preset station 3.
• [4] Button: Pla y / Pa use / T op play (long
• [5] Button: Previous folder / Preset station 5.
Thumbs down (PANDORA mode)
• [6] Button: Next folder / Preset station 6.
10 tracks up (long press)
Create new station (PANDO RA
mode)
press) / Preset station 4.
10 tracks down (long press).
Thumbs up (PANDORA mode)
Notes of remote control using
1. Aim the remote control at the remote sensor
on the unit.
2. Remove the battery from the remote control
or insert a battery insulator if the battery has
not been used for a month or longer.
3. D O NOT store the remote con trol under
direct sunligh t or in high temperat ure
environment, or it may not function properly.
4. Use “button shaped” lithium batter y
“CR2025” (3V) only.
5. D O NOT subjec t batte ry t o rec harge,
di sas semble, heat or disp ose in fir e or
water.
6. I nse rt th e bat tery in proper direc tio n
according to the (+) and (-) polarities.
7. Store the battery in a place where children
cannot reach to avoid the risk of accident.
[DISP] Button
• Display switch
• System setup (long press)
[ MIC ] Hole
• Internal microphone
Inserting the Battery
1. S lide remote control unit’s rear cove r in
the direction shown.
2. I nsert battery (CR2025) into inse rtion
guides with printed side (+) up.
3. Press battery into compartment as shown.
4. Replace and slide cover until it clicks into
place.
Insertion guide
English
4
English
Remote Control (RCX001)
[SRC / ] Button
• Toggle the audio source
• Power on / Power off (long press)
, ] Buttons
[
• Preset station up/down
• Previous / next track
• Search (long press)
• PANDORA mode – Station up/down
[SCN/PS/AS] Button
• Scan play / Preset scan
• Auto memory store (long press)
• PANDORA mode – Thumbs down
[BAND/TOP] Button
• CD/MP3/WMA/USB mode
Top play (long press)
• RADIO mode – Select tuner band
• PANDORA mode – Skip song
, ] Buttons
[
• Volume up / down
[
] Button
• Play / Pause
[ISR] Button
• Recall ISR sta tion stored in memory and
store current sta tion in ISR memory (long
press)
[DISP] Button
• Display switch
[RDM] Button
• Random play
• PANDORA mode – Thumbs up
[RPT] Button
• Repeat play
• PANDORA m ode – Bookma rk song /
Artist (long press)
[MUTE] Button
• Mute the volume
[SRC / ]
[ , ]
[MUTE]
[SCN/
PS/AS]
[BAND/TOP]
[ , ]
[ ]
[ISR]
[DISP]
[RDM
]
][RPT
4. CAUTIONS ON HANDLING
Handling Discs
Handling
• New discs may have some roughness
around the edges. If such discs are used,
the player may not work or the sound may
skip. Use a ball-point pen or the like to
remove any roughness from the edge of
the disc.
Ball-point pen
Roughness
• Never stick labels on the surface of the disc
or mark the surface with a pencil or pen.
• Never play a disc with any cellophane tape
or other glue on it or with peeling off marks.
If you try to play such a disc, you may not
be able to get it back out of the player or it
may damage the player.
• Do not use discs that have large scratches,
are misshapen, cracked, etc.
Use of such discs may cause misoperation
or damage.
• To remove a disc from its storage case,
press down on the center of the case and
lift the disc out, holding it carefully by the
edges.
• Do not use commercially available disc
protection sheets or discs equipped with
stabilizers, etc. These may damage the
disc or cause breakdown of the internal
mechanism.
Storage
• Do not expose discs to direct sunlight or
any heat source.
• Do not expose discs to excess humidity or
dust.
• Do not expose discs to direct heat from
heaters.
Cleaning
•
cloth and wipe in a straight line from the
center of the disc to the circumference.
• Do not use any solvents, such as
commercially available cleaners, anti-static
spray, or thinner to clean discs.
• After using special disc cleaner, let the disc
dry off well before playing it.
On Discs
• Never turn off the power and remove the
unit from the car with a disc loaded.
For your safety, the driver should not insert
or eject a disc while driving.
CAUTION
5
5. OPERATIONS
Basic Operations
Note:
• Refer to the diagrams in “3. CONTROLS”
when reading this chapter.
When the unit is turned on, starting and
stopping the engine with its volume
raised to the maximum level may harm
your hearing.
Be careful about adjusting the volume.
Power on / off
Notes:
• Start the engine before using this unit.
• Be careful about using this unit for a long
time without running the engine. If you
drain the car’s battery too far, you may not
be able to start the engine and this can
reduce the service life of the battery.
1. Start the engine. The power button / knob
illumination on the unit will light up.
2. Press the [SRC /
panel or the remote control to turn on the
power under standby mode. The unit goes
back to the last status after power on.
3. Press and hold the [SRC /
the front panel or the remote control to
turn off the power.
Mute
Press the [MUTE] button on the remote
control to mute the volume from the unit.
Note:
Doing the operation above again or adjusting
volume will release muting.
CAUTION
Engine ON
position
] button on the front
] button on
Volume adjustment
Rotate the [VOLUME] knob on the front
panel or press the [
remote control.
The adjustable range of volume is 0 to 40.
] or [ ] button on the
CAUTION
While driving, keep the volume level at
which external sounds can still be heard.
Playing source selection
Press [SRC / ] button on the front panel or
remote control repeatedly to choose desired
playing source.
Note:
Playing source selection means selecting
which mode, such as DISC mode, RADIO
mode and AUX mode.
Display system time
Press the [DISP] button on the front panel or
[DISP] button on the remote control to switch
the display information from clock, station
information (radio mode), or track information
(CD mode).
RESET
Note:
* When the [RESET] button is pressed,
preset radio stations, titles, etc. stored in
memory are cleared.
RESET
System Setup
In any mode, press and hold [DISP] button to
enter system setup. Press [
button to select options, rotate the [VOLUME]
knob to adjust.
CLOCK
Press the [VOLUME ] knob to enter cloc k
setting mode, rotate the [VOLUME] knob to
set clock, press [
select hour or minute, press and hold the
[VOLUME
DX/LO (RADIO mode)
Rotate the [VOLUME] knob to choose radio
local or distant at RADIO mode.
• LO: Only stations with strong signal can
be received.
• DX: Stations with strong and weak signals
can be received.
AUX SENS (AUX mode)
Rotate the [VOLUME] knob to choose AUX
Input sensitivit y LOW, MID or HIGH at AUX
mode.
SELECT (BT mode)
T his ” SELECT ” menu is int ended to
automatically connect to a mobile phone
that was previously stored.
This unit can store three mobile phones. The
mobile phone will be stored in paired order
A fourth mobile phone can not
to the unit.
be stored. If you want to store a fourth mobile
phone, please delete an unwanted mobile
phone from the ”DELETE” menu.
1. Rotate the [VOLUME] knob to choose the
pair mobile phone name from the pairing
list.
2. Press and hold the [VOLUME ] knob to
DELETE (BT mode)
1. Rotate the [V OLUME] knob to choose
the paired mobile phone name from the
pairing list.
2. Press and hold the [VOLUME ] knob to
DISCON (BT mode)
Disconnect currentl y connected mobile
phone.
1. Rot at e the [VOLUME ] knob, mobile
phone displays are currently connected.
2. Press and hold the [VOLUME ] knob to
disconnect.
] or [ ]
] or [ ] button to
MIC SEL (BT mode)
Rota te t he [VOLUME ] knob to choos e
Microphone EXTERNAL or INTERNAL.
MIC GAIN (BT mode)
Rotate the [VOLUME] knob to choose Mic
gain: -5,-4,-3,-2,-1,0,1, 2, 3, 4, 5.
You can change the gain of M IC when a
telephone partner cannot hear your voice.
TONE SEL (BT mode)
You can get mobile phone ring tone from the
speaker.
Rota te t he [VOLUME esoohc ot bonk ]
AUTO or INTERNAL.
• AUTO:
Mobile phone ring tone from the speaker.
• INTERNAL:
The unit original ring tone from the speaker.
AUTO ANS (BT mode)
To answer incoming calls automatically.
Rota te t he [VOLUME esoohc ot bonk ]
AUTO ANS ON or OFF.
AUTO CON: ON/OFF (BT mode)
Automat ically connects t he mobile phone
was last connected.
Rota te t he [VOLUME esoohc ot bonk ]
AUTO CON ON or OFF.
PIN CODE
Rotate and p re ss the [ VOLUME ] knob
to choose a 4-digit password. Press the
[VOLUME] knob more than 1 seconds to
The PIN CODE default setting is “ 0000 “.
English
6
English
System Setup
SCRN SVR: ON/OFF
Rotate the [VOLUME] knob to choose SCRN
SVR (screen saver) ON or OFF.
SCROLL: ON/OFF
For track information that is longer than t he
display panel:
When SCOLL is ON, the LCD will scroll the
ID3 TAG information across the display, e.g.:
TRACK->FOLDER->FILE->ALBUM->TITLE>ARTIST->TRACK->...
When SCROLL is OFF, the LCD will display
one o f the I D3 TAG information, t he def ault
is TRACK, but user can adjust it to other ID3
TAG information by press [DISP] button.
S-CTRL (IPOD mode) : ON/OFF
Rotate the [ VO LUME ] knob to choose
S-CTRL(Simple control) ON or OFF.
* Refer to P11.
PANDORA: ON/OFF
Select OFF if the Pandora application has not
been installed on your iPod touch or iPhone.
DIMMER: ON/OFF
Rotate the [ VO LUME ] knob to choose
DIMMER ON or OFF.
• ON: LCD dimmer is active when small light
of vehicle is turned ON.
• OFF: LCD always maxi mum brightne
regardless of the vehicle small light.
Audio Setup
Press the [ ] button to enter sound effect
setting mode. First press shows current EQ.
Rotate the [VOLUME] knob to changes BEAT
EQ in this order:
OFF -> B- BOOST -> IM PACT -> EXCITE ->
CUSTOM
Rota te the [VOLUME] knob to changes
CUSTOM, and press the [VOLUME] knob,
the press [
it including: BAS-G -> BAS-F -> BAS-Q ->
MID-G -> MID-F -> MID-Q -> TRE-G -> TRE-F,
rotate the [VOLUME] knob to select a value.
BAS-G / MID-G / TRE-G: (-7)- (+7)
BAS-F: 50/100/200
BAS-Q: 0.7/1/1.4/2
MID-F: 500/1K/2K
MID-Q: 0.7/1/1.4/2
TRE-F: 5k/10k/15k
TRE-Q 0.7/1/1.4/2
] or [ ] button to select
7
REAR/S-W
Rota te the [VOLUME ] knob to choose
REAR or S-WOOFER (SUB-WOOFER).
SW PHASE
Rota te the [VOLUME ] knob to choose
S U BWOOFER phase REVER SE or
NORMAL.
TEL-SW
Rota te the [VOLUME ] knob to choose
MUTE, ON or OFF.
• MUTE:
The sound from this unit is muted during
telephone calls.
• OFF:
This unit c ontinues normal operation even
when the cellular phone is used.
• ON:
You can listen to your telephone calls from
the speakers connected to this unit.
*When lis tening to y our calls on your car
speakers, you can adjust t he volume by
turning the [VOLUME] knob.
BEEP: ON/OFF
Rota te the [VOLUME ] knob to choose
button beep sound ON or OFF.
12/24H
ss
Rotate the [VOLUME] knob to choose time
format: 12 or 24 hours.
Press the [
[
including:
BALANCE -> FADER -> M-B EX -> LPF(low
pass filter) -> S-W VOL (S ubwoofer
Vol ume), rotate the [VOLUME ] kno b t o
select a value.
BALANCE:L EFT 1-7->CE NTER->R IGHT
1-7
FADER:FRONT 1-7->CENTER->REAR 1-7
M-BEX: ON/OFF
LPF: THROUGH/60/90/120
HPF:THROUGH/60/90/120
SUBW VOL: (-6)-(+6)
] button, then press [ ] or
] button to select USER preset
Radio Operations
Select tuner as playing source
Press [SRC / ] button once or more to
enter RADIO mode.
Selecting the radio band
Press the [BAND / ] button on the panel
or on the remote control to select one radio
band among FM1, FM2, FM3, AM.
Manual tuning
During manual tuning, the frequency will be
changed in steps.
Press the [
to tune in a higher / lower station.
Press the [
remote control to select preset stations.
Auto tuning
Press and hold the [ ] or [ ] button
to seek a higher / lower station.
To stop searching, repeat the operation
above or press other buttons having radio
functions.
Note:
When a station is received, searching stops
and the station is played.
Preset scan
Preset scan receives the stat ions stored
in preset memory in order. This function is
useful when searching for a desired station
in memory.
1. Press the [PS/AS] button.
2. When a desired station is tuned in, press
Note:
Be careful not to press and hold the [PS/AS]
button for 1 second or longer, otherwise the
auto store function will begin and t he unit
starts storing stations.
Auto store
will be detected and stored in the memory.
Press and hold the [PS/AS] button (1 sec.)
to start automatic station search.
] or [ ] button on the panel
] or [ ] button on the
the [PS/AS] button again to conti nue
receiving that station.
To stop auto store, press other buttons
having radio functions.
Notes:
1. After auto store, the previous stored
stations will be overwritten.
2. The unit has 4 bands, such as FM1, FM2,
FM3 and AM. FM3 and AM can store
by AS function. Each band can store 6
stations, CZ303AU can store 24
stations in total.
Manual store
When one expected radio station has been
detected, press and hold number button 1-6
to store it in the memory.
Recall the stored stations
Press one numeric button among 1 to 6 on
the panel to select the corresponding stored
station.
Local seeking
When LOCAL seeking is ON, only those
radio stations with strong radio signal could
be received.
To select LOCAL function, press and hold
the [ DISP ] button on the front panel, then
] button repeatedly until LO or
press [
DX displays on the screen, and rotate the
[VOLUME] knob to select Local or Distant
mode.
Note:
The number of radio stations that can be
received will decrease after the local seeking
mode is ON.
CD/MP3/WMA Operations
This unit can playback MP3/WMA
Note:
• If you play a WMA file with a ctive DRM
(Digital Rights Management), there will be
no audio.
To disable DRM
(Digital Rights Management)
When using Windows Media Player 9/10/11,
click on Tool -> Options -> Copy Music tab,
then under Copy settings, unclick the Check
box for copy project music. Then, reconstruct
at your own responsibility.
Precautions when creating MP3/
Usable sampling rates and bit rates
1. MP3: Sampling rate 8 kHz-48 kHz, Bit rate
8 kbps-320 kbps / VBR
2. WMA: Bit rate 8 kbps-320 kbps
File extensions
1. Always add a f ile extension “.M P3”,
byte letters. If you add a file extension
other than specified or forget to add the
2. Files without MP3/WMA data will not play.
attempt to play files without MP3/WMA
data.
*
display may differ the play location.
*
no sound part is caused between tunes.
Logical format (File system)
1. When writ ing M P3/WMA file on a CD-R
disc or CD-RW disc, pleas e selec t
“ISO9660 level 1, 2 or Joliet” or Apple ISO
as the writing software format. Normal
play may not be possible if the disc is
recorded on another format.
2. The folder name and file name can be
displayed as the title during MP3/WMA
play but the title must be within 32 single
byte alphabetical letters and numerals
(including an extension).
3.
having the same name.
Folder structure
A disc wit h a f older having more than 8
hierarchical levels will be impossible.
1. Up to 999 files can be recognized per
folder.
2. Tracks are played in the order that they
were recorded ont o a disc. (T racks
may not always be played in the order
displayed on the PC.)
3. S ome noise may occur depending on
the t ype of encoder software used while
recording.
Eject function
Just pressing the [ ] button, ejects the disc
.
Notes:
• If you f orce a CD int o before auto
reloading, this can damage the CD.
• If a CD (12 cm) is left eject ed for 15
seconds, the CD is automatically reloaded
(Auto reload).
Listening to a disc already loaded
in the unit
Press the [SRC / ] button to select the CD/
MP3/WMA mode.
When the unit enters t he CD/M P3 /WMA
mode, play starts automatically.
Loading a CD
Insert a CD int o the cent er o f the CD
SLOT with label facing up. The CD plays
automatically after loading.
CD/MP3/WMA Operations
Notes:
• Never insert foreign objects into the CD
SLOT.
• If the CD is not inserted easily, there may
be anot her CD in the mechanism or t he
unit may require service.
• Discs without the or mark and
CD-ROMs cannot be played by this unit.
• Some CD-R/CD-RW discs may not be
usable.
Pausing play
1. Press the [ 4 ] button to pause play.
“PAUSE” appears in the display.
2. To resume CD play, press the [ 4 ] button
again.
Displaying CD titles
This unit can display title data for MP3/WMA
disc.
When SCROLL is OFF, each time you
press the [ DISP ] button to change the title
display.
MP3/WMA disc
Track -> Folder -> File title -> Album -> Title
-> Artist -> Track ...
Notes:
• If MP3/WMA disc has no ID3 TAG,, “NO
TITLE” appears in the display.
• Only ASCII characters can
Tags.
Selecting a track
Track-up
1. Press the [
the beginning of the next track.
2. Each time you press the [
track advances ahead to the beginning of
the next track.
3. For MP3/WMA disc, press and hold the
[ 6 ] button (1 sec.) to move ahead to +10
tracks.
be displayed in
] button to move ahead to
] button, the
Track-down
1. Press the [
the beginning of the current track.
2. Press the [
back to the beginning of the previous
track.
3. For MP3/WMA disc, press and hold the
[ 5 ] button (1 sec.) to move back to -10
tracks.
Fast-forward/Fast-reverse
Fast-forward
Press and hold the [
Fast-reverse
Press and hold the [
* For MP3/WM A discs, it takes some time
until the start of searching and between
tracks. In addition, some errors may occur
in the play time.
Folder Select
This function allows you to select a fold er
1. Press the [ 5 ] or [ 6 ] button.
Press the [ 6 ] button to move the next
folder. Press the [ 5 ] button to move the
previous folder.
2. To select a track, press the [
button.
Search Function
1. Press the [M ENU / ] button to enter
FOLD SCH mode. Press the [VOLUME]
button to enter the folder list search mode.
2. Turn the [VOLUME] knob to select a folder.
3. Press the [VOLUME] button to enter the
file list searc h mode. And t hen t he trac k
list appears in the display.
4. Turn the [VOLUME] knob to select a track.
5. Press the [VOLUME] knob to play.
* When play back MP3 / WMA file, this
function is performed in the current folder.
] button to move back to
] button twic e to move
] button .
] button .
] or [ ]
English
8
English
CD/MP3/WMA Operations
Top function
The top function resets the CD player to the
1) on the disc.
*
current folder will be played.
Other various play functions
Scan play
This func tion allows you to locate and play
on a disc.
Press the [ 1 ] button to perform scan play.
Repeat play
This function allows you to play the current
track repeatedly or play a track currentl y
being played in the MP3/WMA folder
repeatedly.
CD:
1. Press the [ 2 ] button once or more until
“RPT ON” appears on the LCD to perform
repeat play.
Press and hold the [ 4 ]
USB Operations
1. Open the cover of the USB connector to
the right. I nsert a USB cable (CCA-755)
into the USB connector. Insert a US B
device into the USB cable.
When connecting a USB device, the unit
2. To remove the USB device, you should
first select another source or turn o ff
the power, in or der to avoid damaging
the USB device. Then take off the USB
device. Open the cover to the left.
3. Operat ion is same as MP 3 /WM A
operation.
9
2. Press [ 2 ] button again to cancel repeat
playback, “RPT OFF” appears on the
LCD.
MP3/WMA:
1. Press the [ 2 ] button once or more until
“TRACK RPT” appears on the display to
perform repeat play, and “RPT” segment
lights on.
2. Fo r MP3/WMA f iles, pr ess [ 2 ] button
repeatedly until “FOLD RPT” appears on
the display for folder repeat play.
3. P ress [ 2 ] button repeatedly until “RPT
OFF” appears on the di splay t o cancel
repeat playback, and “ RPT” s egment
Random play
This function allows you to play all track s
recorded on a disc in a random order.
Press the [ 3 ] button to perform random
play.
CCA-755
iPod & iPhone Operations
Connect
Connect an iP od or iPhone to the US B
connector via CCA-748 cable.
When connecting a device, the unit will read
displays on the screen once playback start.
MENU
In the S-CTRL OFF mode, press [MENU / ]
button, rotate the [ VOLUME] knob select
“MUSIC” or “VIDEO”.
Select “ MUSIC”, press t he [ VOLUME]
knob, the n rotate t he [VOLUME] knob to
show PLAY LISTS / ARTISTS / ALBUMS /
GENRES / SON GS / C OMPOSERS, press
and rot ate the [VOLUME] knob to select a
desired option, then press the [ VOLUME]
Select “VIDE O”, press the [VOLUME] knob,
then rotate the [VOLUME] knob to show
MOVIES / MUSIC VIDEO / TV SHOWS /
VIDEO PODCASTS / RE NTAL S, pres s
and rot ate the [VOLUME] knob to select a
desired option, then press the [ VOLUME]
Note:
VIDEO MENU item is different by the model
of connected iPod and language setting.
Repeat play
This f unction allows you to play the current
track repeatedly or play all t racks in your
iPod/iPhone repeatedly.
1. Press the [ 2 ] button once or more until
“RPT ON” appears on the LCD to perform
repeat play.
2. Press [ 2 ] but ton repeatedly until “R PT
OFF” appears on the LCD to cancel repeat
playback.
Random play
This function allows you to pl ay a ll tracks
recorded on a disc in a random order.
1. Press [ 3 ] button repeatedly until “ALBUM
RDM” appears on the LCD for album random
play.
to monitor
CCA-748
Note: Video function for pre-Lightning iPod/iPhone
2. Press the [ 3 ] button once or more until
“SONG RDM” appears on the LCD to
perform random play.
3. Press [ 3 ] button repeatedly until “ RDM
OFF” appears on the L CD to cance l
random playback.
Setting iPod simple control mode
Use this function if you wish to operate
through your iPod connected to this
the USB cable.
* The factory default setting is “ OFF “.
1. Press and hold [ DISP ] button to enter
system setup.
2. Press [
“ S-CTRL“.
3. Rotate the [VOLUME] knob to select
“ ON “ or “ OFF “ .
• ON : O perations are made through your
• OFF : Operations c annot be made
Notes:
• When perf orming i Pod operations using
• When perf orming iPod operations using
] or [ ] button to select
iPod.
through your iPod.
simple control mode, make the operations
slowly. If repetitive operations are
performed too quickly, unforeseen errors
may occur.
simple control mode, please do not
operate the iPod and the unit at the same
time, otherwise there may be unexpected
event happened.
unit via
iPod & iPhone Operations iPod & iPhone Operations
• Some iPod models do not support thi s
funct ion. Consult your nearest Clar ion
do not support this function.
iPod menu alphabet search
Thi s function searches the subfolder s for
desired alphabetical letters.
1. Press the [MENU /
iPod menu mode.
2. Press t he [VOLUM E] knob t o switc h
between categories.
MUSIC: PLAYLIST, ARTISTS, ALBUMS,
GENRES, SONGS, COMPOSERS
VIDEO: MOVIES, MUSIC VIDEOS,
TV SHOWS, VIDEO PADCASTS,
RENTALS
3. Press the [VOLUME] knob. (The contents
of the category are displayed.)
4. Press and hold the [DISP] button (1 sec.).
5. Rotate the [VOLUME] knob to select the
desired letter to search.
6. Press the [DISP] button again to next
perform search.
7. Press the [ VOLUME
Listening to Pandora®
You can stream Pandora internet radio by
connecting an iPhone/iPod that has the Pandora
mobile application already installed.
To start streaming, connect the iPhone/iPod
with Pandora already launched.
When the unit displays “PLEASE LAUNCH
PANDORA APPLICATION ON MOBILE
DEVICE” in Pandora mode, please launch
the Pandora mobile application by operating
the iPhone/iPod connected.
1. Press the [S RC/
Pandora mode.
Selecting a station from list
Press the [MENU /
DATE” or ” A-Z” by rotat ing the [VOLUME]
knob and press the [ VOLUME ] knob.
• BY DATE: List in an created date order
• A-Z: List in an alphabetical order
] button to select the
] button to ente r the
] button and select ”BY
Go to next station or previous station
(in alphabetical order)
Press the [
control to go to next station.
Press the [
control to go to previous station.
Thumbs up/down
Thumbs up:
press the [ 6 ] button on the panel or the [RDM]
button on th e remote control for thumbs up.
Giving a track the thumbs up will tell Pandora
to play more tracks like that one.
Thumbs down:
press the [ 5 ] button on the panel or the [SCN]
button on the remote control for thumbs down.
Giving a track the thumbs down will skip to the
next track (subject to skip limit), and Pandora
will
station again.
] button on the panel or remote
] button on the panel or remote
remember not to play that track on th e
Notes:
• You ca n personalis e y our s ta tion s by
“thumbs up” or “thumbs down”.
• If you give a track the thumbs down after
the skip limit has been exceeded, your
feedbackwill be saved but the current track
will continue to play.
BOOKMARK artist or song
Short-press the [VOLUME] knob or the [RPT]
buto n on t he remote control to Bookmark
artist.
Long-press the [VOLUME] knob or the [RPT]
button on the remote control to Bookmark
current artist of the track.
Creating new stations
Short-press the [1] button on the panel to
create a new station from the current artist.
Long-pre ss the [1] button
create a new track.
Note:
If the name of the station you wish to create
for a track title or an artist name is the same
as the station name currently playing, “NOW
PLAY” appears on the display and the station
will not be created.
o n the panel t o
Skip
Press the [BAND /
on the re mote control for th e next tracks in
station.
Note:
• Pandora limits the number of skips allowed
on their service. If you attempt to skip tracks
beyond the limit, ”SKIP LIMIT” is displayed.
Play/Pause
Press the [ 4 ] button on the panel or the [
button on the remote control for play/ pause.
Connect
Connect a n iP od o r iP hone to t he USB
connector via CCA-748 cable.
When connecting a device, the unit will rea d
the files automatically. The track information
displays on the screen once playback start.
MENU
In the S-CTRL OFF mode, press
[ME NU /
knob select “MUSIC” or “VIDEO”.
Select “MUSIC” , pres s t he [VOLUME] knob,
then rotate the [VOLUME] knob to show PLAY
LISTS / ARTISTS / ALBUM S / G ENR ES /
SONGS / COMPOSERS, press
and rotate the [VOLUM E] knob t o select a
des ired option, then press the [VOLUM E]
Select “VIDEO”, press the [VOLU ME] knob,
then ro tat e t he [VOLUME ] knob to sho w
MOVIES / MUSI C VIDEO S /SWOHS VT /
VIDEO PODCASTS / RENTALS, pres s a nd
rotate the [VOLUME] knob to select a desired
option, then press the [VOLU ME] knob to
Note:
VIDEO MENU item is different by the model of
connected iPod and language setting.
] button on the panel or
] butto n,r ota te the [VOLU ME]
Repeat play
This func tion allows you to play t he current
track repeatedly or play all tracks in your
iPod/iPhone repeatedly.
1. Press t he [ 2 ] button once or more until
“RPT ON” appears on the LCD to perform
repeat play.
2. Press [ 2 ] butt on repeatedly until “RPT
OFF” appears on the LCD to cancel repeat
playback.
]
English
10
English
Bluetooth Operations
Bluetooth Operations
The Bluetooth allows you to utilize your car’s
built-in audio system for wireless mobile
phone or music handsfree communication.
Some Bluetooth mobile phones have the
audio features, and some portable audio
players support Bluetoot h f eature. This
system can play audio dat a stored in a
Bluetooth audio device. The car stereo with
Bluetooth will be able to retrieve phonebook
contacts, received call, dialed call, missed
call, incoming calls, outgoing call and listen
to music.
Notes:
• Do not leave the microphone of Bluetooth
handsfree in the places with wind passing
such as air outlet of the air conditioner,
etc. This may cause a malfunction.
• If leave it in t he places subject ed to
direct sun, high temperature can cause
distortion, discoloration which may result
in a malfunction.
• This system will not operate or may
operate improperly with some Bluet ooth
audio players.
• C larion cannot guarantee t h e
compatibility of all mobile phones together
with unit.
• Audio play back will be set to the same
volume level as set during telephone call.
might cause problems, if extreme
This
volume level is set during telephone call.
Handsfree Operations Pairing
1. Turn on Bluetooth function of your mobile
phone.
2. Enter mobile phone’s Bluetooth s etup
menu.
3. Search for new Bluetooth devices.
4. Select CZ303AU from the pairing list on the
mobile phone.
5. Enter “0000” a s the password (The
password default setting is “ 0000 ”).
6. After pairing successfully, the unit will
enter Bluetooth mode automatically, and
“BLUETOOTH CONNECTED” will appear
on the LCD.
7. The unit can store 3 mobile phones.
11
* During pairing, depending on type of
mobile phone, a six digit PIN code will be
shown on both the source unit’s display
and the mobile phone.
In this case, please make sure that you
have the same PIN code on both devices,
and then confirm on the mobile phone.
Making a call
Operation from Bluetooth menu
Press the [SRC /
source to “BLUETOOTH”. Press [MENU /
button to select a way to make outgoing call:
• Dial Number
1. Press the [MENU /
2. Rotate the [VOLUME] knob on to switch:
, “DIAL NUMBER”.
3. Press the [VOLUME]
selection.
4. Rotate the
number, press the knob to conrm and
ready to input the next digit. Repeat the
above until all numbers inputted.
5. Press the [BAND /
6. Press [MENU /
• Dialled / Missed / Received
You can search any Dialled/Missed/
Received .
1. Rotat e the [VOLUME] knob to select
“DIALLED”, “MISSED” , “RECEIVED”.
2. Press the [VOLUME] knob to enter the
selected call history.
3. Rotate the [VOLUME] knob to scroll the
contacts.
4. When the contact name or mobile phone
No. is displayed, press the [VOLUME ]
knob to call the mobile phone No. of that
contact.
* Press the [MENU /
call.
• Call from Phonebook
You can search the contact name in the
phonebook and make call.
] button to swit ch t he
] button.
[VOLUME]
knob to select a
] button to dial.
] to terminate call.
] button to end th e
1. Rotate the [VOLUME] knob to select “USER
PHONEBOOK” .
2. Press the [ VOLUME] knob to enter the
selected phonebook.
3. Rotate the [VOLUME] knob to scroll t he
contacts.
4. The phone number and the name to scroll
display.When the contact name is displayed,
press the [VOLUME] knob to call the mobile
phone No. of that contact.
* Press the [MENU /
]
Notes:
• Some mobile phones may not be able t o
transfer data of Phonebook.
• After RESET, please wait few minutes until
data transferred following to the Bluetooth
mode selection. During that, “PHONEBOOK
UPDATING” is on the display.
• Redial
You can call last dialed number.
Press and hold the [BAND /
• Call Transfer
You can switch Handsfree call and mobile
phone call.
Press the [BAND /
• Answering a call
You can answer an incoming call by p ressing
the [BAND /
* P ress the [MENU /
incoming call.
] button to end the call.
] button during call.
] button.
] button (1sec).
] button to reject an
Bluetooth Operations
Audio Streaming Operations
What is audio streaming?
Audio streaming is a technique for transferring
audio data such that it can be p rocessed as
a steady and continuous stream. U sers can
stream music from their external audio player
to their car stereo wirelessly and listen to the
tracks through the car’s speakers. Please
consult your nearest Clarion dealer for more
information on the product of wireless audio
streaming transmitter offered.
Please avoid operating your connected
mobile phone while audio streaming as
this may cause noise or sound choppy
on the song playback.
Audio streaming may o r may not
resume after telephone interrupt as this
is dependent on mobile phone.
S ystem will always retu r n t o
Radio mode if audio streaming i s
disconnected.
Note:
Be sure to read the chapter “Pairing before
proceeding.
Play / Pause a track
1. Push t he [ 4 ] button to pause audio
playback.
2. To resume audio playback, push the [ 4 ]
knob again.
Selecting a track
Track-up
1. Press the [
beginning of the next track.
2. Each time the [
playback proceeds to another track in
the advancing direction.
Track-down
1. Press the [
beginning of the previous track.
2. Each time the [
playback p roceeds to previous track in
the reverse direction.
CAUTION
] button to move to the
] button is pressed,
] button to move to the
] button is pressed,
Note:
Playing order will depend on Bluetoot h
au dio p layer. When [ ] button is
pressed, some A2DP devices will restart
the current track depends on the duration
of playback.
During music s treaming playback,
“A2DP ” will be shown on the display.
When A2DP and HFP device
i s disconnected, “ B L U ETOOTH
DISC ONNE CT” will be shown on the
display and return to the previously
selected audio source. Some Bluethooth
audio players may not have play / pause
syncronised with this unit. Please make
sure both device and main unit are in the
same play / pause status in BT MUSIC
mode.
ID3TAG display
During music streaming playback, for
music information that is longer than the
display panel:
When SCROLL is ON, the LCD will display
ID3 TAG information cyclely, e.g: ALBUM
->TITLE->ARTIST...
When SCROLL is OFF, the LCD will display
one of the ID3 TAG information, the default
is TRACK but the user can adjust it to other
ID3 TAG information by pressing [DISP].
AUX Operations
Press [SRC /
“AUX”.
AUX is just for audio content with 3.5mm Jack
connector plugged into audio-in socket on the
front panel.
] button on the panel to select
English
AUX Input sensitivity setting
1. Press and hold the [DISP] button (1 sec.).
2. Turn the [VOLUME] knob t o select “AUX
SENS”.
3. If the output level of connected external audio
player is “H IGH”, rotat e [VOLUME] knob
and choose “LOW”. And if the output level is
“LOW”, choose “HIGH”.
12
English
6. TROUBLE SHOOTING
GENERAL
Problem Cause Measure
Unit can not power on.
Unit can not power on.
Nothing happens
when buttons are
pressed.
Display is not
accurate.
No/low audio output.
Poor sound quality or
distortion.
Unit resets itself when
engine is off.
DISC Player
Problem Cause Measure
Disc cannot be
loaded.
Sound skips or is
noisy.
Sound is bad when
on.
13
Unit fuse blown.
Car battery fuse blown.
The microprocessor has
malfunctioned due to noise, etc.
Improper audio output connection. Check wiring and correct.
Volume set too low. Increase volume level.
Speakers damaged. Replace speakers.
Heavily biased volume balance. Adjust the channel balance to center position.
Speaker wiring is in contact with
metal part of car.
Non-standard disc used. Use a standard disc.
Speaker power rating does not
match unit.
Wrong connections. Check wiring and correct.
Speaker is shorted. Check wiring and correct.
Incorrect connection between ACC
and Battery.
Another disc is already loaded. Eject the disc before loading the new one.
There is an object install installed
the unit.
Compact disc is dirty. Clean the compact disc with a soft cloth.
Compact disc is heavily scratched
or warped.
Condensation may form on the internal
lens when the car is parked in a
humid place.
Replace with new fuse of correct rating.
Replace with new fuse of correct rating.
Press the [RESET] button with a thin rod.
Note:
When the [RESET]
the ACC power.*
* When the [RESET] button is pressed,
frequencies of radio stations, titles, etc. stored
in memory are cleared.
Insulate all speaker wiring connections.
Replace speakers.
Check wiring and correct.
Remove the object inside the unit.
Replace with a compact disc with no
scratches.
Let dry for about 1 hour with power on.
USB
Problem Cause Measure
USB device cannot be
inserted.
USB device is not
recognized.
No sound heard with
the display “No File”
shown.
Sound skips or is noisy.
The USB device has been inserted
with wrong direction.
The USB connector is broken. Replace with a new USB device.
The USB device is damaged. Disconnect the USB device and reconnect. If the
Connectors are loose.
USB device.
properly.
Reversing the connection direction of the USB device,
try it again.
device is still not recognized, try replacing with a
different USB device.
Bluetooth
Problem Cause Measure
Cannot pair the
Bluetooth enabled
device with the car
audio system.
The audio quality
is poor after
connection with a
Bluetooth-enabled
device.
The device does not s upport the
The Bluetooth function of the device
is not enabled.
The microphone is not correctly
positioned.
The Bluetooth reception is poor.
Use another device to connect.
Refer to the user manual of the device for how to
enable the function.
Adjust the position of the microphone.
For example, stick the microphone onto the dashboard
where close to the driver.
Move the device closer to the car audio system or
remove any obsta cle between the devi ce and the
system.
7. ERROR DISPLAYS
8. SPECIFICATIONS
English
If an error occurs, one of the following displays is displayed.
Take the measures described below to solve the problem.
Display Cause Measure
ERROR 3
ERROR 5 This is a failure of deck’s mechanism. Consult your store of purchase.
If an error display other than the ones described above appears, press the
problem persists, turn off the power and consult your store of purchase.
* W hen the
memory are cleared.
Disc is inserted incorrectly. Eject the disc then reload it properly.
The disc format is not supported. Try another disc.
[RESET]
[RESET ]
b utton i s pressed, frequencies of radio stations, titles, etc. stored in
button. If the
FM Tuner
Frequency range: 87.5-108MHz
Usable sensitivity: 8dBf
Frequency response: 30Hz-15kHz
Stereo separation: 30dB(1kHz)
Signal/noise ratio: >55dB
AM Tuner
Frequency range: 531-1629kHz
Usable sensitivity (S/N=20dB): 30dBμ
CD Player
System: Disc digital audio system
Frequency response: 20Hz-20kHz
Signal/noise ratio: >94dB
Total harmonic distortion: Less than 0.1% (1kHz)
Channel separation: >60dB
MP3/WMA mode
MP3 sampling rate: 8 kHz to 48 kHz
MP3 bit rate: 8 kbps to 320 kbps / VBR
WMA bit rate: 8 kbps to 320 kbps
Logical format: ISO9660 level 1,2
USB
Playable audio format:
MP3(.mp3): MPEG 1/2/Audio Layer-3
WMA(.wma): Ver 7/8/9.1/9.2
Bluetooth
Send/Receive Sensitivity: Class 2
Maximum power output:
180W (45W x 4)
Speaker impedance: 4
(4 to 8 allowable)
Input
Audio input sensitivity:
High: 320mV (at 1V output)
Mid: 650mV (at 1V output)
Low: 1.3V (at 1V output)
(input impedance 10 k
Aux-in level: ≤2V
General
Power supply voltage:
14.4VDC (10.8 to 15.6V allowable),
negative ground
Pre-Amp output voltage:
2.0V (CD play mode: 1kHz, 0dB, 10k
Fuse: 15A
Dimensions of the Main Unit:
188mm Width × 58mm Height × 190mm Depth
7-2/5(width) × 2-7/25(Height) × 7-12/25(Depth)
Weight of the Main Unit: 2.97lb.(1.35kg)
Dimensions of the Remote Control unit:
43mm Width × 11mm Height × 113mm Depth
1-2/3(Width) × 2/5(Height) × 4-2/5(Depth)
Weight of the Remote Control Unit:
1.16oz. (36g) (including battery)
7” 178mm
7-12/25” 190mm
6-2/3” 170mm
7-2/5”
Note:
• S peci fic ations and design are subject
to change w ithou t not ice for f urt her
improvement.
188mm
or greater)
6-2/5” 163mm
m
1/2” 14 m
load)
2” 50mm
1-4/5” 46mm
2-7/25” 58mm
14
English

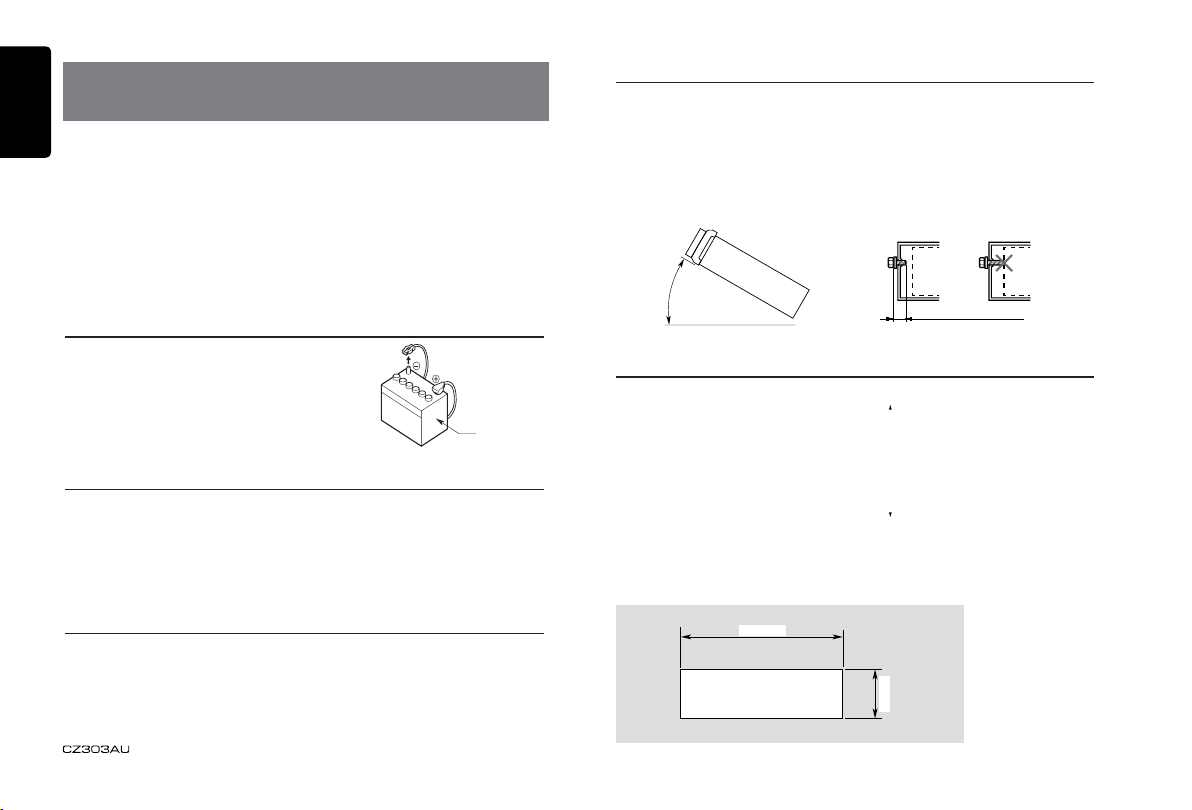

9. INSTALLATION /
WIRE CONNECTION GUIDE
CONTENTS
1) Before Starting ...................................................................... 16
2) Package Contents ................................................................. 16
3) General Cautions .................................................................. 16
4) Cautions on Installation ......................................................... 16
5) Installing the Source Unit ...................................................... 16
6) Removing the Source Unit .................................................... 17
7) Wiring and Connections ........................................................ 18
8) Connecting the accessories .................................................. 18
1) Before Starting
1. This set is exclusively for use in cars with a
negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “terminal” before
starting. This is to prevent short circuits during
installation. (Figure 1)
2) Package Contents
Source unit ..................................................1
Front panel ..................................................1
Trim ring ......................................................1
Mounting bracket ......................................... 1
Screws M5x6 mm ........................................ 4
L-key ............................................................ 2
3) General Cautions
1. Do not open the case. There are no
user serviceable parts inside. If you
drop anything into the unit during
installation, consult your dealer or an
authorized Clarion service center.
Wire connector ............................................1
DCP case ....................................................1
Remote control unit (with battery)................ 1
Owner’s manual........................................... 1
Warranty card .............................................. 1
Special screw (Front panel lock) .................1
2. Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt,
apply a little cold or warm water to a
soft cloth and wipe off the dirt gently.
Figure 1
Car battery
4) Cautions on Installation
1. Prepare all articles necessary for
installing the source unit before
starting.
2. Install the unit within 30° of the
horizontal plane. (Figure 2)
3. If you have to do any work on the car
body, such as drilling holes, consult
your car dealer beforehand.
Max 30
˚
Figure 2 Figure 3
4. Use the enclosed screws for
installation.
Using other screws can cause
damage.
(Figure 3)
Chassis Chassis
Damage
Max. 6 mm (M5 screw)
5) Installing the Source Unit
1. Place the mounting bracket into the instrument panel, use a screwdriver to bend
each stopper of the mounting bracket inward, then secure the stopper.
2. Wire as shown in Section 7) .
3. Insert the source unit into the mounting bracket until it locks.
4. Take care of the top and bottom of the trim ring and mount it so that all the hooks
are locked.
Notes:
1. Some car models require special mounting kits for proper installation.
Consult your Clarion dealer for details.
2. Fasten the front stopper securely to prevent the source unit from coming loose.
• Console opening dimensions
(182 mm)
Hole
53 mm
15
Notes of installation
1. Before installation, please make sure
proper connections are conducted and
the unit operates normally. Improper
connection may result in damage to the
unit.
2. Use only accessories designed and
manufactured for this unit and other
unauthorized accessories may result in
damage to the unit.
3. Before installation, please fasten all power
cables.
4. DO NOT install the unit in the place where
close to hot area to prevent damage to
electrical components such as the laser
head.
5. Install the unit horizontally. Installing the
unit more than 30 degree vertically may
result in worse performance.
6. To prevent electric spark, connect the
pole.
7. DO NOT block the cooling fan exit to
unit, or it may result in damage to this unit.
Unit Installation
Method A
1. Insert mounting bracket into dash board,
choose appropriate mounting tab according
to the gap width, bending the mounting
mounting bracket in place.
2. Slide the unit into the bracket until you hear
a click sound.
Method B
Mounting Frame
M5x6
Dashboard
6) Removing the Source Unit
Disassemble trim ring
1. Push the trim ring to right and pull out the
right part.
2. Push the trim ring to left and pull out the
left part.
English
Dashboard
Mounting Bracket
Screwdriver
1. Insert this unit directly to the opening of
the dashboard.
2. Place M5×6 cylindrical screw through the
holes of the mounting frame located inside
the opening to holes of the unit and fasten
the screws to left & right.
Trim ring installation
Attach the trim ring around the front panel.
Take care of the top and bottom of the trim
ring and mount it so that all the hooks
are locked.
Top
Bottom
Disassemble the unit
1. Switch off the power.
2. Remove the panel.
3. Remove the trim ring.
4. Insert the removal keys straight back until
they lock, then pull the unit out.
5. Disconnect all the wires.
16
English
7) Wiring and Connections
microphone
External
(RCB-199:Sold by separately)
Steering wheel
control terminal
(Black)
Black
Black
Black
Black
Antenna
MIC
SWC
Refer to the right
Black
SUB OUT 1
Black
Gray
Rear Left /
Rear Right /
SUB OUT
2
White
Rear audio output (Left)/
Subwoofer output 1
Red
White
Left
Right
Red
Rear audio output (Right)/
Subwoofer output 2
Front audio
output terminal
16-Pin Connector Extension Lead
(attached to the source unit)
Front Right
Front Left
Rear Right
Rear Left
Front Right
Front Left
Not used.
Insulate each wire
Gray
Gray/Black
White
White/Black
Purple
Purple/Black
Green
Green/Black
4-Speaker system
or
2-Speaker system
Gray
Gray/Black
White
White/Black
Purple
Purple/Black
Green
Green/Black
Brown wire (Phone mute lead)
Connect to cellular phone mute lead.
Yellow wire (Memory back-up lead)
Red wire (Power lead)
Black wire (Ground lead)
Orange/White wire (Illumination lead)
Blue wire (Auto antenna lead)
Connect directly to battery
FUSE 15A
12V
Accessory
Connect to vehicle chassis ground
Connect it to the car power supply terminal
for illumination
Connect it to the car power supply terminal
for antenna
8) Connecting the accessories
•
connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
17
Clarion Co., Ltd.
All Rights Reserved. Copyright © 2013: Clarion Co., Ltd.
Printed in China
PN: 127075005055
Loading...
