Owner’s manual / Mode d’emploi
Bedienungsanleitung / Istruzioni per l’uso
Gebruiksaanwijzing / Manual de instrucciones
Bruksanvisning / Manual de instruções
DB248R/DB248RB
DB148R/BD149R
BD149RG
RDS-EON/FM/MW/LW RADIO CD COMBINATION
•
COMBINE RADIO FM/PO/GO RDS-EON-LECTEUR DE CD
•
RDS-EON UKW/MW/LW RADIO-CD-KOMBINATION
•
COMBINAZIONE DI RADIO RDS-EON FM/MW/LW E LETTORE CD
•
RDS-EON FM/MW/LW RADIO CD COMBINATIE
•
COMBINACIÓN DE RADIO RDS-EON DE FM/MW/LW Y
REPRODUCTOR DE CD
•
KOMBINERAD FM/MV/LV-RADIO MED RDS-EON OCH CDSPELARE
•
COMBINAÇÃO DE CD COM RÁDIO FM/MW/LW RDS-EON
Thank you for purchasing this Clarion product.
CAUTIONS:
This appliance contains a laser system and
is classified as a “CLASS 1 LASER
PRODUCT”. To use this model properly,
read this Owner’s Manual carefully and keep
this manual for your future reference. In
case of any trouble with this player, please
contact your nearest “AUTHORIZED service
station”. To prevent direct exposure to the
laser beam, do not try to open the enclosure.
!CAUTION
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED IN THE OWNER’S
MANUAL MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
ADVARSEL.
Denne mærking er anbragt udvendigt på
apparatet og indikerer, at apparatet arbejder
med laserstråler af klasse 1, hvilket betyder,
at der anvendes laserstråler af svageste
klasse, og at man ikke på apparatets
yderside kan blive udsat for utilladelig
kraftig stråling.
APPARATET BØR KUN ÅBNES AF
FAGFOLK MED SÆRLIGT KENDSKAB TIL
APPARATER MED LASERSTRÅLER!
Indvendigt i apparatet er anbragt den her
gengivne advarselsmækning, som advarer
imod at foretage sådanne indgreb i
apparatet, at man kan komme til at udsaætte
sig for laserstråling.
OBS!
Apparaten innehåller laserkomponenten
som avger laserstrålning överstigande
gränsen för laserklass 1.
VAROITUS
Suojakoteloa si saa avata. Laite sisältää
laserdiodin, joka lähettää näkymätöntä
silmille vaarallista lasersäteilyä.
∗ Please read this owner’s manual in its entirety before operating this equipment.
∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).
∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.
2 DB248R/DB148R/BD149RG
English
Ball-point pen
Roughness
DCP
[
RELEASE] button
DCP
2.
1.
DCP
DCP case
DCP Rear Panel Main Unit Front
Main unit connector
DCP
connector
4. DCP
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.
Removing the DCP
1. Press the [FNC] button for 1 second or
longer to switch off the power.
2. Press in the [RELEASE] button.
∗ The DCP is unlocked
3. Remove the DCP.
Attaching the DCP
1. Insert the right side of the DCP into the main
unit.
2. Insert the left side of the DCP into the main
unit.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct orientation.)
CAUTION
• The DCP can easily be damaged by
shocks. After removing it, be careful not to
drop it or subject it to strong shocks.
• When the Release button is pressed and
the DCP is unlocked, the car’s vibrations
may cause it to fall. To prevent damage to
the DCP, always store it in its case after detaching it. (ee figure below.)
• The connector connecting the main unit
and the DCP is an extremely important
part. Be careful not to damage it by pressing on it with fingernails, screwdrivers, etc.
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
Contents
1. PRECAUTIONS ............................................................................................................................... 3
Handling Compact Discs ................................................................................................................. 4
2. CONTROLS ..................................................................................................................................... 5
3. NOMENCLATURE .......................................................................................................................... 6
Names of the Buttons and their Functions ...................................................................................... 6
Display Items ................................................................................................................................... 7
LCD Screen ..................................................................................................................................... 7
4. DCP ................................................................................................................................................. 8
5. OPERATIONS ................................................................................................................................. 9
Basic Operations ............................................................................................................................. 9
Radio Operations ........................................................................................................................... 11
RDS Operations............................................................................................................................. 13
CD Operations ............................................................................................................................... 16

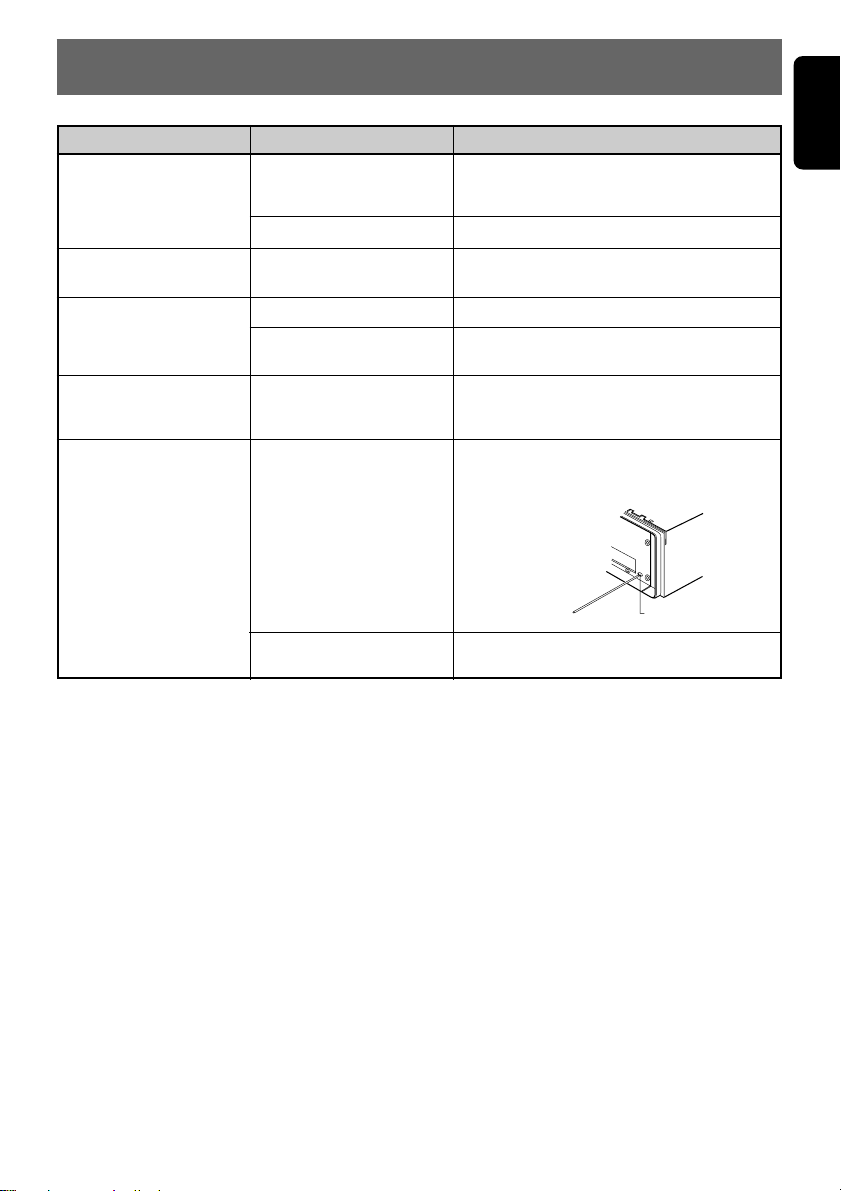

6. IN CASE OF DIFFICULTY ............................................................................................................ 17
7. ERROR DISPLAYS ....................................................................................................................... 18
8. SPECIFICATIONS ......................................................................................................................... 18
1. PRECAUTIONS
1. This unit is applicable for on-road 4 wheel
vehicle purpose only. Use for tractor, fork
truck, bulldozer, off road vehicle, 2 or 3 wheel
motor bicycle, marine boat or other special
purpose vehicle is not appropriate.
2. When the inside of the car is very cold and
the player is used soon after switching on the
heater moisture may form on the disc or the
optical parts of the player and proper playback may not be possible. If moisture forms
on the disc, wipe it off with a soft cloth. If
moisture forms on the optical parts of the
player, do not use the player for about one
hour. The condensation will disappear naturally allowing normal operation.
3. Driving on extremely bumpy roads which
cause severe vibration may cause the sound
to skip.
INFORMATION FOR USERS:.
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE MANUFACTURER WILL VOID THE WARRANTY.
For VW and Audi Vehicles
1. When the car stereo is installed in 1998 and
later Volkswagen models, make sure to cut
the car lead wire connected the A-5 terminal.
(A breakdown could occur if the lead wire is
not cut.) After cutting the lead wire, insulate
the front end of the lead wire with insulation
tape to prevent the risk of short-circuits.
Note:
Before cutting the lead wire, disconnect the car
battery - (negative) cable.
2. When the main unit is also connected to an
external amplifier, connect REMOTE on the
external amplifier to the previously cut lead
wire on the side of the connector.
3. Volkswagen models have already changed
position of the fuse for installation in such vehicles.
DB248R/DB148R/BD149RG 38 DB248R/DB148R/BD149RG

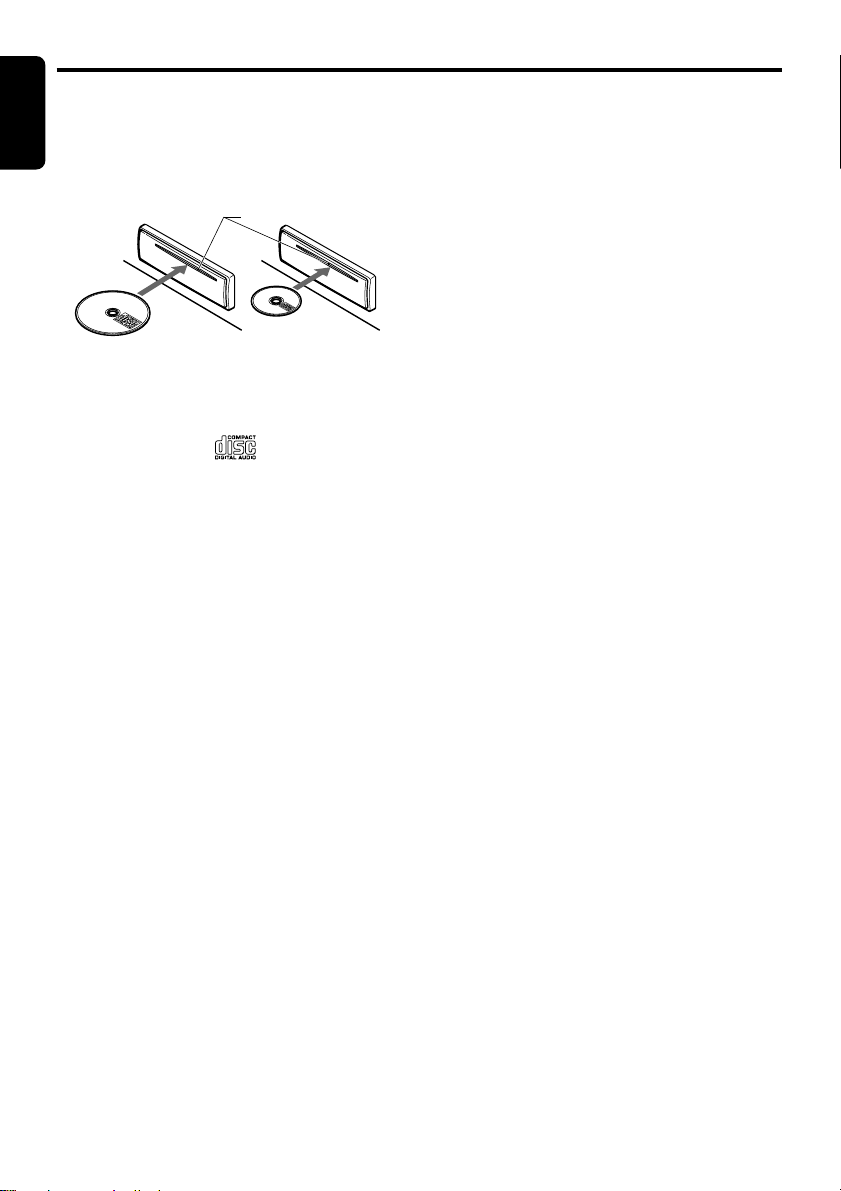

Handling Compact Discs
English
Use only compact discs bearing the
mark.
Do not play heart-shaped, octagonal, or other
specially shaped compact discs.
Handling
• Compared to ordinary music CDs, CD-R and
CD-RW discs are both easily affected by high
temperature and humidity and some of CD-R
and CD-RW discs may not be played.
Therefore, do not leave them for a long time in
the car.
•New discs may have some roughness around
the edges. If such discs are used, the player
may not work or the sound may skip. Use a
ball-point pen or the like to remove any roughness from the edge of the disc.
•Never stick labels on the surface of the compact disc or mark the surface with a pencil or
pen.
•Never play a compact disc with any cellophane tape or other glue on it or with peeling
off marks. If you try to play such a compact
disc, you may not be able to get it back out of
the CD player or it may damage the CD
player.
• Do not use compact discs that have large
scratches, are misshapen, cracked, etc. Use
of such discs may cause misoperation or
damage.
•To remove a compact disc from its storage
case, press down on the center of the case
and lift the disc out, holding it carefully by the
edges.
• Do not use commercially available CD protection sheets or discs equipped with stabilizers,
etc. These may damage the disc or cause
breakdown of the internal mechanism.
Be sure to unfold and read the next page. / Veuillez déplier et vous référer à la page suivante.
Bitte ausbreiten und die nächste Seite lesen. / Assicurarsi di aprire e leggere la pagina successiva.
Volgende pagina uitvouwen en doorlezen a.u.b. / Cerciórese de desplegar y de leer la página siguiente.
Glöm inte att vika ut och läsa nästa sida. / Não deixe de abrir e ler a próxima página.
English
Storage
• Do not expose compact discs to direct sunlight or any heat source.
• Do not expose compact discs to excess humidity or dust.
• Do not expose compact discs to direct heat
from heaters.
Cleaning
•To remove fingermarks and dust, use a soft
cloth and wipe in a straight line from the center of the compact disc to the circumference.
• Do not use any solvents, such as commercially available cleaners, anti-static spray, or
thinner to clean compact discs.
• After using special compact disc cleaner, let
the compact disc dry off well before playing it.
DB248R/DB148R/BD149RG 4
English
[
FNC
]
[
BND
]
[
ROTARY
]
[
A-M
]
[
DIRECT
]
[
P/A
]
[TA]
[
PTY
]
Main unit / Appareil principal / Hauptgerät / Apparecchio principale
Hoofdtoestel / Unidad principal / Huvudenhet / Unidade principal
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Hinweis: Bitte diese Seite ausfalten und beim Lesen der einzelnen Kapitel die Frontdiagramme beachten.
Nota: Assicurarsi di aprire questa pagina e fare riferimento a questi diagrammi quando si legge ciascun capitolo.
Opmerking: Vouw deze pagina uit en zie tevens de afbeeldingen van het voorpaneel tijdens het doorlezen van de volgende hoofdstukken.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen.
Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo.
[
RELEASE
]
[Z]
[Q]
[
CD SLOT
]
[AF]
[
RDM
]
[s]
[
RPT
]
[
SCN
]
[
DISP
]
[SS]
[a],[d]
Operation status indication
PS names, PTYs, CT (clock), etc. are displays.

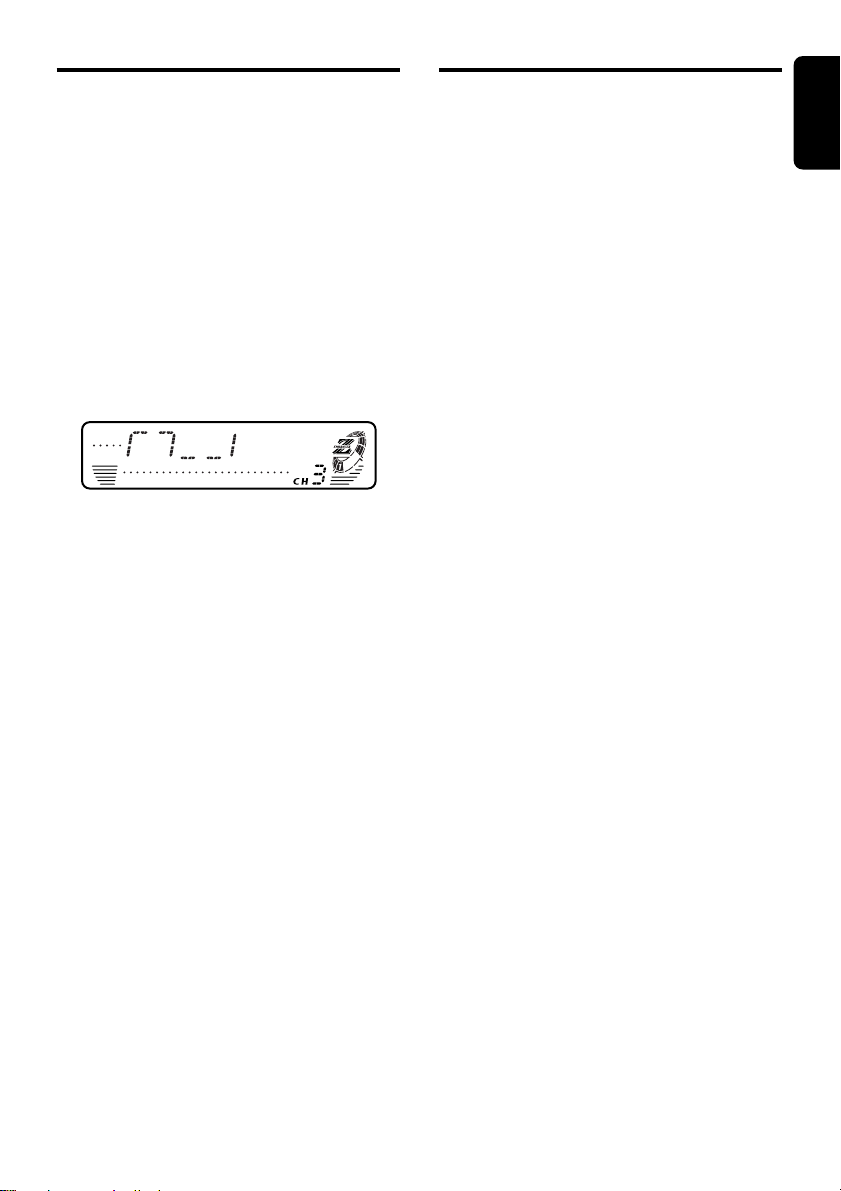

Display Items
Z-enhancer indication
: Manual indication
: Alternative frequency indication
: Regional indication
: Tr affic announcement indication
: Tr affic programme indication
: Programme type indication
: M-B EX (MAGNA BASS EXTEND) indication
: Scan indication
: Repeat indication
: Random indication
: Preset channel indication (1 to 6)
2.
CONTROLS / LES COMMANDES / REGLER / CONTROLLI
REGELAARS / CONTROLES / KONTROLLER / CONTROLOS
English
3. NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold).
English
Français
Deutsch
Italiano
Nederlands
Español
Svenska
Português
Names of the Buttons and their Functions
[FNC] button
• Press the button to turn on the power.
Press and hold the button for 1second or
longer to turn off the power.
• Switches the operation mode among the radio mode, etc.
[RELEASE] button
• Press the [RELEASE] button to unlock the
DCP.
[PTY] button
• Use the button to set the PTY (Programme
Type) standby mode or PTY items.
[CD SLOT]
• CD insertion slot.
[RDM] button
•Performs random play while in the CD mode.
[SCN] button
•Performs scan play for 10 seconds for each
track while in the CD mode.
[RPT] button
• Plays repeatedly while in the CD mode.
[DIRECT] button
• Stores a station into memory or recall it directly while in the radio mode.
[Q] button
• Ejects a CD when it is loaded into the unit.
[AF] button
• Press the button to turn on or off the AF (Alternative Frequency) function.
• When the button is pressed and held, Regional function can select ON or OFF.
[Z] button
• Use the button to select one of the three
types of sound characteristics already stored
in memory. (Z-Enhancer)
6 DB248R/DB148R/BD149RG
[TA] button
• Use the button to set the TA (Traffic Announcement) standby mode.
[P/A] button
•Performs preset scan while in the radio
mode. When the button is pressed and held,
auto store is performed.
[DISP] button
• Press the [DISP] button while keeping the
[BND] button pressed, to switch the display
indication (Main display, clock display).
[SS] button
• Press the [SS] button while keeping the
[BND] button pressed, to turn the screen
saver function on or off.
[s] button
• Plays or pauses a CD while in the CD mode.
[a], [d] button
• Selects a station while in the radio mode or
selects a track when listening to a CD.
• Press and hold the button for 1 second or
longer to switches the fast-forward/fast-backward.
[ROTARY] knob
• Adjust the volume by turning the knob clockwise or counterclockwise.
• Use the knob to perform various settings.
[BND] button
• Switches the band, or seek tuning or manual
tuning while in the radio mode.
• Plays a first track while in the CD mode.
[A-M] button
• Press and hold the button for 1 second or
longer to switch the MAGNA BASS EXTEND on/off.
• Use the button to switch to the audio mode
(bass/treble, balance/fader)
LCD Screen
In extreme cold, the screen movement may slow down and the screen may darken, but this is normal.
The screen will recover when it returns to normal temperature.
DB248R/DB148R/BD149RG 75 DB248R/DB148R/BD149RG
5. OPERATIONS
English
Basic Operations
Note:Be sure to read this chapter referring to the front diagrams of
chapter “2. CONTROLS” on page 5 (unfold).
CAUTION
Be sure to lower the volume before switching off the unit power or the ignition key. The
unit remembers its last volume setting. If you
switch the power off with the volume up,
when you switch the power back on, the sudden loud volume may hurt your hearing and
damage the unit.
Turning on/off the power
Note:
• Be careful about using this unit for a long time
without running the engine. If you drain the car’s
battery too far, you may not be able to start the
engine and this can reduce the service life of the
battery.
1. Press the [FNC] button.
2. The illumination and display on the unit light
up. The unit automatically remembers its last
operation mode and will automatically switch
to display that mode.
3. Press and hold the [FNC] button for 1 second
or longer to turn off the power for the unit.
Selecting a mode
1. Press the [FNC] button to change the opera-
tion mode.
2. Each time you press the [FNC] button, the
operation mode changes in the following order:
Radio mode ➜ CD mode ➜ Radio mode...
Note:
• If the CD mode is selected when no disc is inserted, the display shows “NO DISC”.
Adjusting the volume
Tu r ning the [ROTARY] knob clockwise increases
the volume; turning it counterclockwise decreases the volume.
∗ The volume level is from 0 (minimum) to 33
(maximum).
Audio Mode Adjustments
Press the [A-M] button to select the adjustment
mode. The mode switches as follows each time
the [A-M] button is pressed:
BASS ➜ TREB ➜ BAL ➜ FAD ➜ Previous
mode
When the Z-Enhancer function is turned on,
BASS (bass) and TRE (treble) cannot be selected.
Switching display
Press and hold the [BND] button, and then press
the [DISP] button to select the desired display.
The display switches in the following order:
Main ➜ Clock (CT) ➜ Main …
∗ If the display is changed by other button operation
when the clock (CT) is displayed, the clock display returns automatically after the operation.
∗ The example shows the display in radio mode.
Main display
Clock(CT) display
Main display
Setting the Z-nhancer
This unit are provided with 3 types of sound tone effects stored in memory. Select the one you prefer.
∗ The factory default setting is “Z-EHCR OFF”.
Each time you press the [Z] button, the tone effect changes in the following order:
“Z-ENHANCER 1” ➜ “Z-ENHANCER 2” ➜ “Z-
ENHANCER 3” ➜ “Z-EHCR OFF” ➜ “ZENHANCER 1”...
• Z-ENHANCER 1 : bass emphasized
• Z-ENHANCER 2 : treble emphasized
• Z-ENHANCER 3 : bass and treble emphasized
• Z-EHCR OFF : no sound effect
DB248R/DB148R/BD149RG 9
Basic Operations
English
Adjusting the bass
1.
Press the [A-M] button and select “BASS”.
2. Turning the [ROTARY] knob clockwise em-
phasizes the bass; turning it counterclockwise attenuates the bass.
∗ The factory default setting is “0”. (Adjustment
range: –7 to +7)
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the treble
1.
Press the [A-M] button and select “TREB”.
2. Turning the [ROTARY] knob clockwise em-
phasizes the treble; turning it counterclockwise attenuates the treble.
∗ The factory default setting is “0”. (Adjustment
range: –7 to +7)
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the balance
1. Press the [A-M] button and select “BAL”.
2. Turning the [ROTARY] knob clockwise em-
phasizes the sound from the right speaker;
turning it counterclockwise emphasizes the
sound from the left speaker.
∗ The factory default setting is “0”. (Adjustment
range: L13 to R13)
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the fader
1. Press the [A-M] button and select “FAD ”.
2. Turning the [ROTARY] knob clockwise em-
phasizes the sound from the front speakers;
turning it counterclockwise emphasizes the
sound from the rear speakers.
∗ The factory default setting is “0”. (Adjustment
range: F12 to R12)
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Turning on/off MAGNA BASS
EXTEND
To adjust the MAGNA BASS EXTEND
The MAGNA BASS EXTEND does not adjust
the low sound area like the normal sound adjustment function, but emphasizes the deep
bass sound area to provide you with a dynamic
sound.
∗ The factory default setting is off. Press and hold
the [A-M] button for 1 second or longer to turn the
MAGNA BASS EXTEND and “M-B EX” in the display lights on or off.
CT (Clock Time) function
The CT function enables you to display clock
time only when CT data is received.
Press and hold the [BND] button, and then
press the [DISP] button, the display switches to
CT (Clock Time).
∗ When no CT data is received, “CT––:––” appears
in the display.
Note:
• There are some countries and stations where
clock time data are not transmitted. In some areas, the CT may not be displayed correctly.
Triggered audio mute for cellular
telephones
This unit requires special wiring to mute the audio signal automatically when a cellular telephone rings in the car.
∗ This function is not compatible with all cellular
telephones. Contact your local authorized Clarion
dealer for information on proper installation and
compatibility.
∗ The factory default setting is “TEL OFF”.
Press and hold the [BND] button, and then press
the [s] to select the “TEL ON” or “TEL OFF”.
TEL ON: mutes the audio sound.
TEL OFF: does not mute the audio sound.
Illumination dimmer function
When the illumination line of this unit is connected with the car-side illumination signal line,
the display illumination of this unit dims in connection with turning on the car-side illumination.
10 DB248R/DB148R/BD149RG
Basic Operations
Turning the screen saver function
on or off
This unit is provided with the screen saver function. You can turn on and off this function.
If the button operation is performed with the
screen saver function on, the operation display
corresponding to the button operation is shown
for about 30 seconds and the display returns to
the screen saver display.
∗ The factory default setting is on.
Press the [SS] button while keeping the [BND]
button pressed, to turn the screen saver function
on or off.
∗ The following illustration presents one of the pat-
terns which are shown when the screen saver
function is turned on.
Radio Operations
Listening to the radio
1. Press the [FNC] button and select the radio
mode. The frequency or PS appears in the
display.
∗ PS: Programme service name
2. Press the [BND] button and select the radio
band. Each time the button is pressed, the radio reception band changes in the following
order:
FM1 ➜ FM2 ➜ FM3 ➜ AM (MW/LW) ➜ FM1...
3. Press the [a] or [d] button to tune in the
desired station.
Tuning
There are 3 types of tuning mode available, seek
tuning, manual tuning and preset tuning.
Seek tuning
There are 2 types of seek tuning: DX SEEK and
LOCAL SEEK.
DX SEEK can automatically tune in to receivable broadcast stations; LOCAL SEEK can tune
in to only broadcast stations with a good reception sensitivity.
1. Press the [BND] button and select the de-
sired band (FM or AM (MW, LW)).
2. Tune into a station.
∗ If “MANU” is lit in the display, press and hold
the [BND] button for 1 second or longer.
“MANU” in the display goes off and seek tuning is now available.
∗ If “TA ” is lit in the display, TP stations are auto-
matically sought.
● DX SEEK
Press the [a] or [d] button to automatically
seek a station.
When the [d] button is pressed, the station is
sought in the direction of higher frequencies; if
the [a] button is pressed, the station is sought
in the direction of lower frequencies.
∗ When seek tuning starts, “DX” appears in the dis-
play.
● LOCAL SEEK
If you press and hold the [a] or [d] button for
1 second or longer, local seek tuning is carried
out. Broadcast stations with good reception sensitivity are selected.
∗ When local seeking starts, “LO” appears in the
display.
English
DB248R/DB148R/BD149RG 11
Radio Operations
English
Manual tuning
There are 2 ways available: Quick tuning and
step tuning.
When you are in the step tuning mode, the frequency changes one step at a time. In the quick
tuning mode, you can quickly tune the desired
frequency.
1. Press the [BND] button and select the de-
sired band (FM or AM (MW/LW)).
∗ If “MANU” is not lit in the display, press and
hold the [BND] button for 1 second or longer.
“MANU” is lit in the display and manual tuning
is now available.
2. Tune into a station.
● Quick tuning:
Press and hold the [a] or [d] button for 1
second or longer to tune in a station.
● Step tuning:
Press the [a] or [d] button to manually
tune in a station.
Recalling a preset station
A total of 24 preset positions (6-FM1, 6-FM2, 6FM3, 6-AM) exists to store individual radio stations in memory. Pressing the corresponding
[DIRECT] button recalls the stored radio frequency automatically.
1. Press the [BND] button and select the de-
sired band (FM or AM (MW/LW)).
2. Press the corresponding [DIRECT] button to
recall the stored station.
∗ Press and hold one of the [DIRECT] buttons
for 2 seconds or longer to store that station
into preset memory.
Manual memory
1. Select the desired station with seek tuning,
manual tuning or preset tuning.
2. Press and hold one of the [DIRECT] buttons
for 2 seconds or longer to store the current
station into preset memory.
Auto store
Auto store is a function for storing up to 6 stations that are automatically tuned in sequentially.
If 6 receivable stations cannot be received, a
previously stored station remains unoverwritten
at the memory position.
Notes:
• The only FM band that can store the stations will
automatically be stored in FM3.
• When the auto store is performed, the station previously stored in the memory at that position is
overwritten.
• If there are fewer than 6 stations with good reception, the stations previously stored at the remaining [DIRECT] buttons are not overwritten.
•A station already stored in one of [DIRECT] buttons cannot be stored in another [DIRECT] buttons.
1. Press the [BND] button and select the de-
sired band (FM or AM (MW/LW)).
2. Press and hold the [P/A] button for 2 sec-
onds or longer. The stations with good reception are stored automatically to the preset
channels.
∗ If auto store is performed in the FM bands, the
stations are stored in FM3 even if FM1 or FM2
was chosen for storing stations.
Preset scan
Preset scan receives the stations stored in preset memory in order. This function is useful
when searching for a desired station in memory.
1. Press the [P/A] button.
2. When a desired station is tuned in, press the
[P/A] button again to continue receiving that
station.
Note:
• Be careful not to press and hold the [P/A] button
for 2 seconds or longer, otherwise the auto store
function is engaged and the unit starts storing
stations.
12 DB248R/DB148R/BD149RG
RDS Operations
RDS (Radio Data System)
This unit has a built-in RDS decoder system that
supports broadcast stations transmitting RDS data.
This system can display the name of the broadcast station being received (PS) and can automatically switch to the broadcast station with the
best reception as you move long distances (AF
switching).
Also, if a traffic announcement or programme
type is broadcast from an RDS station, no matter
what mode you are in, this broadcast is received.
Additionally, if EON information is received, this
information enables automatic switching of other
preset stations on the same network and interruption of the station being received with traffic
information from other stations (TP). This function is not available in some areas.
When using the RDS function, always set the
radio to FM mode.
• AF : Alternative Frequency
• PS : Programme Service Name
• PTY : Programme Type
• EON : Enhanced Other Network
• TP : Traffic Programme
∗ RDS interrupt does not function during AM radio
reception.
AF function
The AF function switches to a different frequency on the same network in order to maintain optimum reception.
∗ The factory default setting is “ON”.
● Switching OFF the AF function
Press the [AF] button. “AF” in the display goes
off and the AF function turns off.
● Switching ON the AF function
Press the [AF] button. “AF” in the display lights
and the AF function turns on.
∗ If the reception of the current broadcast station
deteriorates, “SEARCH” appears in the display
and the radio searches for the same programme
on another frequency.
Note:
• The AF mode can only be turned on and off in the
RDS mode.
REG (Regional programme) function
When the REG function is ON, the optimum regional station can be received. When this function is OFF, if the regional station area switches
English
as you drive, a regional station for that region is
received.
∗ The factory default setting is “OFF”.
Notes:
• This function is disabled when a national station
such as BBC R2 is being received.
• The REG function ON/OFF setting is valid when
the AF function is ON.
● Switching the REG function ON
Press and hold the [AF] button for 1 second or
longer.
“REG” in the display lights and the REG function
turns on.
● Switching the REG function OFF
Press and hold the [AF] button for 1 second or
longer.
“REG” in the display goes off and the REG function turns off.
Manually tuning a regional station
in the same network
1. This function is valid when the AF function is
ON and the REG function is OFF.
Note:
• This function can be used when a regional broadcast of the same network is received.
2. Press any one of the [DIRECT] buttons to
call out the regional station.
3. If the reception condition of the called out
station is bad, press the [DIRECT] button of
the same number. The unit receives a local
station on the same network.
TA (Traffic Announcement)
In the TA standby mode, when a traffic announcement broadcast starts, the traffic announcement
broadcast is received as top priority regardless of
the function mode so you can listen to it. Traffic
programme (TP) automatic tuning is also possible.
∗ This function can only be used when “TP” is lit in
the display. When “TP” is lit, this means that the
RDS broadcast station being received has traffic
announcement programmes.
● Setting the TA standby mode
If you press the [TA] button when only “TP” is lit in
the display, “TP” and “TA ” light in the display and the
unit is set into the TA standby mode until a traffic announcement is broadcast. When a traffic announcement broadcast starts, “TRA INFO” appears in the
display. If you press the [TA] button while a traffic announcement broadcast is being received, the traffic
DB248R/DB148R/BD149RG 13
RDS Operations
English
announcement broadcast reception is cancelled and
the unit goes into the TA standby mode.
● Cancelling the TA standby mode
With “TP” and “TA” lit in the display, press the
[TA] button. The “TA” in the display goes off and
the TA standby mode is cancelled.
∗ If “TP” is not lit, pressing the [TA ] button searches
for a TP station.
● Searching for a TP station
When “TP” is not lit, if you press the [TA] button,
“TA” in the display lights and the unit automatically receives a TP station.
Note:
• If a TP station is not received, the unit continues the
search operation. Pressing [TA] button again goes off
“TA” in the display and stops TP station searching.
Auto store function for TP stations
You can automatically store up to 6 TP stations into
preset memory. If the number of TP that can be received is less than 6, broadcast stations already
stored in memory are left without being overwritten.
With “TA ” lit in the display, press and hold the [P/A]
button for 2 seconds or longer. The TP stations with
the good reception sensitivity are stored into preset
memory.
∗ Even if you select FM1 or FM2, a TP station is
stored into memory for FM3.
PTY
This function enables you to listen to a broadcast of the selected programme type when it
starts even if the unit is on a function mode
other than radio.
∗ Some countries do not yet have PTY broadcast.
∗ In the TA standby mode, a TP station has priority
over a PTY broadcast station.
● Setting the PTY standby mode
When you press the [PTY] button, “PTY” lights in
the display and the PTY standby mode is turned
on. When the selected PTY broadcast starts, the
PTY item name appears in the display.
● Cancelling the PTY standby mode
When you press and hold the [PTY] button for 1
second or longer, “PTY” goes off in the display
and PTY standby mode is cancelled.
● Cancelling a PTY interrupt broadcast
Press the [PTY] button during the PTY interrupt
broadcast, the PTY interrupt is cancelled and
the unit returns to PTY standby mode.
Selecting PTY
1. When you press the [PTY] button, the unit
goes into PTY select mode.
2. Press any one of the [DIRECT] buttons. Al-
ternatively, turn the [ROTARY] knob clock-
wise or counterclockwise to select the desired PTY.
∗ Below are the factory default settings stored
for the [DIRECT] buttons.
Preset
number
3. The PTY select mode is cancelled automatically 7 seconds after a PTY is selected.
ENGLISH Contents
1 NEWS News
2 INFO Information
3 POP M Pop Music
4 SPORT Sport
5 CLASSICS
6 EASY M
PTY item
Serious Classical Music
Easy Listening Music
PTY seek
1. When you press the [PTY] button, the PTY
select mode is turned on.
2. Select PTY.
3. Press the [a] or [d] button. If you press
the [d] button, the unit seeks a PTY broadcast moving up the frequencies; if you press
the [a] button, it seeks moving down the
frequencies.
∗ If no station with the selected PTY broadcast
can be received, the unit returns to the PTY
select mode.
14 DB248R/DB148R/BD149RG
PTY preset memory
1. When you press the [PTY] button, the PTY
select mode is turned on.
2. Turn the [ROTARY] knob clockwise or coun-
terclockwise to select the desired PTY.
The 29 types of PTY below can be selected.
PTY item
ENGLISH Contents
NEWS News
AFFAIRS Today’s events
INFO Information
SPORT Sports
EDUCATE Education
DRAMA Drama
CULTURE Culture
SCIENCE Science
VARIED Variety
POP M Pop music
ROCK M Rock music
EASY M Easy music
LIGHT M Light music
CLASSICS Classics
OTHER M Other music
WEATHER Weather
FINANCE Finance
CHILDREN For children
SOCIAL Social
RELIGION Religion
PHONE IN Phone in
TRAVEL Tr a ve l
LEISURE Leisure
JAZZ Jazz
COUNTRY Country
NATION M Nation music
OLDIES Oldies
FOLK M Folk music
DOCUMENT Documentaries
3. If you press and hold any one of the [DIRECT]
buttons for 2 seconds or longer, the selected
PTY is stored into that preset channel memory.
RDS Operations
● Cancelling an emergency broadcast
If you press the [AF] button, emergency broadcast reception is cancelled.
Volume setting of TA, emergency
broadcast (ALARM) and PTY
The volume for TA, ALARM and PTY interrupts
can be set during TA, ALARM or PTY interrupt.
∗ The factory default setting is “19”.
During a TA, ALARM or PTY interrupt, turn the
[ROTARY] knob clockwise or counterclockwise
to set the volume to the desired level (0 to 33).
∗ When the TA, ALARM or PTY interrupt ends, the
volume returns to the level it had before the interrupt.
English
Emergency broadcast
If an emergency broadcast is received, all the
function mode operations are stopped.
“ALARM” appears in the display and the emergency broadcast can be heard.
DB248R/DB148R/BD149RG 15
CD Operations
English
Loading a CD
Insert a CD into the centre of the CD SLOT with the
labeled side facing up. “LOADING” appears in the display, the CD enters into the slot, and the play starts.
For CD (12 cm) For single CD (8 cm)
CD SLOT
Notes:
• Do not put your hand, fingers, or foreign objects
into the CD SLOT.
•
If a CD has already been loaded, another CD cannot be inserted. Do not insert another one forcefully.
• Discs not bearing the mark cannot be
played with the unit. CD-ROMs cannot be played.
• Single CDs (8 cm) shall be loaded without
adapter into the right side of the slot.
Listening to a CD already inserted
Press the [FNC] button to select the CD mode.
Play starts automatically. If no CD is loaded in
the unit, “NO DISC” appears in the display.
Pausing play
1. Press the [s] button to pause play.
“PAUSE” appears in the display.
2.
To resume CD play, press the [s] button again.
● Track-down
1. Press the [a] button to move back to the
beginning of the current track.
2. Press the [a] button twice to move to the
beginning of the previous track.
Fast-forward/fast-backward
● Fast-forward
Press and hold the [d] button for 1 second or
longer.
● Fast-backward
Press and hold the [a] button for 1 second or
longer.
Top function
The top function resets the CD player to the first
track of the disc. Press the [BND] button to play
the first track (track No. 1) on the disc.
Scan play
The scan play locates and plays the first 10 seconds of each track on a disc automatically. This
function continues on the disc until it is cancelled.
∗ The scan play is useful when you want to select a
desired track.
1. Press the [SCN] button to start scan play.
“SCN” lights in the display.
2. To cancel the scan play, press the [SCN] but-
ton again. “SCN” goes off from the display
and the current track continues to play.
Ejecting a CD
1. Press the [Q] to eject the CD. Take it out
from the ejected position.
Note:
• If you force a CD into before auto reloading, this
can damage the CD.
∗ If a CD (12 cm) is left in the ejected position for
15 seconds, the CD is automatically reloaded
(Auto reload).
∗ 8 cm CDs are not auto reloaded. Be sure to re-
move it when ejected.
Selecting a track
● Track-up
1. Press the [d] button to move ahead to the
beginning of the next track.
2. Each time you press the [d] button, the
track advances ahead to the beginning of the
next track.
16 DB248R/DB148R/BD149RG
Repeat play
The repeat play continuously plays the current
track. This function continues automatically until
it is cancelled.
1. Press the [RPT] button. “RPT” lights in the
display and the current track is repeated.
2. To cancel the repeat play, press the [RPT]
button again. “RPT” goes off from the display
and normal play resumes.
Random play
The random play selects and plays individual
tracks on a disc in no particular order. This function continues automatically until it is cancelled.
1. Press the [RDM] button. “RDM” lights in the
display, an individual track is selected randomly and play begins.
2. To cancel the random play, press the [RDM]
button again. “RDM” goes off and normal
play resumes.
6. IN CASE OF DIFFICULTY
Problem Cause Solution
Pow er does not turn on.
(No sound is produced.)
Compact disc cannot be
loaded.
Sound skips or is noisy.
Sound is bad directly after
power is turned on.
Nothing happens when
buttons are pressed.
Display is not accurate.
Fuse is blown.
Incorrect wiring.
Another compact disc is
already loaded.
Compact disc is dirty.
Compact disc is heaviiy
scratched or warped.
Water droplets may form on
the internal lens when the car
is parked in a humid place.
Microprocessor has
malfunctioned due to noise,
etc.
Replace with a fuse of the same amperage. If
the fuse blows again, consult your store of
purchase.
Consult your store of purchase.
Eject the compact disc before loading the new
one.
Clean the compact disc with a soft cloth.
Replace with a compact disc with no scratches.
Let dry for about 1 hour with the power on.
Tu rn off the power, then press the Release
button and remove the DCP.
Press the reset button for about 2 seconds with
a thin rod.
English
Reset button
DCP or main unit connectors
are dirty.
Wipe the dirt off with a soft cloth moistened with
cleaning alcohol.
DB248R/DB148R/BD149RG 17
English
7. ERROR DISPLAYS
If an error occurs, one of the following displays is displayed.
Ta ke the measures described below to eliminate the problem.
CauseError Display
ERROR 2
ERROR 3
AMP GRD
If an error display other than the ones described above appears, press the reset button. If the problem
persists, turn off the power and consult your store of purchase.
A CD is caught inside the CD deck and is
not ejected.
A CD cannot be played due to scratches,
etc.
The speaker protection circuit is operating.
During this operation, if any volume
operation is performed, the display shows
“AMP GRD”.
This is a failure of CD deck’s mechanism and
consult your store of purchase.
Replace with a non-scratched,
non-warped-disc.
1. Turn down sound volume. Function can
also be restored by turning the power off
and on again.
(Speaker volume is reduced automatically
when the speaker protection circuit
operates).
2. If the sound is muted again, consult our
service department.
Measure
8. SPECIFICATIONS
Radio section
Tuning System: PLL synthesizer tuner
Receiving Frequencies:
FM : 87.5 to 108 MHz (0.05 MHz steps)
MW : 531 to 1602 kHz (9 kHz steps)
LW : 153 to 279 kHz (3 kHz steps)
CD player section
System: Compact disc digital audio system
Frequency Response: 10 Hz to 20 kHz (± 1 dB)
Signal to Noise Ratio: 100 dB (1 kHz) IHF-A
Dynamic Range: 93 dB (1 kHz)
Distortion: 0.03%
General
Output Power: 4 ✕ 27 W (DIN 45324, +B=14.4V)
Power Supply Voltage:
14.4 V DC (10.8 to 15.6 V allowable),
negative ground
Power Consumption: Less than 15 A
Speaker Impedance: 4 Ω (4 to 8 Ω allowable)
Auto Antenna Rated Current: 500 mA or less
Weight:
Main unit: 1.2 kg
Dimensions:
Main unit :
178 (W) ✕ 50 (H) ✕ 155 (D) mm
Note:
• Specifications and design are subject to change without notice for further improvement.
18 DB248R/DB148R/BD149RG
Loading...
