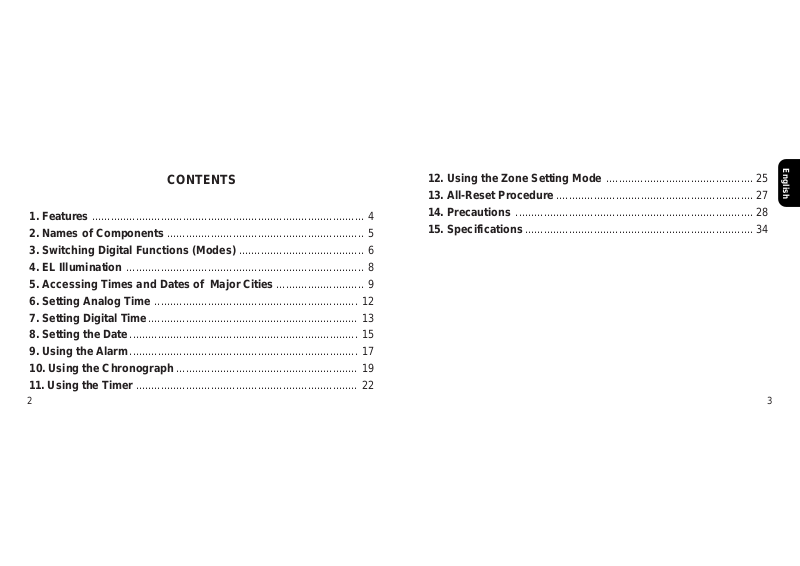

CONTENTS

English

12. Using the Zone Setting Mode ............................................... 25

13. All-Reset Procedure ............................................................... 27

1. Features ....................................................................................... 4

2. Names of Components ............................................................... 5

14. Precautions ............................................................................ 28

15. Specifications......................................................................... 34

3. Switching Digital Functions (Modes) ........................................ 6

4. EL Illumination ............................................................................ 8

5. Accessing Times and Dates of Major Cities ............................ 9

6. Setting Analog Time ................................................................. 12

7. Setting Digital Time................................................................... 13

8. Setting the Date......................................................................... 15

9. Using the Alarm......................................................................... 17

10. Using the Chronograph .......................................................... 19

11. Using the Timer ....................................................................... 22

2 3

1. Features

This watch is a combination quartz watch equipped with a shutter function that allows
the digital display to be recalled and used only when necessary , and a function that makes
it possible to easily call up the time and date of 30 cities around the world as well as UTC
(Universal Time Coordinated) time and date simply by pressing the watch buttons.
It is also equipped with an EL illumination function that enables the display to be viewed
in the dark.

2. Names of Components

Digital display 2

Button (M)

Hour hand

Button (B)

Minute hand

Crown

Button (A)

[Shutter Display]

Second hand

4 5

Digital display 1

The design may vary depending on the model.

3. Switching Digital Functions (Modes)

This watch is equipped with the functions (modes) shown below . Each time button (M)
is pressed, the mode changes in the order shown below.

*1: The digital display is completely concealed in the shutter mode.
*2: In the zone setting mode, the watch can be used to set the display and non-display

status as well as the use of daylight savings time for each of the 30 cities and UTC
(Universal Time Coordinated) displayed by the watch.

[Alarm]

* When none of the buttons are operated for about 2 minutes in the time, calendar,

alarm or zone setting mode, the watch returns to the shutter mode.

* When none of the buttons are operated for about 10 minutes in the chronograph

or timer mode (excluding when timing is in progress), the watch returns to the
shutter mode.

(M)

[Chronograph]

[Shutter Mode] *1

(M)

(M)

(M)

[Zone Setting] *2

[Time]

(M)

(M)

[Calendar]

(M)

(M)

[Timer]

6 7

4. EL Illumination

5. Accessing Times and

* The EL light is illuminated when button (A) is pressed (for as long as it is pressed) in

the time, calendar or zone setting mode.

* When button (A) is pressed in the shutter mode (for as long as it is pressed), the EL

light is illuminated and the watch displays the time mode.

* The EL light is illuminated automatically when the split time or stop operation is

performed during chronograph measurement.

8 9

Dates of Major Cities

The time or date of major cities pre-registered in this watch as well as UTC time or date
can be easily called up by pressing the buttons.

City name

(M)

(B)

(A)

Time corresponding to
the city name

<Access Procedure>

(1)Press button (M) to switch to the time or calendar

mode.

(2)Each time button (B) is pressed, the time or date

of the next city is displayed in the order shown in
the table on the next page (direction in which the
time difference increases or decreases).
When button (A) is pressed simultaneous to press­ing button (B), the order in which the cities are
recalled (direction in which the time difference in­creases or decreases) changes.

<Time Differences Between Cities Displayed by this Watch and UTC
(Universal Time Coordinated)>

No.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

Watch

display

UTC
LON
PAR
ROM
CAI
IST
MOW
KWI
DXB
KHI
DEL
DAC
BKK
SIN
HKG
PEK

City name

Universal Time
Coordinated

London
Paris
Rome
Cairo
Istanbul
Moscow
Kuwait
Dubai
Karachi
New Delhi
Dacca
Bangkok
Singapore
Hong Kong
Beijing

Time

difference

±0
±0

+1
+1
+2
+2
+3
+3
+4
+5
+5.5
+6
+7
+8
+8
+8

Daylight

savings

time

No.

17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

Watch

display

TYO
SYD
NOU
AKL
HNL
ANC
LAX
DEN
CHI
MEX
NYC
YUL
CCS
RIO
BUE

City name

Tokyo
Sydney
Noumea
Auckland
Honolulu
Anchorage
Los Angeles
Denver
Chicago
Mexico City
New Y ork
Montreal
Caracas
Rio de Janeiro
Buenos Aires

difference

Time

+9
+10
+11
+12
–10
–9
–8
–7
–6
–6
–5
–5
–4
–3
–3

Daylight

savings

time

* Cities for which non-display (OF) has been selected in the zone setting mode are

not displayed.

* Cities (regions) in which daylight savings time is used are indicated with a ,

while those in which it is not are indicated with an .

* The time difference and use of daylight savings time of each city are subject to

change by the particular country (the information in the table is valid as of 1999).

10 11

6. Setting Analog T ime

7. Setting Digital Time

Second hand

Normal position

Crown

Time correction
position

(1) The second hand stops when the crown

is pulled out.

(2) Turn the crown to set the watch to the

correct time.

(3) After setting the time, securely push the

crown in to the normal position. The
second hand starts to move when the
crown is pushed in.

<Hint for Setting the Time Accurately>

If the second hand is stopped at the 0 seconds position, the minute is advanced 4-5
minutes past the correct time and then turned back to the correct time, and the crown is
pushed in when the digital time is at 0 seconds, the watch can be accurately set to the
correct time.

12 13

When the time is set for any of the 30 cities or UTC, the times of other cities are auto­matically corrected by converting the time difference.

[Normal Time Display]

City name

(M)

(B)

Time

(1) Press button (M) to switch the watch to the time

mode.

(2) Press button (B) to display the city for which the

time is to be corrected.

(3) Pressing button (B) continuously for about 2 sec-

onds causes “SUM (abbreviation for daylight
savings time) ”and “On or OF” to flash.

(4) Press button (A) to switch the selection for day-

light savings time to “On” or “OF(OFF)” for that

(A)

city.

(5) Each time button (B) is pressed, the location

that flashes changes in the order of seconds to
minutes to hours and finally to 12/24 hour dis­play. Press button (B) until the location desired
to be corrected flashes.

(6) Press button (A) to correct the location that is flashing.

* When button (A) is pressed in the seconds correction state, the seconds is corrected

to 00. (The minutes advance by one minute when the seconds are between 30 and
59 seconds.)

* When switching between 12 and 24-hour display, the display switches between 12

and 24 hours each time button (A) is pressed.

* Each time button (A) is pressed in the hours or minutes correction state, the display

advances by 1. Pressing button (A) continuously causes the display to advance
rapidly.

(7) Press button (M) to return to the normal display.

8. Setting the Date

[Normal Date Display]

City name

(M)

(B)

(A)

When the date is set for any of the 30 cities or UTC,
the dates of other cities are automatically corrected
by converting the time difference.

(1)Press button (M) to switch the watch to the

(2)Press button (B) to display the city for which the

(3)Pressing button (B) continuously for about 2

calendar mode.

date is to be corrected.

seconds causes the “month” to flash so that it can

* When using the 12-hour display, pay attention to AM(A) and PM(P)

when setting the time.

* When none of the buttons are operated for about 2 minutes in the

time correction state (flashing display), the watch automatically
returns to the normal time display.

* Pressing button (M) in the time correction state immediately re-

turns the watch to the normal time display.

Month, date
and day

(4)Each time button (B) is pressed in the correction state, the location that flashes

changes in the order of month to date and finally to the year. Press button (B) until
the location desired to be corrected flashes.

(5)Press button (A) to correct the location that is flashing. (Pressing button (A)

continuously causes the display to advance rapidly.)

(6)Press button (M) to return to the normal display.

be corrected. The location on the display that is
flashing can be corrected.

14 15

9. Using the Alarm

[Alarm (ON) Display]

* When none of the buttons are operated for about 2 minutes in the

date correction state (flashing display), the watch automatically re­turns to the normal date display.

* When button (M) is pressed in the date correction state, the watch

immediately returns to the normal date display.

* The year can be corrected from 2000 to 2099 (displayed only when

correcting).

* The day is corrected automatically by correcting the year, month

and date.

* The calendar function of this watch is a full auto calendar . Once the

date is set, the end of the month is corrected automatically , includ­ing leap years.

* When the date is set to a date that does not exist, the date will

automatically be corrected to the first day of the next month when
the watch is returned to the normal display (example: February 30
is automatically corrected to March 1).

16 17

Alarm On mark

(M)

City name

(B)

Alarm time

(3) Pressing button (B) continuously for about 2 seconds causes the alarm to be switched

ON and the hours to flash.

(4) Press button (A) to correct the “hours”. (Pressing button (A) continuously causes the

display to advance rapidly.)
(5) Press button (B) to cause the “minutes” to flash.
(6) Press button (A) to correct the “minutes”.
(7) Press button (M) to return to the normal display.

On or OF

The alarm tone sounds for about 15 seconds at
the same time every day once it has been set
(ON). The alarm can be switched off when it is
sounding by pressing any button.

<Setting Procedure>

(1) Press button (M) to switch the watch to the

(A)

alarm mode.

(2) Press button (B) to display the city for which

the alarm is to be set.

* Since the alarm time is also based on a 12-hour display when the time mode is

set to a 12-hour display, pay attention to AM(A) and PM(P) when setting the
alarm time.

* After the alarm has been set, the alarm time does not change even if the time

mode is set to daylight savings time.

10. Using the Chronograph

The chronograph is able to measure and display time up to a maximum of 23 hours, 59
minutes and 59.99 seconds in 1/100 second units. Following completion of measure­ment for 24 hours, the chronograph returns to the reset display and stops. In addition, the
chronograph is also able to measure split time (intermediate elapsed time).

* When none of the buttons are operated for about 2 minutes in the alarm correc-

tion state, the watch automatically returns to the normal alarm display.

* When button (M) is pressed in the alarm correction state, the watch immediately

returns to the normal alarm display.

<Switching the Alarm ON and OFF>

The alarm is switched On and OF (Off) each time button (A) is pressed during the
normal alarm display. When the alarm is set to ON, the “ ” mark lights on the

[Chronograph Reset Display]

Hours

(M)

(B)

(A)

(A)

Measurement

(B)

Split time

*1

(A)

(A)

(A)

(B)

Stops

(B)

digital display in each mode.

*1: Automatically returns to the

<Sound Monitor>

Minutes, seconds
and 1/100 seconds

measurement state after 10 seconds.

The alarm monitor tone sounds for as long as button (A) is pressed in the alarm mode.

18 19

<Measurement Procedur e>

(1) Press button (M) to switch the watch to the chronograph mode.

Split time: The amount of time that has elapsed at some intermediate point from the

starting line.

(2) The chronograph starts when button (A) is pressed and stops when button (A) is

pressed during measurement. Starting and stopping is repeated each time button (A)
is pressed.

(3) Pressing button (B) while the chronograph is stopped returns it to the reset display.

<Split Time Measurement Procedure>

Split time

Starting line

Split time

Finish line

The most recent split time is displayed for about 10 seconds whenever button (B) is
pressed during chronograph measurement. (The SPL mark flashes while split time is
displayed.)

* Pressing button (M) during chronograph measurement allows the mode to be

changed. Chronograph measurement can be displayed in continuation from the
time the mode was switched by again returning to the chronograph mode. How­ever, the chronograph returns to the reset display when measurement exceeds 24
hours.

20 21

11. Using the Timer

The timer can be set from 60 minutes to 1 minute in 1 minute units. When timer mea­surement is completed, a confirmation tone indicating that the time is up sounds for
about 5 seconds.

<Timer Measurement Procedure>

(1) Press button (M) to switch the watch to the timer mode.
(2) When button (A) is pressed, the timer starts counting down from the set time.
(3) Pressing button (A) during timing stops the timer, and pressing button (A) again

[Timer Set Time Display]

causes it to resume timing.

(4) Pressing button (B) while the timer is stopped returns the timer to the set time.

Set time (minutes)

(M)

<Setting Procedure>

(1) Press button (M) to switch the watch to the

timer mode.

Automatically returns to the set time

(B)*1

(2) The set time can be corrected in the negative

Time up

*1: Timer Restart Function

When button (B) is pressed while the timer is timing, the
timer immediately returns to the set time and resumes
timing from that time.

(B)

Remaining time (minutes, seconds)

(A)

direction in 1 minute increments each time
button (B) is pressed. (Pressing button (B)
continuously causes the display to advance
rapidly.)

Set time Timing

(A)

(A)

(B)

Stopped

(A)

22 23

12. Using the Zone Setting Mode

* Pressing button (M) during timer measurement allows the mode to be

changed. Timer measurement can be displayed in continuation from the time
the mode was switched by again returning to the timer mode. However, the
timer returns to the set time display when the set time has elapsed.

24 25

[Normal Zone Setting Display]

City name

(M)

(B)

Time

(2) Press button (B) to display the city to be set.
(3) Pressing button (B) continuously for at least 2 seconds causes the “city name” and

“On or OF” to flash.
(4) Press button (A) to select display (On) or non-display (OF) for that city.
(5) Pressing button (B) again causes “SUM(abbreviation for daylight savings time)”

and “On or OF” to flash.
(6) Press button (A) to select whether daylight savings time is to be set (On) or canceled

(OF).

(A)

The zone setting function enables the 30 cities
and UTC (Universal Time Coordinated)
displayed by this watch to either be set to
displayed or not displayed, and to set daylight
savings time for each city except for UTC. Only
those cities for which the city display has been
set (On) are displayed in the time, calendar and
alarm modes.

<Setting Procedure>

(1) Press button (M) to switch the watch to the zone

setting mode.

* When desiring to set another city, pressing button (B) again switches the watch to

the correction state of the next city. Set display or non-display and the use of
daylight savings time for each city by repeating the same procedure in the order
described above.

(7) When settings have been completed for each city, press button (M) to return to the

normal display.

13. All-Reset Procedure

Always make sure to perform the all-reset procedure described below after replacing the
battery. The display or operation of the watch may rarely become abnormal (such as the
display not being shown or the alarm continuing to sound) when the watch is subjected
to a strong impact or static electricity. Perform the following all-reset procedure in these
cases as well.

<All-Reset Procedure>

* When none of the buttons are operated for about 2 minutes in the zone setting

correction state, the watch automatically returns to the normal display.

* Pressing button (M) in the zone setting correction state immediately returns the

watch to the normal zone setting display.

26 27

(M)

(B)

crown

(A)

(1) Pull out the crown.
(2) Press buttons (A), (B) and (M) simultaneously.

(The entire display of the watch lights.)

(3)Push the crown in to the normal position. A

confirmation tone sounds and the watch changes

to the shutter display (no display).
This completes the all-reset procedure.
After performing the all-reset procedure, correctly
reset the time and other modes before using the
watch.

14. Precautions CAUTION:

There are several types of water-resistant watches, as shown in the
following table.

The unit "bar" is roughly equal to 1 atmosphere.
* WATER RESIST(ANT) xx bar may also be indicated as

W.R. xx bar.

Water-resistance performance

For correct use within the design limits of the watch, confirm the level of water-resis­tance of your watch, as indicated on the dial and case, and consult the table.

Examples of use

Indication

Dial

WATER RESIST or

no indication

WR 50 or WATER

RESIST 50

WR 100/200 or

WATER RESIST 100/200

28 29

Case (Case back)

WATER RESIST(ANT)

WATER

RESIST(ANT) 5 bar or

WATER RESIST(ANT)

WATER RESIST(ANT)

10bar/20 bar or

WATER RESIST(ANT)

Specification

Water-resistant to 3

atmospheres

Water-resistant to 5

atmospheres

Water-resistant to

10 / 20 atmospheres

Minor exposure to water
(washing face, rain, etc.)

OK

OK

OK

Moderate exposure to
water (washing, kitchen
work, swimming, etc.)

NO
OK

OK

Marine sports
(skin diving)

NO
NO

OK

Scuba diving
(with air tank)

NO
NO

NO

Operation of the
crown or button with
moisture visible

NO
NO

NO

• Water-resistance for daily use (to 3 atmospheres): This type of watch is water-resistant
to minor exposure to water. For example, you may wear the watch while washing your
face; however, it is not designed for use underwater.

• Upgraded water-resistance for daily use (to 5 atmospheres): This type of watch is wa­ter-resistant to moderate exposure to water. You may wear the watch while swimming;
however, it is not designed for use while skin diving.

• Upgraded water-resistance for daily use (to 10/20 atmospheres): This type of watch
may be used for skin diving; however, it is not designed for scuba or saturated diving
using helium gas.

CAUTION

• Be sure to use the watch with the crown pressed in (normal position). If your watch has
a screw-type crown, be sure to tighten the crown completely.

• Do NOT operate the crown or button with wet fingers or when the watch is wet. Water
may enter the watch and compromise water-resistance.

• If the watch is used in seawater, rinse with fresh water afterward and wipe with a dry
cloth.

• If moisture has entered the watch, or if the inside of the crystal is fogged up and does
not become clear within a day, immediately take the watch to your dealer or Citizen
Service Center for repair. Leaving the watch in such a state will allow corrosion to form
inside.

30 31

• If seawater enters the watch, place the watch in a box or plastic bag and immediately
take it in for repair. Otherwise, pressure inside the watch will increase, and parts (crys­tal, crown, buttons, etc.) may come off.

CAUTION:

• Leaving dust and dirt deposited between the case and crown may result in difficulty in
pulling the crown out. Rotate the crown while in its normal position, from time to time,
to loosen dust and dirt and then brush it off.

• Dust and dirt tend to be deposited in gaps in the back of the case or band.
Deposited dust and dirt may cause corrosion and soil your clothing. Clean the watch
occasionally.

Keep your watch clean.

Cleaning the Watch

• Use a soft cloth to wipe off dirt, perspiration and water from the case and crystal.

• Use a soft, dry cloth to wipe off perspiration and dirt from the leather band.

• To clean a metal, plastic, or rubber watchband, wash away dirt with mild soap and
water. Use a soft brush to remove dust and dirt jammed in the gaps in the metal band. If
your watch is not water-resistant, take it to your dealer.

NOTE: Avoid using solvents (thinner, benzine, etc.), as they may mar the finish.

WARNING:

• Keep the battery out of the reach of small children. If a child swallows the battery,
contact a physician immediately.

CAUTION:

• For replacement of the battery, take your watch to your dealer or Citizen Service
Center.

• Replace the battery as soon as possible if the service life of the battery has expired.
Leaving a depleted battery in the watch may result in leakage, which can damage the
watch severely .

CAUTION:

• Use the watch within the operating-temperature range specified in the instruction
manual.
Using the watch where temperatures are outside the specified range, may result in
deterioration of functions or even stoppage of the watch.

• Do NOT use the watch in places where it is exposed to high temperature, such as in a
sauna.
Doing so may result in a skin burn.

32 33

Handling of the battery

Replacing the battery

Operating environment

• Do NOT leave the watch in a place where it is exposed to high temperature, such as the
glove compartment or dash-board of a car.
Doing so may result in deterioration of the watch, such as deformation of plastic parts.

• Do NOT place the watch close to a magnet.
Timekeeping will become inaccurate if you place the watch close to magnetic health
equipment such as a magnetic necklace or a magnetic latch of a refrigerator door or
handbag clasp or the earphone of a mobile phone. If this has occurred, move the watch
away from the magnet and reset the time.

• Do NOT place the watch close to household appliances that generate static electricity.
Timekeeping may become inaccurate if the watch is exposed to strong static electricity,
such as is emitted from a TV screen.

• Do NOT subject the watch to a strong shock such as dropping it onto a hard floor.

• Avoid using the watch in an environment where it may be exposed to chemicals or
corrosive gases.
If solvents, such as thinner and benzine, or substances containing such solvents come
in contact with the watch, discoloration, melting, cracking, etc. may result. If the watch
comes in contact with mercury used in thermometers, the case, band or other parts may
become discolored.

15. Specifications

1. Caliber No.: U010

2. Type: Combination quartz watch

3. Time-keeping accuracy: Within ±20 seconds per month on average (when worn at

normal temperatures of +5˚C to +35˚C/41˚F to 95˚F)

4. Operating temperature range: 0˚C to +55˚C (32˚F to 131˚F)

5. Display functions:

Analog display: Hours, minutes, seconds (3 hands)
Digital display: * Time: Hours, minutes, seconds, city name

* Calendar: Month, date, day, city name, year (displayed only during

correction)
* Alarm: Hours, minutes, ON or OF (off), city name
* Chronograph: 24 hour timing (1/100 second units), split time
* Timer: 60 minute timing (1 second units)
* Zone setting: Setting of city display or non-display, setting of day-

light savings time

34 35

6. Additional functions:

* Shutter function
* Time and date display function for UTC and 30 cities around the

world

* EL illumination function

7. Battery: Battery no.: 280-44/battery code: SR927W

8. Battery life: Approx. 3 years (when the alarm tone sounds for 15 seconds/day, timer

confirmation tone sounds for 5 seconds/day, EL illumination is used for
3 seconds/day and the chronograph is used for 24 hours/week)

*Specifications are subject to change without notice.
