LINE THERMAL PRINTER
MODEL
iDP3210
iDP3210 User’s Manual
Declaration of Conformity
Manufacturer’s Name : : Japan CBM Corporation
Manufacturer’s Address : CBM Bldg.,5-68-10, Nakano,
Nakano-ku, Tokyo 164-0001, Japan
Declare the Product
Product Name Thermal Printer
Model Number(s) iDP3210 Series
(iDP3210R, iDP3210P)
(S.No.0090001 ~ )
Conform to the following Standards
LVD : EN60950 : A4:1997
EMC : EN55022 : 1998 Class A
: EN61000-3-2 : 1995+A1:1998+A2:1998
: EN61000-3-3 : 1995
: EN55024 : 1998
: EN61000-4-2 : 1995 ±4KV CD, ±8KV AD
: EN61000-4-3 : 1996 3V/m, 80MH-1000MHz AM 1KHz 80%
: EN61000-4-4 : 1995 ±1.0KV (AC Mains), ±0.5KV (Signal Lines)
: EN61000-4-5 : 1995 ±1KV (Normal mode), ±2KV (Cmmon mode)
: EN61000-4-6 : 1996 3V, 0.15MHz-80MHz AM 1KHz 80%
: EN61000-4-8 : 1993 50Hz, 1A/m
: EN61000-4-11 : 1994 0%, 5000ms/ 70%, 500ms/ 0%, 10ms
Supplementary Information
“The product complies with the requirements of the Low Voltage Directive 73/23/EEC, 93/68/EEC and
the EMC Directive 89/336EEC, 92/31/EEC, 93/68EEC”
Place Tokyo, Japan Signature
Date September, 2000
Full Name: Mikio Moriya
Position: General Manager
Europe Contact :
Norco Declaration AB
Box 7146 S-250 07 Helsingborg Sweden
Warning :
This is a Class A products. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
R & D Department
This declaration is applied only for 230V model.
CITIZEN
iDP3210 User’s Manual
IMPORTANT SAFETY INSTRUCTIONS
• Read all of these instructions and save them for future reference.
• Follow all warnings and instructions marked on the product.
• Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use
a damp cloth for cleaning.
• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. The product may fall, causing serious
damage to the product.
• Slots and openings on the back or bottom of the case are provided for ventilation. To ensure reliable
operation of the product and to protect it from overheating, do not block or cover these openings. The
openings should never be blocked by placing the product on a bed, sofa, rug of other similar surface.
This product should never be placed near or over a radiator or heater. This product should not be
placed in an built-in installation unless prop er ventilation is pro vided.
• This product should be operated from the type of power source indicated on the marking label. If you
re not sure of the type of power available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not place this product where the cord will be
walkedon.
• If an extension cord is used with this product, make sure that the total of the ampere ratings of the
products plugged into the extension cord does not exceed the extension cord ampere rating. Also,
make sure that the total of all productsplugged into the wall outlet does not exceed 15 amperes.
• Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid
of any kind on the product.
• Except as explained elsewhere in this manual, do not attempt to service this product by yourself.
Opening and removing the covers that are marked “Do Not Remove” may expose you to dangerous
voltage poin ts or oth er risks. Refer all servicingon thosecompartments to service personnel.
• Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
A. When the power cord orplug is damaged or frayed.
B. If liquid has been spilledinto the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally when the operating instructions are followed. Adjust only
those controls that are covered be the operating instructions since improper adjustment of other
controlsmayresultindamageandwilloftenrequireextensiveworkbyaqualifiedtechnicianto
restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F . If the product exhibits a distinct change in performance, indicating a need for service.
• Pleasekeepthepolybagwhichthisequipmentispackedinawayfromchildrenorthrowitawayto
prevent children fromputting it on. Putting it on may cause suffocation.
CITIZEN
iDP3210 User’s Manual
WICHTIGE SICHERHEITSANWEISUNGEN
• Lesen Sie die nachfolgenden Anweisungen sorgfältig durch und bewahren Sie sie auf.
• Befolgen Sie alle auf dem Drucker vermerkten Hinweise und Anweisungen. Vor dem Reinigen
grundsätzlich St ecker aus der Steckdose ziehen. Keine Flüssigkeiten oder Aerosolreiniger benutzen.
Nut mit einem feuchtenTuchabwischen.
• Der Drucker darf nicht in der Nähe von Wasser aufgestellt werden.
• Drucker nicht auf einem unstabilen Wagen, Stand oder Tisch aufstellen. Der Drucker könnte
herunterfallen und dabel beschädigt werden.
• Schlitze und Öffnungen im Gehäuse, in der Rückwand und im Boden dienen der Belüftung. Sie
dürfen keinesfalls zugedeckt oder blockiert werden, da sich der Drucker sonst überhitzt. Drucker
nicht auf ein Bett, Sofa, Teppich oder dergleichen stellen. Drucker nicht in der Nähe eines
Heizkörpers aufstellen. Drucker darf nicht eingebaut werden, falls nicht für ausreichende Belüftung
gesorgt ist.
• Drucker nur mit der auf dem Typschild angegebenen Spannung betreiben. Wenn Sie sich nicht sicher
sind, fragen Sie ihren Händler oder ihr zuständiges Elektrizitätswerk.
• Nichts auf das Stromanschlußkabel stellen. Kabel muß so verlegt werden, daß man nicht darauftreten
kann.
• Ein etwaiges Verlängerungskabel muß der Stromstärke aller daran angeschlossenen Geräte entsprechen.
• Keine Gegenständ ein die Gehäuseschlitze schie ben.
• Drucker darf nur da gewartet werden, wo im Handbuch angegeben, Öffnen und. Abnehmen von
Abdeckungen, die mit “Do not remove” gekennzeichenet sind, könnte gefährliche spannungführende
Stellen oder sonstige Gefahrenpunkte freilegen. Die W artung solcher Stellen darf grundsätzlich nur
von besonders ausgebildetem Fachpersonal vorgenomm en werden.
A.Wenndas Stromanschlußkabel oder der Stecker beschädigt oder durch-gescheuert ist.
B. Wenn Flüssigkeit auf dem Drucker verschüttet wurde.
C.Wennder Drucker im Regen gestanden hat oder Wasser darauf verschüttet wurde.
D.Wenn der Drucker trotz genauer Befolgung der Betriebsvorschriften nicht richtig arbeitet. Nur die
in der Bedienungsanleitung angegebenen Einstellungen vornehmen. Ein Verstellen anderer
Bedienungselemente könnte den Drucker beschädigen und macht umständliche Arbeiten eines
qualifizierten Technikers erforderlich, um den Drucker Wieder auf den normalen Betrieb
einzustellen.
E. W en nder Drucker heruntergefallen ist oder das Gehäuse beschädigt wurde.
F. W e n nder Drucker in seiner Leistung nachläßt.
• Bitte halten Sie den Kunststoffbeutel, in den die Ware verpackt ist, von Kindern entfernt, oder werfen
Sie ihn weg, damit er nicht in die Hande von Kindern gerät. Das Überstülpen des Beutels kann zum
Ersticken führen.
Lärmemission kleiner 70dBA
CITIZEN
iDP3210 User’s Manual
IMPORTANT: This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used in accordance with the instruction manual, may cause interference to radio
communications. It has been tested and found to comply with the limits for a Class A computing device
pursuant to Subpart J of Part 15 off FCC Rules, which are designed to provide reasonable protection against
such interference when operated in a commercial environment. Operation of this equipment in a
residential area is like ly to cause interference, in which case the user at h is own expense will be required to
take whatever measures m aybe necessary to correct the interference.
CAUTION: Use shielded cable for this equipment.
Sicherheitshinweis
Die Steckdose zum Anschluß dieses Druckers muß nahe dem Grät angebracht undleicht zugänglich sein.
For Uses in Canada
This digital apparatus does not exceed the class A limits for radio noise emissions from digital, apparatus,
as set out in the radiointerferenceregulations ofthe Canadian department of communications.
Pour L’utilisateurs Canadiens
Cet appareil numérique ne dépasse pas les limites de carégorie a pour les émissions de bruit radio émanant
d’appareils numériques, tel que prévu dans les réglements sur l’interférence radio du départment Canadien
des communications.
CITIZEN
iDP3210 User’s Manual
<CAUTIONS>
1. Before using the equipment, be sure to read this User's Manual thoroughly. Please keep this with care so as to
referred to anytime at need.
2. Portions ofthe contentsof thisUser’smanualmay bechangedwithout prior notice.
3. The reproduction of parts or all of the contents of this User’smanual without permission is strictlyforbidden.
4. Absolutely do not carry out maintenance, disassembly, or repair of parts that are not specified in this User’s
manual.
5. Note that losses which may be attributed to the user’s wrong operation method or operating environment will be
outside the responsibility of this com pany
6. Do not carry out operations other than those explained in this User’s manual, since doing so m ay become a cause
of accidents or breakdowns.
7. Because data is basically transient, long-period and permanent storage of data will not be possible. Please note in
advance that this company will not be responsible in any way for losses or lost profits caused through the clearing
of the data due to breakdowns, repairs, investigations, etc.
8. If any questionable points, mistakes, omitted explanations, etc. are found in the contents of this manual, please
contact this company.
9. Please note that notwithstanding the conditions in above 8, this company will not be responsible for the
consequences of results obtained through operation of this equipment.
This symbol represents anillustration shown to attract user’s attention..
This symbol represents anillustration shown the information like method etc… .
CITIZEN
iDP3210 User’s Manual
WARNING
• Do not subject this equipment to excessive force or shocks such as by treading on it, dropping it or
hittingit.
• Do not install this equipment in locations with poor ventilation, and do not use the equipment in such
way that the ventilat ion port is obstructed.
• Do not use this equipment in locations such as laboratories in which chemical reaction takes place, or in
locations in which the air includes salt or toxic gases.
• Do not use this equipment at voltages other than the specified voltage or at frequencies other than at the
specified frequencies.
• Do not insert or remove the power cables or interface cable by pulling on the cable, and do not carry the
main unit in such way as to subject the cablesto force.
• Do not drop or insert foreign objects like paper clips or split pins, etc. into the equipment. In case of
dropping those foreign objects into the equipment, remove power supply plug and contact your sales
shop.
• Do not arrange the power cable so that many plugs are using same power outlet. Do not use the
equipment in the situation where there is any breakage on the power supply cable or electrical contact is
not proper.
• Do not spill drinks such as tea, coffee or juice, or spray anti-mosquito preparations, etc onto the
equipment. In case of spilling drinks like water, switch off the power, remove power supply cable and
contact your sales shop.
• Do not attempt to disassemble or modify this equipment, since these actions will cause fire or electric
shock.
• Please keep t he poly bag which this equipment is packed in away from children or throw it away to
prevent children fromputtingit on, puttingon itmay cause suf focation to them
CITIZEN
iDP3210 User’s Manual
PRECAUTIONS FOR INSTALLATION
• Do not install or store this printer near fire, water, a heater, in the direct sunshine in the locations such as
high-temperature, high humidity, oily and dus ty. This may cause fire and abnormality.
• Do not use this printer in locations such as laboratories in which chemical reactions take place, or in
locations in which the air includes salt or toxic gases. This may cause a fire or electric shock.
• Make sure to install this printer onthe verticalmounting panel with no vi bration.
• Do not use this printer in the locations have environment to cause a trouble in operations.
• Do not put anything on the printer unit. This may cause a breakage.
• To fix this printer, make sure to use enclosed rack mounting bracket and screws. Do not fasten the
screws excessively. This maycause abnormalityand breakage.
• Do not use this printer near radio or television, and do not use same outlet as the one used for radio and
television. This may cause a trouble with receiving an electric wave.
• Do not use voltage or power supply other than specified in this manual. This may cause breakage and a
fire.
• Make sure that capacity of the power supply connected to this printer is enough before using this printer.
• Absolutely do not connect the earth with gas pipe. This may a possibility of explosion. Make sure to
remove the power plug from power outlet in case of connect or disconnect the earth.
• Make sure to connect or disconnect the cable holding the main body of connectors after switching off
the both power of this equipment and the equipment which this equipment is connected to.
• Certainly connect the connector cables. Especially, if the polarity is connected in reverse way, this may
cause the damage to the internal parts or to the equipment which this equipm ent is connected to.
• To avoid data transmission error due to noise, make sure not to use too many extension power supply
cables , or not to connect the other equipment createsmuch noise with this single line.

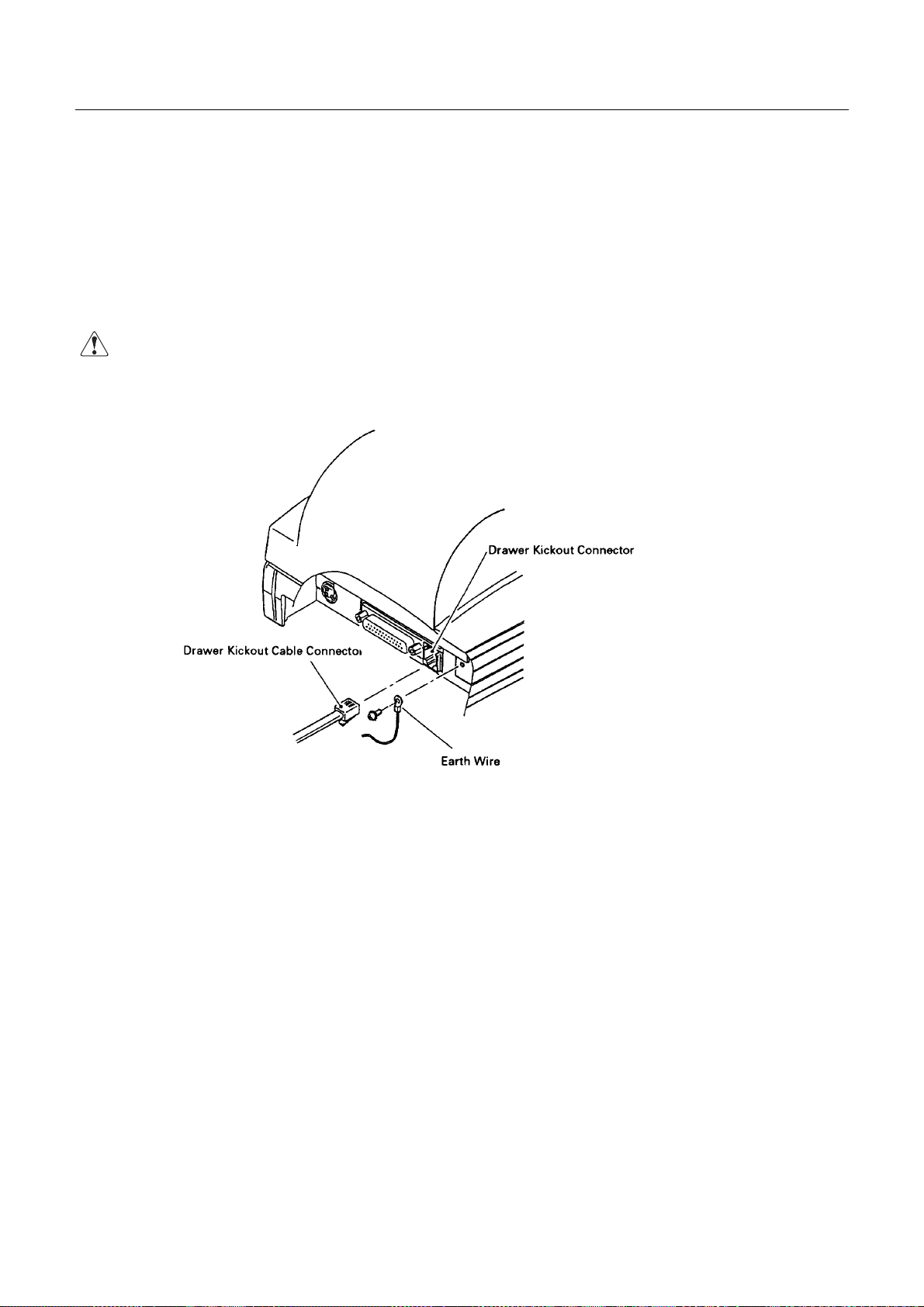

• For the model with a drawer kick-out connector, Do not connect an equipment with its solenoid
specified other than the specified in thismanual. This may cause breakage.
• Use this equipment i na place closeto a plug socket which is easily accessible for cutting off power.
• For transport, remove the roll paper from the printer.
CITIZEN
iDP3210 User’s Manual
CAUTION FOR HANDLING
Do not carry out the following operation, since they may be cause of breakage.
• Do not carry out blank printing in the condition where there is no recording paper, this may make a
damage to print head.
• Do not drop any foreign subjects like paper clips,or splits pins, etc. into the printer unit.
• Do not spill any drinks or chemical liquid onto the printer units.
• Do not subject this equipment to excessive force shocks such as by treading on it, dropping it or hitting
it.
• Do not operate the operation panel using sharp objects such as the top ofa pen etc.
• Do no tuse sheets of paper by adhering them together with plastic tape, etc…
• Do not pull the paper in printer forcibly by hand in condition that the platen roller unit is positioned
properly.
To avoid injury and prevent damage from spreading
• Do not touch the printing portion of print head.
• During operation, do not touch moving parts such as gears, or the electrical parts inside the printer units.
• Take care not to injure yourself or otherobjects from the edgeof the sheet metal.
• If an abnormality occurs during use, immediately stop using the printer and remove the power cable
from the power source outlet.
• If a breakage occurs, do not attempt to disassemble the equipment. Be sure to leave the repair of this
equipment to Service personnel.
CITIZEN
iDP3210 User’s Manual
This Cautionlabel is attached in the following position.
Make sure to use this equipment properly reading the cautions for handling carefully.
This label indicates the
danger of burn due to
the heat of print head.
CITIZEN
iDP3210 User’s Manual
ORDINALY MAINTENANCE
• Make sure to maintain the equipment after switching OFF the power.
• When cleaning the platen of printermechanism, wipe out the dirty portion by a cotton pud dipped into
ethyl alcohol.
• When cleaning the surface of the main unit case, use soft cloth. In case the dirty portion can not be
cleared out by the soft cloth, use wet cloth squeezed tightly. Absolutely do not use thinners, trichlene,
benzine or keto ne group solvents, or chemical-impregnated cleanin gcloths.
• In case the print head becomes dirty because of paper dust, clean it by using a soft brush.
CAUTION Do not conduct the maintenance right after pr inting, since print head andmotor
are so hot.
Head Cleaning
z
1. Referring to "4. Operation4.6 Removing of Paper Jam", remove the platen roller unit.
2. Apply ethyl alcohol on a cotton pud and use this to wipe off dust on the surface of a heating unit.
3. Mount the platen roller unit.
CAUTION Do not touch the surface of a heating unit of the print head by naked hands or
metal objects. Do not carry out these procedures right after printing due to the
heat of head motor
CITIZEN
iDP3210 User’s Manual
CONTENTS
1. OUTLINE...........................................................................................................................................................1
1.1 Features ...........................................................................................................................................................1
1.2 Unpacking .......................................................................................................................................................1
2. BASIC SPECIFICATIONS..............................................................................................................................3
2.1 Model Classification........................................................................................................................................3
2.2 Basic Specifications ........................................................................................................................................4
2.3 Printing Paper Specifications ..........................................................................................................................5
2.3.1 Recommended Paper............................................................................................................................5
2.3.2 Printing position...................................................................................................................................6
2.3.3 Head and Cutter Layout.......................................................................................................................6
3. OUTER APPEARANCE ANDCOMPONENTS............................................................................................7
4. OPERATION.....................................................................................................................................................8
4.1 Connecting AC Adapter..................................................................................................................................8
4.2 Connecting Interface Cable .............................................................................................................................9
4.3 Connecting Drawer Kickout Connector........................................................................................................10
4.4 Setting the Roll Paper....................................................................................................................................10
4.4 Setting the Roll Paper....................................................................................................................................11
4.5 How to Remove RemainingRoll Paper ........................................................................................................13
4.6 Removing Paper Jam.....................................................................................................................................13

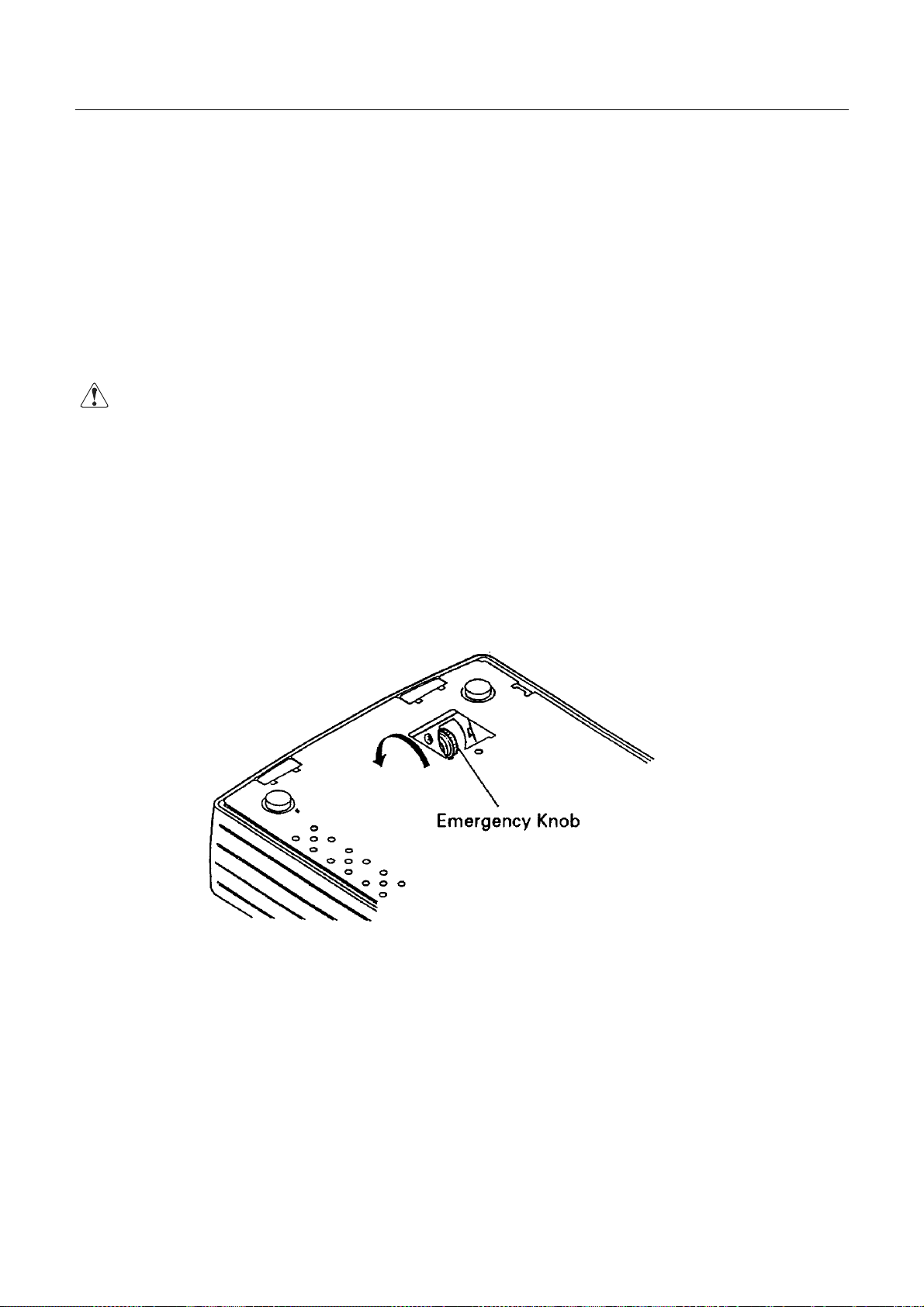

4.7 Canceling Cutter Lock...................................................................................................................................14
4.7 Canceling Cutter Lock...................................................................................................................................15
4.8 Cleaning Print Head ......................................................................................................................................15
4.8 Cleaning Print Head ......................................................................................................................................16
4.9 Operation Panel and Display of Error............................................................................................................17
5. Dip Switch Setting............................................................................................................................................19
5.1 Location of Dip Switch .................................................................................................................................19
5.2 Dip Switch Setting.........................................................................................................................................20
6. INTERFACE (Connecting with Peripheral Equipment) .............................................................................21
6.1 Parallel Interface............................................................................................................................................21
6.1.1 Specifications.....................................................................................................................................21
6.1.2 Connectoe’s Pin Configuration..........................................................................................................21
6.1.3 I/O SIGNALS ....................................................................................................................................22
CITIZEN
iDP3210 User’s Manual
6.1.4 Electrical Characteristics....................................................................................................................23
6.1.5 TIMING CHART...............................................................................................................................23
6.1.5 TIMING CHART...............................................................................................................................24
6.1.6 Data Receiving Control......................................................................................................................24
6.1.7 Buffering............................................................................................................................................24
6.2 Serial Interface..................................................................................................................................................25
6.2.1 Specifications......................................................................................................................................25
6.2.2 Connector’s Pin Configurations..........................................................................................................26
6.2.3 I/O SIGNALS.....................................................................................................................................27

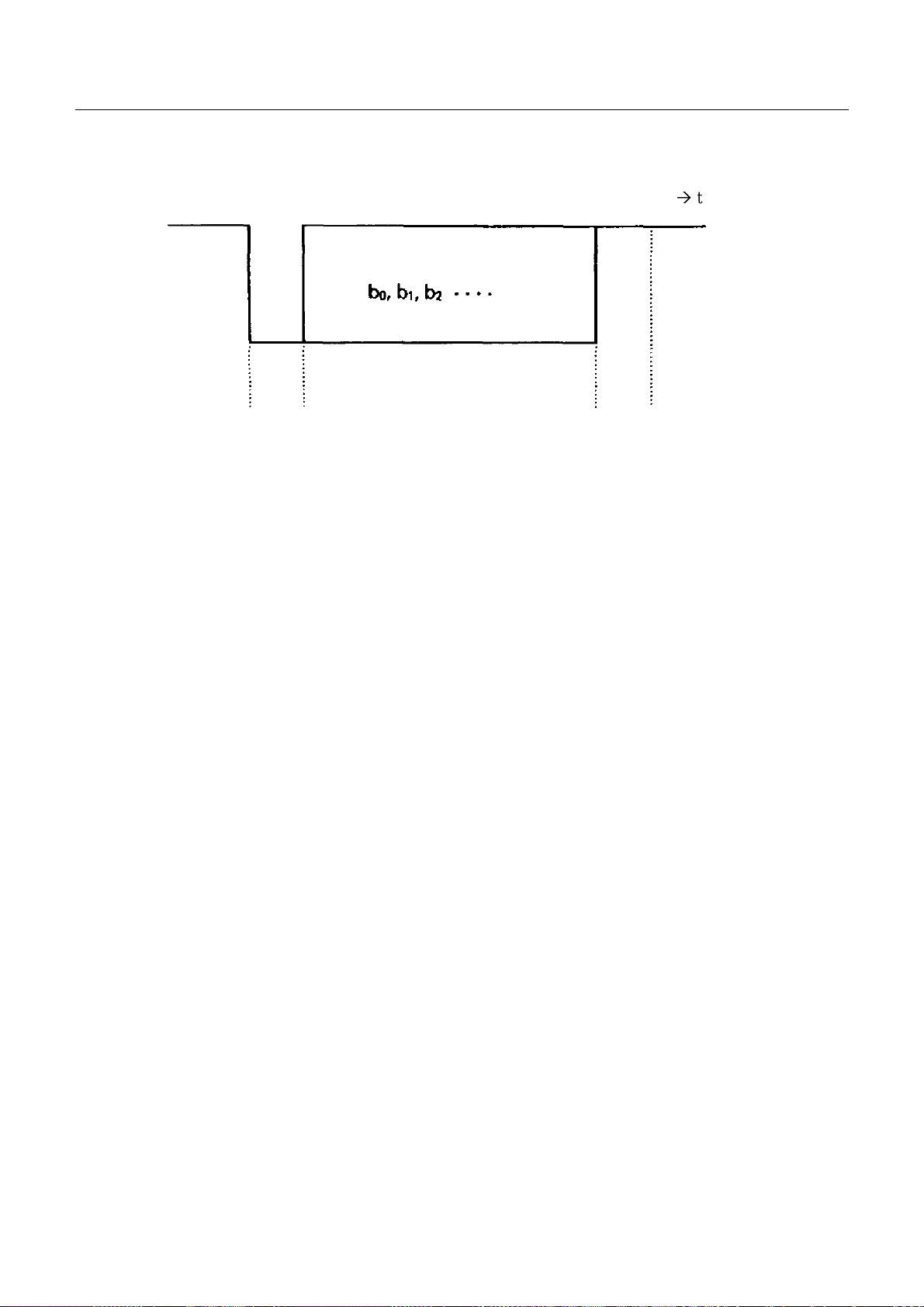

6.2.4 Data Configuration..............................................................................................................................28
6.2.5 Error Detection....................................................................................................................................29
6.2.6 Data Receiving Control......................................................................................................................29
6.2.7 Buffering.............................................................................................................................................29
6.2.8 ELECTRICALCHARACTERISTICS...............................................................................................30
7. DRAWER KICKOUT CONNECTOR..........................................................................................................31
7.1 Specifications ................................................................................................................................................31
7.2 Connector’s Pin Configurations ....................................................................................................................31
7.3 Drive Circuit..................................................................................................................................................31

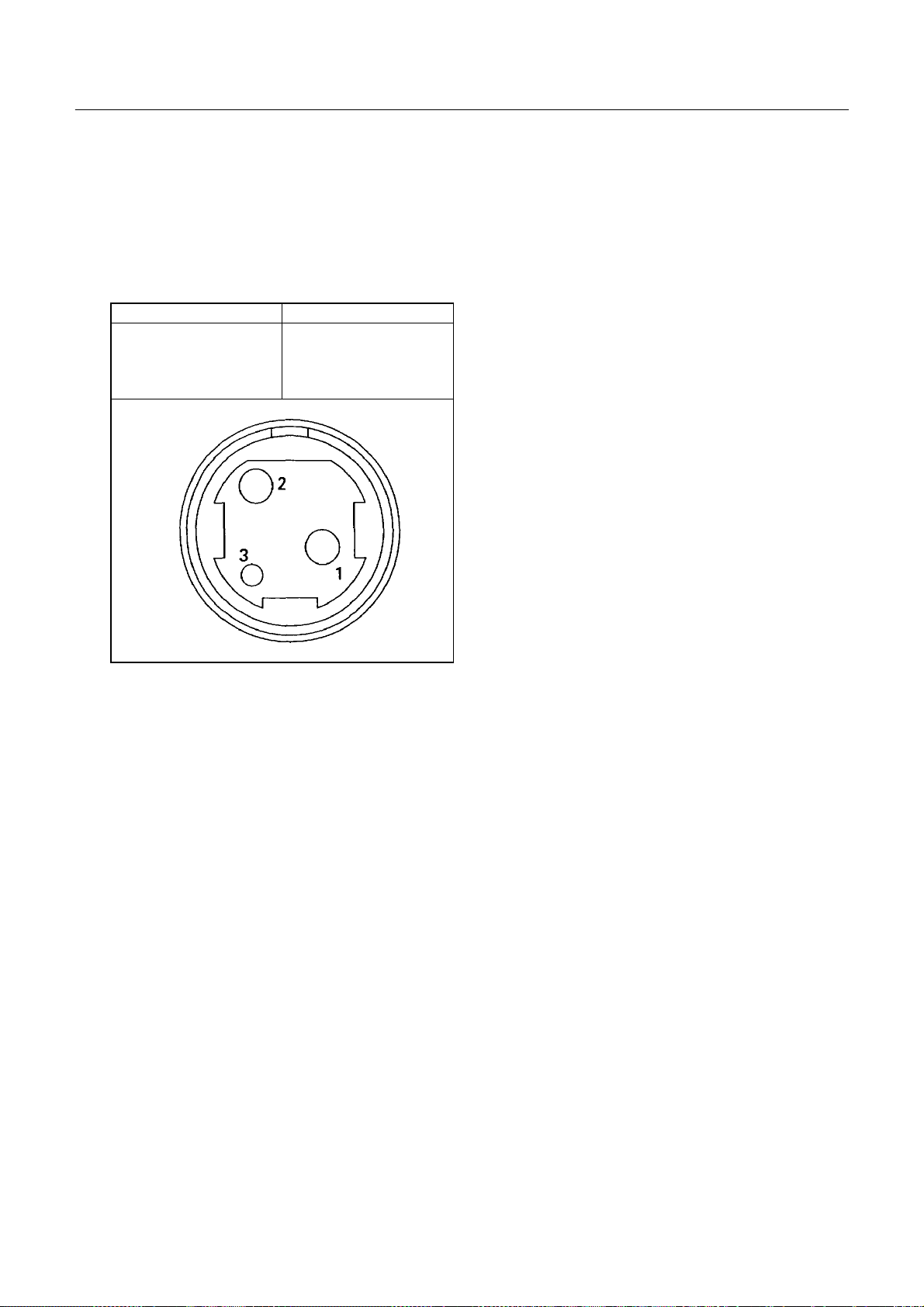

8. POWER SUPPLY CONNECTOR SPECIFICATIONS..............................................................................32
9. PRINT CONTROL FUNCTION....................................................................................................................33
9.1 Command List...............................................................................................................................................33
9.2 Command Details..........................................................................................................................................34
10. CHARACTER CODE TABLE.......................................................................................................................55
10.1 International (IBM Character #2)..............................................................................................................55

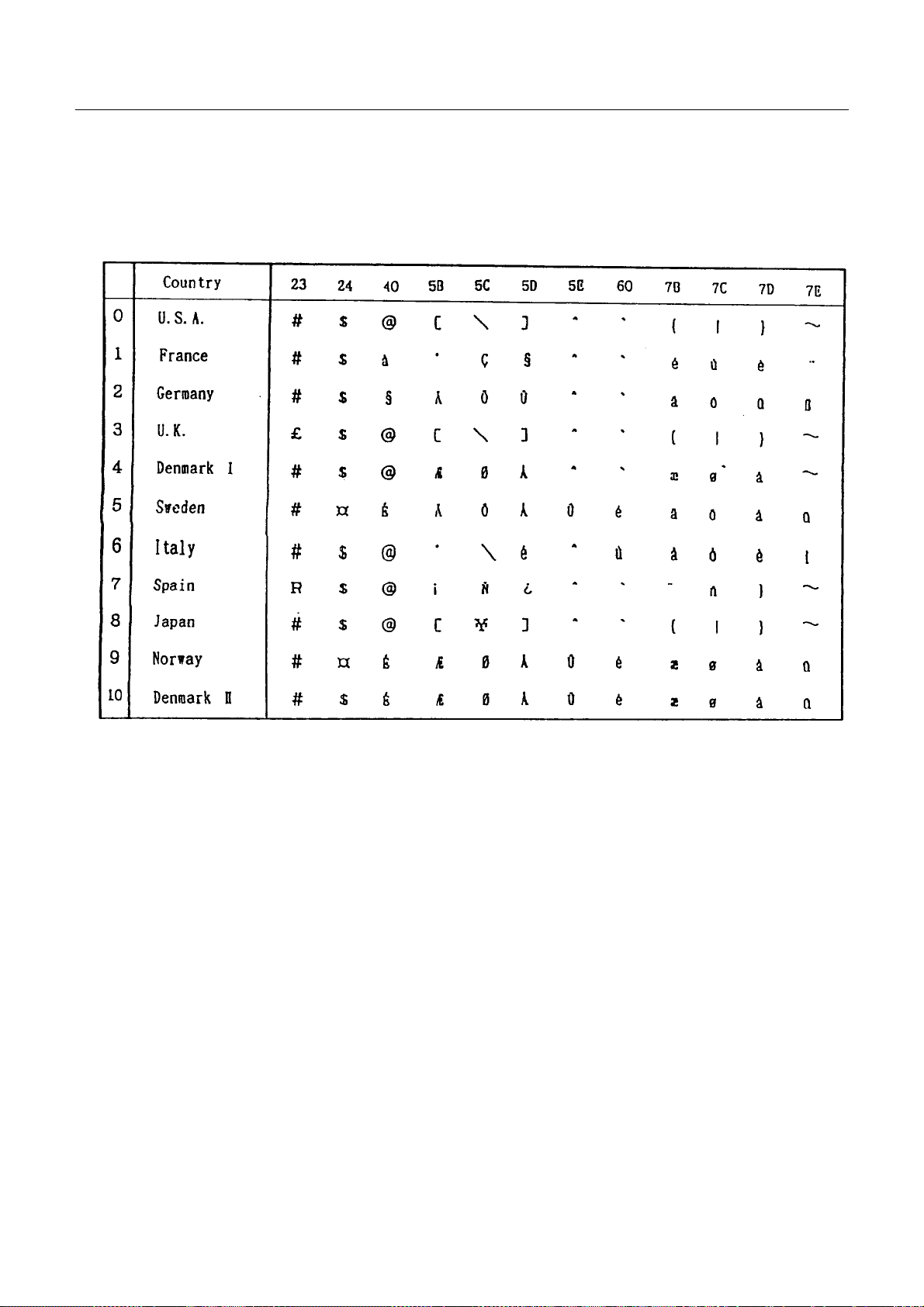

10.2 International Character Code Table...........................................................................................................56
Appendix1 Outline Drawing.....................................................................................................................................57
1.1 Outler Drawing of Printer (Model : iDP3210) ..............................................................................................57

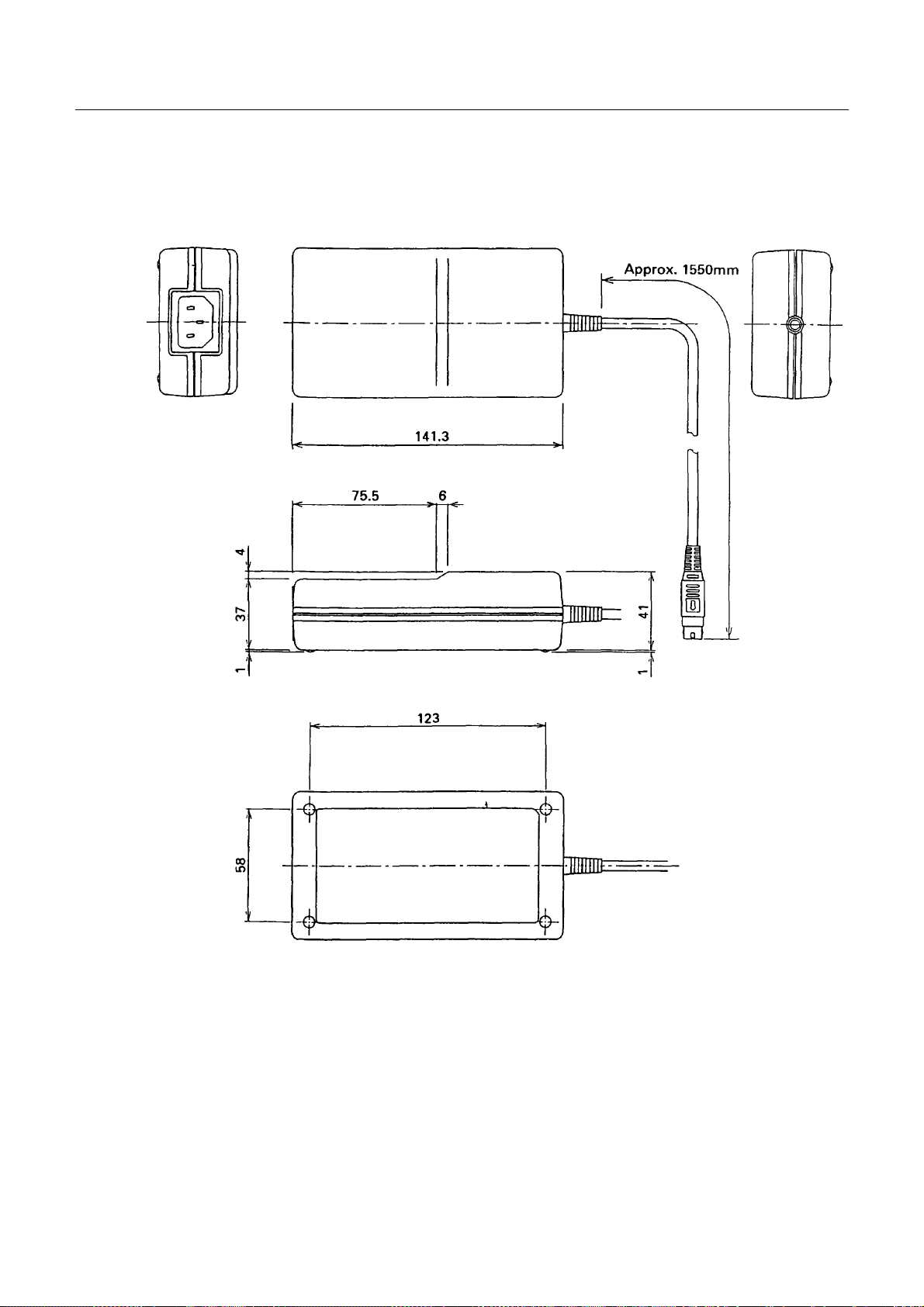

1.2 Outer Drawing of AC Adapter (Model : 30AD)...........................................................................................58
Appendix2 Block Diagram........................................................................................................................................59
CITIZEN
iDP3210 User’s Manual
1. OUTLINE
This printer , a small-sized line thermal printer, has been developed to be applicable to various data
communication terminals, POS terminals, kitchenprinters, etc..
As being provided with many abundant functions, it can be used widely in various applications. Before you
start using it, read this manual thoroughly and understand the content.
1.1 Features
(1) Light weight and small foot print.
(2) Easy paper setting due to auto loading function.
(3) Easy maintenance andcleaningof printhead due tothe removable platen design.
(4) High speed printing and quietprinting due to Line thermal printing.
(5) Highreliability due to long life ofprinter head and simple design.
(6) Input buffer incorporated.
(7) Bar code printing is available.(Exclusive command)
(8) Drawer kick-out interface incorporated.
(9) Equipped withan auto cutter.
1.2 Unpacking
(1) Upon unpacking the printer,make sure that the following parts are containedin thispackage.
Printer mainunit.......................... × 1
Sample roll paper......................... × 1
AC Adapter .................................× 1
AC power supply cord .................× 1
User’s Manual............................. × 1
1
CITIZEN
iDP3210 User’s Manual
(2) Whenusing theprinter, remov e the protectivepaper of the thermal head in the following procedures:
1) Open the printer cov er.
2) Holdingthe paper guide of the platen roller section, pull it in the arrowed direction.
3) Pull out theprotective paper in the arrowed direction.
4) In case the printer is not used for a long time period of time, set the protective paper to keep platen roller
awayfromthermalhead.
CAUTION Install this printer on a flat and stable table.
Do not install this printer near to aheater or inthe direct sunshine.
Do not use this printer in locations with high temperature, high humidity or heavy dirt. In
case of the occurrence of dew condensation, do not switch the power ON until it goes out
2
CITIZEN
2. BASIC SPECIFICATIONS
2.1 Model Classification
iDP3210 -R F 120
AC Adapter
120 : for AC 120V
230 : for AC 230V
Model name
Character set
F: International
Interface
R: Serial (RS232C)
P: Parallel(Conforms to Centronics)
iDP3210 User’s Manual
*Model name of exclusive AC Adapter and AC power supply cord
30AD-U (120V 3 pins cord)
30AD-E (230V 3 Class I cord)
3
CITIZEN
iDP3210 User’s Manual
2.2 Basic Specifications
Item Description
Printing system Line thermal dot printingsystem
Print width 73.92 mm/448 dots
Dot pitch Horizontal 0.165mm (approx. 6 dots/mm)
Vertical 0.163mm(1/156 inch)
Printingspeed 73.3mm/sec. (Max. Print density= Standard) (450 dot line/sec)
No. of printing columns 44 columns (10 x 16 dots)or 42 columns (10 x 16 dots)
(can be selected by dip switch.)
Character size 1.485mm x 2.61mm(9 x 16 dots)
Character type Alphanumeric, International characters
Bar code type UPC-A/E, JAN(EAN) 13 columns/18 columns, ITF
CODE 39, CODE 128, CODABAR
Linepitch 1/6 inch(approx. 4.23mm) (can be selected by Command)
Min. 1/156 inch(approx. 0.163mm)
Paper
Thermalrollpaper 80
Interface Serial (RS-232C), Parallel (Conformsto Centronics.)
Input buffer 4K byte
Power supply voltage DC 24 +/- 7%
+0
mm ×φ83 mm (Max.) (See Paper Spec.)
–1
Power consumption 100W
Spec. of AC Adapter Rated input : AC100V - 240V, 50/60HZ, 120VA
Rated output : DC24V, 1.8A
Model 31AD-U(For 120V) 31AD-E(For 230V)
Weight Main unit : 1.3 kg, AC Adapter : 0.45 kg
External dimensions (main body)
152(W) × 201(D) × 123(H)
Operating temperature/humidity 5 ~ 40°C, 35 ~ 85%RH (free of dew condensation)
Storage temperature/humidity –20 ~ 60°C, 10 ~ 90%RH (free of dew condensation)
Reliability Print head’ s life : Pulse resistance 50 millionpulses
Wear resistance 100 Km
(Printingratio 12.5%, normal temperature,
normal humidity, recommended paper)
Autocutter’s life : 500,000 cut (Normal temperature,
normal humidity, recommended paper)
Safety / EMI Standard
120V Model : UL, C-UL, FCC Class A
230V Model : TÜV, GS, CE, Marking
4
CITIZEN
2.3 Printing Paper Specifications
2.3.1 Recommended Paper
T ype : Thermal paper
Paper width : 80
+0
mm
–1
Paper thickness : 65 ± 5m
Roll diameter : φ83 mm or less
Printed surface : Outside of the roll (surface)
Recommended paper : TF50KS-E2C made by Nippon Seishi or other equivalent
Core : φ12 mm(inner diameter), φ18 m m(outer diameter)
CAUTION 1. In case of using the paper other than the specified, print quality may vary.
2. In such case, change print density by dip switch setting. (See “5 Dip Switch Setting”).
3. Do not paste the paper to the core.
4. Chemicals or oil m ay change the color of paper, or printed characters may be vanished.
iDP3210 User’s Manual
5. Change of paper color starts from approx. 70°C. Pay attention to heat, humidity and sun
light
5
CITIZEN
2.3.2 Printing position
iDP3210 User’s Manual
2.3.3 Head and Cutter Layout
6
CITIZEN
3. OUTER APPEARANCE AND COMPONENTS
iDP3210 User’s Manual
7
CITIZEN
iDP3210 User’s Manual
4. OPERATION
4.1 Connecting AC Adapter
(1) Turn off the power switch.
(2) Holding the AC Adapter cable connector with its arrowed side facing downward, put it into the power
connector on the rear side of the printer.
(3) Connecting the AC power cord to the AC Adaptor, put the AC plug of the cord into the plug socket.
CAUTION Do not use the power supply unit other than the specified. In connecting / removing the
cable connector,make sure to do this ho ld in gthe side of arrow mark.
Make sure to use the power outlet for this power supply unit separated from the one used
for the other equipment creates noise
8
CITIZEN
4.2 Connecting Inter face Cable
(1) Turn OFF the power switch. (Both for the printer and the host side.)
(2) Confirming the up and down side of the cable terminal, connect it to the interface connector.
(3) Fix the cable terminal.
Serial interface: Tighten screws.
Parallel interface: Turn to tighten thefixing parts.
(4) Connect the cable to the host side.
iDP3210 User’s Manual
9
CITIZEN
iDP3210 User’s Manual
4.3 Connecting DrawerKickout Connector
(1) Turn OFF the power switch.
(2) Confirming the up and down side of the drawer kickout cable connector, put it into the drawer kickout
connector on the rear side of the printer.
(3) Fix, with a screw, the drawer earth wire to the printer earth termin al.
CAUTION Do not connect the drawer (solenoid) other than the specified.
10
CITIZEN
iDP3210 User’s Manual
4.4 Setting the Roll Paper
CAUTION Do not use the roll paper other than the specified in thismanual.
In case of using the roll paper other than the specified, there is a case that the print quality
and reliability may not be guaranteed.
(1) Holding the projections on the both sides of the printer cover, open it until it stops.
CAUTION The printer cover is not detachable. Do not try to further open beyond the stop position.
Do not insert roll paper with its end fluffed orbent.
(2) Cut the end of roll paper approximately at a right angle.
CAUTION Do notinsert roll paper with its endfluffed or bent.
Good Good Good No Good No Good No Good
(3) Confirming winding direction ofroll paper, put it on the roller section of the uppercover.
(4) Turn ON the power switch.
(5) Insert the tip of roll paper straight into the paper inlet (as indicatedby an arrow on the case).
(6) Paper is automatically pulled into the platen roller and led into the inside of paper cutter.
(Paper com es out from paper outlet slightly.)
(7) With the printer cover closed, paper feed is carried out automatically for a few lines and paper cut is carried
out automatically. After this, printer is ready to print.
Then, remove the excessive paper which was cut automatically.
11
CITIZEN
iDP3210 User’s Manual
CAUTION In case the slack of paper remains, adjust the position of roll paper pulling paper guide to
the front side. In case the paper is tilting, keep pressing FEED switch after closing printer
cover. Then, this tilting is automatically corrected. Do not open printer cover during
printing. Do not hold the paper coming from the outlet during printing, this may cause a
paper jam. For using auto paper cutter at full cut mode, please remove printed paper which
was cut before next printing starts.
12
CITIZEN
iDP3210 User’s Manual
4.5 How to RemoveRemaining Roll Paper
(1) Open the printer cover.
(2) Holding the paper guide, pull it in the arrowed direction. The platen roller is detached from the print he ad
and the remaining paper can bepulled out.
CAUTION Be sure to use the paper guide for pulling out paper. (Opposite direction).
4.6 Removing Paper Jam
(1) Open the printer cover.
(2) Cut off the roll paper near the paper inlet.
(3) Detaching, from the chassis hook, the head springs on both sides by moving them in arrowed direction, lift
them up.
(4) Lift up the paper guide knob and the platen roller unit can be detached.
(5) Completely remove the roll paper remains inside of the paper course.
(6) Confirming direction of the platen roller unit, insert it into the inside of bush guide of chassis.
(7) Lightly pushing the platenroller unit, fitthe headsprings on both sides on the hook part.
13
CITIZEN
iDP3210 User’s Manual
CAUTION Since print head a nd motor are hot, do not carry out this action right after printing. In case
of moving the head springs, do not move it beyond the removable range of the springs.
For removing the remaining paper, do not touch the surface of heating unit of the print
head by naked hands or bya metal piece etc.
Except for the necessary case such like removing paper jam, do not remove the platen
roller unit. In case of inserting roll paper, make sure to confirm this was inserted correctly.
14
CITIZEN
iDP3210 User’s Manual
4.7 Canceling Cutter Lock
(1) As referring to "4.6 Removing Paper Jam", remove the roll paper remains inside the paper course.
(2) Press the FEED switch. The auto cutter performs initialization, returning the blade to home position and
canceling alarm state.
(3) When the blade does not return to ho me position or alarm state is not canceled by Item 2operation, turn off
the power switch and, by turning the emergency knob inside the hole at the bottom of the main unit in the
arrowed direction, return the auto cutter blade to home position.
(4) Fully remove remaining paper on the cutter blade through using tweezers.
CAUTION Since print head and motor are hot, do not carry out this action right after printing. For
removing the remaining paper, donot touch the surface of heating unit of the print head by
naked hands or by a metal piece etc.
Paper cutter enable/disable can be selected by dip switch setting. In case of using this
printer at p aper cutter disable mode, make sure to confirm the cutter blade is in the home
position. In case the cutter blade is not in the home position, return this blade to the home
positionby followingthe above procedure.
15
CITIZEN
iDP3210 User’s Manual
4.8 Cleaning Print Head
(1) As referring to "4.6 Removing Paper Jam”, remove the platen roller unit.
(2) Using a cotton pud containing ethyl alcohol, wipe off dust, etc. on the surface of the surface of the head.
heating unit.
(3) Mount theplaten rollerunit.
CAUTION Do not touch the surface of heating unit of the print head by naked hands or by a metal
piece etc.
Sinceprint headand motor are hot, do not carryout this action right after printing.
16
CITIZEN
4.9 Operation Panel and Display of Error
(1) POWER LAMP (Green)
With power switch is turned ON, this lamp lights up. Further, when "Memory Check Error" has occurred,
this lamp lights up, too.
(2) ERROR LAMP (Red)
Error details are indicated by lighting or blinking state as follows.
iDP3210 User’s Manual
Error Detail
POWER LED ERROR LED
Memory check error
(Quick blinking)
Cover open Illuminated Illuminated Close the cover
Print Head overheat Illuminated Illuminated Automatically recoveredwhen
Paper near end Illuminated Illum inated Set new paper
Paper end Illuminated
Cutter motor lock Illuminated
Macro executionwait Illuminated
Display pattern
(Quick blinking
ResettingMethod
Illuminated Not possible
cooled.
Set new paper
(Quick blinking)
Eliminate paper jam
& slow blinking)
Press FEED switch.
(slow blinking)
Details of error
Cover open : When printer cover is opened, printer cover open sensor detects the cover opening and
has ERROR LED illuminate, then stops printing operation. But, depending on dip
switch setting, paper feedcan be performed when printer cover is open ed .
17
CITIZEN
iDP3210 User’s Manual
Print Head overheat : To protect print head from excessive heat, in case the temperature of print head goes
high(approx. 65°C or over), head temperature sensor works and has ERROR LED
illuminate, then stops printing operation. After head temperature is cooled (Approx.
60°C or less), printing operation automatically starts.
Paper near end : When the remaining of roll paper goes scarce, paper near end sensor located on the
side of roller portion of the upper cover works, and has ERROR LED illuminate to
show the remaining of roll paper is getting scarce. (See “setting of paper end detector
effective for outputting a signal for no paper” and “setting of paper end sensor
effective for print stop” in the chapter of print control function.)
Paper end : When the roll paper runs out completely , the paper sensor located in the paper course
near to p rint head detects the end of print paper and has ERROR LED illuminate, then
stops printing operation. (See “setting of paper end sensor effective for outputting a
signal for no paper” and “setting of paper end sensor effective for print stop” in the
chapter of print control function.) When the paper is inserted into the paper course
near to print head, rollpaper is automatically loaded.
Cutter motor lock : In case that cutter position sensor locates in the auto cutter unit keeps ON or OFF for
one second or more during the operation of cutter motor, this sensor detects it as motor
lock state. And then, this stops cutter operation and printing operation. (See the
chapter of 4.5 “cancellation of cuter lock”)
(3) FEED Switch
With this pressed once shortly, paper is fed by one line. With this kept pressed, lines are fed continuously .
In case of macro execution wait, this is executed by pressing FEED switch.
(4) FEED Switch and Power Switch
By turning ON power switchwith pressing FEED SWITCH, , self printing is performed.
18
CITIZEN
5. Dip Switch Setting
5.1 Location of Dip Switch
(1) Turn OFF the power switch.
(2) Remove the rear cover.
(Remove it by taking off two screws at the bottom and turning the cover in the arrowed direction.)
iDP3210 User’s Manual
19
CITIZEN
iDP3210 User’s Manual
5.2 Dip Switch Setting
DS1 Function ON OFF Factory Setting
DS1-1 Paper cutter Enabled Disabled ON
DS1-2 Cover open Disabled Enabled OFF
DS1-3 CR switching LF activate Ignored OFF
DS1-4 Unused OFF
DS1-5 Print columns 44 columns 42 columns ON
DS1-6 International Characters OFF
DS1-7 International Characters See the table below. OFF
DS1-8 International Characters OFF
DS1
DS1
-10
DS2 Function ON OFF Factory Setting
DS2-1 Bit length 7 bits 8 bits OFF
DS2-2 Parity Provided Not provided OFF
DS2-3 Odd/even Even Odd OFF
DS2-4 DTR/XON-XOFF XON-XOFF DTR/DSR OFF
DS2-5 BAUD RATE OFF
DS2-6 BAUD RATE ON
DS2-7 BAUDRATE Seethetablebelow. ON
DS2-8 Unused ------------------ OFF
(Note) DS2 is available only for serial interface.
Print density OFF
-9
Print density
Seethetablebelow
ON
Print Density Light Standard Dark Darker
DS1-9 OFF ON OFF ON
DS1-10 OFF OFF ON ON
International
Character
DS1-6 OFF ON OFF ON OFF ON OFF ON
DS1-7 OFF OFF ON ON OFF OFF ON ON
DS1-8 OFF OFF OFF OFF ON ON ON ON
BAUD RATE 150 300 600 1200 2400 4800 9600 19200
DS2-5 OFF ON OFF ON OFF ON OFF ON
DS2-6 OFF OFF ON ON OFF OFF ON ON
DS2-7 OFF OFF OFF OFF ON ON ON ON
U.S.A. France Germany U.K. Denmark I Sweden Italy Japan
20
CITIZEN
6. INTERFACE (Connecting with Peripheral Equipment)
6.1 Parallel Interface
6.1.1 Specifications
Data input method : 8 bit parallel signal (DATA 1 ~ 8)
Control signals: ACK ,BUSY ,STB ,FAULT ,PE ,RESET
Applicable connector : Printer side 57LE-40360 (Equivalent to amphenol )
iDP3210 User’s Manual
6.1.2 Connectoe’sPin Configuration
No. Signal Name No. Signal Name
1 STB 19 TWISTED PAIR GND
2DATA1 20
3DATA2 21
4DATA3 22
5DATA4 23
6DATA5 24
7DATA6 25
8DATA7 26
9DATA8 27
10 ACK 28
11 BUSY 29
12 PE 30
13 +5V DC 31 RESET
14 32 FAULT
15 33 GND
16 GND 34 Drawer switch output
17 FRAME GND 35 +5V DC
18 36
Cable side 57-30360 (
)
21
CITIZEN
6.1.3 I/O SIGNALS
(1) Input Signals to the Printer
• DATA : 8-bit parallel signal (positive logic)
• STB : Strobe signal to read 8-bit data (negative logic)
• RESET : Signal to reset the entire printer (negative logic) 1m sec or more
(2) Output Signals from Printer
• ACK : An 8 bit data request signal. Pulse signal output at theendof the BUSY signal.
• BUSY : The signal to indicate BUSY state of theprinter. Input new data for "LOW".
• F AULT : The signal which is made "LOW" when the printer is in alarm state. All the control
• PE : The signal whichis output when paper runs out or goes scarce. (po sitive logic)
• Drawer Switch Output
(3) Power supply
• +5 V DC : This is 5V pulled up by a 3.3kΩ resistor.
• GND : This is the comm on ground for the circuit.
iDP3210 User’s Manual
(negative logic)
(positive logic)
circuits inside the printer are stop ped at this time.(negative logic)
: With the switch open, this signal goes "HIGH". When shorting, this goes "LOW".
22
CITIZEN
6.1.4 Electrical Characteristics
(1) Input Signal Level
All the input signals are at C-MOS level.
"HIGH" level : 4.0V MIN
"LOW" level : 1.0V MAX
(2) Output Signal Level
All theoutput signals are at C-MOS level.
"HIGH" level : 4.5V MIN
"LOW" level : 0.1V MAX
(3) I/O Conditions
Both input signal of STB and RESET are pulled up by 3.3KΩ, and all of the other is pulled up by 50KΩ.
[Printer side] [Host side]
iDP3210 User’s Manual
All theoutput signals arepulled upby 50KΩ.
23
CITIZEN
6.1.5 TIMING CHART
(1) Data Input and Printing Timing
T1, T2, T3 : 0.5sMIN
iDP3210 User’s Manual
T4 : 270 ns MAX
T5 : 2.3sTYP
T6 : 500 ms MIN (On supplying power)
6.1.6 Data Receiving Control
When BUSY signal is "LOW", data from the host can be received. When it being "HIGH", data can not be
received.
6.1.7 Buffering
As the buffer of 4K byte can be buffered in input buffer, the host side can be released immediately.
24
CITIZEN
6.2SerialInterface
6.2.1Specifications
(1) Data transfer system : Asynchronous
(2) Baudrates
150, 300, 600, 1200, 2400, 4800, 9600, 19200 bps (Selectable by user)
(3) Configuration of one word
Start bit : 1 bit
Data bit : 7 bits or 8 bits (Selectable byuser))
Paritybit : Add/even orno parity (Selectableby user)
Stop bit : 1 bit or m ore
(4) Signal polarity
iDP3210 User’s Manual
RS-232C
• Mark = Logic " 1" (–3V to –12V)
• Space = Logic " 0" (+3V to +12V)
(5) Receive data (RD signal)
RS-232C
• Mark = 1
• Space = 0
(6) Data receiving control (DTR signal)
RS-232C
• Mark : Data transfer not available
• Space : Data transfer available
(7) Data transmission control (TD signal)
DC1 code (11H) X-ON : Data reception available
DC3 code (13H) X-OFF : Data receptionnot available
25
CITIZEN
6.2.2 Connector’s PinConfigurations
No. Signal Name I/O Function
1FG FrameGrand
7 GND Signal GND
3 RD Input Receiving data
20 DTR Output Printer BUSY signal
2 TD Output Transmissiondata
6 DSR Input Data set READY
Applicable connector (D-Sub connectors)
Printer side : 17LE-13250 (Equivalentto DDK)
iDP3210 User’s Manual
Cable side : 17JE-23250 (Equivalentto DDK )
CAUTION 1. Signal for RS-232C conforms to EIA RS-232C.
2. In case the receiving data is not being transmitted,keep receiving data in mark state.
26
CITIZEN
6.2.3 I/O SIGNALS
(1) RD
Serial receiving data signal. On occurrence of framing error, overrun error, or parity error, the data is
printedas "?".
(2) DTR
When this signal is READY, write data or a command. When they are written in BUSY, overrun error is
occurred and data is ignored. Even during printing, data can be loaded in the input buffer. Further, BUSY
can take place on supply of power, during test printing, during on-line, or on resetting.
(3) TD
When, while in data reception, the input buffer on the printer side has only 128 bytes .or less left,DC3(13H)
data reception impossible signals are output. When the input buffer has 256 bytes left, DC1 (11H) data
reception possible signals are output to the host. When DTR/DSR control having been selected in status
information transmission, it is first confirmed that DSR is "space" and data is sent. When DTR/DSR
iDP3210 User’s Manual
control has not been selected, DSR is ignored and data is transmitted.
(4) FG
Case GND
(5) GND
Common GND on the circuit.
27
CITIZEN
6.2.4 Data Configuration
Mark
Space
(1) (2) (3)
(1) Start bit
(2) Data bit (+ parity bit)
(3) Stopbit ( 1 or more )
iDP3210 User’s Manual
-------Æt
(1) Start Bit
In 1/2 bit from the mark-to-space starting edge, state is read once again. Wh en "space" state is confirmed, it
is recognized as the start bit. If it is "mark" state, it is not taken as the start bit. Without taking it as an error,
detection of a start bit is carried out once again.
(2) Data Bit + Parity Bit
Data bit and parity bit are sampled at 1/2 start bit for time length equal to 1 bit. The state thus sampled is
taken as the data for the bit concerned. Bits are named as Bit 0, Bit 1, ..... parity bit counted from the one
close to the start bit.
(3) StopBit
The stop bit is a mark level of 1 bit or more. With "space" having been detected on detection of a stop bit,
framing error takes place.
28
CITIZEN
iDP3210 User’s Manual
6.2.5 Error Detection
Parity, framing, and overrun are detected. On detection of any error, the data are stored in the buf fer as "?".
(1) FramingError
With "space" state having been detected on detection of a stop bit, error takes place.The data are stored in
the buffer as "?".
(2) ParityError
With an error having been detected under specifying parity check, the data is stored in the buffer as "?".
(3) OverrunError
On detection of an overrunerror, the data are stored in the buffer as "?".
6.2.6 Data ReceivingControl
When DTR/DSR control having been selected, with BUSY signal at "LOW", data from the host side are
received. With the signal at "HIGH", theycan not be received.
When DTR/DSR control not having been selected, after X-ON transmission, data is received from the host side.
No transmissionof data can takeplace after X-OFF is transmitted.
6.2.7 Buffering
Data transfer to the input buffer include DTR signals and TD signals as the control signals concerned.
(1) DTR signals (See 4.2.3 (2).)
(2) TD signals (See 4.2.3 (3).)
29
CITIZEN
6.2.8 ELECTRICAL CHARACTERISTICS
(
(
(
(1) RS-232C Circuit
Input (RD, DSR)
[Printer Side] [Host Side]
iDP3210 User’s Manual
Equivalent to Max 232
Output (DTR, TD)
Equivalent to Max 232
• DTR
(–8V) : BUSY
+8V): READY
• RD
• TD
Mark = (–8V) : Stop bit
Space =
+8V):Startbit
Mark = (–8V) : 1
Space =
+8V):0
30
CITIZEN
7. DRAWER KICKOUT CONNECTOR
7.1 Specifications
(1) Drawer-KickDriveSignal
Pulses specified by ESCp are output. Also, SW(+) state, in parallel interface, can be observed by Pin 34 of
the interface connector and, in serial interface, by ESC u command.
(2) Electrical Characteristics
1) Drive voltage : DC24V
2) Drive current : Max. 0.8A (within 510ms)
3) SW signal : signal level "L"= 0 ~ 0.5V
"H"= 3 ~ 5V
7.2 Connector’s Pin Configurations
No. Signal Name Function
1 FG Frame ground
2 DRAWER 1 Drawer 1 driving signal
3 DRSW Drawer SW input
4 VDR Drawer driving power supply
5 DRAWER 2 Drawer 2 driving signal
6 GND Common ground on the circuits
iDP3210 User’s Manual
Connector used : TM5RJ3-66 (Hirose) or equivalent
Applicable connector : TM3P-66P (Hirose) or equivalent
[Caution] 1) No output is available during printing.
2) Drawer 1 and Drawer 2 can not be driven simultaneously.
3) Use a solenoid of 36Ω or more for the drawer. Do not exceed 0.8A for output current.
Failure or seizure can take place.
4) No connection is available to a to a telephone line.
7.3 DriveCircuit
31
CITIZEN
8. POWER SUPPLY CONNECTOR SPECIFICATIONS
This is the connector for power supply from exclusive AC Adapter.
Connector’s Pin Configurations
No. Function
1
2
3
SHELL
+24V
GND
N.C
FG
iDP3210 User’s Manual
Connector used : TCS7960-53-2010 (Hoshiden) or equivalent
Applicable connectors : TCP8927-63-1100 (Hoshiden) or equivalent
TCP8927-53-1100 (Hoshiden) or equivalent
32
CITIZEN
9. PRINT CONTROL FUNCTION
g
g
y)
p
p
)
y)
y)
{
9.1 Command List
Control Code Function Page
1HT
2CR
3LF
4 ESC SP
5!
6%
7&
8*
9–
10 2
11 3
12
13 D
14 E
15 G
16 J
17 R
18 c3
19 c4
20 c5
21 d
22
23 t
24 v
25 u
26
27 V
28 $
29 ¥
30 GS k
31 w
32 h
33 H
34 *
35 /
36 :
37 ^
38 ESC =
39 a Aligningthe characters
40 i Full cut
41 m Partial cut
Horizontal tabcommand
Print command
Printingandpaper feed
Settingthe right space amount of the character
Collective specifyingprintingmode
Specifying/cancelingdownload character set
Definingdownload characters
Specifyingthe bit image mode
Specifying/cancelingunderline
Specifying1/6-inch line feedrate
Settingline feed rate n/203 inch
@ Initializingthe Printer
Settinghorizontal tabposition
Specifying/cancelinghighlightin
Specifying/cancelingdoubleprintin
Printingand feedspaper n/203 inch
Selectingthe international characters
Settingofpaper end sensor effective for outputtingasignalfo r nopaper(Parallel ModeOnl
Settingofpaper end sensor ef fective forprint sto
Enabling/disablingthepanel switches
Printingand feedingthepaper byn lines
Generatingthe specifiedpulse(Drawer Kickout
Selectingthe character code table
Transmittingtheprinter status(Serial Mode Onl
Transmittingthe status ofperipheral equipment(Serial Mode Onl
Specifying/cancelingthe inverted characters
Specifying/cancelingthe 90°-right-turned characters
Specifyingthe absolutepositions
Specifyingthe relativepositions
Printingthe bar code
Selectingthe horizontal size(scale factor)of bar code
Selectingthe height ofthe bar code
Selectingthe font of HRIcharacter
Definingthe download bit image
Printingthe download bit image
Starting/endingmacro defin ition
Executingthe macro
Data input control
iDP3210 User’s Manual
34
34
34
34
35
35
36
37
38
38
38
38
39
39
40
40
41
41
42
42
42
43
43
44
45
46
46
47
47
48
48
49
49
50
51
51
52
53
54
54
54
33
CITIZEN
9.2 Command Details
(1) Horizontal Tab Command (HT)
Code: (09)h
Shifts the printing position to the next horizontal tab position. The ho rizontal tab position is set by ESC D.
Initial setting of the horizontal tab position is in 9th, 17th, 25th, 33rd, 41st columns.
(2) Print Com mand (CR)
Code : [0D]h
1) When DS 1 -3 is OFF:
This commandis ignored.
iDP3210 User’s Manual
2) WhenDS 1- 3 is ON:
With data heldinside the input buffer,printing and line feed are performed.
Without data inside the input buffer, however, no printing is performed.
(3) Printingand Paper FeedCommand (LF)
Code : [0A]h
Prints data inside the internal input b uffer an dfeeds lines basedon the line feed amount having been set.
(4) Settin gthe right space amount of the characters (ESC SP)
Code: [1Bh] + [20h] + n
*{0≤ n ≤ 20} Data is described in Hex code.
The rightward space amount is set in dot unit (0.165 mm unit). In the initial value, it is n=0.
The rightward space amount in double wide mode is made double of the set vo lume.
34
CITIZEN
(5) Spec ifyingCollectively the Print Mode (ESC ! n)
Code: [1Bh] + [21h] + n
*{0≤ n ≤ FF} Data is described in Hex code.
Printing mod e is assigned. Each n bit indicates the following:
Bit Function
1 Undefined
2 Undefined
3 Undefined
4 Highlighting Canceled Specified
5 Double height Canceled Specified
6 Double width Canceled Specified
7 Undefined
8 Underline Canceled Specified
• With double height and double width being specified simultaneously, double wide and double
highcharacters are consisted.
• An underline is attached to the full character width, which, however, is not attached to the part
havingbeenskipped by thehorizontal tab. Neither is it attached to 90° -right-turned characters.
• The underline width is as having been specified by ESC –. The initial value is "1".
iDP3210 User’s Manual
Value
01
(6) Spec ifyingCollectively the Print Mode (ESC ! n)
Code: [1Bh] + [21h] + n
*{0≤ n ≤ FF} Data is described in Hex code.
Specifying/canceling download characters. Download characters and download bit images cannot be
defined simultaneously. Further, only the lowest bit (n0) is valid for n. The lowest bit (n0) indicates the
following:
n0= 0: Canceling download character
n0= 1: Specifying download character
35
CITIZEN
iDP3210 User’s Manual
(7) DefiningDownload Character (ESC & s nm a (D1D2 ~ Dn)
Code : [1B]h+ [26]h + s +n +m +a +Dn
*{s = 02}
{20 (Hex) ≤ n ≤ 7E (Hex)}
{20 (Hex) ≤ m ≤ 7E (Hex)}
{0 ≤ a ≤ 0A (Hex)}
Defines the font of download characters of alphanumeric characters.
•"s" indicates the number of bytes in vertical direction.
•"n" indicates the start character code and “m” indicates the end character code. To define only one
character, setn=m.
•Character codes definableincludes 95 ASCII codes in total between <20>H ~ <7E>H.
•"a" indicates the number of dots in horizontal direction for definition.
•Dn is the data to be defined, which indicate a pattern equal to "a" d ot i n horizontaldirectionfromthe
•Download characters thus defined remain valid until r edefinition, ESC @ execution, GS * execution, or
[Example]
left end. The rest of the pattern onthe right side is filled with space.
power OFF is practiced.
36
CITIZEN
iDP3210 User’s Manual
(8) Specifying the Bit Image Mode (ESC * m n1 n2 D1 ~ Dn)
Code:[1B]h+[2A]h+m+n1+n2+Dn
* {m= bit imagemode (See the table below.)}
{0 ≤ n1 ≤ FF}
{0 ≤ n2 ≤ 02} Data is described in Hex code.
According to the bit image mode assigned inm, prints data in the bitimage.
•The no. of dots printedis divided by256, whose quotient is taken as n2 and residualas n1.
•The total no. of dots printedin the bit image is equalto n1 + (256 ×n2).
•Whenbit imagedata have been input in excess of 1 dot/line (448 dots) position, the excess data are
discarded.
•Inthe bitimage data (Dn), the bitssubject to printing are taken as "1" and those not as "0".
•The bit imagemodes are shown as follows:
( ) = For 42 columns mode
Vertical Direction Horizontal Direction
m(Hex) Mode No. of Dots Dot Density Dot Density Max. No. of Dots
0 8-dot singledensity 8 78 DPI 77 DPI 224 (216)
1 8-dot double density 8 78 DPI 154 DPI 448 (432)
32 16-dot single den sity 16 156 DPI 77 DPI 224 (216)
33 16-dot double density 16 156 DPI 154 DPI 448 (432)
•When the value set in m (bitimage mode) are out of conditions, the data following after n1 is processed as
printing data.
Therelation betweenbit image data andprinting dots are shown below.
37
CITIZEN
iDP3210 User’s Manual
(9) Specifying/ Canceling Underline (ESC - n)
Code: [1B]h + [2D]h + n
*{0≤ n ≤ 02} Data is described inHex code.
Specifying/canceling an underline.
• An underline is attached to the full character width. It is, however, not attached to the par t having been
horizontal tabcommand.
• An underline is not attached to a 90°- right-turned characters.
• T ypes of underlines by n value are shown below:
n (Hex) Type
0 Canceling an underline.
1 Specifying an underline for 1-dot width.
2 Specifying an underline for 2-dot width.
(10) Specifying1/6 inch line feedrate (ESC 2)
Code: [1B]h + [32]h
The line feed rate per line is specified by 1/6 inch.
(11) Setting line feed rate n/203 inch (ESC 3 n)
Code: [1B]h + [33]h + n
*{0≤ n ≤ FF} Data is described in Hex code.
The line feed rate per line is specifiedby n/156inch.
•The initial value is n = 26(18H), being 4.23 mmline feedrate.
(12) Initializing Printer (ESC @)
Code: [1B]h + [40]h
Clears data stored in the print buffer and brings various settings to the initial state (Default state).
•Data inside the internal input buffer arenot cleared.
•Dip switches are read once again.
38
CITIZEN
iDP3210 User’s Manual
(13) Setting Horizontal Tab Position (ESC D nNUL)
Code: [1B]h + [44]h + n [00]h
*{0≤ n ≤ FF} Dta is described in Hex code.
Specifying a horizontal tab position.
•"n" indicates the no. of columns from the beginning to the horizontal tab position. At this time, n= set
position –1 is to be specified.
•The tab positionis set at position where it is "character width x n" from the line beginning. The character
width, at this time, includes the rightward space amount. In double widecharacters, itis made double of
the ordin arycase.
•T ab positions can be specified are maximum 24. Specifying exceeding this is ignored.
•ESC D NUL clears all the set tab positions. Following clearing, horizontal tab command is ignored.
•Initial value is specifiedfor each eight characters(9.17.25.33.41)ofANK characters.
(14) Specifying/canceling highlighting(ESC E n)
Code: [1B]h + [45]h + n
*{0≤ n ≤ FF} Data is described in Hex code.
Specifying/canceling the highlighted characters.
•"n" is valid only for the lowest bit (n0).
•Control by the lowest bit (n0) is shown as follows:
n0 T ype
0 Canceling highlighting.
1 Specifying highlighting.
•This is effective to all characters.
•Dot conf iguration of ahighlighted character includes one extra dot added at its side.
39
CITIZEN
(15) Specifying/canceling Double Printing (ESC G n)
Code: [1B]h + [47]h + n
*{0≤ n ≤ FF} Data is described in Hex code.
Specifying/canceling the double printing.
•"n" is valid only for the lowest bit (n0).
•Control by n is shown as follows.
n0 T ype
0 Cancelingdouble printing.
1 Specifying double printing.
The print result of Double printingand highlight character printing is completely same.
iDP3210 User’s Manual
(16) Printing and feeding paper n/203 inch (ESC J n)
Code: [1B]h + [4A]h + n
*{0≤ n ≤ FF} Data is described in Hex code.
Prints data inside the print buffer and feeds paper by n/156 inch .
•Specified volume does not remain.
•The beginning of the line is to be considered as the next printing start position.
40
CITIZEN
(17) Selecting International Characters (ESC R n)
Code: [1B]h + [52]h + n
*{0≤ n ≤ 0A) Data is described in Hex code.
Selecting international characters.
•Depending on the value of n, following character sets are specified.
n(Hex) Character Set
0 U.S.A.
1France
2Germany
3 U.K.
4DenmarkI
5Sweden
6 Italy
7Spain
8 Japan
9Norway
ADenmarkII
iDP3210 User’s Manual
•The initial value of n indicates the character set specifiedby the dipswitch.
However, setting is available onlythrough use of this command for "Spain ", "Norway", and "Denmark II".
(18) Setting ofpaper end detector available for output of paper endsignal
Code: [1B]h + [63]h + [33]h + n
*{0≤ n ≤ FF} Data is described in Hex code
Specifying the condition of paper end detector to stop printing operation.
•n is valid only for the lowest bit. (n0)
•n bit means the followings.
n0 Condition
0 Paper near enddisable (initial value)
1 Paper near endenable
Remarks : This is valid only for parallel interfacemodel.
41
CITIZEN
(19) Setting ofpaper end detector available for print stop
Code: [1B]h + [63]h + [34]h + n
*{0≤ n ≤ FF} Data is described in Hex code.
Specifying the condition of paper end detector to stop printing operation.
•n is valid only for the lowest bit. (n0)
•n bit means the followings.
n0 Condition
0 Paper near enddisable (initial value)
1 Paper near endenable
(20) Enabling/DisablingPanel Switch (ESC c 5 n)
iDP3210 User’s Manual
Code: [1B]h + [63]h + [35]h + n
*{0≤ n ≤ FF} Data is described in Hex code.
Selecting the paper feed switch valid/invalid.
•"n" is valid only in the lowest bit (n0).
•"n" bit means the followings.
n0 Condition
0 Paper feed SW valid.
1 Paper feed SW invalid.
•The initial value of n is "0".
(21) Printing and Feeding the paper by n lines (ESC d n)
Code: [1B]h + [64]h + n
*{0≤ n ≤ FF} Data is described in Hex code.
Prints data inside the buffer and feeds paper by n lines.
•Specified line does not remain.
•The beginning of the line is to be considered as the next printing start position.
42
CITIZEN
(22) Generating specified Pulse (ESC p m n1 n2)
Code: [1B]h + [70]h + m + n + n2
* {m = connector pin No. (See table below.)}
{0 ≤ n1 ≤ FF}
{0 ≤ n2 ≤ FF} Data is described in Hex code.
•Signals specifiedby n1, n2 are output to Connector Pin m.
•Bit m (m0) means the followings.
m0 Conditio n
0 Drawer kick No. 2 pin
1 Drawer kick No. 5 pin
•ON time is considered as n1 x 2ms and OFF time as n2 x 2ms.
iDP3210 User’s Manual
•When m is out of the defined range, n1, n2 are discarded, where no signals are output.
•Drive duty of Drawer is shown below:
ON Time
On Time + OFF Time
(Take OFF time as being 4 times or more longer than ON time.)
(23) Selecting Character Code Table (ESC t n)
Code: [1B]h + [74]h + n
*{0≤ n ≤ 1} Data is described in Hex code.
SelectingPage n onthe character code table:
•"n" means the followings.
n (Hex) Condition
0 IBM Character #2
1 Japanese Character
The initial value of n is specifiedby dipswitch setting. (DS1-5.6.7)
(Other than Japanese character is specified, IBM #2 is specified.)
43
CITIZEN
iDP3210 User’s Manual
(24) Transmitting the printer status (ESC v)
Code: [1B]h + [76]h
Current printer status is transmitted.
•Status sent out consistsof 1 bytewhose content is as in the table below.
•In DTR/DSR control, after receptibl e state of thehost (DSR signal beingin SPACE state) is confirmed,
only 1 byte is transmitted. In XON/XOFF control, DSR signal state not being confirmed, only 1 byte is
transmitted.
•In DTR/DSR control, when the host is in unreceptible state(DSR signal being in MARK state), it waits
until receptible state is created.
VALU E
Bit Function 0 1
0 Not defined
1 Not defined
2 Paper end With paper Without paper
3 Not defined
4 Not used Fixed to 0 –
5 Not defined
6 Not defined
7 Not defined
Remarks : This command is valid only for serial interface model.
44
CITIZEN
iDP3210 User’s Manual
(25) Transmitting thestatus of Peripheral Equipment (ESC u n)
Code: [1B]h + [75]h + n
*{n=0}
Current status of con nector pin No.3 is transmitted.
•"n" means the followings.
n (Hex) Condition
0 Drawer Kick Connector No. 3
•Status transmitted consists of 1 byte whose content is as inthe table below.
•Any equipment has not been connected to this connector, Bit 0 of n is always "1".
•In DTR/DSR control, after receptible state of the host (DSR signal being in SPACE state) is confirmed,
only 1 byte is transmitted. Further, in XON/ XOFF control, DSR signal state not b eing confirmed, only 1
byte is transmitted.
•In DTR/DSR control, when the host is unreceptible state (DSR signal being in MARK state), it keeps
waiting until receptible state is created.
Value
Bit Function 0 1
0 Level of pin No. 3 “L” “H”
1 Not defined
2 Not defined
3 Not defined
4 Not used Fixed to 0 –
5 Not defined
6 Not defined
7 Not defined
Remarks : This command is valid only for serial interface model.
45
CITIZEN
(26) specifying/Canceling Inverted Characters
g
Code: [1B]h + [7B]h + n
*{0≤ n ≤ FF} Data is described in Hex code.
Specifying/canceling inverted characters.
•"n" is valid only for the lowest bit (n0).
•Bit n (n0) means the followings.
n0 Conditio n
0 Canceling inverted characters.
1 Specifying inverted characters.
•This is valid only when this is specified at the beginning of a line.
iDP3210 User’s Manual
•The printing example is shown below.
•The initial value of n is "0".
When inverted characters
have been canceled:
Paper feed direction
(27) Specifying/Canceling 90°-right- turned Characters (ESC V n)
Code: [1B]h + [56]h + n
When inverted characters
have been assi
ned:
*{0≤ n ≤ 1} Data is described in Hex code.
Specifying/canceling characters 90°-right- turned character.
•No underlines are attached to 90°-right- turned characters.
•"n" means the followings.
46
CITIZEN
n (Hex) T ype
0
1
Canceling
Specifying
90°-right- turned Characters
90°-right- turned Characters
•The initial value of n is "0".
(28) Specifying Absolute Positions (ESC $ n1 n2)
Code: [1B]h + [24]h + n1 + n2
*{0≤ n1 ≤FF}
{0 ≤ n2 ≤ 1} Data is described in Hex code.
•The printing start positionis specified in thenumberof dots from the beginning ofline.
iDP3210 User’s Manual
The number of dots is divided by 256, whose quotient is taken as n2 and the residual as n1. Therefore, the
printingstart p osition is equal to n1 + n2 x 256 from the beginning of line..
•Specifying beyond the line end is ignored.
(29) SpecifyingRelative Positions (ESC ¥ n1 n2)
Code : [1B]h + [5C]h + n1 + n2
*{0≤ n1 ≤FF}
{0 ≤ n2 ≤ FF} Data is described in Hex code.
The printing start positionis specified inthe numberof dots from the current position.
•Rightward direction is taken as plus and leftward direction as minus.
•Tospecify N dot inminus (left) direction, use a complement of N for assignment.
– N dots = 65536 – N
•The number of dots is divided by 256, whose quotient is taken as n2 and the residual as n1.
•Specifyingexceeding the end of line is ignored.
47
CITIZEN
(30) Bar Code Printing(GS k n Dn NUL)
Code: [1D]h + [6B]h + n + Dn + [00]h
*{0≤ n ≤ 7} Data are described in Hex code.
Specifying a type of bar code and printing bar codes.
•The beginning of line is considered as thenext printing start position.
•Depending on the value of n, the following bar code can be selec ted.
•Dn indicates a character code to be printed.
n (Hex) Bar Code System Maximum Columns
0UPC-A –
1UPC-E –
2 JAN13 (EAN) –
3JAN8(EAN) –
4 CODE 39 15
5ITF 26
6 CODABAR(CW-7) 19
7 CODE 128 17
*maximum columns in the printer
iDP3210 User’s Manual
•Data, when beingheld inthe print buffer, are ignored.
•When the character code Dn cannot be printed,the data following after this is printed as ordinary print data.
•When a bar code whose number of characters to be printed is fixed has been selected, the number of
characters have to be always made equal to thenumber ofcharacters to beprinted.
•When the horizontal direction exceeds one line length, the excess part is notprinted.
(31) Selecting Bar Code width (GS w n)
Code: [1d]H + [77]H + N
*{2≤ n ≤ 4} Data is described in Hex code.
Selecting bar code width.
•The initial value of this width is "3".
48
CITIZEN
(32) Selecting Bar Code Height (GS h n)
Code: [1d]H + [68]H + N
*{1≤ n ≤ FF} Data is described in Hex code.
Selecting bar code height
•"n" indicates the number of dots in vertical direction.
•The initial value of nis "162".
(33) Selecting PrintingPosition of HRI Characters (GS H n)
Code: [1d]H + [48]H + N
*{0≤ n ≤ 3} Data is described in Hex code.
iDP3210 User’s Manual
Selecting printing position of HRI characters for printing bar codes.
•"n" means the followings.
n (Hex) PrintingPosition
0 No printing
1 Above the bar code
2 Below the bar code
3 Both above and below the bar code
•The initial value of n is "0".
49
CITIZEN
iDP3210 User’s Manual
(34) Defining Download Bit Image (GS * n1 n2 Dn)
Code : [1D]h + [2A]h + n1 + n2 Dn
*{1≤ n1 ≤FF}
{1 ≤ n2 ≤ 48}
{n1 × n2 ≤ 1311} Data is described inHex code.
Defines downloadingbit imagesof thenumber of dots specified by n1/n2.
•Thenumbersofdotsaren1x8inhorizontal direction and n2x8inverticaldirection.
•Dn indicates bit image data.
•The download bit image thus defined remains effective until redefinition, ESC @ execution, ESC &, or
power OFF takes place.
•A download character and a download bit image cannot be defined simultaneously. With this command
executed, defined content of a download character is cleared.
•Relations between the bit image data and the dot defined areshown below:
50
CITIZEN
(35) Printing Downlo adBit Image (GS / m)
Code: [1D]h + [2F]h + m
*{0≤ m ≤ 3} Data is described in Hex code.
Prints download bit i mages in a mode specified by m.
•Modes can be selected by m are shown table for selection with m are shown below.
iDP3210 User’s Manual
m Mode Name Dot Density in
Vertical Direction
Dot Density in
Horizontal Direction
0 Normal mode 156 DPI 154 DPI
1 Double wide mode 156 DPI 77 DPI
2 Double high mode 78 DPI 154 DPI
3 Double wide/double high mode 78 DPI 77 DPI
•When data exist inside the print buffer,this command is ignored.
•When a download bit i mage has not been defined, this command is ignored.
•A portion of a download bitimage exceeding one line length is not printed.
•A download character and a download bit image cannot bedefined simultaneously.
(36) Starting / Ending Macro Definition (GS :)
Code: [1D]h + [3A]h
Specifying starting / ending macro definition. Maximum content available for macro definition is 2048 bytes.
A portion exceeding 2048 bytes is not defined.
•Even with ESC @ (initialization of the printer) having been executed, defined content is not cleared.
Therefo re, it is possible to include ESC @ into the content of macrodefinition.
•Normal printingoperation is carried outeven while in macro definition.
51
CITIZEN
(37) Macro Execution (GS^ n1 n2 n3)
Code : [1D]h + [5E]h + n1 + n2 + n3
*{0≤ n1 ≤FF}
{0 ≤ n2 ≤ FF}
{0 ≤ 3 ≤ 1} Data is described in Hex code.
Executing contents defined in macro.
•"n1 ~ n3" indicate as follows:
n1 : The number of times of macro execution
n2 : Waitingtime onmacro execution.
Waiting timeof n2 × 100 m sec is givenfor every execution.
n3 : Macro execution mode
iDP3210 User’s Manual
n3 Mode
0 Continuous execution
1 Execution by the paper feed SW
Continuous execution : The Macro is executed n1 times continuously at the time intervals
specifiedby n2.
Executionby FEED SW : After waiting for lapse of time specified by n 2, the ERROR LED flickers
and the paper feed switch is waited to be pressed. When it is pressed, the
macro is executed once. This action is repeated n1times.
•When this command is received while in macro definition, suspension of macro definition is indicated.
At this time, the defined content is cleared.
•No execution takes place when macro is held undefined or n1=0.
•While in macroexecution with n3=1, paper feed withthe FEED SW is not available.
52
CITIZEN
(38) Data Input Control (ESC = n)
Code: [1B]h + [3D]h + n
*{0≤ n ≤ FF} Data is described in Hex code.
Selecting equipment in which data input from the host is effective.
•Each bit of n indicates as follows:
Value
Bit Equipm e nt 0 1
0 Printer Invalid Valid
1 Not defined
2 Not defined
3 Not defined
4 Not defined
5 Not defined
6 Not defined
7 Not defined
iDP3210 User’s Manual
•When the printer has not been selected, this printer abandons all received data until it is selected by this
command.
•Even when the printer has not been selected, it can become BUSY state through printer operation.
•The initial value of n is "1".
53
CITIZEN
(39) Aligning the characters (ESC a n)
Code: [1b]h + [61]h + n
*{0≤ n ≤ 2} Data is described in Hex code.
All theprinted data withinone line are aligned in the specified position.
•Dependingon nvalue, positional alignment is carried out as in the tablebelow:
n (Hex) Position
0 Left end alignment
1Centering
2 Right end alignment
•This is valid only when n is inputted at the beginning of line.
iDP3210 User’s Manual
•The initial value of n is "0".
(40) Full Cut (ESC i)
Code: [1B]h + [69]h
Full cuttin gof paper is perform ed.
•This is valid only when n is inputted at the beginning of line.
•This is valid only when DS1-1 is ON.(Paper cutter enabled)
(41) Partial Cut (ESC m)
Code: [1B]h + [6D]h
Partial cutting of paper is carried out.
•This is valid only when n is inputted at the beginning of line.
•This is valid only when DS1-1 is ON.(Paper cutter enabled)
54
CITIZEN
10. CHARACTER CODETABLE
10.1 International (IBM Character #2)
iDP3210 User’s Manual
55
CITIZEN
10.2 International Character Code Table
iDP3210 User’s Manual
56
CITIZEN
Appendix 1 Outline Drawing
1.1 OutlerDrawing of Printer (Model : iDP3210)
iDP3210 User’s Manual
57
CITIZEN
1.2 OuterDrawing of AC Adapter (Model : 30AD)
iDP3210 User’s Manual
58
CITIZEN
Appendix 2 Block Diagram
iDP3210 User’s Manual
59
CITIZEN
Information Systems Division CBM Bldg., 5-68-10, Nakano, Nakano-ku, Tokyo 164-0001, Japan
Head Office Tel: (+81-3) 5345-7540 Fax: (+81-3) 5345-7541
15E-20000208-0500-0076-004.43 Printed in Japan
