User Guide

Model No.

WRT54G3G-ST

Wireless-G Router for Mobile Broadband

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.

WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

How to Use This User Guide

This User Guide has been designed to make understanding networking with the Wireless-G Router for Mobile Broadband easier than ever. Look for the following items when reading this User Guide:

This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G Router for Mobile Broadband.

This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G Router for Mobile Broadband.

This question mark provides you with a reminder about something you might need to do while using the Wireless-G Router for Mobile Broadband.

In addition to these symbols, there are definitions for technical terms that are presented like this:

word: definition.

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:

Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.

WRT54G3G-ST-UG 60724NC BW

Figure 0-1: Sample Figure Description

Wireless-G Router for Mobile Broadband

Table of Contents

Chapter 1: Introduction 1

Welcome 1 What’s in this User Guide? 2

Chapter 2: Planning Your Wireless Network 4

Network Topology 4 Ad-Hoc versus Infrastructure Mode 4 Network Layout 4

Chapter 3: Getting to Know the Wireless-G Router for Mobile Broadband 6

The Router’s Ports 6 The Router’s LEDs 7 The Router’s Data Card Slot 8

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband 9

Overview 9 Hardware Installation for Use of the Mobile Broadband Service Only 9 Hardware Installation for Connection to Your Broadband Modem 11 Hardware Installation for Connection to Another Router 13 Placement Options 15

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service 17

Overview 17 Before You Begin 17 Using the Setup Wizard 18

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only 27

Overview 27 Before You Begin 27 Using the Setup Wizard 27

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service 39

Overview 39 Before You Begin 39 Using the Setup Wizard 40

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband 53

Overview 53

Wireless-G Router for Mobile Broadband

The Setup Tab - Basic Setup 54 The Setup Tab - Mobile Network 59 The Setup Tab - DDNS 60 The Setup Tab - MAC Address Clone 61 The Setup Tab - Advanced Routing 62 The Wireless Tab - Basic Wireless Settings 63 The Wireless Tab - Wireless Security 64 The Wireless Tab - Wireless MAC Filter 67 The Wireless Tab - Advanced Wireless Settings 68 The Security Tab - Firewall 70 The Security Tab - VPN Passthrough 71 The Access Restrictions Tab - Internet Access 71 The Applications and Gaming Tab - Port Range Forward 73 The Applications & Gaming Tab - Port Triggering 74 The Applications and Gaming Tab - DMZ 75 The Applications and Gaming Tab - QoS 75 The Administration Tab - Management 77 The Administration Tab - Log 78 The Administration Tab - Diagnostics 79 The Administration Tab - Factory Defaults 80 The Administration Tab - Firmware Upgrade 80 The Administration Tab - Config Management 80 The Status Tab - Mobile Network 81 The Status Tab - Router 82 The Status Tab - Local Network 83 The Status Tab - Wireless 84

Appendix A: Troubleshooting 85

Common Problems and Solutions 85 Frequently Asked Questions 93

Appendix B: Wireless Security 101

Security Precautions 101 Security Threats Facing Wireless Networks 101

Appendix C: Upgrading Firmware 104 Appendix D: Windows Help 105 Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter 106

Wireless-G Router for Mobile Broadband

Windows 98SE or Me Instructions 106 Windows 2000 or XP Instructions 106 For the Router’s Web-based Utility 107

Appendix F: Glossary 108 Appendix G: Specifications 113 Appendix H: Warranty Information 115 Appendix I: Regulatory Information 116 Appendix J: Contact Information 123

Wireless-G Router for Mobile Broadband

List of Figures

Figure 3-1: The Router’s Ports 6 Figure 3-2: The Router’s Front Panel 6 Figure 3-3: The Router’s LEDs 7 Figure 3-4: The Router’s Data Card Slot 8 Figure 4-1: Connect Your Computer 10 Figure 4-2: Connect the Power 10 Figure 4-3: Connect the Broadband Modem 11 Figure 4-4: Connect Your Computer 12 Figure 4-5: Connect the Power 12 Figure 4-6: Diagram for Connection to Another Router 13 Figure 4-7: Connect Another Router 13 Figure 4-8: Connect Your Computer 14 Figure 4-9: Connect the Power 14 Figure 4-10: Stand Attached to the Router 15 Figure 4-11: Measurement between Wall-Mount Slots 16 Figure 5-1: Setup Wizard’s Welcome - Start Wizard Screen 18 Figure 5-2: Select Service Screen 19 Figure 5-3: Insert Mobile Broadband Data Card Screen 19 Figure 5-4: Connect the Router to a Computer Screen 20 Figure 5-5: Connect the Router to a Computer Screen, Continued 20 Figure 5-6: Power on the Router Screen 21 Figure 5-7: Check the Router’s Status Screen 21 Figure 5-8: Set the Router’s Password Screen 22 Figure 5-9: Wireless Settings Screen 22 Figure 5-10: Configure Wireless Security Settings Screen 23 Figure 5-11: Configure Wireless Security Settings - WPA2-PSK Screen 23 Figure 5-12: Configure Wireless Security Settings - WPA-PSK Screen 24 Figure 5-13: Configure Wireless Security Settings - WEP (128-Bit) Screen 24 Figure 5-14: Configure Wireless Security Settings - WEP (64-Bit) Screen 25 Figure 5-15: Warning about Disabled Wireless Security Screen 25 Figure 5-16: Confirm New Settings Screen 26

Wireless-G Router for Mobile Broadband

Figure 5-17: Mobile Broadband Connection Cannot be Established Screen 26 Figure 5-18: Congratulations Screen 26 Figure 6-1: Setup Wizard’s Welcome - Start Wizard Screen 27 Figure 6-2: Select Service Screen 28 Figure 6-3: Disconnect the Modem from the Computer Screen 28 Figure 6-4: Connect the Modem to the Router Screen 29 Figure 6-5: Connect the Router to a Computer Screen 29 Figure 6-6: Connect the Router to a Computer Screen, continued 30 Figure 6-7: Power on the Router Screen 31 Figure 6-8: Check the Router’s Status Screen 31 Figure 6-9: Configure Cable or DHCP Settings Screen 32 Figure 6-10: Configure DSL (PPPoE) Settings Screen 32 Figure 6-11: Enter Static IP Address Settings Screen 33 Figure 6-12: Confirm New Settings Screen 33 Figure 6-13: Set the Router’s Password Screen 34 Figure 6-14: Wireless Settings Screen 34 Figure 6-15: Configure Wireless Security Settings Screen 35 Figure 6-16: Configure Wireless Security Settings - WPA2-PSK Screen 35 Figure 6-17: Configure Wireless Security Settings - WPA-PSK Screen 36 Figure 6-18: Configure Wireless Security Settings - WEP (128-Bit) Screen 36 Figure 6-19: Configure Wireless Security Settings - WEP (64-Bit) Screen 37 Figure 6-20: Confirm New Settings Screen 37 Figure 6-21: Warning about Disabled Wireless Security Screen 38 Figure 6-22: Congratulations Screen 38 Figure 7-1: Setup Wizard’s Welcome - Start Wizard Screen 40 Figure 7-2: Select Service Screen 41 Figure 7-3: Insert Broadband Mobile Data Card Screen 41 Figure 7-4: Disconnect the Modem from the Computer Screen 42 Figure 7-5: Connect the Modem to the Router Screen 42 Figure 7-6: Connect the Router to a Computer Screen 43 Figure 7-7: Connect the Router to a Computer Screen, continued 43 Figure 7-8: Power on the Router Screen 44 Figure 7-9: Check the Router’s Status Screen 44 Figure 7-10: Configure Cable or DHCP Settings Screen 45

Wireless-G Router for Mobile Broadband

Figure 7-11: Configure DSL (PPPoE) Settings Screen 45 Figure 7-12: Enter Static IP Address Settings Screen 46 Figure 7-13: Confirm New Settings Screen 46 Figure 7-14: Set the Router’s Password Screen 47 Figure 7-15: Wireless Settings Screen 47 Figure 7-16: Configure Wireless Security Settings Screen 48 Figure 7-17: Configure Wireless Security Settings - WPA2-PSK Screen 48 Figure 7-18: Configure Wireless Security Settings - WPA-PSK Screen 49 Figure 7-19: Configure Wireless Security Settings - WEP (128-Bit) 49 Figure 7-20: Configure Wireless Security Settings - WEP (64-Bit) 50 Figure 7-21: Configure Wireless Security Settings - WEP (64-Bit) 50 Figure 7-22: Warning about Disabled Wireless Security Screen 51 Figure 7-23: Confirm New Settings 51 Figure 7-24: Mobile Broadband Connection Cannot be Established Screen 52 Figure 7-25: Congratulations Screen 52 Figure 8-1: Password Screen 53 Figure 8-2: Setup Tab - Basic Setup 54 Figure 8-3: DHCP Connection Type 54 Figure 8-4: Static IP Connection Type 55 Figure 8-5: PPPoE Connection Type 55 Figure 8-6: PPTP Connection Type 55 Figure 8-7: L2TP Connection Type 56 Figure 8-8: Optional Settings 56 Figure 8-9: Router IP 57 Figure 8-10: Network Address Server Settings 57 Figure 8-11: Time Setting 58 Figure 8-12: Setup Tab - Mobile Network 59 Figure 8-13: Setup Tab - DDNS (DynDNS.org) 60 Figure 8-14: Setup Tab - DDNS (TZO.org) 60 Figure 8-15: Setup Tab - MAC Address Clone 61 Figure 8-16: Setup Tab - Advanced Routing (Gateway) 62 Figure 8-17: Setup Tab - Advanced Routing (Router) 62 Figure 8-18: Wireless Tab - Basic Wireless Settings 63 Figure 8-19: Wireless Tab - Wireless Security (WPA2 Personal) 64

Wireless-G Router for Mobile Broadband

Figure 8-20: Wireless Tab - Wireless Security (WPA Personal - TKIP) 64 Figure 8-21: Wireless Tab - Wireless Security (WPA Personal - AES) 64 Figure 8-22: Wireless Tab - Wireless Security (WPA2 Enterprise) 65 Figure 8-23: Wireless Tab - Wireless Security (WPA Enterprise - TKIP) 65 Figure 8-24: Wireless Tab - Wireless Security (WPA Enterprise - AES) 65 Figure 8-25: Wireless Tab - Wireless Security (RADIUS) 66 Figure 8-26: Wireless Tab - Wireless Security (WEP) 66 Figure 8-27: Wireless Tab - Wireless MAC Filter 67 Figure 8-28: MAC Address Filter List 67 Figure 8-29: Wireless Tab - Advanced Wireless Settings 68 Figure 8-30: Security Tab - Firewall 70 Figure 8-31: Security Tab - VPN Passthrough 71 Figure 8-32: Access Restrictions Tab - Internet Access 71 Figure 8-33: Internet Policy Summary 72 Figure 8-34: List of PCs 72 Figure 8-35: Port Services 72 Figure 8-36: Applications and Gaming Tab - Port Range Forward 73 Figure 8-37: Applications and Gaming Tab - Port Triggering 74 Figure 8-38: Applications and Gaming Tab - DMZ 75 Figure 8-39: Applications and Gaming Tab - QoS 75 Figure 8-40: Administration Tab - Management 77 Figure 8-41: Administration Tab - Log 78 Figure 8-42: Administration Tab - Diagnostics 79 Figure 8-43: The Ping Test 79 Figure 8-44: The Traceroute Test 79 Figure 8-45: Administration Tab - Factory Defaults 80 Figure 8-46: Administration Tab - Firmware Upgrade 80 Figure 8-47: Administration Tab - Config Management 80 Figure 8-48: Status Tab - Mobile Network 81 Figure 8-49: Status Tab - Router 82 Figure 8-50: Status Tab - Local Network 83 Figure 8-51: Status Tab - Wireless 84 Figure C-1: Upgrade Firmware 104 Figure E-1: IP Configuration Screen 106

Wireless-G Router for Mobile Broadband

Figure E-2: MAC Address/Adapter Address 106 Figure E-3: MAC Address/Physical Address 106 Figure E-4: MAC Address Filter List 107 Figure E-5: MAC Address Clone 107

Wireless-G Router for Mobile Broadband

Chapter 1: Introduction

Welcome

Thank you for choosing the Linksys Wireless-G Router for Mobile Broadband The Wireless-G Router for Mobile Broadband will allow you to network wirelessly better than ever, sharing Internet access, files and fun, easily and securely.

How does the Wireless-G Router for Mobile Broadband do all of this? A router is a device that allows access to an Internet connection over a network. With the Wireless-G Router for Mobile Broadband, you can access the Internet through either your mobile broadband service (requires a mobile broadband data card, available separately), or you can use a cable or DSL modem for broadband service. Plus, this access can be shared over the four switched ports or via the wireless broadcast at up to 54Mbps for Wireless-G or up to 11Mbps for Wireless-B.

Use the WPA or WPA2 standard to secure your wireless network while the whole network is protected through a Stateful Packet Inspection (SPI) firewall and Network Address Translation (NAT) technology. Run the Setup Wizard and it will guide you through the steps. You can also access the Router’s features through the easy-to-use, browser-based utility.

But what does all of this mean?

Networks are useful tools for sharing computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks are not only useful in homes and offices, they can also be fun.

PCs on a wired network create a LAN, or Local Area Network. They are connected with Ethernet cables, which is why the network is called “wired”.

PCs equipped with wireless cards or adapters can communicate without cumbersome cables. By sharing the same wireless settings, within their transmission radius, they form a wireless network. This is sometimes called a WLAN, or Wireless Local Area Network. The Wireless-G Router for Mobile Broadband bridges wireless networks of both 802.11b and 802.11g standards and wired networks, allowing them to communicate with each other.

wpa (wi-fi protected access): a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

spi (stateful packet inspection) firewall: a technology that inspects incoming packets of information before allowing them to enter the network.

firewall: Security measures that protect the resources of a local network from intruders.

nat (network address translation): NAT technology translates IP addresses of a local area network to a different IP address for the Internet.

lan (local area network): The computers and networking products that make up the network in your home or office.

With your networks all connected, wired, wireless, and the Internet, you can now share files and Internet access—and even play games. All the while, the Wireless-G Router for Mobile Broadband protects your networks from unauthorized and unwelcome users.

Chapter 1: Introduction Welcome

Wireless-G Router for Mobile Broadband

Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run the Setup Wizard on the Setup CD-ROM, then use the instructions in this Guide to help you connect the Wireless-G Router for Mobile Broadband, set it up, and configure it to bridge your different networks. These instructions should be all you need to get the most out of the Wireless-G Router for Mobile Broadband.

What’s in this User Guide?

This user guide covers the steps for setting up and using the Wireless-G Router for Mobile Broadband.

• Chapter 1: Introduction This chapter describes the Router’s applications and this User Guide.

• Chapter 2: Planning Your Wireless Network This chapter describes the basics of wireless networking.

• Chapter 3: Getting to Know the Wireless-G Router for Mobile Broadband This chapter describes the physical features of the Router.

• Chapter 4: Connecting the Wireless-G Router for Mobile Broadband This chapter instructs you on how to connect the Router to your network.

• Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service This chapter walks you through the steps of the Setup Wizard to configure the Router for Mobile Broadband service only.

• Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only This chapter walks you through the steps of the Setup Wizard to configure the Router for broadband WAN service only.

• Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service This chapter walks you through the steps of the Setup Wizard to configure the Router for broadband WAN and Wireless Broadband service.

• Chapter 8: Configuring the Wireless-G Router for Mobile Broadband This chapter explains how to use the Web-based Utility to configure the settings on the Wireless-G Router for Mobile Broadband.

• Appendix A: Troubleshooting This appendix describes some problems and solutions, as well as frequently asked questions, regarding installation and use of the Wireless-G Router for Mobile Broadband.

Chapter 1: Introduction What’s in this User Guide?

Wireless-G Router for Mobile Broadband

• Appendix B: Wireless Security This appendix explains the risks of wireless networking and some solutions to reduce the risks.

• Appendix C: Upgrading Firmware This appendix instructs you on how to upgrade the firmware on the Router should you need to do so.

• Appendix D: Windows Help This appendix describes how you can use Windows Help for instructions about networking, such as installing the TCP/IP protocol.

• Appendix E: Finding the MAC Address and IP Address for your Ethernet Adapter. This appendix describes how to find the MAC address for your computer’s Ethernet adapter so you can use the MAC filtering and/or MAC address cloning feature of the Router.

• Appendix F: Glossary This appendix gives a brief glossary of terms frequently used in networking.

• Appendix G: Specifications This appendix provides the technical specifications for the Router.

• Appendix H: Warranty Information This appendix supplies the warranty information for the Router.

• Appendix I: Regulatory Information This appendix supplies the regulatory information regarding the Router.

• Appendix J: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support.

Chapter 1: Introduction What’s in this User Guide?

Wireless-G Router for Mobile Broadband

Chapter 2: Planning Your Wireless Network

Network Topology

A wireless local area network (WLAN) is exactly like a regular local area network (LAN), except that each computer in the WLAN uses a wireless device to connect to the network. Computers in a WLAN share the same frequency channel and SSID, which is an identification name shared by the wireless devices belonging to the same wireless network.

Ad-Hoc versus Infrastructure Mode

ssid (service set identifier): your wireless network’s name.

Unlike wired networks, wireless networks have two different modes in which they may be set up: infrastructure and ad-hoc. An infrastructure configuration is a WLAN and wired LAN communicating to each other through an access point. An ad-hoc configuration is wireless-equipped computers communicating directly with each other. Choosing between these two modes depends on whether or not the wireless network needs to share data or peripherals with a wired network or not.

If the computers on the wireless network need to be accessible by a wired network or need to share a peripheral, such as a printer, with the wired network computers, the wireless network should be set up in Infrastructure mode. The basis of Infrastructure mode centers around a wireless router or an access point, such as the Wireless-G Router for Mobile Broadband, which serves as the main point of communications in a wireless network. The Router transmits data to PCs equipped with wireless network adapters, which can roam within a certain radial range of the Router. You can arrange the Router and multiple access points to work in succession to extend the roaming range, and you can set up your wireless network to communicate with your Ethernet hardware as well.

If the wireless network is relatively small and needs to share resources only with the other computers on the wireless network, then the Ad-Hoc mode can be used. Ad-Hoc mode allows computers equipped with wireless transmitters and receivers to communicate directly with each other, eliminating the need for a wireless router or access point. The drawback of this mode is that in Ad-Hoc mode, wireless-equipped computers are not able to communicate with computers on a wired network. And, of course, communication between the wirelessequipped computers is limited by the distance and interference directly between them.

Network Layout

The Wireless-G Router for Mobile Broadband has been specifically designed for use with both your 802.11b and

802.11g products. It is compatible with all 802.11g and 802.11b adapters, such as the notebook adapters for your

infrastructure: a wireless network that is bridged to a wired network via an access point.

ad-hoc: a group of wireless devices communicating directly to each other (peer-topeer) without the use of an access point.

Chapter 2: Planning Your Wireless Network Network Topology

Wireless-G Router for Mobile Broadband

laptop computers, PCI adapters for your desktop PCs, and USB adapters when you want to enjoy USB connectivity. The Router will also communicate with the Wireless PrintServer and Wireless Ethernet Bridges.

When you wish to connect your wireless network with your wired network, you can use the Wireless-G Router for Mobile Broadband’s four Ethernet LAN ports. To add more ports, any of the Router's LAN ports can be connected to any of Linksys's switches.

With these, and many other Linksys products, your networking options are limitless. Go to the Linksys website at www.linksys.com for more information about products that work with the Wireless-G Router for Mobile Broadband.

Chapter 2: Planning Your Wireless Network Network Layout

Wireless-G Router for Mobile Broadband

Chapter 3: Getting to Know the Wireless-G Router for Mobile Broadband

The Router’s Ports

The Router's ports and Reset button are located on the side panel with the antenna port.

Figure 3-1: The Router’s Ports

Antenna The antenna port is where you will attach the Router’s antenna.

Internet The Internet port is where you will connect your broadband Internet connection, if you are

using broadband WAN service.

Ethernet 1, 2, 3, 4 These ports (1, 2, 3, 4) connect the Router to your PCs and other Ethernet network devices.

Security Bracket The bracket labeled “RESET” clips onto the Router. It covers the Reset button and the security

slot on the Router’s front panel. You can remove the security bracket to access the Reset button. To protect the Router from theft, you can attach a lock to the Router using the security slot and bracket.

Reset Button There are two ways to reset the Router's factory defaults. Either press the Reset button, for

approximately five seconds, or restore the defaults from the Administration tab - Factory Defaults tab in the Router's Web-based Utility.

Power The Power port is where you will connect the power adapter.

Chapter 3: Getting to Know the Wireless-G Router for Mobile Broadband The Router’s Ports

Security Bracket

Figure 3-2: The Router’s Front Panel

IMPORTANT: Resetting the Router will erase

all of your settings (Internet connection, wireless security, and other settings) and replace them with the factory defaults. Do not reset the Router if you want to retain these settings.

Wireless-G Router for Mobile Broadband

The Router’s LEDs

The Router’s LEDs are located on the Router’s other side panel.

Figure 3-3: The Router’s LEDs

Data Card Button This button allows you to connect to and disconnect from the mobile network (you can also

connect and disconnect using the Basic Setup tab of the Router’s Web-based Utility).

POWER Green. The POWER LED lights up and will stay on when the Router is powered on. When the

Router goes through its self-diagnostic mode during every boot-up, this LED will flash. When the diagnostic is complete, the LED will be solidly lit.

ETHERNET 1, 2, 3, 4 Green. These numbered LEDs, corresponding with the numbered ports on the Router’s back

panel, serve two purposes. If the LED is continuously lit, the Router is successfully connected to a device through that port. A flashing LED indicates network activity over that port.

DMZ Green. The DMZ LED lights up and will remain lit while the Router uses its DMZ function.

WIRELESS Green. The WIRELESS LED lights up whenever there is a successful wireless connection. If the

LED is flashing, the Router is actively sending or receiving data over the wireless network.

DATA CARD Blue.The DATA CARD LED flashes as the Router connects to the mobile network. It is solidly lit

when the connection is established.

The LED quickly flashes if the Router does not have a connection to the mobile network. A data card must be inserted into the Router when you press the Data Card Connect/Disconnect button.

INTERNET Green. The INTERNET LED lights up when a connection is made through the Internet port.

Chapter 3: Getting to Know the Wireless-G Router for Mobile Broadband The Router’s LEDs

Wireless-G Router for Mobile Broadband

The Router’s Data Card Slot

The Router’s Data Card slot is located on the Router’s top panel.

Figure 3-4: The Router’s Data Card Slot

Data Card Slot Insert the mobile broadband data card (available separately) into this slot if the Router will

connect to a mobile broadband service.

Chapter 3: Getting to Know the Wireless-G Router for Mobile Broadband The Router’s Data Card Slot

Wireless-G Router for Mobile Broadband

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband

Overview

Most users who are connecting the Router to the Internet for the first time can proceed to the appropriate chapter about the Setup Wizard and use this chapter as reference on how to connect the hardware. There are three chapters about the Setup Wizard available. If you want to configure the Router for mobile broadband service only, go to “Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service.” If you want to configure the Router for broadband WAN service only, go to “Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only.” If you want to configure the Router for broadband WAN and mobile broadband service, go to “Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service.”

This chapter includes three sets of instructions. Follow the instructions for your configuration.

• If the Router will use the mobile broadband service only, follow the instructions in “Hardware Installation for Use of the Mobile Broadband Service.”

• If the Router will be the only router in your network and you have a broadband modem, follow the instructions in “Hardware Installation for Connection to Your Broadband Modem.”

• If you want to install the Wireless-G Router for Mobile Broadband behind another router in your network, then follow the instructions in “Hardware Installation for Connection to Another Router.”

Hardware Installation for Use of the Mobile Broadband Service Only

1. Power down your network devices.

2. Locate an optimum location for the Router. The best place for the Router is usually at the center of your wireless network, with line of sight to all of your mobile stations.

3. Attach the antenna and fix its direction. Try to place the Router in a position that will best cover your wireless network. Normally, the higher you place the antenna, the better the performance will be.

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband Overview

Wireless-G Router for Mobile Broadband

4. Connect your network PCs or Ethernet devices to the Router’s numbered ports using standard Ethernet network cabling.

Figure 4-1: Connect Your Computer

5. Connect the power adapter to the Router's Power port, and plug the other end into an electrical outlet. Only use the power adapter supplied with the Router. Use of a different adapter may result in product damage.

Figure 4-2: Connect the Power

Proceed to the section at the end of this chapter, “Placement Options.”

IMPORTANT: Make sure you use the power

adapter that is supplied with the Router. Use of a different power adapter could damage the Router.

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband Hardware Installation for Use of the Mobile Broadband Service Only

Wireless-G Router for Mobile Broadband

Hardware Installation for Connection to Your Broadband Modem

1. Power down your network devices.

2. Locate an optimum location for the Router. The best place for the Router is usually at the center of your wireless network, with line of sight to all of your mobile stations.

4. Connect a standard Ethernet network cable to the Router’s Internet port. Then, connect the other end of the Ethernet cable to your cable or DSL broadband modem.

Figure 4-3: Connect the Broadband Modem

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband Hardware Installation for Connection to Your Broadband Modem

Wireless-G Router for Mobile Broadband

5. Connect your network PCs or Ethernet devices to the Router’s numbered ports using standard Ethernet network cabling.

6. Connect the power adapter to the Router's Power port, and plug the other end into an electrical outlet. Only use the power adapter supplied with the Router. Use of a different adapter may result in product damage.

Proceed to the section at the end of this chapter, “Placement Options.”

Figure 4-4: Connect Your Computer

IMPORTANT: Make sure you use the power

adapter that is supplied with the Router. Use of a different power adapter could damage the Router.

Figure 4-5: Connect the Power

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband Hardware Installation for Connection to Your Broadband Modem

Wireless-G Router for Mobile Broadband

Hardware Installation for Connection to Another Router

Before you install the Wireless-G Router for Mobile Broadband, you will need to check if the default IP address of the other Router is 192.168.1.1. If so, there will be an IP address conflict with the new Router. Follow the instructions below to change the default IP address of the existing Router to 192.168.2.1.

NOTE: Steps 1-4 are instructions for a typical Linksys router; however, if you are using a non-Linksys router, refer to the other router’s documentation for instructions on how to change its local IP address to 192.168.2.1.

Internet

Broadband

Modem

First, make sure the Router is NOT connected to your network. Then follow these instructions:

1. To access the other Router’s Web-based Utility, launch Internet Explorer or Netscape Navigator, and enter the other router’s default IP address in the Address field. Then press Enter.

2. A password request page will appear. Leave the User Name field blank. In the Password field, enter the password you have set (the default password is admin). Then click the OK button.

3. The first screen that appears will display the Setup tab. In the Network Setup section, there is a setting called Local IP Address, which is set to 192.168.1.1. Change this to 192.168.2.1.

Wireless-G Router

4. Click the Save Settings button to save your change, and then exit the Web-based Utility.

5. Power down your network devices. Now you will begin the hardware installation of Router.

6. Locate an optimum location for the Router. The best place for the Router is usually at the center of your wireless network, with line of sight to all of your mobile stations.

7. Attach the antenna and fix its direction. Try to place the Router in a position that will best cover your wireless network. Normally, the higher you place the antenna, the better the performance will be.

8. Connect a standard Ethernet network cable to the Router’s Internet port. Then, connect the other end of the Ethernet cable to one of the numbered Ethernet ports on your other router.

Router

for Mobile

Broadband

Multiple PCs

Figure 4-6: Diagram for Connection to Another Router

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband Hardware Installation for Connection to Another Router

Figure 4-7: Connect Another Router

Wireless-G Router for Mobile Broadband

9. Decide which network computers or Ethernet devices you want to connect to the Router.

Disconnect the selected computers or devices from the other router, and then connect them to the Router’s numbered ports using standard Ethernet network cabling.

Figure 4-8: Connect Your Computer

10. Connect the power adapter to the Router's Power port, and plug the other end into an electrical outlet. Only use the power adapter supplied with the Router. Use of a different adapter may result in product damage.

IMPORTANT: Make sure that you use the power adapter that is supplied with the Router. Use of a different power adapter could damage the Router.

Figure 4-9: Connect the Power

Proceed to the next section, “Placement Options.”

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband Hardware Installation for Connection to Another Router

Wireless-G Router for Mobile Broadband

Placement Options

There are three ways to place the Router. The first way is to place it horizontally on a surface, so it sits on its four rubber feet. The second way is to stand the Router vertically on a surface. The third way is to mount it on a wall. The second and third options are explained in further detail below.

Stand Option

1. Line up the center of the Router’s stand with the center of the Router’s labeled edge.

2. Insert the Router into the stand.

If you want to configure the Router for mobile broadband service only, go to “Chapter 5: Setting up the

Wireless-G Router for Mobile Broadband Service.”

If you want to configure the Router for broadband WAN service only, go to “Chapter 6: Setting up the

Wireless-G Router for Broadband WAN Service Only.”

If you want to configure the Router for broadband WAN and mobile broadband service, go to “Chapter 7:

Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service.”

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband Placement Options

Figure 4-10: Stand Attached to the Router

Wireless-G Router for Mobile Broadband

Wall-Mount Option

The Router has four wall-mount slots on its bottom panel. The distance between two adjacent slots is 68 mm (2.68 inches).

Before you begin, make sure you have two screws that are size #4—this indicates a diameter measurement of

2.845 mm (0.112 inches).

1. Determine where you want to mount the Router.

2. Drill two holes into the wall. Make sure adjacent holes are 68 mm (2.68 inches) apart.

3. Insert a screw into each hole, and leave 5 mm (0.2 inches) of its head exposed.

4. Maneuver the Router so the top wall-mount slots line up with the two screws.

5. Place the wall-mount slots over the screws and slide the Router down until the screws fit snugly into the wallmount slots.

If you want to configure the Router for mobile broadband service only, go to “Chapter 5: Setting up the

Wireless-G Router for Mobile Broadband Service.”

If you want to configure the Router for broadband WAN service only, go to “Chapter 6: Setting up the

Wireless-G Router for Broadband WAN Service Only.”

If you want to configure the Router for broadband WAN and mobile broadband service, go to “Chapter 7:

Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service.”

68 mm

(2,68 inches)

Figure 4-11: Measurement between Wall-Mount Slots

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband Placement Options

Wireless-G Router for Mobile Broadband

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service

Overview

This chapter covers the steps for configuring the Router for mobile broadband service only. If you want to configure the Router for broadband WAN service only, go to “Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only.” If you want to configure the Router for broadband WAN and mobile broadband service, go to “Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service.”

Before You Begin

Before you begin, make sure that you have the following:

• your activated Mobile Broadband Data Card

• your Mobile Broadband Data Card Service information.

The information about your Mobile Broadband Data Card was included with your Mobile Broadband Data Card package. If you do not have this information, contact the mobile broadband service provider’s customer support.

IMPORTANT: If you do NOT have your Mobile Broadband Data Card you cannot configure the Router for mobile broadband service. However, you can configure the Router for broadband WAN service; for instructions, proceed to “Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only.”

IMPORTANT: Make sure your Mobile Broadband Data Card is activated before starting the setup. If you have not already done so, follow the instructions provided in your Card’s documentation.

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service Overview

Wireless-G Router for Mobile Broadband

Using the Setup Wizard

1. Insert the Setup Wizard CD-ROM into your CD-ROM drive. The Setup Wizard should run automatically, and the Welcome screen should appear. If it does not, click the Start button and choose Run. In the field that appears, enter D:\SetupWizard.exe (if “D” is the letter of your CD-ROM drive).

2. On the Welcome screen, click the Click Here to Start button if this is the first time you are running the Setup Wizard. These are your other choices:

User Guide - Click the User Guide button to open the PDF file of this User Guide.

Exit - Click the Exit button to exit the Setup Wizard.

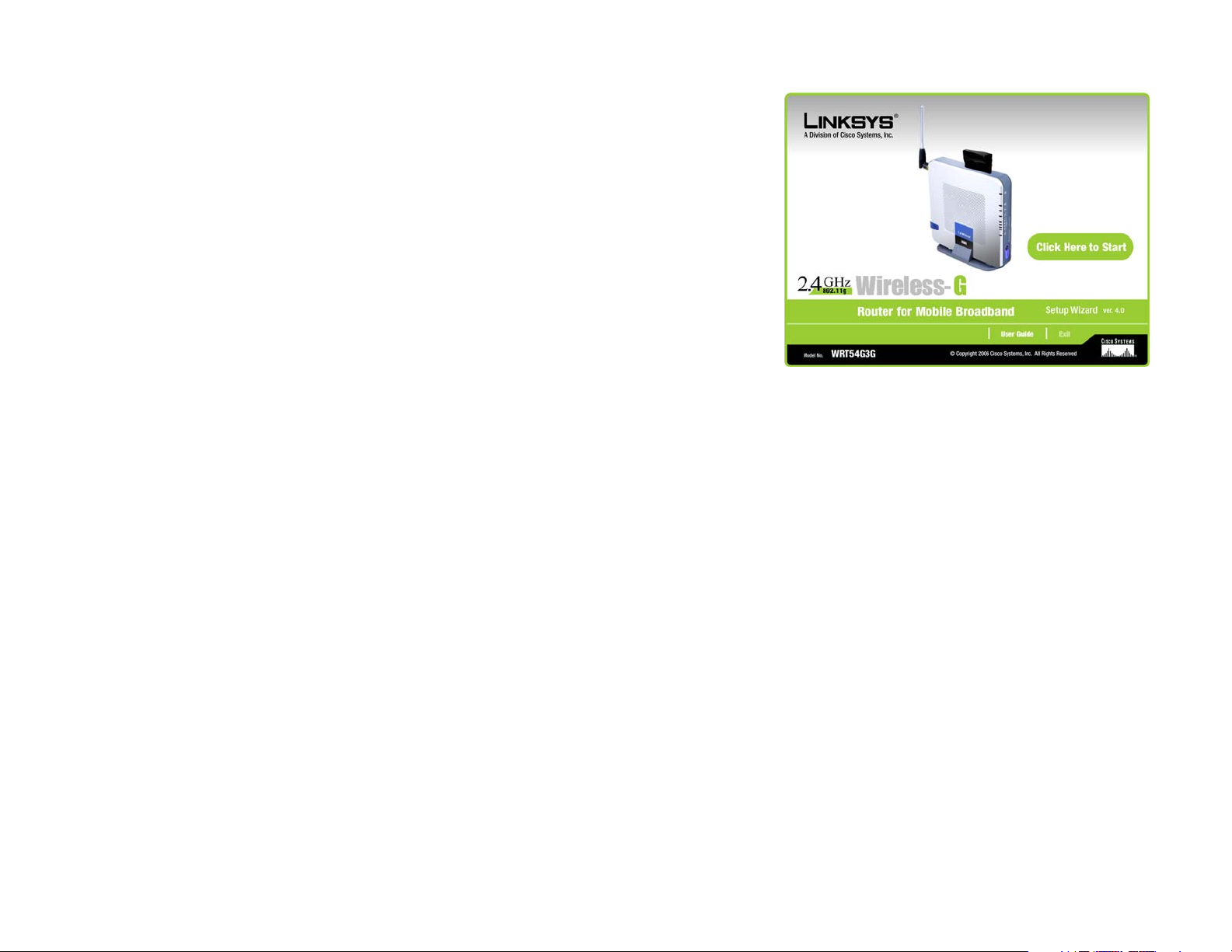

Figure 5-1: Setup Wizard’s Welcome - Start

Wizard Screen

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service Using the Setup Wizard

Wireless-G Router for Mobile Broadband

3. Click the Mobile Broadband Only radio button to configure the Router for mobile broadband service.

NOTE: If you click the Broadband WAN Only radio button to configure the Router for broadband

WAN service only, go to “Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only.” If you click the Broadband WAN and Mobile Broadband radio button to configure the Router for broadband WAN and mobile broadband service, go to “Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service.”

4. Make sure the Router is powered off. Insert your mobile broadband data card into the Router’s Data Card Slot on the top panel of the Router. Then click the Next button.

Figure 5-2: Select Service Screen

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service Using the Setup Wizard

Figure 5-3: Insert Mobile Broadband Data Card Screen

Wireless-G Router for Mobile Broadband

5. Connect the included Ethernet network cable to the Ethernet network port of your computer. (This cable is color-coded yellow to match the yellow Ethernet ports on the Router.)

Click the Next button.

6. Connect the other end of the cable to one of the Ethernet ports labeled 1-4 on the side panel of the Router.

If necessary, connect any additional computers or other devices to the Router.

Figure 5-4: Connect the Router to a Computer Screen

Click the Next button.

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service Using the Setup Wizard

Figure 5-5: Connect the Router to a Computer Screen,

Continued

Wireless-G Router for Mobile Broadband

7. Connect the power adapter to the Router’s Power port. Plug the other end into an electrical outlet.

Click the Next button.

8. Make sure the LEDs on the Router light up. The Power LED will flash for a few seconds while the Router goes through its self-diagnostics test. This LED will be solidly lit when the self-test is complete. If it does not stop flashing, refer to “Appendix A: Troubleshooting.”

Figure 5-6: Power on the Router Screen

Click the Next button.

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service Using the Setup Wizard

Figure 5-7: Check the Router’s Status Screen

Wireless-G Router for Mobile Broadband

9. The Router provides a Web-based Utility you can use for configuring the Router from any networked PC.

Password - Enter a password that will control access to the Utility.

Confirm - Then enter it again in the Confirm field.

Click the Next button.

IMPORTANT: If you do NOT have your mobile broadband data card, you cannot configure the

Router for mobile broadband service. You have two choices. To continue with the Setup Wizard to configure the wireless settings, proceed to step 14, or to configure the Router for broadband WAN service only, proceed to “Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only” for instructions.

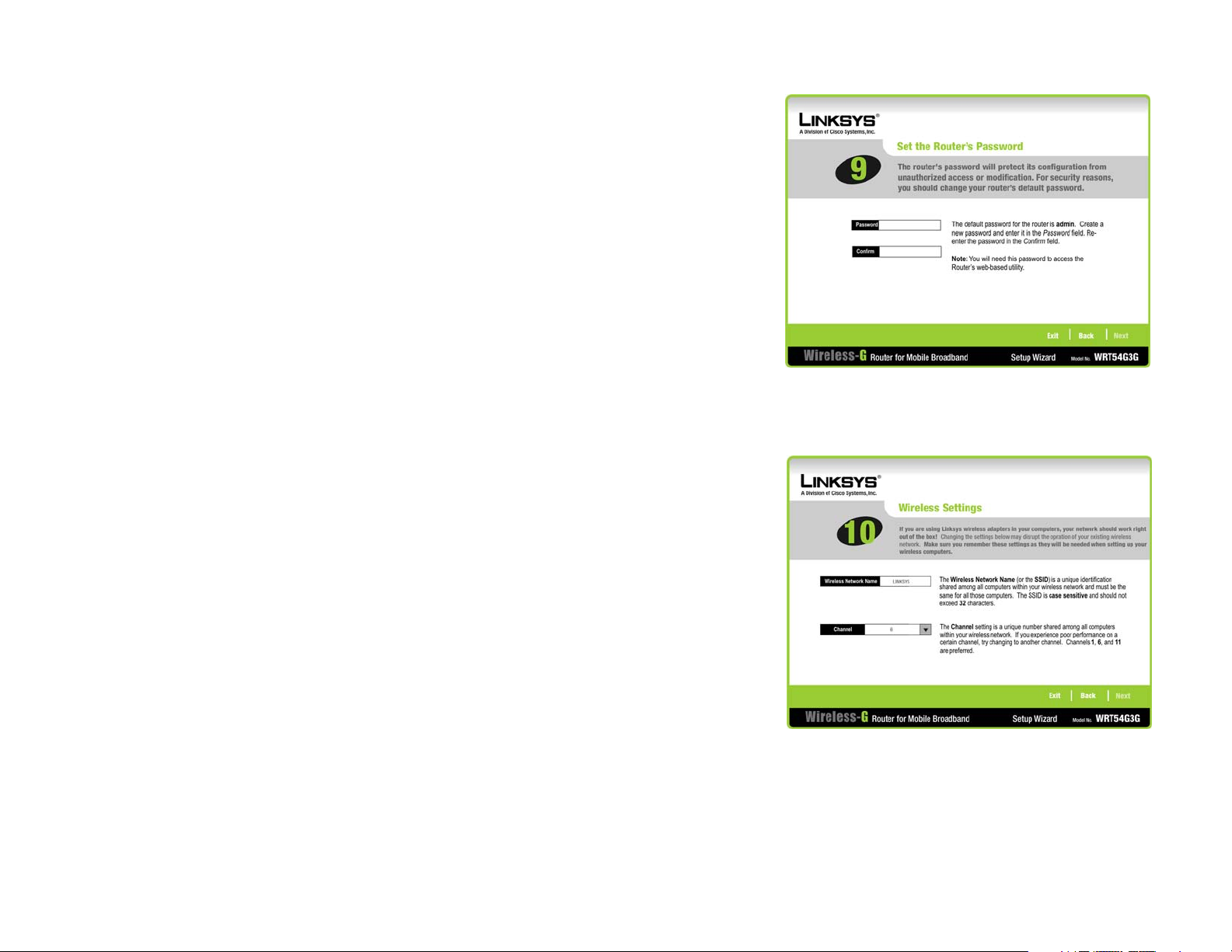

Figure 5-8: Set the Router’s Password Screen

10. The Setup Wizard will ask you to enter the settings for your wireless network.

Wireless Network Name - In the Wireless Network Name field, enter the name of your wireless network, also called the SSID. The name must be identical for all devices in the network. The default setting is linksys (all lowercase).

Channel - Select the operating channel for your wireless network. All of your wireless devices will use this channel to communicate.

Click the Next button.

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service Using the Setup Wizard

Figure 5-9: Wireless Settings Screen

Wireless-G Router for Mobile Broadband

11. Select the method of security you want to use: WPA2-PSK, WPA-PSK, WEP (128-Bit), or WEP (64-Bit). WPA stands for Wi-Fi Protected Access, and WEP stands for Wired Equivalent Privacy. WPA is a stronger security method than WEP. WPA2 is the strongest security method. Proceed to the appropriate section for your security method.

If you want to use WPA-Enterprise (also called WPA-RADIUS), WPA2-Enterprise, or RADIUS, then you should select Disabled and use the Router’s Web-based Utility to configure your wireless security settings. Click the Next button. You will see a warning message that recommends that you enable wireless security on your wireless network. Click the Exit button and proceed to step 15.

If you do not want to use any wireless security method, select Disabled and then click the Next button.You will see a warning message that recommends that you enable wireless security on your wireless network.

IMPORTANT: Linksys strongly recommends that you enable wireless security on your wireless network. Otherwise, unauthorized users may be able to access the Internet using your service and incur additional charges. You are liable for any and all additional charges from your service provider.

WPA2-PSK

To use WPA2-PSK security, enter a Passphrase that is 8-32 characters in length.

Passphrase - Enter a passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field. The longer and more complex your Passphrase is, the more secure your network will be.

Click the Next button to continue or the Back button to return to the previous screen.

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service Using the Setup Wizard

Figure 5-10: Configure Wireless Security Settings

Screen

Figure 5-11: Configure Wireless Security Settings -

WPA2-PSK Screen

Wireless-G Router for Mobile Broadband

WPA-PSK

To use WPA-PSK security, enter a Passphrase that is 8-32 characters in length.

Passphrase - Enter a passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field. The longer and more complex your Passphrase is, the more secure your network will be.

Click the Next button to continue or the Back button to return to the previous screen.

WEP (128-Bit)

Enter a passphrase or WEP key.

Passphrase - Enter a passphrase, and then click the Generate button, so a WEP key is automatically generated. The passphrase is case-sensitive and should not be longer than 16 alphanumeric characters. It must match the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (For any non-Linksys wireless products, enter the WEP key manually on those products.)

Key 1- The WEP key you enter must match the WEP key of your wireless network. For 128-bit encryption, enter exactly 26 hexadecimal characters. Valid hexadecimal characters are “0” to “9” and “A” to “F”.

encryption: encoding data transmitted in a network.

Figure 5-12: Configure Wireless Security Settings -

WPA-PSK Screen

wpa (wi-fi protected access: a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

wep (wired equivalent privacy): a method of encrypting network data transmitted on a wireless network for greater security.

Click the Next button.

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service Using the Setup Wizard

Figure 5-13: Configure Wireless Security Settings - WEP

(128-Bit) Screen

Wireless-G Router for Mobile Broadband

WEP (64-Bit)

Enter a passphrase or WEP key.

Key 1 - The WEP key you enter must match the WEP key of your wireless network. For 64-bit encryption, enter exactly 10 hexadecimal characters. Valid hexadecimal characters are “0” to “9” and “A” to “F”.

Click the Next button.

12. If you do not use any wireless security method, you will see a warning message. Linksys strongly recommends that you enable wireless security on your wireless network. Otherwise, unauthorized users may be able to access the Internet using your service and incur additional charges. You are liable for any and all additional charges from your service provider. Click the Exit button. Proceed to step 13.

Figure 5-14: Configure Wireless Security Settings - WEP

(64-Bit) Screen

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service Using the Setup Wizard

Figure 5-15: Warning about Disabled Wireless Security

Screen

Wireless-G Router for Mobile Broadband

13. The Setup Wizard will ask you to review your settings before it saves them. Click the Yes button if you are satisfied with your settings, or click the No button if you do not want to save your new settings.

14. If your mobile broadband connection cannot be established, a warning message will appear. Make sure that your card is inserted correctly and try again. If the warning appears again, make sure that your mobile broadband data card is activated or contact your mobile service provider.

Figure 5-16: Confirm New Settings Screen

15. The Congratulations screen will appear. Click the Online Registration button to register the Router, or click the Exit button to exit the Setup Wizard.

Congratulations! The installation of the Wireless-G Router for Mobile Broadband is complete.

If you want to make advanced configuration changes, proceed to “Chapter 8: Configuring the Wireless-G

Router for Mobile Broadband.”

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service Using the Setup Wizard

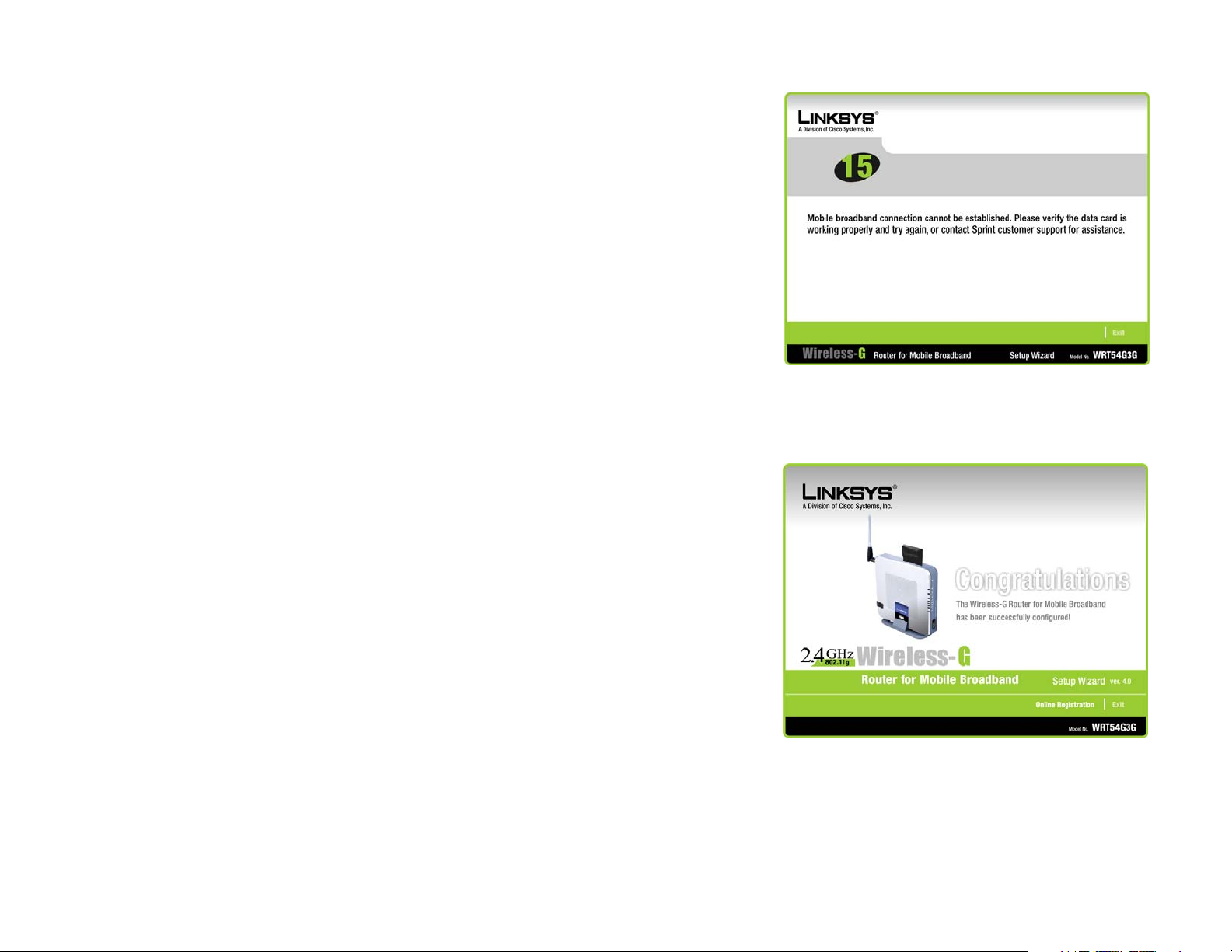

Figure 5-17: Mobile Broadband Connection

Cannot be Established Screen

Figure 5-18: Congratulations Screen

Wireless-G Router for Mobile Broadband

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only

Overview

This chapter covers the steps for configuring the Router for broadband WAN service only, such as cable or DSL service. If you want to configure the Router for mobile broadband service only, go to “Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service.” If you want to configure the Router for broadband WAN and mobile broadband service, go to “Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service.”

Before You Begin

Before you begin, make sure that you have the following:

• broadband modem

• settings for your Internet connection.

The information about your Internet connection should have been provided when your broadband modem was installed. If you do not have this information, contact your Internet Service Provider (ISP) for your settings.

IMPORTANT: If you want to configure the Router for mobile broadband service in addition to broadband WAN service, proceed to “Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service.”

Using the Setup Wizard

2. On the Welcome screen, click the Click Here to Start button if this is the first time you are running the Setup Wizard. These are your other choices:

User Guide - Click the User Guide button to open the PDF file of this User Guide. Exit - Click the Exit button to exit the Setup Wizard.

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Overview

Figure 6-1: Setup Wizard’s Welcome - Start

Wizard Screen

Wireless-G Router for Mobile Broadband

3. Click the Broadband WAN Only radio button to configure the Router for broadband WAN service. Make sure the Router is powered off.

NOTE: If you click the Mobile Broadband radio button to configure the Router for mobile broad service only, go to “Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service.” If you click the Broadband WAN and Mobile Broadband radio button to configure the Router for broadband WAN and mobile broadband service, go to “Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service.”

4. Disconnect the Ethernet network cable from your computer. (This is the cable that connects the computer to your modem.) Then click the Next button.

Figure 6-2: Select Service Screen

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Figure 6-3: Disconnect the Modem from the Computer

Screen

Wireless-G Router for Mobile Broadband

5. Connect the cable from the modem to the Internet port on the Router. (This is the same cable that you just disconnected from your computer.) Click the Next button.

6. Connect the included Ethernet network cable to the Ethernet network port of your computer. (This cable is color-coded yellow to match the yellow Ethernet ports on the Router.)

Figure 6-4: Connect the Modem to the Router Screen

Click the Next button.

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Figure 6-5: Connect the Router to a Computer Screen

Wireless-G Router for Mobile Broadband

7. Connect the other end of the cable to one of the Ethernet ports labeled 1-4 on the side panel of the Router.

If necessary, connect any additional computers or other devices to the Router.

Click the Next button.

Figure 6-6: Connect the Router to a Computer Screen,

continued

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Wireless-G Router for Mobile Broadband

8. Connect the power adapter to the Router’s Power port. Plug the other end into an electrical outlet.

Click the Next button.

9. Make sure the Power, Internet, and at least one of the numbered LEDs on the Router light up. If they do not light up, make sure the cables are securely connected.

Figure 6-7: Power on the Router Screen

The Power LED will flash for a few seconds while the Router goes through its self-diagnostics test. This LED will be solidly lit when the self-test is complete. If it does not stop flashing, refer to “Appendix A: Troubleshooting.”

Click the Next button.

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Figure 6-8: Check the Router’s Status Screen

Wireless-G Router for Mobile Broadband

10. Select the Internet connection type you use: Cable (DHCP), DSL (PPPoE), or Static IP. Proceed to the appropriate section for your Internet connection type.

NOTE: If the Internet connection type you use is not listed here, keep the default, Cable (DHCP) for now, and click the Next button. After you have completed the Setup Wizard, go to “Chapter 8: Configuring the Wireless-G Router for Mobile Broadband.” You will use the Router’s Web-based Utility to configure the Internet connection type settings.

Cable (DHCP)

Click the Next button.

DSL (PPPoE)

User Name - Enter the User Name provided by your ISP.

Figure 6-9: Configure Cable or DHCP Settings Screen

Password - Enter the Password provided by your ISP.

Confirm - To confirm the Password, enter it again in this field.

Click the Next button to continue.

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Figure 6-10: Configure DSL (PPPoE) Settings Screen

Wireless-G Router for Mobile Broadband

Static IP

IP Address - Enter the IP address provided by your ISP.

Subnet Mask- Enter the Subnet Mask provided by your ISP.

Gateway - Enter the Gateway IP address provided by your ISP.

DNS 1-2 - Enter the DNS (Domain Name System) server IP address(es) provided by your ISP. You need to enter

at least one DNS address.

Click the Next button to continue.

11. The Setup Wizard will ask you to review your settings before it saves them. Click the Yes button if you are satisfied with your settings, or click the No button if you do not want to save the new settings.

Figure 6-11: Enter Static IP Address Settings Screen

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Figure 6-12: Confirm New Settings Screen

Wireless-G Router for Mobile Broadband

12. The Router provides a Web-based Utility you can use for configuring the Router from any networked PC.

Password - Enter a password that will control access to the Utility.

Confirm - Then enter it again in the Confirm field.

Click the Next button.

13. The Setup Wizard will ask you to enter the settings for your wireless network.

Figure 6-13: Set the Router’s Password Screen

Channel - Select the operating channel for your wireless network. All of your wireless devices will use this

channel to communicate.

Click the Next button.

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Figure 6-14: Wireless Settings Screen

Wireless-G Router for Mobile Broadband

14. Select the method of security you want to use: WPA2-PSK, WPA-PSK, WEP (128-Bit), or WEP (64-Bit). WPA stands for Wi-Fi Protected Access, and WEP stands for Wired Equivalent Privacy. WPA is a stronger security method than WEP. WPA2 is the strongest security method. Proceed to the appropriate section for your security method.

WPA2-PSK

To use WPA2-PSK security, enter a Passphrase that is 8-32 characters in length.

wpa2 (wi-fi protected access2: a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption and AES (Advanced Encryption System) with dynamic encryption keys, which can be used in conjunction with a RADIUS server. wpa (wi-fi protected access: a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

wep (wired equivalent privacy): a method of encrypting network data transmitted on a wireless network for greater security.

encryption: encoding data transmitted in a network.

Figure 6-15: Configure Wireless Security Settings Screen

Passphrase - Enter a passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field.

The longer and more complex your Passphrase is, the more secure your network will be.

Click the Next button to continue or the Back button to return to the previous screen.

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Figure 6-16: Configure Wireless Security

Settings - WPA2-PSK Screen

Wireless-G Router for Mobile Broadband

WPA-PSK

To use WPA-PSK security, enter a Passphrase that is 8-32 characters in length.

Passphrase - Enter a passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field. The longer and more complex your Passphrase is, the more secure your network will be.

Click the Next button to continue or the Back button to return to the previous screen.

WEP (128-Bit)

Enter a passphrase or WEP key.

Figure 6-17: Configure Wireless Security Settings -

WPA-PSK Screen

Key 1- The WEP key you enter must match the WEP key of your wireless network. For 128-bit encryption,

enter exactly 26 hexadecimal characters. Valid hexadecimal characters are “0” to “9” and “A” to “F”.

Click the Next button.

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Figure 6-18: Configure Wireless Security Settings - WEP

(128-Bit) Screen

Wireless-G Router for Mobile Broadband

WEP (64-Bit)

Enter a passphrase or WEP key.

Click the Next button.

15. The Setup Wizard will ask you to review your settings before it saves them. Click the Yes button if you are satisfied with your settings, or click the No button if you do not want to save your new settings.

Figure 6-19: Configure Wireless Security Settings - WEP

(64-Bit) Screen

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Figure 6-20: Confirm New Settings Screen

Wireless-G Router for Mobile Broadband

16. If you do not use any wireless security method, you will see a warning message that recommends that you enable wireless security on your wireless network. Otherwise, unauthorized users may be able to access the Internet using your service and incur additional charges. You are liable for any and all additional charges from your service provider. Click the Exit button. Proceed to step 17.

17. The Congratulations screen will appear. Click the Online Registration button to register the Router, or click the Exit button to exit the Setup Wizard.

Figure 6-21: Warning about Disabled Wireless Security

Screen

Congratulations! The installation of the Wireless-G Router for Mobile Broadband is complete.

If you want to make advanced configuration changes, proceed to “Chapter 8: Configuring the Wireless-G

Router for Mobile Broadband.”

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only Using the Setup Wizard

Figure 6-22: Congratulations Screen

Wireless-G Router for Mobile Broadband

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Overview

This chapter covers the steps for configuring the Router for broadband WAN and mobile broadband service. If you want to configure the Router for mobile broadband service only, go to “Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service.” If you want to configure the Router for broadband WAN service only, go to “Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only.”

Before You Begin

Before you begin, make sure that you have the following:

• your activated Mobile Broadband Data Card

• your Mobile Broadband Data Card Service information.

• broadband modem

• settings for your broadband Internet connection type.

IMPORTANT: If you do NOT have broadband WAN service, then you cannot configure the Router for broadband WAN service. However, you can configure the Router for mobile broadband service; for instructions, proceed to “Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service.”

IMPORTANT: Make sure your Mobile Broadband Data Card is activated before starting the setup. If you have not already done so, follow the instructions provided in your Card’s documentation.

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Wireless-G Router for Mobile Broadband

Using the Setup Wizard

2. On the following Welcome screen, click the Click Here to Start button if this is the first time you are running the Setup Wizard. These are your other choices:

User Guide - Click the User Guide button to open the PDF file of this User Guide.

Exit - Click the Exit button to exit the Setup Wizard.

Figure 7-1: Setup Wizard’s Welcome - Start

Wizard Screen

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Wireless-G Router for Mobile Broadband

3. Click the Broadband WAN and Mobile Broadband radio button to configure the Router for both broadband WAN and mobile broadband service.

NOTE: If you click the Mobile Broadband Only radio button to configure the Router for mobile broadband service only, go to “Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service.”If you click the Broadband WAN Only radio button to configure the Router for broadband WAN service only, go to “Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only.”

4. Make sure the Router is powered off. Insert your mobile broadband data card into the Router’s Data Card Slot on the top panel of the Router. Then click the Next button.

Figure 7-2: Select Service Screen

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-3: Insert Broadband Mobile Data Card Screen

Wireless-G Router for Mobile Broadband

5. Disconnect the Ethernet network cable from your computer. (This is the cable that connects the computer to your modem.) Then click the Next button.

6. Connect the cable from the modem to the Internet port on the Router. (This is the same cable that you just disconnected from your computer.) Click the Next button.

Figure 7-4: Disconnect the Modem from the Computer

Screen

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-5: Connect the Modem to the Router Screen

Wireless-G Router for Mobile Broadband

7. Connect the included Ethernet network cable to the Ethernet network port of your computer. (This cable is color-coded yellow to match the yellow Ethernet ports on the Router.)

Click the Next button.

8. Connect the other end of the cable to one of the Ethernet ports labeled 1-4 on the side panel of the Router.

Connect additional computers or other devices to the Router.

Figure 7-6: Connect the Router to a Computer Screen

Click the Next button.

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-7: Connect the Router to a Computer Screen,

continued

Wireless-G Router for Mobile Broadband

9. Connect the power adapter to the Router’s Power port. Plug the other end into an electrical outlet.

Click the Next button.

10. Make sure the Power, Internet, and at least one of the numbered LEDs on the Router light up. If they do not light up, make sure the cables are securely connected.

Figure 7-8: Power on the Router Screen

Click the Next button.

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-9: Check the Router’s Status Screen

Wireless-G Router for Mobile Broadband

11. Select the Internet connection type you use: Cable (DHCP), DSL (PPPoE), or Static IP. Proceed to the appropriate section for your Internet connection type.

Cable (DHCP)

Click the Next button.

DSL (PPPoE)

User Name - Enter the User Name provided by your ISP.

Figure 7-10: Configure Cable or DHCP Settings Screen

Password - Enter the Password provided by your ISP.

Confirm - To confirm the Password, enter it again in this field.

Click the Next button to continue.

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-11: Configure DSL (PPPoE) Settings Screen

Wireless-G Router for Mobile Broadband

Static IP

IP Address - Enter the IP address provided by your ISP.

Subnet Mask- Enter the Subnet Mask provided by your ISP.

Gateway - Enter the Gateway IP address provided by your ISP.

DNS 1-2 - Enter the DNS (Domain Name System) server IP address(es) provided by your ISP. You need to enter

at least one DNS address.

Click the Next button to continue.

12. The Setup Wizard will ask you to review your settings before it saves them. Click the Yes button if you are satisfied with your settings, or click the No button if you do not want to save the new settings.

Figure 7-12: Enter Static IP Address Settings Screen

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-13: Confirm New Settings Screen

Wireless-G Router for Mobile Broadband

13. The Router provides a Web-based Utility you can use for configuring the Router from any networked PC.

Password - Enter a password that will control access to the Utility.

Confirm - Then enter it again in the Confirm field.

Click the Next button.

14. The Setup Wizard will ask you to enter the settings for your wireless network.

Figure 7-14: Set the Router’s Password Screen

Channel - Select the operating channel for your wireless network. All of your wireless devices will use this

channel to communicate.

Click the Next button.

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-15: Wireless Settings Screen

Wireless-G Router for Mobile Broadband

15. Select the method of security you want to use: WPA2-PSK, WPA-PSK, WEP (128-Bit), or WEP (64-Bit). WPA stands for Wi-Fi Protected Access, and WEP stands for Wired Equivalent Privacy. WPA is a stronger security method than WEP. WPA2 is the strongest security method. Proceed to the appropriate section for your security method.

wpa (wi-fi protected access: a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

wep (wired equivalent privacy): a method of encrypting network data transmitted on a wireless network for greater security.

encryption: encoding data transmitted in a network.

Figure 7-16: Configure Wireless Security

Settings Screen

WPA2-Personal

To use WPA2-PSK security, enter a Passphrase that is 8-32 characters in length.

Passphrase - Enter a passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field. The longer and more complex your Passphrase is, the more secure your network will be.

Click the Next button to continue or the Back button to return to the previous screen.

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-17: Configure Wireless Security

Settings - WPA2-PSK Screen

Wireless-G Router for Mobile Broadband

WPA-Personal

To use WPA-PSK security, enter a Passphrase that is 8-32 characters in length.

Passphrase - Enter a passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field. The longer and more complex your Passphrase is, the more secure your network will be.

Click the Next button to continue or the Back button to return to the previous screen.

WEP (128-Bit)

Enter a passphrase or WEP key.

Figure 7-18: Configure Wireless Security Settings -

WPA-PSK Screen

Passphrase - Enter a passphrase, and then click the Generate button, so a WEP key is automatically

generated. The passphrase is case-sensitive and should not be longer than 16 alphanumeric characters. It must match the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (For any non-Linksys wireless products, enter the WEP key manually on those products.)

Click the Next button.

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-19: Configure Wireless Security Settings - WEP

(128-Bit)

Wireless-G Router for Mobile Broadband

WEP (64-Bit)

Enter a passphrase or WEP key.

Click the Next button.

16. The Setup Wizard will ask you to review your settings before it saves them. Click the Yes button if you are satisfied with your settings, or click the No button if you do not want to save your new settings.

Figure 7-20: Configure Wireless Security Settings - WEP

(64-Bit)

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-21: Configure Wireless Security Settings - WEP

(64-Bit)

Wireless-G Router for Mobile Broadband

17. If you do not use any wireless security method, you will see a warning message that recommends that you enable wireless security on your wireless network. Otherwise, unauthorized users may be able to access the Internet using your service and incur additional charges. You are liable for any and all additional charges from your service provider. Click the Exit button. Proceed to step 20.

18. The Setup Wizard will ask you to review your settings before it saves them. Click the Yes button if you are satisfied with your settings, or click the No button if you do not want to save your new settings.

Figure 7-22: Warning about Disabled Wireless Security

Screen

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-23: Confirm New Settings

Wireless-G Router for Mobile Broadband

19. If your mobile broadband connection cannot be established, a warning message will appear. Make sure that your card is inserted correctly and try again. If the warning appears again, make sure that your mobile broadband data card is activated or contact your mobile service provider.

Figure 7-24: Mobile Broadband Connection Cannot be

Established Screen

20. The Congratulations screen will appear. Click the Online Registration button to register the Router, or click the Exit button to exit the Setup Wizard.

Congratulations! The installation of the Wireless-G Router for Mobile Broadband is complete.

If you want to make advanced configuration changes, proceed to “Chapter 8: Configuring the Wireless-G

Router for Mobile Broadband.”

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Figure 7-25: Congratulations Screen

Wireless-G Router for Mobile Broadband

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband

NOTE: For first-time installation, Linksys

Overview

Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run the Setup Wizard on the Setup CD-ROM, then you can use the Web-based Utility to configure the Router. For advanced users, you may configure the Router’s advanced settings through the Web-based Utility.

This chapter will describe each web page in the Utility and each page’s key functions. The utility can be accessed via your web browser through use of a computer connected to the Router. For a basic network setup, most users will use these two screens of the Utility:

• Basic Setup. On the Basic Setup screen, enter the settings provided by your Internet Service Provider (ISP).

• Management. Click the Administration tab and then the Management tab. The Router’s default password is admin. To secure the Router, change the Password from its default.

There are seven main tabs: Setup, Wireless, Security, Access Restrictions, Applications & Gaming, Administration, and Status. Additional tabs will be available after you click one of the main tabs.

recommends using the Setup Wizard on the Setup CD-ROM. If you want to configure advanced settings, use this chapter to learn about the Web-based Utility.

HAVE YOU: Enabled TCP/IP on your PCs? PCs communicate over the network with this protocol. Refer to “Appendix D: Windows Help” for more information on TCP/IP.

To access the Web-based Utility, launch Internet Explorer or Netscape Navigator, and enter the Router’s default IP address, 192.168.1.1, in the Address field. Then press Enter.

A password request page will appear. Leave the User Name field blank. The first time you open the Web-based Utility, use the default password admin. (You can set a new password from the Administration tab’s Management screen.) Then click the OK button.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband Overview

Figure 8-1: Password Screen

Wireless-G Router for Mobile Broadband

The Setup Tab - Basic Setup

The first screen that appears displays the Setup tab. This allows you to change the Router's general settings. Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Mobile Network Setup

Configure the mobile network settings for the Router in this section.

Mobile Connection. This button enables you to connect to and disconnect from the mobile network through the Web-based Utility (you can also connect and disconnect using the hardware button on the Router). It will also indicate the status of the Router’s mobile broadband data card connection.

Status

Network Name. Displayed here is the name of the mobile network the Router is using.

Signal Strength. This indicates the strength of the mobile broadband signal that the Router is receiving.

Internet Setup

The Internet Setup section configures the Router to your Internet connection. Most of this information can be obtained through your ISP.

Internet Connection Type

Choose the type of Internet connection your ISP provides from the drop-down menu.

• DHCP. By default, the Router’s Internet Connection Type is set to Automatic Configuration - DHCP, which

should be kept only if your ISP supports DHCP or you are connecting through a dynamic IP address.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Setup Tab - Basic Setup

Figure 8-2: Setup Tab - Basic Setup

Figure 8-3: DHCP Connection Type

Wireless-G Router for Mobile Broadband

• Static IP. If you are required to use a permanent IP address to connect to the Internet, select Static IP.

Internet IP Address. This is the Router’s IP address, when seen from the Internet. Your ISP will provide you with the IP Address you need to specify here.

Subnet Mask. This is the Router’s Subnet Mask, as seen by users on the Internet (including your ISP). Your ISP will provide you with the Subnet Mask.

Gateway. Your ISP will provide you with the Gateway Address, which is the ISP server’s IP address.

DNS. Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.

• PPPoE. Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to establish Internet connections. If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoE. If they do, you will have to enable PPPoE.

User Name and Password. Enter the User Name and Password provided by your ISP.

Connect on Demand: Max Idle Time. You can configure the Router to cut the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet connection terminates.

Keep Alive Option: Redial Period. If you select this option, the Router will periodically check your Internet connection. If you are disconnected, then the Router will automatically re-establish your connection. To use this option, click the radio button next to Keep Alive. In the Redial Period field, you specify how often you want the Router to check the Internet connection. The default Redial Period is 30 seconds.

• PPTP. Point-to-Point Tunneling Protocol (PPTP) is a service that applies to connections in Europe only.

Internet IP Address. This is the Router’s IP address, as seen from the Internet. Your ISP will provide you with the IP Address you need to specify here.

Figure 8-4: Static IP Connection Type

Static IP address: a fixed address assigned to a computer or device connected to a network.

Figure 8-5: PPPoE Connection Type

Subnet Mask. This is the Router’s Subnet Mask, as seen by users on the Internet (including your ISP). Your ISP will provide you with the Subnet Mask.

Gateway. Your ISP will provide you with the Gateway Address.

User Name and Password. Enter the User Name and Password provided by your ISP.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Setup Tab - Basic Setup

Figure 8-6: PPTP Connection Type

Wireless-G Router for Mobile Broadband

• L2TP. Layer 2 Tunneling Protocol (L2TP) is a service that tunnels Point-to-Point Protocol (PPP) across the

Internet. It is used mostly in European countries.

Server IP Address. Enter the IP address of your ISP’s server. This is provided by your ISP.

User Name and Password. Enter the User Name and Password provided by your ISP.

Optional Settings

Some of these settings may be required by your ISP. Verify with your ISP before making any changes.

Router Name. In this field, you can type a name of up to 39 characters to represent the Router.

Host Name and Domain Name. These fields allow you to supply a host and domain name for the Router. Some

ISPs, usually cable ISPs, require these names as identification. You may have to check with your ISP to see if your broadband Internet service has been configured with a host and domain name. In most cases, leaving these fields blank will work.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Setup Tab - Basic Setup

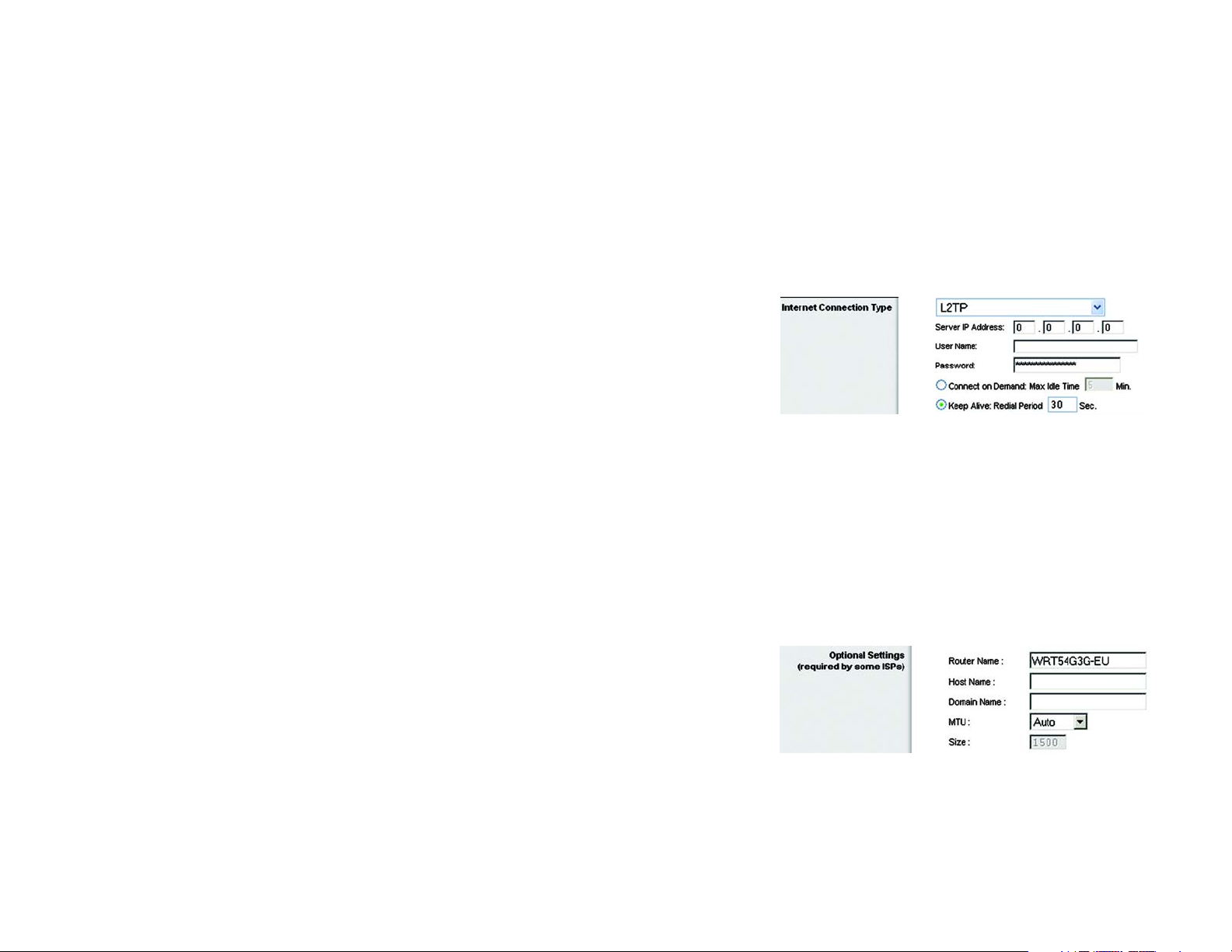

Figure 8-7: L2TP Connection Type

Figure 8-8: Optional Settings

Wireless-G Router for Mobile Broadband

MTU. MTU is the Maximum Transmission Unit. It specifies the largest packet size permitted for Internet

transmission. The default setting, Manual, allows you to enter the largest packet size that will be transmitted. The recommended size, entered in the Size field, is 1492. You should leave this value in the 1200 to 1500 range. To have the Router select the best MTU for your Internet connection, select Auto.

Network Setup

The Network Setup section changes the settings on the network connected to the Router’s Ethernet ports. Wireless setup is performed through the Wireless tab.

Router IP

This presents both the Router’s IP Address and Subnet Mask as seen by your network.

Network Address Server Settings (DHCP)

The settings allow you to configure the Router’s Dynamic Host Configuration Protocol (DHCP) server function. The Router can be used as a DHCP server for your network. A DHCP server automatically assigns an IP address to each computer on your network. If you choose to enable the Router’s DHCP server option, you must configure all of your network PCs to connect to a DHCP server (the Router), and make sure there is no other DHCP server on your network.

DHCP Server. DHCP is enabled by factory default. If you already have a DHCP server on your network, or you don’t want a DHCP server, then click the Disable radio button (no other DHCP features will be available).

Figure 8-9: Router IP

Starting IP Address. Enter a value for the DHCP server to start with when issuing IP addresses. Because the

Router’s default IP address is 192.168.1.1, the Starting IP Address must be 192.168.1.2 or greater, but smaller than 192.168.1.253. The default Starting IP Address is 192.168.1.100.

Maximum Number of DHCP Users. Enter the maximum number of PCs that you want the DHCP server to assign IP addresses to. This number cannot be greater than 253. The default is 50.

Client Lease Time. The Client Lease Time is the amount of time a network user will be allowed connection to the Router with their current dynamic IP address. Enter the amount of time, in minutes, that the user will be “leased” this dynamic IP address. After the time is up, the user will be automatically assigned a new dynamic IP address. The default is 0 minutes, which means one day.

Static DNS (1-3). The Domain Name System (DNS) is how the Internet translates domain or website names into Internet addresses or URLs. Your ISP will provide you with at least one DNS Server IP Address. If you wish to use another, type that IP Address in one of these fields. You can type up to three DNS Server IP Addresses here. The Router will use these for quicker access to functioning DNS servers.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Setup Tab - Basic Setup

Figure 8-10: Network Address Server Settings

Wireless-G Router for Mobile Broadband

WINS. The Windows Internet Naming Service (WINS) manages each PC’s interaction with the Internet. If you use

a WINS server, enter that server’s IP Address here. Otherwise, leave this blank.

Time Setting

Change the time zone in which your network functions from this pull-down menu. Click the checkbox to have the Router automatically adjust the clock for daylight savings time.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

Figure 8-11: Time Setting

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Setup Tab - Basic Setup

Wireless-G Router for Mobile Broadband

The Setup Tab - Mobile Network

On this screen, you can configure mobile network settings and view mobile broadband status information for the Router. Some of these settings will be automatically configured by the Router and, in most cases, should not be changed unless you are instructed to do so.

Mobile Network Connection Mode

Auto Connect. If you select Auto, the Router will automatically connect to the default mobile network when it powers on. The Router will disconnect from the mobile network after there is no traffic for 60 minutes. If you want to change this default, enter the number in the Maximum idle time before auto disconnect field. The Router will automatically reconnect to the mobile network when there is traffic. To manually connect to a mobile network, click Manual. You can use the Data Card button on the Router to connect and disconnect from the mobil network.

Mobile Network Status

Network Name. Displayed here is the name of the mobile network the Router is using.

Signal Strength. This indicates the strength of the mobile broadband signal that the Router is receiving.

Connection Time. This is the length of time the Router has been connected to the mobile network since your last

connection.

Current Session Usage. Displayed here is the amount of data that has been sent to and received from the mobile network since your last connection.

Data Card Status

Card Model. Displayed here is the model number of your mobile broadband data card.

Card Firmware. This is the firmware version of your mobile broadband data card.

To update the screen with the latest status information, click the Refresh button.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

Figure 8-12: Setup Tab - Mobile Network

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Setup Tab - Mobile Network

Wireless-G Router for Mobile Broadband

The Setup Tab - DDNS

The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Router. Before you can use this feature, you need to sign up for DDNS service with a DDNS service provider, www.dyndns.org or www.TZO.com.

DynDNS.org

DDNS Service. From this pull-down menu, enter the DDNS service with which you have membership.

User Name. Enter the User Name for your DDNS account

Password. Enter the Password for your DDNS account.

Host Name. The is the DDNS URL assigned by the DDNS service.

Internet IP Address. This is the Router’s current IP Address as seen on the Internet.

Status. This displays the status of the DDNS connection.

User Name, Password, and Host Name. Enter the User Name, Password, and Host Name of the account you set

up with DynDNS.org.

Figure 8-13: Setup Tab - DDNS (DynDNS.org)

Internet IP Address. The Gateway’s current Internet IP Address is displayed here. Because it is dynamic, it will

change.

Status. The status of the DDNS service connection is displayed here.

TZO.com

E-mail Address, Password, and Domain Name. Enter the E-mail Address, Password, and Domain Name of the account you set up with TZO.

Internet IP Address. The Gateway’s current Internet IP Address is displayed here. Because it is dynamic, this will change.

Status. The status of the DDNS service connection is displayed here.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Setup Tab - DDNS

Figure 8-14: Setup Tab - DDNS (TZO.org)

Wireless-G Router for Mobile Broadband

The Setup Tab - MAC Address Clone

A MAC address is a 12-digit code assigned to a unique piece of hardware for identification. Some ISPs will require you to register a MAC address in order to access the Internet. If you do not wish to re-register the MAC address with your ISP, you may assign the MAC address you have currently registered with your ISP to the Router with the MAC Address Clone feature.

MAC Clone

Enable/Disable. To have the MAC Address cloned, click the radio button beside Enable.

User Defined Entry. Enter the MAC Address registered with your ISP here.

Clone Your PC’s MAC. Clicking this button will clone the MAC address.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

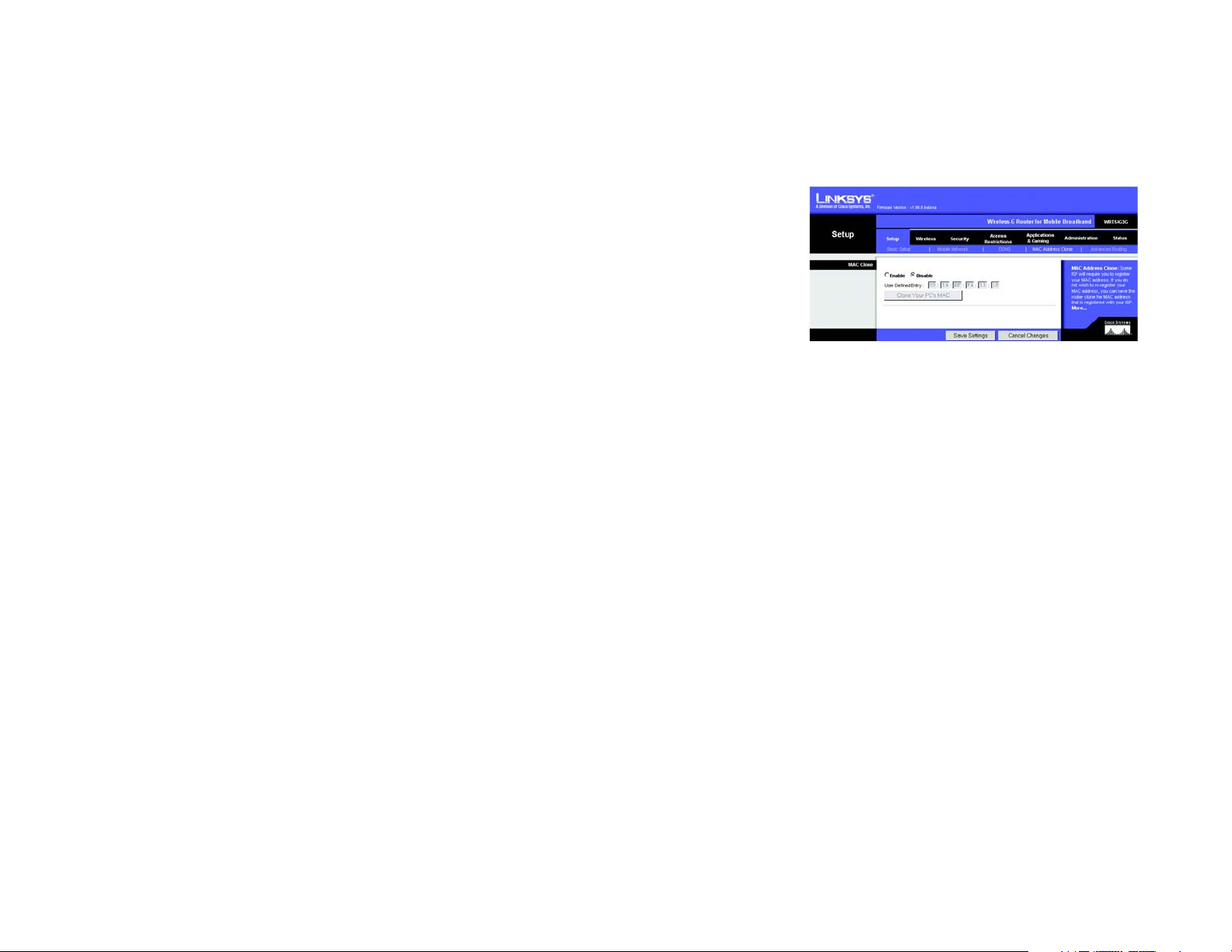

Figure 8-15: Setup Tab - MAC Address Clone

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Setup Tab - MAC Address Clone

Wireless-G Router for Mobile Broadband

The Setup Tab - Advanced Routing

This tab is used to set up the Router’s advanced functions. Operating Mode allows you to select the type(s) of advanced functions you use. Dynamic Routing will automatically adjust how packets travel on your network. Static Routing sets up a fixed route to another network destination.

Advanced Routing

Operating Mode

connection to the Internet, select chosen,

Dynamic Routing

. Select the mode in which this Router will function. If this Router is hosting your network’s

Gateway

will be enabled.

. If another Router exists on your network, select

Router

. When Router is

Dynamic Routing

RIP

. Dynamic Routing enables the Router to automatically adjust to physical changes in the network’s layout and exchange routing tables with the other router(s). The Router determines the network packets’ route based on the fewest number of hops between the source and the destination. This feature is down menu, you can also select networks. You can also select selecting

Both

enables dynamic routing for both networks, as well as data from the Internet.

LAN & Wireless

WAN

, which performs dynamic routing with data coming from the Internet. Finally,

, which performs dynamic routing over your Ethernet and wireless

Disabled

by default. From the drop-

Static Routing

Select set number

Static Routing drop-down list. (A static route is a pre-determined pathway that network information must travel to reach a specific host or network.) Enter the information described below to set up a new static route. (Click the

Delete This Entry

Enter Route Name

Destination LAN IP

assign a static route.

Subnet Mask

portion, and which portion is the host portion.

. To set up a static route between the Router and another network, select a number from the

button to delete a static route.)

. Enter a name for the Route here, using a maximum of 25 alphanumeric characters.

. The Destination LAN IP is the address of the remote network or host to which you want to

. The Subnet Mask determines which portion of a Destination LAN IP address is the network

Figure 8-16: Setup Tab - Advanced Routing (Gateway)

Figure 8-17: Setup Tab - Advanced Routing (Router)

Default Gateway

the remote network or host.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Setup Tab - Advanced Routing

. This is the IP address of the gateway device that allows for contact between the Router and

Wireless-G Router for Mobile Broadband

Interface

wireless networks), the necessary for certain software programs).

Click the

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

. This interface tells you whether the Destination IP Address is on the

WAN

Show Routing Table

(Internet), or

button to view the Static Routes you’ve already set up.

Loopback

(a dummy network in which one PC acts like a network—

LAN & Wireless

(Ethernet and

The Wireless Tab - Basic Wireless Settings

The basic settings for wireless networking are set on this screen.

Wireless Network

Wireless Network Mode. From this drop-down menu, you can select the wireless standards running on your network. If you have both 802.11g and 802.11b devices in your network, keep the default setting, Mixed. If you have only 802.11g devices, select G-Only. If you have only 802.11b devices, select B-Only. If you do not have any

802.11g and 802.11b devices in your network, select Disable.

Wireless Network Name (SSID). The SSID is the network name shared among all devices in a wireless network. The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 characters (use any of the characters on the keyboard). Make sure this setting is the same for all devices in your wireless network. For added security, you should change the default SSID (linksys) to a unique name.

Wireless Channel. Select the appropriate channel from the list provided to correspond with your network settings. All devices in your wireless network must be broadcast on the same channel in order to function correctly.

Wireless SSID Broadcast. When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the Router. To broadcast the Router's SSID, keep the default setting, Enable. If you do not want to broadcast the Router's SSID, then select Disable.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Wireless Tab - Basic Wireless Settings

Figure 8-18: Wireless Tab - Basic Wireless Settings

Wireless-G Router for Mobile Broadband

The Wireless Tab - Wireless Security

The Wireless Security settings configure the security of your wireless network. There are four wireless security mode options supported by the Router: WPA Personal, WPA2 Personal, WPA Enterprise (also known as WPARADIUS), WPA2 Enterprise, RADIUS, and WEP. (WPA stands for Wi-Fi Protected Access, which is a security standard stronger than WEP encryption. WEP stands for Wired Equivalent Privacy, while RADIUS stands for Remote Authentication Dial-In User Service.) These four are briefly discussed here. For detailed instructions on configuring wireless security for the Router, turn to “Appendix B: Wireless Security.”

Wireless Security

WPA2 Personal. WPA2 automatically uses TKIP + AES with dynamic encryption keys. Enter a WPA Shared Key of 8-63 characters. Then enter a Group Key Renewal period, which instructs the Router how often it should change the encryption keys.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

IMPORTANT: If you are using WPA or WPA2, always remember that each device in your

wireless network MUST use the same WPA method and shared key, or else the network will not function properly.

Figure 8-19: Wireless Tab - Wireless Security (WPA2

Personal)

WPA Personal. WPA gives you two encryption methods, TKIP and AES, with dynamic encryption keys. Select the

type of algorithm, TKIP or AES. Enter a WPA Shared Key of 8-63 characters. Then enter a Group Key Renewal period, which instructs the Router how often it should change the encryption keys.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Wireless Tab - Wireless Security

Figure 8-20: Wireless Tab - Wireless Security (WPA

Personal - TKIP)

Figure 8-21: Wireless Tab - Wireless Security (WPA Personal -

AES)

Wireless-G Router for Mobile Broadband

WPA2 Enterprise. This option features WPA2 used in coordination with a RADIUS server. (This should only be

used when a RADIUS server is connected to the Router.) WPA2 automatically uses TKIP + AES with dynamic encryption keys. Enter the RADIUS server’s IP Address and port number, along with a key shared between the Router and the server. Last, enter a Key Renewal Timeout, which instructs the Router how often it should change the encryption keys.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

WPA Enterprise. This option features WPA used in coordination with a RADIUS server. (This should only be used

when a RADIUS server is connected to the Router.) First, select the type of WPA algorithm you want to use, TKIP or AES. Enter the RADIUS server’s IP Address and port number, along with a key shared between the Router and the server. Last, enter a Key Renewal Timeout, which instructs the Router how often it should change the encryption keys.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

Figure 8-22: Wireless Tab - Wireless Security (WPA2

Enterprise)

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Wireless Tab - Wireless Security

Figure 8-23: Wireless Tab - Wireless Security (WPA

Enterprise - TKIP)

Figure 8-24: Wireless Tab - Wireless Security (WPA Enterprise -

AES)

Wireless-G Router for Mobile Broadband

RADIUS. This option features WEP used in coordination with a RADIUS server. (This should only be used when a

RADIUS server is connected to the Router.) First, enter the RADIUS server’s IP Address and port number, along with a key shared between the Router and the server. Then, select a Default Transmit Key (choose which Key to use), and a level of WEP encryption, 64 bits 10 hex digits or 128 bits 26 hex digits. Last, either generate a WEP key using the Passphrase or enter the WEP key manually. If you are using 64-bit WEP encryption, the key must be exactly 10 hexadecimal characters in length. If you are using 128-bit WEP encryption, the key must be exactly 26 hexadecimal characters in length. Valid hexadecimal characters are “0”-“9” and “A”-“F”.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

IMPORTANT: If you are using WEP encryption, always remember that each device in your

wireless network MUST use the same WEP encryption method and encryption key, or else your wireless network will not function properly.

WEP. WEP is a basic encryption method, which is not as secure as WPA. To use WEP, select a Default Transmit Key (choose which Key to use), and a level of WEP encryption, 64 bits 10 hex digits or 128 bits 26 hex digits. Then either generate a WEP key using the Passphrase or enter the WEP key manually. If you are using 64-bit WEP encryption, the key must be exactly 10 hexadecimal characters in length. If you are using 128-bit WEP encryption, the key must be exactly 26 hexadecimal characters in length. Valid hexadecimal characters are “0”“9” and “A”-“F”.

Figure 8-25: Wireless Tab - Wireless Security (RADIUS)

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

For detailed instructions on configuring wireless security for the Router, turn to “Appendix B: Wireless Security.”

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Wireless Tab - Wireless Security

Figure 8-26: Wireless Tab - Wireless Security (WEP)

Wireless-G Router for Mobile Broadband

The Wireless Tab - Wireless MAC Filter

Wireless access can be filtered by using the MAC addresses of the wireless devices transmitting within your network’s radius.

Wireless MAC Filter

Wireless MAC Filter. To filter wireless users by MAC Address, either permitting or blocking access, click Enable. If you do not wish to filter users by MAC Address, select Disable.

Prevent. Clicking this button will block wireless access by MAC Address.

Permit Only. Clicking this button will allow wireless access by MAC Address.

Edit MAC Address Filter List. Clicking this button will open the MAC Address Filter List. On this screen, you can list users, by MAC Address, to whom you wish to provide or block access. For easy reference, click the Wireless Client MAC List button to display a list of network users by MAC Address.

To save your list of MAC addresses, click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

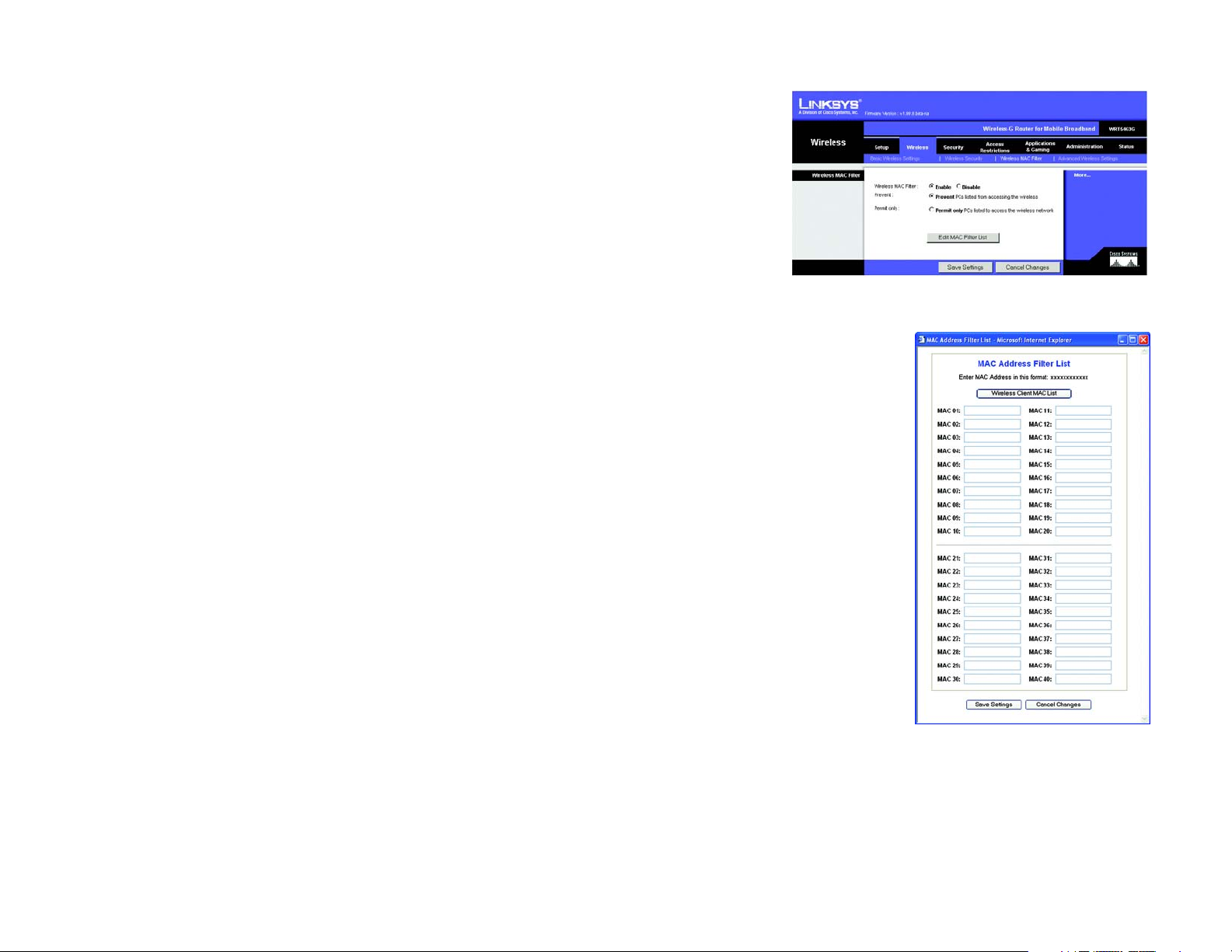

Figure 8-27: Wireless Tab - Wireless MAC Filter

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Wireless Tab - Wireless MAC Filter

Figure 8-28: MAC Address Filter List

Wireless-G Router for Mobile Broadband

The Wireless Tab - Advanced Wireless Settings

This tab is used to set up the Router’s advanced wireless functions. These settings should only be adjusted by an expert administrator as incorrect settings can reduce wireless performance.

Advanced Wireless

Authentication Type. The default is set to Auto, which allows either Open System or Shared Key authentication to be used. With Open System authentication, the sender and the recipient do NOT use a WEP key for authentication. With Shared Key authentication, the sender and recipient use a WEP key for authentication.

Basic Rate. The Basic Rate setting is not actually one rate of transmission but a series of rates at which the Router can transmit. The Router will advertise its Basic Rate to the other wireless devices in your network, so they know which rates will be used. The Router will also advertise that it will automatically select the best rate for transmission. The default setting is Default, when the Router can transmit at all standard wireless rates (1-2Mbps, 5.5Mbps, 11Mbps, 18Mbps, and 24Mbps). Other options are 1-2Mbps, for use with older wireless technology, and All, when the Router can transmit at all wireless rates. The Basic Rate is not the actual rate of data transmission. If you want to specify the Router’s rate of data transmission, configure the Transmission Rate setting.

Transmission Rate. The rate of data transmission should be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or you can select Auto to have the Router automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Router and a wireless client. The default value is Auto.

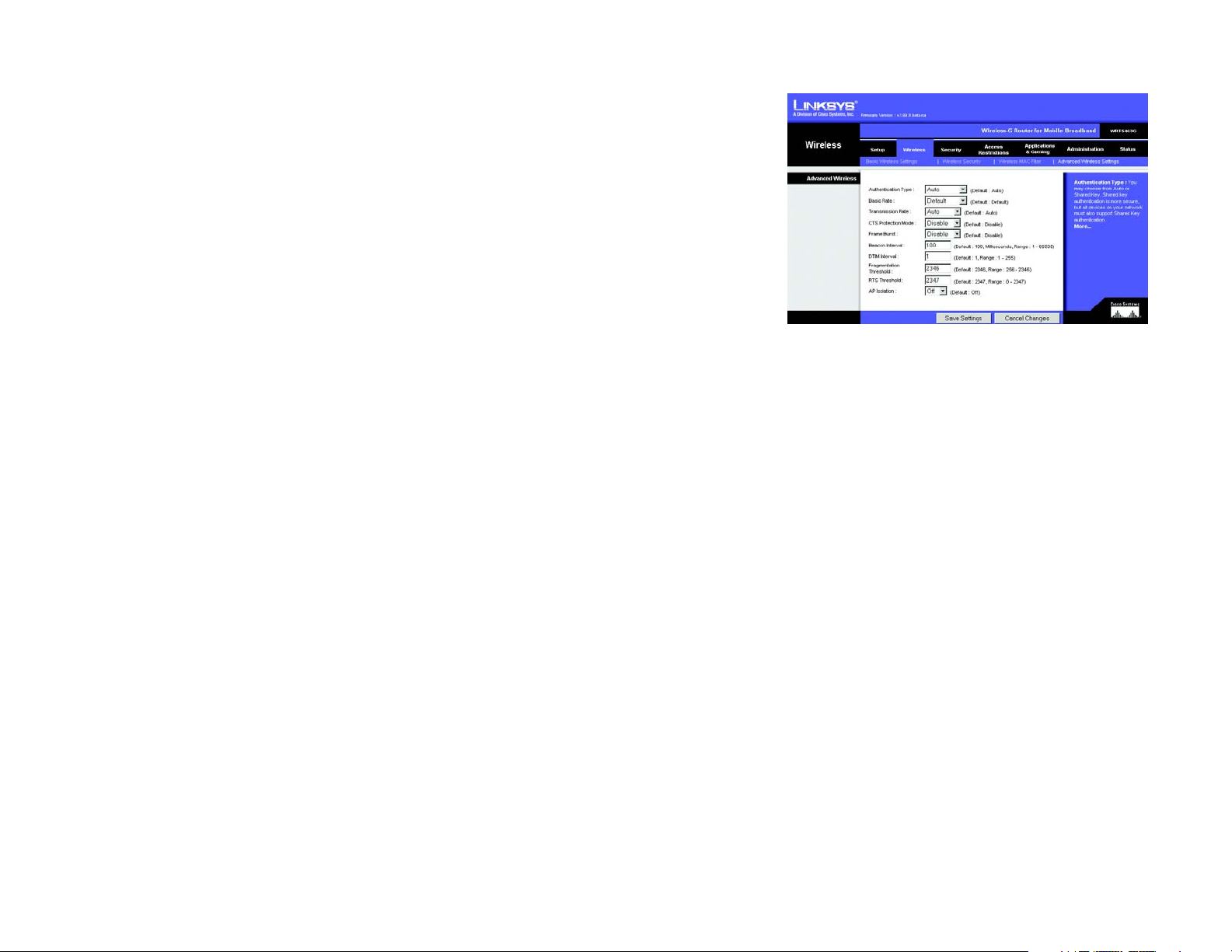

Figure 8-29: Wireless Tab - Advanced Wireless Settings

CTS Protection Mode. CTS (Clear-To-Send) Protection Mode should remain disabled unless you are having

severe problems with your Wireless-G products not being able to transmit to the Router in an environment with heavy 802.11b traffic. This function boosts the Router’s ability to catch all Wireless-G transmissions but will severely decrease performance.

Frame Burst. Enabling this option should provide your network with greater performance, depending on the manufacturer of your wireless products. If you are not sure how to use this option, keep the default, Disable.

Beacon Interval. The default value is 100. Enter a value between 1 and 65,535 milliseconds. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the Router to synchronize the wireless network.

DTIM Interval. This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Router has buffered broadcast or multicast messages for associated clients, it

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Wireless Tab - Advanced Wireless Settings

Wireless-G Router for Mobile Broadband

sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages. The default value is 1.

Fragmentation Threshold. This value specifies the maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor reduction of the default value is recommended. In most cases, it should remain at its default value of 2346.

RTS Threshold. Should you encounter inconsistent data flow, only minor reduction of the default value, 2347, is recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The Router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. The RTS Threshold value should remain at its default value of 2347.

AP Isolation. This isolates all wireless clients and wireless devices on your network from each other. Wireless devices will be able to communicate with the Router but not with each other. To use this function, select On. AP Isolation is Off by default.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Wireless Tab - Advanced Wireless Settings

Wireless-G Router for Mobile Broadband

The Security Tab - Firewall

Firewall

Firewall Protection. Enable this feature to employ Stateful Packet Inspection (SPI) for more detailed review of data packets entering your network environment.

Block WAN Requests

Block Anonymous Internet Requests. Use this feature to prevent your network from being “pinged,” or detected, by other Internet users. The Block WAN Request feature also reinforces your network security by hiding your network ports. Both functions of the Block WAN Request feature make it more difficult for outside users to work their way into your network. This feature is enabled by default. Remove the checkmark to allow anonymous Internet requests.

Filter Multicast. Multicasting allows for multiple transmissions to specific recipients at the same time. If multicasting is permitted, then the Router will allow IP multicast packets to be forwarded to the appropriate computers. This feature is enabled by default. Remove the checkmark to disable this feature.

Filter Internet NAT Redirection. This feature uses port forwarding to block access to local servers from local networked computers. Click the checkbox to filter Internet NAT redirection, or remove the checkmark to disable this feature.

Figure 8-30: Security Tab - Firewall

Filter IDENT (Port 113). This feature keeps port 113 from being scanned by devices outside of your local

network. This feature is enabled by default. Remove the checkmark to disable this feature.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Security Tab - Firewall

Wireless-G Router for Mobile Broadband

The Security Tab - VPN Passthrough

Use this screen to allow VPN tunnels using IPSec, PPTP, or L2TP protocols to pass through the Router’s firewall.

VPN Passthrough

IPSec Passthrough. Internet Protocol Security (IPSec) is a suite of protocols used to implement secure exchange of packets at the IP layer. To allow IPSec tunnels to pass through the Router, click Enable. IPSec Passthrough is enabled by default.

PPTP Passthrough. Point-to-Point Tunneling Protocol (PPTP) allows the Point-to-Point Protocol (PPP) to be tunneled through an IP network. To allow PPTP tunnels to pass through the Router, click Enable. PPTP Passthrough is enabled by default.

L2TP Passthrough. Layer 2 Tunneling Protocol is the method used to enable Point-to-Point sessions via the Internet on the Layer 2 level. To allow L2TP tunnels to pass through the Router, click Enable. L2TP Passthrough is enabled by default.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

The Access Restrictions Tab - Internet Access

The Internet Access screen allows you to block or allow specific kinds of Internet usage and traffic, such as Internet access, designated services, websites, and inbound traffic during specific days and times.

Internet Access

Internet Access Policy. Access can be managed by a policy. Use the settings on this screen to establish an access policy (after the Save Settings button is clicked). Selecting a policy from the drop-down menu will display that policy’s settings. To delete a policy, select that policy’s number and click the Delete button. To view all the policies, click the Summary button. (Policies can be deleted from the Summary screen by selecting the policy or policies and clicking the Delete button. To return to the Internet Access tab, click the Close button.)

Status. Policies are disabled by default. To enable a policy, select the policy number from the drop-down menu, and click the radio button beside Enable.

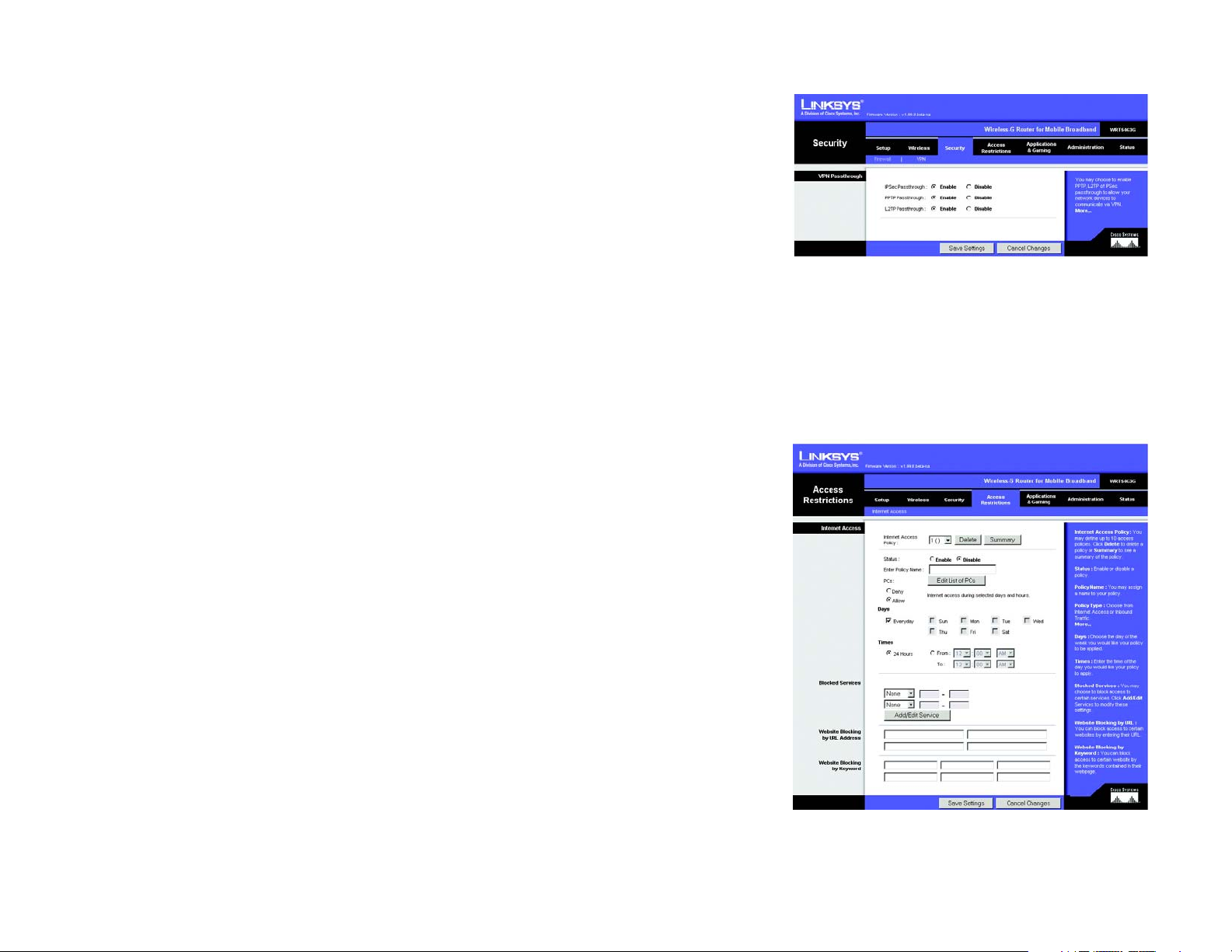

Figure 8-31: Security Tab - VPN Passthrough

To create an Internet Access policy:

1. Select a number from the Internet Access Policy drop-down menu.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Security Tab - VPN Passthrough

Figure 8-32: Access Restrictions Tab - Internet Access

Wireless-G Router for Mobile Broadband

2. To enable this policy, click the radio button beside Enable.

3. Enter a Policy Name in the field provided.

4. Click the Edit List of PCs button to select which PCs will be affected by the policy. The List of PCs screen will

appear. You can select a PC by MAC Address or IP Address. You can also enter a range of IP Addresses if you want this policy to affect a group of PCs. After making your changes, click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. Then click the Close button.

5. Click the appropriate option, Deny or Allow, depending on whether you want to block or allow Internet access

for the PCs you listed on the List of PCs screen.

6. Decide which days and what times you want this policy to be enforced. Select the individual days during

which the policy will be in effect, or select Everyday. Then enter a range of hours and minutes during which the policy will be in effect, or select 24 Hours.

7. You can filter access to various services accessed over the Internet, such as FTP or telnet, by selecting

services from the drop-down menus next to Blocked Services. Then enter the range of ports you want to filter.

If the service you want to block is not listed or you want to edit a service’s settings, then click the Add/Edit Service button. Then the Port Services screen will appear.

To add a service, enter the service’s name in the Service Name field. Select its protocol from the Protocol drop-down menu, and enter its range in the Port Range fields. Then click the Add button.

To modify a service, select it from the list on the right. Make changes, and then click the Modify button.

Figure 8-33: Internet Policy Summary

Figure 8-34: List of PCs

To delete a service, select it from the list on the right. Then click the Delete button.

When you are finished making changes on the Port Services screen, click the Apply button to save changes. If you want to cancel your changes, click the Cancel button. To close the Port Services screen and return to the Access Restrictions screen, click the Close button.

8. If you want to block websites with specific URL addresses, enter each URL in a separate field next to Website

Blocking by URL Address.

9. If you want to block websites using specific keywords, enter each keyword in a separate field next to Website

Blocking by Keyword.

10. Click the Save Settings button to save the policy’s settings. To cancel the policy’s settings, click the Cancel

Changes button.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Access Restrictions Tab - Internet Access

Figure 8-35: Port Services

Wireless-G Router for Mobile Broadband

The Applications and Gaming Tab - Port Range Forward

The Applications and Gaming Tab allows you to set up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. (Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. Some Internet applications may not require any forwarding.)

Port Range Forward

To forward a port, enter the information on each line for the criteria required. The criteria are described here.

Application. In this field, enter the name you wish to give the application. Each name can be up to 12 characters.

Start/End. This is the port range. Enter the number that starts the port range under Start and the number that ends the range under End.

Protocol. Enter the protocol used for this application, either TCP or UDP, or Both.

IP Address. For each application, enter the IP Address of the PC running the specific application.

Enable. Click the Enable checkbox to enable port forwarding for the relevant application.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Figure 8-36: Applications and Gaming Tab - Port Range

Forward

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Applications and Gaming Tab - Port Range Forward

Wireless-G Router for Mobile Broadband

The Applications & Gaming Tab - Port Triggering

The Port Triggering screen allows the Router to watch outgoing data for specific port numbers. The IP address of the computer that sends the matching data is remembered by the Router, so that when the requested data returns through the Router, the data is pulled back to the proper computer by way of IP address and port mapping rules.

Port Triggering

Application. Enter the application name of the trigger.

Triggered Range

For each application, list the triggered port number range. Check with the Internet application documentation for the port number(s) needed.

Start Port. Enter the starting port number of the Triggered Range.

End Port. Enter the ending port number of the Triggered Range.

Forwarded Range

For each application, list the forwarded port number range. Check with the Internet application documentation for the port number(s) needed.

Start Port. Enter the starting port number of the Forwarded Range.

End Port. Enter the ending port number of the Forwarded Range.

Enable. Click the Enable checkbox to enable port triggering for the relevant application.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Figure 8-37: Applications and Gaming Tab - Port

Triggering

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Applications & Gaming Tab - Port Triggering

Wireless-G Router for Mobile Broadband

The Applications and Gaming Tab - DMZ

The DMZ feature allows one network user to be exposed to the Internet for use of a special-purpose service such as Internet gaming or videoconferencing. DMZ hosting forwards all the ports at the same time to one PC. The Port Range Forward feature is more secure because it only opens the ports you want to have opened, while DMZ hosting opens all the ports of one computer, exposing the computer to the Internet.

Any PC whose port is being forwarded must have its DHCP client function disabled and should have a new static IP address assigned to it because its IP address may change when using the DHCP function.

DMZ

To expose one PC, select Enable. Then, enter the computer's IP address in the DMZ Host IP Address field.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

The Applications and Gaming Tab - QoS

Quality of Service (QoS) ensures better service to high-priority types of network traffic, which may involve demanding, real-time applications, such as videoconferencing.

There are three types of Wired QoS available, Device Priority, Application Priority, and Ethernet Port Priority. You can also configure Wireless QoS on this page.

Figure 8-38: Applications and Gaming Tab - DMZ

Wired QoS

Enable/Disable. To limit outgoing bandwidth for the QoS policies in use, select Enable. Otherwise, select Disable.

Upstream Bandwidth. Select the bandwidth to be used from the drop-down menu. This setting allows you to

limit the outgoing bandwidth for the QoS policies in use, so you can control how much bandwidth a particular application is allowed to use.

Device Priority

Device name, Priority, and MAC Address. For each device, enter the name of your network device in the Device name field. Then select its Priority and enter its MAC Address.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Applications and Gaming Tab - DMZ

Figure 8-39: Applications and Gaming Tab - QoS

Wireless-G Router for Mobile Broadband

Ethernet Port Priority

Port 1-4, Priority, and Flow Control. Ethernet Port Priority QoS allows you to prioritize performance for four of the Router’s ports, Ethernet (LAN) Ports 1-4. For each of these ports, select High or Low for Priority. For Flow Control, if you want the Router to control the transmission of data between network devices, select Enable. To disable this feature, select Disable.

Ethernet Port Priority QoS does not require support from your ISP because the prioritized ports are LAN ports going out to your network.

Application Priority

Application Priority QoS manages information as it is transmitted and received. You can have gaming application ports assigned higher priority. You can also configure the Router to assign high or low priority to ports for applications that you specify.

Optimize Gaming Applications. Click this checkbox if you want the Router to automatically assign higher priority to common game application ports.

Application Name, Priority, and Specific Port #. Enter the name of the application in the Application Name field. For each application, select High or Low for Priority and enter its respective port number in the Specific Port# fields.

Wireless QoS

You can configure the WMM™ (Wi-Fi Multimedia) support and No Acknowledgement settings in this section.

WMM Support. If you have other devices that support WMM on your network, select Enable from the drop-down menu. Otherwise, keep the default, Disable.

No Acknowledgement. If you want to disable the Router’s Acknowledgement feature, so the Router will not resend data if an error occurs, then select Enable from the drop-down menu. Otherwise, keep the default, Disable.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Applications and Gaming Tab - QoS

Wireless-G Router for Mobile Broadband

The Administration Tab - Management

This section of the Administration tab allows the network’s administrator to manage specific Router functions for access and security.

Router Password

Local Router Access

Router Password and Re-enter to confirm. You can change the Router’s password from here. Enter a new Router password and then type it again in the Re-enter to confirm field to confirm.

Web Access

Access Server. HTTP (HyperText Transport Protocol) is the communications protocol used to connect to servers on the World Wide Web. HTTPS is a similar protocol, but it uses SSL (Secured Socket Layer) to encrypt transmitted data, so security is increased. Select the protocol you want to use, HTTP or HTTPS.

Wireless Access Web. If you are using the Router in a public domain where you are giving wireless access to your guests, you can disable wireless access to the Router’s Web-based Utility. You will only be able to access the Web-based Utility via a wired connection if you disable the setting. Select Enable to enable wireless access to the Router’s Web-based Utility or Disable to disable wireless access to the Utility.

Figure 8-40: Administration Tab - Management

Remote Router Access

Remote Management and Management Port. To access the Router remotely, from outside the network, verify that Enable is selected. Then, enter the port number that will be open to outside access. You will need to enter the Router’s password when accessing the Router this way, as usual.

Use https. If you want to require the use of SSL (Secured Socket Layer) to encrypt transmitted data, click the checkbox.

UPnP

UPnP. When using UPnP features, select Enable. Because allowing this may present a risk to security, this feature is disabled by default.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Administration Tab - Management

Wireless-G Router for Mobile Broadband

The Administration Tab - Log

The Router can keep logs of all traffic for your Internet connection.

Log

Log. To disable the Log function, keep the default setting, Disable. To monitor traffic between the network and the Internet, select Enable. When you wish to view the logs, click Incoming Log or Outgoing Log, depending on which you wish to view.

Change these settings as described here, and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

Figure 8-41: Administration Tab - Log

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Administration Tab - Log

Wireless-G Router for Mobile Broadband

The Administration Tab - Diagnostics

The diagnostic tests (Ping and Traceroute) allow you to check the connections of your network components. The reboot

Ping Test

Ping Parameters. The Ping test will check the status of a connection. Click the Ping button to open the Ping Test screen. Enter the address of the PC whose connection you wish to test and how many times you wish to test it. Then, click the Ping button. The Ping Test screen will then display the test results. To stop the test, click the Stop button. Click the Clear Log button to clear the screen. Click the Close button to return to the Diagnostics screen.

Traceroute Test

Tracero u t e Parameters. To test the performance of a connection, click the Traceroute button. Enter the address of the PC whose connection you wish to test and click the Traceroute button. The Traceroute screen will then display the test results. To stop the test, click the Stop button. Click the Clear Log button to clear the screen. Click the Close button to return to the Diagnostics screen.

Figure 8-42: Administration Tab - Diagnostics

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Administration Tab - Diagnostics

Figure 8-43: The Ping Test

Figure 8-44: The Traceroute Test

Wireless-G Router for Mobile Broadband

The Administration Tab - Factory Defaults

Factory Defaults

Restore Factory Defaults. Click the Yes button to reset all configuration settings to their default values, and then click the Save Settings button. Any settings you have saved will be lost when the default settings are restored. This feature is disabled by default. Click the Cancel Changes button to cancel your change.

The Administration Tab - Firmware Upgrade

Upgrade Firmware

To upgrade the Router’s firmware, first download the firmware from the Linksys website. Then extract the file on your computer. Do not upgrade your firmware unless you are experiencing problems with the Router.

Please select a file to upgrade. Click the Browse button to find the extracted firmware file. Then click the Upgrade button. For more information about upgrading firmware, refer to “Appendix C: Upgrading Firmware”.

Figure 8-45: Administration Tab - Factory Defaults

The Administration Tab - Config Management

This screen is used to back up or restore the Router’s configuration file.

Backup Configuration

To back up the Router’s configuration file, click the Backup button. Then follow the on-screen instructions.

Router Configuration

To restore the Router’s configuration file, click the Browse button to locate the file, and follow the on-screen instructions. After you have selected the file, click the Restore button.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Administration Tab - Factory Defaults

Figure 8-46: Administration Tab - Firmware Upgrade

Figure 8-47: Administration Tab - Config Management

Wireless-G Router for Mobile Broadband

The Status Tab - Mobile Network

The Mobile Network screen on the Status Tab displays the Router’s current mobile network and mobile broadband data card status.

Mobile Network Status

Network Name. Displayed here is the name of the mobile network the Router is using.

Signal Strength. This indicates the strength of the mobile broadband signal that the Router is receiving.

Connection Time. This is the length of time the Router has been connected to the mobile network since your last

connection.

Current Session Usage. Displayed here is the amount of data that has been sent to and received from the mobile network since your last connection.

Data Card Status

Card Model. Displayed here is the model number of your broadband mobile data card.

Card Firmware. This is the firmware version of your broadband mobile data card.

Click the Refresh button to view the latest status information.

Figure 8-48: Status Tab - Mobile Network

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Status Tab - Mobile Network

Wireless-G Router for Mobile Broadband

The Status Tab - Router

The Router screen on the Status Tab displays the Router’s current status.

Router Information

Firmware Version. This is the Router’s current firmware.

Current Time. This shows the time, as you set on the Setup Tab.

MAC Address. This is the Router’s MAC Address, as seen by your ISP.

Router Name. This is the specific name for the Router, which you set on the Setup Tab.

Host Name. If required by your ISP, this would have been entered on the Setup Tab.

Domain Name. If required by your ISP, this would have been entered on the Setup Tab.

Internet

Configuration Type. Displayed here is the information required by your ISP for connection to the Internet. This information was entered on the Setup Tab.

Click the Refresh button to view the latest status information.

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Status Tab - Router

Figure 8-49: Status Tab - Router

Wireless-G Router for Mobile Broadband

The Status Tab - Local Network

The Local Network screen on the Status Tab displays the status of your network.

Local Network

MAC Address. This is the Router’s MAC Address, as seen on your local, Ethernet network.

IP Address. This shows the Router’s IP Address, as it appears on your local, Ethernet network.

Subnet Mask. When the Router is using a Subnet Mask, it is shown here.

DHCP Server. If you are using the Router as a DHCP server, that will be displayed here.

Start IP Address. For the range of IP Addresses used by devices on your local, Ethernet network, the beginning

of that range is shown here.

End IP Address. For the range of IP Addresses used by devices on your local, Ethernet network, the end of that range is shown here.

DHCP Clients Table. Clicking this button will open a screen to show you which PCs are utilizing the Router as a DHCP server. You can delete PCs from that list, and sever their connections, by checking a Delete box and clicking the Delete button.

Click the Refresh button to view the latest status information.

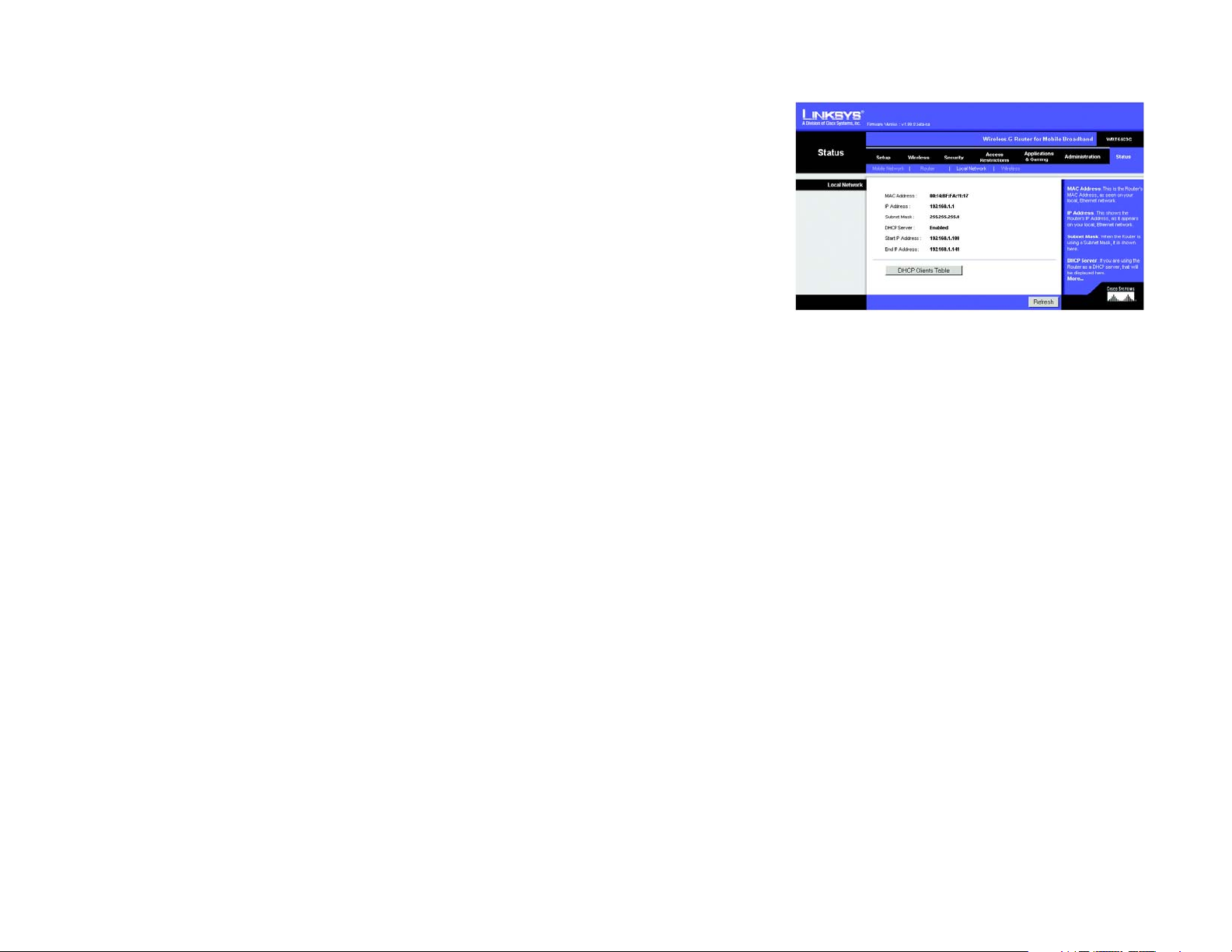

Figure 8-50: Status Tab - Local Network

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Status Tab - Local Network

Wireless-G Router for Mobile Broadband

The Status Tab - Wireless

The Wireless screen on the Status Tab displays the status of your wireless network.

Wireless

MAC Address. This is the Router’s MAC Address, as seen on your local, wireless network.

Mode. As selected from the Wireless tab, this will display the wireless mode (Mixed, G-Only, or Disabled) used by

the network.

SSID. As entered on the Wireless tab, this will display the wireless network name or SSID.

DHCP Server. If you are using the Router as a DHCP server, that will be displayed here.

Channel. As entered on the Wireless tab, this will display the channel on which your wireless network is

broadcasting.

Encryption Function. As selected on the Wireless Security Tab, this will display what type of encryption the Router uses for security.

Click the Refresh button to view the latest status information.

Figure 8-51: Status Tab - Wireless

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Status Tab - Wireless

Wireless-G Router for Mobile Broadband

Appendix A: Troubleshooting

This appendix consists of two parts: “Common Problems and Solutions” and “Frequently Asked Questions.” Provided are possible solutions to problems that may occur during the installation and operation of the Router. Read the descriptions below to help you solve your problems. If you can’t find an answer here, check the Sprint website at www.sprint.com.

Common Problems and Solutions

1. I’m trying to access the Router’s Web-based Utility, but I do not see the login screen. Instead, I see a

screen saying, “404 Forbidden.”

If you are using Windows Explorer, perform the following steps until you see the Web-based Utility’s login screen (Netscape Navigator will require similar steps):

1. Click File. Make sure Work Offline is NOT checked.

2. Press CTRL + F5. This is a hard refresh, which will force Windows Explorer to load new webpages, not cached ones.

3. Click Tools. Click Internet Options. Click the Security tab. Click the Default level button. Make sure the security level is Medium or lower. Then click the OK button.

2. I need to set a static IP address on a PC.

You can assign a static IP address to a PC by performing the following steps:

• For Windows 2000:

1. Click Start, Settings, and Control Panel. Double-click Network and Dial-Up Connections.

2. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option.

3. In the Components checked are used by this connection box, highlight Internet Protocol (TCP/IP), and click the Properties button. Select Use the following IP address option.

4. Enter a unique IP address that is not used by any other computer on the network connected to the Router.

5. Enter the Subnet Mask, 255.255.255.0.

6. Enter the Default Gateway, 192.168.1.1 (Router’s default IP address).

7. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information.

8. Click the OK button in the Internet Protocol (TCP/IP) Properties window, and click the OK button in the Local Area Connection Properties window.

9. Restart the computer if asked.

• For Windows XP:

Appendix A: Troubleshooting Common Problems and Solutions

Wireless-G Router for Mobile Broadband

The following instructions assume you are running Windows XP with the default interface. If you are using the Classic interface (where the icons and menus look like previous Windows versions), please follow the instructions for Windows 2000.

1. Click Start and Control Panel.

2. Click the Network and Internet Connections icon and then the Network Connections icon.

3. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option.

4. In the This connection uses the following items box, highlight Internet Protocol (TCP/IP). Click the Properties button.

5. Enter a unique IP address that is not used by any other computer on the network connected to the Router.

6. Enter the Subnet Mask, 255.255.255.0.

7. Enter the Default Gateway, 192.168.1.1 (Router’s default IP address).

8. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information.

9. Click the OK button in the Internet Protocol (TCP/IP) Properties window. Click the OK button in the Local Area Connection Properties window.

3. I want to test my Internet connection.

A Check your TCP/IP settings. For Windows 98SE, Me, 2000, and XP:

• Refer to Windows Help for details. Make sure Obtain IP address automatically is selected in the settings. B Open a command prompt. For Windows 98SE and Me:

• Click Start and Run. In the Open field, type command. Press the Enter key or click the OK button. For Windows 2000 and XP:

• Click Start and Run. In the Open field, type cmd. Press the Enter key or click the OK button. In the command prompt, type ping 192.168.1.1 and press the Enter key.

• If you get a reply, the computer is communicating with the Router.

• If you do NOT get a reply, please check the cable, and make sure Obtain an IP address automatically is selected in the TCP/IP settings for your Ethernet adapter.

C In the command prompt, type ping followed by your Internet or WAN IP address and press the Enter key. The Internet or WAN IP Address can be found on the Status screen of the Router’s web-based utility. For example, if your Internet or WAN IP address is 1.2.3.4, you would enter ping 1.2.3.4 and press the Enter key.

• If you get a reply, the computer is connected to the Router.

• If you do NOT get a reply, try the ping command from a different computer to verify that your original computer is not the cause of the problem.

D In the command prompt, type ping www.yahoo.com and press the Enter key.

Appendix A: Troubleshooting Common Problems and Solutions

Wireless-G Router for Mobile Broadband

• If you get a reply, the computer is connected to the Internet. If you cannot open a webpage, try the ping command from a different computer to verify that your original computer is not the cause of the problem.

• If you do NOT get a reply, there may be a problem with the connection. Try the ping command from a different computer to verify that your original computer is not the cause of the problem.

4. I am not getting an IP address on the Internet with my Internet connection.

• Refer to “Problem #3, I want to test my Internet connection” to verify that you have connectivity.

• If you need to register the MAC address of your Ethernet adapter with your ISP, please see “Appendix E: Finding the MAC address and IP Address for Your Ethernet Adapter.” If you need to clone the MAC address of your Ethernet adapter onto the Router, see the System section of “Chapter 8: Configuring the Wireless-G Router for Mobile Broadband” for details.

• Make sure you are using the right Internet connection settings. Contact your ISP to see if your Internet connection type is DHCP, Static IP Address, or PPPoE (commonly used by DSL consumers). Please refer to the Setup section of “Chapter 8: Configuring the Wireless-G Router for Mobile Broadband” for details on Internet connection settings.

• Make sure you have the right cable. Check to see if the Internet column has a solidly lit Link/Act LED.

• Make sure the cable connecting from your cable or DSL modem is connected to the Router’s Internet port. Verify that the Status page of the Router’s web-based utility shows a valid IP address from your ISP.

• Turn off the computer, Router, and cable/DSL modem. Wait 30 seconds, and then turn on the Router, cable/DSL modem, and computer. Check the Status tab of the Router’s web-based utility to see if you get an IP address.

5. I am not able to access the Setup page of the Router’s web-based utility.

• Refer to “Problem #3, I want to test my Internet connection” to verify that your computer is properly connected to the Router.

• Refer to “Appendix E: Finding the MAC Address and IP address for Your Ethernet Adapter” to verify that your computer has an IP Address, Subnet Mask, Gateway, and DNS.

• Set a static IP address on your system; refer to “Problem #2: I need to set a static IP address.”

• Refer to “Problem #10: I am a PPPoE user, and I need to remove the proxy settings or the dial-up pop-up window.”

6. I need to set up a server behind my Router and make it available to the public.

To use a server like a web, ftp, or mail server, you need to know the respective port numbers they are using. For example, port 80 (HTTP) is used for web; port 21 (FTP) is used for FTP, and port 25 (SMTP outgoing) and port 110 (POP3 incoming) are used for the mail server. You can get more information by viewing the documentation provided with the server you installed.

Follow these steps to set up port forwarding through the Router’s web-based utility. We will be setting up web, ftp, and mail servers.

1. Access the Router’s web-based utility by going to http://192.168.1.1 or the IP address of the Router. Go to the Applications & Gaming => Port Range Forward tab.

Appendix A: Troubleshooting Common Problems and Solutions

Wireless-G Router for Mobile Broadband

2. Enter any name you want to use for the Application.

3. Enter the Start and End Port range of the service you are using. For example, if you have a web server, you would enter the range 80 to 80.

4. Select the protocol(s) you will be using, TCP and/or UDP.

5. Enter the IP address of the PC or network device that you want the port server to go to. For example, if the web server’s Ethernet adapter IP address is 192.168.1.100, you would enter 100 in the field provided. Check “Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter” for details on getting an IP address.

6. Check the Enable option for the port services you want to use. Consider the example below:

Application Start and End Protocol IP Address Enabled

Web server 80 to 80 Both 192.168.1.100 X

FTP server 21 to 21 TCP 192.168.1.101 X

SMTP (outgoing) 25 to 25 Both 192.168.1.102 X

POP3 (incoming) 110 to 110 Both 192.168.1.102 X

When you have completed the configuration, click the Save Settings button.

7. I need to set up online game hosting or use other Internet applications.

If you want to play online games or use Internet applications, most will work without doing any port forwarding or DMZ hosting. There may be cases when you want to host an online game or Internet application. This would require you to set up the Router to deliver incoming packets or data to a specific computer. This also applies to the Internet applications you are using. The best way to get the information on what port services to use is to go to the website of the online game or application you want to use. Follow these steps to set up online game hosting or use a certain Internet application:

1. Access the Router’s web interface by going to http://192.168.1.1 or the IP address of the Router. Go to the Applications & Gaming => Port Range Forward tab.

2. Enter any name you want to use for the Application.

3. Enter the Start and End Port range of the service you are using. For example, if you want to host Unreal Tournament (UT), you would enter the range 7777 to 27900.

4. Select the protocol(s) you will be using, TCP and/or UDP.

Appendix A: Troubleshooting Common Problems and Solutions

Wireless-G Router for Mobile Broadband

6. Check the Enable option for the port services you want to use. Consider the example below:

Application Start and End Protocol IP Address Enabled

UT 7777 to 27900 Both 192.168.1.100 X

Halflife 27015 to 27015 Both 192.168.1.105 X

PC Anywhere 5631 to 5631 UDP 192.168.1.102 X

VPN IPSEC 500 to 500 UDP 192.168.1.100 X

When you have completed the configuration, click the Save Settings button.

8. I can’t get the Internet game, server, or application to work.

If you are having difficulties getting any Internet game, server, or application to function properly, consider exposing one PC to the Internet using DeMilitarized Zone (DMZ) hosting. This option is available when an application requires too many ports or when you are not sure which port services to use. Make sure you disable all the forwarding entries if you want to successfully use DMZ hosting, since forwarding has priority over DMZ hosting. (In other words, data that enters the Router will be checked first by the forwarding settings. If the port number that the data enters from does not have port forwarding, then the Router will send the data to whichever PC or network device you set for DMZ hosting.)

Follow these steps to set DMZ hosting:

1. Access the Router’s web-based utility by going to http://192.168.1.1 or the IP address of the Router. Go to the Applications & Gaming => Port Range Forward tab.

2. Disable or remove the entries you have entered for forwarding. Keep this information in case you want to use it at a later time.

3. Go to the Applications & Gaming => DMZ tab.

4. Select Enable next to DMZ. In the Client PC IP Address field, enter the IP address of the computer you want exposed to the Internet. This will bypass the NAT technology for that computer. Please refer to “Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter” for details on getting an IP address.

5. Once completed with the configuration, click the Save Settings button.

9. I forgot my password, or the password prompt always appears when I am saving settings to the Router.

Reset the Router to factory default by pressing the Reset button for 10 seconds and then releasing it. If you are still getting prompted for a password when saving settings, then perform the following steps:

Appendix A: Troubleshooting Common Problems and Solutions

Wireless-G Router for Mobile Broadband

1. Access the Router’s web-based utility by going to http://192.168.1.1 or the IP address of the Router. Enter the default password admin, and click the Administration => Management tab.

2. Enter a different password in the Router Password field, and enter the same password in the second field to confirm the password.

3. Click the Save Settings button.

10. I am a PPPoE user, and I need to remove the proxy settings or the dial-up pop-up window.

If you have proxy settings, you need to disable these on your computer. Because the Router is the gateway for the Internet connection, the computer does not need any proxy settings to gain access. Please follow these directions to verify that you do not have any proxy settings and that the browser you use is set to connect directly to the LAN.

• For Microsoft Internet Explorer 5.0 or higher:

1. Click Start, Settings, and Control Panel. Double-click Internet Options.

2. Click the Connections tab.

3. Click the LAN settings button and remove anything that is checked.

4. Click the OK button to go back to the previous screen.

5. Click the option Never dial a connection. This will remove any dial-up pop-ups for PPPoE users.

• For Netscape 4.7 or higher:

1. Start Netscape Navigator, and click Edit, Preferences, Advanced, and Proxies.

2. Make sure you have Direct connection to the Internet selected on this screen.

3. Close all the windows to finish.

11. To start over, I need to set the Router to factory default.

Hold the Reset button for 10 seconds and then release it. This will return the password, forwarding, and other settings on the Router to the factory default settings. In other words, the Router will revert to its original factory configuration.

12. I need to upgrade the firmware.

In order to upgrade the firmware with the latest features, you need to go to the Sprint website and download the latest firmware at www.sprint.com. Follow these steps:

1. Go to the Sprint website at http://www.sprint.com and download the latest firmware.

2. To upgrade the firmware, follow the steps in “Appendix C: Upgrading Firmware.”

13. My DSL service’s PPPoE is always disconnecting.

PPPoE is not actually a dedicated or always-on connection. The DSL ISP can disconnect the service after a period of inactivity, just like a normal phone dial-up connection to the Internet.

• There is a setup option to “keep alive” the connection. This may not always work, so you may need to reestablish connection periodically.

1. To connect to the Router, go to the web browser, and enter http://192.168.1.1 or the IP address of the Router.

Appendix A: Troubleshooting Common Problems and Solutions

Cisco WRT54G3G-ST User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1: Introduction

Chapter 2: Planning Your Wireless Network

Chapter 3: Getting to Know the Wireless-G Router for Mobile Broadband

Chapter 4: Connecting the Wireless-G Router for Mobile Broadband

Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service

Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only

Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service

Chapter 8: Configuring the Wireless-G Router for Mobile Broadband

Appendix A: Troubleshooting
