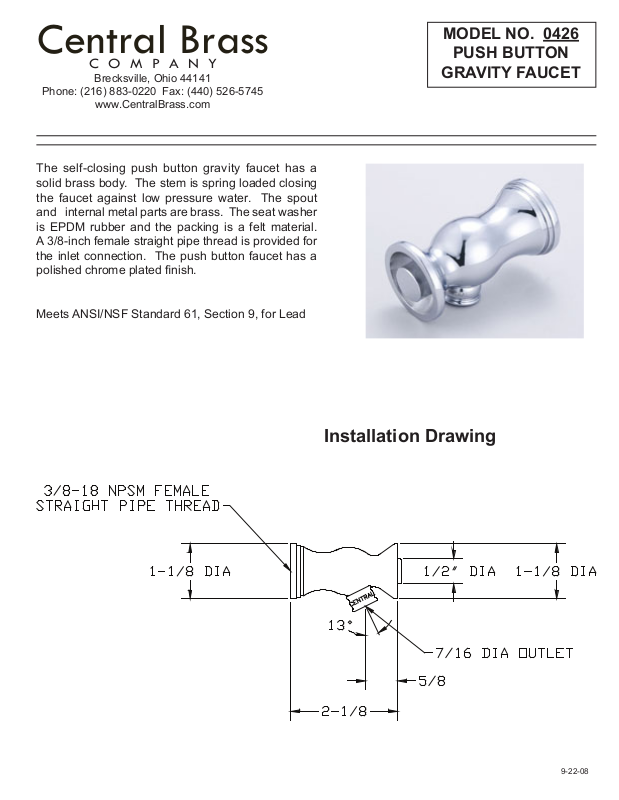

CENTRAL BRASS 0426 Installation Manual

MODEL NO. 0426

Central Brass

C O M P A N Y

PUSH BUTTON

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

The self-closing push button gravity faucet has a
solid brass body. The stem is spring loaded closing
the faucet against low pressure water. The spout
and internal metal parts are brass. The seat washer
is EPDM rubber and the packing is a felt material.
A 3/8-inch female straight pipe thread is provided for
the inlet connection. The push button faucet has a

polished chrome plated nish.

Meets ANSI/NSF Standard 61, Section 9, for Lead

GRAVITY FAUCET

Installation Drawing

9-22-08

MODEL NO. 0426

Central Brass

C O M P A N Y

PUSH BUTTON

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

Parts Breakdown

GRAVITY FAUCET

# Part # Description
1 PF-279-CW Brass Nut
2 279-L Brass Washer
3 945 Rubber Seat Washer
4 279-E Brass Washer
5 PF-6901-BR Brass Faucet Body
6 279-BA Brass Spout
7 848-B Felt Packing
8 279-D Brass Washer
9 279-V Phosphor Bronze Spring
10 PF-279-FRC Brass Stem

The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.

9-22-08
