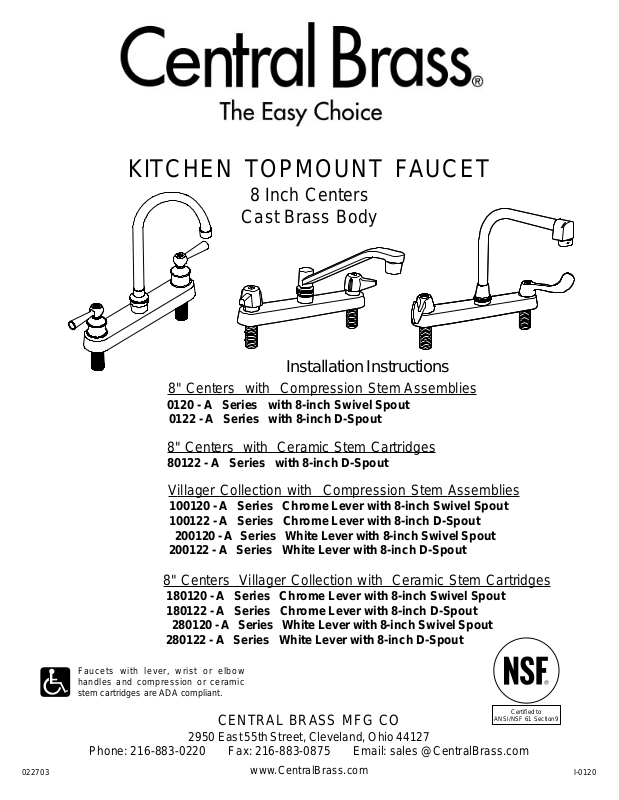

KITCHEN T OPMOUNT FAUCET
8 Inch Centers
Cast Brass Body
Installation Instructions
8" Centers with Compression Stem Assemblies
0120 - A Series with 8-inch Swivel Spout
0122 - A Series with 8-inch D-S pout
8" Centers with Ceramic Stem Cartridges
80122 - A Series with 8-inch D-S pout
Villager Collection with Compression Stem Assemblies
100120 - A Series Chrome Lever with 8-inch Swivel Spout
100122 - A Series Chrome Lever with 8-inch D-Spout
200120 - A Series White Lever with 8-inch Swivel Spout
200122 - A Series White Lever with 8-inch D-Spout
8" Centers Villager Collection with Ceramic Stem Cartridges
180120 - A Series Chrome Lever with 8-inch Swivel Spout
180122 - A Series Chrome Lever with 8-inch D-Spout
280120 - A Series White Lever with 8-inch Swivel Spout
280122 - A Series White Lever with 8-inch D-Spout
Faucets with lever, wrist or elbow
handles and compression or ceramic
stem cartridges are ADA compliant.
Certified to
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
022703 I-0120
www.CentralBrass.com
ANSI/NSF 61 Section9
Page 2
CENTRAL BRASS
INSTALLATION INSTRUCTIONS
NOTE:
Faucets supplied without hose and spray
should be flushed with only
the aerator removed.
1. Apply a thin coat of soft plumbers putty to the bottom edge of the faucet body , place the faucet
shanks thru the holes in the sink. (Handles indexed cold on right side, body marked on bottom
front for those without handle indexes.)
2. Attach steel washer and locknuts and tighten. Connect hot water supply to left side and cold
water supply to right side. Tighten coupling nut s securely .
3. Install spout, without aerator . Turn on hot and cold water for one minute to flush out dirt and
sediment that might have accumulated during installation.
4. Install spout aerator .
5. Check all connections for leakage.
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
022703 I-0120
www.CentralBrass.com
Page 3

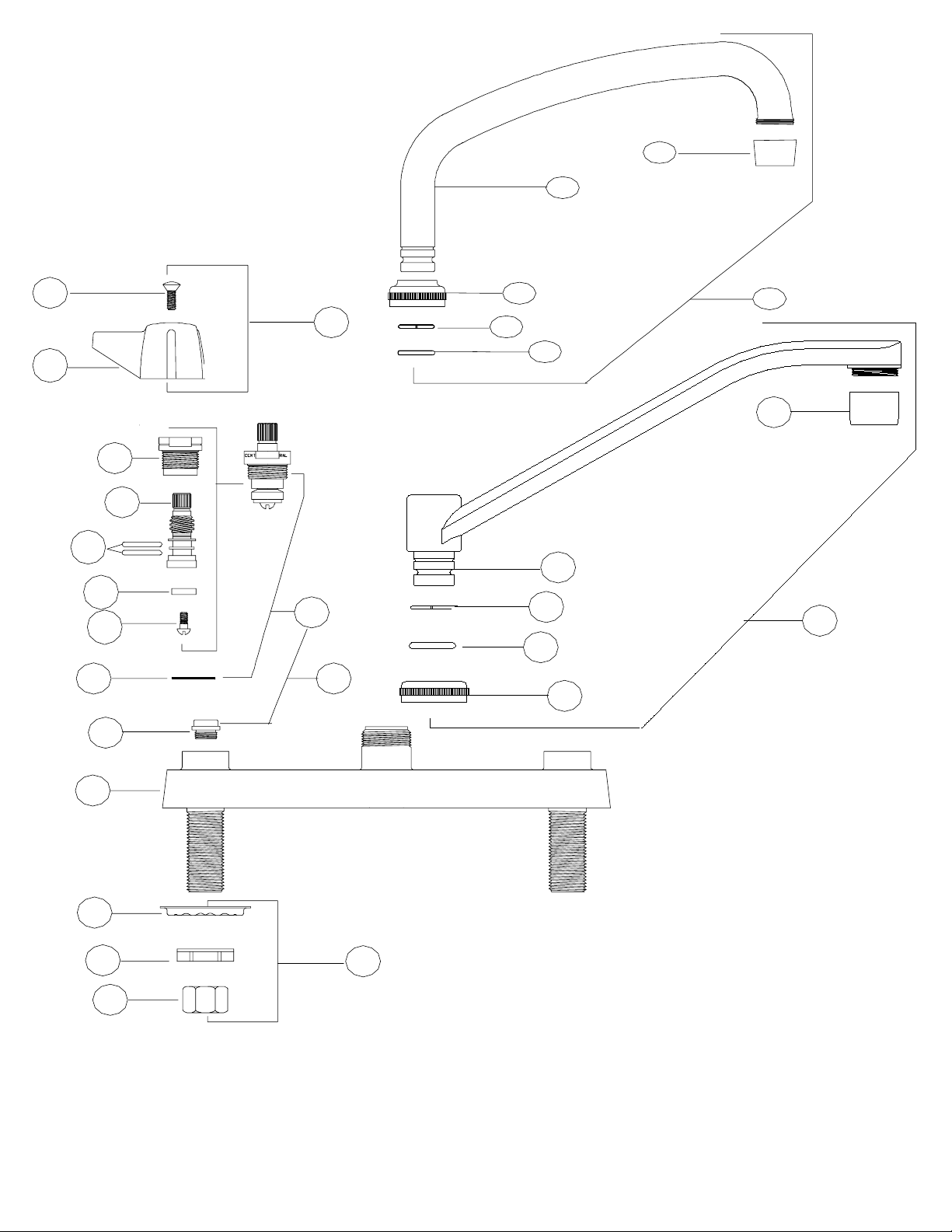

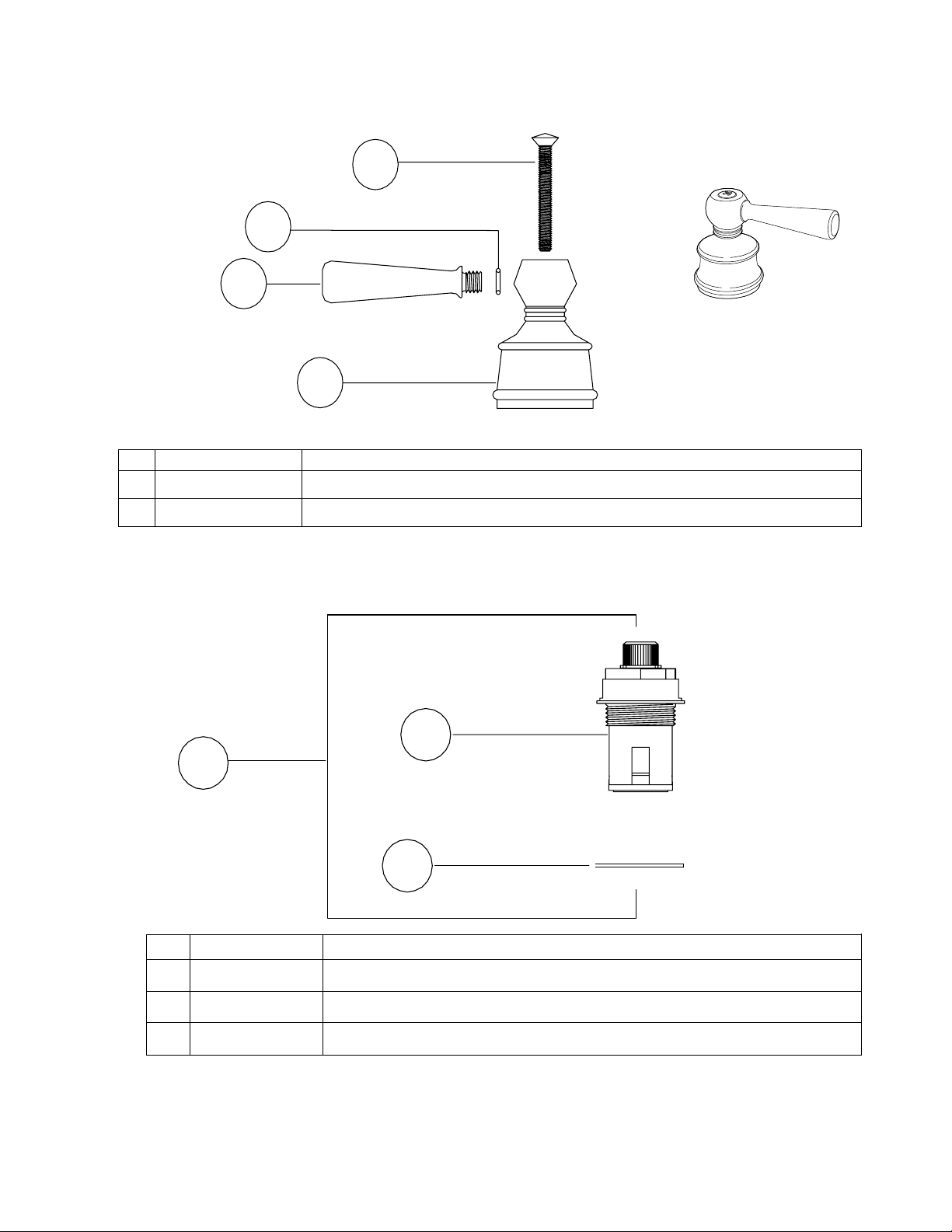

REPLACEMENT
PARTS
7
*
0120 Series
1
*
D
7
A
*
8
9
*
*
2
0122 Series
*
3
4
5
6
B
C
8
D
9
10
*
11
12
13
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
022703 I-0120
E
CENTRAL BRASS MFG CO
www.CentralBrass.com
* These items are not offered individually and must be
purchased as a group or unit. Please contact Central Brass
for more information.
Page 4
REPLACEMENT P ARTS
# Part # Description
A G-523-C Lever Handle C Indexed with Screw (X107-F)
A G-523-H Lever Handle H Indexed with Screw (X107-F)
B G-453-EL Cold O-Ring Stem Assembly with Gasket (X1028-Y)
B G-453-ER Hot O-Ring Stem Assembly with Gasket (X1028-Y)
C K-453-C Cold O-Ring Stem Assembly with Gasket (X1028-Y) and Seat (X263-BC)
C K-453-H Hot O-Ring Stem Assembly with Gasket (X1028-Y) and Seat (X263-BC)
D SU-363-RA 8-Inch Swivel Spout with Aerator (30-M) 0120 Series
D SU-365-CA 8-Inch Swivel D-Spout with Aerator (30-M) 0122 Series
E G-913-A Coupling Nut group (1 set)
1 X107-F Handle Screw (25 pcs per pack)
2 X1038-453 O-Rings (25 pcs per pack)
3 X901-WNN Stem Seat Washer (25 pcs per pack)
4 X104 Seat Washer Screw (25 pcs per pack)
5 X1028-Y Gasket (25 pcs per pack)
6 X263-BC Replacement Seat (10 pcs per pack)
7 30-M Aerator
8 X166-FN Snap Ring (6 pcs per pack)
9 X1038-KN Spout O-Ring (25 pcs per pack)
10 X54 Crowfoot Washer (10 pcs per pack)
11 X7133-AL Locknut (10 pcs per pack)
12 X4015 Coupling Nut (4 pcs per pack)
OPTIONS & REPLACEMENT PARTS for options
Suffix
Number
07 D SU-357-WSA 8 ¾ - Inch High-Ris e Swivel Spout with Aerator (30- L)
TSA D SU-257-TSA Tri-Arc Swivel Goose neck Spout with Aerator (30-M)
GRA D SU-157-GRA
GSA D SU-157-GSA
KRA D SU-157-KRA 5 ½- Inch Rigid Gooseneck Spout with Aerator (30-M)
KSA D SU-157-KSA 5 ½ - Inch Swivel Gooseneck Spout with Aerator (30-M)
EL A G-4149-C or H 6-Inch Brass Wri st Handles – Cold Index B lue (X107-FB) or Hot Index Re d (X107-FR)
ELS A G-4147-C or H 4-Inch Brass Wrist Handl es – Co ld Index Blue (X107-FB) or H ot Index Red (X107-FR )
70 A K-5 06-1C or 1H Acrylic Handles with C or H m etal indexed buttons
80 A K-504-1C or 1H Silver Crown Acrylic Hand les with C or H metal index ed buttons
M 6 X263-BM Replac e able Monel Seat (2 pcs per pack)
M B G-453-ELM Cold O-Ring Stem Assembly with Monel Seat Screw (X104-ML)
M B G-453-ERM Hot O-Ring Stem Assembly with Monel Seat Screw (X104-ML)
M 4 X104-ML Monel Seat Screw (6 pcs per pack)
Q B G-454-EL Quick-Pression Quarter-Turn Cold O-Ring Stem Assembly with Gasket (X1028-Y)
Q B G-454-ER Quick-Pression Quarter-Turn Hot O-Ring Stem Assembly with Gasket (X1028-Y)
Replaces
Item #
2 D SU-363-JA 10-Inch Swivel Sp out with Aerator (30-M)
3 D SU-363-LA 12-Inch Swivel Spout with Aerator (30-M)
4 D SU-363-MA 14-Inch Swivel Sp out with Aerator (30-M)
7 D SU-1974-A 1 0-Inch Cast Spout with Aerator (30 -M)
8 D SU-357-HSA 7 ¼ - Inch High-Rise Swivel Spout with Aerator (30-L)
X A & E G-1143-C or H
Part Number Description
3
4
- Inch Rigid Gooseneck Spout with Aerator (30-M)
⁄
32
3
⁄
- Inch Swivel Goose neck Spout with Aerator (30-M)
4
32
PF-741-DO Double O-Ring Adapter for the SU-157-KSA Spou t
XPF-166-U Brass Adapter for the SU-157-KSA and SU-157-KRA Sp outs
30-M Aerator
30-L Aerator (Male) for SU-357-HSA & SU-357-WSA spouts
Brass Canopy Lever Handl es – Cold Index Blue (X107-FB) or
Hot Index Red (X107-FR) & Brass Locknut group (G-913-X)
X7133-B Brass Locknuts
X107-FB or FR Blue Index or Red Index (5pcs per pack) Used for EL, ELS and X suffix’s
X126-625B Handle Screw for Ac ryli c Handles suffix’s 70 or 80 (6 pcs per pack)
G-503-M-02 Metal indexed buttons C & H for Acrylic Handles suffix’s 70 or 80 (one pair per pack )
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
022703 I-0120
www.CentralBrass.com
Page 5
REPLACEMENT
PARTS
*
*
*
*
# Part Number Description
A K-512-02 Handle kit for Villager Collection with Chrome Lever
( one pair )
A K-512-15 Handle kit for Villager Collection with White Lever
*
A
1
# Part Number Description
( one pair )
A K-352-C Ceramic-disc Stem Cartridge Cold Side with Gasket
A K-352-H Ceramic-disc Stem Cartridge Hot Side with Gasket
1 X1028-Y Gasket
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
022703 I-0120
(25 pcs per pack)
www.CentralBrass.com
(X1028-Y)
(X1028-Y)
Page 6
CENTRAL BRASS

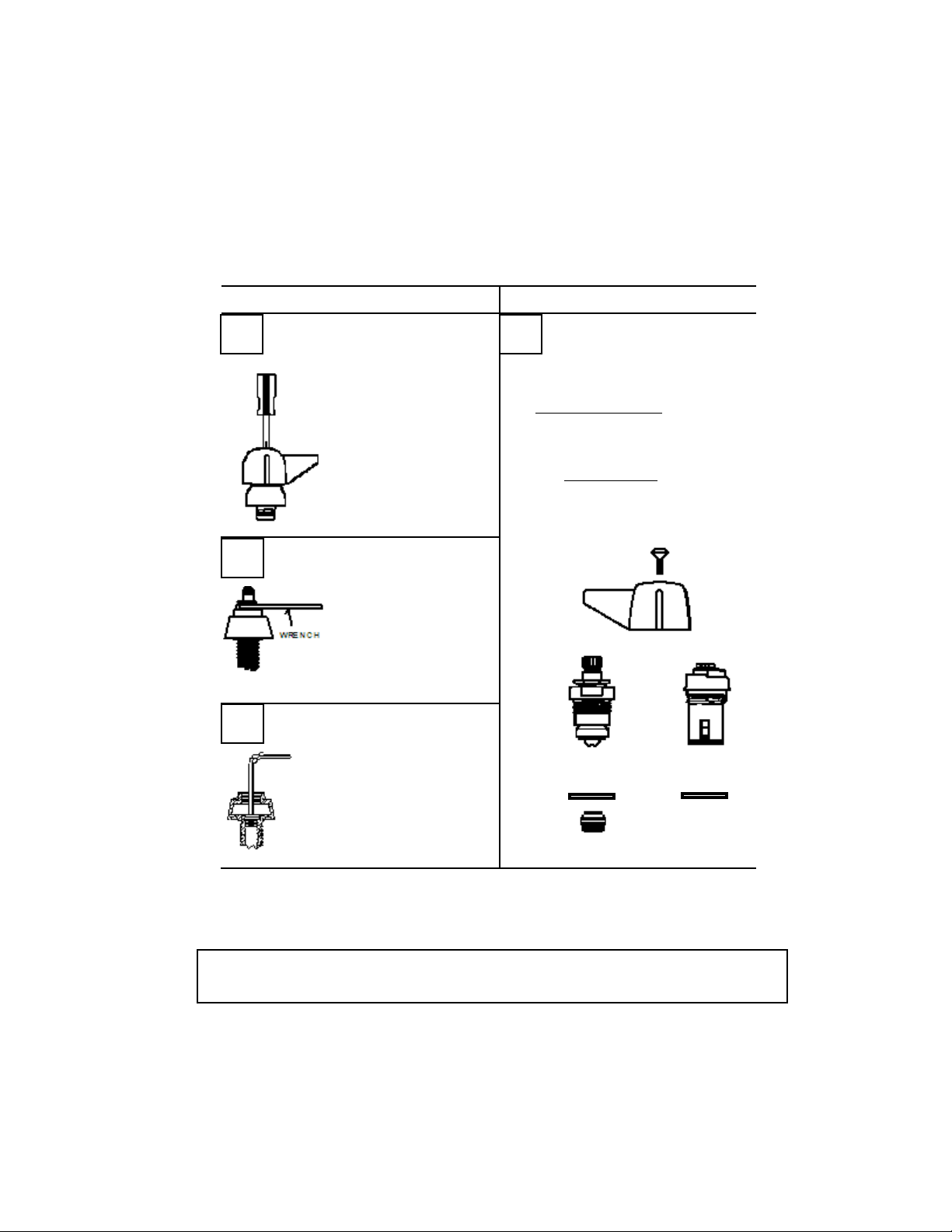

MAINTENANCE INSTRUCTIONS
1
2
3
DISASSEMBLY
REMOVE HANDLE
1. Turn of f water supply .
2. Remove screw.
3. Remove handle.
REMOVE STEM ASSEMBLY
1. Use adjustable
wrench.
2. Unscrew (counterclockwise) remove
stem unit.
REMOVE SEA T
(For compression stems only)
1. Insert 5/16" allen
wrench in seat.
2. Turn seat (counterclockwise) to remove.
REPLACEMENT
4
Use Only Genuine
Central Replacement Parts
Compression Units
G-453-ER
G-453-EL Cold stem assembly
X263-BC Replaceable Seat
Ceramic Units
K-352-H Ceramic Hot stem assembly
K-352-C Ceramic Cold stem assembly
COMPRESSION
Hot stem assembly
CERAMIC
If faucet has round handles (70 or 80 suffixes) , use two Hot stem assemblies
If faucet has lever handles, use one Hot and one Cold stem assemblies
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
022703 I-0120
www.CentralBrass.com
