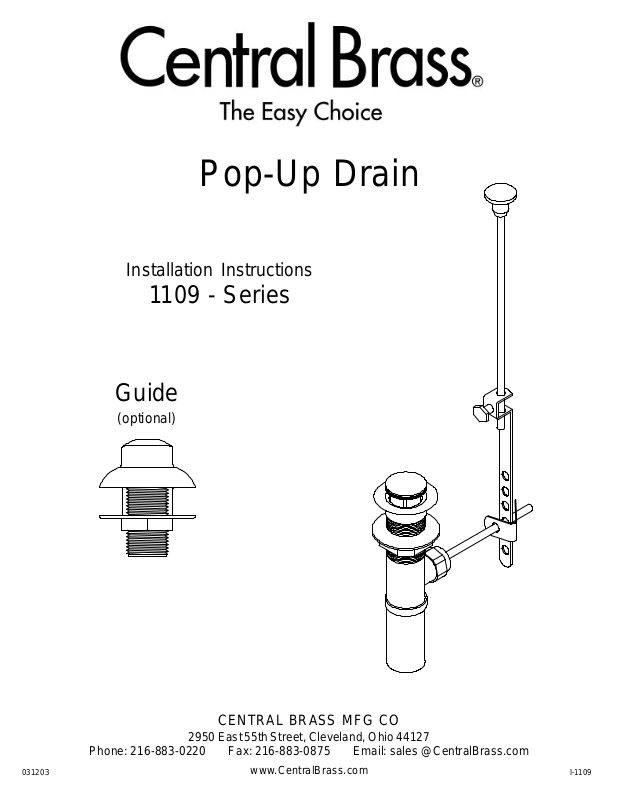

Page 1
Pop-Up Drain
Installation Instructions
1109 - Series
Guide
(optional)
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
031203 I-1109
www.CentralBrass.com
Page 2
CENTRAL BRASS

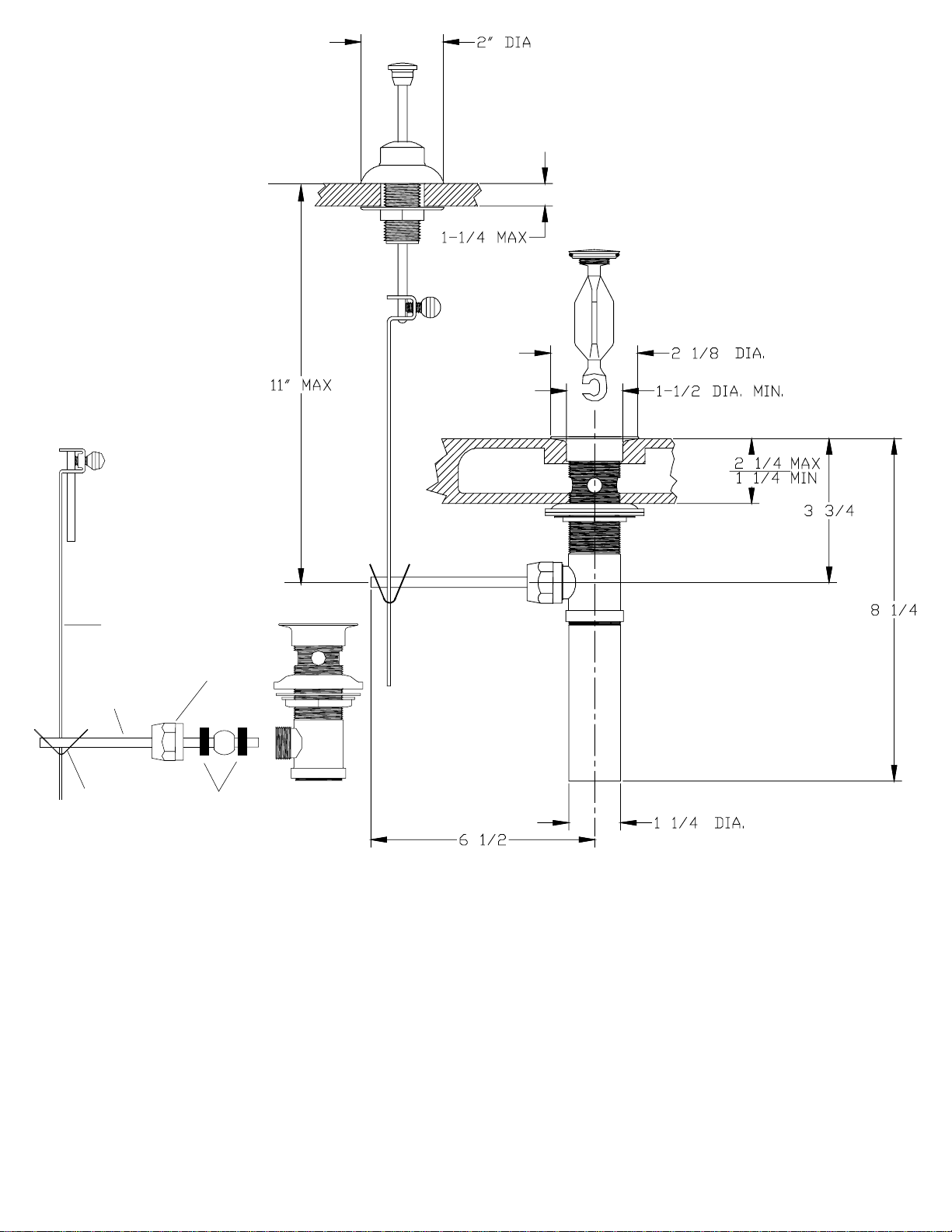

INSTALLATION INSTRUCTIONS
Pull Rod/Strap
Packing Nut
Ball Lever Rod
Clip
Packing Rings
GUIDE FOR INSTALLING POP-UP DRAIN
1. Remove stopper and drain flange from the pop-up tee.
2. Apply putty (plumbers set) to underside of drain flange and place in sink drain hole.
3. Assemble locknut, steel washer , and rubber washer (beveled side up) to tee. Thread tee into
flange from under sink. Tighten locknut from underside with ball lever socket pointing toward
the back of sink.
4. Install stopper into flange.
5. Install ball lever packing ring into pop-up tee. Insert ball lever thru packing ring and into hole in
stopper. Place 2nd p acking ring on ball lever and tighten with hex nut.
6. Assemble pull rods with lock set screw as shown, tighten lock set screw to pull rod at proper
height. Adjust rod clip so that stopper seat s properly .
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
031203 I-1109
www.CentralBrass.com
Page 3

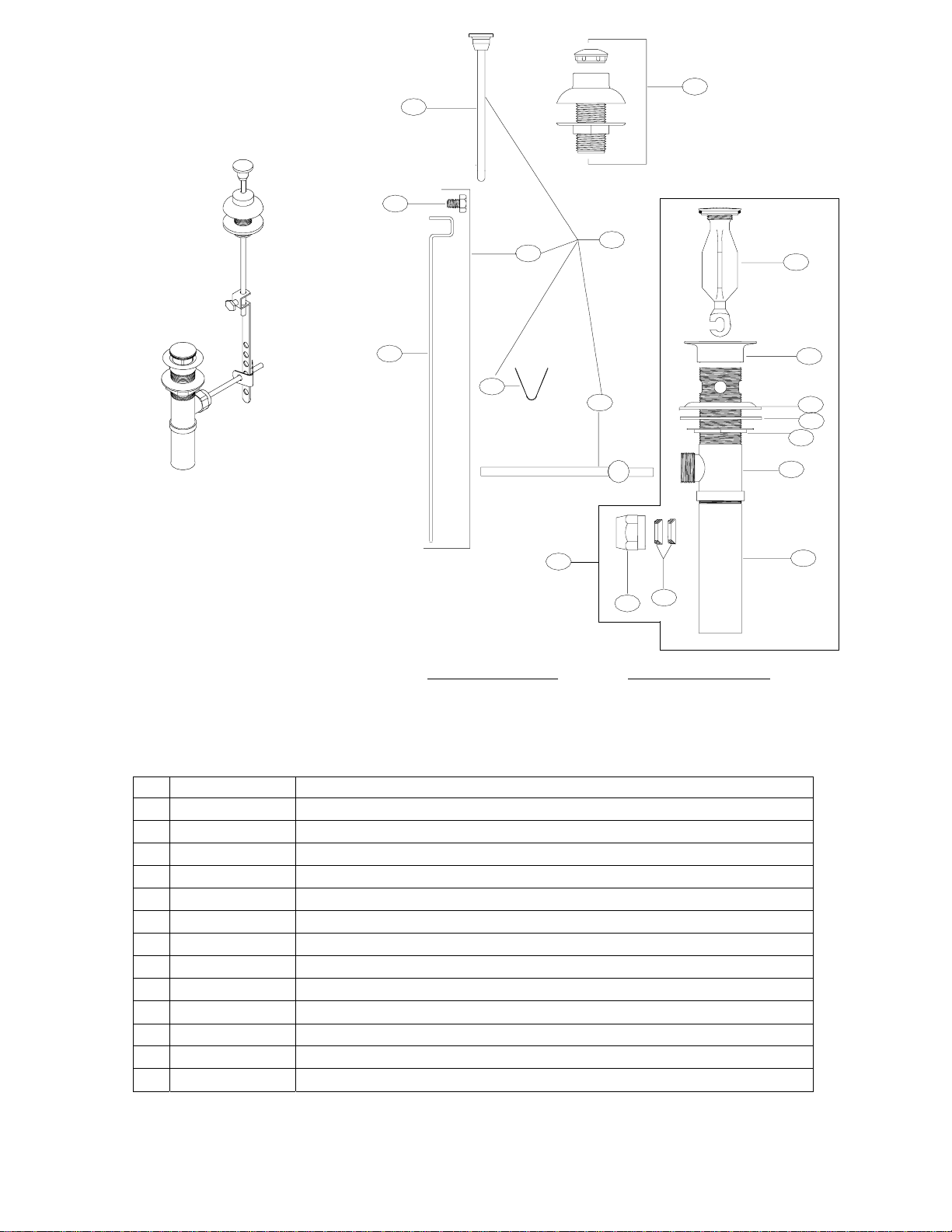

REPLACEMENT
PARTS
A
1
2
B
C
*
3
*
* These items are not offered individually
and must be purchased as a group or
unit. Please contact Central Brass for
more information.
*Ball Lever Unit *Pull Rod & Knob
Widespreads G-195-DS80T SU-195-BJ1 180
Centersets G-195-DST SU-195-BT
Shelf Back Faucets G-195-EBST G-21
Special Widespreads G-195-MST SU-195-BJ1 180
# Part # Description
A SU-2051-P Pull Rod Guide with Plug & Locknut for items 1109 & 1109-BP only
B SU-195 Pop-up Bracket with Screw (X113-P)
C G-195-DST Pull Rod Group with Pop-up Bracket (SU-195) & Ball Lever Rod
D SU-1109 Pop-up Drain less pull rod & bracket with Stopper & Guide (SU-2113-TT)
1 SU-195-BT9 Pull Rod & Knob
2 X113-P Pop-up Bracket Screw (6 pcs per pack)
3 X195-C Clip (6 pcs per pack)
4 192-NBB Ball Lever Nut
5 X409-PT Ball Lever Packing (12 pcs per pack)
6 X51-D Washer (10 pcs per pack)
7 X994-1109 Mac Washer (4 pcs per pack)
8 2056-SPT1109 Top Flange
9 SU-2113-TT Stopper & Guide
D
5
4
9
8
7
6
*
*
*
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
031203 I-1109
www.CentralBrass.com
