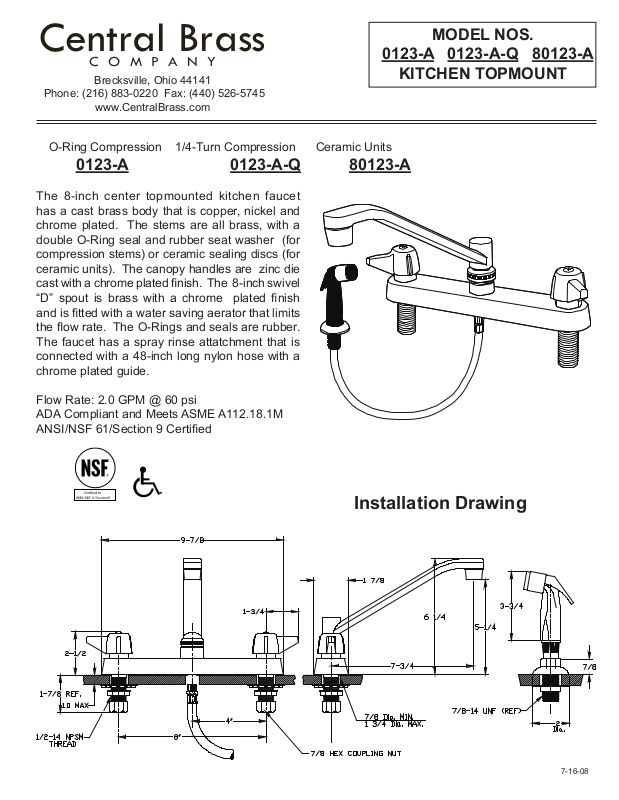

Page 1
MODEL NOS.
Central Brass
C O M P A N Y
Certified to
ANSI/NSF 61 Section9
0123-A 0123-A-Q 80123-A
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
O-Ring Compression 1/4-Turn Compression Ceramic Units
0123-A 0123-A-Q 80123-A
The 8-inch center topmounted kitchen faucet
has a cast brass body that is copper, nickel and
chrome plated. The stems are all brass, with a
double O-Ring seal and rubber seat washer (for
compression stems) or ceramic sealing discs (for
ceramic units). The canopy handles are zinc die
cast with a chrome plated nish. The 8-inch swivel
“D” spout is brass with a chrome plated nish
and is tted with a water saving aerator that limits
the ow rate. The O-Rings and seals are rubber.
The faucet has a spray rinse attatchment that is
connected with a 48-inch long nylon hose with a
chrome plated guide.
KITCHEN TOPMOUNT
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
ANSI/NSF 61/Section 9 Certied
Installation Drawing
7-16-08
Page 2
MODEL NOS.
Central Brass
C O M P A N Y
7"
2-1/2"
7-1/4"
6-45/64"
12
8-1/8"
9-15/16"
5-9/16"
5-3/4"
2
O
5-5/8"
4-1/16"
9-13/16"
9
O
9.59"
8-3/4"
9
O
8-11/16"
0123-A 0123-A-Q 80123-A
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Sufx Options & Accessories
Fau ce ts with l ever, wri st or elbow
handles with compression or ceramic
stem cartridges are ADA compliant.
Cast Brass Spout Extension
Accessory
SU-2775-R-02
A07 - Sufx
8 3/4-inch Cast Brass Spout
Wall Mount
Spout Adaptor
Accessory
G-1748-88W
KITCHEN TOPMOUNT
Handle variations available
ELS - Sufx
Wrist 4-inch
EL - Sufx
Elbow 6-inch
G-4147 (4-inch)
G-4149 (6-inch)
Spout variations available
A8 - Sufx
7 1/4-inch High-Rise Swivel Spout
SU-357-WsA
8 3/4 -inch
Swivel
GSA - Sufx
4 3/32 Swivel Gooseneck Spout
GRA - Sufx
4 3/32 Rigid Gooseneck Spout
Drinking water products tested and certied by
NSF International to ANSI/NSF Standard 61,
Section 9. Each product required to meet the
standard proudly exhibits the NSF logo.
KSA - Sufx
5 1/2 Swivel Gooseneck Spout
KRA - Sufx
5 1/2 Rigid Gooseneck Spout
SU-157-GSA
4 3/32 -inch
Swivel
Availavle in Rigid
SU-157-KSA
5 1/2 -inch Swivel
Availavle in Rigid
SU-357-hSA
7 1/4-inch
7-16-08
Page 3
MODEL NOS.
Central Brass
C O M P A N Y
0123-A 0123-A-Q 80123-A
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
# Part # Description
1 4015-BARP Brass Coupling Nut
2 7133-AZ Zinc Dichromate Locknut
3 54 Steel Crowfoot Washer
4 1947-AN Brass Faucet Body
5 263-BC Bronze Seat
6 1028-Y Nylon Gasket
7 104 Brass Seat Washer Screw
8 901-WNN Seat Washer
9 453-FL Brass Left Thread O-Ring Stem
9 453-FR Brass Right Thread O-Ring Stem
10 1038-453 O-Ring
KITCHEN TOPMOUNT
Parts Breakdown
# Part # Description
11 453-EWC Brass Left Thread O-Ring Bonnet
11 453-EWH Brass Right Thread O-Ring Bonnet
12 523-C Handle Indexed “C”
12 523-H Handle Indexed “H”
13 107-F Brass Phillips Head Screw
14 SU-167-DP Diverter Piston Assembly
15 1038-KN O-Ring
16 166-FN Stainless Steel Snap Ring
17 PF-782-DES Brass Spout Nut
18 365-D Brass Swivel “D” Spout
19 30-M Female Aerator
20 SU-453-EL Left Thread O-Ring Stem Assembly
20 SU-453-ER Right Thread O-Ring Stem Assembly
21 266-A Hose & Spray
22 SU-2987-DA Hose Guide
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
