Page 1
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com

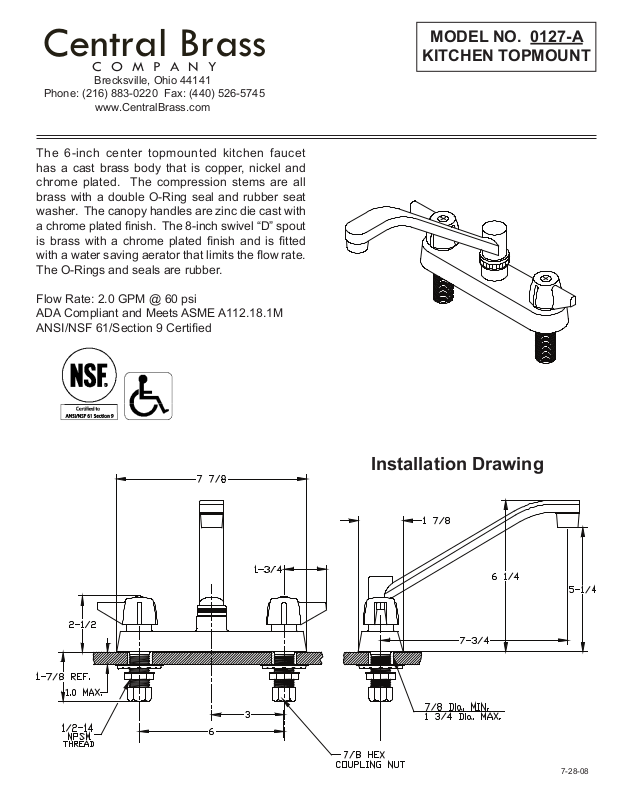

The 6-inch center topmounted kitchen faucet
has a cast brass body that is copper, nickel and
chrome plated. The compression stems are all
brass with a double O-Ring seal and rubber seat
washer. The canopy handles are zinc die cast with
a chrome plated nish. The 8-inch swivel “D” spout
is brass with a chrome plated nish and is tted
with a water saving aerator that limits the ow rate.
The O-Rings and seals are rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
ANSI/NSF 61/Section 9 Certied
MODEL NO. 0127-A
KITCHEN TOPMOUNT
Installation Drawing
7-28-08
Page 2
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Handle variations available
Wrist 4-inch
Elbow 6-inch
G-4147 (4-inch)
G-4149 (6-inch)
MODEL NO. 0127-A
KITCHEN TOPMOUNT
Sufx Options
& Accessories
Faucets with lever, wrist or elbow handles with compression
or ceramic stem cartridges are
ADA compliant.
Spout variations available
A8 - Sufx
7 1/4-inch High-Rise Swivel Spout
8-1/8"
SU-357-hSA
7 1/4-inch
7-1/4"
12
6-45/64"
Wall Mount
Spout Adaptor
Accessory
G-1748-88W
Cast Brass Spout
Extension
Accessory
2-1/2"
SU-2775-R-02
7-inch
7"
Drinking water products tested and certied by
NSF International to ANSI/NSF Standard 61,
Section 9. Each product required to meet the
standard proudly exhibits the NSF logo.
7-28-08
Page 3
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
MODEL NO. 0127-A
KITCHEN TOPMOUNT
Parts Breakdown
# Part # Description
1 4015-BARP Brass Coupling Nut
2 7133-AZ Zinc Dichromate Locknut
3 54 Steel Crowfoot Washer
4 2158 Brass Faucet Body
5 263-BC Bronze Seat
6 1028-Y Nylon Gasket
7 104 Brass Seat Washer Screw
8 901-WNN Seat Washer
9 453-FL Brass Left Thread O-Ring Stem
9 453-FR Brass Right Thread O-Ring Stem
The parts listed in the parts breakdown above
may not be offered separately as replacement
parts. Please review the Replacement Parts
page for the authorized replacement parts that
are available for this item.
# Part # Description
10 1038-453 O-Ring
11 453-EWC Brass Left Thread O-Ring Bonnet
11 453-EWH Brass Right Thread O-Ring Bonnet
12 523-C Handle Indexed “C”
12 523-H Handle Indexed “H”
13 107-F Brass Phillips Head Screw
14 1038-KN O-Ring
15 166-FN Stainless Steel Snap Ring
16 PF-782-D Brass Spout Nut
17 365-D Brass Swivel “D” Spout
18 30-M Female Aerator
19 SU-453-EL Left Thread O-Ring Stem Assembly
19 SU-453-ER Right Thread O-Ring Stem Asssembly
7-28-08
