Bar Faucet
Cast Brass
2.2 GPM Aerator
Gooseneck Spout
0287 Series Double Bar Faucet
80287 Series Double Bar Faucet
with Ceramic Stem Assemblies
Faucets with lever, wrist or elbow
handles and compression or ceramic
stem cartridges are ADA compliant.
Certified to
ANSI/NSF 61 Section9
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
022803 I-0287
www.CentralBrass.com
Page 2
CENTRAL BRASS
INSTALLATION INSTRUCTIONS
1. Assemble hot & cold supply tubes to faucet body. Tighten
tubes with open end wrench.
2. Apply a thin coat of plumber's putty on the bottom edge of the
faucet body and place the faucet shank thru the hole in the sink.
3. Install the washers and locknut on the faucet shank. Position
the faucet and tighten the locknut.
4. The body should be positioned with the cold indexed handle on
the right. Then install the spout, tighten spout nut to body (if
necessary).
5. Connect the supply tubes to the
hot (left) and cold (right) supply lines.
Do not kink supply tubes when
bending to connect with supply lines.
6. Turn on supply lines. Check all
connections for leakage. Turn on hot
and cold water for one minute to flush
out dirt and sediment that might have
accumulated during installation.
Turn off water and assemble aerator .
Check under sink connections for
leakage.
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
022803 I-0287
www.CentralBrass.com
Page 3

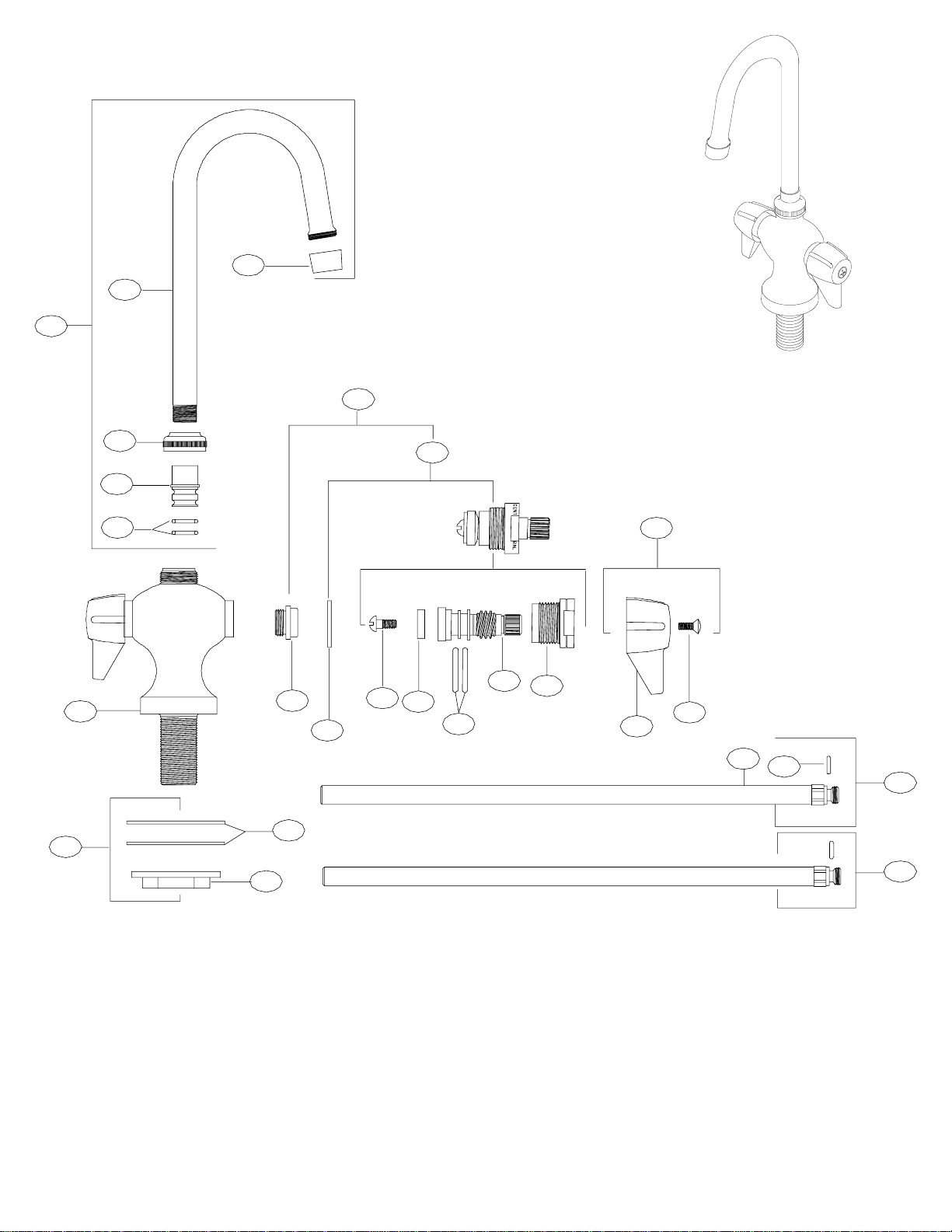

REPLACEMENT
D
7
PARTS
*
C
*
B
*
8
*
6
*
5
4
3
2
*
A
1
*
*
*
9
E
F
F
*
* These items are not offered individually and must be purchased as a
group or unit. Please contact Central Brass for more information.
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
022803 I-0287
www.CentralBrass.com
Page 4
REPLACEMENT P ARTS
# Part # Description
A G-523-C Lever Handle Indexed C with Screw (X107-F)
A G-523-H Lever Handle Indexed H with Screw (X107-F)
B G-453-EL Cold O-Ring Stem Assembly with Gasket (X1028-Y)
B G-453-ER Hot O-Ring Stem Assembly with Gasket (X1028-Y)
C K-453-C Cold O-Ring Stem Assembly with Gasket (X1028-Y) and Seat (X263-BC)
C K-453-H Hot O-Ring Stem Assembly with Gasket (X1028-Y) and Seat (X263-BC)
D SU-157-GSA Swivel Gooseneck Spout with Aerator (30-M)
E G-284 Locknut & Washer Group
F SU-767 Supply tubes with O-Ring
1 X107-F Handle Screw (25 pcs per pack)
2 X1038-453 O-Rings (25 pcs per pack)
3 X901-WNN Stem Seat Washer (25 pcs per pack)
4 X104 Seat Washer Screw (25 pcs per pack)
5 X1028-Y Gasket (25 pcs per pack)
6 X263-BC Replacement Seat (10 pcs per pack)
7 30-M Aerator
8 X1038-KN Spout O-Ring (10 pcs per pack)
9 X52 Washer (10 pcs per pack)
OPTIONS & REPLACEMENT PARTS for options
Suffix
Number
ELS A G-4147-C 4-Inch Brass Wrist Handles – Index Blue (107-FB)
ELS A G-4147-H 4-Inch Brass Wrist Handles – Index Red (107-FR)
Q B G-454-EL
Q B G-454-ER
Prefix
Number
8 B & 6 K-352-C Ceramic-disc Stem Cartridge Cold with gasket (X1028-Y)
8 B & 6 K-352-H Ceramic-disc Stem Cartridge Hot with gasket (X1028-Y)
Replaces
Item #
Replaces
Item #
If faucet has round handles (70 or 80 suffixes) , use two Hot stem assemblies
If faucet has lever handles, use one Hot and one Cold stem assemblies
Part Number Description
X107-FB Blue Index (5 pcs per pack) Used for EL suffix
X107-FR Red Index (5 pcs per pack) Used for EL suffix
Quick-Pression Quarter-Turn Cold O-Ring Stem Assembly
with Gasket (X1028-Y)
Quick-Pression Quarter-Turn Hot O-Ring Stem Assembly
with Gasket (X1028-Y)
Part Number Description
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
022803 I-0287
www.CentralBrass.com
Page 5
CENTRAL BRASS
MAINTENANCE INSTRUCTIONS
1
2
3

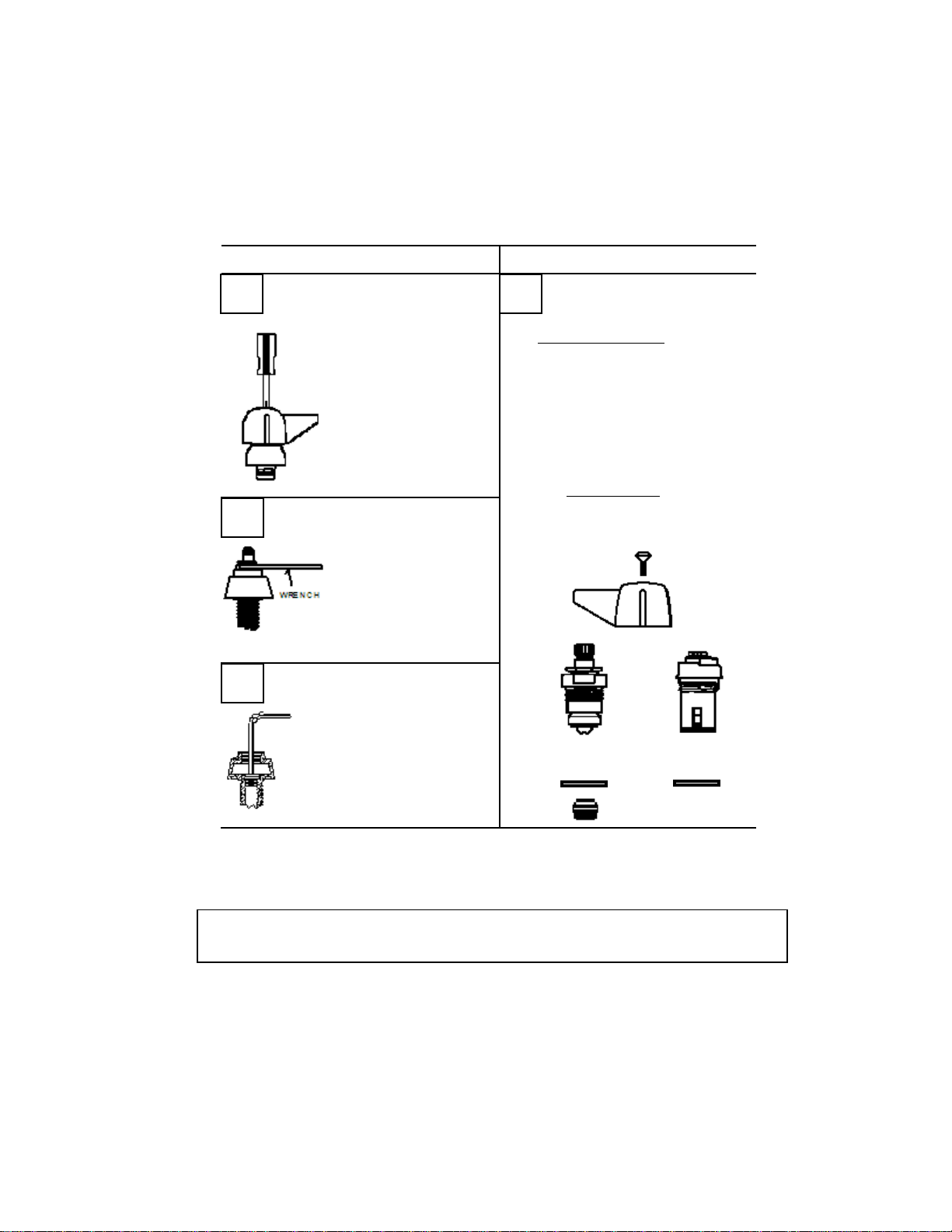

DISASSEMBLY
REMOVE HANDLE
1. Turn of f water supply .
2. Remove screw.
3. Remove handle.
REMOVE STEM ASSEMBLY
1. Use adjustable
wrench.
2. Unscrew (counterclockwise) remove
stem unit.
REMOVE SEA T
(For compression stems only)
REPLACEMENT
4
Use Only Genuine
Central Replacement Parts
Compression Units
K-453-C Cold stem assembly with seat & gasket
K-453-H Hot stem assembly with seat & gasket
G-453-ER Hot stem assembly with gasket
G-453-EL Cold stem assembly with gasket
G-454-ER Hot stem assembly 1/4 turn with gasket
G-454-EL Cold stem assembly 1/4 turn with gasket
X263-BC Replaceable Seat (10 per Pack)
X1028-Y Nylon Gasket (25 per Pack)
Ceramic Units
K-352-H Ceramic Hot stem assembly
K-352-C Ceramic Cold stem assembly
1. Insert 5/16" allen
wrench in seat.
COMPRESSION
CERAMIC
2. Turn seat (counterclockwise) to remove.
If faucet has round handles (70 or 80 suffixes) , use two Hot stem assemblies
If faucet has lever handles, use one Hot and one Cold stem assemblies
