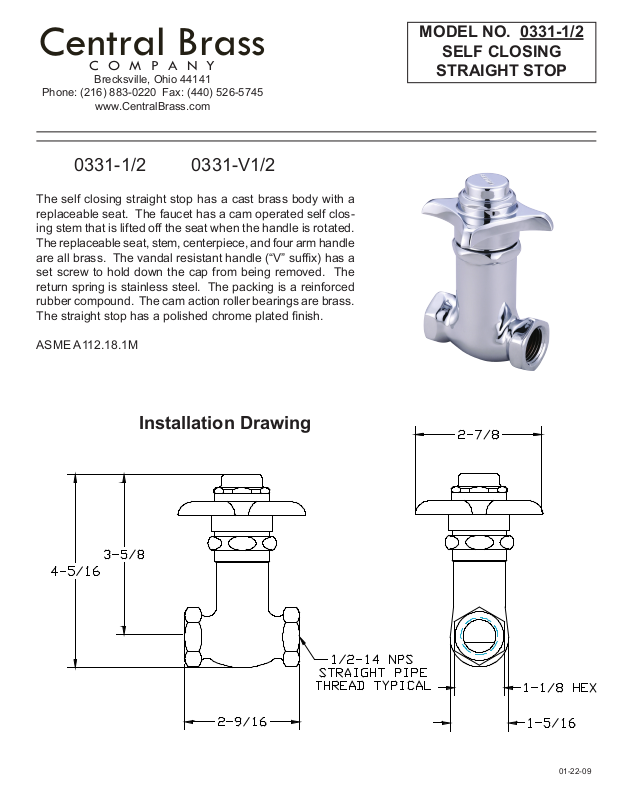

Page 1
MODEL NO. 0331-1/2
Central Brass
C O M P A N Y
SELF CLOSING
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
0331-1/2 0331-V1/2
The self closing straight stop has a cast brass body with a
replaceable seat. The faucet has a cam operated self closing stem that is lifted off the seat when the handle is rotated.
The replaceable seat, stem, centerpiece, and four arm handle
are all brass. The vandal resistant handle (“V” sufx) has a
set screw to hold down the cap from being removed. The
return spring is stainless steel. The packing is a reinforced
rubber compound. The cam action roller bearings are brass.
The straight stop has a polished chrome plated nish.
ASME A112.18.1M
STRAIGHT STOP
Installation Drawing
01-22-09
Page 2
MODEL NO. 0331-1/2
Central Brass
C O M P A N Y
SELF CLOSING
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Parts Breakdown
# Part # Description
1 7052 Brass Body
2 PF-59 Bras Seat
3 104-02 Brass Seat Washer Screw CP
4 904 Seat Washer
5 PD-7101-AF Brass Stem
6 1008-B Stainless Steel Spring
7 PF-70-F Brass Gland
8 70-D Stainless Steel Spring
9 PF-33-A Brass Washer
10 849-G Packing
11 433-AN Nylon Gasket
12 7106-F Brass Centerpiece
13 71 Brass Bearings
14 PF-6928-P Brass Handle
15 33-A Brass Washer
16 68-HX Brass Nut
17 PF-67-AC Celcon Samson Nut
18 69-C Celcon Sleeve
19 PF-7125 Brass Handle Cap
20 103-HSSS Set Screw
(for vandal-resistant handle)
STRAIGHT STOP
20
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
01-22-09
