Page 1
SLOW CLOSE
STRAIGHT STOP
0336 Series Straight Stop Valve
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
030103 I-0336
www.CentralBrass.com
Page 2
CENTRAL BRASS
INSTALLATION INSTRUCTIONS
1. Af ter installing operate a number of times to purge contamination
and wet internal components.
2. T est the valve run time. The faucet should remain on for 3 to 5
seconds. Refer to adjustment instructions if required.
TIME DELAY ADJUSTMENT TO SLOW-CLOSING UNITS
The faucet is preset at five seconds running time at the factory . When faucet is installed, depress
the handle several times before you try to adjust running time. This is necessary to properly wet the
felt washer which helps control running time.
If running time is to long or to short: Loosen set screw in handle with 3/32 hex wrench. Adjust
unit for longer running time by turning handle counterclockwise. For shorter running time, turn handle
clockwise. Handle should be turned in 1/2 turn increments. After desired running time is achieved,
retighten handle set screw to lock it in place. DO NOT turn handle over three turns off the bottom or
set screw will not lock against the stem. This adjustment is limited to a range of 1 to 7 seconds.
The time may be increased beyond 7 seconds by first shutting off water supply. Remove the
slow-closing cartridge and tighten the screw (170-K) on the bottom of the time delay chamber in
quarter turn increments.
NOTE: The felt washer will become clogged from contamination in the water. This condition is
indicated by increase on time delay setting over the time originally set. Replace the felt washers
when this occurs. If the faucet shuts off instantly and the time delay setting cannot be adjusted the
seals in the time delay chamber are worn or damaged. Replace the cartridge.
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
030103 I-0336
www.CentralBrass.com
Page 3
1
10
12
16
2
*
A

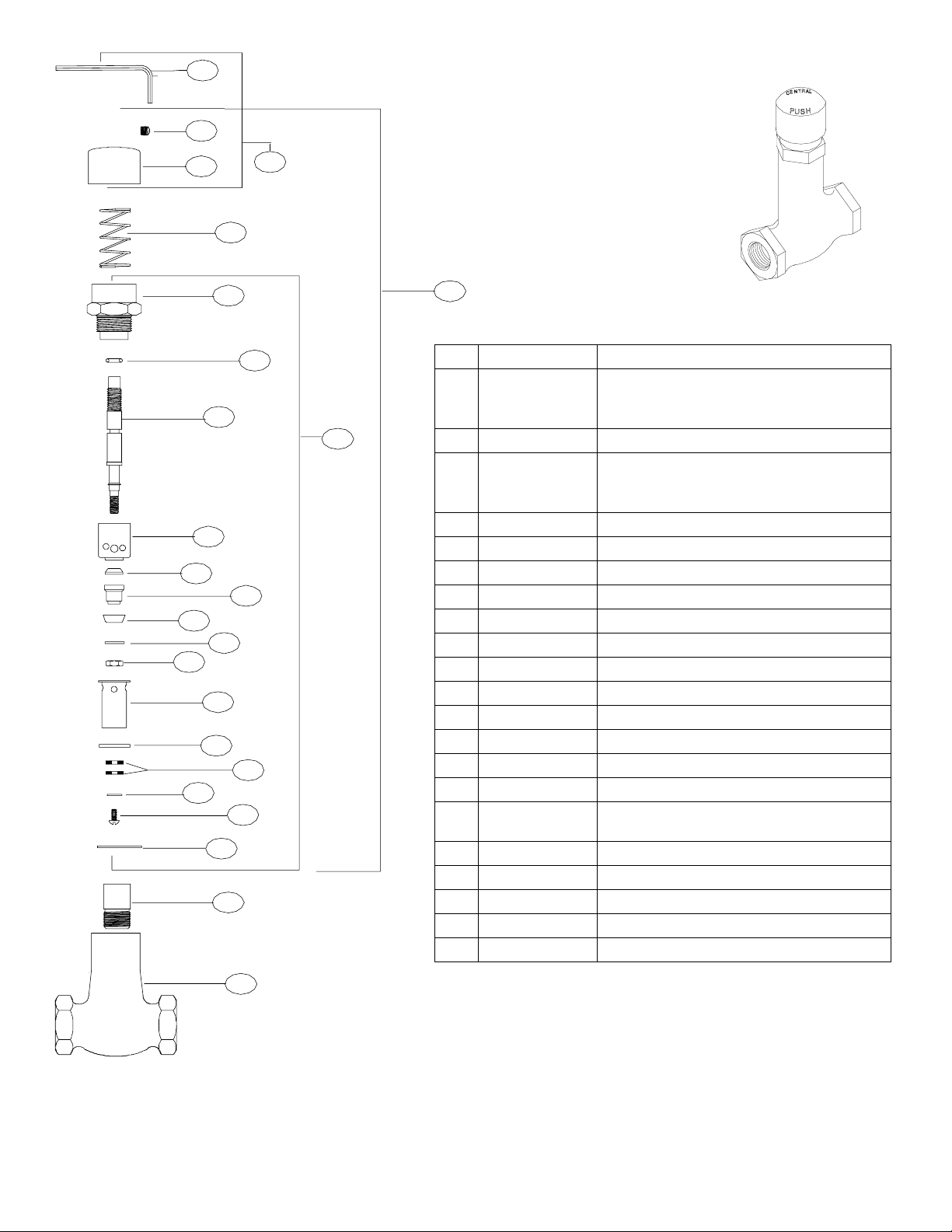

REPLACEMENT
PARTS
3
4
5
6
B
7
8
9
11
13
14
15
17
18
*
C
# Part # Description
Slow-Close Cap Plain not indexed
A K-170-AP
B K-170 Slow-Close Stem Assembly
C K-170-P
1 170-WA
2 X 103-HS Set Screw (6 pcs per pack)
3 170-L Spring
4 XPF-170-B Bonnet (2 pcs per pack)
5 X1038-CRN O-Ring (25 pcs per pack)
6 XPF-170-C Stem (2 pcs per pack)
7 X353-S Sleeve (10 pcs per pack)
8 X170-F Seat Washer (10 pcs per pack)
9 XPF-170-D Seat Washer Holder (2 pcs per pack)
10 X170-CW Cup Washer (10 pcs per pack)
11 X279-L Brass Washer (10 pcs per pack)
12 XPF-170-N Hex Nut (10 pcs per pack)
13 XPF-170-E
14 X170-P Gasket (10 pcs per pack)
15 X170-J Felt Washer (10 pcs per pack)
16 X170-H Brass Dashpot Washer (10 pcs per pack)
17 X170-K Screw (10 pcs per pack)
18 X1028-Y Gasket (25 pcs per pack)
with Set Screw (X103-HS)
& Wrench (170-WA)
Slow-Close Stem Assembly
includin g Cap Plain not indexed
and Set Screw (X103-HS)
3
⁄
Allen Wrench
32
Brass Dashpot
chrome plated
(2 pcs per pack)
*
* These items are not offered individually and must be purchased as a
group or unit. Please contact Central Brass for more information.
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
030103 I-0336
www.CentralBrass.com
Page 4
CENTRAL BRASS

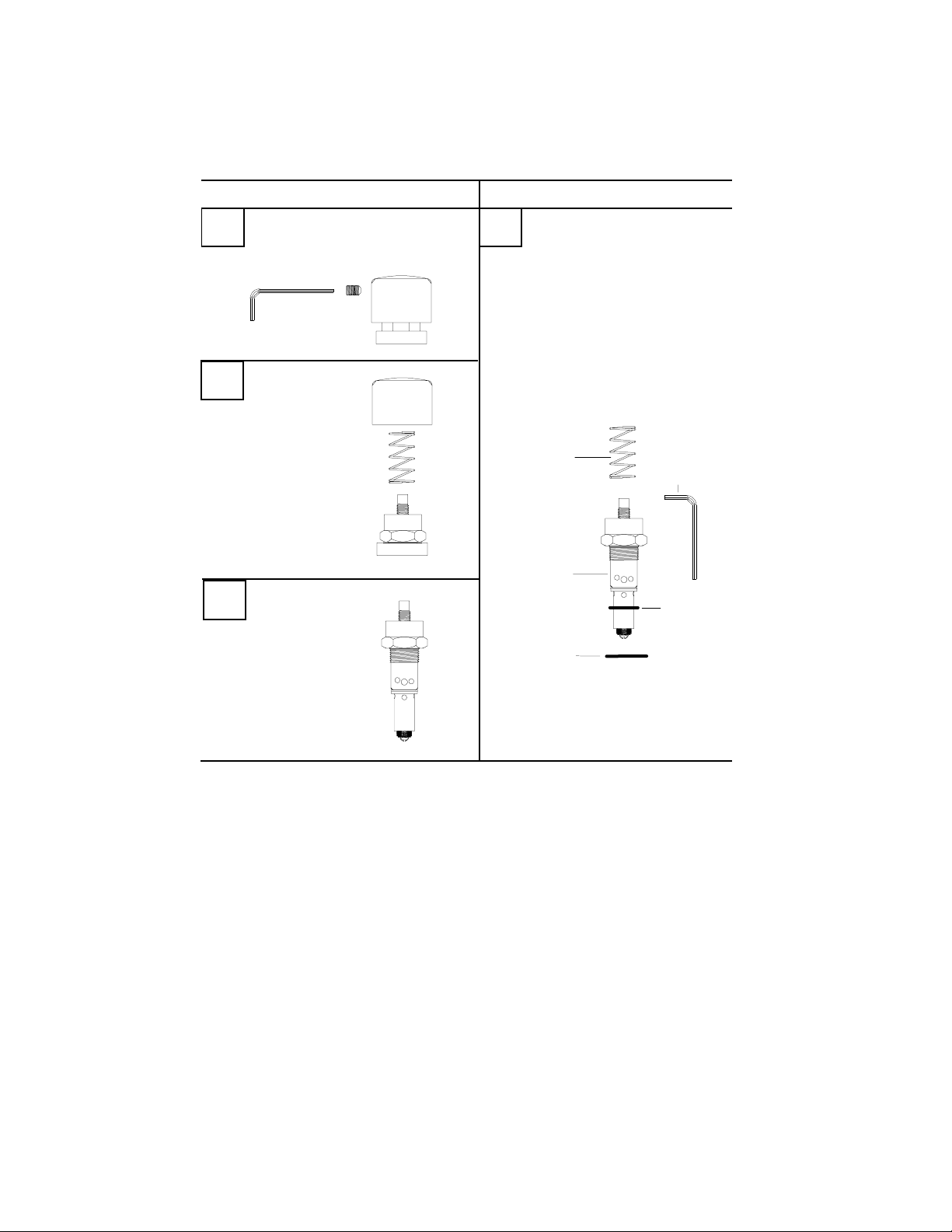

MAINTENANCE INSTRUCTIONS
DISASSEMBLY
1
1. Turn off water supplies.
2. Remove setscrew with
3/32 allen wrench.
2
1. Unscrew
push button
handle and
lift off spring.
3
1. Remove bonnet and
stem cartridge by turning
counterclockwise with
adjustable wrench.
REPLACEMENT
4
Use Only Genuine
Central Replacement Parts
K-170 Stem Cartridge Repair Kit
Spring
Stem
Cartridge
Washer
Hex
Wrench
Gasket
Flow Time Adjustment
With locking set screw loose turn push button counterclockwise
to lengthen flow time, clockwise to shorten flow length time.
A five second cycle is recommended. Tighten the locking set
screw with the hex wrench provided when desired time has
been set.
CENTRAL BRASS MFG CO
2950 East 55th Street, Cleveland, Ohio 44127
Phone: 216-883-0220 Fax: 216-883-0875 Email: sales @CentralBrass.com
030103 I-0336
www.CentralBrass.com
