BAR/LAUNDRY FAUCET

Brecskville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

The 4-inch center topmounted bar/laundry faucet has a cast brass body that is copper, nickel and
chrome plated. The compression stems are all brass with a double O-Ring seal and rubber seat

washer. The canopy handles are zinc die cast with a chrome plated nish. The 14-inch swivel
spout is brass with a chrome plated nish and is tted with a water saving aerator that limits the
ow rate. The O-Rings and seals are rubber.

Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M

ANSI/NSF 61/Section 9 Certied

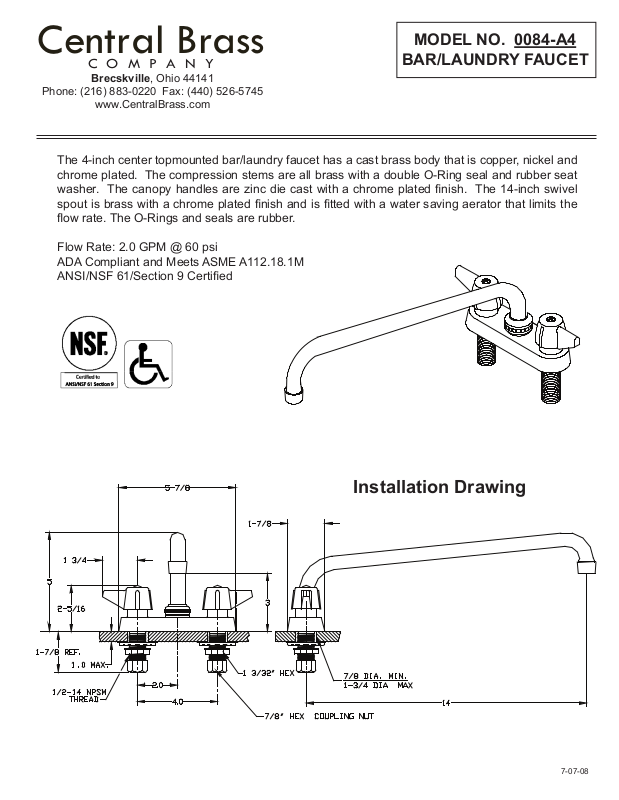

Installation Drawing

7-07-08

Brecskville, Ohio 44141

Central Brass

C O M P A N Y

Phone: [phone] Fax: [phone]

www.CentralBrass.com

MODEL NO. 0084-A4

BAR/LAUNDRY FAUCET

Parts Breakdown

The parts listed in the parts breakdown above

may not be offered separately as replacement

parts. Please review the Replacement Parts

page for the authorized replacement parts that

are available for this item.

# Part # Description

1 4015-BARP Brass Coupling Nut

2 7133-AZ Zinc Dichromate Locknut

3 54 Steel Crowfoot Washer

4 2103-B Brass Faucet Body

5 263-BC Bronze Seat

6 1028-Y Nylon Gasket

7 104 Brass Seat Washer Screw

8 901-WNN Seat Washer

9 453-FL Brass Left Thread O-Ring Stem

9 453-FR Brass Right Thread O-Ring Stem

# Part # Description

10 1038-453 O-Ring

11 453-EWC Brass Left Thread O-Ring Bonnet

11 453-EWH Brass Right Thread O-Ring Bonnet

12 523-C Handle Indexed “C”

12 523-H Handle Indexed “H”

13 107-F Brass Phillips Head Screw

14 1038-KN O-Ring

15 166-FN Stainless Steel Snap Ring

16 PF-782-DES Brass Spout Nut

17 PF-363-MA Brass Swivel Spout

18 30-M Female Aerator

19 SU-453-EL Left Thread O-Ring Stem Assembly

19 SU-453-ER Right Thread O-Ring Stem Assembly

7-07-08
