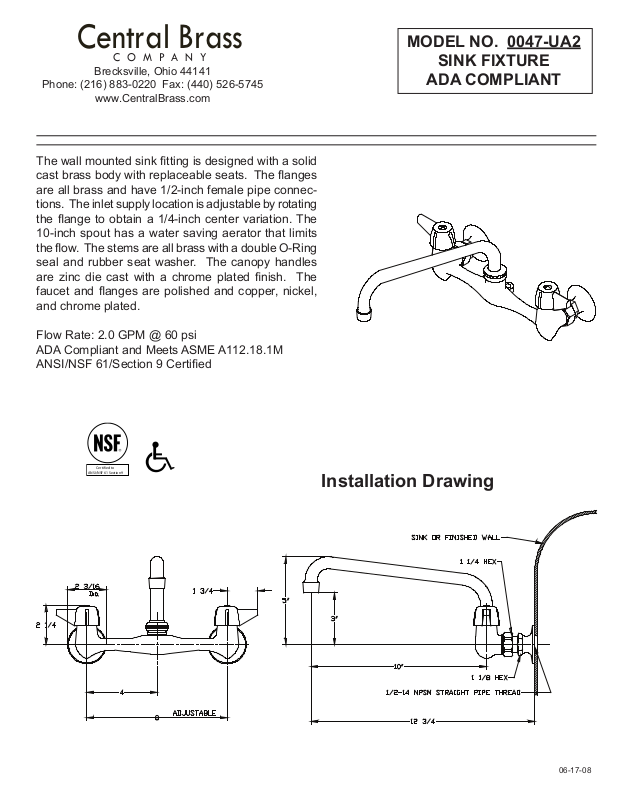

Page 1
Central Brass
C O M P A N Y
MODEL NO. 0047-UA2
Certified to
ANSI/NSF 61 Section9
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The wall mounted sink tting is designed with a solid
cast brass body with replaceable seats. The anges
are all brass and have 1/2-inch female pipe connec-
tions. The inlet supply location is adjustable by rotating
the ange to obtain a 1/4-inch center variation. The
10-inch spout has a water saving aerator that limits
the ow. The stems are all brass with a double O-Ring
seal and rubber seat washer. The canopy handles
are zinc die cast with a chrome plated nish. The
faucet and anges are polished and copper, nickel,
and chrome plated.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
ANSI/NSF 61/Section 9 Certied
SINK FIXTURE
ADA COMPLIANT

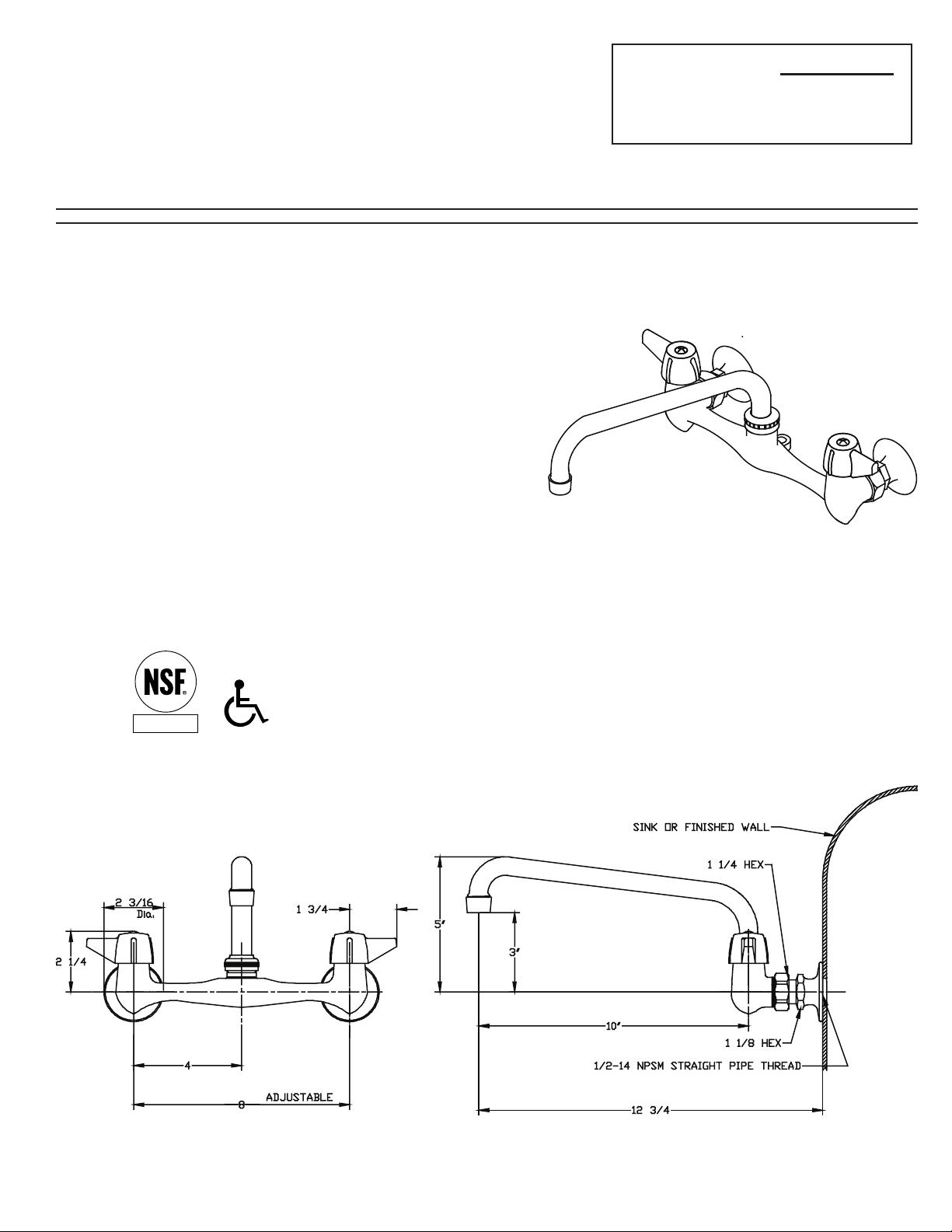

Installation Drawing
06-17-08
Page 2
Central Brass
C O M P A N Y
MODEL NO. 0047-UA2
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com

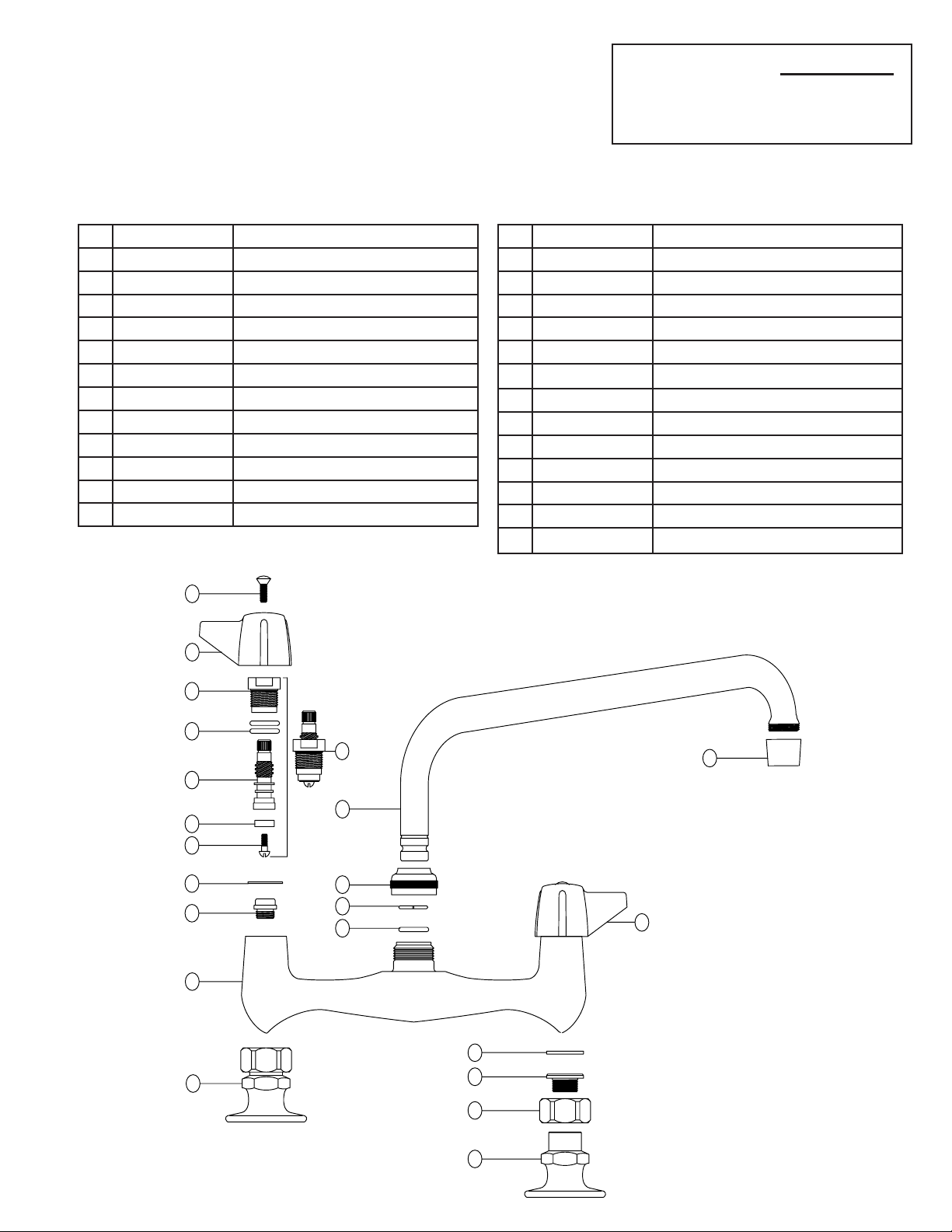

Parts Breakdown
# Part # Description
1 2831-CP Brass Faucet Body
2 263-BC Bronze Seat
3 1028-Y Nylon Gasket
4 104 Brass Seat Washer Screw
5 901-WNN Seat Washer
6 453-FL Brass Left Threat O-Ring Stem
6 453-FR Brass Right Thread O-Ring Stem
7 1038-453 O-Ring
8 453-EWC Breas Left Thread O-Ring Bonnet
8 453-EWH Brass Right Thread O-Ring Bonnet
9 523-C Handle Indexed “C”
9 523-H Handle Indexed “H”
SINK FIXTURE
ADA COMPLIANT
# Part # Description
10 107-F Brass Phillips Head Screw
11 1038-KN O-Ring
12 166-FN Stainless Steel Snap Ring
13 PF-782-DES Brass Spout Nut
14 PF-363-JA Brass Swivel Spout
15 30-M Female Aerator
16 2807 Brass Offset Flange
17 PF-2843-49 Brass Hex Spout Nut
18 PF-256-L Brass Spud
19 940-TRN Washer
20 SU-453-EL Left Thread O-Ring Stem Assembly
20 SU-453-ER Right Thread O-Ring Stem Assembly
21 SU-2807 Brass Flange Assembly
CEN RAL
20
14
13
12
11
9
15
10
9
8
7
6
5
4
3
2
1
CEN RAL
21
19
18
17
16
06-17-08
