CENTRAL BRASS 0047-TA-Q User Manual

Download

Page 1

Central Brass

C O M P A N Y

MODEL NOS.

0047-TA 80047-TA

Brecksville, Ohio 44141

Phone: (216) 883-0220 Fax: (440) 526-5745

www.CentralBrass.com

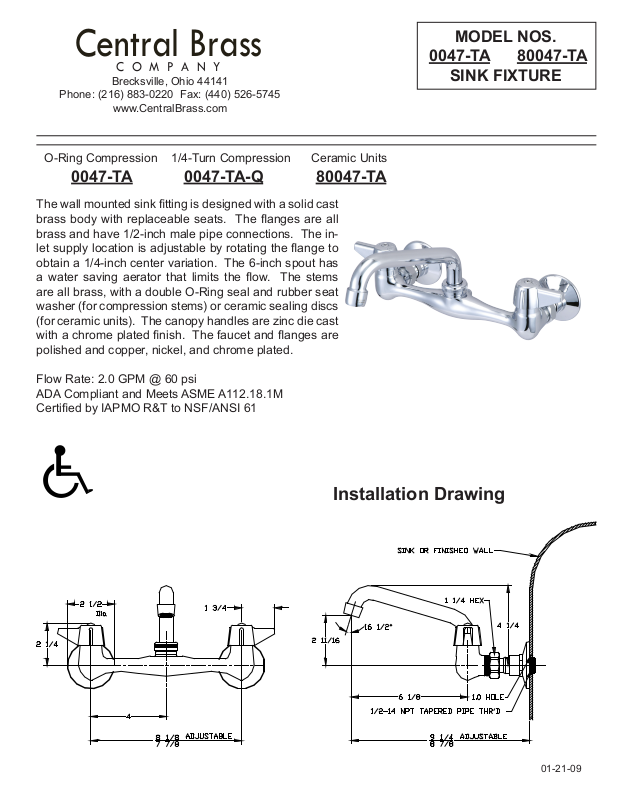

O-Ring Compression 1/4-Turn Compression Ceramic Units

0047-TA 0047-TA-Q 80047-TA

The wall mounted sink tting is designed with a solid cast brass body with replaceable seats. The anges are all

brass and have 1/2-inch male pipe connections. The in-

let supply location is adjustable by rotating the ange to

obtain a 1/4-inch center variation. The 6-inch spout has

a water saving aerator that limits the ow. The stems are all brass, with a double O-Ring seal and rubber seat washer (for compression stems) or ceramic sealing discs

(for ceramic units). The canopy handles are zinc die cast

with a chrome plated nish. The faucet and anges are

polished and copper, nickel, and chrome plated.

SINK FIXTURE

Flow Rate: 2.0 GPM @ 60 psi ADA Compliant and Meets ASME A112.18.1M

Certied by IAPMO R&T to NSF/ANSI 61

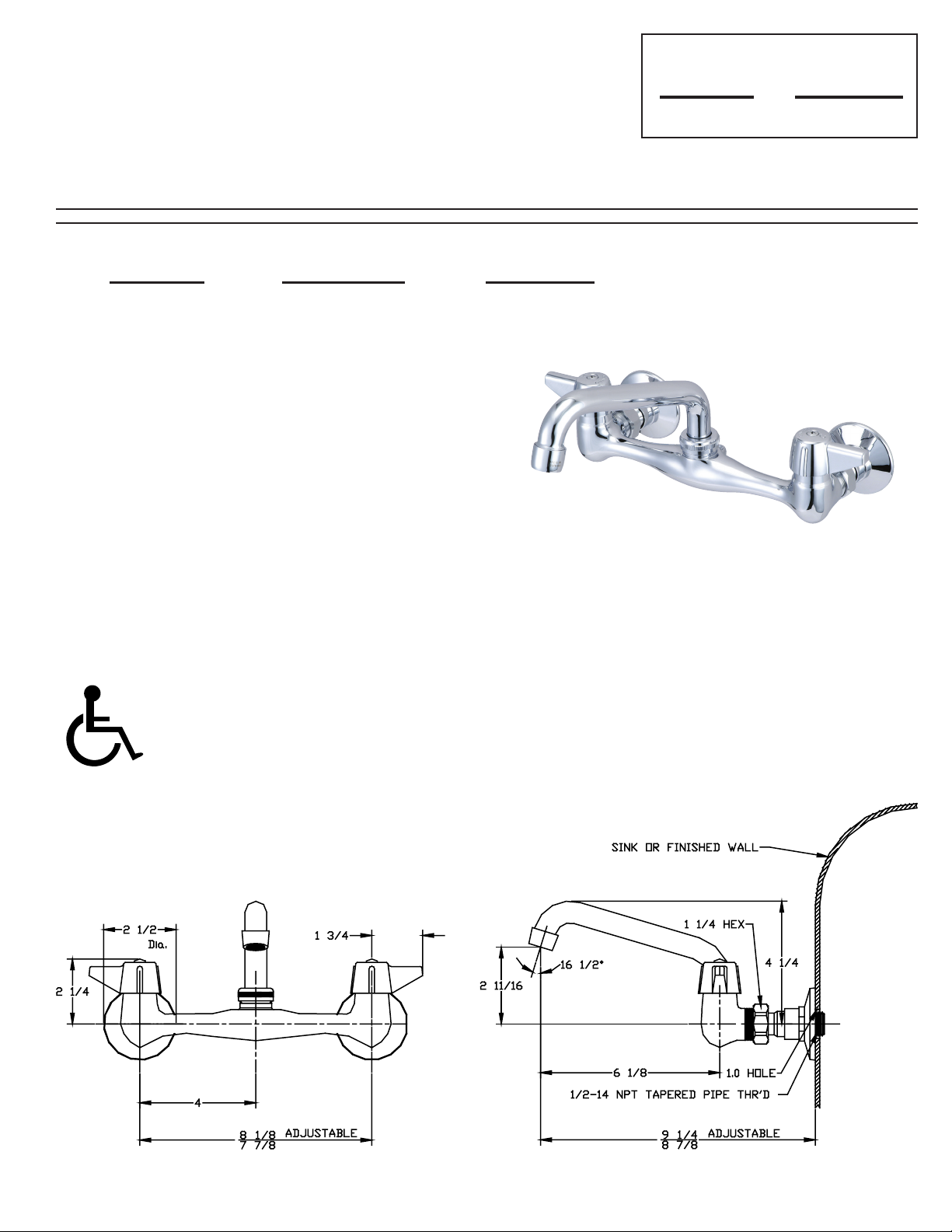

Installation Drawing

01-21-09

Page 2

Central Brass

C O M P A N Y

MODEL NOS.

0047-TA 80047-TA

Brecksville, Ohio 44141

Phone: (216) 883-0220 Fax: (440) 526-5745

www.CentralBrass.com

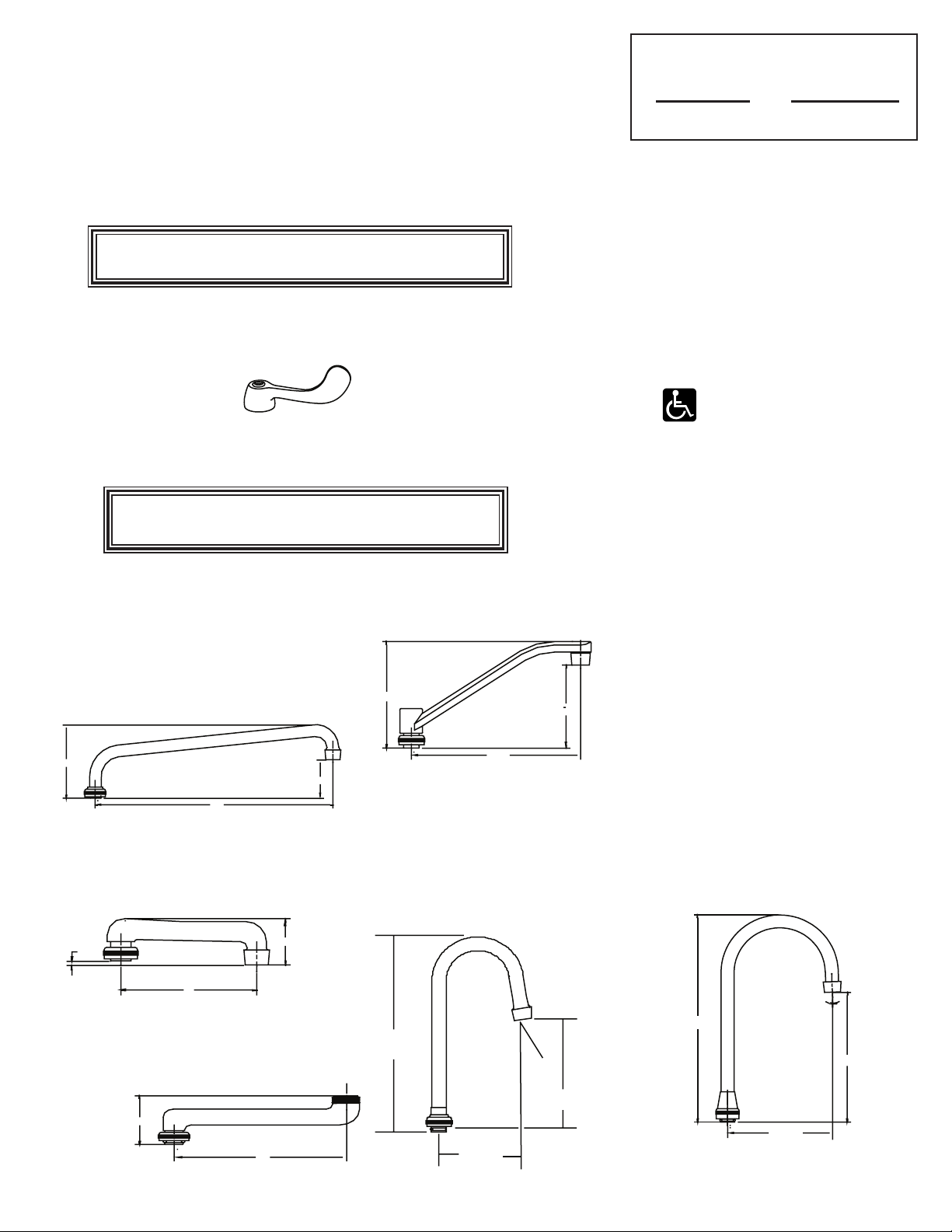

Handle variations available

ELS - Sufx

Wrist 4-inch

EL - Sufx

Elbow 6-inch

G-4147 (4-inch) G-4149 (6-inch)

Spout variations available

A1 - Sufx

8-inch Brass Tube Spout

A2 - Sufx

10-inch Brass Tube Spout

A3 - Sufx

12-inch Brass Tube Spout

A4 - Sufx

14-inch Brass Tube Spout

H - Sufx replaces A for hose end

4-1/4"

A9 - Sufx

5-inch Cast Brass Spout

H - Sufx replaces A for hose end

SU-363-MA

14-inch

14"

2-1/4"

A6 - Sufx

8-inch Brass D-Spout

H - Sufx replaces A for hose end

5-1/16"

SU-365-CA

8-inch (Available in 5-inch)

8.19"

GSA - Sufx

4 3/32 Swivel Gooseneck Spout

GRA - Sufx 4 3/32 Rigid Gooseneck Spout

H - Sufx replaces A for hose end

3-61/64"

SINK FIXTURE

Sufx Options & Accessories

Faucets with lever, wrist or elbow handles with compression

or ceramic stem cartridges are

ADA compliant.

KSA - Sufx

5 1/2 Swivel Gooseneck Spout

KRA - Sufx 5 1/2 Rigid Gooseneck Spout

H - Sufx replaces A for hose end

7-inch

1-3/4"

SU-2923-A

5-inch

1/64"

Cast Brass Spout

Extension

Accessory

2-1/2"

SU-2775-R-02

9-13/16"

4-1/16"

5-5/8"

SU-157-GSA

4 3/32 -inch Swivel

Availavle in Rigid

9-15/16"

SU-157-KSA

5 1/2 -inch Swivel

Availavle in Rigid

5-9/16"

5-3/4"

01-21-09

Page 3

Brecksville, Ohio 44141

Central Brass

C O M P A N Y

Phone: (216) 883-0220 Fax: (440) 526-5745

www.CentralBrass.com

MODEL NO.

0047-TA

SINK FIXTURE

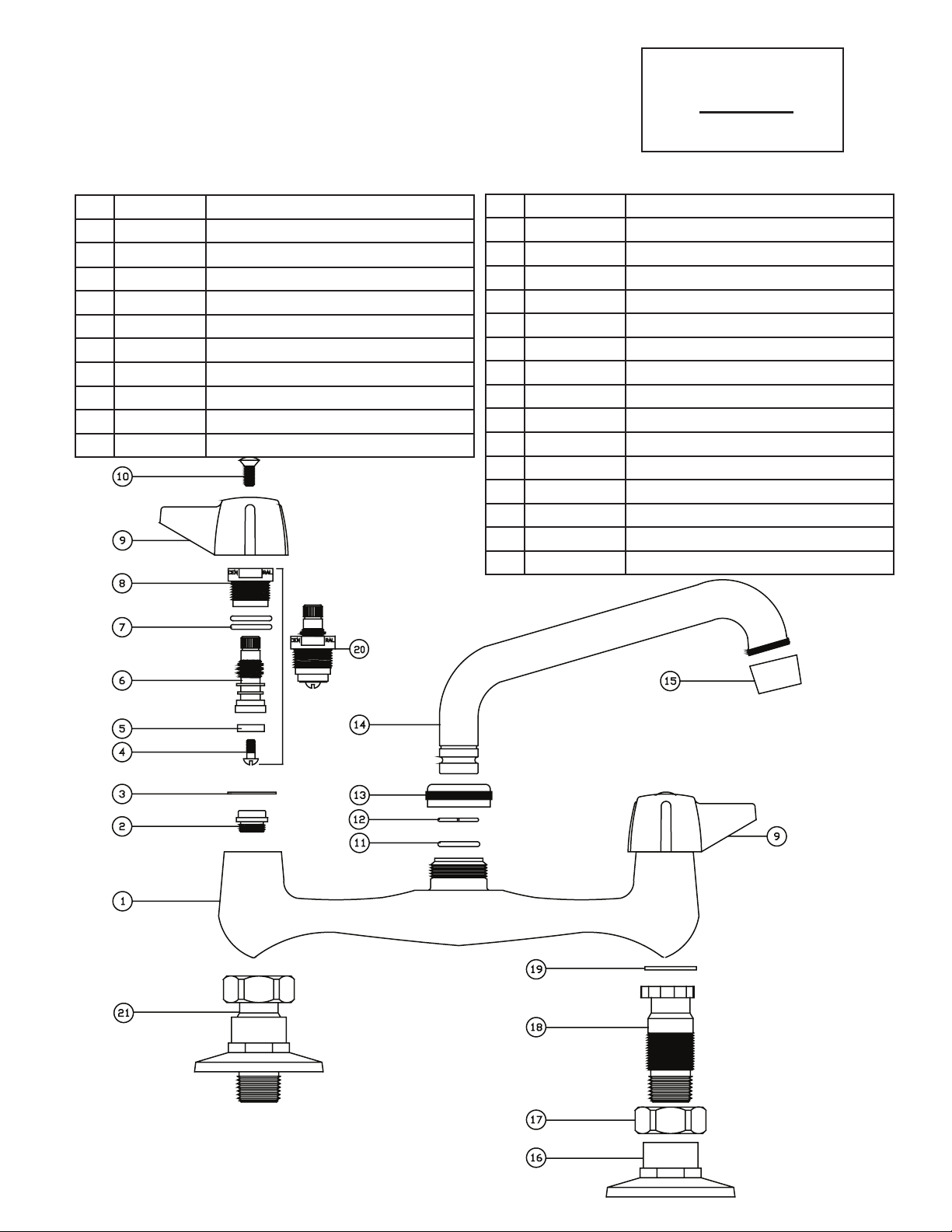

Parts Breakdown

# Part # Description

1 2831-CP Brass Faucet Body

2 263-BC Bronze Seat

3 1038-Y Nylon Gasket

4 104 Brass Seat Washer Screw

5 901-WNN Seat Washer

6 453-FL Brass Left Threat O-Ring Stem

6 453-FR Brass Right Thread O-Ring Stem

7 1038-453 O-Ring

8 453-EWC Brass Left Thread O-Ring Bonnet

8 453-EWH Brass Right Thread O-Ring Bonnet

# Part # Description

9 523-C Handle Indexed “C”

9 523-H Handle Indexed “H”

10 107-F Brass Phillips Head Screw

11 1038-KN O-Ring

12 166-FN Stainless Steel Snap Ring

13 PF-782-D Brass Spout Nut

14 PF-2924 Brass Swivel Spout

15 30-M Female Aerator

16 1146 Flange

17 PF-2843-49 Brass Hex Spout Nut

18 2846 Brass Flange

19 940-TRN Washer

20 SU-453-EL Left Thread O-Ring Stem Assembly

20 SU-453-ER Right Thread O-Ring Stem Assembly

21 SU-2846 Brass Flange Assembly

The parts listed in the parts breakdown above may not be offered separately as replacement parts. Please review the

Replacement Parts page for the authorized replacement parts

that are available for this item.
