SERVICE MANUAL
(without price)
ELECTRONIC CASH REGISTER
CE-2400 (EX-259B)
OCT. 1996
Printer Model : CR-710
|
CONTENTS |
|
|
|
Page |
1. |
FEATURES................................................................................................... |
1 |
2. |
SPECIFICATIONS ........................................................................................ |
1 |
3. |
MAC (Memory All Clear) OPERATION ....................................................... |
2 |
4. |
DIAGNOSTIC OPERATION ......................................................................... |
3 |
|
4-1. How to Start ................................................................................................................. |
3 |
|
4-2. Mode switch and PAD status display check ............................................................. |
4 |
|
4-3. Hard key code check .................................................................................................. |
4 |
|
4-4. Hard check function.................................................................................................... |
5 |
|
4-4-1. Display, RAM, drawer and printer check ........................................................ |
5 |
|
4-4-2. RAM read only check ....................................................................................... |
6 |
|
4-4-3. Voltage check of memory back-up battery ..................................................... |
6 |
|
4-4-4. All characters print check ................................................................................ |
7 |
|
4-4-5. Display the time ................................................................................................ |
7 |
|
4-4-6. How to release the diagnostic mode ............................................................... |
7 |
5. |
OPTION CIRCUIT ......................................................................................... |
8 |
6. |
CIRCUIT EXPLANATION ............................................................................. |
9 |
|
6-1. Power supply circuit ................................................................................................... |
9 |
|
6-2. CPU (μPD75517GF-400-3B9) .................................................................................... |
11 |
|
6-3. Motor error detection circuit .................................................................................... |
12 |
|
6-4. Mode key switch status read ................................................................................... |
13 |
|
6-5. RAM address/head drive signal switching circuit .................................................. |
13 |
|
6-6. Initialize IC (Reset IC) ................................................................................................ |
14 |
|
6-7. Printer error condition of CPU ................................................................................. |
14 |
|
6-8. Error code .................................................................................................................. |
14 |
7. |
TO OPEN THE UPEER CASE ................................................................... |
15 |
8. |

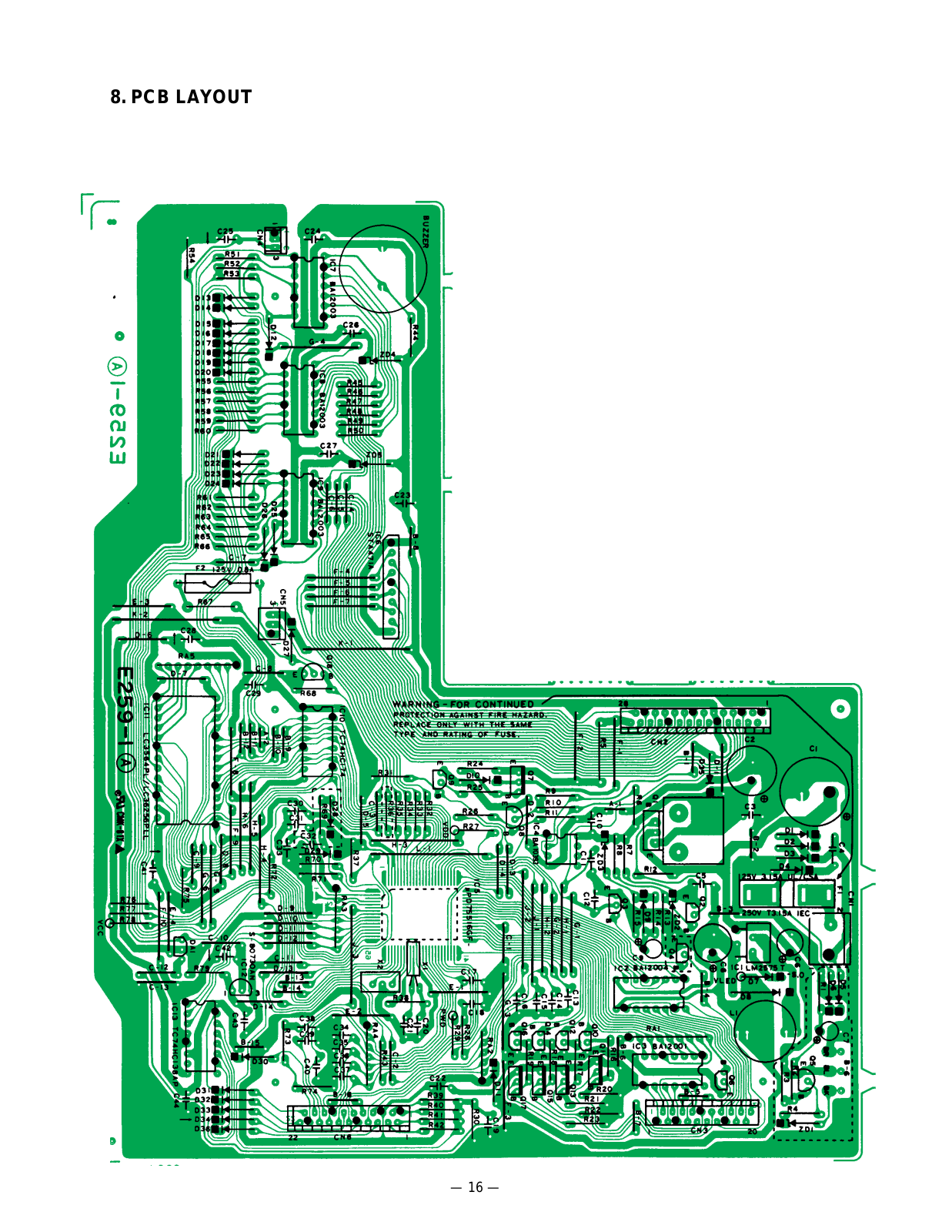

PCB LAYOUT............................................................................................. |
16 |
9. |
CIRCUIT DIAGRAM ................................................................................... |
17 |
10. |

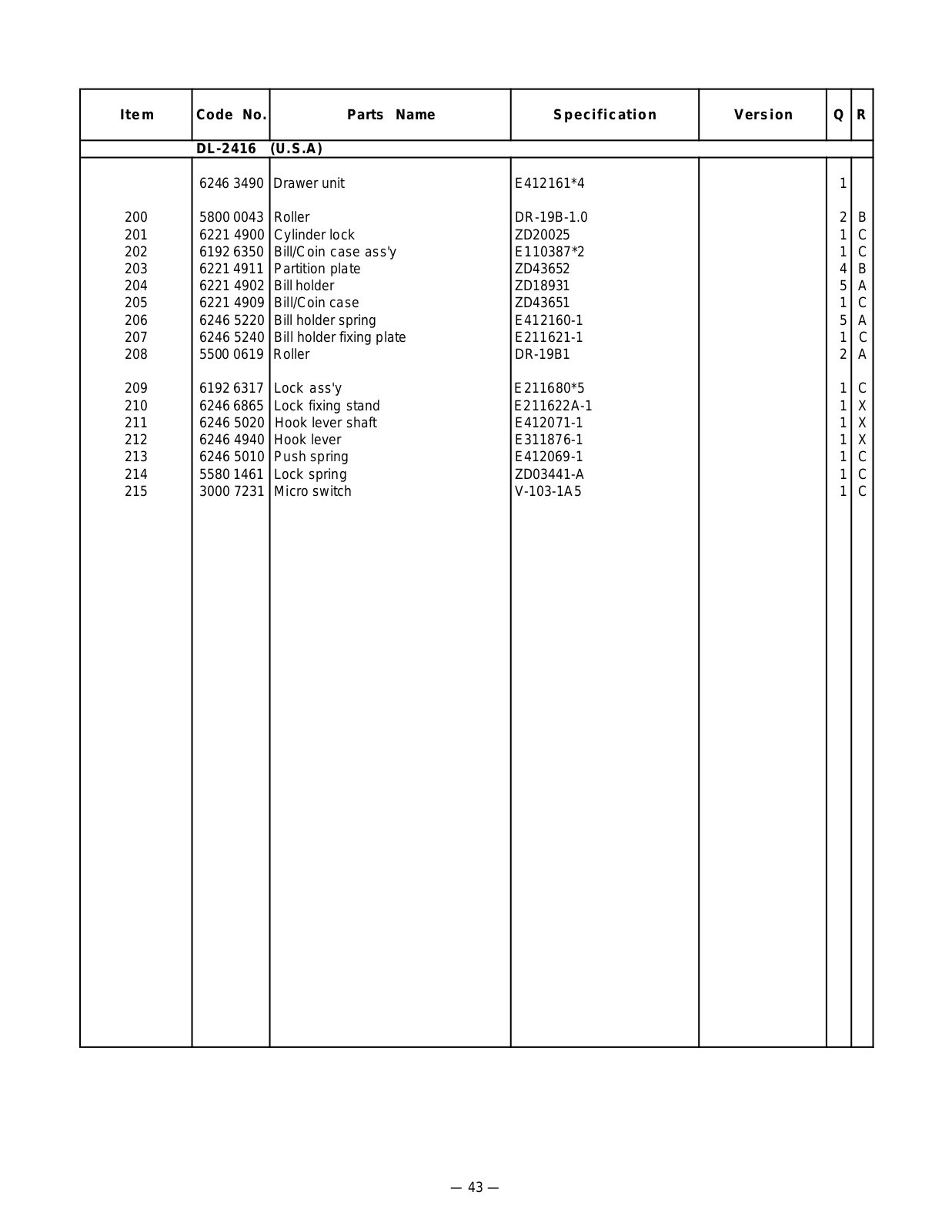

PARTS LIST ............................................................................................... |
28 |
The difference between CE-2350 and CE-2400 is as follows.
Item |
CE-2350 |
CE-2400 |
|
|
|
Department number |
38 |
40 |
|
|
|
PLU number |
400 |
500 |
|
|
|
Clerk number |
10 |
20 |
|
|
|
Calculator function |
Nil |
Available |
|
|
|
2-1. Electrical specifications |
|
|
||
|
|
|
|
|
|
• Power consumption |
Specification |
|
0.35 A |
|
|
In operation |
Max. |
0.22 A |
|
|
|
Min. |
0.09 A |
|
|
Power OFF |
|
0.08 A |
|
|
|
|
|
|
• Memory protection |
Back-up battery |
|
Mangan battery (UM-3 × 3 pcs.) |
|
|
Back-up period |
|
1 year (25 °C) |
|
|
Battery life |
|
Replace the battery every year. |
|
|
|
|
|
|
• Clock & Calendar |
Accuracy |
|
Within ±120 sec. per month (25 °C) |
|
|
Auto calendar |
|
Effective until 2099 A.D. |
|
|
|
|
|
2-2. Environmental specifications
• Operating temperature |
0 °C ~ 40 °C |
|
|
• Operating humidity |
10 % ~ 90 % |
|
|
• Storage temperature |
-25 °C ~ 65 °C |
|
|
• Storage humidity |
10 % ~ 95 % |
|
|
• Vibration strength |
1.5 G (The machine must be in the carton box) |
|
|
2-3. Principal components
• CPU |
Name |
μPD75517GF-400-3B9 |
|
Number of control bit |
4 |
|
Internal RAM |
512 × 4 bits |
|
Internal ROM |
12160 × 8 bits |
|
Main system clock |
4.19 MHz |
|
Sub system clock |
32.768 KHz |
|
|
|
• RAM |
Name |
LC36256AL70/85/10 |
|
Capacity |
32 KB |
|
|
|
— 1 —
|
• Printer |
Name |
CR-710-001 |
|
||
|
|
Print method |
Rubber-type inner-hummer printing system |
|||
|
|
Receipt number |
2 receipt (Receipt & Journal) |
|||
|
|
Print digit |
12 digits |
|
||
|
|
|
|
|
(Numeric: 10 digits, Symbol: 2 digits) |
|
|
|
Printing speed |
Approx. 2.4 lines/sec. |
|
||
|
|
MCBF |
1,500,000 lines |
|
||
|
|
Paper width |
W 44.5 ± 0.5 mm |
|
||
|
|
Paper diameter |
83 mm or less |
|
||
|
|
Paper thickness |
0.06 ~ 0.09 mm |
|
||
|
|
Ink roll |
IR-93 |
|
||
|
|
Ribbon life |
400,000 lines |
|
||
|
|
|
|
|
|
|
|
• Display |
Name |
LED (HDSP-5261) |
|
||
|
|
Number of digit |
8 digits (LED × 4 pcs.) |
|||
|
|
|
|
|
|
|
|
• Power transformer |
Name |
TE-233-E4D |
|
||
|
|
|
|
|
|
|
|
• Keyboard: |
Input system |
2 keys roll over |
|
||
|
|
|
|
|
|
|
|
• Drawer |
Name |
DL-2416 (D-15TC-A55SP-1*) M type drawer |
|||
|
|
|
|
|
for U.S.A. |
|
|
|
|
|
|
|
|
2-4. Option |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• Wet cover |
|
Name |
|
WT-63 |
|
|
|
|
|
|
||
|
• Power protection battery (B-6) |
Drive period |
|
Approx. 3 hours with the following conditions |
||
|
|
|
|
|
|
|
|
|
|
Drive conditions |
|
Processing time: |
60 sec./customer |
|
|
|
|
|
Quantity of sales: |
8 items/customer |
|
|
|
|
|
Registered amounts: |
3 digits/item |
|
|
|
|
|
Number of customer: 25 persons/hour |
|
|
|
|
|
|
|
|
|
|
|
Charging time |
|
8 hours to full charge |
|
|
|
|
|
|
|
|
Procedure
(1)Plug the power cord into an outlet.
(2)Pressing the JOURNAL FEED button and turn the mode switch to Z position.
(3)Release the JOURNAL FEED button. After few seconds, MAC operation will be executed.
(4)The following receipt will be issued, if completed.
0 |
0 |
• |
0 |
|
0 |
• |
0 |
0 |
|
|
|
|
Date |
|
|
|
|
||||||||||
|
|
|
0 |
|
0 |
: |
0 |
0 |
|
|
|
|
Time |
|
|
|
|
|
|
|
|
||||||
|
|
|
No 0 |
0 |
0 |
1 |
|
|
|
|
Consecutive No. |
||
|
|
|
|
|
|
|
|||||||
0 0 0 |
0 |
0 |
0 0 0 0 |
|
|
|
|
MAC print |
|||||
|
|
|
|
||||||||||
• |
• |
2 |
7 |
4 |
9 |
• |
• |
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
— 2 —
Notes:
1.After initialize operation, the clock counts from 00 : 00 A.M. and also the calendar is started from 00 - 00 - 00.
2.If the memory of RAM is broken, the machine will be initialized after power on.
(1)Plug the power cord into an outlet.
(2)Execute the MAC operation.
(3)Turn the mode switch to "Z" position.
(4)Input 99999999 and press the sub total button.
(5)Start the diagnostic program and issued following receipt.
Note: If you have done the registration after MAC operation, the Diagnostic program can not start.
0 |
0 |
• |
0 |
|
0 |
• |
0 |
0 |
|
|
|
|
Date |
|
|
|
|||||||||||
|
|
|
0 |
|
0 |
: |
0 |
0 |
|
|
|
|
Time |
|
|
|
|
|
|
|
|
||||||
|
|
|
No 0 |
0 |
0 |
2 |
|
|
|
|
Consecutive No. |
||
|
|
|
|
|
|
|
|||||||
• |
• |
• |
• |
• |
• |
• |
• |
– |
|
|
Start printing for diagnostic program |
||
|
|
||||||||||||
• |
• |
2 |
7 |
4 |
9 |
• |
• |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
— 3 —
When the Clear key is pressed or changing the position of mode switch, the machine displays the mode switch position.
2 |
0 |
1 |
0 |
0 |
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
Drawer status |
|
1 |
|
Drawer open |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
Drawer close |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
PAD status |
|
|
|
PAD 1 |
PAD 2 |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 0 |
|
Short |
Short |
Canada |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 1 |
|
Open |
Short |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 0 |
|
Short |
Open |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 1 |
|
Open |
Open |
U.S. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
Receipt switch position |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
Receipt OFF |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
Receipt ON |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
Mode switch position |
|
1 |
|
Z |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
X |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
REG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
RF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
When all keys except numerical keys, Clear key, RECEIPT FEED key, JOURNAL FEED key are pressed directly, the machine displays the hard key code as shown below.
|
2 |
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Hard key code |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
26 |
32 |
38 |
43 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
Receipt |
|
Journal |
|
|
|
C |
13 |
|
14 |
|
|
19 |
25 |
31 |
37 |
42 |
||||||
|
FEED |
|
|
|
FEED |
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
18 |
24 |
30 |
36 |
41 |
|
47 |
|
|
|
51 |
|
|
7 |
8 |
|
9 |
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
46 |
|
|
|
50 |
|
|
4 |
5 |
|
6 |
|
|
17 |
23 |
29 |
35 |
40 |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16 |
22 |
28 |
34 |
39 |
|||||
|
45 |
|
|
|
49 |
|
|
1 |
2 |
|
3 |
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
44 |
|
|
|
48 |
|
|
0 |
10 |
|
11 |
|
|
15 |
21 |
27 |
33 |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
— 4 —
Enter 1 digit from numeral key and press the sub total button (ST), the following Hard check function will be executed.
(1) |
1 |
+ |
ST |
: Display, RAM, Drawer, Printer check |
||
|
|
|
|
|
|
|
(2) |
5 |
+ |
ST |
: RAM read only check |
||
|
|
|
|
|
|
|
(3) |
7 |
+ |
ST |
: Voltage check of memory back-up battery |
||
|
|
|
|
|
|
|
(4) |
8 |
+ |
ST |
: |
Print all characters |
|
|
|
|
|
|
|
|
(5) |
9 |
+ |
ST |
|
: |
Display the time |
Operation : 1 + ST
(1) All segments turn on.
8 |
8 |
8 |
8 |
8. |
8. |
8. |
8. |
|
|
|
|
|
|
|
|
(2) Date and time set
Set the following data in the machine automatically.
Date : 1st. January 1992
Time : 12 : 34 : 00
(3) RAM write and read check
The machine writes data into RAM and read out the data to compare with written data. When this check is finished correctly, the machine goes to check No. (4).
However, if an error is occurred, the machine sounds an error tone, prints the error receipt, and stops Hard check program.
Error receipt sample |
" -- -- |
" |
(4)Drawer open check
Open the drawer.
(5)Printing check
Print the following character.
Z 0 0 0 0 0 0 0 0 0 CA CD
— 5 —
(6) Receipt issue
The following receipt is issued.
0 |
1 |
• |
0 |
1 |
• |
9 |
2 |
4 |
5 |
1 |
2 |
: |
3 |
4 |
|
|
|
No 0 |
0 |
0 |
4 |
|
Z 0 0 0 0 0 0 0 0 0 CA CD
(7) Test display
7 |
6 |
5 |
4 |
3 |
2. |
1 |
0 |
|
|
|
|
|
|
|
|
Operation : 5 + ST
Note: Be sure to execute the RAM write and read check (1 + ST) before this check.
The machine reads out the data to compare with written data until an error is occurred and
blinks " -- " on the display during this check. |
|
|||||
To stop this check, turn the mode switch to OFF position. |
|
|||||
If an error is occurred, the machine sounds an error tone, prints " -- -- |
" on the |
|||||
receipt, and stops this check. |
|
|
|
|||
4-4-3. Voltage check of memory back-up battery |
|
|||||
|
|
|
|
|
|
|
Operation : |
7 |
+ |
|
ST |
|
|
Display the voltage of back-up battery in real time. (Measurement is Volt (V) level.) To stop this check, turn the mode switch to OFF position.
— 6 —
4-4-4. All characters |
print check |
|
|
|
|
||||||||||
|
|
|
|
|
|
+ |
|
|
|
|
|
||||
Operation : |
|
|
8 |
|
|
|
|
ST |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
1 • |
0 |
1 |
• |
9 |
2 |
|
|
|
|
|
|
|
|
|
4 |
5 |
|
1 |
2 |
: |
3 |
6 |
|
|
|
|
|
|
|
|
|
|
|
No 0 0 0 5 |
|
|
|
|
|||||
|
Z 0 0 0 |
0 |
0 |
|
0 |
0 |
|
0 |
0 |
CA CD |
|||||
|
1 |
1 |
1 |
1 |
|
1 |
1 |
|
1 |
1 |
|
1 |
1 |
CH |
I |
|
2 |
2 |
2 |
2 |
|
2 |
2 |
|
2 |
2 |
|
2 |
2 |
RA |
II |
|
3 |
3 |
3 |
3 |
|
3 |
3 |
|
3 |
3 |
|
3 |
3 |
PO |
III |
|
4 |
4 |
4 |
4 |
|
4 |
4 |
|
4 |
4 |
|
4 |
4 |
CK IV |
|
|
5 |
5 |
5 |
5 |
|
5 |
5 |
|
5 |
5 |
|
5 |
5 |
# |
ST |
|
6 |
6 |
6 |
6 |
|
6 |
6 |
|
6 |
6 |
|
6 |
6 |
VD CG |
|
|
7 |
7 |
7 |
7 |
|
7 |
7 |
|
7 |
7 |
|
7 |
7 |
TX |
Q |
|
8 |
8 |
8 |
8 |
|
8 |
8 |
|
8 |
8 |
|
8 |
8 |
TA @ |
|
|
9 |
9 |
9 |
9 |
|
9 |
9 |
|
9 |
9 |
|
9 |
9 |
NS AT |
|
|
+ CR TL |
||||||||||||||
|
• |
• • • • • • • • – |
|
– |
|||||||||||
|
X |
|
PL |
No |
|
|
: |
|
|
% |
|
RF |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Operation : 9 + ST
The machine display the time.
To stop this check, press the Clear key.
1 2 -- 3 4 01 |
The time counts up. |
If you make following operation, the machine resets the time data and starts again.
Operation : |
9 |
|
9 |
+ |
ST |
Execute MAC operation.
— 7 —
Power protection battery B-6
Power protection battery B-6 is available for CE-2350.
However, interface circuit is not mounted to the machine.
When you use the B-6, mount the following parts.
Parts list for interface |
|
|
|
Code No. |
Parts Name |
Specification |
Q'ty |
2200 3577 |
Transistor |
2SA1015 (GR, O, Y) |
1 |
2301 0011 |
Diode |
1S2471 |
2 |
2310 3541 |
Zener diode |
RD12EB2 |
1 |
2600 7313 |
Carbon film resistor |
R-25-10K-J |
3 |
2614 0552 |
Carbon film resistor |
R-25-2K-J |
1 |
2801 7098 |
Electrolytic capacitor |
50RE2 |
1 |
6219 4553 |
Connector fixing plate |
E311094-1 |
1 |
6236 6180 |
P1625-06P connector ass'y |
E314531B-10 (#22-200) |
1 |
Interface circuit for B-6
▼
Pin assignment for B-6 connector
Pin layout
Pin No. |
Description |
1 |
F.G. (Green) |
2 |
Not used |
3 |
CS (Black) |
4 |
GND (Blue) |
5 |
Not used |
6 |
VP (Brown) |
— 8 —
FROM TRANSFORMER
|
|
|
F1 |
|
|
|
D2 |
1SR35-100A |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
CN1 |
1 |
02A-5277 |
C4 |
50F2S683J |
|
1SR35-100A |
|
|
|
|
|
|
|
F50WV3300C1 |
|
|
|
|
|
|
|
||
|
|
|
|
D1 |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1SR35-100A |
|
|
D4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
D3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1SR35-100A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
2 |
|
|
|
|
5 |
|
7 |
|
8 |
|
9 |
|
|
|
|
|
|
|
|
|
|
1 |
|
WITH HEATSINK |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
OSH-1625-SP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PWD |
|||
|
|
|
|
|
|
2SD1196 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VP 24V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LM2575T-5.0 |
|
|
|
|
|
||
|
|
|
|
3 |
R121K |
|
Q1 |
5.1K |
|
ZD3 |
RD16EB3 |
|
|
|
|
|
|
|
|
10 |
|||
|
|
|
|
|
|
|
|
|
VIN 1 |
|
5 |
ON/OFF |
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VOUT |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VIN |
2 |
OUTPUT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
C5 |
C103 ZD2 |
RD7·5EB3 |
R13 R8 |
2.7K R7 |
820 |
10KR15 |
C9 |
F50WV1 |
Q3 |
2SC4640 |
47-50RE2 |
GND |
4 |
FEEDBACK |
C8 |
1S2473 |
|
|
|
|
|
|
|
D814-RK |
330-25RE2 |
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
R14 |
|
|
|
IC1 |
GND |
|
|
|
|
|
|
|
|
|
|
|
|
|
Q2 |
|
|
|
|
100K |
|
|
|
|
3 |
|
47~63KHz |
|
D7 |
11 |
|
|
|
|
|
4 |
|
2SC4640 |
|
|
|
|
D9 |
|
|
|
C6 |
|
|
MCDR1419-681K |
|
VLED 5.6V |
|||
|
|
|
|
|
|
|
|
|
|
|
|
1S2473 |
|
|
|
|
|
|
L1 |
|
|
|
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D11 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VCC 5.0V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1S2473 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GNDP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GND |
|
|
|
|
|
|
|
|
|
|
|
6 |
|
|
|
|
|
|
|
|
|
|
|
|
Q1 : Transistor for controlling voltage (VP)
Q2 : Transistor for voltage detection
Q3 : Transistor for controlling power down (PWD) signal
ZD2 : Zenner diode for controlling base current of Q2
ZD3 : Zenner diode for detecting power down (PWD) signal
After plugging the AC cord into the outlet, the AC voltage (23.8 V) appears at CN1 connector. Then this voltage is rectified by the diode bridge and it become constant voltage through the capacitor C1.
[Voltage VP]
A constant voltage (31.4 V) appears on the "2" position. This voltage made from the constant voltage circuit consist of transistor Q1 and Q2, zener diode ZD2, resistor R7, R8, R12 and R13.
[Voltage VLED and VCC]
The voltage goes to pin No.1 of regulator IC1 and then it is out from pin No.2 of IC1 as stable voltage (5.6 V).
Then this voltage falls down to 5 volts through the diode. It is used for VCC (for logic) and VLED (for display drive).
Also, it goes to pin No.4 of IC1 and using to control the output voltage level. Inductor L1 is used to stabilize the VCC voltage when the drawer opened.
— 9 —
[PWD signal]
After plugging the AC cord into outlet, VP voltage appears on the base terminal of transistor Q3. When the VP exceeds 16 volts, Q3 is turned on by the differential voltage between base and emitter terminal of transistor Q3.
Then the PWD signal goes to GND level and informs "Power ON" to the CPU. When the VP drops less than 16 volts, Q3 is turned off.
Then the PWD goes high level since the PWD is pulled up to VDD.
When the CPU receives "High" signal of PWD, CPU goes to "Power failure process".
Note: When plugging the AC cord into outlet, all voltages are supplied to the PCB. If you open the machine for repair, make sure to unplug it.
[Location for voltage check points]
Actual value on the E259-1 PCB [unit : V]
Check point |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Power ON |
23.8(AC) |
31.4 |
25.2 |
7.61 |
24 |
8.2 |
8.1 |
0.6 |
0 |
5 |
5.6 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Power cord off |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
10 |
4
6
11
2
3
5
8
9
7
12
— 10 —
6-2. CPU (μPD75517GF-400-3B9)
Pin No. |
Signal |
Descriptions |
I/O |
PW-on |
|
level |
|||||
|
|
|
|
||
1 |
AN0 |
Mode switch signal (RF, OFF, REG, X, Z) signal |
In |
2.0V |
|
2 |
AVREF |
VCC terminal (+5 V) |
— |
5.0V |
|
3 |
VDD |
VDD terminal (+5 V) |
— |
5.0V |
|
4 |
VDD |
VDD terminal (+5 V) |
— |
5.0V |
|
5 |
P113 |
Motor drive signal (M4) |
Out |
Low |
|
6 |
P112 |
Motor drive signal (M3) |
Out |
High |
|
7 |
P111 |
Motor drive signal (M2) |
Out |
Low |
|
8 |
P110 |
Motor drive signal (M1) |
Out |
Low |
|
9 |
P103 |
Stamp/Clock signal |
Out |
Low |
|
10 |
P102 |
RAM address signal (A12)/Receipt and Journal feed (FEED) |
Out |
Low |
|
11 |
P101 |
RAM address signal (A09/A11)/Head drive signal (HD6) |
Out |
Low |
|
12 |
P100 |
RAM address signal (A08/A10)/Head drive signal (HD5) |
Out |
Low |
|
13 |
P93 |
RAM address signal (A03/A07)/Head drive signal (HD4) |
Out |
Low |
|
14 |
P92 |
RAM address signal (A02/A06)/Head drive signal (HD3) |
Out |
Low |
|
15 |
P91 |
RAM address signal (A01/A05)/Head drive signal (HD2) |
Out |
Low |
|
16 |
P90 |
RAM address signal (A00/A04)/Head drive signal (HD1) |
Out |
Low |
|
17 |
SI1/P83 |
Key input signal (KI7) |
In |
High |
|
18 |
SO1/P82 |
Key input signal (KI6) |
In |
High |
|
19 |
SCK1/P81 |
Key input signal (KI5) |
In |
High |
|
20 |
PP0/P80 |
Key input signal (KI4) |
In |
High |
|
21 |
KR7/P73 |
Not used |
Out |
— |
|
22 |
KR6/P72 |
Display segment signal (SG1) |
Out |
Pulse |
|
23 |
KR5/P71 |
Display segment signal (SF1) |
Out |
Pulse |
|
24 |
KR4/P70 |
Display segment signal (SE1) |
Out |
Pulse |
|
25 |
KR3/P63 |
Display segment signal (SD1) |
Out |
Pulse |
|
26 |
KR2/P62 |
Display segment signal (SC1) |
Out |
Pulse |
|
27 |
KR1/P61 |
Display segment signal (SB1) |
Out |
Pulse |
|
28 |
KR0/P60 |
Display segment signal (SA1) |
Out |
Pulse |
|
29 |
P53 |
Display segment signal (SDP0) |
Out |
Pulse |
|
30 |
P52 |
Display segment signal (SG0) |
Out |
Pulse |
|
31 |
P51 |
Display segment signal (SF0) |
Out |
Pulse |
|
32 |
P50 |
Display segment signal (SE0) |
Out |
Pulse |
|
33 |
VSS |
GND terminal |
— |
— |
|
34 |
P43 |
Display segment signal (SD0) |
Out |
Pulse |
|
35 |
P42 |
Display segment signal (SC0) |
Out |
Pulse |
|
36 |
P41 |
Display segment signal (SB0) |
Out |
Pulse |
|
37 |
P40 |
Display segment signal (SA0) |
Out |
Pulse |
|
38 |
P33 |
Display segment common signal (Dg4) |
Out |
Pulse |
|
39 |
P32 |
Display segment common signal (Dg3) |
Out |
Pulse |
|
40 |
P31 |
Display segment common signal (Dg2) |
Out |
Pulse |
|
41 |
P30 |
Display segment common signal (Dg1) |
Out |
Pulse |
|
42 |
P23/BUZ |
Buzzer signal |
Out |
Low |
|
43 |
P22/PCL |
Motor drive signal (for paper feeding) |
Out |
Low |
|
44 |
P21 |
Step motor common signal (for print wheel) |
Out |
High |
|
45 |
P20/PT00 |
Drawer open signal (DW) |
Out |
Low |
|
46 |
P13/TI0 |
Key input signal (KI9) |
In |
High |
|
47 |
P12/INT2 |
Key input signal (KI8) |
In |
High |
|
48 |
P11/INT1 |
Power down signal |
In |
Low |
|
49 |
P10/INT0 |
Reset pulse from printer |
In |
High |
— 11 —
Pin No. |
Signal |
Descriptions |
I/O |
PW-on |
|
level |
|||||
|
|
|
|
||
50 |
P03/SI0/SB1 |
Key input signal (KI3) |
In |
High |
|
51 |
P02/SO0/SB0 |
Key input signal (KI2) |
In |
High |
|
52 |
P01/SCK0_ |
Key input signal (KI1) |
In |
High |
|
53 |
P00/INT4 |
Key input signal (KI0) |
In |
High |
|
54 |
VSS |
GND terminal |
— |
— |
|
55 |
XT1 |
Sub system clock signal (32.768 KHz) |
In |
Pulse |
|
56 |
XT2 |
Sub system clock signal (32.768 KHz) |
In |
Pulse |
|
57 |
IC |
GND terminal |
— |
— |
|
58 |
X1 |
Main system clock signal (4.19 MHz) |
In |
Pulse |
|
59 |
X2 |
Main system clock signal (4.19 MHz) |
In |
Pulse |
|
60 |
RESET_ |
Initialize signal |
In |
High |
|
61 |
P143 |
RAM write enable signal (WE_) |
Out |
High |
|
62 |
P142 |
RAM chip enable signal (CE_) |
Out |
High |
|
63 |
P141 |
Journal feed common signal |
Out |
Low |
|
64 |
P140 |
Receipt feed common signal |
Out |
Low |
|
65 |
P133 |
RAM data signal (D3) |
I/O |
High |
|
66 |
P132 |
RAM data signal (D2) |
I/O |
High |
|
67 |
P131 |
RAM data signal (D1) |
I/O |
High |
|
68 |
P130 |
RAM data signal (D0) |
I/O |
High |
|
69 |
P123 |
Key common signal (Kc02) |
Out |
Pulse |
|
70 |
P122 |
Key common signal (Kc01) |
Out |
Pulse |
|
71 |
P121 |
Key common signal (Kc00) |
Out |
Pulse |
|
72 |
P120 |
RAM address signal (A14) |
Out |
Low |
|
73 |
AVSS |
GND terminal |
— |
— |
|
74 |
P153/AN7 |
Receipt ON/OFF signal |
In |
High |
|
75 |
P152/AN6 |
Motor error signal |
In |
Low |
|
76 |
P151/AN5 |
Pad data signal (PAD2) |
In |
High |
|
77 |
P150/AN4 |
Pad data signal (PAD1) |
In |
High |
|
78 |
AN3 |
GND terminal |
— |
— |
|
79 |
AN2 |
Battery voltage detection terminal |
In |
0 ~ 4.5V |
|
80 |
AN1 |
Drawer sensor signal |
In |
Low |
|
|
|
|
|
|
Note: The "PW-ON level" is measured under following conditions.
(1)Mode switch is REG position.
(2)The display is the time.
(3)Receipt switch is ON position.
(4)PAD1 and PAD2 are both open.
6-3. Motor error detection circuit
When CPU output motor signal, transistor Q8 becomes on and the voltage level at "A" point becomes GND. Then, paper feeding motor rotate. Normally, pin No. 1 of IC4 appears low signal.
IC4 detects differential voltage between pin No. 2 and 3.
In case pin No. 3 is higher than No. 2, output (pin No. 1) signal is high.
If motor happens over load (paper jam etc.), over load current (250mA) runs resistor R9. So " A" point voltage level becomes high.
Then IC4 outputs high signal and then CPU knows motor error occured. Whe the CPU receives "Motor error signal" CPU stops motor signal.
|
|
|
VP |
|
|
|
|
|
|
|
1SR-35-100A |
|
22K |
R6 |
|
|
|
|
|
VP |
D35 |
|
(±2%) |
|
|
8 |
BA10393 |
|
|
|
|
|
|
|
3 |
|
|||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
2 |
+ |
1 |
|
To Printer |
|
3.9 |
(R50X) |
|
|
– |
IC4 |
|
|
|
(±2%) |
|
C10 |
|
|||||
|
|
|
R9 |
R10 |
1K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TFC103 |
|
|
|
|
Q8 |
|
|
|
|
1.5K |
R26 |
|
|
2SD1853 |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
GNDP |
10K |
R11 |
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
— 12 — |
|
|
|
|
|
|
|
VCC |
|
10K |
R37 |
MOTOR ERROR |
To CPU
MOTOR
