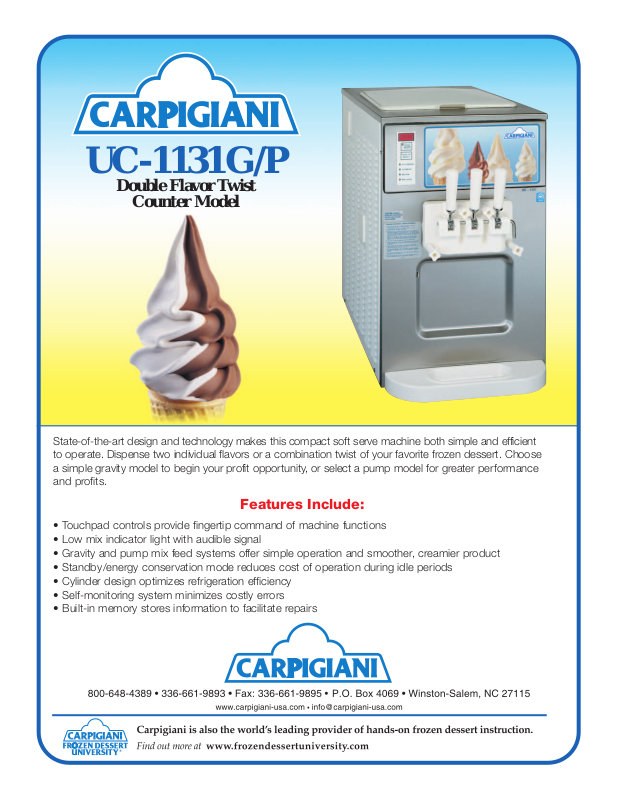

Carpigiani UC1131 G, UC-1131G-P Specifications

UC-1131G/P

Double Flavor Twist

Counter Model

State-of-the-art design and technology makes this compact soft serve machine both simple and efficient
to operate. Dispense two individual flavors or a combination twist of your favorite frozen dessert. Choose
a simple gravity model to begin your profit opportunity, or select a pump model for greater performance
and profits.

Features Include:

• Touchpad controls provide fingertip command of machine functions

• Low mix indicator light with audible signal

• Gravity and pump mix feed systems offer simple operation and smoother, creamier product

• Standby/energy conservation mode reduces cost of operation during idle periods

• Cylinder design optimizes refrigeration efficiency

• Self-monitoring system minimizes costly errors

• Built-in memory stores information to facilitate repairs

PLAN VIEW

(air cooled only)

SIDE VIEW

FRONT VIEW

REAR VIEW

Drip Chute
(Reversible)

Air Flow

MODEL UC-1131 G/P

Two flavor “twist” counter model. Designed for low to
medium volume requirements. Gravity or pump.

Distributed by:

All technical data, pictures, and drawings contained in this document are not binding on the manufacturer,
nor can the manufacturer be held liable for any modification of the machine, in part or in whole.

Model UC-1131 G/P Description:

Overrun Range ________________20% to 40% (Gravity Fed)
Overrun Range ________________40% to 80% (Pump Fed)
Mix Tank Capacity ________________________ 8 qts. each
Mix Tank Refrigeration Control ________________Electronic
Cylinder Refrigeration Control ______________Hard-O-Tronic
Cylinder Type __________________________Helicoidal Path
Beater Construction______________________Stainless Steel
Beater Drive Motor ____________________________1.8 H.P.
Compressor Motor ____________________________2.0 H.P.
Water Connections (water cooled only) ________1/2" M.P.T.
Condenser Cooling ________________________Air or Water
Refrigerant Type ______________________________R-404A
Frame Type __________________Heavy Duty Welded Steel
Outer Panels ______________________Stainless Steel Front

______________________Coated Aluminum Sides and Rear

Width ____________________________18 inches (458 mm)
Depth ____________________________36 inches (839 mm)
Height (w/o legs) ________________28.75 inches (730 mm)
Net Weight (w/o accessories) ____________320 lbs. (145 kg)
Gross Weight (w/o accessories)__________385 lbs. (175 kg)

Electrical Requirements

Single Phase, 60 Hz ______________________208 - 230 V
Max Breaker / Fuse size ______________________30 Amps
Running Amps ______________________________25 Amps

Optional Accessories

• Mix Tank Wash kit

• Self Service Kit (handle closing device)

• Adjustable Legs

ICA 5556 LS 1131

rev. 12/04

Carpigiani-USA manufactures a complete line of frozen
dessert production equipment: Batch Freezers, Soft Serve
Freezers, Yogurt Freezers, Slush Freezers, Milk Shake
Machines, Granita Machines, Whipped Topping Dispensers,
Frozen Custard Freezers, Specialty and Mix Processing
Equipment, Display Cabinets...

Something for everyone!

Water lnlet
(water cooled only)

Water Outlet
(water cooled only)

SPECIFICATIONS
