Carpigiani Turbomix 10 User Manual

Blender and homogenizer for preparing Homemade Ice Cream Mix
And much more…
The Carpigiani Turbomix is an indispensable instrument for preparing all sorts of mixes in the modern ice cream parlour. It can be used to whisk, blend, emulsify, break-up dry or fibrous ingredients and separate greases in liquids, in order to obtain perfectly homogeneous ice cream mixes. Besides having the ability to prepare homemade ice cream mixes, it is also very useful in making confectionery products. It can be used to blend and emulsify thick products, producing many other foodstuffs as well as materials used in the chemical, pharmaceutical and cosmetics sectors. The blender has a stable, vertical structure upon which the motor support arm is fixed; it has a powerful variable-speed motor, with vertical and oscillating movement; two different emulsifiers, a cutter and an optional steel bucket.
Cream Emulsifier
The ideal stirrer for breaking up clas­sic pastry cream, which may be oily or dense and sugary, into the base mix. The high-speed rotation and shape of the rotor facilitate the speedy emulsification of the pastries, bringing out the best fra­grance and creamiest flavour.
Fruit Emulsifier
Ideal for chopping and mixing pieces of fresh or frozen fruit and blending fruit puree into the base. Useful for mixing powders, such as sugars and cold sta­bilizers, to prepare water-based mixes.
Optional Cutter
A rotary blender able to chop sig­nificantly large pieces of fruit, such as whole pears and apples. It works per­fectly when used with emulsifiers to transform blended fruit into a fine, easy­to-mix puree.
Handling times
To blend and emulsify classic pastries into the base mix approximately 30 seconds for 5 litres. To dissolve the mix in cold milk or water, for a guaranteed quality ice cream, approx 60 seconds for 5 litres. To produce a complete perfectly emulsified mix from single ingredients for a customized ice cream, approx 120 seconds for 5 litres.
40 cm.
25 cm.

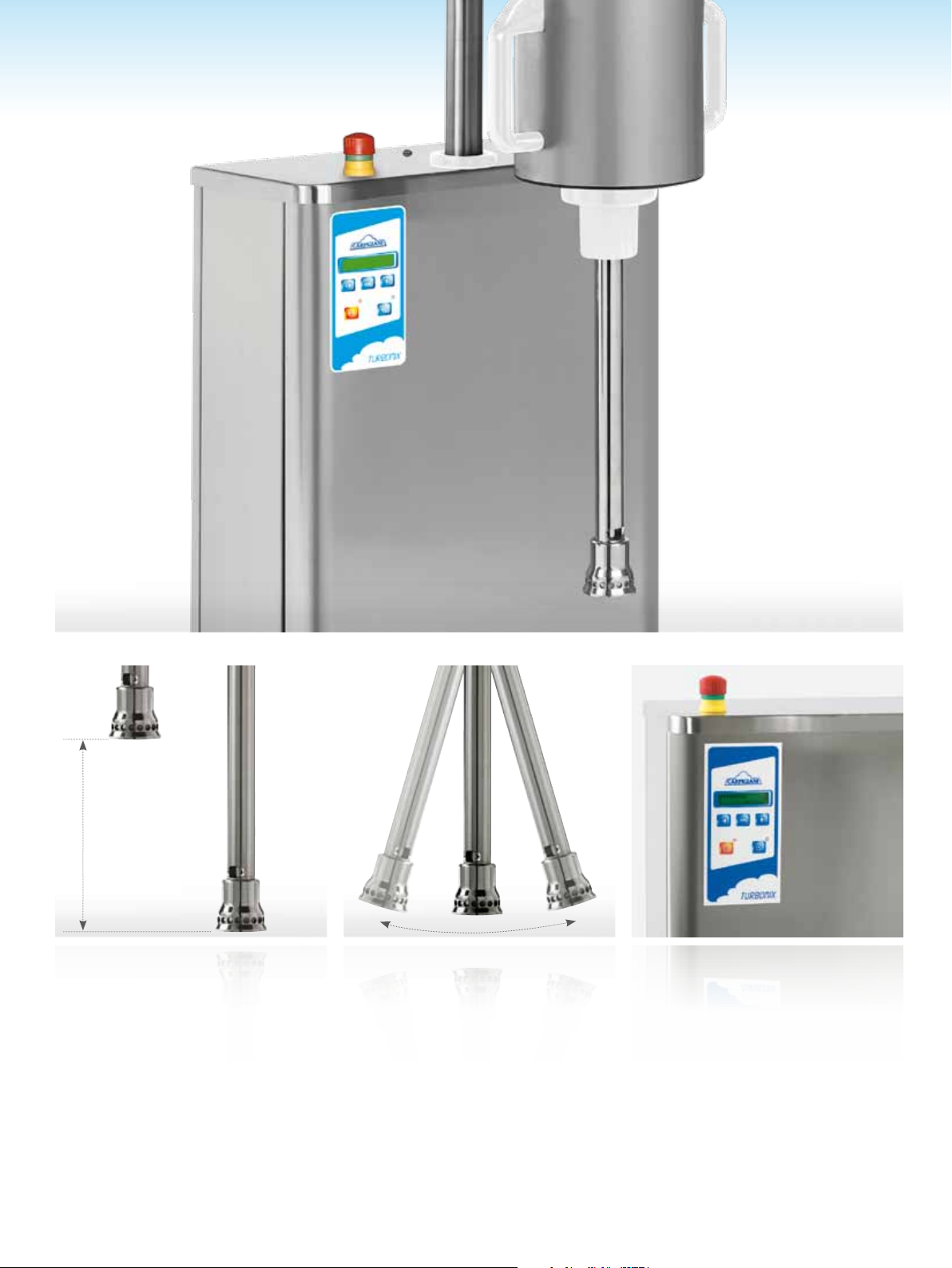

Vertical Travel
In order to blend and emulsify different quantities of mix, the Turbomix has a vertical travel of almost 40 cm. This ver­tical movement is assisted by a weight­ed system, which makes it easy to move the motor up or down. It is possible to block the motor arm at the desired height, using the appropriate knob.
Horizontal Oscillation
The Turbomix can be moved in circles, by guiding the motor with the handles, in order to allow the emulsifier turbine to absorb the solid ingredients that tend to the sides of the bucket. This horizontal oscillation has a maximum diameter of nearly 25 cm.
Control Panel
This controls all functions of the Tur­bomix: the on/off button, the timer to programme the blending time, and the led bar to control the motor speed. The emergency button stops the machine immediately upon being pressed.
2-handed controls
Features of the Turbomix 10
Motor rpm 3.000 - 12.000
Rotor speed approx 22 m/sec
Minimum quantity per cycle 3 litres*
Maximum quantity per cycle 15 litres
Electric power Volt 230 / Hz 50-60
Installed power kW 0.75
Dimensions W x D x H (min.) cm. 44 x 50 x 76
Dimensions W x D x H (max) cm. 44 x 50 x 114
Weight kg 65
* with a suitable container or even smaller quantities.
Changing Emulsifiers
It is possible to pull out and change the emulsifier by un­screwing the ring nut under the motor. The piece be­tween the motor and rotor is plastic, making it easy to replace and also protecting the machine in case of im­proper use. At the end of a day’s work, the used emulsi­fiers must be completely dis­mantled and cleaned.
22 cm.
20 cm.
57 cm.
Optional Bucket
This is a measurable, stain­less steel bucket, with a ca­pacity of 15 litres. The highly hygienic material, conical shape allowing the working mass to move up, and carefully studied dimen­sions make this bucket an extremely useful accessory.
Max 114 cm.
Specifications are approximate. Carpigiani reserves the right to make changes without notice.
Turbomix is produced by Carpigiani with Quality System Certicate UNI EN ISO 9001.
Dealer
Carpigiani helps you smile!
Via Emilia, 45 - 40011 Anzola dell’Emilia BOLOGNA, Italy Tel. +39 051 6505111 carpigiani.com
40 cm.
44 cm.
