CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2002 CARNES COMPANY
ALL RIGHTS RESERVED
29043
Imperial [IP] Dimensions
Metric (SI) in Parentheses

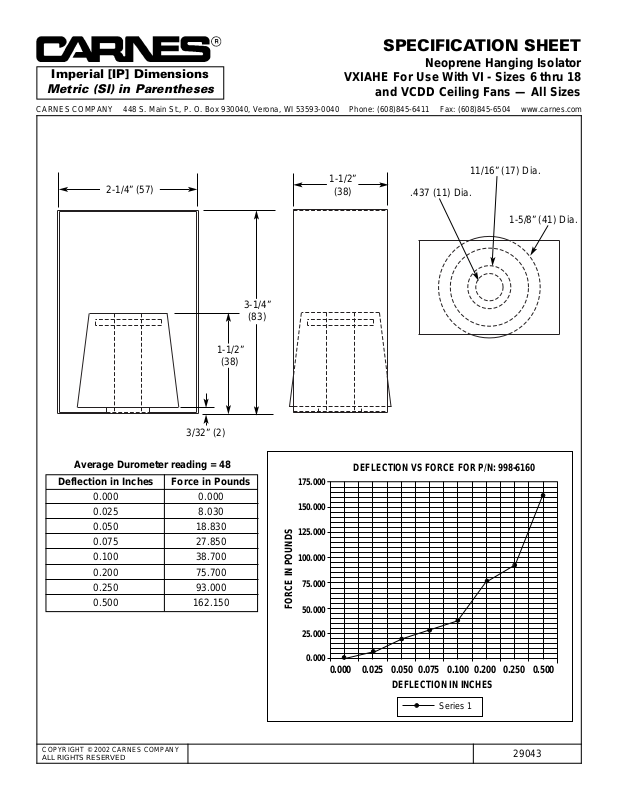

SPECIFICATION SHEET
Neoprene Hanging Isolator
VXIAHE For Use With VI - Sizes 6 thru 18
and VCDD Ceiling Fans — All Sizes
ll
ll
ll
ll
ll
ll
ll
ll
175.000
150.000
125.000
100.000
75.000
50.000
25.000
0.000
0.000 0.025 0.050 0.075 0.100 0.200 0.250 0.500
DEFLECTION IN INCHES
FORCE IN POUNDS
DEFLECTION VS FORCE FOR P/N: 998-6160
ll
Series 1
Average Durometer reading = 48
Deflection in Inches Force in Pounds
0.000 0.000
0.025 8.030
0.050 18.830
0.075 27.850
0.100 38.700
0.200 75.700
0.250 93.000
0.500 162.150
2-1/4” (57)
1-1/2”
(38)
3-1/4”
(83)
1-1/2”
(38)
.437 (11) Dia.
11/16” (17) Dia.
1-5/8” (41) Dia.
3/32” (2)
