CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2002 CARNES COMPANY
ALL RIGHTS RESERVED
29044
Imperial [IP] Dimensions

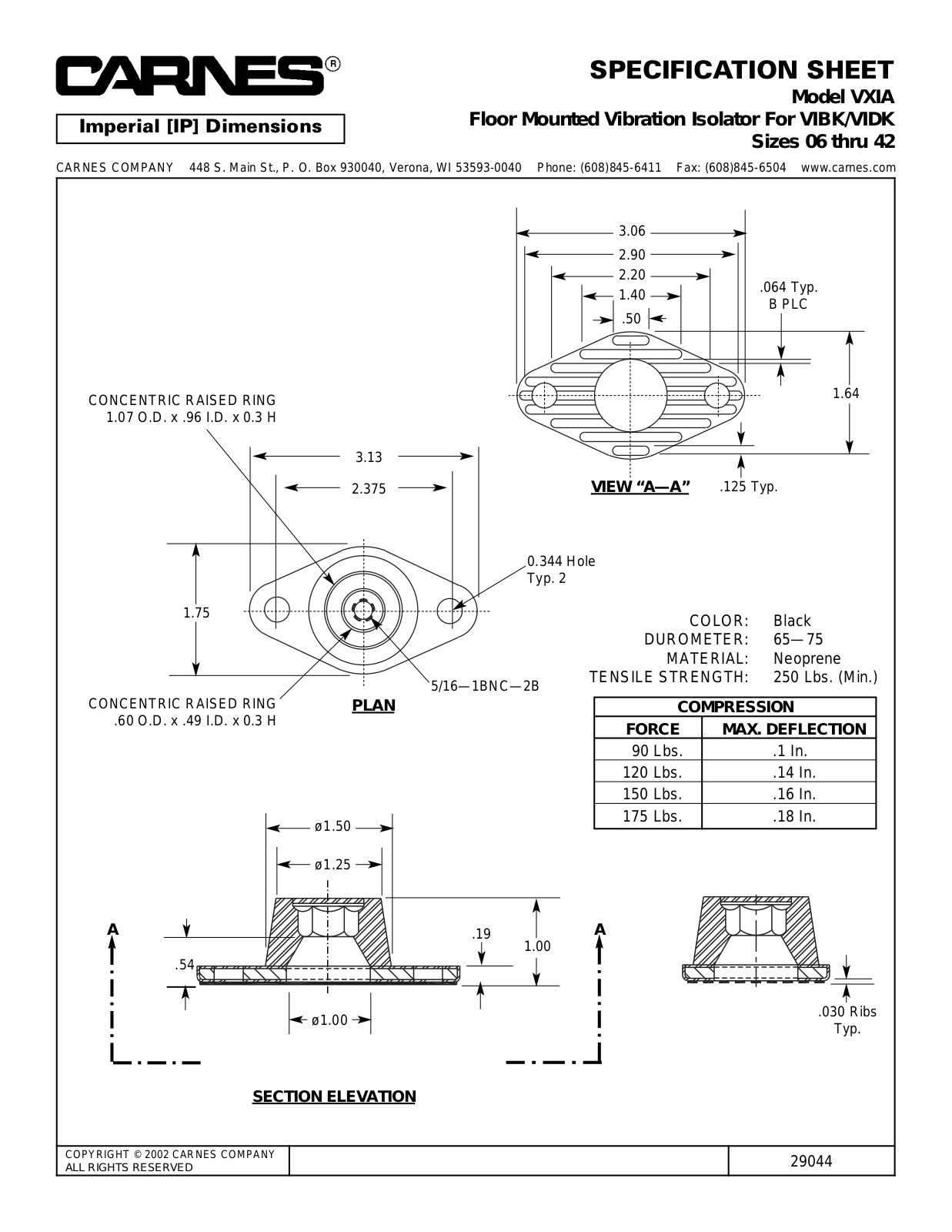

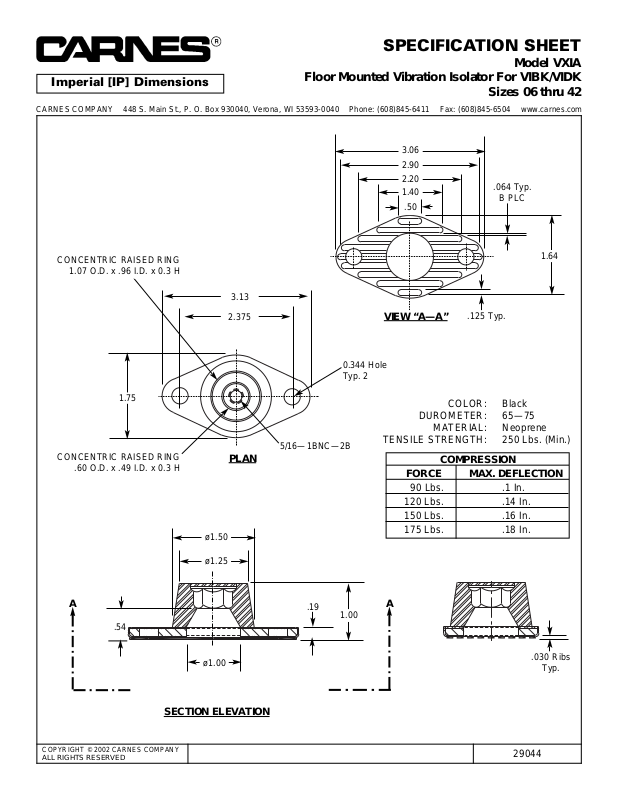

SPECIFICATION SHEET
Model VXIA
Floor Mounted Vibration Isolator For VIBK/VIDK
Sizes 06 thru 42
COLOR: Black
DUROMETER: 65—75
MATERIAL: Neoprene
TENSILE STRENGTH: 250 Lbs. (Min.)
COMPRESSION
FORCE MAX. DEFLECTION
90 Lbs. .1 In.
120 Lbs. .14 In.
150 Lbs. .16 In.
175 Lbs. .18 In.
3.06
2.90
2.20
1.40
.064 Typ.
B PLC
1.64
.125 Typ.
VIEW “A—A”
3.13
2.375
CONCENTRIC RAISED RING
1.07 O.D. x .96 I.D. x 0.3 H
CONCENTRIC RAISED RING
.60 O.D. x .49 I.D. x 0.3 H
1.75
5/16—1BNC—2B
PLAN
ø1.50
ø1.25
1.00
.19
.54
ø1.00
A
A
SECTION ELEVATION
.030 Ribs
Typ.
.50
0.344 Hole
Typ. 2
