CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2002 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 22204 22204-A
Imperial [IP] Dimensions
Metric (SI) in Parentheses

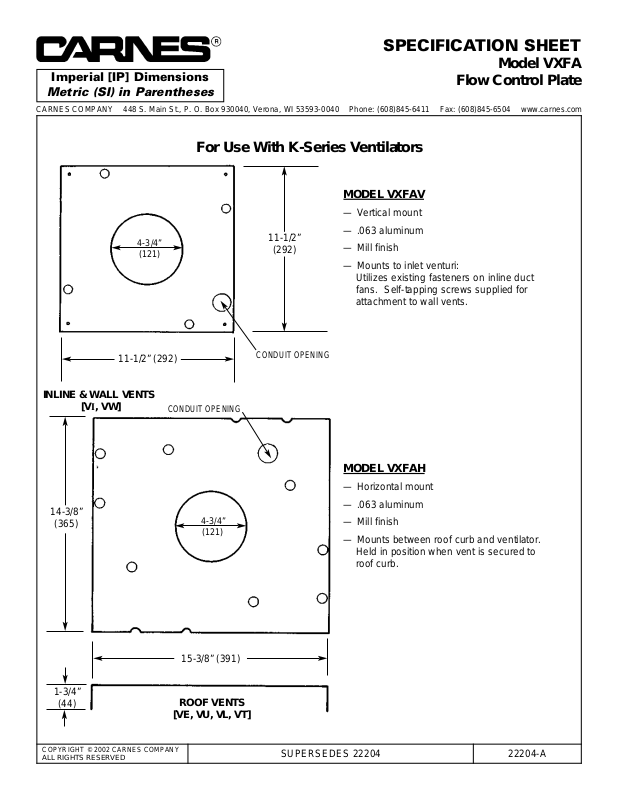

SPECIFICATION SHEET
Model VXFA
Flow Control Plate
For Use With K-Series Ventilators
11-1/2”
(292)
11-1/2” (292)
CONDUIT OPENING
CONDUIT OPENING
14-3/8”
(365)
15-3/8” (391)
1-3/4”
(44)
MODEL VXFAV
— Vertical mount
— .063 aluminum
— Mill finish
— Mounts to inlet venturi:
Utilizes existing fasteners on inline duct
fans. Self-tapping screws supplied for
attachment to wall vents.
MODEL VXFAH
— Horizontal mount
— .063 aluminum
— Mill finish
— Mounts between roof curb and ventilator.
Held in position when vent is secured to
roof curb.
ROOF VENTS
[VE, VU, VL, VT]
4-3/4”
(121)
4-3/4”
(121)
INLINE & WALL VENTS
[VI, VW]
