SUPERSEDES 11200-C 11200-D

Imperial [IP] Dimensions

Metric (SI) in Parentheses

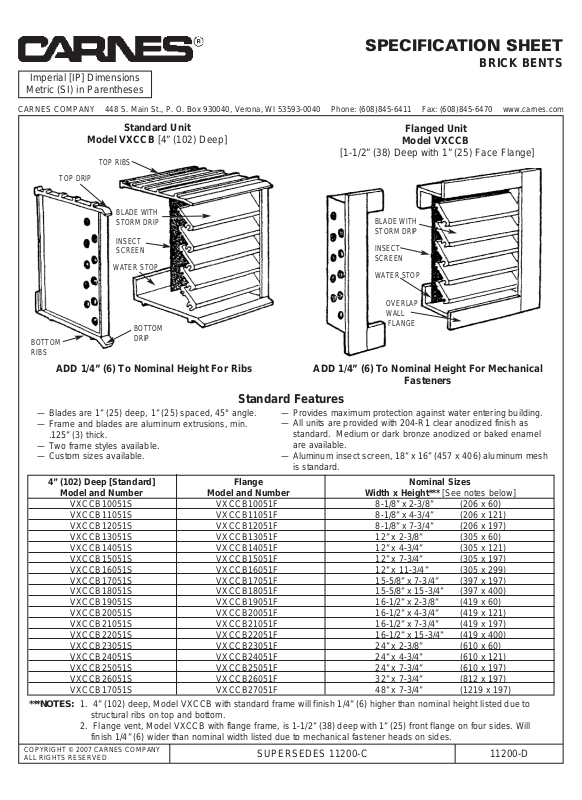

SPECIFICATION SHEET

BRICK BENTS

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com

Standard Unit

Model VXCCB [4” (102) Deep]

ADD 1/4” (6) To Nominal Height For Ribs ADD 1/4” (6) To Nominal Height For Mechanical

Fasteners

Flanged Unit

Model VXCCB

[1-1/2” (38) Deep with 1” (25) Face Flange]

BLADE WITH STORM DRIP

INSECT SCREEN

WATER STOP

TOP RIBS

BOTTOM DRIP

TOP DRIP

BOTTOM RIBS

BLADE WITH STORM DRIP

INSECT SCREEN

OVERLAP WALL

FLANGE

Standard Features

— Blades are 1” (25) deep, 1” (25) spaced, 45° angle. — Frame and blades are aluminum extrusions, min.

.125” (3) thick. — Two frame styles available. — Custom sizes available.

— Provides maximum protection against water entering building. — All units are provided with 204-R1 clear anodized finish as

standard. Medium or dark bronze anodized or baked enamel are available.

— Aluminum insect screen, 18” x 16” (457 x 406) aluminum mesh

is standard.

4” (102) Deep [Standard] Flange Nominal Sizes

Model and Number Model and Number Width x Height*** [See notes below]

VXCCB10051S VXCCB10051F 8-1/8” x 2-3/8” (206 x 60) VXCCB11051S VXCCB11051F 8-1/8” x 4-3/4” (206 x 121) VXCCB12051S VXCCB12051F 8-1/8” x 7-3/4” (206 x 197) VXCCB13051S VXCCB13051F 12” x 2-3/8” (305 x 60) VXCCB14051S VXCCB14051F 12” x 4-3/4” (305 x 121) VXCCB15051S VXCCB15051F 12” x 7-3/4” (305 x 197) VXCCB16051S VXCCB16051F 12” x 11-3/4” (305 x 299) VXCCB17051S VXCCB17051F 15-5/8” x 7-3/4” (397 x 197) VXCCB18051S VXCCB18051F 15-5/8” x 15-3/4” (397 x 400) VXCCB19051S VXCCB19051F 16-1/2” x 2-3/8” (419 x 60) VXCCB20051S VXCCB20051F 16-1/2” x 4-3/4” (419 x 121) VXCCB21051S VXCCB21051F 16-1/2” x 7-3/4” (419 x 197) VXCCB22051S VXCCB22051F 16-1/2” x 15-3/4” (419 x 400) VXCCB23051S VXCCB23051F 24” x 2-3/8” (610 x 60) VXCCB24051S VXCCB24051F 24” x 4-3/4” (610 x 121) VXCCB25051S VXCCB25051F 24” x 7-3/4” (610 x 197) VXCCB26051S VXCCB26051F 32” x 7-3/4” (812 x 197) VXCCB17051S VXCCB27051F 48” x 7-3/4” (1219 x 197)

***NOTES: 1. 4” (102) deep, Model VXCCB with standard frame will finish 1/4” (6) higher than nominal height listed due to

structural ribs on top and bottom.

2. Flange vent, Model VXCCB with flange frame, is 1-1/2” (38) deep with 1” (25) front flange on four sides. Will

finish 1/4” (6) wider than nominal width listed due to mechanical fastener heads on sides.
