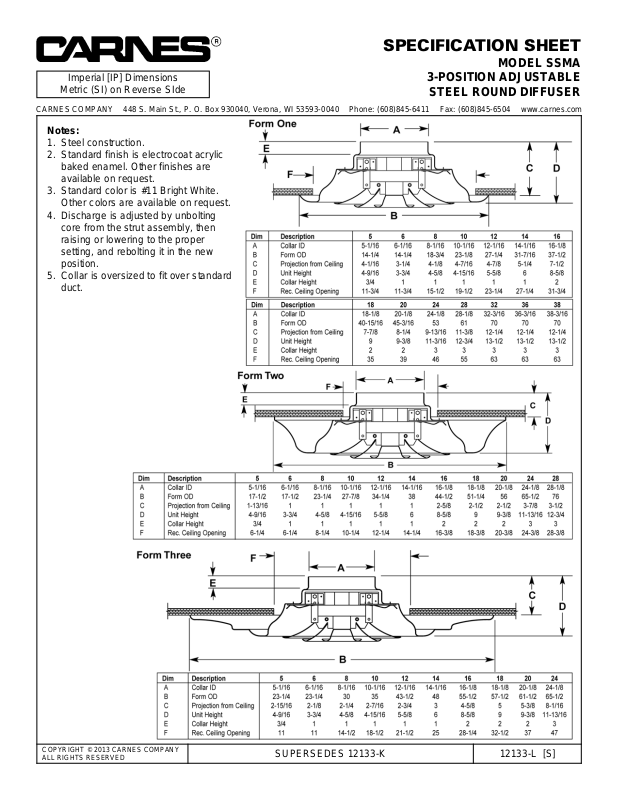

SPECIFICATION SHEET
MODEL SSMA
3-POSITION ADJUSTABLE
STEEL ROUND DIFFUSER
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12133-K 12133-L [S]
Notes:
1. Steel construction.
2. Standard finish is electrocoat acrylic
baked enamel. Other finishes are
available on request.
3. Standard color is #11 Bright White.
Other colors are available on request.
4. Discharge is adjusted by unbolting
core from the strut assembly, then
raising or lowering to the proper
setting, and rebolting it in the new
position.
5. Collar is oversized to fit over standard
duct.
Metric (SI) on Reverse SIde
Imperial [IP] Dimensions
SPECIFICATION SHEET
MODEL SSMA
3-POSITION ADJUSTABLE
STEEL ROUND DIFFUSER
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12133-K 12133-L [M]
Notes:
1. Steel construction.
2. Standard finish is electrocoat acrylic
baked enamel. Other finishes are
available on request.
3. Standard color is #11 Bright White.
Other colors are available on request.
4. Discharge is adjusted by unbolting
core from the strut assembly, then
raising or lowering to the proper
setting, and rebolting it in the new
position.
5. Collar is oversized to fit over standard
duct.
Dim Description 5 6 8 10 12 14 16 18 20 24
A Collar ID 129 154 205 256 306 357 410 460 511 613
B Form OD 591 591 762 889 1105 1219 1410 1461 1562 1664
C Projection from Ceiling 75 54 57 62 70 76 117 127 137 205
D Unit Height 116 95 117 125 143 152 219 229 238 300
E Collar Height 19 25 25 25 25 25 51 51 51 76
F Rec. Ceiling Opening 279 279 368 470 546 635 718 826 940 1194
Dim Description 5 6 8 10 12 14 16 18 20 24 28
A Collar ID 129 154 205 256 306 357 410 460 511 613 714
B Form OD 445 445 591 708 870 965 1130 1302 1422 1664 1930
C Projection from Ceiling 46 25 25 25 25 25 67 64 64 98 89
D Unit Height 116 95 117 125 143 152 219 229 238 284 324
E Collar Height 19 25 25 25 25 25 51 51 51 76 76
F Rec. Ceiling Opening 159 159 210 260 311 362 416 467 518 619 721
Dim Description 5 6 8 10 12 14 16
A Collar ID 129 154 205 256 306 357 410
B Form OD 362 362 476 587 692 799 953
C Projection from Ceiling 103 83 105 113 124 133 191
D Unit Height 116 95 117 125 143 152 219
E Collar Height 19 25 25 25 25 25 51
F Rec. Ceiling Opening 298 298 394 495 591 692 806
Dim Description 18 20 24 28 32 36 38
A Collar ID 460 511 613 714 818 919 970
B Form OD 1040 1148 1346 1549 1778 1778 1778
C Projection from Ceiling 200 210 249 289 331 311 311
D Unit Height 229 238 284 324 343 343 343
E Collar Height 51 51 76 76 76 76 76
F Rec. Ceiling Opening 889 991 1168 1397 1600 1600 1600
