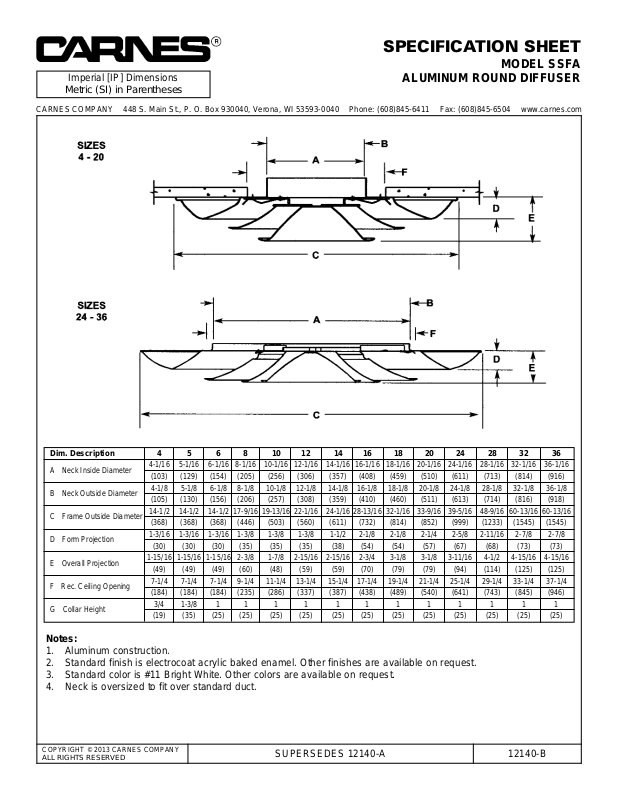

SPECIFICATION SHEET

MODEL SSFA

ALUMINUM ROUND DIFFUSER

COPYRIGHT © 2013 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 12140-A 12140-B

Notes:

1. Aluminum construction.

2. Standard finish is electrocoat acrylic baked enamel. Other finishes are available on request.

3. Standard color is #11 Bright White. Other colors are available on request.

4. Neck is oversized to fit over standard duct.

Dim. Description 4 5 6 8 10 12 14 16 18 20 24 28 32 36

A Neck Inside Diameter

4-1/16 5-1/16 6-1/16 8-1/16 10-1/16 12-1/16 14-1/16 16-1/16 18-1/16 20-1/16 24-1/16 28-1/16 32-1/16 36-1/16

(103) (129) (154) (205) (256) (306) (357) (408) (459) (510) (611) (713) (814) (916)

B Neck Outside Diameter

4-1/8 5-1/8 6-1/8 8-1/8 10-1/8 12-1/8 14-1/8 16-1/8 18-1/8 20-1/8 24-1/8 28-1/8 32-1/8 36-1/8
(105) (130) (156) (206) (257) (308) (359) (410) (460) (511) (613) (714) (816) (918)

C Frame Outside Diameter

14-1/2 14-1/2 14-1/2 17-9/16 19-13/16 22-1/16 24-1/16 28-13/16 32-1/16 33-9/16 39-5/16 48-9/16 60-13/16 60-13/16

(368) (368) (368) (446) (503) (560) (611) (732) (814) (852) (999) (1233) (1545) (1545)

D Form Projection

1-3/16 1-3/16 1-3/16 1-3/8 1-3/8 1-3/8 1-1/2 2-1/8 2-1/8 2-1/4 2-5/8 2-11/16 2-7/8 2-7/8

(30) (30) (30) (35) (35) (35) (38) (54) (54) (57) (67) (68) (73) (73)

E Overall Projection

1-15/16 1-15/16 1-15/16 2-3/8 1-7/8 2-15/16 2-15/16 2-3/4 3-1/8 3-1/8 3-11/16 4-1/2 4-15/16 4-15/16

(49) (49) (49) (60) (48) (59) (59) (70) (79) (79) (94) (114) (125) (125)

F Rec. Ceiling Opening

7-1/4 7-1/4 7-1/4 9-1/4 11-1/4 13-1/4 15-1/4 17-1/4 19-1/4 21-1/4 25-1/4 29-1/4 33-1/4 37-1/4
(184) (184) (184) (235) (286) (337) (387) (438) (489) (540) (641) (743) (845) (946)

G Collar Height

3/4 1-3/8 1 1 1 1 1 111111 1

(19) (35) (25) (25) (25) (25) (25) (25) (25) (25) (25) (25) (25) (25)

Imperial [IP] Dimensions

Metric (SI) in Parentheses
