Imperial [IP] Dimensions

Metric (SI) in Parentheses

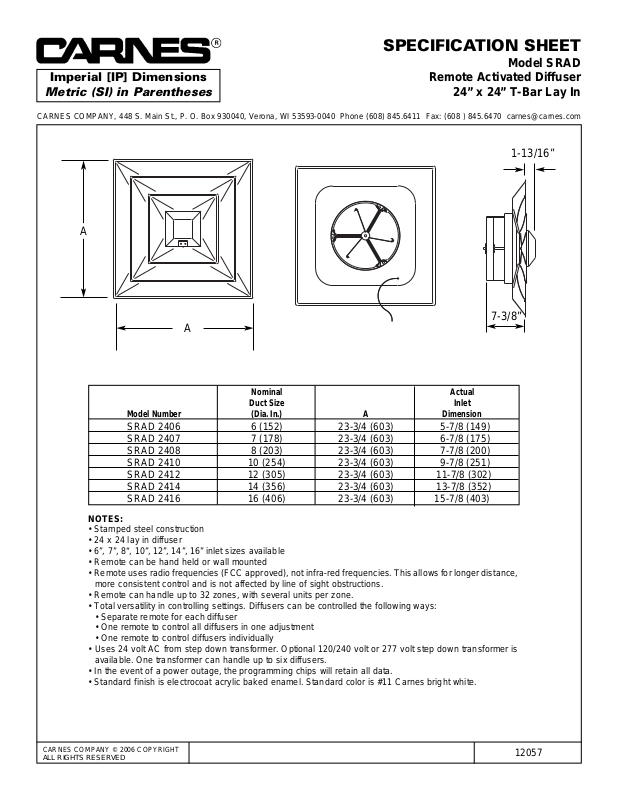

SPECIFICATION SHEET

Model SRAD

Remote Activated Diffuser

24” x 24” T-Bar Lay In

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com

12057

Nominal Actual

Duct Size Inlet

Model Number (Dia. In.) A Dimension

SRAD 2406 6 (152) 23-3/4 (603) 5-7/8 (149) SRAD 2407 7 (178) 23-3/4 (603) 6-7/8 (175) SRAD 2408 8 (203) 23-3/4 (603) 7-7/8 (200) SRAD 2410 10 (254) 23-3/4 (603) 9-7/8 (251) SRAD 2412 12 (305) 23-3/4 (603) 11-7/8 (302) SRAD 2414 14 (356) 23-3/4 (603) 13-7/8 (352) SRAD 2416 16 (406) 23-3/4 (603) 15-7/8 (403)

NOTES:

• Stamped steel construction

• 24 x 24 lay in diffuser

• 6”, 7”, 8“, 10”, 12”, 14”, 16” inlet sizes available

• Remote can be hand held or wall mounted

• Remote uses radio frequencies (FCC approved), not infra-red frequencies. This allows for longer distance, more consistent control and is not affected by line of sight obstructions.

• Remote can handle up to 32 zones, with several units per zone.

• Total versatility in controlling settings. Diffusers can be controlled the following ways:

• Separate remote for each diffuser

• One remote to control all diffusers in one adjustment

• One remote to control diffusers individually

• Uses 24 volt AC from step down transformer. Optional 120/240 volt or 277 volt step down transformer is available. One transformer can handle up to six diffusers.

• In the event of a power outage, the programming chips will retain all data.

• Standard finish is electrocoat acrylic baked enamel. Standard color is #11 Carnes bright white.

1-13/16”

7-3/8”
