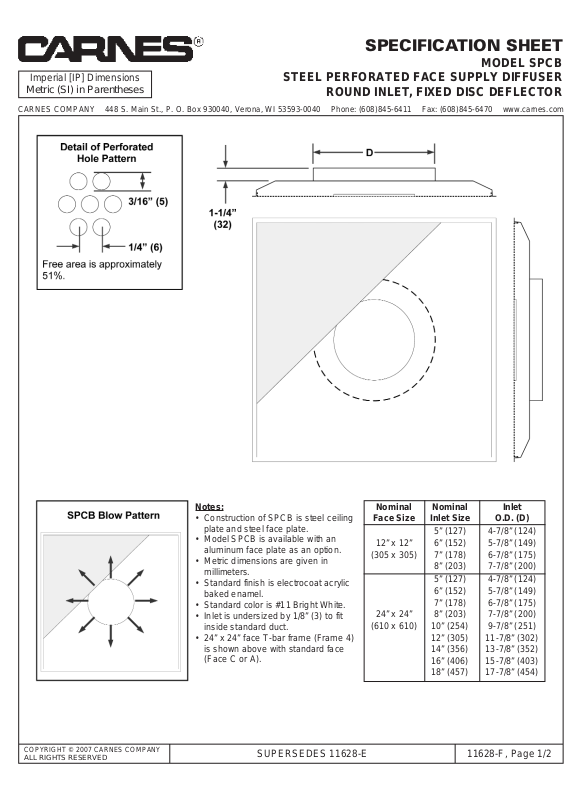

SPECIFICATION SHEET
MODEL SPCB
STEEL PERFORATED FACE SUPPLY DIFFUSER
ROUND INLET, FIXED DISC DEFLECTOR
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 11628-E 11628-F, Page 1/2
Nominal Nominal Inlet
Face Size Inlet Size O.D. (D)
5” (127) 4-7/8” (124)
12” x 12” 6” (152) 5-7/8” (149)
(305 x 305) 7” (178) 6-7/8” (175)
8” (203) 7-7/8” (200)
5” (127) 4-7/8” (124)
6” (152) 5-7/8” (149)
7” (178) 6-7/8” (175)
24” x 24” 8” (203) 7-7/8” (200)
(610 x 610) 10” (254) 9-7/8” (251)
12” (305) 11-7/8” (302)
14” (356) 13-7/8” (352)
16” (406) 15-7/8” (403)
18” (457) 17-7/8” (454)
Notes:
• Construction of SPCB is steel ceiling
plate and steel face plate.
• Model SPCB is available with an
aluminum face plate as an option.
• Metric dimensions are given in
millimeters.
• Standard finish is electrocoat acrylic
baked enamel.
• Standard color is #11 Bright White.
• Inlet is undersized by 1/8” (3) to fit
inside standard duct.
• 24” x 24” face T-bar frame (Frame 4)
is shown above with standard face
(Face C or A).
Imperial [IP] Dimensions
Metric (SI) in Parentheses
SPECIFICATION SHEET
MODEL SPCB
STEEL PERFORATED FACE SUPPLY DIFFUSER
ROUND INLET, FIXED DISC DEFLECTOR
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 11628-E 11628-F, Page 2/2
Nom. Face 12” x 12” 24” x 24”
Unit Height (A) 1-1/4” (32) 1-1/2” (38)
Unit Width (B) 11-3/4” 23-3/4”
(298) (603)
Standard T-Bar Mount
Frame 4
Standard Face C (Steel) or A (Aluminum)
• Fits 15/16” and 9/16” flat-face T-bar.
• Use with KXFA Auxiliary Frame for
surface mount applications.
Nom. Face 12” x 12” 24” x 24”
Unit Height (A) 1-1/4” (32) 1-1/2” (38)
Unit Width (B) 11-3/4” 23-3/4”
(298) (603)
Face Width (C) 11” (279) 23” (584)
15/16” Tegular Mount
Frame 4
Drop Face D (Steel) or B (Aluminum)
• Fits 15/16” and 9/16” flat-face T-bar.
• Fits 15/16” tegular ceilings.
• Use with KXFA Auxiliary Frame for
surface mount applications.
Surface Mount
Frame 2
Flush Face C (Steel) or A (Aluminum)
• For use with hard duct or special
mounting by contractor.
Surface Mount with Drop Face
Frame 2
Drop Face D (Steel) or B (Aluminum)
• For use with hard duct or special
mounting by contractor.
• Face projects 1/2” (13) below ceiling
plate.
Nom. Face 12” x 12” 24” x 24”
Unit Height (A) 1-3/16”
1-7/16”
(30)
(37)
Unit Width (B) 12-1/2” 24-1/2”
(318) (622)
Rec. Ceiling 11”
23”
Opening (C) (279)
(584)
Nom. Face 12” x 12” 24” x 24”
Unit Height (A) 1-3/16”
1-7/16”
(30)
(37)
Unit Width (B) 12-1/2” 24-1/2”
(318) (622)
Rec. Ceiling 11”
23”
Opening (C) (279)
(584)
Nom. Face 12” x 12” 24” x 24”
Unit Height (A) 1-3/16”
1-7/16”
(30)
(37)
Unit Width (B) 11-3/4” 23-3/4”
(298) (603)
Face Width (C) 11-1/4”
23-1/4”
(286)
(591)
Donn Fineline Style and 9/16” Tegular Mount
Frame 9
Standard Face C (Steel) or A (Aluminum)
• Fits Donn
®
Fineline®style ceilings.
• Fits 9/16” tegular ceilings.
®®
Nom. Face 12” x 12” 24” x 24”
Unit Height (A) 1-3/16”
1-7/16”
(30)
(37)
Unit Width (B) 11-31/32” 23-31/32”
(304) (609)
Drop (C) 3/8” (10)
3/8” (10)
Concealed Spline Mount
Frame 8
Standard Face C (Steel) or A (Aluminum)
• Fits concealed spline ceilings.
• Sliding pin locks ceiling plate to grid.
• Pin is concealed for architectural appeal.
