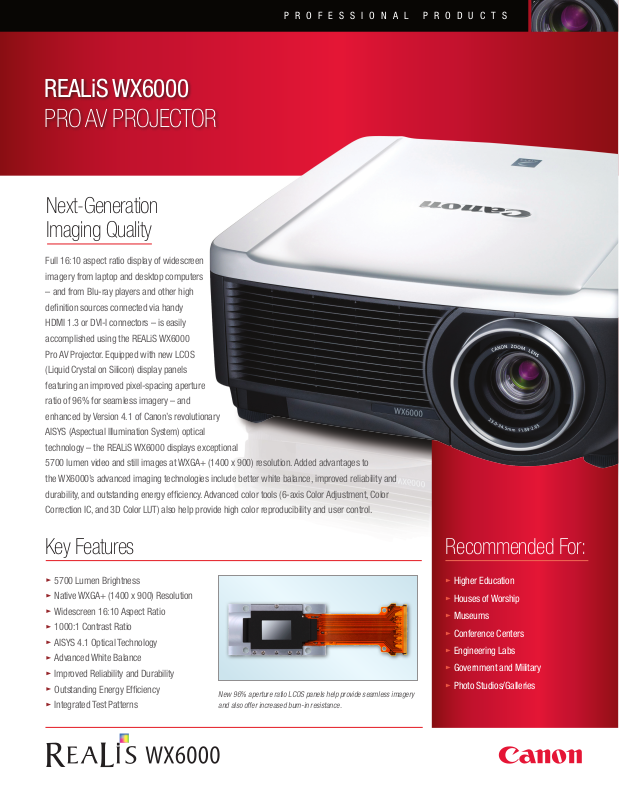

Canon WX6000 Product Sheet

PROFESSIONAL PRODUCTS

REALiS WX6000

PRO AV PROJECTOR

Next-Generation Imaging Quality

Full 16:10 aspect ratio display of widescreen

imagery from laptop and desktop computers

– and from Blu-ray players and other high

deﬁnition sources connected via handy

HDMI 1.3 or DVI-I connectors – is easily

accomplished using the REALiS WX6000

Pro AV Projector. Equipped with new LCOS

(Liquid Crystal on Silicon) display panels

featuring an improved pixel-spacing aperture

ratio of 96% for seamless imagery – and

enhanced by Version 4.1 of Canon’s revolutionary

AISYS (Aspectual Illumination System) optical

technology – the REALiS WX6000 displays exceptional

5700 lumen video and still images at WXGA+ (1400 x 900) resolution. Added advantages to

the WX6000’s advanced imaging technologies include better white balance, improved reliability and

durability, and outstanding energy efﬁciency. Advanced color tools (6-axis Color Adjustment, Color

Correction IC, and 3D Color LUT) also help provide high color reproducibility and user control.

Key Features

•

5700 Lumen Brightness

•

Native WXGA+ (1400 x 900) Resolution

•

Widescreen 16:10 Aspect Ratio

•

1000:1 Contrast Ratio

•

AISYS 4.1 Optical Technology

•

Advanced White Balance

•

Improved Reliability and Durability

•

Outstanding Energy Efﬁciency

•

Integrated Test Patterns

New 96% aperture ratio LCOS panels help provide seamless imagery and also offer increased burn-in resistance.

Recommended For:

•

Higher Education

•

Houses of Worship

•

Museums

•

Conference Centers

•

Engineering Labs

•

Government and Military

•

Photo Studios/Galleries

PROFESSIONAL PRODUCTS

REALiS WX6000 PRO AV PROJECTOR

PRODUCT NAME: REALiS WX6000 ITEM CODE: 5757B002 UPC CODE: 013803142686

SPECIFICATIONS

IMAGING DEVICE

ASPECT RATIO

NATIVE RESOLUTION

BASIC

IMAGE ADJUSTMENTS

INPUT SIGNALS

TERMINALS

LAMP

REMOTE CONTROL

RATINGS

BRIGHTNESS

UNIFORMITY CONTRAST RATIO

KEYSTONE CORRECTION

IMAGE MODE

MOUNTING

TILT ANGLE

DIGITAL PC INPUT

ANALOG INPUT

SCANNING FREQUENCY

DIGITAL VIDEO INPUT

COMPONENT INPUT

INPUT

CONTROL

BUILT-IN SPEAKER

LAMP

REMOTE CONTROL

FAN NOISE

POWER

TEMPERATURE

DIMENSIONS (W X D X H)

WEIGHT

VERTICAL

HORIZONTAL

DVI-I 29PIN

HDMI

MINI D-SUB 15PIN

MINI JACK

D-SUB 9 PIN

RJ-45

TYPE

LAMP LIFE

SENSOR

CONSUMPTION

VOLTAGE

OPERATING

STORAGE

0.70” LCOS Reﬂective LCD panels x 3

16:10

1440 x 900 (WXGA+)

5700 Lumens

88%

1000:1

± 20°

Standard, Presentation, Vivid Photo, Photo/sRGB, Dynamic, Video, Cinema, User 1-5

Ceiling, Rear, Rear-Ceiling, Upward, Downward

Adjustable feet up to 6 degrees

UXGA / WSXGA+ / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA

H Freq. 15.625-75 KHz V Freq. 50-60.317 Hz Max dot clock 162 MHz

1080p / 1080i / 720p / 576p / 480p

1080p / 1080i / 720p / 576p / 576i / 480p / 480i

Analog PC / Digital PC input

Version 1.3 Deep Color Digital PC / Digital Video Input

Analog PC / Component Video Input

Stereo Input x 2

Wired remote control connection x1

RS-232C Control

Network (100BASE-TX / 10BASE-T)

5W (Mono)

330W NSH (AC)

3000 Hours

Wireless Infrared, Front/Back Wired Remote Control Connection

40dB

435W / 1.7W (Standby) / 0.35W (Standby with LAN off)

AC100 ~ 240V, 50 / 60 Hz

41° to 95° F (5° to 35° C) 85% RH or less

14° ~ 140° F (-10° ~ 60° C)

15 x 6.69 x 16.9 in. (without lens, including protruding parts)

18.74 lb. (without lens)

OPTIONAL ACCESSORIES

Item Code No. Description

4966B001 Standard Zoom Lens RS-IL01ST

4967B001 Long Focus Zoom Lens RS-IL02LZ

4968B001 Ultra Wide-Angle Lens RS-IL03WF

5017B001 Replacement Lamp RS-LP07

4971B001 Replacement Air Filter RS-FL01

5750B001 Wired Remote Controller RS-RC05

4969B001 Ceiling Mount RS-CL11

3096B001 Ceiling Extension RS-CL08 (16” – 24”)

3097B001 Ceiling Extension RS-CL09 (24” – 39”)

5471B001 Top Cover RS-TC01 (Dark Grey)

Accessories

Three high-resolution interchangeable Genuine Canon projection lenses are available for the REALiS WX6000 Pro AV Projector. These include a

1.5x Standard Zoom, a 0.8x Ultra Wide-Angle lens, and a 1.7x Long-Focus Zoom. Each lens features advanced low-distortion and high-resolution optical technologies originally developed for Canon’s world-renowned line of EF lenses.

Connectability

Serial (RS-232C)

HDMI 1.3

DVI Port

Analog RGB / Component Video Input / 5BNC RJ45 N/W Port

Audio In

Remote

Audio Out

LENS SPECIFICATIONS

PRODUCT NAME

RS-IL01ST STANDARD ZOOM LENS

3 LENS OPTIONS

*The maximum upward shift and the maximum horizontal shift cannot be used simultaneously.

RS-IL02LZ LONG FOCUS ZOOM LENS

RS-IL03WF ULTRA WIDE-ANGLE LENS

PROJECTION LENS F1.89 – 2.65 / f= 23.0 – 34.5 mm

LENS SHIFT* (Vertical) Down 15% ~ Up 55% / (Horizontal) Left 10% ~ Right 10%

ZOOM 1.5 x Optical Zoom (Powered) FOCUS Powered SCREEN SIZE 40” to 600” PROJECTION

DISTANCE THROW RATIO 1.5:1 ~ 2.21:1 PROJECTION LENS F1.99 - 2.83 / f= 34.0 – 57.7 mm LENS SHIFT* (Vertical) Down 15% ~ Up 55% / (Horizontal) Left 10% ~ Right 10%

ZOOM 1.7 x Optical Zoom (Powered) FOCUS Powered SCREEN SIZE 40” to 600” PROJECTION

DISTANCE THROW RATIO 2.1:1– 3.72:1 PROJECTION LENS F2.0 / f= 12.8 mm

LENS SHIFT* (Vertical) Down 5% ~ Up 5% / (Horizontal) Left 2% ~ Right 2% ZOOM Fixed FOCUS Powered SCREEN SIZE 40” to 300” PROJECTION

DISTANCE THROW RATIO

WX6000

4.3-31.5 ft (1.3-9.6 m), 100”: 10.5 - 15.7 ft. (3.2-4.8 m)

6.23 ~ 46.59 ft (1.9–14.2 m) / 100”: 15.4 – 26.24 ft. (4.7 – 8.0 m)

2.3 -17.1 ft (0.7 - 5.2 m) / 100”: 5.6 ft (1.7 m)

0.8:1

Expanded interface options include DVI-I, HDMI 1.3, and analog RGB inputs. Control connections include a network-ready RJ-45 port and RS-232C serial connection. A separate stereo mini-jack input enables direct connection with the hand-held remote-control, if desired.

Specications subject to change without notice. Canon and REALiS are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries. IMAGEANYWARE is a trademark of Canon. All other products and brand names may be registered trademarks, trademarks or service marks of their respective owners in the United States and/or other countries.

For more info: Call 1-800-OK-CANON (1-800-652-2666)

pro.usa.canon.com

0167W723
