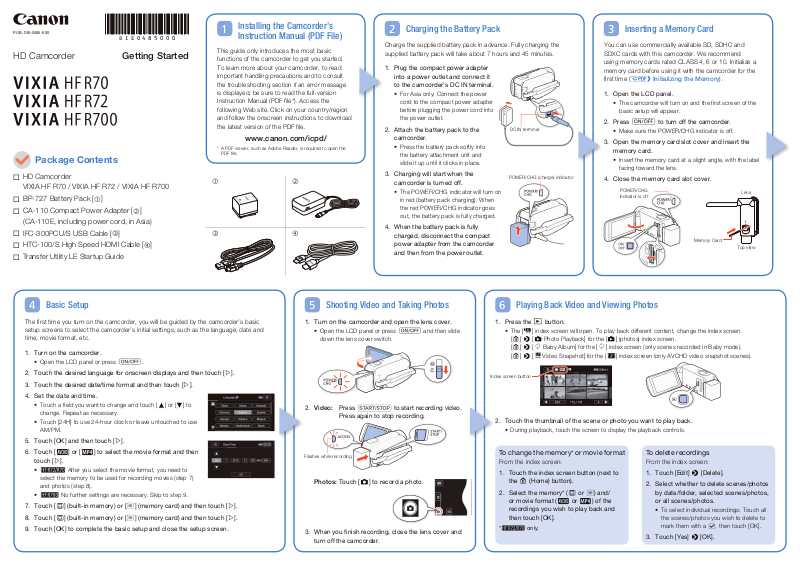

Canon HF-R70 Getting Started
PUB. DIE-0485-000
HD Camcorder
D I E 0 4 8 5 0 0 0
Getting Started
Package Contents
HD Camcorder
VIXIA HF R70 / VIXIA HF R72 / VIXIA HF R700
BP-727 Battery Pack []
CA-110 Compact Power Adapter []
(CA-110E, including power cord, in Asia)
IFC-300PCU/S USB Cable []
HTC-100/S High Speed HDMI Cable []
Transfer Utility LE Startup Guide
Installing the Camcorder’s
1
Instruction Manual (PDF File)
This guide only introduces the most basic
functions of the camcorder to get you started.
To learn more about your camcorder, to read
important handling precautions and to consult
the troubleshooting section if an error message
is displayed, be sure to read the full-version
Instruction Manual (PDF file*). Access the
following Web site. Click on your country/region
and follow the onscreen instructions to download
the latest version of the PDF file.
www.canon.com/icpd/
* A PDF viewer, such as Adobe Reader, is required to open the
PDF file.
Charging the Battery Pack
2
Charge the supplied battery pack in advance. Fully charging the
supplied battery pack will take about 7 hours and 45 minutes.
1. Plug the compact power adapter
into a power outlet and connect it
to the camcorder’s DC IN terminal.
• For Asia only: Connect the power
cord to the compact power adapter
before plugging the power cord into
the power outlet.
2. Attach the battery pack to the
camcorder.
• Press the battery pack softly into
the battery attachment unit and
slide it up until it clicks in place.
3. Charging will start when the
camcorder is turned off.
• The POWER/CHG indicator will turn on
in red (battery pack charging). When
the red POWER/CHG indicator goes
out, the battery pack is fully charged.
4. When the battery pack is fully
charged, disconnect the compact
power adapter from the camcorder
and then from the power outlet.
DC IN terminal
POWER/CHG (charge) indicator
Inserting a Memory Card
3
You can use commercially available SD, SDHC and
SDXC cards with this camcorder. We recommend
using memory cards rated CLASS 4, 6 or 10. Initialize a
memory card before using it with the camcorder for the
first time (; Initializing the Memory).
1. Open the LCD panel.
• The camcorder will turn on and the first screen of the
basic setup will appear.
2. Press [ to turn off the camcorder.
• Make sure the POWER/CHG indicator is off.
3. Open the memory card slot cover and insert the
memory card.
• Insert the memory card at a slight angle, with the label
facing toward the lens.
4. Close the memory card slot cover.
POWER/CHG
indicator is off
Memory Card
Lens
Top view
Basic Setup
4
The first time you turn on the camcorder, you will be guided by the camcorder’s basic
setup screens to select the camcorder’s initial settings, such as the language, date and
time, movie format, etc.
1. Turn on the camcorder.
• Open the LCD panel or press [.
2. Touch the desired language for onscreen displays and then touch [æ].
3. Touch the desired date/time format and then touch [æ].
4. Set the date and time.
• Touch a field you want to change and touch [Í] or [Î] to
change. Repeat as necessary.
• Touch [24H] to use 24-hour clock or leave untouched to use
AM/PM.
5. Touch [OK] and then touch [æ].
6. Touch [·] or [¸] to select the movie format and then
touch [æ].
• N After you select the movie format, you need to
select the memory to be used for recording movies (step 7)
and photos (step 8).
• Q No further settings are necessary. Skip to step 9.
7. Touch [&] (built-in memory) or [8] (memory card) and then touch [æ].
8. Touch [&] (built-in memory) or [8] (memory card) and then touch [æ].
9. Touch [OK] to complete the basic setup and close the setup screen.
Shooting Video and Taking Photos Playing Back Video and Viewing Photos
5 6
1. Turn on the camcorder and open the lens cover.
• Open the LCD panel or press [ and then slide
down the lens cover switch.
Index screen button
2. Video: Press Y to start recording video.
Press again to stop recording.
Flashes while recording
Photos: Touch [{] to record a photo.
3. When you finish recording, close the lens cover and
turn off the camcorder.
1. Press the ^ button.
• The [y] index screen will open. To play back different content, change the index screen.
[0] > [} Photo Playback] for the [}] (photos) index screen.
[0] > [9 Baby Album] for the [9] index screen (only scenes recorded in Baby mode).
[0] > [ Video Snapshot] for the [¦] index screen (only AVCHD video snapshot scenes).
2. Touch the thumbnail of the scene or photo you want to play back.
• During playback, touch the screen to display the playback controls.
To change the memory* or movie format
From the index screen:
1. Touch the index screen button (next to
the 0 (Home) button).
2. Select the memory* (& or 8) and/
or movie format (· or ¸) of the
recordings you wish to play back and
then touch [OK].
*N only.
To delete recordings
From the index screen:
1. Touch [Edit] > [Delete].
2. Select whether to delete scenes/photos
by date/folder, selected scenes/photos,
or all scenes/photos.
• To select individual recordings: Touch all
the scenes/photos you wish to delete to
mark them with a ", then touch [OK].
3. Touch [Yes] > [OK].
N Wi-Fi Functions
The camcorder features a number of convenient
Wi-Fi functions that will allow you to use it in
combination with Wi-Fi enabled smartphones and
tablets. For example, you can use a smartphone or
tablet to control the camcorder remotely while recording,
or to upload recordings to the Web.
You can also use the NFC function to effortlessly connect the
camcorder to an NFC-enabled Android device.
1. If necessary, install the required app on the smartphone or
tablet.
2. Select the desired Wi-Fi function on the camcorder.
3. Wirelessly connect the device to the camcorder.
Note: The necessary procedure may differ according to the Wi-Fi
function you wish to use. For details, be sure to refer to the PDF
Instruction Manual (; Wi-Fi Functions).
Optional Accessories
Canon offers a wide range of optional accessories for your camcorder. For
details, be sure to refer to the PDF Instruction Manual (; Optional
Accessories).
Use of genuine Canon accessories is recommended.
This product is designed to achieve excellent performance when used with
genuine Canon accessories. Canon shall not be liable for any damage to
this product and/or accidents such as fire, etc., caused by the malfunction
of non-genuine Canon accessories (e.g., a leakage and/or explosion of
a battery pack). Please note that this warranty does not apply to repairs
arising out of the malfunction of non-genuine Canon accessories, although
you may request such repairs on a chargeable basis.
This mark identifies genuine Canon video accessories.
When you use Canon video equipment, we recommend
Canon-brand accessories or products bearing the same
mark.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure,
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point, within an equilateral triangle, is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
Important Safety InstructIons
In these safety instructions the word “apparatus” refers to the Canon HD Camcorder
VIXIA HF R72 / VIXIA HF R70 / VIXIA HF R700 and all its accessories.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
8 Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
9 Only use attachments/accessories specified by the manufacturer.
10 Unplug this apparatus during lightning storms or when unused for long periods of
time.
11 Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
CA-110 identification plate is located on the bottom.
CAN ICES-3(B)/NMB-3(B)
Important Usage Instructions
FCC/IC NOTICE
HD Camcorder, ID0074 / ID0076 systems
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and use in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart
B of Part 15 of FCC Rules.Do not make any changes or modifications to
the equipment unless otherwise specified in the manual. If such changes
or modifications should be made, you could be required to stop operation
of the equipment.
Model ID0074 (including WLAN Module Model WM217, FCC
ID: AZD217)
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
This transmitter must not be co-located or operated in conjunction with
any other antenna or transmitter.
The available scientific evidence does not show that any health problems
are associated with using low-power wireless devices. There is no proof,
however, that these low power wireless devices are absolutely safe. Lowpower wireless devices emit low levels of radio frequency energy (RF) in the
microwave range while being used. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low-level RF that does not
produce heating effects causes no known adverse health effects. Many
studies of low-level RF exposures have not found any biological effects.
Some studies have suggested that some biological effects might occur, but
such findings have not been confirmed by additional research. This model
has been tested and found to comply with FCC/IC radiation exposure limits
set forth for an uncontrolled equipment and meets the FCC radio frequency
(RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF)
Exposure rules.
Canon U.S.A., Inc.
One Canon Park, Melville, NY 11747, USA
Tel No. 1-800-OK-CANON (1-800-652-2666)
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE.
To reduce the risk of electric shock, do not place objects filled with liquids,
such as vases, on the apparatus.
The Mains plug is used as the disconnect device. The Mains plug shall
remain readily operable to disconnect the plug in case of an accident.
While using the compact power adapter, do not wrap it or cover it with a
piece of cloth, and do not place it in confined narrow spaces.
Precautions About the Battery Pack
DANGER!
Treat the battery pack with care.
• Keep it away from fire (or it might explode).
• Do not expose the battery pack to temperature higher than 60 ºC (140 ºF).
Do not leave it near a heater or inside a car in hot weather.
• Do not try to disassemble or modify it.
• Do not drop it or subject it to shocks.
• Do not get it wet.
Important Note About Accessing the Memory
• Observe the following precautions while the ACCESS indicator is on or
flashing. Failing to do so may result in permanent data loss or damage to
the memory.
– Do not open the memory card slot cover.
– Do not disconnect the power source or turn off the camcorder.
– Do not change the camcorder’s shooting mode.
– Do not press the ^ button.
– When a USB cable is connected to the camcorder, do not disconnect
the USB cable.
REGIONS OF USE
The VIXIA HF R72 and VIXIA HF R70 are in compliance (as of January 2016)
with the radio signal regulations of the regions listed below. For details on other
regions where it can be used, make inquiries with the contacts listed inside the
blue frame at the bottom of this page.
Trademark Acknowledgements
• SD, SDHC and SDXC Logos are trademarks of SD-3C, LLC.
• HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
• Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
• Wi-Fi is a registered trademark of the Wi-Fi Alliance.
• Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo
are trademarks of the Wi-Fi Alliance.
• The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in
the United States and in other countries.
• Other names and products not mentioned above may be trademarks or
registered trademarks of their respective companies.
• This device incorporates exFAT technology licensed from Microsoft.
• “Full HD 1080” refers to Canon camcorders compliant
with high-definition video composed of 1,080 vertical
pixels (scanning lines).
• This product is licensed under AT&T patents for the
MPEG-4 standard and may be used for encoding MPEG-4 compliant
video and/or decoding MPEG-4 compliant video that was encoded only
(1) for a personal and non-commercial purpose or (2) by a video provider
licensed under the AT&T patents to provide MPEG-4 compliant video. No
license is granted or implied for any other use for MPEG-4 standard.
To display the camcorder’s certification logos
Touch [0] > [Other Settings] > q > [Certification Logo Display].
Q This product is not guaranteed to fully support functions of
FlashAir cards (including wireless transfer). In case of any card related
issues, please check with the card manufacturer. Also note that approval
is required to use FlashAir cards in many countries or regions. Without
approval, the use of FlashAir cards is not permitted. If it is unclear
whether your card is approved for use in your area, please check with the
card manufacturer. Availability of FlashAir cards also varies by region.
COPYRIGHT WARNING:
REGIONS
Canada, Hong Kong S.A.R., USA
Unauthorized recording of copyrighted materials may infringe on the
rights of copyright owners and be contrary to copyright laws.
USA and Canada only:
Model
ID0074: VIXIA HF R70 / VIXIA HF R72
Canon Inc. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
ASIA
CANON HONGKONG COMPANY LTD.
19/F, The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon,
Hong Kong
Tel: +852 3191 2333, Fax: +852 2428 3963
CANADA
CANON CANADA INC.
6390 Dixie Road, Mississauga, ON L5T 1P7
v If you have any questions, call the Canon Canada Information Center toll
free (in Canada only) at 1-800-OK-CANON (1-800-652-2666).
v Si vous avez des questions, veuillez téléphoner 1-800-OK-CANON
(1-800-652-2666, sans frais au Canada seulement).
The Lithium ion/polymer battery that powers the product is
recyclable. Please call 1-800-8-BATTERY for information on
how to recycle this battery.
MÉXICO
CANON MEXICANA, S DE RL DE CV
Blvd. Manuel Ávila Camacho No. 138, Piso 17, Col. Lomas de Chapultepec,
C.P. 11000 México, D.F., México
CANON U.S.A., INC. NEW JERSEY OFFICE
100 Jamesburg Road, Jamesburg, NJ 08831 USA
USA
CANON U.S.A., INC. NEW JERSEY OFFICE
100 Jamesburg Road, Jamesburg, NJ 08831 USA
CANON U.S.A., INC. CHICAGO OFFICE
100 Park Blvd., Itasca, IL 60143 USA
CANON U.S.A., INC. LOS ANGELES OFFICE
CENTRO Y SURAMÉRICA
CANON LATIN AMERICA, INC.
One Canon Park, Melville, NY 11747 USA
The information in this guide is verified as of January 2016. Specifications and outer appearance are subject to change without previous notice.
© CANON INC. 2016
15955 Alton Parkway, Irvine, CA 92618 USA
CANON U.S.A., INC. HONOLULU OFFICE
210 Ward Avenue, Suite 200, Honolulu, Hl 96814 USA
v If you have any questions, call the Canon U.S.A. Information Center toll-
free at 1-800-828-4040 (USA only).
Loading...
