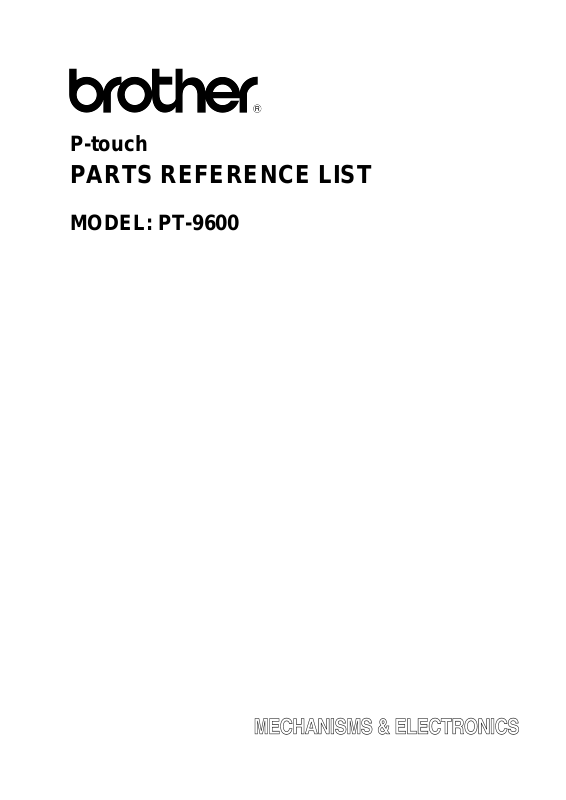

P-touch
PARTS REFERENCE LIST
MODEL: PT-9600
NOTES FOR USING THIS PARTS REFERENCE LIST
1. When ordering parts, inform us of the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol (PCB No., Revision, and Parts location mounted on the PCB.)
Note : Orders without Parts Code or Tool No. cannot be accepted.
[ Example ]
(4) (1) (2) (3)
REF. NO.
SYMBOL CODE Q’TY DESCRIPTION REMARKS
R
Revision No. : marked on the printed circuit board.
B55L142 - 1 01 A
Design change indication
Specification No.
Pattern alteration No.
Circuit board No.
2. Design-changed parts:
When the parts are design-changed, any one of the following symbols is indicated in the REMARKS column.
CHNG#A: compatible between old and new
CHNG#B: replaceable from old to new
CHNG#D : incompatible
ADD : newly added
3. Parts marked with an "R" in the REMARKS column are recommended spare parts.
4. The original of this list was made based on the information as of November, 2002.
5. Parts are subject to change in design without prior notice.
CONTENTS
1 . PRINT MECHANISM................................................................................ 1
2 . COVERS.................................................................................................. 3
3 . KEYBOARD............................................................................................. 5
4 . MAIN PCB ............................................................................................... 7
5 . SENSORS ............................................................................................... 9
6 . LCD PCB ................................................................................................. 9
7 . PRINTED MATTER.................................................................................11
8 . ATTACHMENTS.....................................................................................13
9 . PACKING MATERIALS ...........................................................................13
1 . PRINT MECHANISM
MODEL PT-9600 8V2-711-045
-1-
1 . PRINT MECHANISM
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LA8191001 1 CHASSIS 3600 ASSY R
2 LA8436001 1 TAPE FEED MOTOR ASSY
3 LA8984001 1 ROLLER HOLDER ASSY 3600 (SP) R
4 UT0895001 1 ROLLER HOLDER SHAFT
5 LA2071001 1 HEAD ASSY, KSH384 BW3 (SP) R
6 UT0901001 1 ROLLER HOLDER RELEASE SPRING
7 UT0239000 1 RELEASE LEVER
8 UT0240000 1 RELEASE ROD
9 UB5507000 1 RELEASE ROD ROLLER
10 UT1549001 1 RELEASE LEVER SPRING PRO
11 0A4300805 2 SCREW, PAN (S/P WASHER) M3X8
12 LA8986001 1 HALF CUTTER CHASSIS ASSY (SP) R
13 000300615 10 SCREW, BIND M3X6
14 LA8239001 1 EJECT MOTOR ASSY R
15 LA3057000 1 DOUBLE GEAR 1
16 LA8553001 1 EJECT IDLE GEAR
17 LA8440001 1 EJECT GEAR
18 LA8241001 1 EJECT RUBBER
19 LA8242001 1 EJECT ROLLER SHAFT
20 LA8243001 1 TAPE GUIDE
21 LA8554001 1 EJECT SHAFT SPRING
22 LA8244001 1 HC MOTOR HOLDER
23 LA8555001 1 HC SUPPORT PLATE
24 LA8245001 1 CARRIAGE MOTOR 3600 ASSY R
25 LA8246001 1 TAPE CONTROL MOTOR 3600 ASSY R
26 LA8247001 1 AV SENSOR ACTUATOR
27 LA8248001 1 AV SENSOR SPRING
28 UT0855001 1 SCREW, PAN M1.7X6
29 000020405 4 SCREW, BIND M2X4
30 085210415 1 TAPTITE, BIND B M2X4
31 060260516 4 SCREW, BIND M2.6X5
32 U62189000 1 PLATEN PROTECT PAD
33 048025346 2 RETAINING RING, E2.5
34 048015346 1 RETAINING RING, E1.5
35 LA8420001 3 SCREW, PAN 1.7X3
-2-
MODEL PT-9600 8V2-711-045
2 . COVERS
MODEL PT-9600 8V2-711-061
-3-
2 . COVERS PtPn020058
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LA8249001 1 BODY COVER 9600 R
2 LA8252001 1 BOTTOM COVER 9600 R
3 LA8253001 1 HANDLE 9600 R
4 U05810001 2 HANDLE SHAFT R
5 LA8254001 1 CASSETTE COVER 9600 R
6 LA8255001 1 CASSETTE PRESSER
7 LA8256001 2 CASSETTE PRESSER SPRING
8 LA8257001 1 TAPE PANEL 9600 US (USA/CAN) R
8 LA8312001 1 TAPE PANEL 9600 EC (EUROPE/ZAF/AUS) R, ADD
9 LA8258001 1 LCD PANEL 9600 US (USA/CAN) R
9 LA8338001 1 LCD PANEL 9600 GE (DEU/AUT) R
9 LA8313001 1 LCD PANEL 9600 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA/BEL/FIN/NOR/ESP/ZAF/AUS) R, ADD
9 LA8341001 1 LCD PANEL 9600 FR (FRA) R
10 LA7417001 1 NAVI DIAL 1850 GE (DEU/AUT) R
10 LA7432001 1 NAVI DIAL 1850 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA/BEL/FIN/NOR/ESP/ZAF/AUS) R, ADD
10 LA7436001 1 NAVI DIAL 1850 FR (FRA) R
11 LA8900001 1 EMBLEM 9600 (USA/CAN) R
12 LA8260001 1 BATTERY LID 9600 R
13 LA5753001 2 LOWER FOOT 2300
14 LA8354001 1 LOCK ARM
15 LA8262001 1 LOCK ARM RETURN SPRING
16 LA8263001 1 RELEASE BUTTON
17 UT1489001 1 RELEASE BUTTON RETURN SPRING
18 LA8308001 1 SHIELD PLATE D
19 LA8264001 1 SHEET A
20 085270817 14 TAPTITE, BIND B M2.6X8
21 085271017 12 TAPTITE, BIND B M2.6X10
22 LA8266001 1 CAUTION LABEL 9600 US (USA/CAN)
22 LA8335001 1 CAUTION LABEL 9600 EC (EUROPE/ZAF/AUS) ADD
23 LA5703001 1 FCC LABEL 2300 (USA/CAN)
23 LA4998001 1 C-TICK MARK (AUS) ADD
24 LA8267001 1 LIGHT PLATE ASSY 9600
25 LA8565001 2 CUSHION
26 LA8963000 1 CORE CUSHION (EUROPE/ZAF/AUS) ADD
27 LA8620001 1 MYLAR LABEL 3600 US (USA)
28 LA9349001 1 BRAKE PAD 3600
-4-
MODEL PT-9600 8V2-711-061
3 . KEYBOARD
MODEL PT-9600 8V2-711-003
-5-
3 . KEYBOARD PtPn020058
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1-8 LA8654001 1 KB UNIT US (USA/CAN) R
1-8 LA8655001 1 KB UNIT GE (DEU/AUT) R
1-8 LA8656001 1 KB UNIT UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA/FIN/NOR/ESP R
/ZAF)
1-8 LA8657001 1 KB UNIT FR (FRA) R
1-8 LA8658001 1 KB UNIT BG (BEL) R
1-8 LN0032001 1 KB UNIT AUS (AUS) ADD
1 LA8250001 1 BODY KB COVER 9600 US (USA/CAN)
1 LA8337001 1 BODY KB COVER 9600 GE (DEU/AUT)
1 LA8311001 1 BODY KB COVER 9600 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA ADD
/FIN/NOR/ESP/BEL/ZAF/AUS)
1 LA8340001 1 BODY KB COVER 9600 FR (FRA)
2 LA8176001 1 CONTACT RUBBER
3 LA8177001 1 FUNCTION RUBBER 9600 US (USA/CAN)
3 LA8178001 1 FUNCTION RUBBER 9600 GE (DEU/AUT)
3 LA8179001 1 FUNCTION RUBBER 9600 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA ADD
/FIN/NOR/ESP/BEL/ZAF/AUS)
3 LA8180001 1 FUNCTION RUBBER 9600 FR (FRA)
4 LA8187001 1 KEY D SP WIRE
5 LA8188001 1 KEY C RET WIRE
6 LA8189001 1 FIX PLATE
7 B55L137-1 LA8190001 1 PCB, B55L137
8 085270817 4 TAPTITE, BIND B M2.6X8
9 085270817 2 TAPTITE, BIND B M2.6X8 (USA/CAN)
9 085270817 5 TAPTITE, BIND B M2.6X8 (EUROPE/ZAF/AUS) ADD
10 B55L139-1 LA8305001 1 JOG PCB ASSY 9600 (EUROPE/ZAF/AUS) R, ADD
-6-
MODEL PT-9600 8V2-711-003
4 . MAIN PCB
MODEL PT-9600 8V2-711-101
-7-
4 . MAIN PCB PtPn020058
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1-2 B55L142-1 LA8345001 1 MAIN PCB ASSY 9600 US (USA/CAN) R
1-2 B55L142-1 LA8315001 1 MAIN PCB ASSY 9600 EC (EUROPE/ZAF/AUS) R, ADD
1 B1 UT1335000 1 LITHIUM BATTERY (CR2032HE4)
2 F1 UN0999000 1 FUSE, 125V4A
-8-
MODEL PT-9600 8V2-711-101
5 . SENSORS
MODEL PT-9600 8V2-711-100
6 . LCD PCB
MODEL PT-9600 8V2-711-108
-9-
5 . SENSORS
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1 B55L144-1/145-1 LA8270001 1 CUTTER SENSOR PCB ASSY 9600 R
2 B55L141-1 LA8274001 1 TAPE END SENSOR PCB ASSY 9600 R
3 B55L026-1 LA8277001 1 CASSETTE SENSOR PCB ASSY 9600 R
4 LA8282001 1 AV CASSETTE SENSOR ASSY 9600
5 B55L134-1 LA8280001 1 AV SENSOR PCB ASSY 9600
MODEL PT-9600 8V2-711-100
6 . LCD PCB
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1 B55L136-1 LA8283001 1 LCD PCB ASSY PT9600 R
2 B55L138-1 LA8287001 1 LED PCB ASSY PT9600 R
3 LA8290001 1 LCD HOLDER PT9600
4 UC4180000 1 DIODE, LIGHT EMIT(SLR-342MC)
-10-
MODEL PT-9600 8V2-711-108
-11-
7 . PRINTED MATTER
PtPn020058
MODEL PT-9600 8V2-711-920
7 . PRINTED MATTER PtPn020058
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1 LA8622001 1 USER'S MANUAL 3600, US (USA) R
1 LA8769001 1 USER'S MANUAL 3600,GERMAN (DEU/AUT) R
1 LA8770001 1 USER'S MANUAL 3600,CAN.ENGLIS (CAN) R
1 LA8771001 1 USER'S MANUAL 3600,CAN.FRENCH (CAN) R
1 LA8772001 1 USER'S MANUAL 3600,GBR.ENGLIS (GBR/IRL/FIN/ZAF/AUS) R, ADD
1 LA8773001 1 USER'S MANUAL 3600,FRENCH (FRA) R
1 LA8774001 1 USER'S MANUAL 3600,DUTCH (NLD/BEL) R
1 LA8775001 1 USER'S MANUAL 3600,CHE.FRENCH (CHE/BEL) R
1 LA8776001 1 USER'S MANUAL 3600,CHE.GERMAN (CHE) R
1 LA8777001 1 USER'S MANUAL 3600,DANISH (DNK) R
1 LA8778001 1 USER'S MANUAL 3600,SWEDISH (SWE) R
1 LA8779001 1 USER'S MANUAL 3600,ITALIAN (ITA) R
1 LA8781001 1 USER'S MANUAL 3600,NORWEGIAN (NOR) R
1 LA8782001 1 USER'S MANUAL 3600,SPANISH (ESP) R
2 LA8870001 1 SUPPORT MANUAL 9600,USA.ENG (USA) R
2 LA8783001 1 SUPPORT MANUAL 9600,GERMAN (DEU/AUT) R
2 LA8784001 1 SUPPORT MANUAL 9600,CAN.ENG (CAN) R
2 LA8785001 1 SUPPORT MANUAL 9600,CAN.FRE (CAN) R
2 LA8786001 1 SUPPORT MANUAL 9600,GBR.ENG (GBR/IRL/FIN/ZAF/AUS) R, ADD
2 LA8787001 1 SUPPORT MANUAL 9600,FRENCH (FRA) R
2 LA8788001 1 SUPPORT MANUAL 9600,DUTCH (NLD/BEL) R
2 LA8789001 1 SUPPORT MANUAL 9600,CHE.FRENCH (CHE/BEL) R
2 LA8790001 1 SUPPORT MANUAL 9600,CHE.GERMAN (CHE) R
2 LA8791001 1 SUPPORT MANUAL 9600,DANISH (DNK) R
2 LA8792001 1 SUPPORT MANUAL 9600,SWEDISH (SWE) R
2 LA8793001 1 SUPPORT MANUAL 9600,ITALIAN (ITA) R
2 LA8795001 1 SUPPORT MANUAL 9600,NORWEGIAN (NOR) R
2 LA8796001 1 SUPPORT MANUAL 9600,SPANISH (ESP) R
3A LA8623001 1 TAPE CATALOG US 36 DIECUT (USA)
3A LA8799001 1 TAPE CATALOG CA 36 (CAN)
3A LA2895001 1 TZ TAPE CATALOG, AUS CH (AUS) ADD
3B A UN4239001 1 TAPE CATALOG UK (EUROPE/ZAF)
4 LA8660001 1 LAMINATOR CATALOG (FRA)
5 LA7986001 1 REGISTRATION CARD (USA)
6A F UH3851001 1 WARRANTY CARD EUR (EUROPE/ZAF)
6B A UH3662001 1 WARRANTY CARD UK-A (GBR)
6C LE5115001 1 WARRANTY CARD SWE-A (SWE)
6D A UH3663001 1 WARRANTY CARD UK-B (GBR)
6E B UN8607001 1 WARRANTY CARD, CAN.E/F (CAN)
6F UB3650001 1 WARRANTY CARD, FRENCH (FRA)
6G LA1757001 1 WARRANTY CARD, SPA (ESP)
7 LA8624001 1 ACCESSORY ORDER FORM LIST (USA)
7 LN0026001 1 ACCESSORY ORDER FORM LIST AUS (AUS) ADD
8 LA8797001 1 LEGEND LABEL 3600 (CAN)
9 LA8798001 1 LEGEND INSERTION 3600 (CAN)
10 A LA9340001 1 UNPACKING INSTRUCTION 3600 ADD
11 LN0027001 1 K/B INSERTION AUS (AUS) ADD
12 LN0007001 1 LEAFLET (GBR) ADD
-12-
MODEL PT-9600 8V2-711-920
8 . ATTACHMENTS
MODEL PT-9600 8V2-711-910
9 . PACKING MATERIALS
PtPn020058
PtPn020054
MODEL PT-9600 8V2-711-930
-13-
8 . ATTACHMENTS PnPn020058
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1 LA8292001 1 ADAPTER AD9000 R
2A LA8291001 1 POWER SUPPLY CORD CSA (USA/CAN) R
2B LA8339001 1 POWER SUPPLY CORD CEE (DEU/FRA/NLD/CHE/DNK/SWE R
/AUT/ITA/BEL/FIN/NOR/ESP/ZAF) R
2C LA8370001 1 POWER SUPPLY CORD BS (GBR/IRL) R
2D LN0028001 1 POWER SUPPLY CORD BS (AUS) ADD
3 LA8293001 1 BATTERY NI-MH ASSY R
4 LA3700001 1 USB I/F CABLE R
5 LA8880001 1 CD-ROM 9600 ASSY US (USA)
5 LA8800001 1 CD-ROM 9600 ASSY EC (EUROPE/ZAF/AUS) ADD
5 LA8801001 1 CD-ROM 9600 ASSY CA (CAN)
6 LA8886001 1 KCA LABEL (NLD)
7 LA8997000 1 FEPRITE CORE, NF-65 (EUROPE/ZAF/AUS) ADD
MODEL PT-9600 8V2-711-910
9 . PACKING MATERIALS PtPn020058
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LA8294001 1 CARTON 9600 (USA) R
1 LA8803001 1 CARTON 9600 EC (EUROPE/ZAF/AUS) R, ADD
1 LA8868001 1 CARTON 9600 CA (CAN) R
2 LA8405000 1 BODY FRAME 9600 R
3 LA8560001 1 BAG, 350X640H (BODY)
4 LA6867001 1 BAG, 215X360H (USER’S MANUAL)
5 LA7882001 1 BAG, 130X350 (AC CODE)
6 LA8303001 1 CARRYING CASE ASSY 9600 R
7A LA0334001 2 CASSETTE SPACER 2410 (EXCEPT GBR)
7A LA0334001 1 CASSETTE SPACER 2410 (GBR)
7B LA4541000 1 CASSETTE SPACER 2410 (GBR)
8 LA9659000 1 PAD 195X252 (USA/DEU/GBR/FRA/IRL/NLD/DNK/SWE/AUT/ITA/FIN/NOR/ESP R, ADD
/ZAF/AUS)
9 LN0008001 1 STICKER (GBR) ADD
-14-
MODEL PT-9600 8V2-711-930
Nov., 2002
8V2045BE0
Printed in Japan
