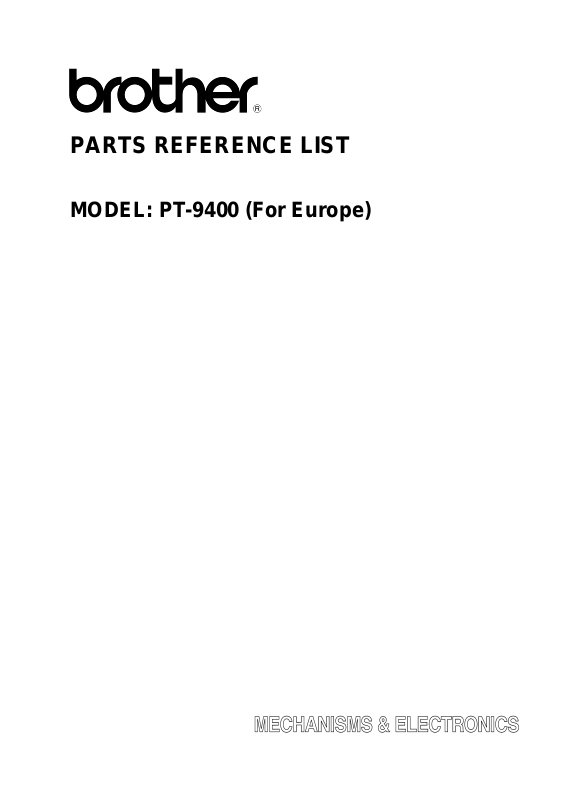

Brother PT-9400 Part List

PARTS REFERENCE LIST

MODEL: PT-9400 (For Europe)

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:
(1) Code

(2) Q'ty
(3) Description
(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO.

SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B48J300 - 1 01 A

Design change indication
Specification No.
Pattern alteration No.
Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new
CHNG#B : replaceable from old to new
CHNG#D : incompatible
ADD : newly established

3. The original of this list was made based on the information available in Nov., '98.

4. Parts are subject to change in design without prior notice.

CONTENTS

1.PRINT MECHANISM....................................................................1

2.COVERS......................................................................................3

3.KEYBOARD.................................................................................5

4.DETECTORS...............................................................................5

5.MAIN PCB ASSEMBLY................................................................7

6.POWER SUPPLY PCB................................................................9

7.INTERFACE PCB........................................................................9

8.LCD PCB....................................................................................11

9.ATTACHMENTS..........................................................................11

10.PRINTED MATTER......................................................................13

11.PACKING MATERIALS................................................................13

1 . PRINT MECHANISM PT99033

-1-

MODEL PT-9400 5V2-701-045

1 . PRINT MECHANISM PT2000026

LA2073001

1

Z26596001

1

Z26599001

1

UB3848001

2

LA0014001

1

LA2031001

1

UT0895001

1

048025346

1

UT0591001

1

LA2071001

1

HEAD ASSY KSH384 BW (SP) (NEW : From APR. 2000. Refer to the T/I #. PT2000020)

UT0901001

1

UT0239000

1

UT0240000

1

UB5507000

1

048025346

1

UT1549001

1

0A4301005

2

UT0254000

2

UT1434001

1

UB3733001

1

UT1436001

1

048020346

1

UT0256001

1

UT1439001

1

UT1440001

1

060300516

3

LA4064001

1

UT1449001

1

UT0932001

1

0A4401205

2

UT1452001

1

UT1461001

1

UT1462001

1

UT1463001

1

060300516

1

UT0961001

1

UT0855001

1

UT1466001

1

UT0855001

1

UT1468001

1

UB3848001

2

UT1470001

1

UB3848001

2

UT1472001

1

060300516

1

U62189000

1

048020346

1

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1
2
2

3
4
4
5
6
7
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

FRAME PRO ASSY
TAPE FEED MOTOR, BP242516M12-PP (OLD : Refer to the T/I #. PT2000020)
TAPE FEED MOTOR, BP242516M12-PP (NEW : From APR. 2000. Refer to the T/I #.
PT2000020)
SCREW, PAN M2.6X3.5
ROLLER HOLDER ASSY (SP) (OLD : Refer to the T/I #. PT2000020)
ROLLER HOLDER ASSY (SP) (NEW : From APR. 2000. Refer to the T/I #. PT2000020)
ROLLER HOLDER SHAFT
RETAINING RING, E2.5
HEAD ASSY KSH384 BW (SP) (OLD : Refer to the T/I #. PT2000020)

ROLLER HOLDER RELEASE SPRING
RELEASE LEVER
RELEASE ROD
RELEASE ROD ROLLER
RETAINING RING, E2.5
RELEASE LEVER SPRING PRO
SCREW, PAN (S/P WASHER) M3X10
CUTTER DOUBLE GEAR
CUTTER MOVING GEAR PRO
WASHER 2.6
FEEDING FORK SUB ASSY
RETAINING RING, E2
SPRING
ACTUATOR
HALF CUTTER FRAME PRO ASSY
SCREW, BIND M3X5
CUTTER ASSY (SP) CHNG#A
HALF CUTTER PRO ASSY
HALF SPACER
SCREW, PAN (S/P WASHER) M4X12
EJECT UNIT PRO ASSY
EJECT CONNECTING ROD
EJECT FIXED ROLLER
EJECT FIXED ROLLER HOLDER
SCREW, BIND M3X5
FULL CUTTER SENSOR ASSY
SCREW, PAN M1.7X6
FULL CUTTER SENSOR PRO ASSY
SCREW, PAN M1.7X6
HALF CUTTER MOTOR PRO ASSY
SCREW, PAN M2.6X3.5
FULL CUTTER MOTOR PRO ASSY
SCREW, PAN M2.6X3.5
SENSOR HOLDER PRO
SCREW, BIND M3X5
PLATEN PROTECT PAD
RETAINING RING, E2

-2-

MODEL PT-9400 EUROPE 5V2-701-045

2 . COVERS PT99002

-3-

MODEL PT-9400 5V2-701-061

2 . COVERS PT2000049

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1 UT1473001 1BODY COVER PRO UK, GRAY1395
2 UT1475001 1BOTTOM COVER PRO UK ASSY
3 UT1477001 1CASSETTE COVER PRO UK
4 UT1478001 1CASSETTE PRESSER PRO, GRAY1395
5 UT1479001 1CASSETTE PRESSER SPRING
6 UT1481001 1LCD PANEL PRO UK (GBR/IRL/NLD/CHE/DNK/SWE/BEL/FIN/NOR/ZAF/ESP) CHNG
6 UT1482001 1LCD PANEL PRO GE (DEU)
6 UT1483001 1LCD PANEL PRO FR (FRA)
7 UT1226001 1LIGHT PLATE ASSY
8 UT1484001 1LCD HOLDER

9 085270815 4TAPTITE, BIND B M2.6X8
10 UT1485001 1LOCK ARM
11 UT1486001 1LOCK ARM RETURN SPRING
12 085270815 1TAPTITE, BIND B M2.6X8
13 UT1487001 1ARM GUIDE
14 UT1504001 1RELEASE BUTTON US, GRAY1395
15 UT1489001 1RELEASE BUTTON RETURN SPRING
16 UT1505001 1ON/OFF KEY US, ORANGE3159
17 085270815 2TAPTITE, BIND B M2.6X8
18 UT1506001 1PRINT KEY US, BLUE6189

(GBR/IRL/NLD/CHE/DNK/SWE/BEL/FIN/NOR/ZAF/ESP)
18 UT1490001 1PRINT KEY GE, BLUE6189 (DEU)
18 UT1491001 1PRINT KEY FR, BLUE6189 (FRA)
19 085270815 2TAPTITE, BIND B M2.6X8
20 UT1492001 1COVER FRAME
21 U05404003 2TAPTITE, BIND B M3X8
22 060300516 4SCREW, BIND M3X5
23 UT1493001 1POWER SUPPLY COVER
24 UT1494001 1SHIELD PLATE D
25 U05404003 2TAPTITE, BIND B M3X8
26 U05404003 4TAPTITE, BIND B M3X8
27 084311016 2SCREW, FLAT B M3X10
28 0A5400805 1SCREW, PAN (S/P WASHER) M4X8
29 0A5400805 1SCREW, PAN (S/P WASHER) M4X8
30 U05404003 4TAPTITE, BIND B M3X8
31 U05404003 8TAPTITE, BIND B M3X8
32 U05404003 2TAPTITE, BIND B M3X8
33 UT1495001 1SHEET A
34 UT0267001 1LETTERING STICK TZ36
35 UB4431001 2LOWER FOOT
36 A UT0578001 1TAPE CAUTION LABEL PP EC
37 UT0850000 1WIRE SADDLE WS-1NS
38 UN4594000 1GROUND PLATE 350
39 060300516 1SCREW, BIND M3X5
40 085270815 2TAPTITE, BIND B M2.6X8
41 LJ4421001 1MARKING LABEL N/S
42 UT0544001 1SHIELD SHEET

CHNG

-4-

MODEL PT-9400 EU 5V2-701-061

3 . KEYBOARD

MODEL PT-9400 5V2-701-003

4 . DETECTORS

MODEL PT-9400 5V2-701-100

-5-

3 . KEYBOARD

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1 UT1508001 1 KB UNIT UK (GBR/IRL/NLD/CHE/DEK/SWE/FIN/NOR/ZAF)
1 UT1509001 1 KB UNIT GE (DEU)
1 UT1510001 1 KB UNIT FR (FRA)
1 UT1511001 1 KB UNIT BG (BEL)

MODEL PT-9400 5V2-701-003

4 . DETECTORS

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1 B55L038-1 UT1513001 2 SW PCB ASSY PRO
2 B55L026-1 UT0545001 1 SENSOR PCB ASSY PROPC (SP)
3 B55L028-1 UT0546001 1 TAPE END SENSOR ASSY (SP)
4 UT0830001 1 INLET ASSY PP

-6-

MODEL PT-9400 5V2-701-100

5 . MAIN PCB ASSEMBLY PT2000020

-7-

MODEL PT-9400 5V2-701-101

5 . MAIN PCB ASSEMBLY PT2000020

UT0846001

1

LA2069001

1

UT1517000

1

UT0816000

1

LA1457001

1

LA2030001

1

UT0042000

1

UK3104000

1

UT1335000

1

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1-6 B55L029-3
1-6 B55L029-3

CODE LABEL 01
1 #4
2 #5
3 #1
3 #1

4 #3
5 #2
6 B1

MAIN PCB PRO ASSY (SP) (OLD : Refer to the T/I #. PT2000020)
MAIN PCB PRO ASSY (SP) (NEW : From APR. 2000. Refer to the T/I #.
PT2000020)
MPU:MB91104
GATE ARRAY:D65625GF115
MASK ROM:UPD23C16000 (OLD : Refer to the T/I #. PT2000020)
MASK ROM:UPD23C16000 (NEW : From APR. 2000. Refer to the T/I #.
PT2000020)
SRAM:SRM2B257SLM
DRAM:4260SOJ-80
LITHIUM BATTERY:CR2032HE4

ADD

ADD

MODEL PT-9400 EUROPE 5V2-701-101

-8-

6 . POWER SUPPLY PCB

MODEL PT-9400 5V2-701-102

7 . INTERFACE PCB

MODEL PT-9400 5V2-701-104

-9-

6 . POWER SUPPLY PCB

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1 MPW1433 UT0844001 1 PS PCB ASSY, 230V (SP)
2 UT0837001 1 RELAY HARNESS ASSY

MODEL PT-9400 5V2-701-102

7 . INTERFACE PCB

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1 B55L037-1 UT0849001 1 I/F PCB PRO ASSY (SP)

-10-

MODEL PT-9400 5V2-701-104

8 . LCD PCB

MODEL PT-9400 5V2-701-108

9 . ATTACHMENTS

MODEL PT-9400 5V2-701-910

-11-

8 . LCD PCB

UT0847001

1

UT0848001

1

UH1054001

1

UH1052001

1

UH1053001

1

UK4094001

1

U34320001

1

UN7385001

1

LA3716001

1

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1 NCOG040
2 B55L030-1

LCD ASSY (SP)
LED PCB PRO ASSY (SP)

MODEL PT-9400 EC 5V2-701-108

9 . ATTACHMENTS PT2001018

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1A

1B
1C
1D
1E

2
3

AC CORD, BS (GBR/IRL)
AC CORD, VDE (DEU/FRA/NLD/SWE/BEL/FIN/NOR/ESP)
AC CORD, SEV (CHE)
AC CORD, DEMKO (DNK)
AC CORD #4, BS (ZAF)
I/F CABLE WIN/MAC, SERIAL I/F
CD-ROM ASSY USB EC CHNG#D

MODEL PT-9400 EC 5V2-701-910

-12-

10 . PRINTED MATTER PT2001018

MODEL PT-9400 EU 5V2-701-920

11 . PACKING MATERIAL PT2100018

-13-

MODEL PT-9400 EU 5V2-701-930

10 . PRINTED MATTER PT2001018

UT1532001

1

UT1533001

1

UT1534001

1

UT1535001

1

UT1536001

1

UT1537001

1

UT1538001

1

UT1539001

1

UT1540001

1

UH3662001

1

UH3663001

1

UB3650001

1

UB2565001

UH3851001

1

1

UU0605001

1

UN4239001

1

UT1400001

1

LA1456001

1

LA1667001

1

LA2367001

1

LA4997001

1

LA4945001

1

UT0460001

1

UT0463000

1

UT0461000

1

UT0467000

2

UT0468001

1

UT0458001

1

UN5224001

1

UT0594001

1

LA3939001

2

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
3
4
5
6
7
8
9

USER'S MANUAL, GERMAN (DEU)
USER'S MANUAL, ENGLISH (GBR/IRL/FIN/ZAF/ESP)
USER'S MANUAL, FRENCH (FRA)
USER'S MANUAL, DUTCH (NLD/BEL)
USER'S MANUAL, CHE GERMAN (CHE)
USER'S MANUAL, CHE FRENCH (CHE/BEL)
USER'S MANUAL, DANISH (DNK)
USER'S MANUAL, SWEDISH (SWE)
USER'S MANUAL, NORWEGIAN (NOR)
WARRANTY CARD UK-A (GBR)
WARRANTY CARD UK-B (GBR)
WARRANTY CARD, FRENCH (FRA)
WARRANTY CARD, SWEDISH (SWE)
WARRANTY CARD, EUR
WARRANTY CARD, SPA (ESP)
TAPE CATALOG UK
UNPACKING INSTRUCTION 9400
INSERTION PT9400 EC
INSERTION PT9400 EC-2
INSERTION SHEET
EMC INSERTION SHEET, (EUROPE)
INSERTION PT E3. 1 ADD

MODEL PT-9400 EU 5V2-701-920

11 . PACKING MATERIALS PT2001018

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1
2
3
4
5
6
7
8
9

CARTON PRO UK
BODY FRAME PRO
BODY HOLDER PRO
CORRUPAD L PRO
ACCESSORIES CARTON PRO ASSY
BAG, 500X640H (BODY)
BAG, 215X360H (INSTALLATION GUIDE)
BAG, 130X350 (AC CODE)
WINDOW 2000 LABEL ADD

MODEL PT-9400 EU 5V2-701-930

-14-
