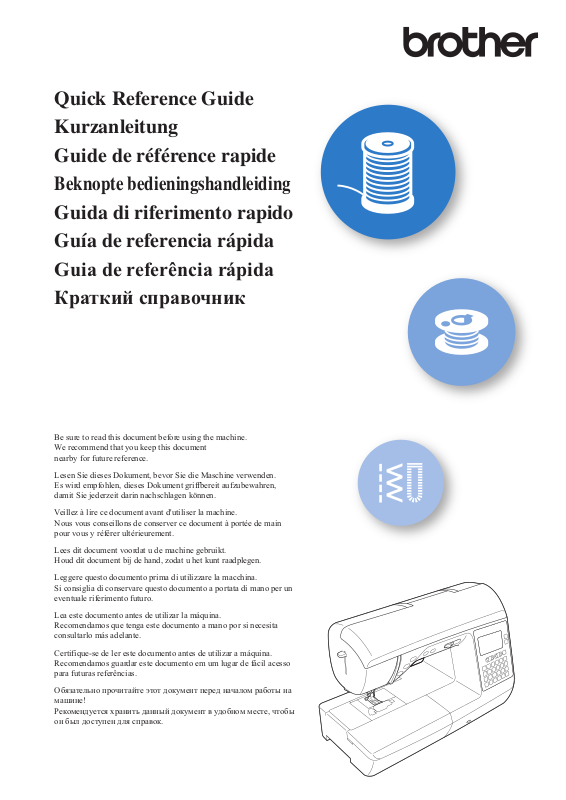

Brother Innov-is NV1040SE Quick Reference
Quick Reference Guide Kurzanleitung
Guide de référence rapide Beknopte bedieningshandleiding Guida di riferimento rapido Guía de referencia rápida
Guia de referência rápida
Краткий справочник
Be sure to read this document before using the machine. We recommend that you keep this document
nearby for future reference.
Lesen Sie dieses Dokument, bevor Sie die Maschine verwenden. Es wird empfohlen, dieses Dokument griffbereit aufzubewahren, damit Sie jederzeit darin nachschlagen können.
Veillez à lire ce document avant d'utiliser la machine.
Nous vous conseillons de conserver ce document à portée de main pour vous y référer ultérieurement.
Lees dit document voordat u de machine gebruikt.
Houd dit document bij de hand, zodat u het kunt raadplegen.
Leggere questo documento prima di utilizzare la macchina.
Si consiglia di conservare questo documento a portata di mano per un eventuale riferimento futuro.
Lea este documento antes de utilizar la máquina. Recomendamos que tenga este documento a mano por si necesita consultarlo más adelante.
Certifique-se de ler este documento antes de utilizar a máquina. Recomendamos guardar este documento em um lugar de fácil acesso para futuras referências.
Обязательно прочитайте этот документ перед началом работы на машине!
Рекомендуется хранить данный документ в удобном месте, чтобы он был доступен для справок.
Before using your machine for the first time please read the “IMPORTANT SAFETY INSTRUCTIONS” in the Operation Manual.
Refer to the Operation Manual for detailed instructions. In this guide, English screens are used for basic explanations.
Avant d’utiliser votre machine pour la première fois, veuillez lire les « INSTRUCTIONS DE SÉCURITÉ IMPORTANTES » indiquées dans le manuel d’instructions.
Reportez-vous au manuel d’instructions pour des informations détaillées.
Les écrans de ce guide sont en anglais pour les explications de base.
Prima di utilizzare la macchina per la prima volta, leggere “IMPORTANTI ISTRUZIONI DI SICUREZZA” nel Manuale di istruzioni.
Per le istruzioni dettagliate, consultare il Manuale di istruzioni.
Nella presente guida si utilizzano le schermate in inglese per le spiegazioni di base.
Antes de utilizar a sua máquina pela primeira vez, leia as “INSTRUÇÕES DE SEGURANÇA IMPORTANTES” no Manual de Operações.
Consulte o Manual de Operações para obter instruções detalhadas.
Neste manual, as telas em inglês são usadas para as explicações básicas.
Bevor Sie die Maschine zum ersten Mal verwenden, lesen Sie bitte „WICHTIGE SICHERHEITSHINWEISE“ in der Bedienungsanleitung.
Ausführliche Hinweise finden Sie in der Bedienungsanleitung.
In dieser Anleitung werden für die grundlegenden Erläuterungen englischsprachige Bildschirme verwendet.
Lees – voordat u de machine de eerste keer gebruikt – de “BELANGRIJKE VEILIGHEIDSINSTRUCTIES” in de Bedieningshandleiding.
In de Bedieningshandleiding vindt u uitvoerige aanwijzingen.
In deze gids worden Engelse schermen gebruikt bij de uitleg van basisbewerkingen.
Antes de utilizar la máquina por primera vez, lea las “INSTRUCCIONES DE SEGURIDAD IMPORTANTES” en el Manual de Instrucciones.
Consulte las instrucciones detalladas en el Manual de Instrucciones.
En esta guía, para las explicaciones básicas se utilizan pantallas en inglés.
Перед первым использованием машины прочитайте раздел “ВАЖНЫЕ ИНСТРУКЦИИ ПО БЕЗОПАСНОСТИ” в Руководстве пользователя.
Подробные инструкции см. в Руководстве пользователя. В данном руководстве в качестве иллюстраций используются англоязычные экраны.
Contents |
|
Accessories............................................................. |
2 |
Included Accessories................................................... |
2 |
Optional Accessories.................................................. |
2 |
Winding/Installing the Bobbin.............................. |
10 |
Upper Threading.................................................. |
12 |
Selecting and Sewing Patterns.............................. |
14 |
Table des matières |
|
Accessoires............................................................. |
4 |
Accessoires inclus....................................................... |
4 |
Accessoires en option................................................. |
4 |
Bobinage/installation de la canette...................... |
10 |
Enfilage supérieur................................................. |
12 |
Sélection et couture de motifs.............................. |
14 |
Sommario |
|
Accessori................................................................ |
6 |
Accessori in dotazione................................................ |
6 |
Accessori opzionali..................................................... |
6 |
Avvolgimento/Installazione della spolina............. |
10 |
Infilatura superiore............................................... |
12 |
Selezione e cucitura di motivi.............................. |
14 |
Índice |
|
Acessórios.............................................................. |
8 |
Acessórios incluídos.................................................... |
8 |
Acessórios opcionais................................................... |
8 |
Encher/Instalar a bobina...................................... |
10 |
Passagem da linha superior.................................. |
12 |
Seleção e costura de padrões............................... |
14 |
Inhalt |
|
Zubehör................................................................. |
2 |
Mitgeliefertes Zubehör................................................ |
2 |
Optionales Zubehör.................................................... |
2 |
Aufwickeln/Einsetzen der Spule........................... |
10 |
Einfädeln des Oberfadens..................................... |
12 |
Auswählen und Nähen von Stichen...................... |
14 |
Inhoudsopgave |
|
Accessoires............................................................. |
4 |
Bijgeleverde accessoires.............................................. |
4 |
Optionele accessoires................................................. |
4 |
Spoel opwinden/installeren.................................. |
10 |
Inrijgen van de bovendraad.................................. |
12 |
Steken selecteren en naaien................................. |
14 |
Contenido |
|
Accesorios.............................................................. |
6 |
Accesorios incluidos................................................... |
6 |
Accesorios opcionales................................................. |
6 |
Devanar/colocar la bobina................................... |
10 |
Hilo superior........................................................ |
12 |
Seleccionar y coser patrones................................ |
14 |
Содержание |
|
Принадлежности......................................................... |
8 |
Принадлежности в комплекте поставки......................... |
8 |
Дополнительные принадлежности.................................. |
8 |
Намотка/установка шпульки.................................. |
10 |
Заправка верхней нити............................................ |
12 |
Выбор швейных строчек......................................... |
14 |
1
|
|
|
|
|
|
|
|
|
|
Accessories |
Zubehör |
Included Accessories Mitgeliefertes Zubehör
1. |
2. |
3. |
4. |
5. |
6. |
|
7. |
|
- |
1 |
* |
, |
5 |
0 |
$ |
8.*1 |
9.*2 |
10. |
11. |
12. |
13. |
|
14. |
15. |
16. |
17. |
18. |
19. |
20. |
|
21. |
22. |
23. |
24. |
25. |
26. |
27. |
|
|
28. |
29. |
*1 75/11 2 needles, |
|
*1 75/11 2 Nadeln, |
|
|
|
|
|
|
|
|
|||
|
|
90/14 2 needles, |
|
90/14 2 Nadeln, |
|
|
|
|
|
90/14 2 needles: Ball point needle (gold colored) |
90/14 2 Nadeln: Goldfarbene Nadel mit Kugelspitze |
||||
|
|
*2 2/11 needle |
|
*2 2/11 Nadel |
|
|
|
Optional Accessories |
Optionales Zubehör |
|
|
|
|
||
1. |
2. |
|
3. |
4. |
5. |
|
6. |
7. 8. 9. 10. 11. 12.
|
|
O |
3 |
|
|
|
|
13. |
14. |
|
15. |
Note
•The presser foot holder screw is available through your authorized Brother dealer. (Part code: XG1343-001)
•The presser foot accessory tray is available, through your authorized Brother dealer. (Part code: XF8650-001)
Hinweis
•Die Nähfußhalterschraube ist bei Ihrem Fachhändler erhältlich. (Teilenummer: XG1343-001)
•Das Nähfußhalter-Zubehörtablett ist bei Ihrem Brother-Vertragshändler erhältlich. (Teilenummer: XF8650-001)
2
Included Accessories
No. |
Part Name |
|
|
Part Code |
||
|
Americas |
|
Others |
|||
|
|
|
|
|||
1 |
Zigzag foot “J” (on machine) |
XF9671-101 |
||||
2 |
Monogramming foot “N” |
XD0810-031 |
||||
3 |
Overcasting foot “G” |
XC3098-031 |
||||
4 |
Zipper foot “I” |
|
X59370-021 |
|||
5 |
Blind stitch foot “R” |
XE2650-001 |
||||
6 |
Button fitting foot “M” |
XE2643-001 |
||||
7 |
Buttonhole foot “A” |
XC2691-023 |
||||
8 |
Needle set |
|
X58358-021 |
|||
9 |
Twin needle |
|
X59296-121 |
|||
10 |
Bobbin (4) (One is on machine.) |
SA156*3 |
|
SFB: XA5539-151 |
||
11 |
Seam ripper |
|
XF4967-001 |
|||
12 |
Cleaning brush |
|
X59476-051 |
|||
13 |
Eyelet punch |
XZ5051-001 |
||||
14 |
Screwdriver |
XC4237-021 |
||||
15 |
L-shaped screwdriver |
XG0918-001 |
||||
16 |
Disc-shaped screwdriver |
XC1074-051 |
||||
17 |
Horizontal spool pin |
XC4654-251 |
||||
18 |
Spool cap (large) |
|
130012-024 |
|||
19 |
Spool cap (medium) (2) (One is on machine.) |
XE1372-001 |
||||
20 |
Spool cap (small) |
|
130013-124 |
|||
21 |
Thread spool insert (mini king thread spool) |
XA5752-121 |
||||
22 |
Spool net |
XA5523-020 |
||||
23 |
Knee lifter |
XA6941-052 |
||||
24 |
Bobbin case (on machine) |
XG2058-001 |
||||
25 |
Foot controller |
XZ5098-001(EU area) |
||||
XZ5100-001(other areas) |
||||||
|
|
|
||||
26 |
Accessory bag |
XC4487-021 |
||||
27 |
Hard case |
XF8684-001 |
||||
28 |
Operation Manual |
Contact your authorized Brother |
||||
29 |
Quick Reference Guide |
dealer. |
|
|
||
*3 SA156 is Class15 type bobbin.
Mitgeliefertes Zubehör
|
|
|
Bestellnummer |
||||
Nr. |
Teilebezeichnung |
|
Nordund |
|
|
Andere |
|
|
|
|
Südamerika |
|
|||
|
|
|
|
|
|||
1 |
Zickzackfuß „J“ (an der Maschine) |
|
XF9671-101 |
||||
2 |
Nähfuß „N“ |
|
XD0810-031 |
||||
3 |
Überwendlingfuß „G“ |
|
XC3098-031 |
||||
4 |
Reißverschlussfuß „I“ |
|
X59370-021 |
||||
5 |
Blindstichfuß „R“ |
|
XE2650-001 |
||||
6 |
Knopfannähfuß „M“ |
|
XE2643-001 |
||||
7 |
Knopflochfuß „A“ |
|
XC2691-023 |
||||
8 |
Nadelsatz |
|
X58358-021 |
||||
9 |
Zwillingsnadel |
|
X59296-121 |
||||
10 |
Spule (4) (Eine ist in der Maschine.) |
SA156*3 |
|
|
SFB: XA5539-151 |
||
11 |
Pfeiltrenner |
|
|
XF4967-001 |
|||
12 |
Reinigungspinsel |
|
X59476-051 |
||||
13 |
Ahle |
|
XZ5051-001 |
||||
14 |
Schraubendreher |
|
XC4237-021 |
||||
15 |
L-förmiger Schraubendreher |
|
XG0918-001 |
||||
16 |
Scheibenförmiger Schraubendreher |
|
XC1074-051 |
||||
17 |
Horizontaler Garnrollenstift |
|
XC4654-251 |
||||
18 |
Garnrollenkappe (groß) |
|
130012-024 |
||||
19 |
Garnrollenkappe (mittel) (2) (Eine ist in der |
|
XE1372-001 |
||||
Maschine.) |
|
||||||
|
|
|
|
|
|||
20 |
Garnrollenkappe (klein) |
|
130013-124 |
||||
21 |
Garnrollenkappeneinsatz |
|
XA5752-121 |
||||
(Mini King Garnrolle) |
|
||||||
|
|
|
|
|
|||
22 |
Spulennetz |
|
XA5523-020 |
||||
23 |
Kniehebel |
|
XA6941-052 |
||||
24 |
Spulenkapsel (in der Maschine) |
|
XG2058-001 |
||||
25 |
Fußpedal |
XZ5098-001(EU-Zone) |
|||||
XZ5100-001(andere Zonen) |
|||||||
|
|
|
|||||
26 |
Zubehörtasche |
|
XC4487-021 |
||||
27 |
Tragekoffer |
|
XF8684-001 |
||||
28 |
Bedienungsanleitung |
Wenden Sie sich an Ihr Brother- |
|||||
29 |
Kurzanleitung |
Fachgeschäft. |
|
||||
*3 SA156 ist eine Class15-Spule.
Optional Accessories
The following are available as optional accessories to be purchased separately from your authorized Brother dealer.
No. |
Part Name |
Part Code |
||
Americas |
Others |
|||
|
|
|||
1 |
Quilting foot |
SA129 |
F005N: XC1948-052 |
|
2 |
Walking foot |
SA140 |
F033N: XC2214-052 |
|
3 |
1/4" quilting foot |
SA125 |
F001N: XC1944-052 |
|
4 |
1/4" quilting foot with guide |
SA185 |
F057: XC7416-252 |
|
5 |
Quilting guide |
SA132 |
F016N: XC2215-052 |
|
6 |
Side cutter “S” |
SA177 |
F054: XC3879-152 |
|
7 |
Open toe foot |
SA186 |
F060: XE1094-101 |
|
8 |
Free motion open toe quilting |
SA187 |
F061: XE1097-001 |
|
foot “O” |
||||
|
|
|
||
9 |
Non stick foot |
SA114 |
F007N: XC1949-052 |
|
10 |
Stitch guide foot “P” |
SA160 |
F035N: XC1969-052 |
|
11 |
Adjustable zipper/piping foot |
SA161 |
F036N: XC1970-052 |
|
12 |
Roller foot |
SA190 |
F066: XF1723-001 |
|
|
|
|
SNP02: |
|
13 |
Straight stitch foot and needle |
SA564 |
XG0946-001 |
|
plate set |
SA564C (Canada) |
SNP02AP: |
||
|
||||
|
|
|
XG0948-001 |
|
|
|
SAWTNQ1 |
WT12: |
|
14 |
Wide table |
(U.S.A.) |
XG0955-001 |
|
SAWTNQ1C |
WT12AP: |
|||
|
|
|||
|
|
(Canada) |
XG0956-001 |
|
|
|
SA563 |
TS7: |
|
15 |
Spool stand |
(U.S.A.) |
XG0900-001 |
|
SA563C |
TS7AP: |
|||
|
|
|||
|
|
(Canada) |
XG0902-001 |
|
Optionales Zubehör
Folgendes Sonderzubehör ist separat bei Ihrem Brother-Vertragshändler erhältlich.
Nr. |
Teilebezeichnung |
Bestellnummer |
||
Nordund Südamerika |
Andere |
|||
|
|
|||
1 |
Freihand Stickund Quiltfuß |
SA129 |
F005N: XC1948-052 |
|
2 |
Stoffobertransport |
SA140 |
F033N: XC2214-052 |
|
3 |
1/4-Zoll-Quiltfuß |
SA125 |
F001N: XC1944-052 |
|
4 |
1/4-Zoll-Quiltfuß mit Führung |
SA185 |
F057: XC7416-252 |
|
5 |
Quilt-Führung |
SA132 |
F016N: XC2215-052 |
|
6 |
Kantenabschneider „S” |
SA177 |
F054: XC3879-152 |
|
7 |
Applikationsfuß |
SA186 |
F060: XE1094-101 |
|
8 |
Offener Nähfuß „O“ zum Freihand- |
SA187 |
F061: XE1097-001 |
|
Quilten |
||||
|
|
|
||
9 |
Antihaftfuß |
SA114 |
F007N: XC1949-052 |
|
10 |
Stichführungsfuß „P“ |
SA160 |
F035N: XC1969-052 |
|
11 |
Einstellbarer Reißverschluss/ |
SA161 |
F036N: XC1970-052 |
|
Kordelfuß |
||||
|
|
|
||
12 |
Rollenfuß |
SA190 |
F066: XF1723-001 |
|
|
|
|
SNP02: |
|
13 |
Geradstichfuß und |
SA564 |
XG0946-001 |
|
Geradstichplatte |
SA564C (Kanada) |
SNP02AP: |
||
|
||||
|
|
|
XG0948-001 |
|
|
|
SAWTNQ1 |
WT12: |
|
14 |
Maxi-Anschiebetisch |
(USA) |
XG0955-001 |
|
SAWTNQ1C |
WT12AP: |
|||
|
|
|||
|
|
(Kanada) |
XG0956-001 |
|
|
|
SA563 |
TS7: |
|
15 |
Garnrollenständer |
(USA) |
XG0900-001 |
|
SA563C |
TS7AP: |
|||
|
|
|||
|
|
(Kanada) |
XG0902-001 |
|
3
|
|
|
|
|
|
|
|
|
|
Accessoires |
Accessoires |
Accessoires inclus Bijgeleverde accessoires
1. |
2. |
3. |
4. |
5. |
6. |
|
7. |
- |
1 |
* |
|
, |
5 |
0 |
$ |
8.*1 |
9.*2 |
10. |
11. |
12. |
13. |
|
14. |
15. |
16. |
17. |
18. |
19. |
20. |
|
21. |
22. |
23. |
24. |
25. |
26. |
27. |
|
|
28. |
29. |
*1 2 aiguilles 75/11, |
|
|
*1 75/11 2 naalden, |
|
|
|
|
|
|
|
|
||
|
|
2 aiguilles 90/14, |
|
|
90/14 2 naalden, |
|
|
|
|
2 aiguilles 90/14 : aiguille à pointe boule (dorée) |
90/14 2 naalden: ballpointnaald (goudkleurig) |
||||
|
|
*2 aiguille 2/11 |
|
|
*2 2/11 naald |
|
|
Accessoires en option |
Optionele accessoires |
|
|
|
||
|
|
|
|
|
|
|
|
1. |
2. |
3. |
4. |
5. |
6. |
7. 8. 9. 10. 11. 12.
|
|
O |
3 |
|
|
|
|
13. |
14. |
|
15. |
Remarque
•La vis du support du pied-de-biche est disponible auprès de votre revendeur Brother agréé. (code de référence: XG1343-001)
•Le tiroir d’accessoires pour pied-de-biche est disponible auprès de votre revendeur Brother agréé. (code de référence: XF8650-001)
Opmerking
•De persvoethouderschroef is verkrijgbaar via uw erkende Brother-dealer. (onderdeelcode: XG1343-001)
•Het opbergvak voor persvoeten is verkrijgbaar via uw erkende Brother-dealer. (onderdeelcode: XF8650-001)
4
Loading...
