Trash Compactors
May 2008
Almost everything normally placed
in your kitchen garbage can be
placed in a trash compactor, with
the exception of paint, oil, aerosol
cans and other hazardous materials.
2
Six bags reduced to one. And five fewer trips to the garage.
No one really talks about it. The waste can under the kitchen sink.
It’s a necessary evil, or so they say. But that all changes with a
Broan Elite Trash Compactor.
Broan has been designing these convenience appliances for
nearly 40 years, refining the product while defining the category.
And the result? A new line of products that is the perfect
complement to today’s high-style appliances, and
environmentally-conscious homeowners.
Broan Elite XE and Broan Elite
trash compactors take convenience,
hygiene and style to a new level.
But beautiful lines, rich finishes
and automatic cycling features
are just part of the story.
Inside is a clean compartment, a crushing mechanism with 3,000
pounds of continual force, electronic controls, odor reduction systems
and Microban® antimicrobial protection. But what you take outside
is what really makes a difference.
Broan helps reduce your waste volume by 75%, and while that’s
fewer steps to the garage, it’s also less volume at the curb, and a
smaller bundle in the truck that hauls it away. And
that’s when it all makes sense: if everybody
reduced volume, fewer trips would be needed
to the landfill, which means less fuel, less
traffic, and a cleaner environment all the
way around. Who would have thought
it all started under the kitchen sink?
3
Broan Elite XE
Beauty. Brawn. And intelligence, too.
Broan Elite XE models are available with
an arched stainless steel door, as well as
flat-front doors in stainless steel, white or
black. For a custom look, a wood or tile
insert tray lets you match the materials
and cabinetry in your home. See pages
8 and 9 for more ideas.
4
Broan Elite XE. Beauty that performs—automatically.
Broan makes everything about trash
removal easier. It starts with a reversible door that opens like a refrigerator, simplifying access to an easyto-reach and clean compartment. To handle the load, ball-bearing slides enable the trash bucket to glide out
effortlessly. Our unique drop-down bucket front means there’s no awkward lifting over the side, and conveniently
placed electronic controls and our auto-delay function let you program the compactor to start when you’re
away. Then, the touch of a single button sets it for duty, and you can forget about it—you’ll never come home
to an overflowing waste receptacle again. But best of all, Broan Elite XE compactors keep odors in check.
Our exclusive system actually helps eliminate odors by neutralizing them, rotates a fresh segment into place
automatically every month, and lets you know when it’s time for replacement.
Broan Elite XE Features
3000 lbs. of continual compaction force and
¾ horsepower motor deliver powerful performance
and 6 to 1 compaction ratio.
1.55 cubic foot, painted steel trash bucket holds
30 lbs. of compacted trash.
Programmable compaction cycle for automatic operation
with 5-minute memory back-up during a power outage.
Six-month, auto advance, odor control system
with disc change indicator.
Full extension, ball-bearing drawer slides.
Stainless steel compacting plate with Microban
antimicrobial protective coating.
Insulated door with magnetic gasket for quiet cycling.
Activation button with status LED.
Fully-enclosed, adjustable height, painted metal cabinet
with fingerprint resistant coating.
Reversible 170° hinged door.
Child lock with removable key provides peace of mind.
Integral bag storage compartment means bags are
always within reach.
Optional toe kick kit for freestanding installations
(see page 10 for details).
MICROBAN is a registered trademark of the Microban Products Company
Stainless
Steel
Gloss
White
Gloss
Black
®
Programmable compaction cycle with five-minute
memory back-up during power outage
A six-month, odor-reduction disc automatically
advances and features a replacement indicator
Dimpled compacting plate
with Microban® coating
crushes bottles and cansFull extension ball-bearing drawer slides
5
Broan Elite
Proof that a trash compactor
can look smashing.
Broan Elite Trash Compactors feature
flat-front doors in stainless steel, white or
black. Choose a model with a door insert
tray and add tile or a cabinet-matching
wood panel, as shown here. See pages
8 and 9 for more ideas.
6
Broan Elite. Convenience made easy in a few simple steps.
Like its more automated
sibling, Broan Elite trash compactors simplify waste containment and removal. A full-swinging, reversible door
opens to an easy-to-clean compartment and a full-extension trash bucket. Its simplified control panel requires
just two settings to start the process. Turn the activation key, close the door and touch one button. That’s
it. Removing the compacted bag is easy, too—lower the bucket front and slide the bag forward to the floor.
There’s no more lifting over the side. Broan Elite compactors also use our exclusive six-month odor control
and neutralizing system. Rotate the dial once a month and a fresh segment is ready to work.
Broan Elite Features
3000 lbs. of continual compaction force and
¾ horsepower motor delivers powerful performance
and 6 to 1 compaction ratio.
1.55 cubic foot, painted steel trash bucket
holds 30 lbs. of compacted trash.
Six-month, manual advance,
odor control system.
Full extension, ball-bearing drawer slides provide
effortless gliding of trash bucket.
Painted steel compacting plate is specially designed
to crush bottles and cans.
Magnetic door gasket for a positive seal.
Fully-enclosed, adjustable height, painted metal
cabinet with fingerprint resistant coating.
Reversible 170° hinged door.
Child lock with removable key provides peace of mind.
Integral bag storage compartment means bags are
always within reach.
Optional toe kick kit for freestanding installations
(see page 10 for details).
Stainless
Steel
Gloss
White
Gloss
Black
Simplified two-step control panel
Dimpled compaction plate designed
for crushing bottles and cansFull extension ball-bearing drawer slides
7
Shown: Model 15XEWT
Personalize your style.
Broan trash compactors let you make your own design
statement. If you prefer to have appliances blend in
seamlessly with your cabinetry, select a trash compactor
designed to accept a wood insert door front. Your
cabinetmaker simply creates an insert with a profile
that matches your doors or drawers.
To accent tile backsplashes or to carry the rich
textures of the floor vertically, consider a compactor
with a tile insert door front.
Of course, the coordinated look can
be achieved as well with appliance
matching solids in rich gloss black
or white, or classic stainless steel.
Whatever you choose, Broan has
you covered.
8
Shown: Model 15XETT
Shown: Model 15XESSA
Shown: Model 15XESS and 15SS
Broan Elite XE with Arched Stainless Steel Door
It’s a distinctive appearance you’ll find only from Broan.
Shown: Model 15XEWH and 15WH
Broan Elite XE and Broan Elite with flat front
stainless steel door.
Shown: Model 15XEBL and 15BL
Shown: Model 15XEWH and 15WH Shown: Model 15XEBL and 15BL
Broan Elite XE and Broan Elite with flat front
appliance matching Gloss White finish.
Broan Elite XE and Broan Elite with flat front
appliance matching Gloss Black finish.
9

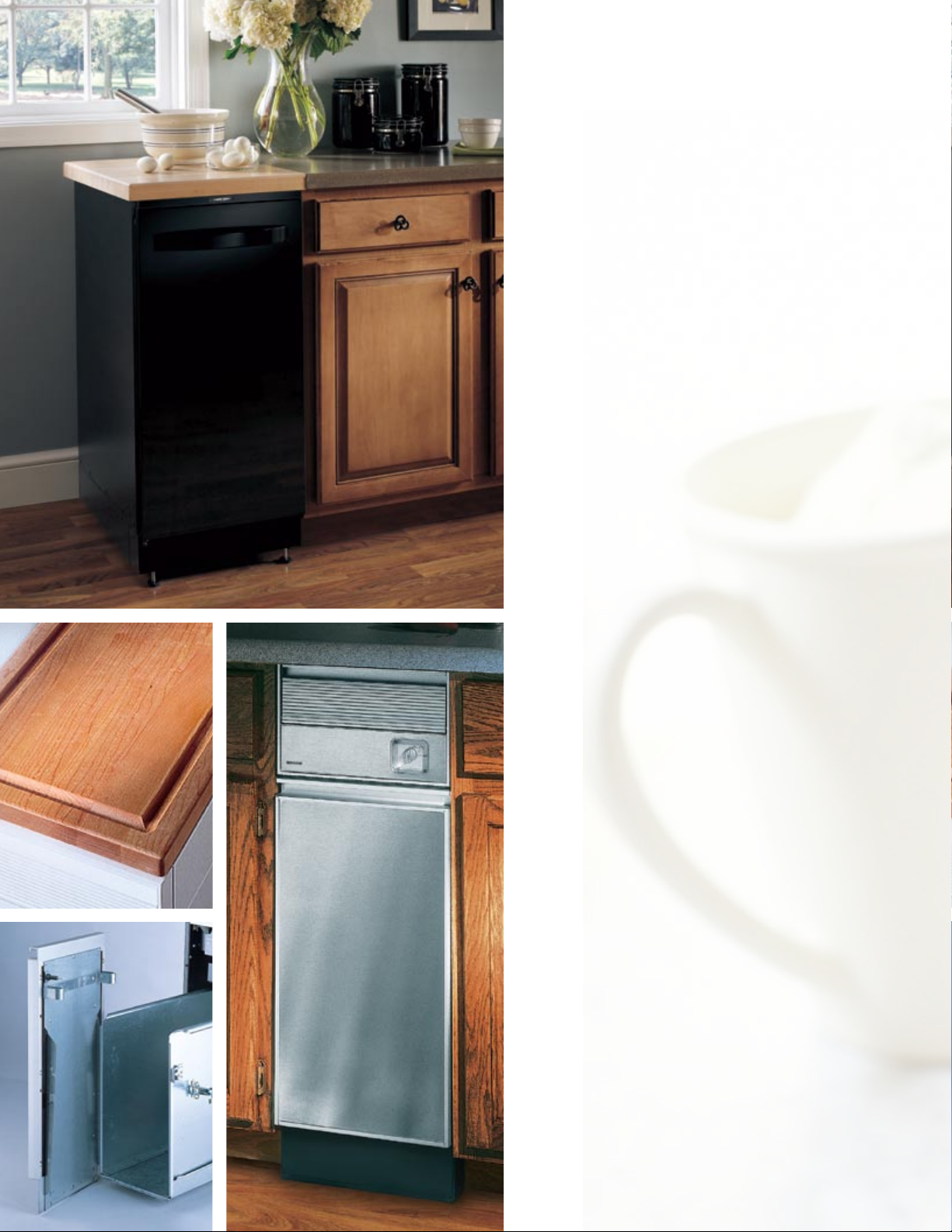

Shown: Model 15XEBL
Toe Kick Kit: 15TCTK
Butcher block cutting board: 15TCBB
Beauty that stands on its own.
When it’s not convenient or possible for built-in
installation, Broan Elite offers the perfect
solution—a Toe Kick Kit that allows the compactor
to stand alone. All models feature finger-print
resistant finishes on the top and sides. Cap your
compactor with our solid maple cutting board or
create a custom top to match your existing décor.
Butcher block cutting board: 1004
10
Narrow Profile Trash Compactors
Our narrow profile compactors are just 12" wide,
making it easy to find a place for them in any
kitchen or pantry.
Compactor features:
Swing away door•
Convenient toe release on models 1050 and 1051•
Compacting ram mechanism automatically reverses •
if the load is off center
Models 1050 and 1051 can be used as a standalone •
unit with an optional cutting board top
Models 1050 and 1051 come with a laminate, •
reversible-color door panel
Shown: Model 1052
Broan Trash Compactors Specifications
20¼
12
34½
22¼
14
7
⁄8
34
1
⁄8
21½
14
7
⁄8
34
1
⁄8
Model
Number Door Width and Finish
Broan Elite XE
15XEWH
15XEBL
15XESS
15XESSA
15XEWT
15XETT
15" Automatic Compactor,
White Door
15" Automatic Compactor,
Black Door
15" Automatic Compactor,
Stainless Steel Flat Door
15" Automatic Compactor,
Stainless Steel Arched Door
15" Automatic Compactor,
Wood Trim Door Pan
15" Automatic Compactor,
Tile Trim Door Pan
Broan Elite
Compacting
Power
3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 211⁄2" 120V • • •
3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 211⁄2" 120V • • •
3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 211⁄2" 120V • • •
3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 221⁄4" 120V • • •
3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 211⁄2" 120V • • •
3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 211⁄2" 120V • • •
Motor
Horse Power
Specifications and Accessories
Compacting
Ratio Dimensions Electrical
Odor
Control Microban
Programmable
Operation
15WH
15BL
15SS
15WT
15TT
Broan
1050
1051
1052
Accessories
15TCBL
1006
15TCOD
15TCTK
15TCBB
1004
15" Compactor, White Door 3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 211⁄2" 120V •
15" Compactor, Black Door 3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 211⁄2" 120V •
15" Compactor,
Stainless Steel Flat Door
15" Compactor,
Wood Trim Door Pan
15" Compactor,
Tile Trim Door Pan
12" Compactor,
Black/Bisque Reversible Door
12" Compactor,
Black/White Reversible Door
12" Compactor,
Stainless Steel Door
3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 211⁄2" 120V •
3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 211⁄2" 120V •
3000 lbs. 3/4 hp 6:1 147⁄8" x 341⁄8" x 211⁄2" 120V •
3000 lbs. 1/3 hp 6:1 12" x 341⁄2" x 201⁄4" 120V
3000 lbs. 1/3 hp 6:1 12" x 341⁄2" x 201⁄4" 120V
3000 lbs.
1/3 hp 6:1 12" x 34
1
⁄2" x 201⁄4" 120V
Dimensional Drawings
Compactor Bags for
15" models
Compactor Bags for
12" models
60 per pack
120 per pack
Odor Control Disc 1 per pack
Free standing Toe Kick Kit for
15" models
Cutting Board (Butcher block)
for 15" models
Cutting Board (Butcher block)
for 12" models
11⁄2" Thick
11⁄2" Thick
15XEWH
15XEBL
15XESS
15XEWT
15XETT
15WH
15BL
15SS
15WT
15TT
15XESSA 1050
1051
1052
11
