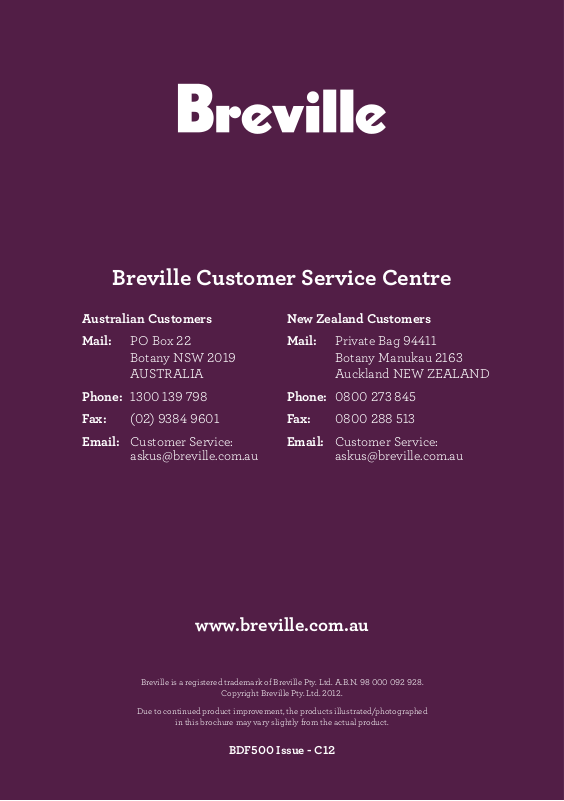

Breville BDF500 Operating Instructions

Breville Customer Service Centre

Australian Customers

Mail: PO Box 22

Botany NSW 2019 AUSTRALIA

Phone: 1300 139 798

Fax: (02) 9384 9601

Customer Service:

Email:

askus@breville.com.au

www.breville.com.au

Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928.

Due to continued product improvement, the products illustrated/photographed

in this brochure may vary slightly from the actual product.

New Zealand Customers

Mail: Private Bag 94411

Botany Manukau 2163 Auckland NEW ZEALAND

Phone:

0800 273 845

Fax: 0800 288 513

Customer Service:

Email:

askus@breville.com.au

BDF500 Issue - C12

the Smart Fryer

Instruction Booklet

™

BDF500

CONGRATULATIONS

on the purchase of your new

Breville Smart Fryer

™

CONTENTS

4 Breville recommends safety ﬁrst

6 Know your

Breville Smart Fryer™

8 Operating your

Breville Smart Fryer™

11 Cooking with your

Breville Smart Fryer™

17 Cooking techniques & tips

21 Care & cleaning

24 Recipes

BREVILLE RECOMMENDS SAFETY FIRST

At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

• Carefully read all instructions before

operating and save for future reference.

• Remove any packaging material and

promotional stickers before using the deep fryer for the ﬁrst time.

• Do not place the deep fryer near

the edge of a bench or table during operation. Ensure the surface is level, clean and free of water.

• Do not place the deep fryer on or near

a hot gas or electric burner, or where it could touch a heated oven.

• Place the deep fryer at least 20cm

away from walls and curtains. Provide adequate space above and on all sides for air circulation around the deep fryer.

• Do not use on metal surfaces, for

example, a sink drain board.

• Always insure the deep fryer is properly

assembled before use. Follow the instruction provided in this book.

• To protect against electric shock, do not

immerse cord in water or any other liquid.

• Ensure the deep fryer is completely dry

and free of water before adding any oil.

• Extreme caution must be used when

the deep fryer contains hot oil or other liquid. Do not move the appliance during cooking. Allow the deep fryer to cool before removing oil or other liquid.

• Solid oil products, such as butter,

margarine or animal fats of any kind should not be used in the deep fryer as they may overheat and cause a ﬁre hazard.

• Do not touch hot surfaces.

• At no time should the deep fryer be left

unattended when in use.

• The deep fryer will generate a lot of heat

and steam during and after the cooking process. To prevent the risk of burns, do not touch or block the steam ventilation area on the lid. Remove lid to reduce condensation build up.

• Take care when opening the lid. This

product generate heat and steam at high temperatures, which will escape immediately when the lid is opened. Avoid touching hot surfaces.

• Do not place anything on top of the deep

fryer when the lid is closed, when in use and when stored.

• Always switch the deep fryer off at the

power outlet, then unplug and allow to cool, if appliance is not in use, before cleaning, before attempting to move the appliance, disassembling, assembling and when storing the appliance.

• Keep the appliance clean. Follow the

cleaning instructions provided in this book.

• Do not immerse the deep fryer control

panel, element or cord in water or any other liquid.

BREVILLE RECOMMENDS SAFETY FIRST

IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

• Fully unwind the power cord before use.

• Do not let the power cord hang over

the edge of a bench or table, touch hot surfaces or become knotted.

• To protect against electric shock do not

immerse the power cord, power plug or appliance in water or any other liquid.

• The appliance is not intended for use

by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure

that they do not play with the appliance.

• It is recommended to regularly inspect

the appliance. To avoid a hazard do not use the appliance if power cord, power plug or appliance becomes damaged in any way. Return the entire appliance to the nearest authorised Breville Service Centre for examination and/or repair.

• Any maintenance other than cleaning

should be performed at an authorised Breville Service Centre.

• This appliance is for household use only.

Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.

• The installation of a residual current

device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice.

• The appliance is not intended to be

operated by means of an external timer or a separate remote control system.

SAVE THESE INSTRUCTIONS

KNOW

your Breville Smart Fryer

™

KNOW YOUR BREVILLE SMART FRYER™

FE E

J K

A. LCD display

Indicates time, temperature plus preprogrammed cooking functions for your favourite dishes.

B. Mesh ﬁlter

Filter to minimize cooking odours.

C. Cord storage D. ‘Cool Zone’ technology

Debris falls into cooler oil, preventing excess burning and extending oil life.

E. Cool touch handles F. Large viewing window

G. Large 4 litre capacity

Easy to disassemble and clean. 1–1.2kg recommended cooking capacity.

H. Stainless steel exterior

High quality stainless steel cooking surface. Ideal for the professional cook.

I. Non-skid feet J. Frying basket with fold down handle

Handle folds inside basket for easy storage.

K. Powerful 2200 watt removable element

OPERATING

your Breville Smart Fryer™

OPERATING YOUR BREVILLE SMART FRYER™

STEP 1

Remove lid from the deep fryer by grasping the handle on top and lift off.

STEP 2

The wire frying basket has a hinged handle for compact storage. Remove the basket from the deep fryer. Extend and lock the basket handle into position by squeezing the two handle prongs together, pull back and lock behind the two wire supports extending from edge of basket.

STEP 3

Lift the control panel with attached element upwards and away from the deep fryer.

STEP 4

Remove the inner frying bowl by grasping the rim and lifting upwards.

STEP 5

To reassemble the deep fryer, reverse steps 1–4.

WARNING

When assembling your deep fryer for use, please ensure the narrow tongues in the control panel are inserted into the corresponding grooves of the deep fryer body. The deep fryer will not operate unless correctly assembled.

BEFORE FIRST USE

Remove any promotional materials and packaging materials before use. Wash the lid, removable inner bowl, stainless steel outer body and wire frying basket in hot soapy water, rinse and dry thoroughly. Wipe the element with a soft, damp cloth and dry thoroughly. Reassemble and ensure the bowl is completely free of water before adding any oil.

1. Place the deep fryer on a dry, level

surface. Ensure the deep fryer is not too close to the edge of the bench top, and that the power cord or basket handle does not extend over the edge.

2. Remove the frying basket from the deep

fryer and add oil to the bowl. Do not add less than the minimum level mark (2.5 litres) or exceed the maximum level mark (4 litres).

IMPORTANT

NEVER exceed the maximum level mark with oil (maximum is 4 litres). This product must be ﬁlled with oil to the exact marked level. The product will be severely damaged if heated without oil in the frying bowl.

3. Replace the lid.

4. Plug in the power cord. Ensure cord

is fully extended. Switch on at power outlet and the deep fryer will beep once for self checking, the display panel will illuminate with white background light. The deep fryer enters COOK mode.

OPERATING YOUR BREVILLE SMART FRYER™

5. To change temperature format, press

and hold the SCROLL/SELECT knob for three seconds. If the temperature format is set to Celsius, it will change to Fahrenheit after pressing the SCROLL/SELECT knob for three seconds. Change the format one time per command. To change the format again, release the knob, and again press and hold the SCROLL/SELECT knob for three seconds.

NOTE

When the deep fryer is switched off at the power outlet and then switched back on, the cooking temperature format display will default to the last selected format, Celsius or Fahrenheit.

STAND BY MODE

When the deep fryer remains inactive for 10 minutes, it will enter stand by mode. The white backlight will turn off and STANDBY will display. The fryer will come out of stand by mode by pushing any button or turning the SCROLL/SELECT knob and then is ready to start a cooking operation.

COOKING

with your Breville Smart Fryer

™
