Breville BDF200 Operating Manual

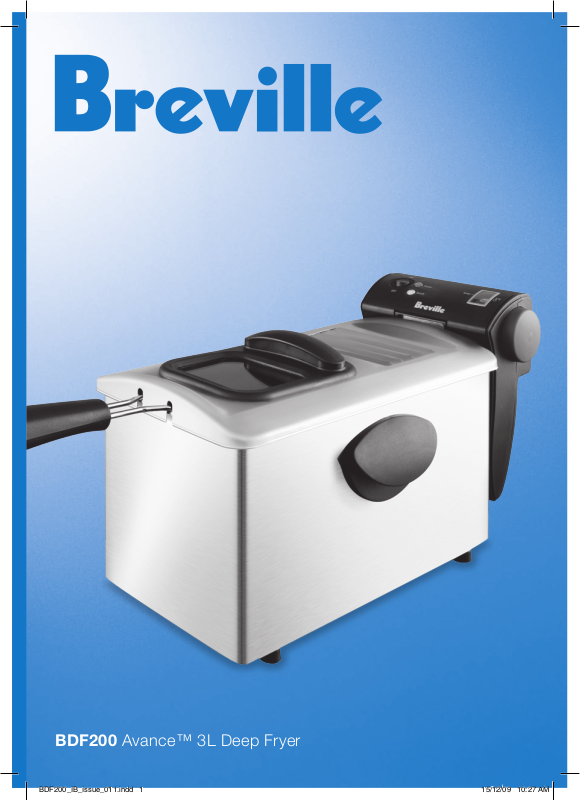

BDF200 Avance™ 3L Deep Fryer

Contents

Page

Introduction 3

Breville Recommends Safety First 4

Know your Breville Deep Fryer 6

How to Assemble/Disassemble your Deep Fryer 7

Operating your Deep Fryer 8

Care and Cleaning 11

Cooking Guide 12

Handy Hints 13

Recipes R2

Congratulations

on the purchase of your new Breville Avance™ Deep Fryer

Breville Recommends Safety First

At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT SAFEGUARDS FOR YOUR BREVILLE AVANCE™ DEEP FRYER

• Always turn the appliance off, ﬁrst turn off at the

power outlet and then unplug cord when not in use before attempting to move the appliance, before cleaning or storing.

• Do not immerse the appliance controller, supply cord

or plug in water or any other liquid.

• The appliance is not intended for use by young

children or inﬁrm persons without supervision.

• Do not leave the appliance unattended when in use.

• Young children should be supervised to ensure that

they do not play with the appliance.

• Always use the appliance on a dry, level surface.

• Do not let the cord touch hot surfaces, become

knotted or hang from the edge of benchtops.

• Do not place this appliance on or near a hot gas or

electric burner, or where it could touch a heated oven.

• This appliance is for household use only. Do not use

this appliance for other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.

• Regularly inspect the supply cord, plug and actual

appliance for any damage. If found damaged in any way, immediately cease use of the appliance and return the entire appliance to the nearest authorised Breville Service Centre for examination, replacement or repair.

• Keep the unit clear of walls, curtains and other heat

sensitive materials (minimum distance 200mm).

• Do not place unit under shelving or ﬂammable

materials when in use.

• Always follow the maximum and minimum quantities

of oil stated in the instructions and recipes.

• Do not exceed the maximum ﬁll level (3 litres). Never

overﬁll the bowl with oil.

• Extreme caution must be used when the appliance is

ﬁlled with hot oil. Always allow the appliance to cool before removing the oil.

• Do not move the deep fryer during cooking or

whilst hot.

• When deep frying, ensure no water comes in contact

with hot oil as this will cause splattering. Ensure that the deep fryer is dry before adding any oil.

• Never lean over the deep fryer when lifting the lid.

Excess trapped steam created during the cooking process will be released when the lid is opened.

• Never pour oil out of the deep fryer when either the

unit or oil is hot. Allow both the unit and contents to cool completely before removing oil.

• It is not recommended to add extra oil when hot as

splashing may occur.

• Always ensure the heater element and controller are

correctly positioned onto the bowl assembly and ﬁlled to min/max before connecting to a power outlet.

• Do not use the deep fryer on metal surfaces, for

example, a sink drain board.

• At no time should the deep fryer be left unattended

when in use.

• Do not place anything on top of the deep fryer when

the lid is closed, when in use and when stored.

• The installation of a residual current device (safety

switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice.

IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

• Fully unwind the power cord before use.

• Do not let the power cord hang over the edge of a

bench or table, touch hot surfaces or become knotted.

• To protect against electric shock do not immerse the

power cord, power plug or appliance in water or any other liquid.

• The appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do

not play with the appliance.

• It is recommended to regularly inspect the appliance.

To avoid a hazard do not use the appliance if power cord, power plug or appliance becomes damaged in any way. Return the entire appliance to the nearest authorised Breville Service Centre for examination and/or repair.

• Any maintenance other than cleaning should be

performed at an authorised Breville Service Centre.

• This appliance is for household use only. Do not use

this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.

• The installation of a residual current device (safety

switch is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice.

Know Your Breville Avance™ Deep Fryer

BDF200 BREVILLE AVANCE™ DEEP FRYER

1 2

1. Power ‘On’ switch

2. ‘On’ and ‘Ready’ lights

3. Variable temperature control

4. Large viewing window

5. ‘Cool Zone’ technology

6. 3 litre oil capacity

7. 1kg food capacity

7 8

8. Stylish stainless steel housing

9. Mesh ﬁlter

10. Frying basket

with fold down handle

11. Powerful 2400 watt removable element

12. Removable enamel bowl

How to Assemble/Disassemble your Breville Avance™ Deep Fryer

1. Remove lid by simply lifting off deep fryer.

2. The hinged basket is designed for compact storage

(see ﬁg 1).

Fig. 1

3. To extend handle, pull handle and lift backwards.

4. Lift back panel upwards and away from unit

(see ﬁg 2).

Fig. 2

5. Remove bowl by grasping rim of bowl and lifting

upwards (see ﬁg 3).

Fig. 3

6. Reverse these steps to reassemble your new

deep fryer.

NOTE

The enamel removable bowl can only be inserted one way.

WHEN ASSEMBLING YOUR DEEP FRYER FOR USE, PLEASE ENSURE THE GROOVES IN THE CONTROL ASSEMBLY ARE INSERTED INTO THE TONGUE OF THE DEEP FRYER BODY. THE DEEP FRYER WILL NOT OPERATE UNLESS CORRECTLY ASSEMBLED.

TONGUE GOOVES

Fig. A Fig. B Fig. C

Operating Your Breville Avance™ Deep Fryer

Before First Use

Remove all packaging materials and any promotional labels from your deep fryer.

Wash the lid, removable bowl and wire frying basket in hot soapy water and dry thoroughly. Wipe inside of the bowl with a damp cloth and dry thoroughly.

1. Place the deep fryer on a dry, level surface. Ensure

the deep fryer is not too close to the edge of the bench top, and that the power cord or basket handle does not hang over the edge.

2. With the basket out of the deep fryer, add oil to the

bowl. Ensure not to add less than the minimum level mark or exceed the maximum level mark (3 litres).

NOTE

Important : NEVER exceed the maximum fill level (3 litres).

3. Replace the lid.

4. Plug the power cord into a 230/240 volt power

outlet and turn on the power ‘On’ switch.

5. Turn the temperature control dial to the

desired temperature. The red ‘Power On‘ light will illuminate.

NOTE

Your Avance™ Deep Fryer is fitted with a special interlock switch and will not operate if not properly assembled.

6. Preheat the oil at the selected temperature until the

‘Green’ temperature ready light illuminates.

NOTE

When cooking the first batch of food, allow the deep fryer to cycle on and off twice (as indicated by the green temperature ‘Ready’ light) before placing the food into the deep fryer. This will take approximately 15-20 minutes.

7. When the oil has preheated, place the basket

into the deep fryer in the raised position, with the basket handle in the extended horizontal position (see ﬁg 4).

Fig. 4

8. Add food to the basket. Do not ﬁll the basket so that

it is more than two-thirds full.

9. Holding the fryer basket handle lift from the holding

position and gently lower the basket into the oil.

10. You may choose to cook with the lid on or off the

deep fryer.

NOTE

Uniform-sized pieces will cook more evenly.

POWER CORD NEEDS TO BE FULLY EXTENDED BEFORE USE. ALWAYS ADD THE REQUIRED AMOUNT OF OIL BEFORE SWITCHING THE POWER ON AT THE POWER OUTLET.

™

COOL ZONE AREA

Deep Fryer continued

11. When the food is cooked, raise the basket out of the

oil to drain, then turn temperature control dial back to 150°C then turn the power ‘Off’ with the power switch, then unplug the power cord.

12. Keep the basket in the raised position for a

few minutes to drain the oil from the food before serving.

13. If continuing to cook allow the unit to reheat until

the ‘Green’ temperature light illuminates.

14. Allow the deep fryer to fully cool before emptying

the oil or cleaning the unit.

Cool Zone Technology

The submerged heating element system on the Avance™ Deep Fryer allows oil to be heated more effectively, and respond quickly to oil temperature changes.

Oil below the heating element is cooler and allows cooked foods including crumbs to sink to the bottom of the enamel bowl and not cook any further, tainting the oil taste.

This allows further cooking to take place without food particles interfering or tainting the cooked result.

The Cool Zone Technology results in less need to change the cooking oil. Used oil can be re-used more times than in standard deep fryers.

Auto Cut-Out Reset Button

Always add the required amount of oil BEFORE switching the power on at the power outlet. An Auto Cut Out safety switch will be activated if the unit is turned on without oil in the bowl.

To re-activate the unit, let the unit cool completely and then reset by pushing the red button on the back of the controller assembly above the cord storage.

DURING AND IMMEDIATELY AFTER COOKING, YOU MAY SEE STEAM RISING THROUGH THE FILTER VENT OPENINGS IN THE LID. THIS IS NORMAL, HOWEVER AVOID TOUCHING THIS AREA DURING COOKING TO PREVENT STEAM BURNS AS THE STEAM THAT IS GENERATED IS AT A HIGH TEMPERATURE. AS THE BASKET ITSELF GETS VERY HOT, ONLY USE THE HANDLE TO HOLD OR CARRY THE BASKET FOR SERVING.
